Thread: Brno Fox / CZ 527 flush bottom metal and internal magazine mods

  1. #1
    Gold member Pointer's Avatar
    Join Date
    Dec 2011
    Location
    BOP
    Posts
    3,885

    Brno Fox / CZ 527 flush bottom metal and internal magazine mods

    I had been asked about this elsewhere thought I would put a pic up. I find to carry the CZ 527/Brno Fox models are a pain, the internal magazine sits where the hand should carry the rifle. I feel this is important in a bush stalking rifle. However I'm sure in a varminting capacity it wouldn't matter and the extra rounds would be useful.

    The one below is a 1971 Brno fox, the mods are similar to doing a CZ 527 except for the bottom metal on a Brno fox includes the trigger mechanism, as opposed to the CZ 527 where the trigger mechanism is attached to the bottom of the action, not the bottom metal. This makes it inherently easier to do on a 527.

    Name:  IMG_1175.jpg
Views: 7295
Size:  96.6 KB

    As you can see this photo is in the white, before bluing. You can see where the webbing from the trigger guard that reaches toward where the detachable magazine sat has been cut away, and shaped to a more regular trigger guard. The new bottom metal is tig welded in place to cover the magazine hole after the trigger guard was shaped. Internal magazine spring pics to follow.

  2. #2
    By Popular Demand gimp's Avatar
    Join Date
    Dec 2011
    Location
    The Big H
    Posts
    7,899
    3 Rounds? How's it look on the rifle?

  3. #3
    Gold member Pointer's Avatar
    Join Date
    Dec 2011
    Location
    BOP
    Posts
    3,885
    Hi Gimp, yeah three rounds. Useless to a varminter, perfect to a sika hunter. It sits flush with the wood work, very slim profile. Best of all it carries nicely at the balance point in a rifle that carrying a fixed 4x Leupold weighs around the 5lb mark. I plan to rebarrel this in 6x45 when the metalwork is finished also. Will put a pic up of how it looks on the rifle when I have finished the mag work and have blued it (been away for a few days and have been a bit slack on the home job front..)

  4. #4
    Member Normie's Avatar
    Join Date
    Dec 2011
    Location
    Tuakau
    Posts
    724
    Quote Originally Posted by Pointer View Post
    Hi Gimp, yeah three rounds. Useless to a varminter, perfect to a sika hunter. It sits flush with the wood work, very slim profile. Best of all it carries nicely at the balance point in a rifle that carrying a fixed 4x Leupold weighs around the 5lb mark. I plan to rebarrel this in 6x45 when the metalwork is finished also. Will put a pic up of how it looks on the rifle when I have finished the mag work and have blued it (been away for a few days and have been a bit slack on the home job front..)
    6x45 will be cool. Looking good Pointer. Waiting on the rest of the build/write up now. Keep us posted.
    If you don't get Dirt, Blood or Grease under your nails it ain't a hobby

  5. #5
    Gold member Pointer's Avatar
    Join Date
    Dec 2011
    Location
    BOP
    Posts
    3,885
    No worries Normie, will do. Glad to see there is others interested in a good old fashioned 'fit for purpose' gun

  6. #6
    Ex stick thrower madjon_'s Avatar
    Join Date
    Dec 2011
    Location
    Richmond. Tasman.and Oz
    Posts
    2,855
    [QUOTE Glad to see there is others interested in a good old fashioned 'fit for purpose' gun[/QUOTE]

    Name:  IMG_1313.jpg
Views: 4010
Size:  66.8 KB

    270 PH Safari 1200 C
    At 40 she just discovered 110 TTSX
    Real guns start with the number 3 or bigger and make two holes, one in and one out." -

  7. #7
    Gold member Pointer's Avatar
    Join Date
    Dec 2011
    Location
    BOP
    Posts
    3,885
    How does it like em MJ?

  8. #8
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    2,714
    Id be keen to see the finished bottom metal in the rifle, the sticking out magizine is the worst bit about my 527 it loves to jam into ones back when slung over the shoulder.

  9. #9
    Member
    Join Date
    Dec 2013
    Posts
    603
    Hi Jim,

    Be great to see those photos of the finished job. Cheers

  10. #10
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    2,714
    Quote Originally Posted by Pointer View Post
    I had been asked about this elsewhere thought I would put a pic up. I find to carry the CZ 527/Brno Fox models are a pain, the internal magazine sits where the hand should carry the rifle. I feel this is important in a bush stalking rifle. However I'm sure in a varminting capacity it wouldn't matter and the extra rounds would be useful.

    The one below is a 1971 Brno fox, the mods are similar to doing a CZ 527 except for the bottom metal on a Brno fox includes the trigger mechanism, as opposed to the CZ 527 where the trigger mechanism is attached to the bottom of the action, not the bottom metal. This makes it inherently easier to do on a 527.

    Attachment 1186

    As you can see this photo is in the white, before bluing. You can see where the webbing from the trigger guard that reaches toward where the detachable magazine sat has been cut away, and shaped to a more regular trigger guard. The new bottom metal is tig welded in place to cover the magazine hole after the trigger guard was shaped. Internal magazine spring pics to follow.
    Hows it all look now its blued and put back together?

  11. #11
    Member Timmay's Avatar
    Join Date
    Dec 2011
    Location
    CNI
    Posts
    2,411
    this one get stolen?

  12. #12
    Gold member Pointer's Avatar
    Join Date
    Dec 2011
    Location
    BOP
    Posts
    3,885
    Sorry fellas didn't see this - Gun isn't finished, bottom metal is done, new barrel screwed on, bedded, then project was put on hold. Will throw some pics up

  13. #13
    Gold member Pointer's Avatar
    Join Date
    Dec 2011
    Location
    BOP
    Posts
    3,885

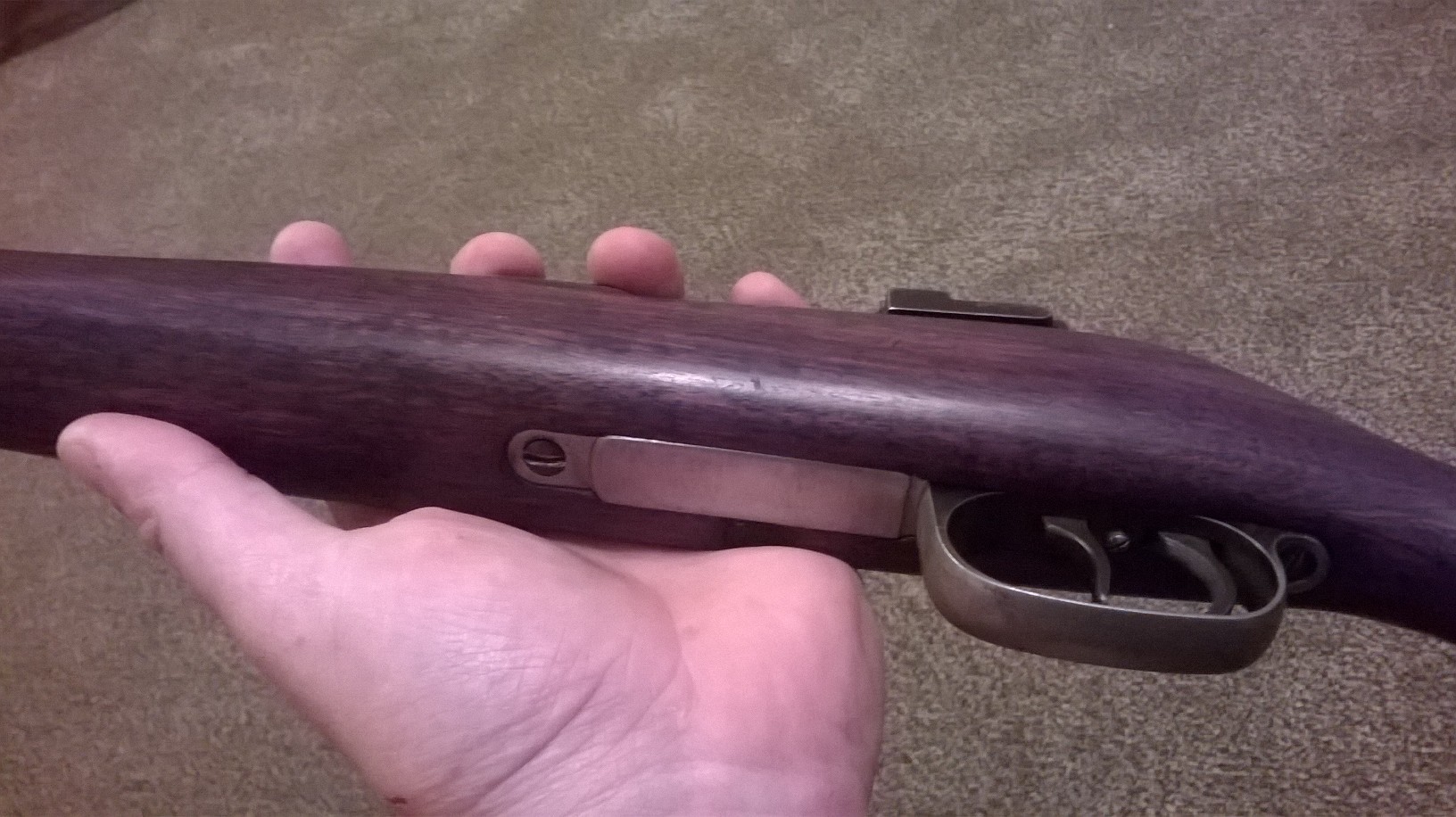

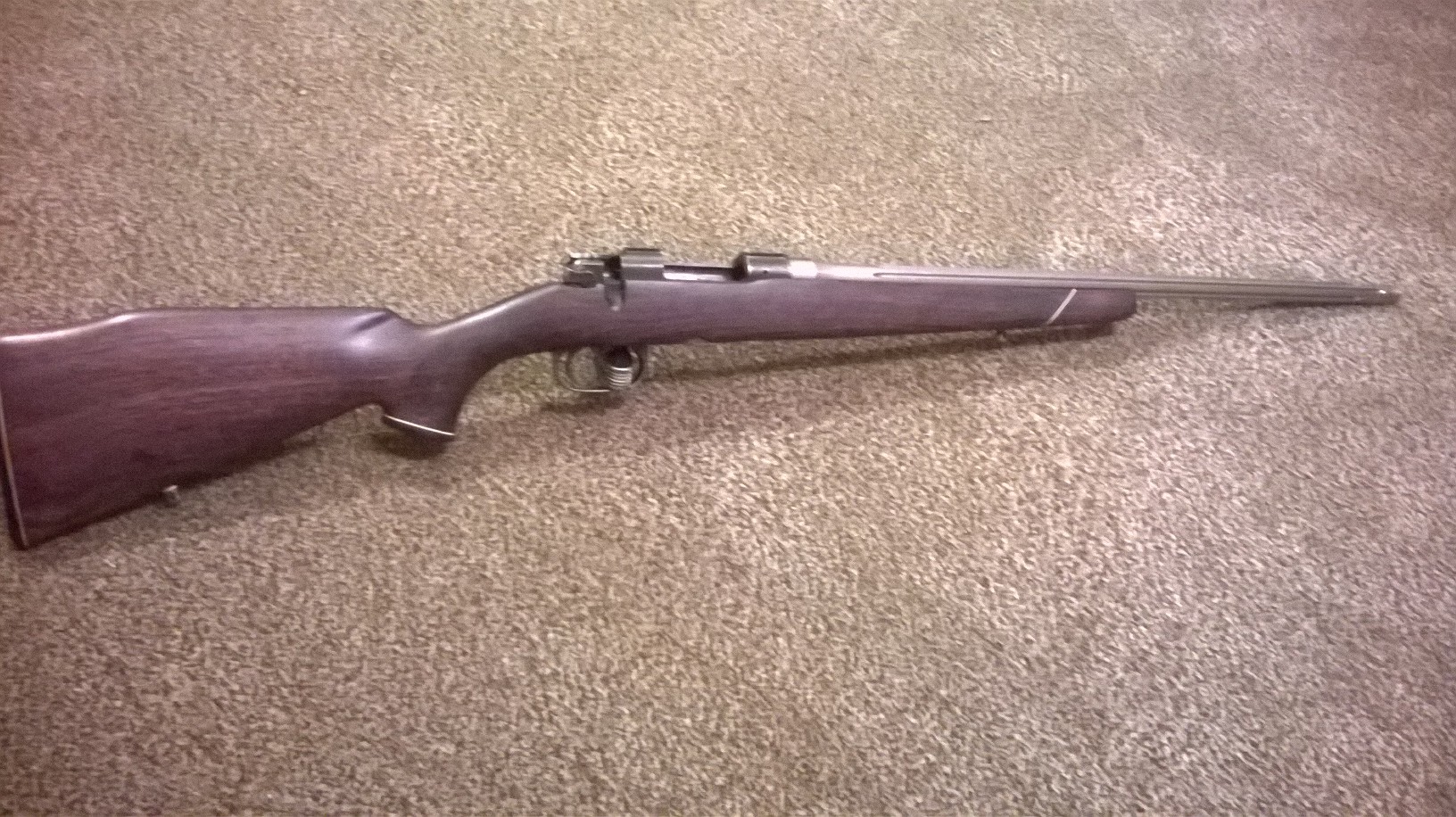

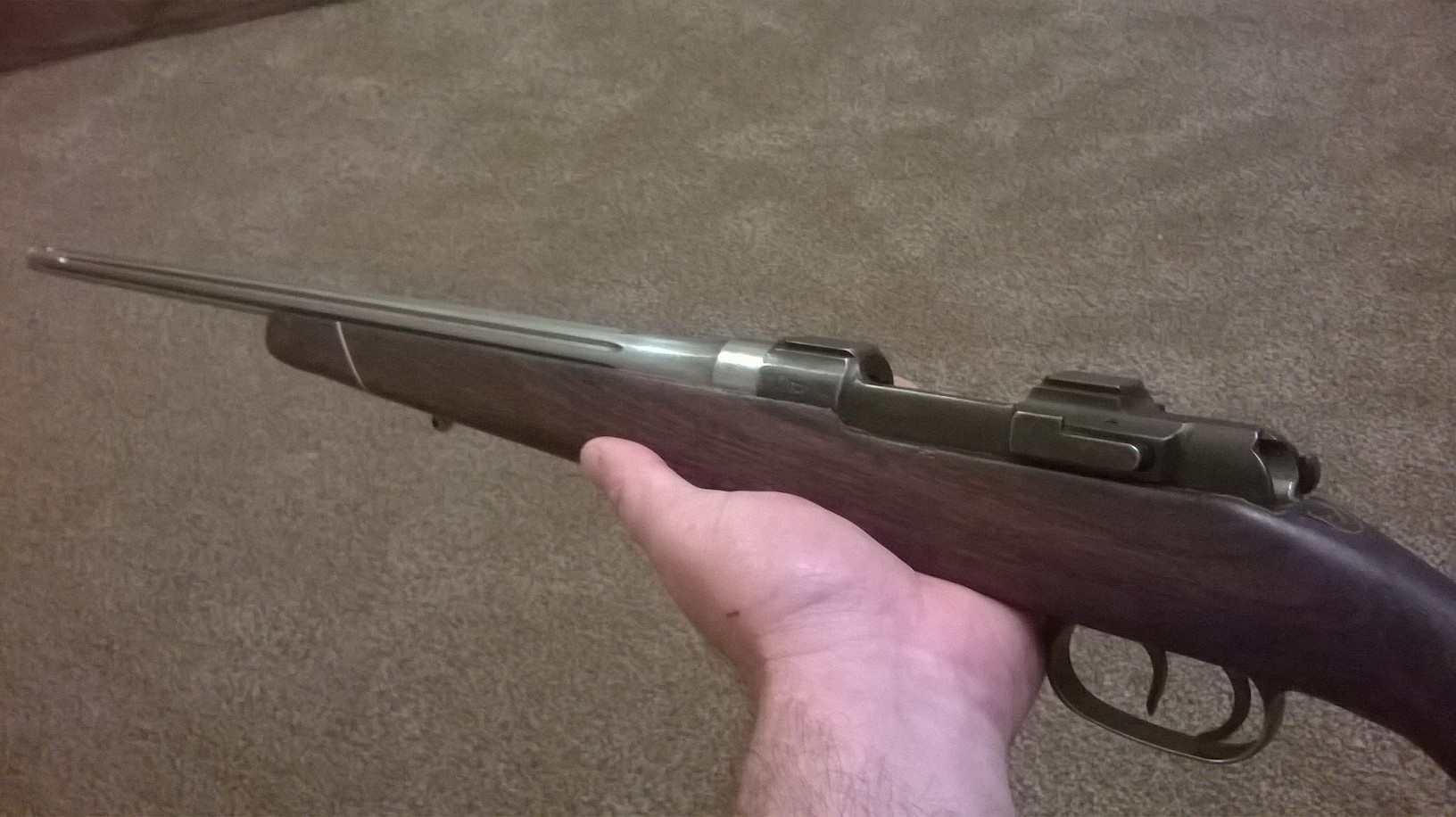

    Sorry @Shamus and @Bill999 , six months late is better than not at all!

    Blame @Toby for the pics, he made me.

    The pics look washed out due to being phone pics but you get the idea. weighs bang on 5lb right now

    Name:  WP_20140614_001.jpg
Views: 2287
Size:  371.3 KBName:  WP_20140614_002.jpg
Views: 3120
Size:  365.6 KBName:  WP_20140614_003.jpg
Views: 2400
Size:  568.6 KB
    Brian, Dino, Bill999 and 3 others like this.

  14. #14
    Member
    Join Date
    Dec 2013
    Posts
    603
    Nice job :-)

    Sent from my HP Slate7 Extreme using Tapatalk

  15. #15
    Member
    Join Date
    Feb 2019
    Posts
    1
    Pointer,

    Sorry to resurrect a very old thread but I've been searching far and wide for an example of exactly what you've done here. You wouldn't happen to have a description of the steps you went through to build this good looking bottom metal would you? Or if you had it to do over again would you change things around?

    I'd love to modify my CZ 527's so they look like yours.

    Thanks
    ChrisA

    PS: Oh and, hello from the US kia ora.
