Thread: Carbon fibre full stock for Winny .270

  1. #1
    Member FRST's Avatar
    Join Date
    May 2013
    Posts
    515

    Carbon fibre full stock for Winny .270

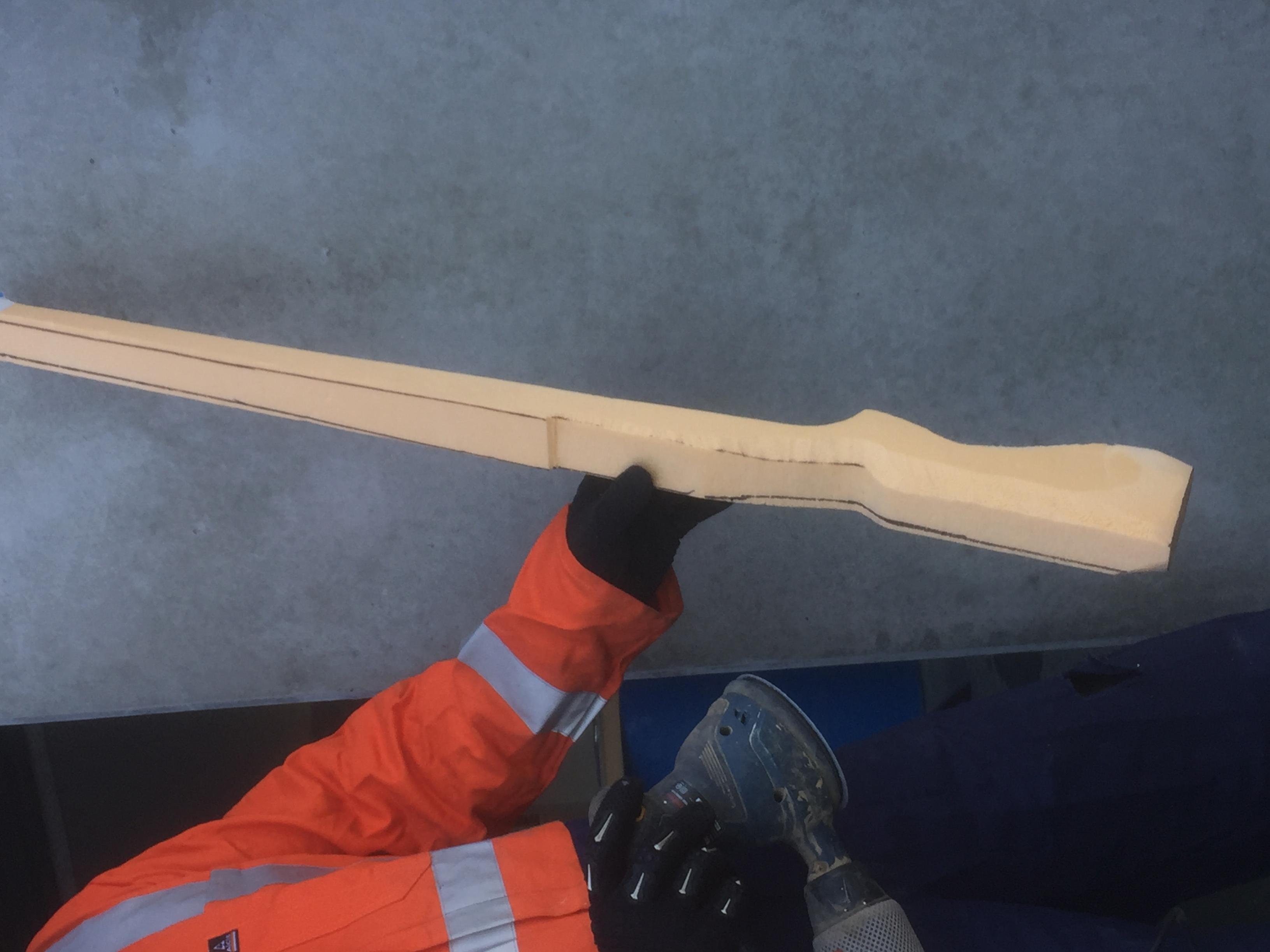

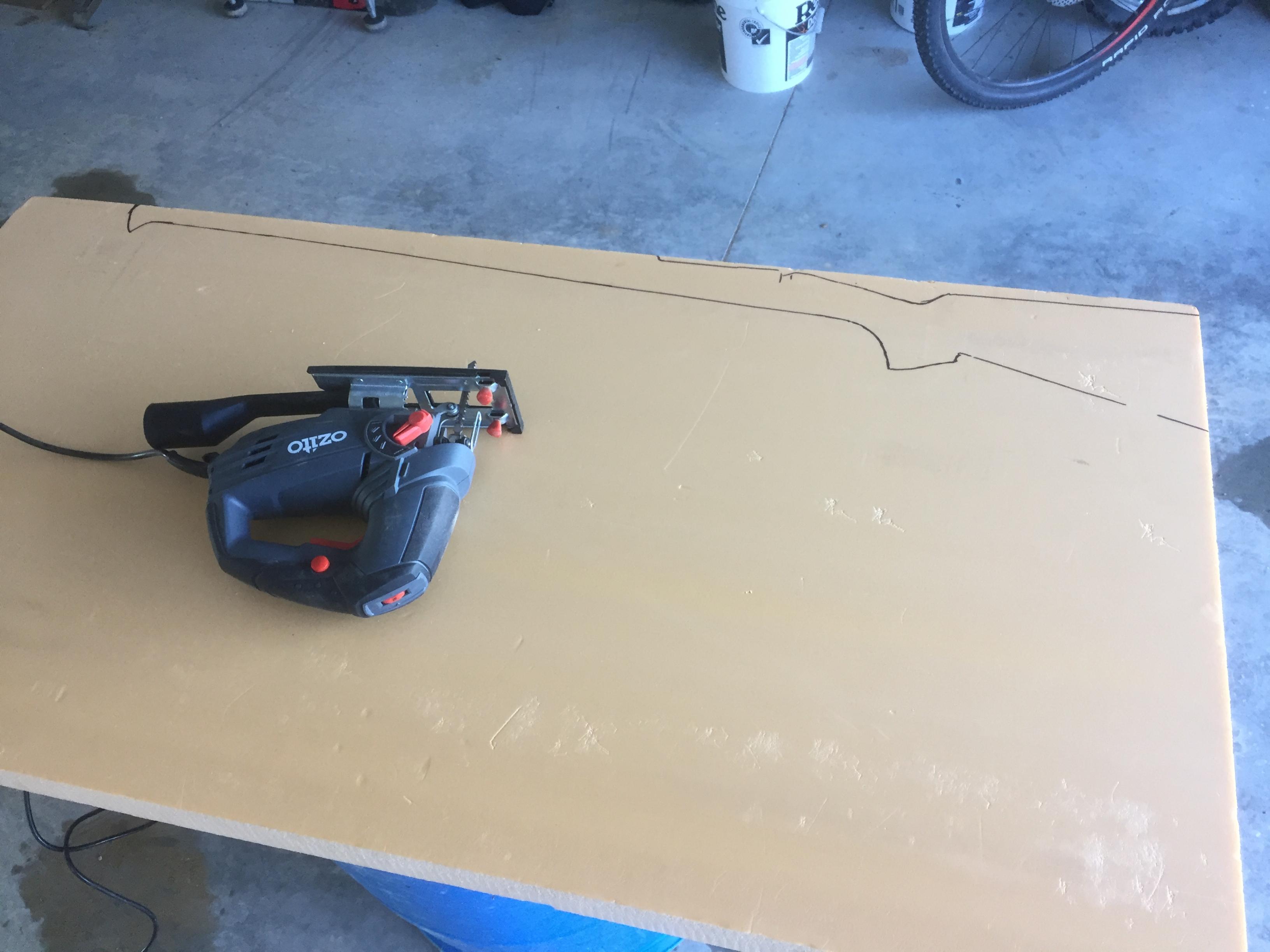

    Been thinking about trying to make one of these for a while... pulled the trigger and got on with it. Didn't want to invest in all the vacuum gear for just one stock so went the lay up route. I'm not going to pretend this has the finish or precision of a McMillan or one of Stug's creations, this is just me giving it a go, no.8 kiwi style.

    Name:  IMG_1634.jpg
Views: 663
Size:  426.9 KB
    Name:  IMG_1637.jpg
Views: 670
Size:  356.7 KB
    Timmay and mutton gun like this.

  2. #2
    Member FRST's Avatar
    Join Date
    May 2013
    Posts
    515

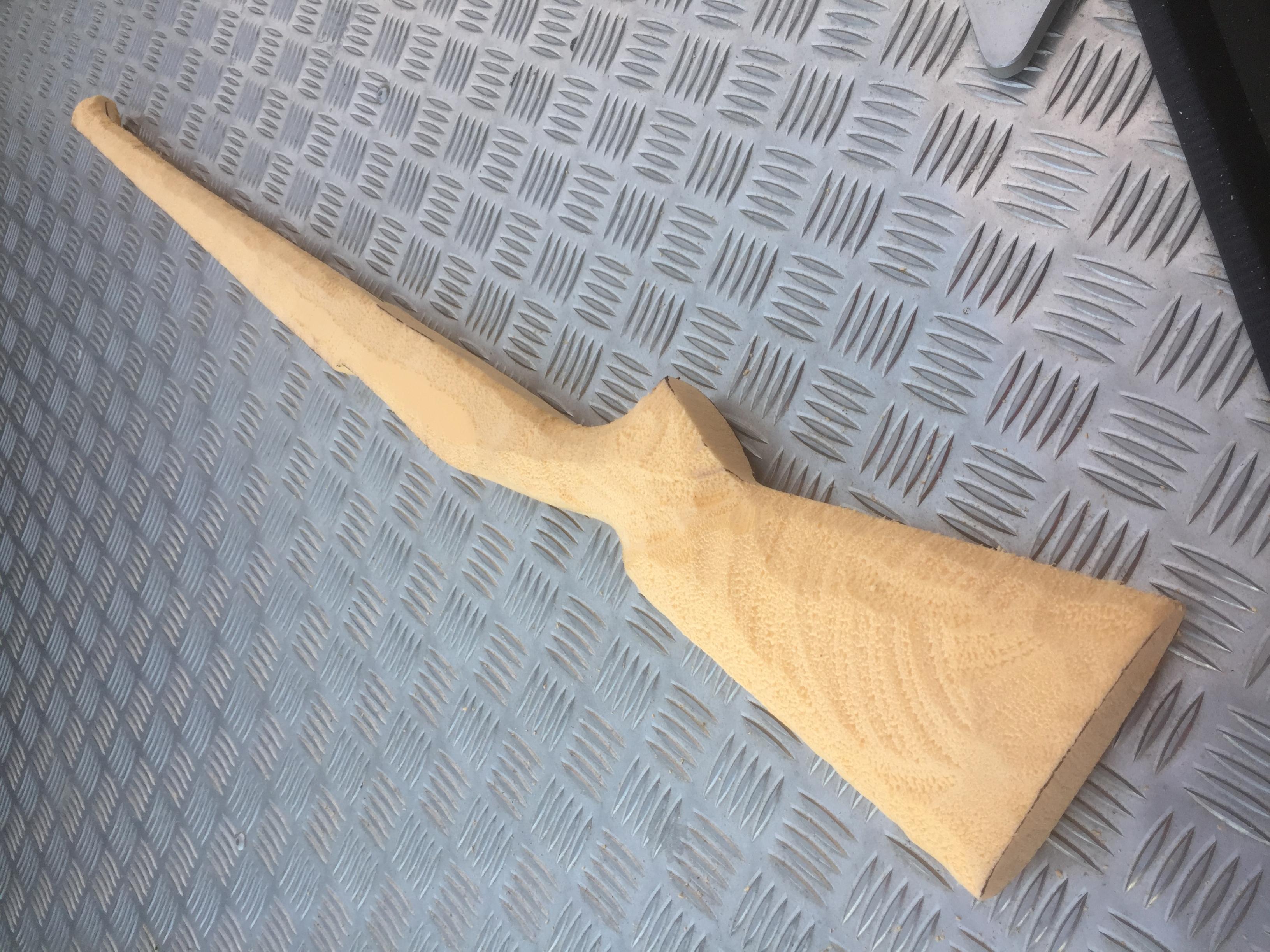

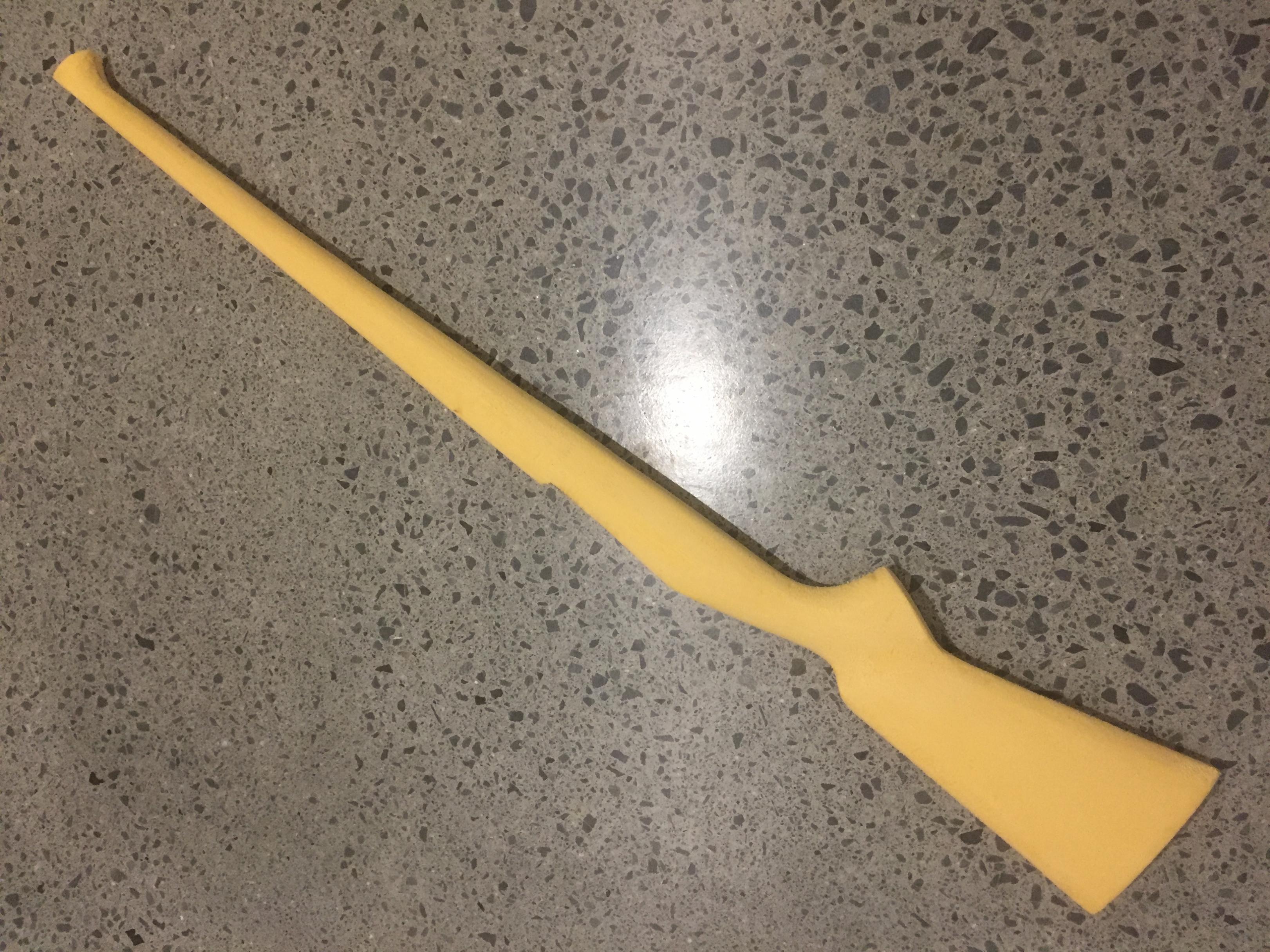

    The foam is Knauf insulation panel. Bunnings $20.
    Name:  IMG_1643.jpg
Views: 693
Size:  913.5 KB
    Name:  IMG_1647.jpg
Views: 676
Size:  977.0 KB
    kimjon likes this.

  3. #3
    Member stug's Avatar
    Join Date
    May 2012
    Location
    Oxford, Canterbury
    Posts
    3,053
    Good stuff, you'll never know where it takes you.
    kimjon likes this.

  4. #4
    Member FRST's Avatar
    Join Date
    May 2013
    Posts
    515

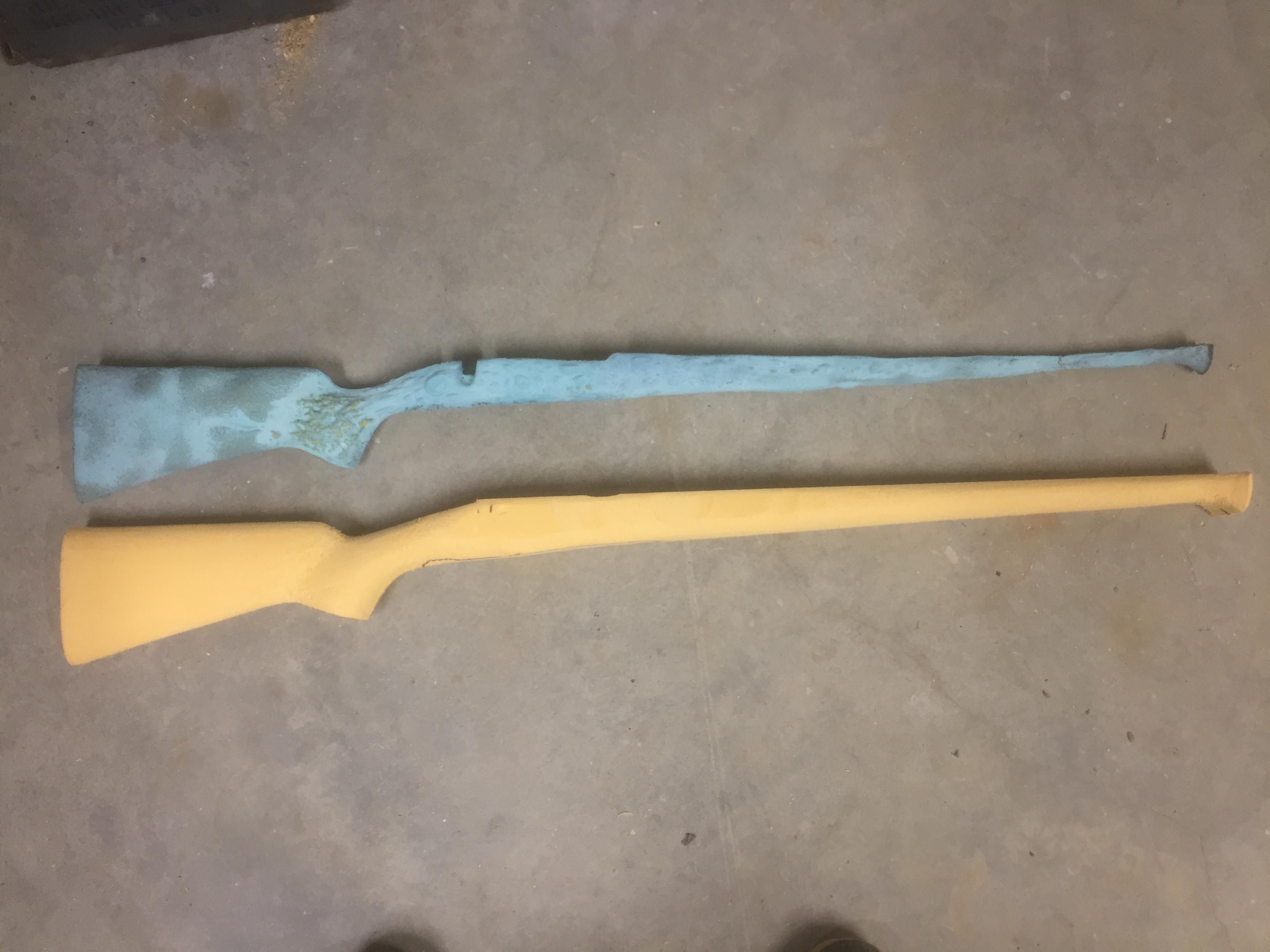

    Had to seal up the foam. Stuffed up the first stock by spraying spray putty on it. Not a good idea...Name:  IMG_1698.jpg
Views: 675
Size:  424.3 KB

  5. #5
    Member FRST's Avatar
    Join Date
    May 2013
    Posts
    515

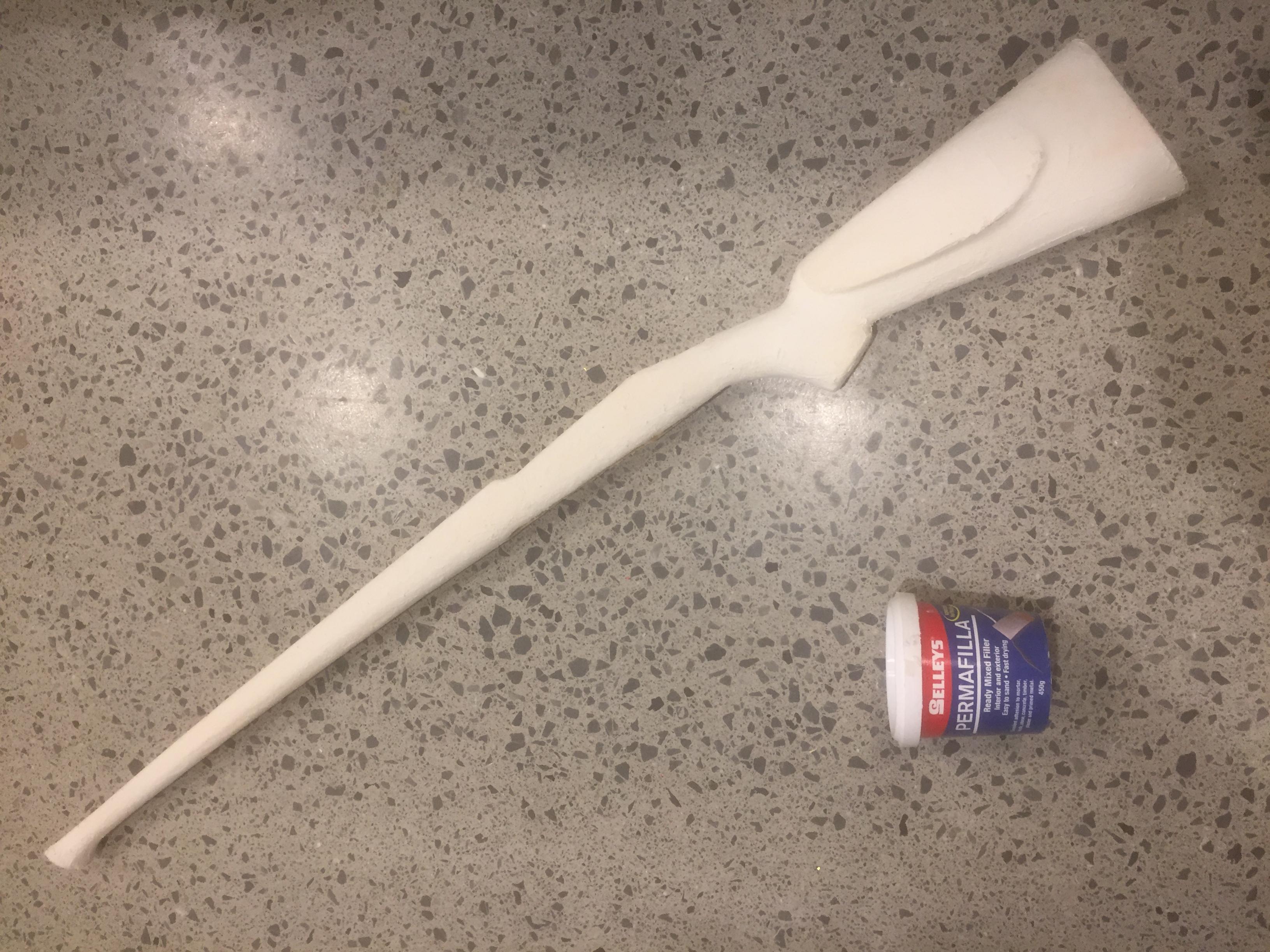

    Had better results with this stuff after watching surfboard making vids on YouTube Name:  IMG_1701.jpg
Views: 674
Size:  912.1 KB

  6. #6
    Member FRST's Avatar
    Join Date
    May 2013
    Posts
    515
    Quote Originally Posted by stug View Post
    Good stuff, you'll never know where it takes you.
    I've gained an appreciation of how well you guys go pumping these things out on a regular basis. Much respect!
    Beaker likes this.

  7. #7
    Member FRST's Avatar
    Join Date
    May 2013
    Posts
    515
    Coated the barrel & action with release agent and kept it in the foam mold to keep it straight as I applied the first layers of Carbon cloth. Couldn't believe how easily the stuff unravels and falls apart! Super hard to work with...Name:  IMG_1710.jpg
Views: 644
Size:  500.2 KB
    muzr257, R93, bigreddog and 2 others like this.

  8. #8
    Member stug's Avatar
    Join Date
    May 2012
    Location
    Oxford, Canterbury
    Posts
    3,053
    I've found the plain weave doesn't unravel as much as the twill weave. But then I noticed differences between batches of twill weave as well.
    FRST likes this.

  9. #9
    Member FRST's Avatar
    Join Date
    May 2013
    Posts
    515

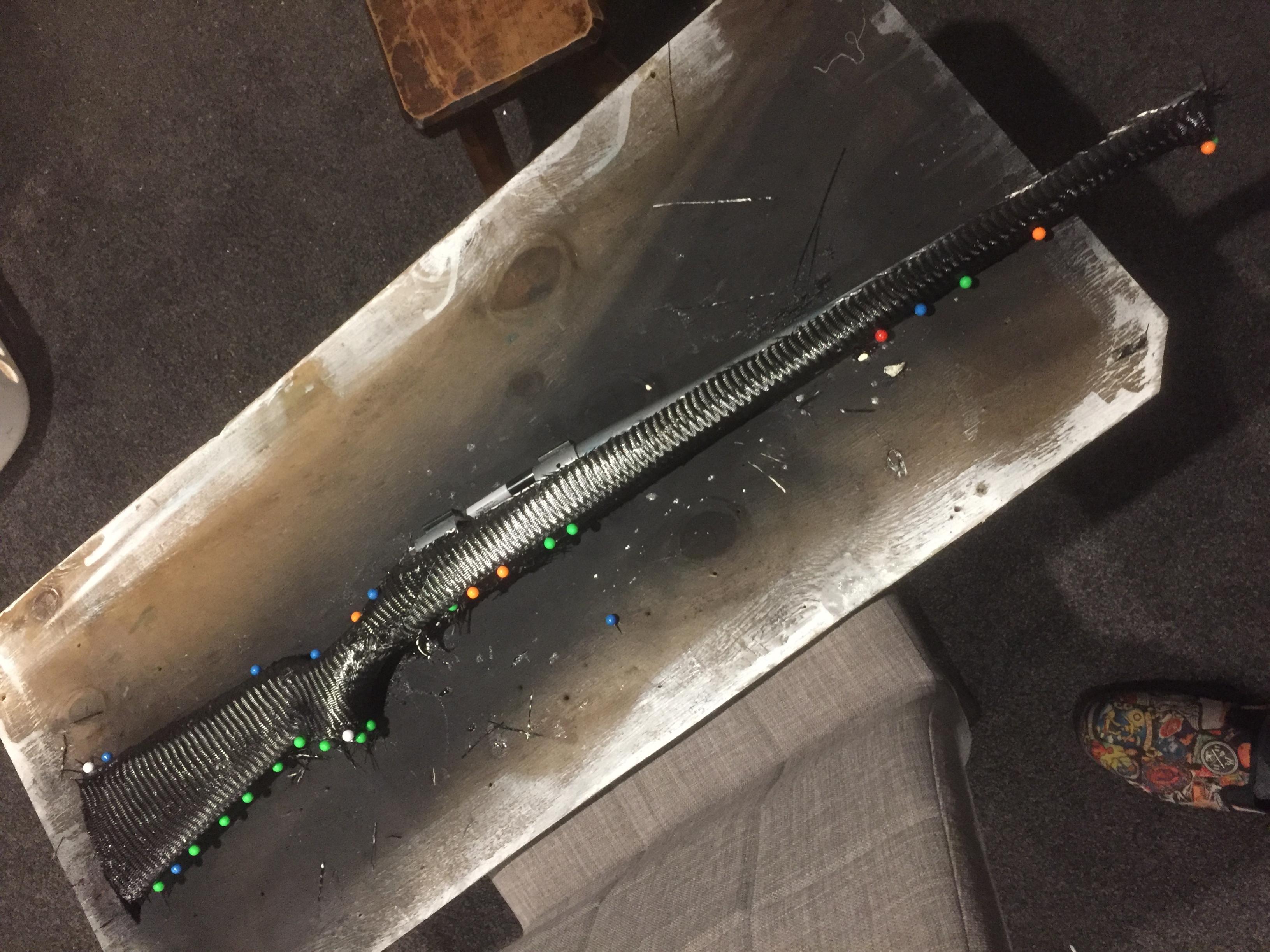

    Yeah I got the twill weave as I read somewhere it bends around corners easier, but maybe I got that wrong...but so far so good, as long as I hold it in place with pins that I pull out before the epoxy totally sets.
    Name:  IMG_1712.jpg
Views: 638
Size:  832.7 KB
    Last edited by FRST; 05-08-2017 at 10:03 PM.
    stingray and mace08 like this.

  10. #10
    Member 300_BLK's Avatar
    Join Date
    Aug 2014
    Location
    Central North Island
    Posts
    1,783
    Quote Originally Posted by stug View Post
    I've found the plain weave doesn't unravel as much as the twill weave. But then I noticed differences between batches of twill weave as well.
    Where do you get it from??
    Warm Barrels!

  11. #11
    Member FRST's Avatar
    Join Date
    May 2013
    Posts
    515
    NZ Fibreglass in Auckland. $60 sq/m

  12. #12
    Member ANTSMAN's Avatar
    Join Date
    Dec 2011
    Location
    Wellington
    Posts
    1,185
    thats frikkin super mate.
    FRST likes this.
    Rule 4: Identify your target beyond all doubt

  13. #13
    Member
    Join Date
    Nov 2014
    Location
    Tasman
    Posts
    198
    Bloody well done that man!
    FRST likes this.

  14. #14
    Member FRST's Avatar
    Join Date
    May 2013
    Posts
    515

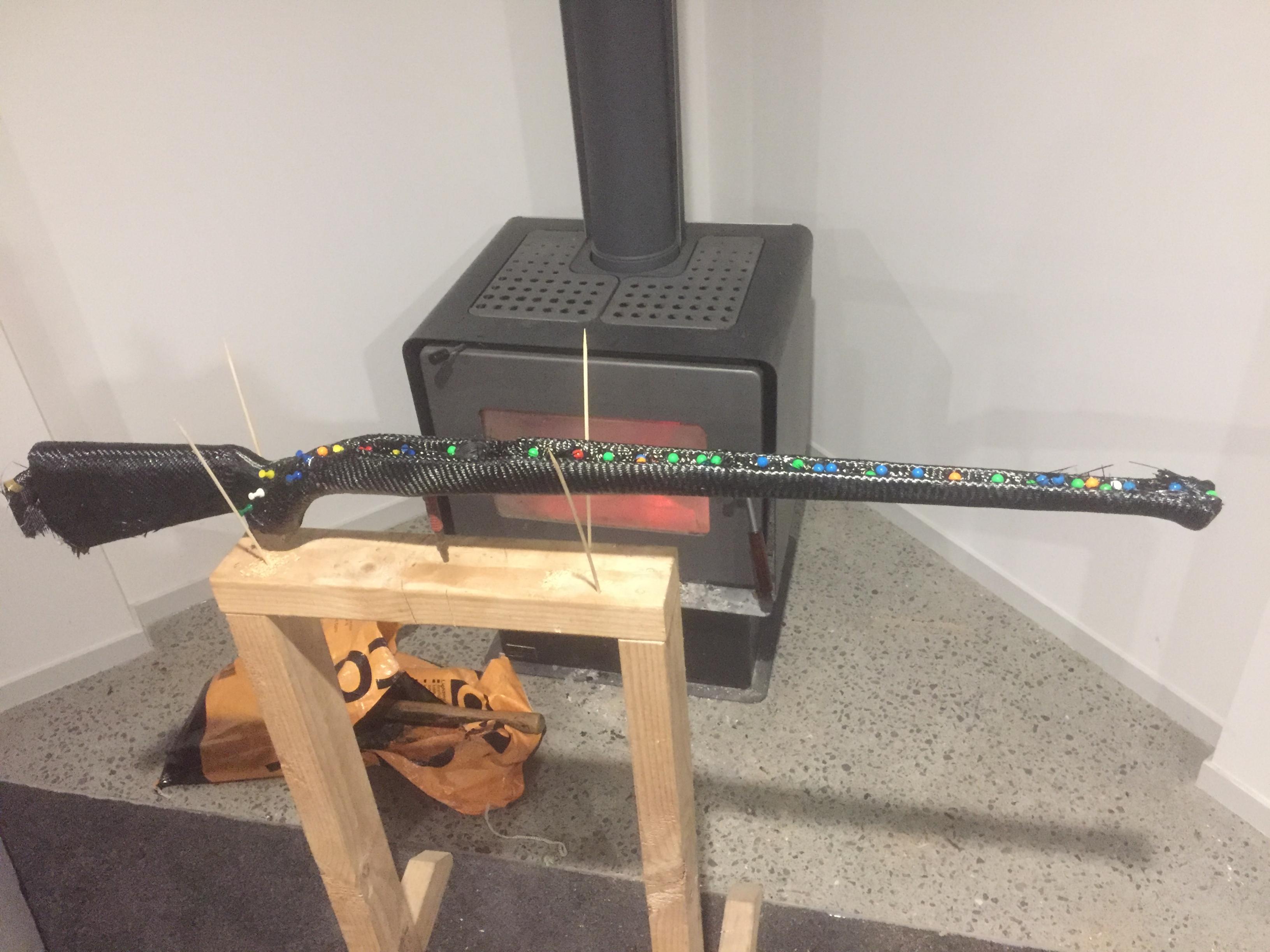

    More pins to turn the carbon down into the barrel channel.
    Name:  IMG_1716.jpg
Views: 571
Size:  579.2 KB
    Munsey, stingray and Gibo like this.

  15. #15
    Member
    Join Date
    Mar 2012
    Location
    Naracoorte South Australia/in exile
    Posts
    164
    Nice
