Thread: Cast action

  1. #1
    Member
    Join Date
    Nov 2012
    Location
    AKL
    Posts
    269

    Cast action

    Hi guys,
    This time I tried to cast my action based on the rem 700 footprint. Its a big learning curve, BTW. I have been experimenting with lots of stuffs regarding to it and been learning a lot. By the pics, it looks easier, but believe me... its not!
    As it was the firs try, the actions didnt come that good, but with some machining I may get there. For the next one, I want to do little machining only. Will try another material for the lost wax now (3D print) to see if things improve.
    Action is made of 4340, vacuum cast. Based on the 700's with some improvements. I can upload ore pics for the next one if you guys want to see the progress. Project done in SolidWorks.
    I had to make a bolt handle to match the extraction cam for this particular action and will post it as well.
    Cheers

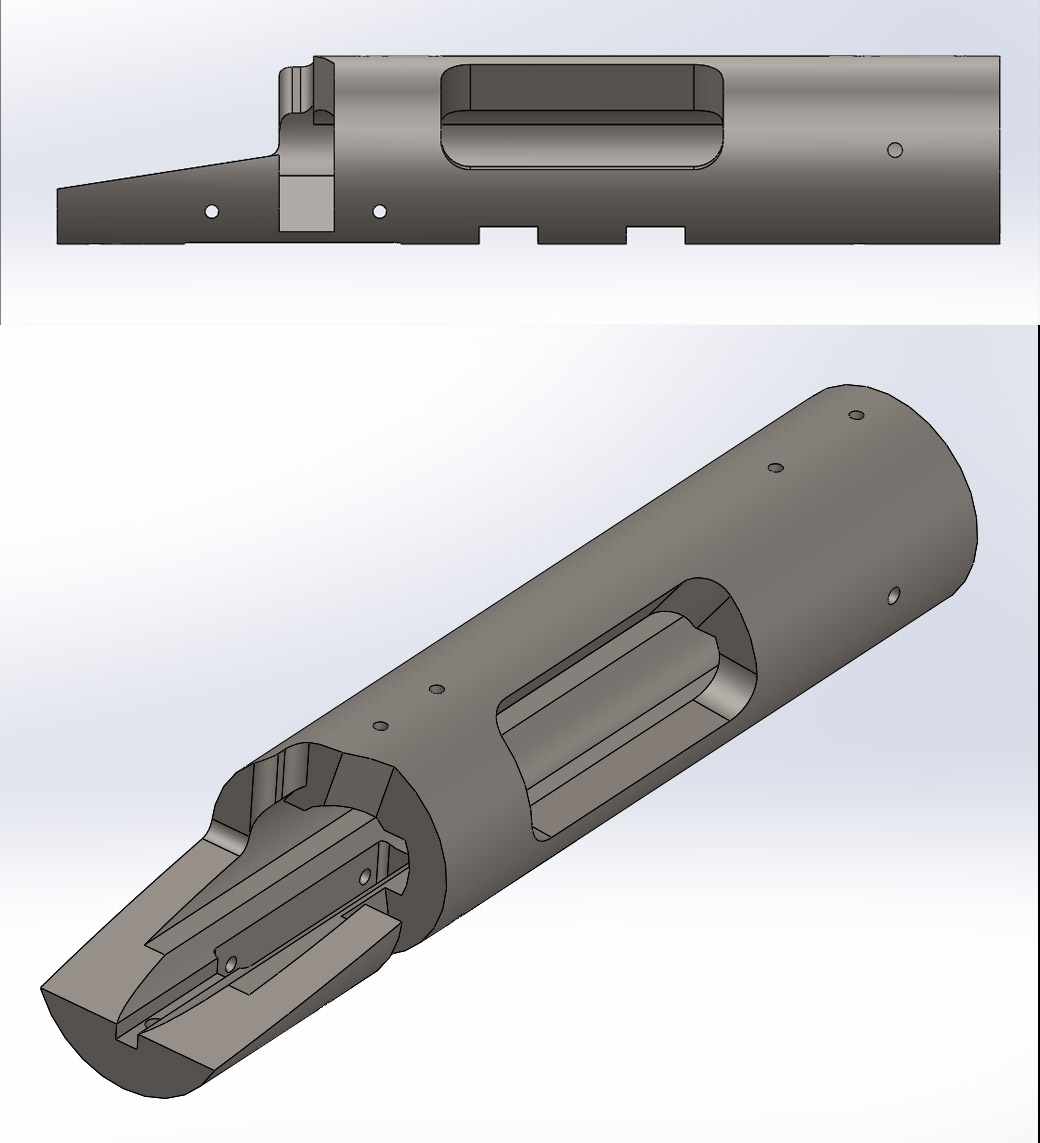

    Name:  godoy_action.jpg
Views: 816
Size:  125.0 KB

    Name:  godoy_actions.jpg
Views: 852
Size:  181.2 KB

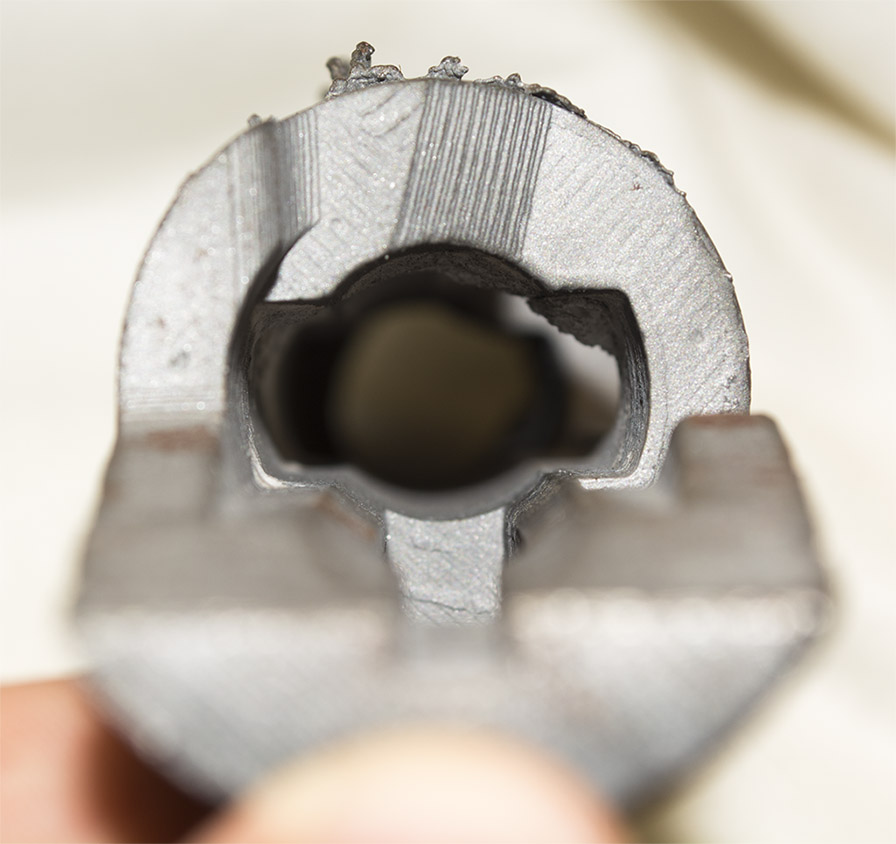

    Name:  godoy_actions_01.jpg
Views: 747
Size:  121.0 KB

    Name:  godoy_actions_02.jpg
Views: 752
Size:  159.3 KB

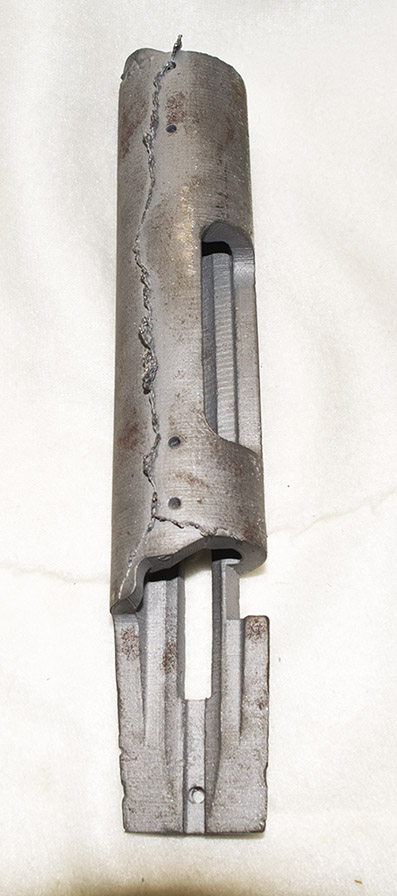

    Name:  godoy_actions_03.jpg
Views: 708
Size:  99.9 KB
    Toby and northdude like this.

  2. #2
    Member kimjon's Avatar
    Join Date
    Apr 2012
    Location
    Waikato
    Posts
    1,628
    From memory the Ruger M77 actions are made by investment casting like you've just done. Has merit, but not sure on loss of strength versus forged?

    Good on you for giving it a go, well follow with interest.

    Kj
    Shearer likes this.

  3. #3
    Member
    Join Date
    Jun 2013
    Location
    Middle Earth
    Posts
    2,350
    Still need a bit of work, but 70% is done.
    Do you have to heat treat it?
    Winchester 70 and some old cz were cast as well.
    Awesome

  4. #4
    Member
    Join Date
    Jun 2012
    Location
    lower hutt
    Posts
    1,040
    Yow will you machine the raceways and barrel thread?
    #BallisticFists

  5. #5
    Member
    Join Date
    Jun 2013
    Location
    Middle Earth
    Posts
    2,350
    Actually, I don't know how hard it would be, but could you cast the next action with an integral front recoil lug? That would be one more part out of the equation later on.

  6. #6
    Member
    Join Date
    Nov 2012
    Location
    AKL
    Posts
    269
    Thanks for the comments guys.
    I know already what I've done wrong so next one will be much better.
    Yes, Rugers 77 are cast from Pine Tree in the US. Also, Farleys are cast and considered
    one of the smoothest actions over there as well.
    The raceways are there and need just a cleanup with a reamer, sandpaper and elbow grease. I also will have to drill and
    tap for the scope base and thread the tenon. In a few weeks I will have a new one.
    Friwi, I can design for sure a front recoil lug, but I made two recesses on the bottom that will do the same job.
    Will post more pics as the work progresses.
    Cheers

  7. #7
    Member
    Join Date
    Jun 2013
    Location
    Middle Earth
    Posts
    2,350
    I saw those two grouves below.
    It is a bit like a Barnards, tikka ...and the sako 75,85 and A7 where the recoil lug is not an integral part of the action.
    The reason they use that system is to cut down on machining costs.
    Because you are casting you can do pretty much anything ,like a surgeon action shape for example, because you have ALREADY cut on machining costs.
    Looking forward for the finished action.

  8. #8
    Member
    Join Date
    Dec 2011
    Location
    Hawera
    Posts
    1,075
    Good on you , looks cool , however , cast a round action , thats easier to machine using CNC & EDM for race ways .

    To me casting & forging to make more complex shapes , like square shaped Mauser actions like the Parker Hale M85 action , which was cast and is a very nice action , then heat treated and machined where needed .

  9. #9
    Member
    Join Date
    Jul 2012
    Location
    Timaru
    Posts
    420
    very interesting. are you planning to cast a bolt too or just the action?

  10. #10
    Member
    Join Date
    Nov 2012
    Location
    AKL
    Posts
    269
    Quote Originally Posted by robhughes-games View Post
    very interesting. are you planning to cast a bolt too or just the action?
    No cast bolt. I will probably use a PTG.
    I will heat treat the action after machining using austempering, which, in theory, causes almost no warping (I hope).
    There are some interesting videos on Youtube about how Rugers are made HERE (Pine Tree Castings).

    Cheers

  11. #11
    Member
    Join Date
    Dec 2011
    Location
    Hawera
    Posts
    1,075
    Here's a pic of a Parker Hale M85 action & bolt , this is a cast action , as its a bit complex .




  12. #12
    Member
    Join Date
    Jun 2013
    Location
    Middle Earth
    Posts
    2,350
    It is an improved Mauser , a bit like the surgeon is an improved Remington :-)
