Thread: DIY Induction Annealer

  1. #31
    Banned
    Join Date
    Nov 2018
    Location
    Auckland
    Posts
    1,030
    option 2 sounds good

  2. #32
    More pills and Powder!! burtonator's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    1,613
    option 2 sounds good
    Life is the art of drawing without an eraser

  3. #33
    Member
    Join Date
    Mar 2012
    Location
    Christchurch
    Posts
    901
    either option.

  4. #34
    Member
    Join Date
    Feb 2020
    Location
    Paraparaumu Beach
    Posts
    77
    Id be interested in either option. Thanks for offering

  5. #35
    Member
    Join Date
    Mar 2016
    Location
    Arrowtown
    Posts
    1,308
    I've been through the planning stage a couple of times and the controller is definitely where I stumble. Either option would be appreciated please.

  6. #36
    Member
    Join Date
    Nov 2016
    Location
    Orewa
    Posts
    86
    Thanks for the feedback. Looks like there are enough interested people to justify getting some pre-assembled units out of China. I've made some good progress on it - sending out for quote today.

    I've kept it super simple using common through hole components to keep cost and assembly complexity low. Parts are available from Jaycar for those wanting to assemble their own.

    Interested in any feedback on what features may be missing or needed by some - but be quick

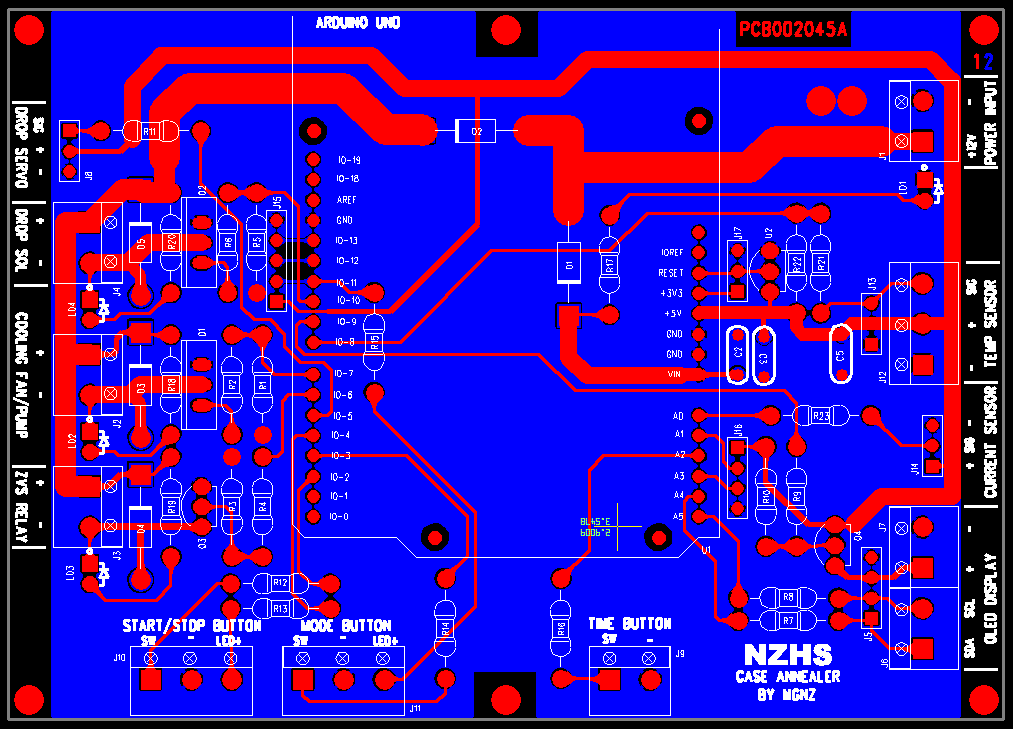

    This is how she looks now:
    Name:  ANNEALER_REVA_PCB.png
Views: 870
Size:  52.2 KB

    Schematic for those interested: https://www.dropbox.com/s/j5k7ur58vu...oller.pdf?dl=0
    veitnamcam, res, planenutz and 3 others like this.

  7. #37
    Member
    Join Date
    Nov 2016
    Location
    Orewa
    Posts
    86
    Well, the real things have arrived.

    For those that expressed interest in blank PCBs or built units, send me a PM.

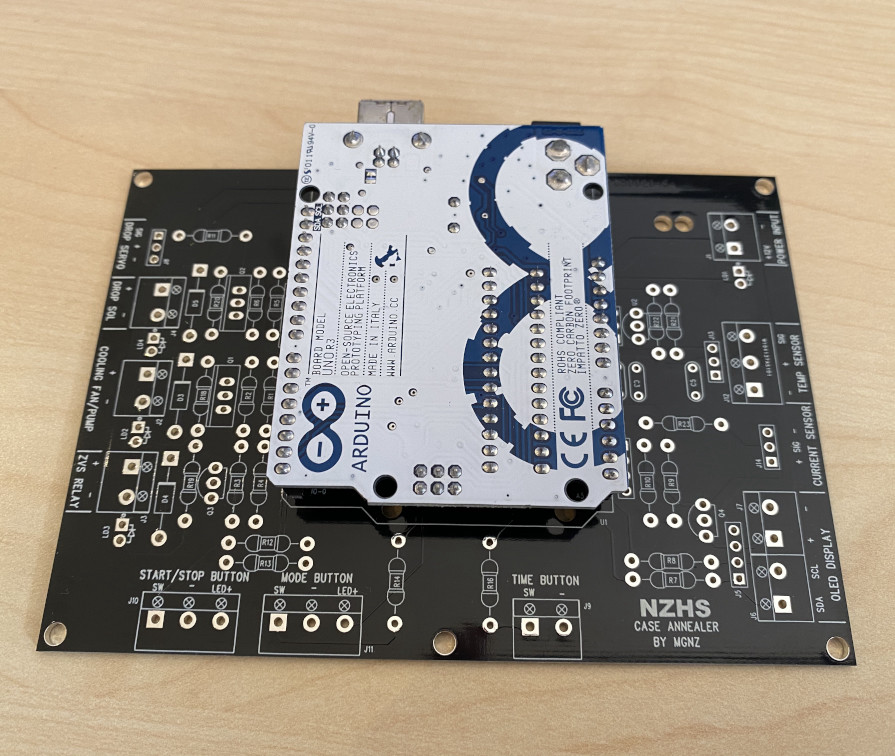

    Name:  Annealer_PCB.jpg
Views: 864
Size:  209.9 KB

  8. #38
    Member
    Join Date
    Nov 2016
    Location
    Orewa
    Posts
    86
    Thanks for the follow up PM's. It's cool that quite a few members are keen to build one.

    For anyone else interested, this is how the costs worked out for a small PCB order:

    1. Blank PCB - $17 - buy all the other parts yourself (reset chip and MOSFET’s not available from Jaycar.)
    2. Blank PCB plus the reset chip and 2x MOSFETs - $22 - buy the other parts yourself from Jaycar
    3. Built unit - $60 (Still needs the Arduino board)
    4. Arduino Uno board - $7 (from China)

    I've also put a couple of doc's together here:
    Cartridge Case Annealer - Parts wiring and use.pdf
    Cartridge Case Annealer - Electronic Controller Assembly Guide.pdf

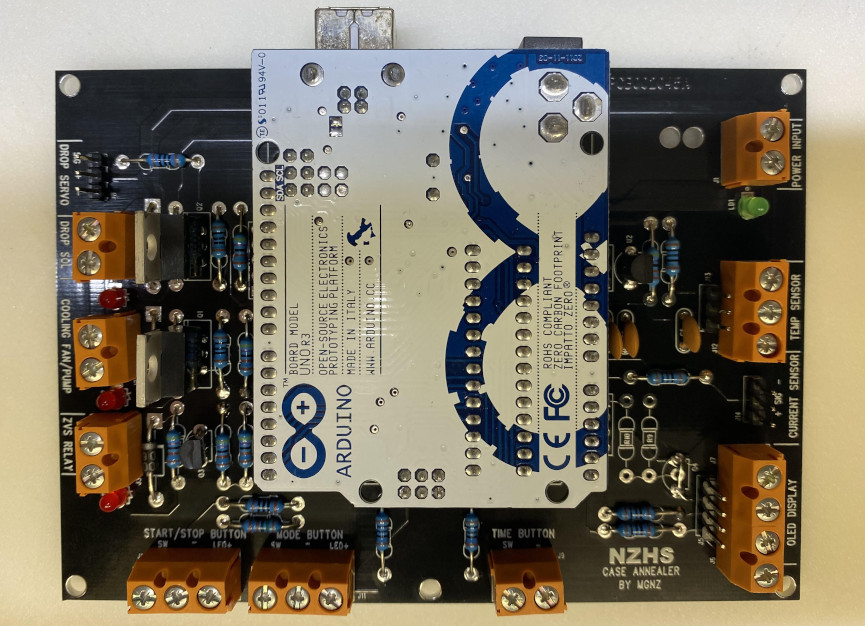

    Name:  Built Unit.jpg
Views: 826
Size:  191.7 KB

    Cheers
    Mark

  9. #39
    Member
    Join Date
    Jul 2012
    Location
    Tauranga
    Posts
    1,924
    Very awesome job Mark !
    I would like to add that you shouldnt power it up without the coil installed for the case to fit through or the ZVS board gets very angry.
    As I have a spare ZVS board I will get one of the made up modules from you.

  10. #40
    Member
    Join Date
    Jul 2012
    Location
    Tauranga
    Posts
    1,924

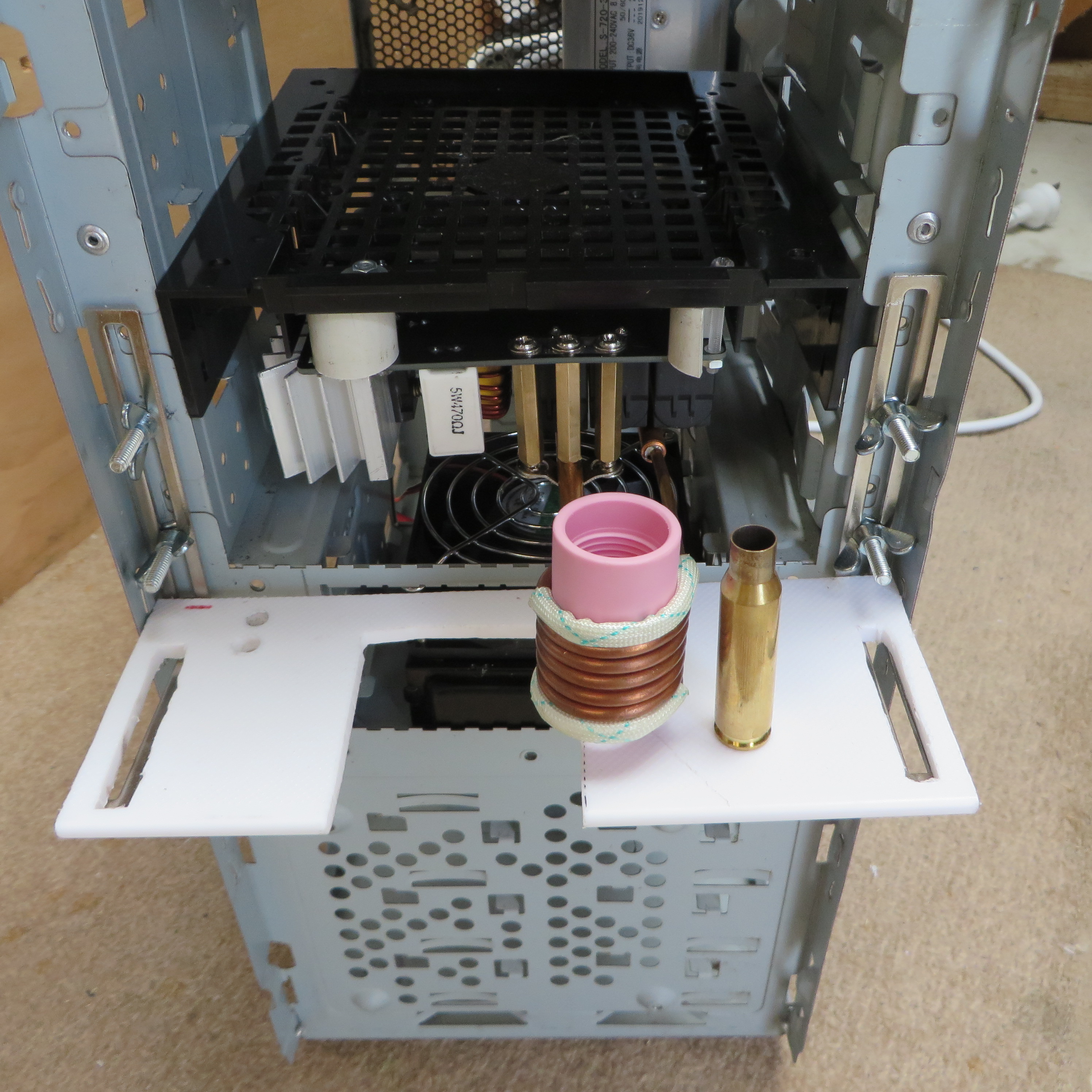

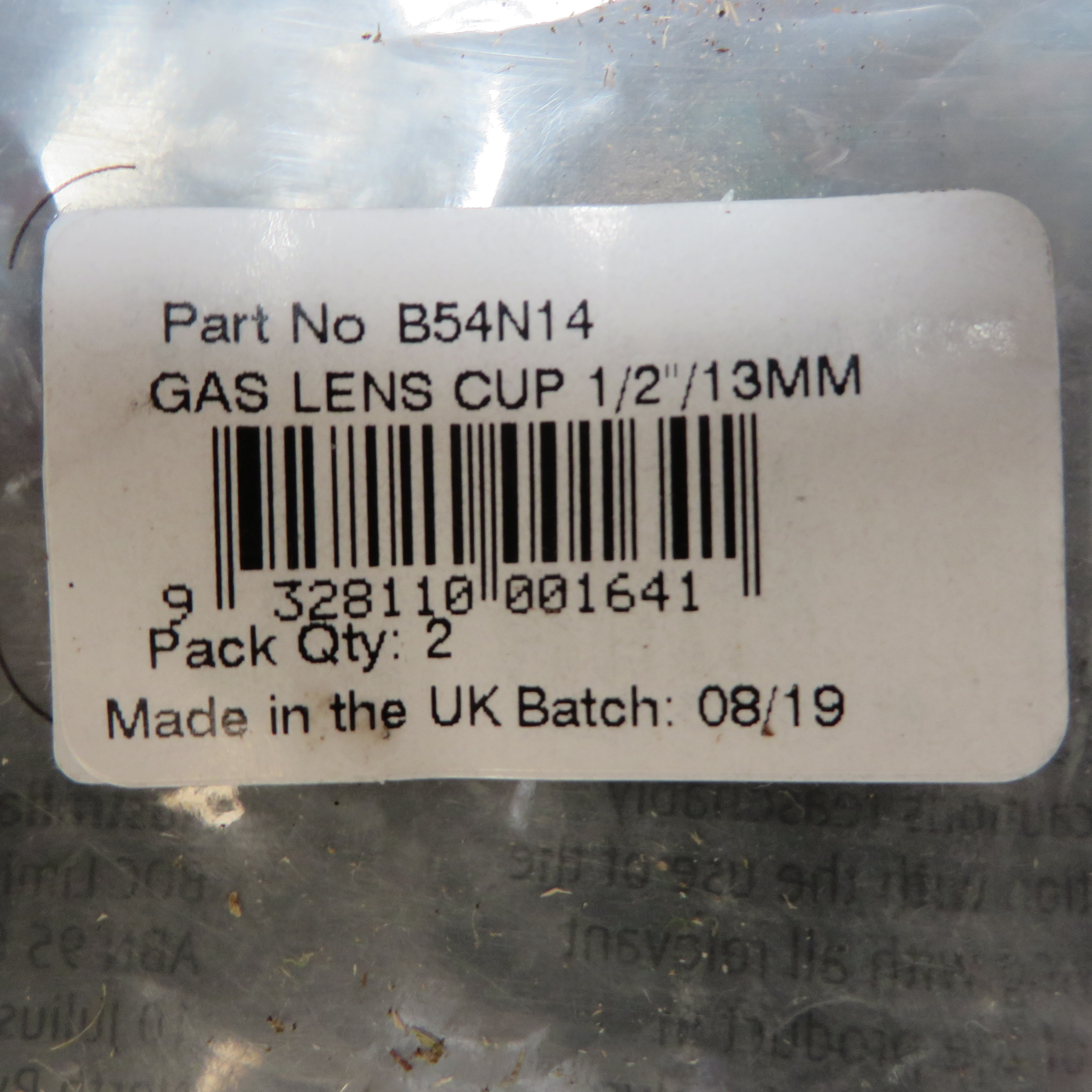

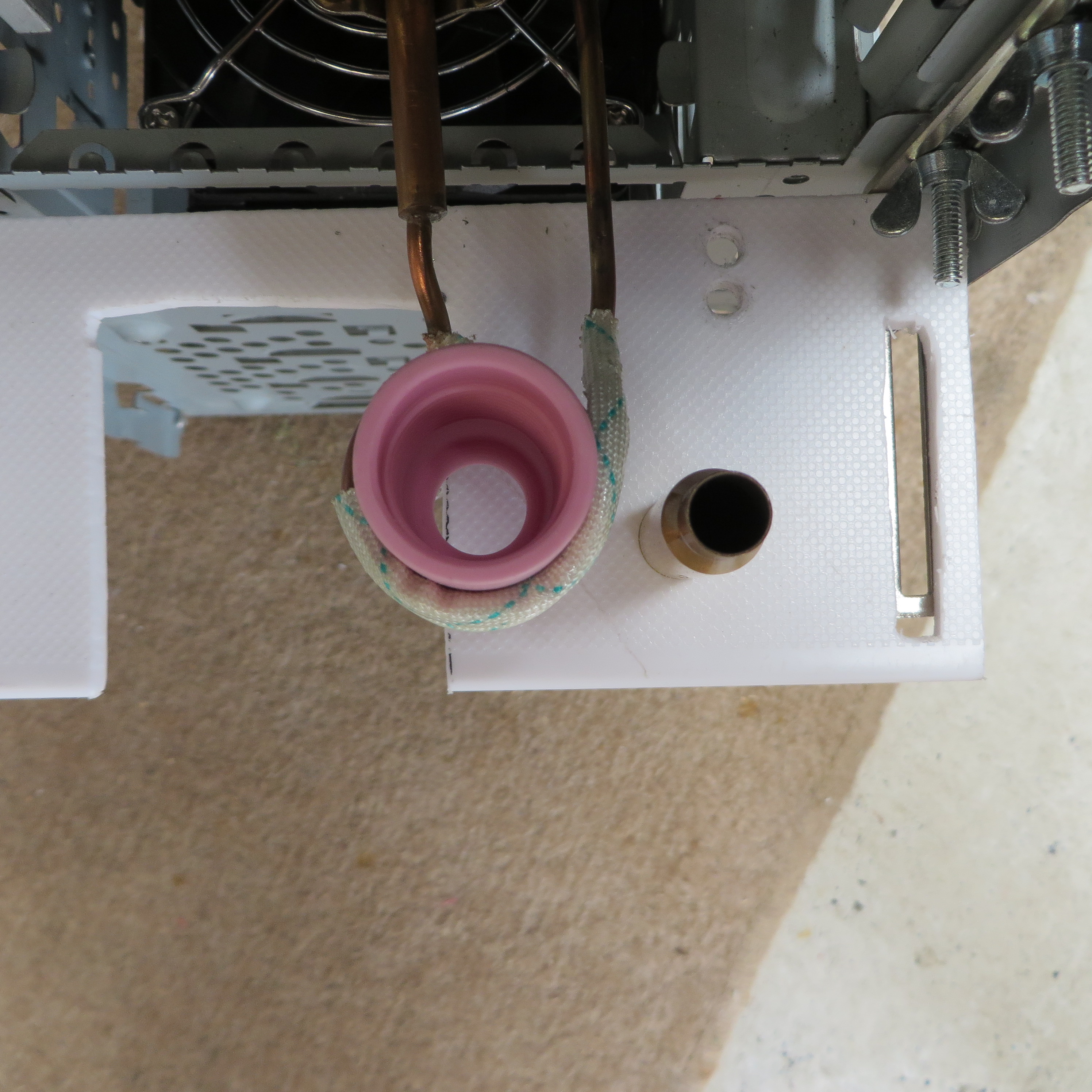

    For any budding coil makers I have a mod that helps protect the coil from damage and helps hold it straight, and aligns the case inside the coil.
    It is a ceramic cup / lens for tig welding


    Name:  IMG_4744.JPG
Views: 902
Size:  1.97 MB

    Name:  IMG_4745.JPG
Views: 856
Size:  1.95 MB

    Name:  IMG_4746.JPG
Views: 806
Size:  1.85 MB

    You can pick up a pair for around $10 at NZIG this size fits a .308 case well
    planenutz likes this.

  11. #41
    Member
    Join Date
    Feb 2020
    Location
    Paraparaumu Beach
    Posts
    77
    Great idea.

  12. #42
    Member ANTSMAN's Avatar
    Join Date
    Dec 2011
    Location
    Wellington
    Posts
    1,900
    Primo- has anyone else finished theirs?

  13. #43
    Member
    Join Date
    Jul 2012
    Location
    Tauranga
    Posts
    1,924
    @ANTSMAN @Klhari @rupert @burtonator

    Did any of you proceed with an annealer ? Did you manage to get a 48V power supply?
    I am having a hell of a wait for my one, and I have a mate wanting me to put one together for him.
    If anyone got one straight away I would be keen to know where from?

  14. #44
    Member
    Join Date
    Feb 2020
    Location
    Paraparaumu Beach
    Posts
    77
    Still waiting for my parts too.

  15. #45
    Member Walker's Avatar
    Join Date
    Dec 2011
    Location
    Mangawhai
    Posts
    604
    Nope, been waiting 4weeks now.
