    Epoxy for Plastic

    I have a couple of plastic parts I wish to make grippier
    Couple of plastic rifle magazines and a plastic pistol grip
    I would like to use a epoxy resin to glue silicon carbide or aluminium oxide to the taped off areas
    Has anyone done this and had success with any particular glue?
    Araldite?
    I have some pieces to practice on first
    I have had the grips on two of my sti pistol grips previously done by a great pistol smith
    Was just keen to give a couple projects a go myself this time
    Cheers

    Sent from my MT15i using Tapatalk 2

  2. #2
    By Popular Demand gimp's Avatar
    Join Date
    Dec 2011
    Location
    The Big H
    Posts
    7,874
    Grip tape? Non permanent.

  3. #3
    Member
    Join Date
    Jul 2012
    Posts
    211

    Re: Epoxy for Plastic

    Yeah, but in a nice way nah
    I really want permanent
    Some of the fiddley ness with grip tape would be over come, especially with 90 inwards and outwards bends.
    High temp can make grip tape sticky and move, as can some cleaning agents
    I COULD achieve a lot nicer finish if I could put 'glue' right up to the edges then apply the grit
    So longs as I do my bit?

    Sent from my MT15i using Tapatalk 2

  4. #4
    Lovin Facebook for hunters kiwijames's Avatar
    Join Date
    Feb 2012
    Location
    Hawkes Bay
    Posts
    6,440
    Ask Jason @ Senator Stocks. He has a product (like truck bed liner) that he is currently applying to his stocks. He could probably do this for you.

  5. #5
    Member Normie's Avatar
    Join Date
    Dec 2011
    Location
    Tuakau
    Posts
    724
    Quote Originally Posted by kiwijames View Post
    Ask Jason @ Senator Stocks. He has a product (like truck bed liner) that he is currently applying to his stocks. He could probably do this for you.
    I am going to use something like this. It has an orange peel like finish with some bits of grit in it too.
    If you don't get Dirt, Blood or Grease under your nails it ain't a hobby

  6. #6
    Member kimjon's Avatar
    Join Date
    Apr 2012
    Location
    Waikato
    Posts
    1,628
    There is a marine product used on yachts that is epoxy based. You paint it on with a good thick coat, then wait 5 minutes and roll with a very course roller (supplied as part of the kit) which raises the texture. If you've ever been on a yacht then you'll know the textured anti-slip finish I'm talking about?

    I've got a tin of it in the shed if you need me to look up the brand/name. If you're in the Waikato you can use some of mine if you want?

    kj

  7. #7
    Member
    Join Date
    Jul 2012
    Posts
    211
    This is the finish I am after

    BEFORE

    Name:  STIBefore.jpg
Views: 661
Size:  111.1 KB

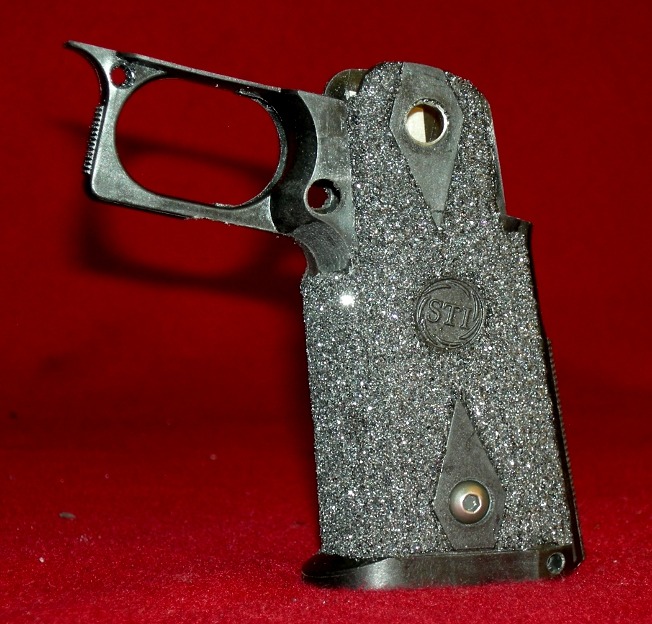

    and then, AFTER

    Name:  STIGrip.jpg
Views: 1591
Size:  120.9 KB

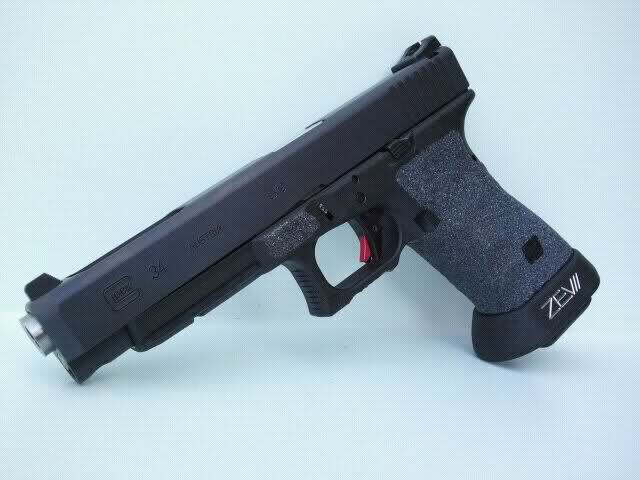

    another pistol done, with a finer grit

    Name:  GlockGrip.jpg
Views: 952
Size:  22.9 KB

    Figured a photo might clarify - cheers
    Last edited by 40bung; 18-08-2012 at 08:36 PM. Reason: extra photo

  8. #8
    Member
    Join Date
    Jul 2012
    Posts
    211
    you actual buff down very carefully/finely the checkering slightly before the process, otherwise it all ends up too fat

  9. #9
    Member kimjon's Avatar
    Join Date
    Apr 2012
    Location
    Waikato
    Posts
    1,628
    I used to shoot Action pistol with a .38super 1911 Colt Government S/S race pistol (wings, mover base, aimpoint, compensator, extended mag well, etc etc...), I just used an old set of wooden grips painted black with skateboard grip tape wrapped around them. Looked just like your photo and it never came off.

    If you used epoxy resin it should do what you're after, you could either mix in the silica first or add it to the epoxy afterwards? A little trial and error on a bit of scrap and I'm sure you'll figure it out.


    kj

  10. #10
    Member
    Join Date
    Jul 2012
    Posts
    211

    Re: Epoxy for Plastic

    So would one just ask for epoxy resin, or is it better known as a branded product
    Would it be implied that it is a 2 pot solution?

    Sent from my MT15i using Tapatalk 2

  11. #11
    Member
    Join Date
    Mar 2012
    Location
    Palmy North
    Posts
    253
    Resene Non-Skid Deck & Path - Textured Coatings

    Just make sure it's primed properly.

  12. #12
    Member
    Join Date
    Jul 2012
    Posts
    211

    Re: Epoxy for Plastic

    Good to have a sense of humour
    Ha 'a

  13. #13
    Member kimjon's Avatar
    Join Date
    Apr 2012
    Location
    Waikato
    Posts
    1,628
    Quote Originally Posted by 40bung View Post
    So would one just ask for epoxy resin, or is it better known as a branded product
    Would it be implied that it is a 2 pot solution?

    Sent from my MT15i using Tapatalk 2
    Any product will do, but I'd be looking at the marine based ones for durability and yes they are all 2-pot mixes. Its the same stuff you can use as bedding compound in rifles, so it can take impulse loads like a gun-shot will produce.

    Not most epoxy resins are clear (no colour) but you can buy tinter in any colour you want i.e black!

    You may have to do a little trial and error testing, but you'll figure it out.

    kj

  14. #14
    Member
    Join Date
    Jul 2012
    Posts
    211

    Re: Epoxy for Plastic

    Mean as. Thanks
    I think i'll try the ados product
    http://www.crc.co.nz/Automotive-Adhe...97419-6527.htm

    Thanks heaps for all the info

    Tapatalk 2

  15. #15
    Member ANTSMAN's Avatar
    Join Date
    Dec 2011
    Location
    Wellington
    Posts
    1,317

    Re: Epoxy for Plastic

    "There is a marine product used on yachts that is epoxy based. You paint it on with a good thick coat, then wait 5 minutes and roll with a very course roller (supplied as part of the kit) which raises the texture. If you've ever been on a yacht then you'll know the textured anti-slip finish I'm talking about?"

    kimjohn, im interested to find out the name of the marine product plse,,,,
