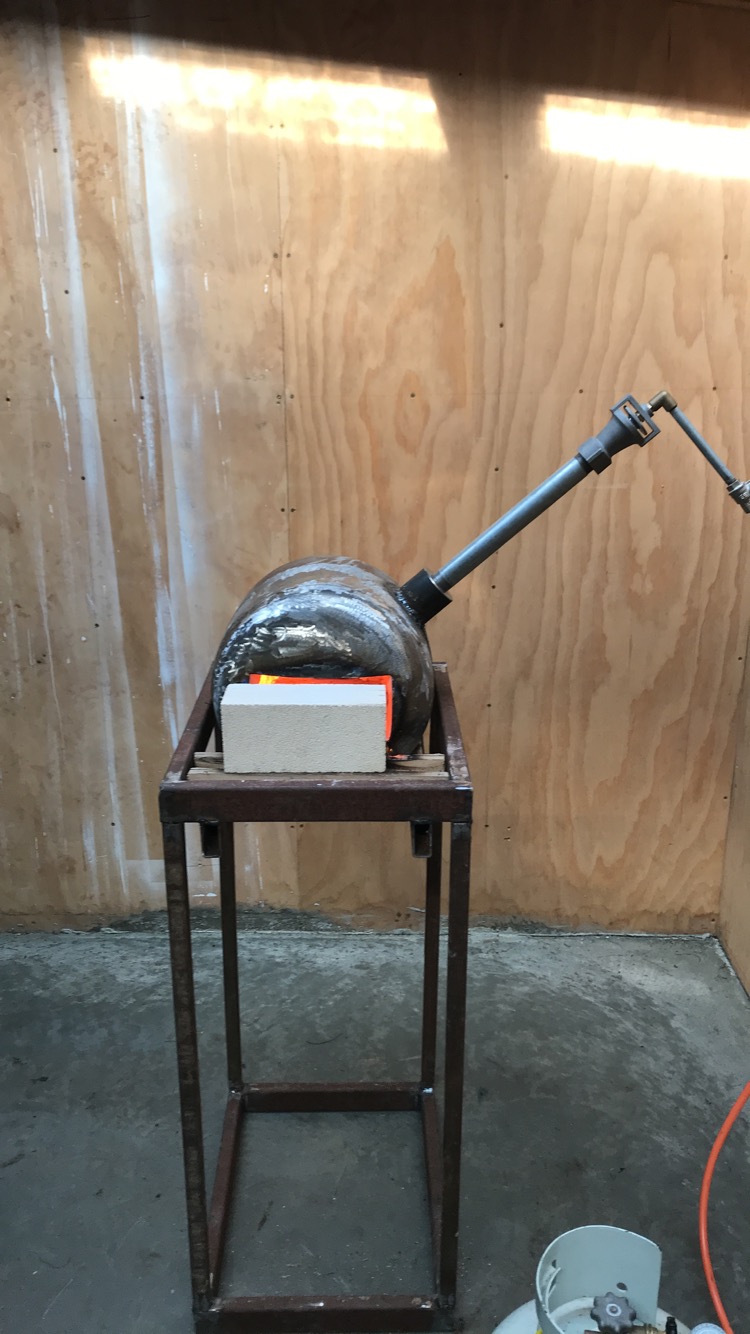

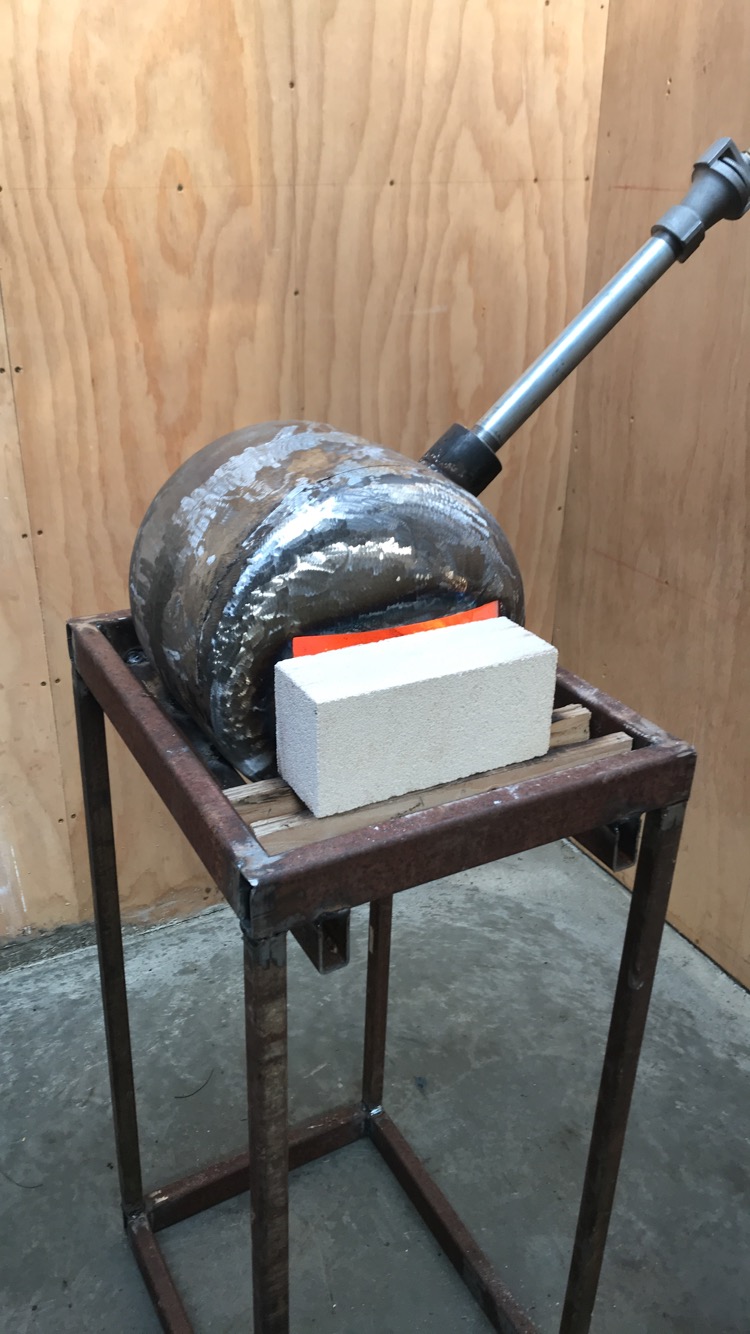

Knocked this together with my brother. Still needs a paint and a shelf for the brick but I’m pretty stoked how it’s turned out.
Attachment 113055Attachment 113056
I’m intrigued by the gas mix tube!

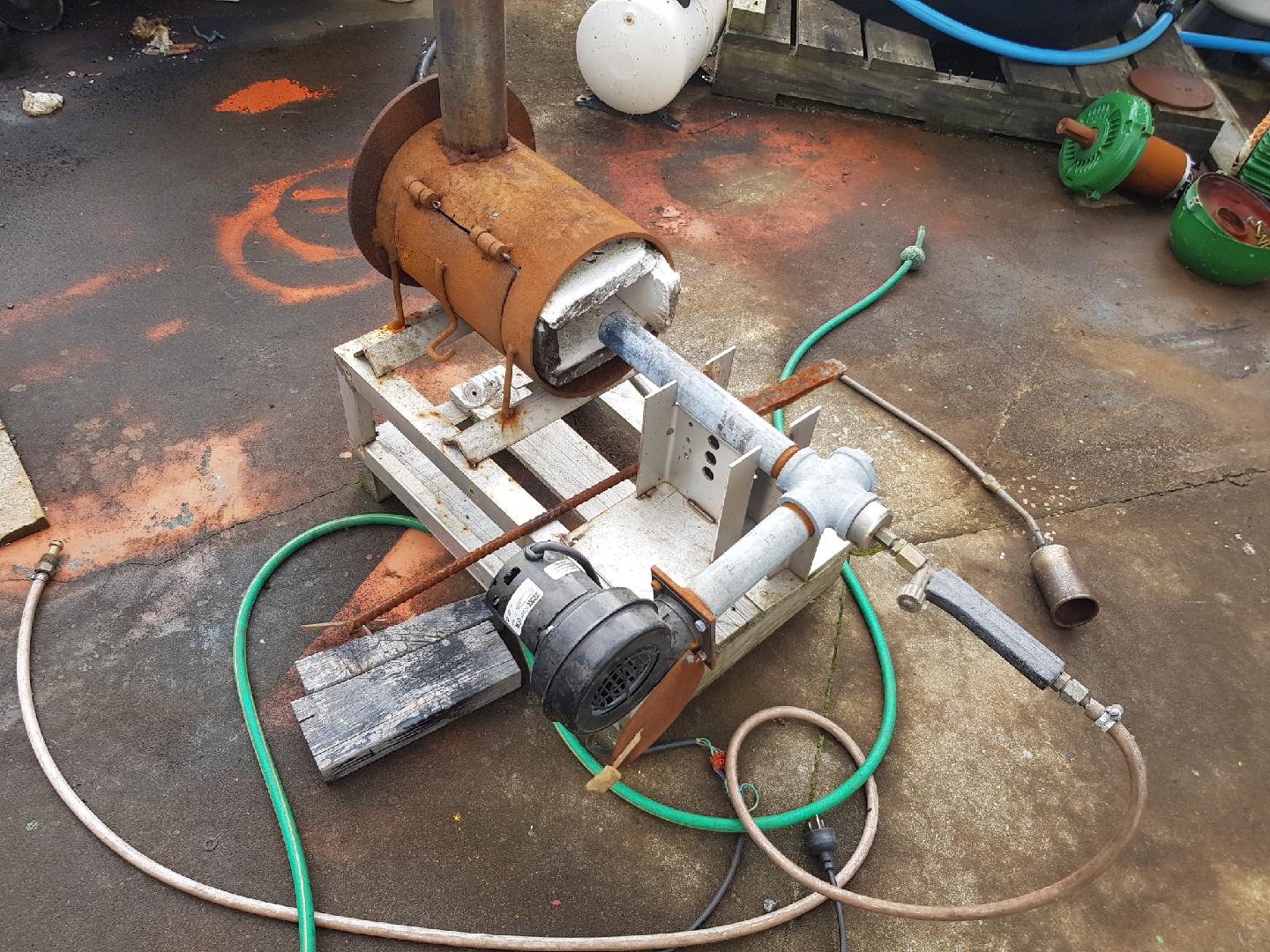

Looks real similar to the feed tube on this one,
I bought it ex Hawera . Tried but had no luck building one that would work

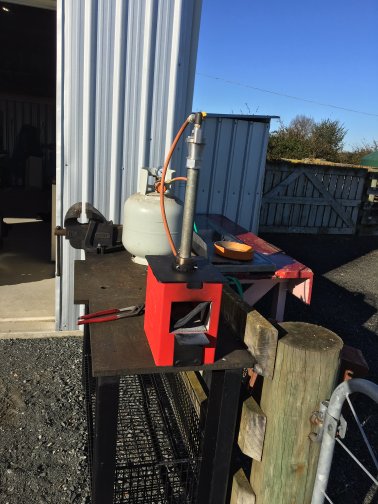

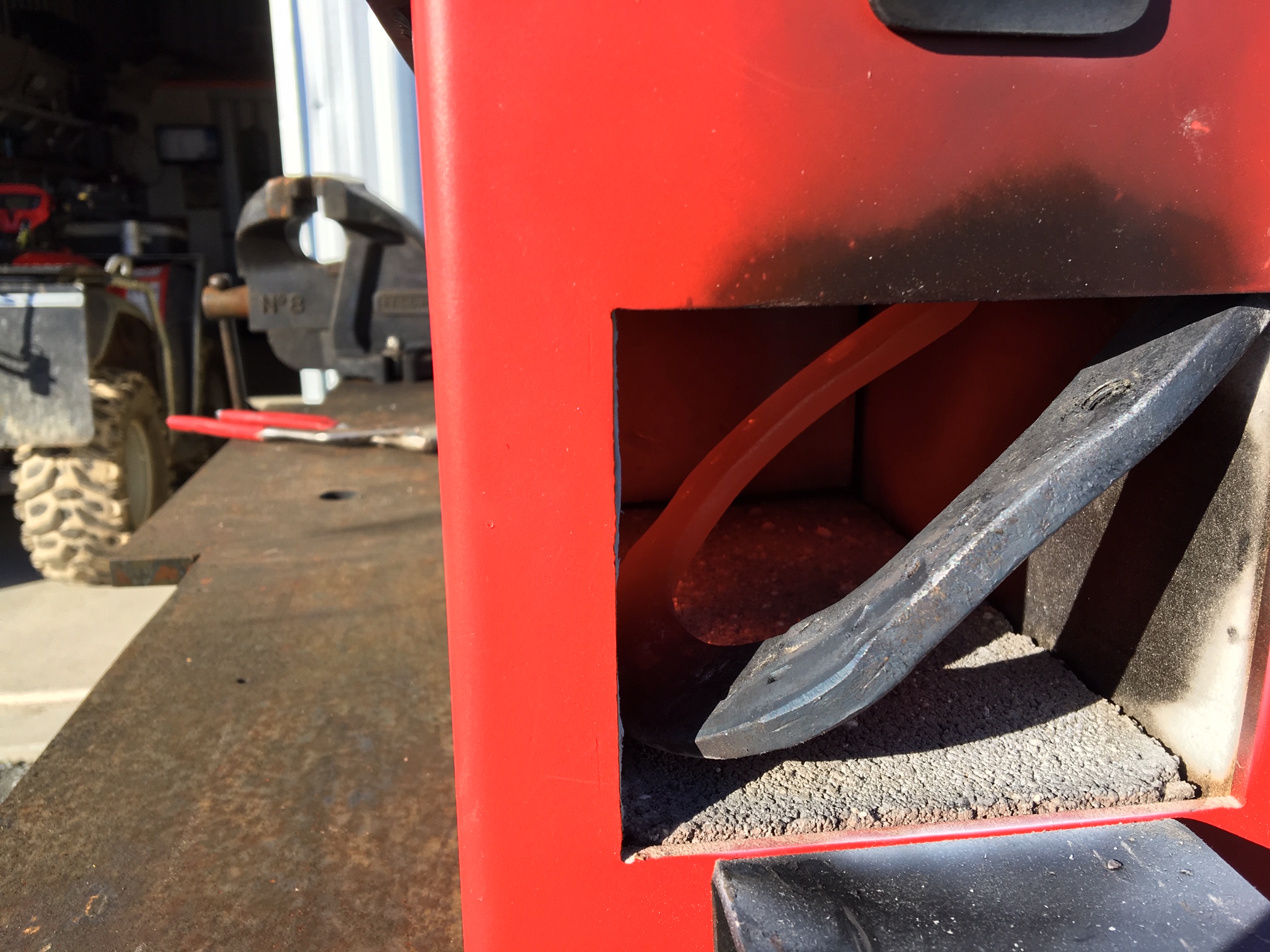

The pro type Ooooh
Attachment 113065
Attachment 113066Attachment 113067
Awesome.. how did you figure out the design?
It’s was a design off the net. 9kg gas bottle shell.
Nice
speaking of homemade furnaces
back in my misspent youth ,we used to do "kerosene hangi's
a piece of exhaust pipe about 2 meters long with a piece of brake pipe let into the side of it about halfway along,brake hose pushed onto that syphoning
from the kero can at a steady drip,vacuum on blow at one end of exhaust pipe,other end into the side near the bottom of a 12 gallon drum full of brake blocks and hooks from trains.
light a fire with newspaper in bottom of drum to get things going.
In about 15-20 minutes contents of the drum would be just about white hot,push it over into the hole,plenty hot enough to cook a fair sized hangi in about 3 hours.
no photographic evidence was collected at the time

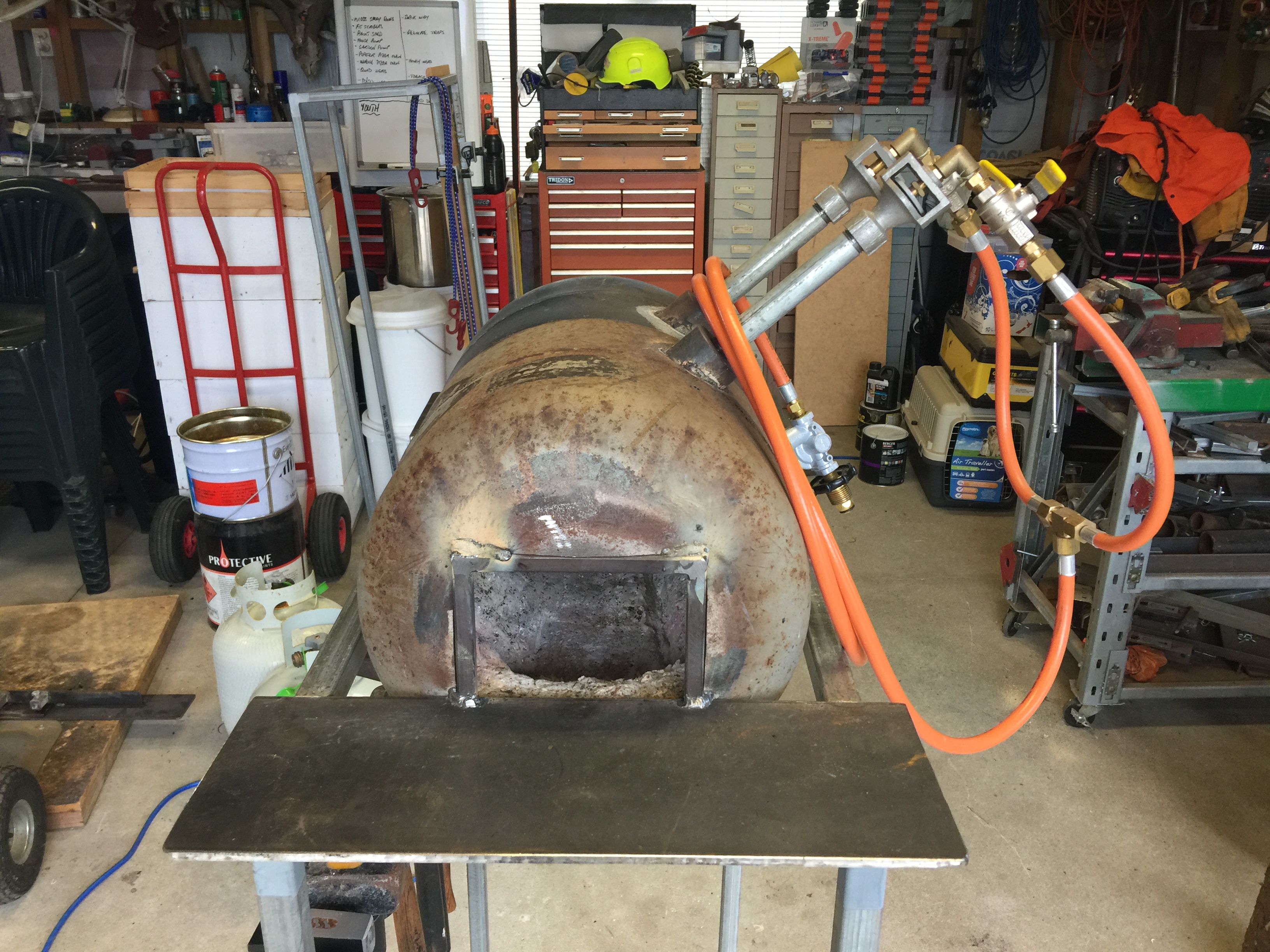

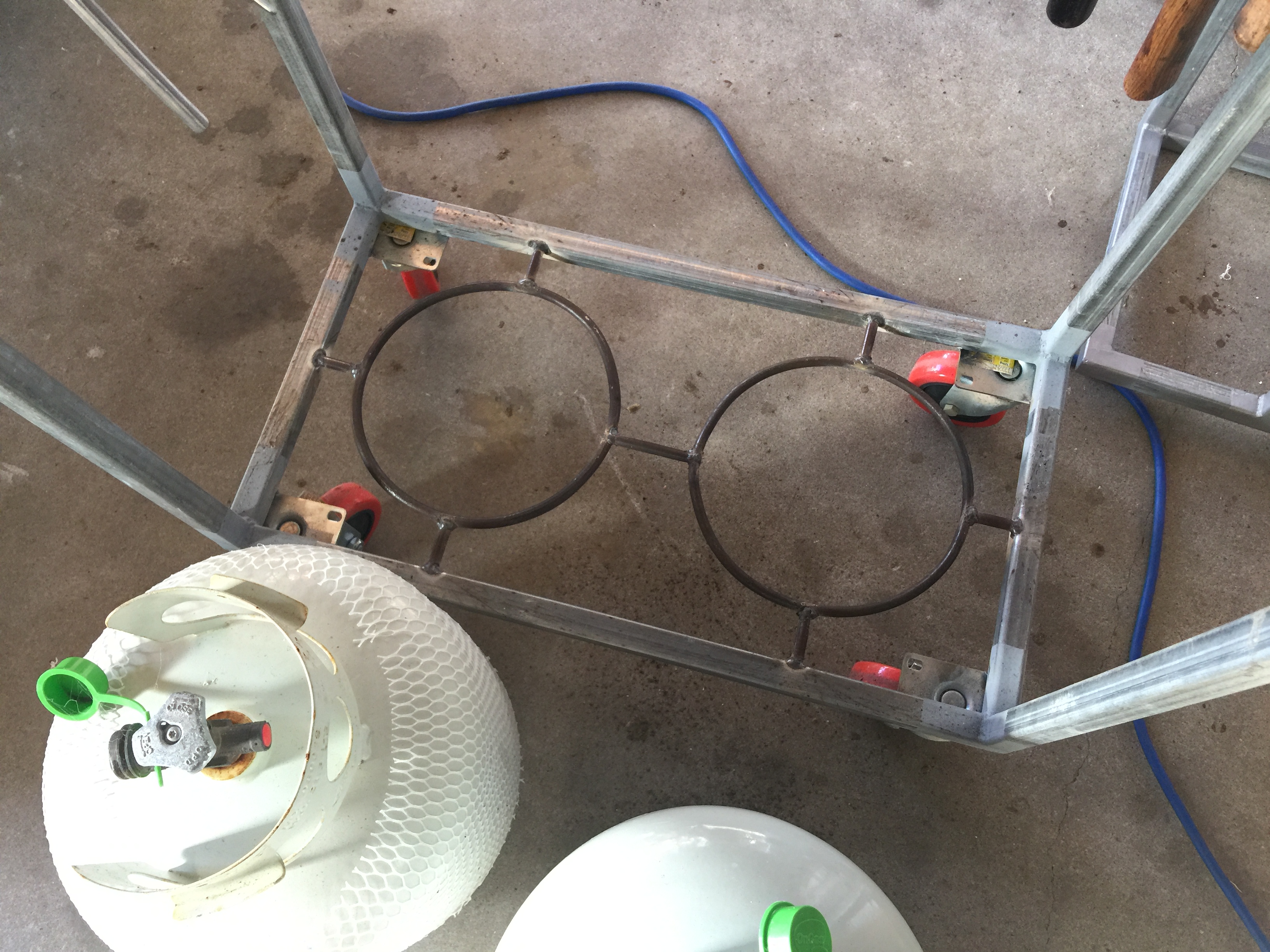

Well done. I finally got around to putting my one onto a stand on the weekend as well. Got sick of having to pick it up to shift it. Now I can just wheel it around on the shed floor. Made up a hammer rack for the side, a tong hanger across the front, and put a double bottle storage underneath, mainly for ballast.
So what are you going to make in the forge?
Attachment 113093
Attachment 113094
Attachment 113095
Attachment 113096
Attachment 113097
That’s a lot of hammers!
Plan at the moment is knives. Dad wants to make wrought iron door handles. Sky’s the limit really.
A man cannot have too many hammers!
(Or guns or knives for that matter)
Is it just me or does 2 lpg bottles sitting under a furnace seem kinda scarey?
@matto1234
You’ll find the radiated heat off the box to be surprisingly low. Remember the firebox is (if it’s like mine) fully lined with fireproof clay/fluff. The radiated heat that does come off does a brilliant job of helping prevent the regulators from icing up (the gas draw off can be sufficient to freeze them at times)
