Thread: Forming 221 Fireball / 20 Vartarg brass

  1. #1
    Member
    Join Date
    Nov 2012
    Location
    AKL
    Posts
    269

    Forming 221 Fireball / 20 Vartarg brass

    Hello, don't know if this is the right place to show some steps I form 20 Vartarg brass from 223 Rem. I am posting it cos I just received rifle back for rechambering. Had it before in 223 rem.

    Tools used:

    - 221 form die > chop excess necks off with cheapo mini cut off saw > run cases again thru 20VT type S busing FL die (.227" bushings) > trim cases to 1.4" > run cases thru expander die > turn case necks to 0.0125" thick. > anneal > again thru 20VT FL die > load > shoot (fireform).

    I have here some pics of the steps taken. I turned down a few necks so when I get it running, I can post more pics if you guys are interested. Hope you enjoy

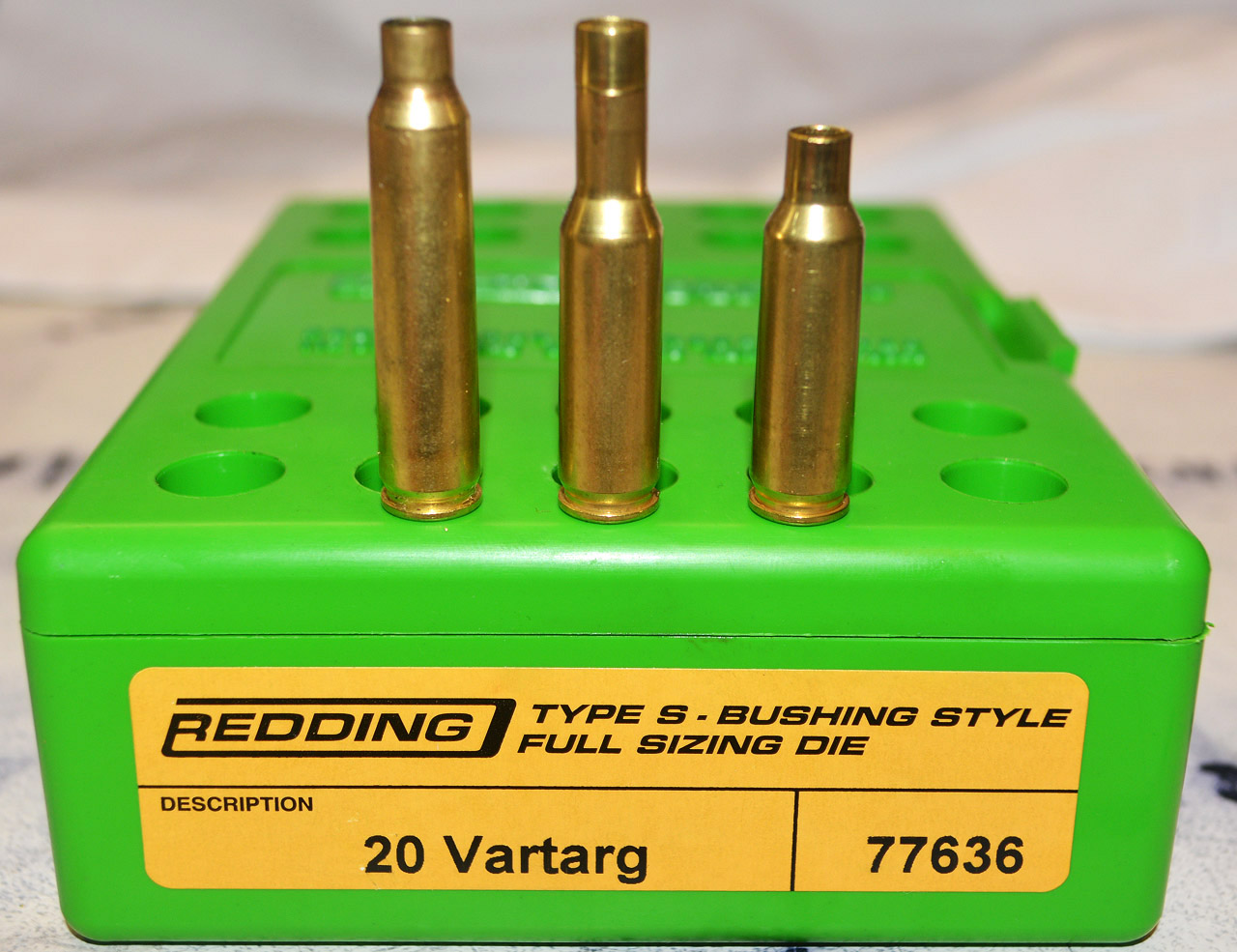

    20VT die and cases:

    Name:  steps_godoy.jpg
Views: 5689
Size:  259.2 KB

    Trim die. I should have taken the ones with looong necks, but it works...

    Name:  trimmed_godoy.jpg
Views: 4000
Size:  268.4 KB

  2. #2
    Member
    Join Date
    Nov 2012
    Location
    AKL
    Posts
    269
    I don't know why I couldn't post more pics in the thread above.

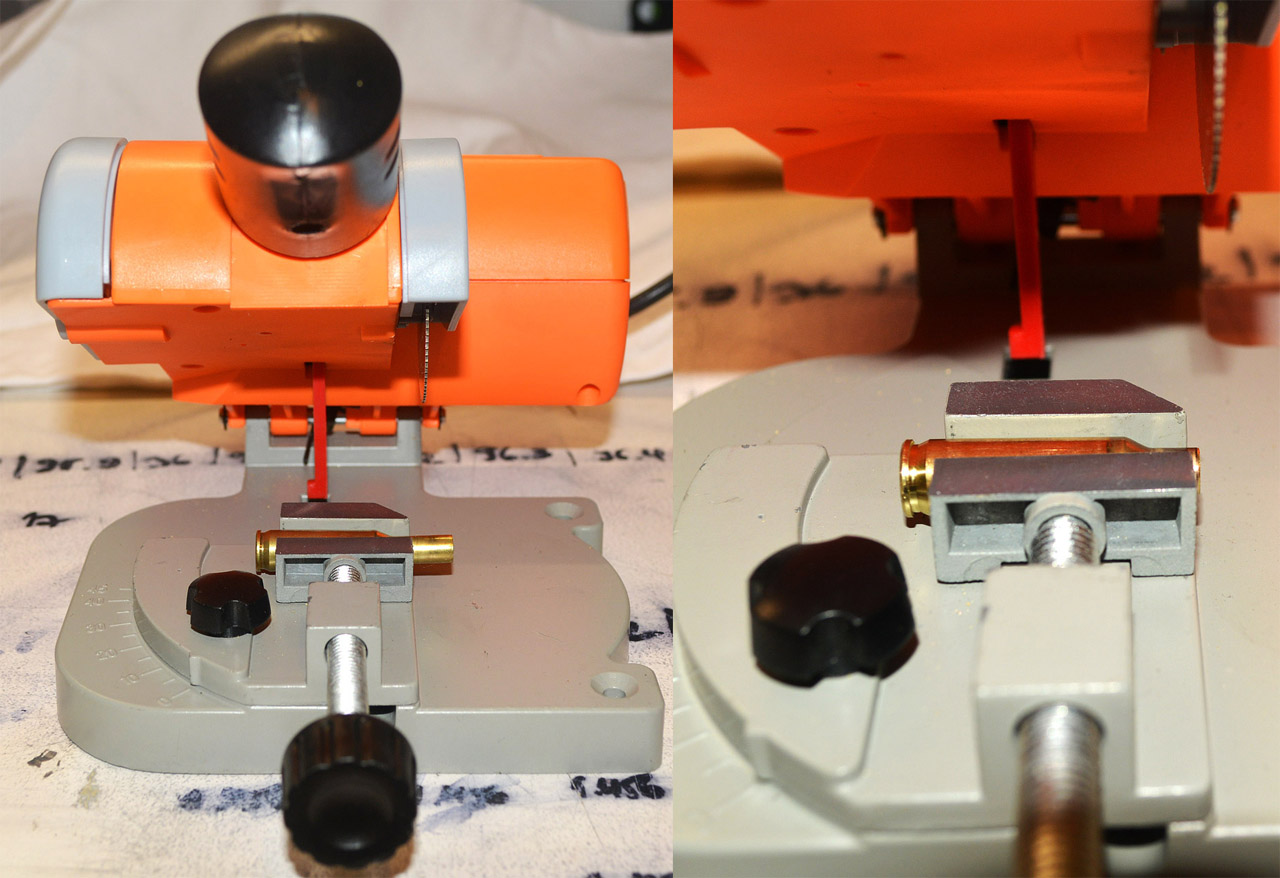

    Chopping necks off:
    Name:  chopping_godoy.jpg
Views: 2640
Size:  226.0 KB

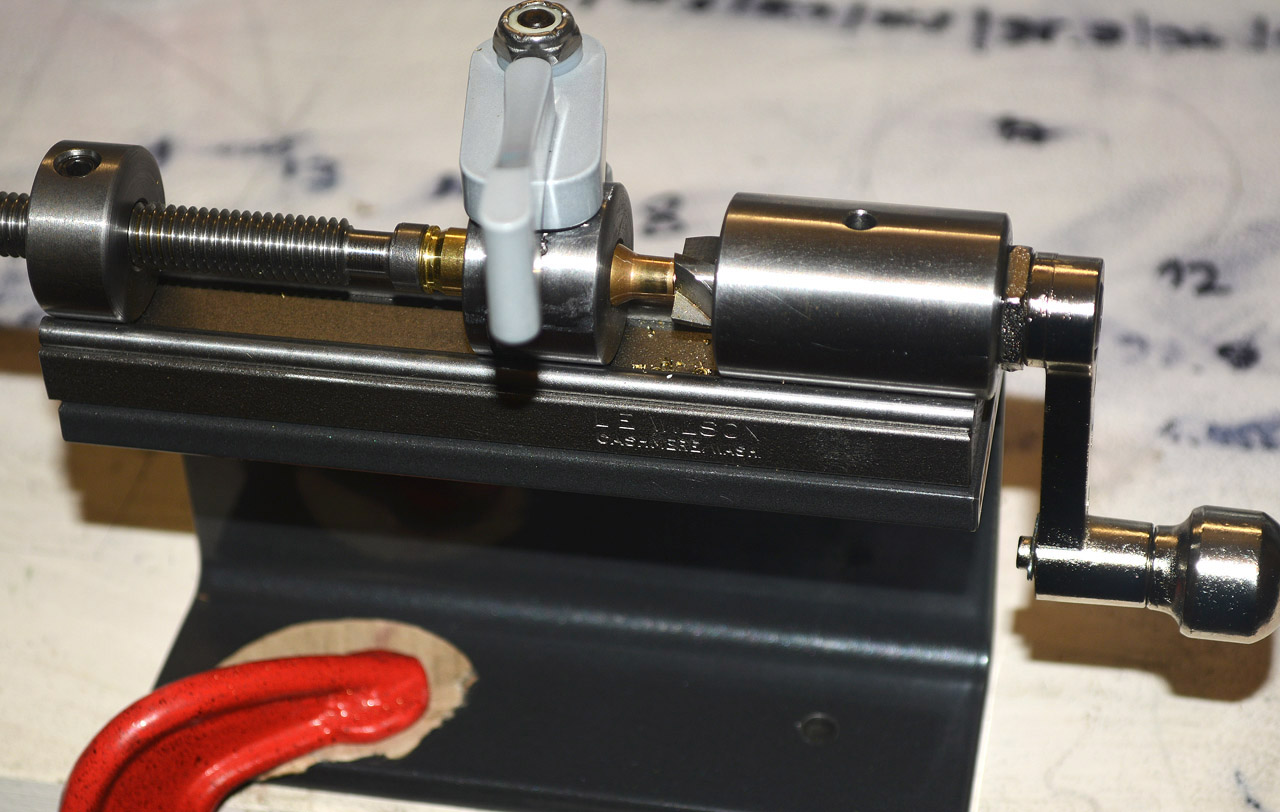

    Trimming cases:
    Name:  trimming_godoy.jpg
Views: 2877
Size:  213.6 KB

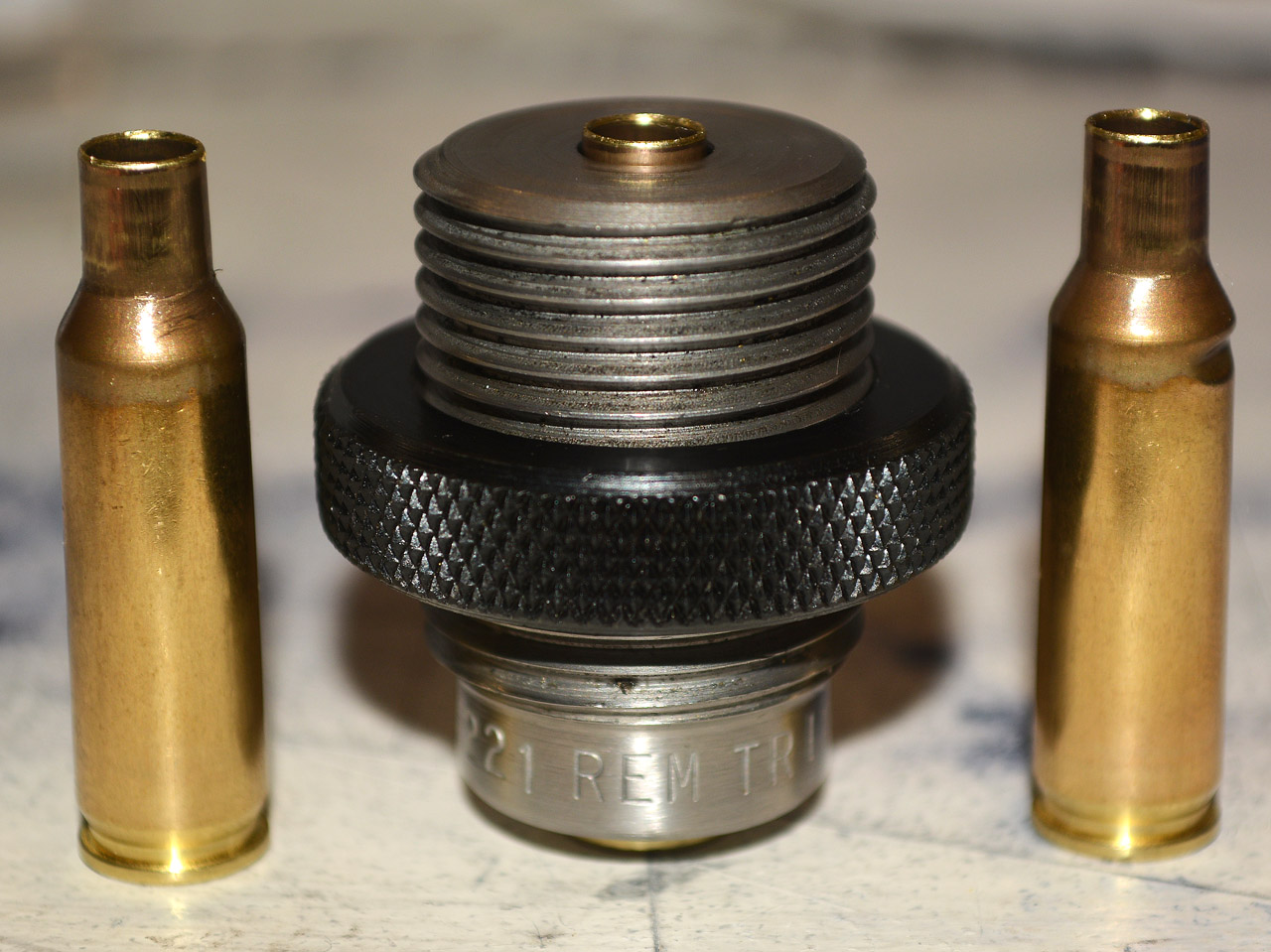

    Trimming die. Cases for comparison:
    Name:  trimmed_godoy.jpg
Views: 2580
Size:  268.4 KB

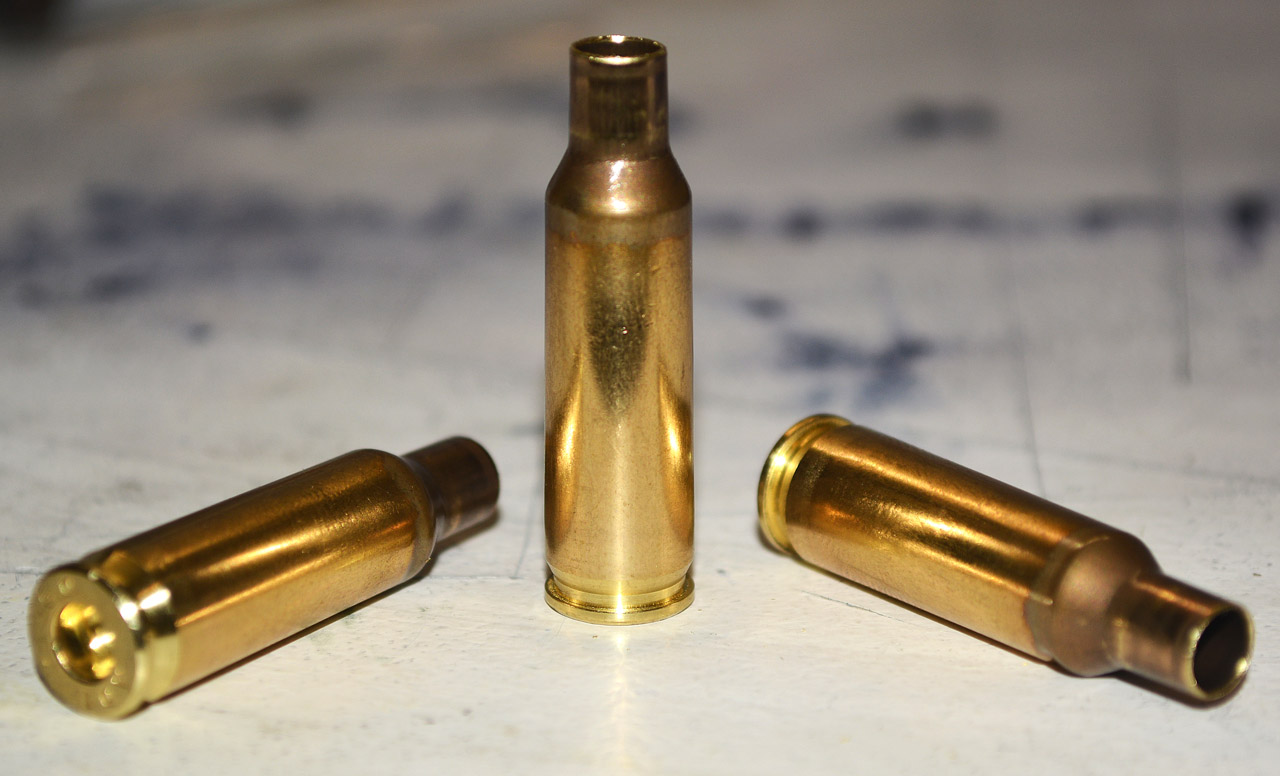

    Name:  trimmed_OK_godoy.jpg
Views: 4304
Size:  167.1 KB

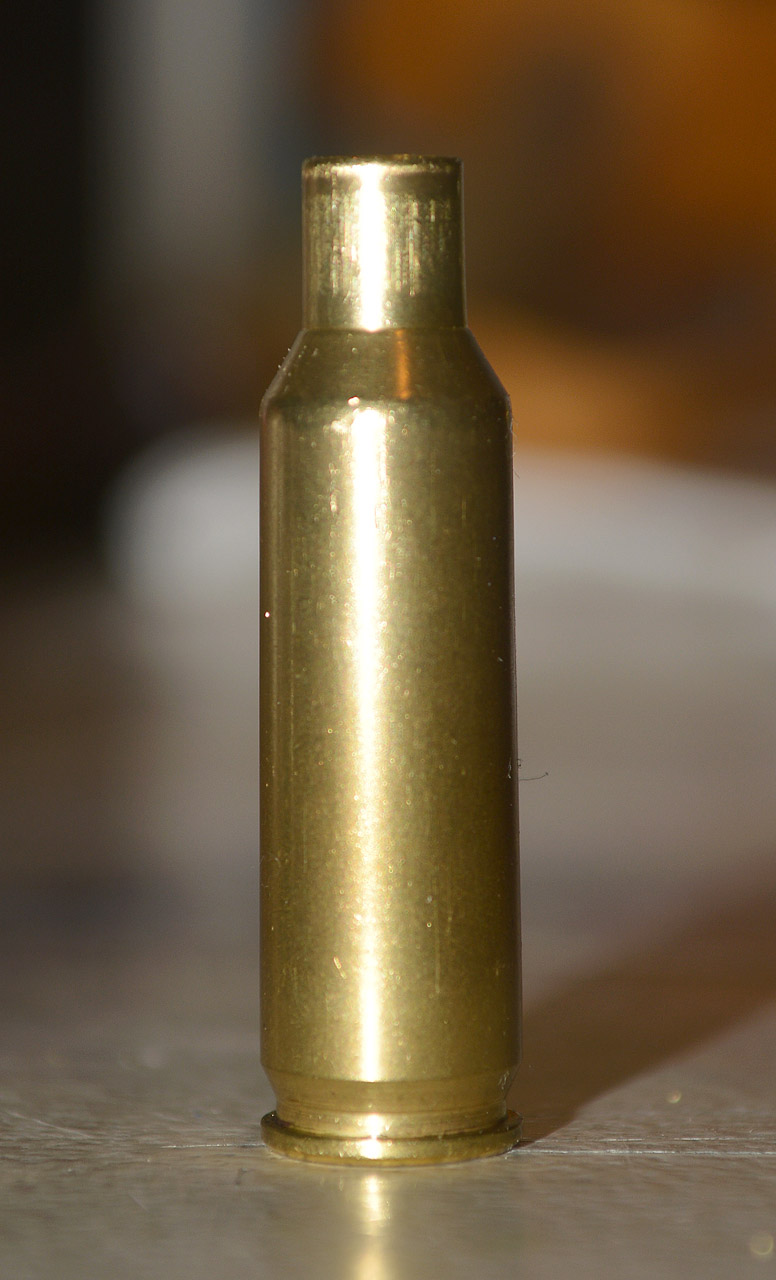

    Name:  done_godoy.jpg
Views: 3037
Size:  165.5 KB

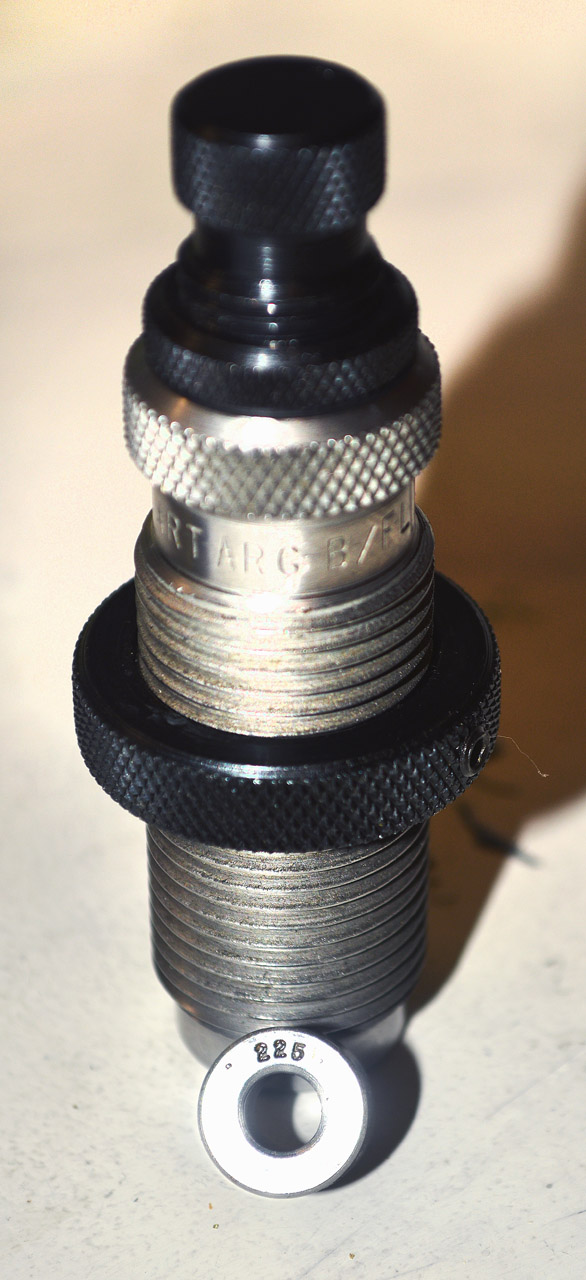

    Full length S die (.225 bushing in the pic, but I actually use .227 for necking down):
    Name:  20vtdie_godoy.jpg
Views: 2566
Size:  167.5 KB

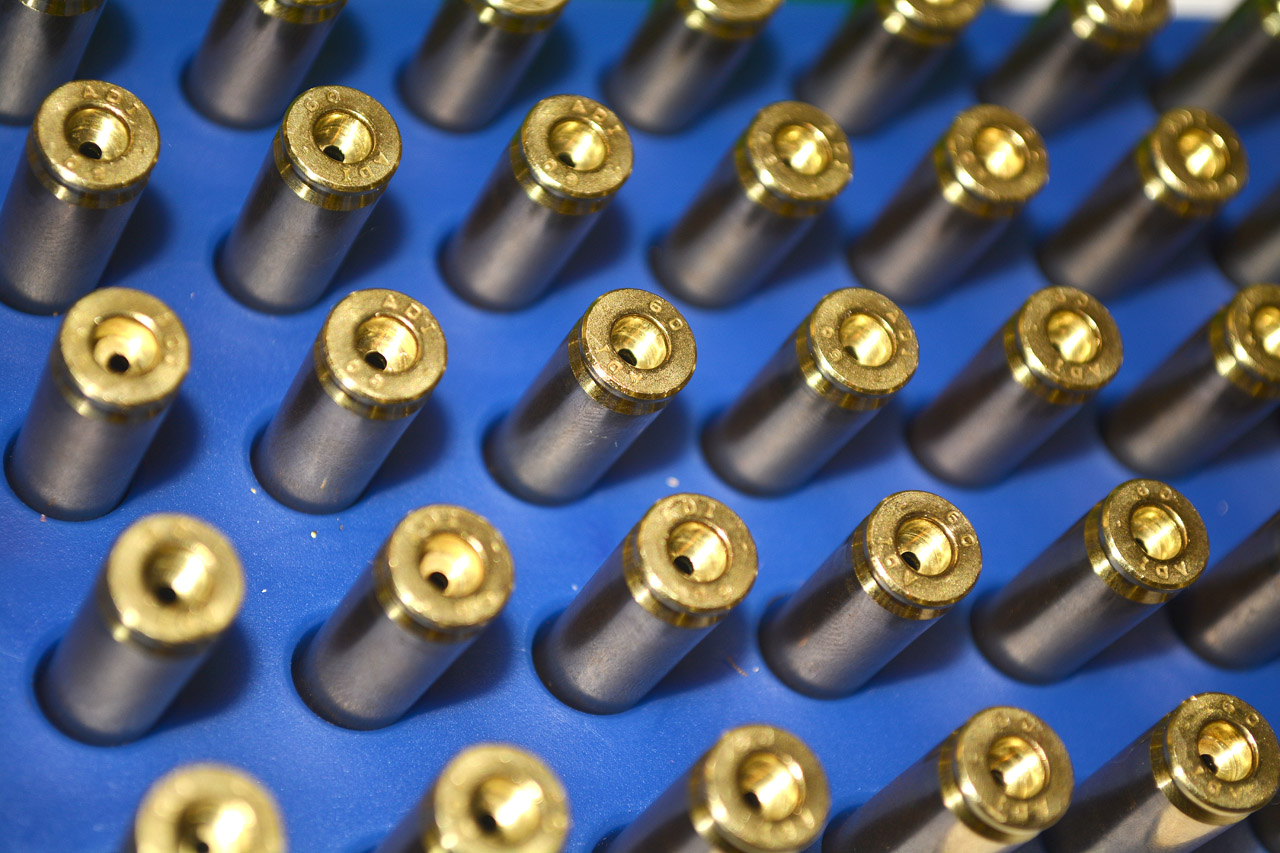

    223 ADI brass:
    Name:  2-vtdone_godoy.jpg
Views: 2738
Size:  297.6 KB

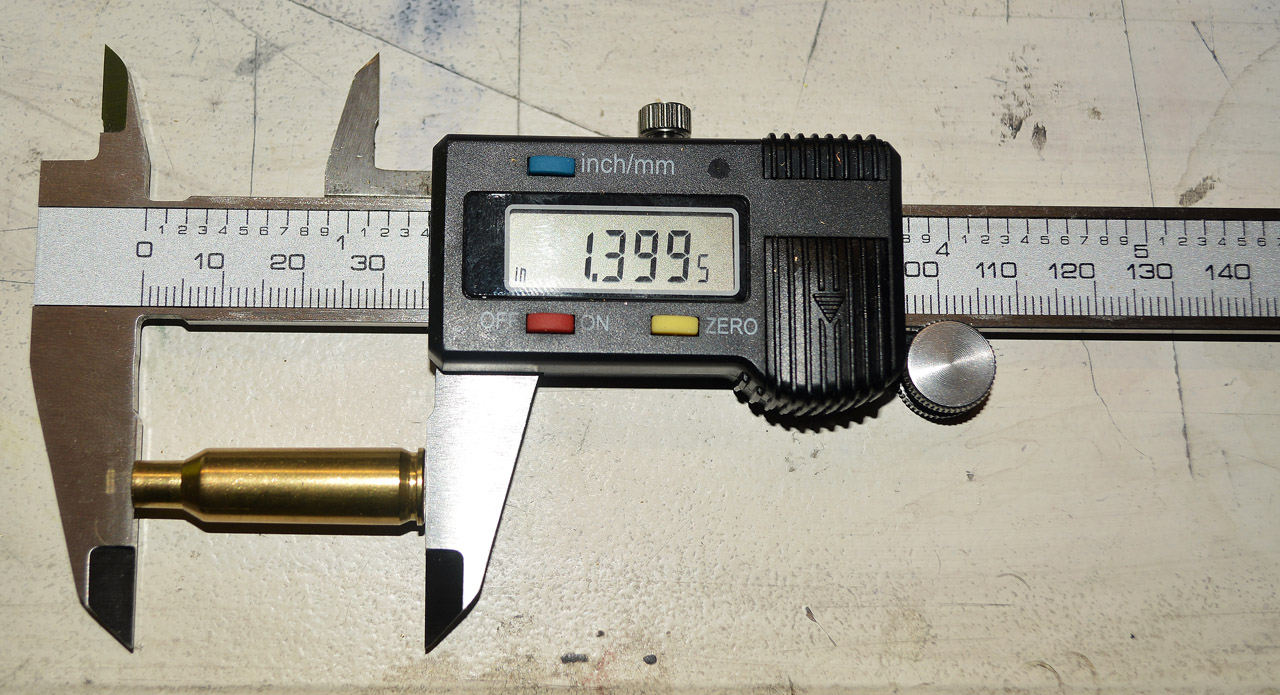

    Ready for neck turn
    Name:  dimension_godoy.jpg
Views: 2722
Size:  289.8 KB

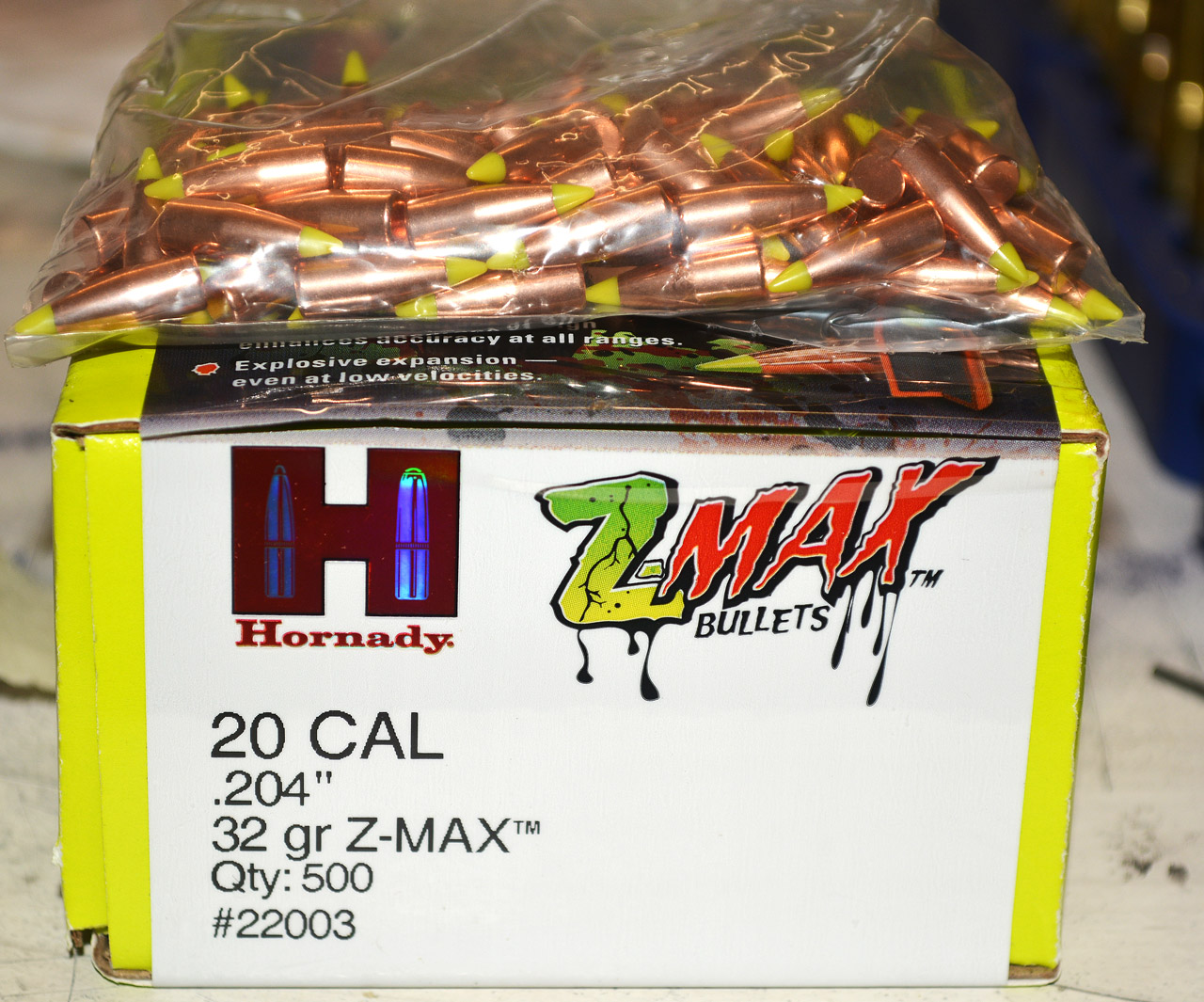

    Food:
    Name:  food_godoy.jpg
Views: 2649
Size:  396.3 KB

    If you guys are interested, I can post the neck turn stage, loading, shooting and results in a few days.

    Sorry for the awkward way I uploaded them cos its my first time posting something.

    Cheers
    Last edited by xring; 04-06-2014 at 01:34 AM. Reason: missing words
    puku, 7mmsaum, veitnamcam and 5 others like this.

  3. #3
    ebf
    ebf is offline
    The gnome returns ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    5,002
    Very interesting.

    I'd be keen to see the other stages.

    Nifty little chop saw
    Viva la Howa ! R.I.P. Toby
    Black rifles matter...

  4. #4
    Gone But Not Forgotten Toby's Avatar
    Join Date
    Sep 2012
    Location
    Wouldn't you like to know
    Posts
    11,099
    I wanna see the other stages too, and the rifle. What speeds do you get from it?

  5. #5
    Member
    Join Date
    Nov 2012
    Location
    BOP
    Posts
    16,717
    Have you got the pistol? That lovely bolt action baby from the 70s, the guy in the USA that was the first to shoot all major game animals with a pistol, used the 221 fireball for long range on sheep. Wish I still had the book
    Boom, cough,cough,cough

  6. #6
    Member
    Join Date
    Aug 2012
    Location
    Christchurch
    Posts
    3,295
    Cool thread. This is the sort of stuff I wish there was more of on the forum

  7. #7
    Member
    Join Date
    Jan 2012
    Location
    allover
    Posts
    288
    I am interested in the way you trime the long brass

    I run a wildcat based on a 7mm saum case shortened 200thou



    For trimming I have been using a modified lee trimer followed by a wilson to finish but it is hard work. I bought a redding form die like the one you show and I can hacksaw the tops off but it is a bit rough and ready is that buzz saw thing your prefered trim method? are you in NZ and if so where did you get it/what did it cost?

  8. #8
    Member
    Join Date
    Nov 2012
    Location
    AKL
    Posts
    269
    Hi guys, thanks for the replies.
    I posted the images, lets say, ramdomly yesterday cos it was late and my "google translate" in my brain was tiiiired. Yes I am in NZ, but my english is not that good, so sorry for that!
    I bought the mini chop saw at aliexpress.com, around US$ 55. I tried hacking saw the tops but it was a PITA. This saw chops necks off as butter and it was worth the money.
    yerimaginary, its interesting your forming dies. It first pushes the bottom of the neck down and gradually the top as well. Nice!!!! What cal is that?

    Here are some more images and I hope start necking turn them today, if wife and baby allow me.

    Please guys, any comment, good or bad, should be left and I will appreciate messages from smarter people.

    Cheers

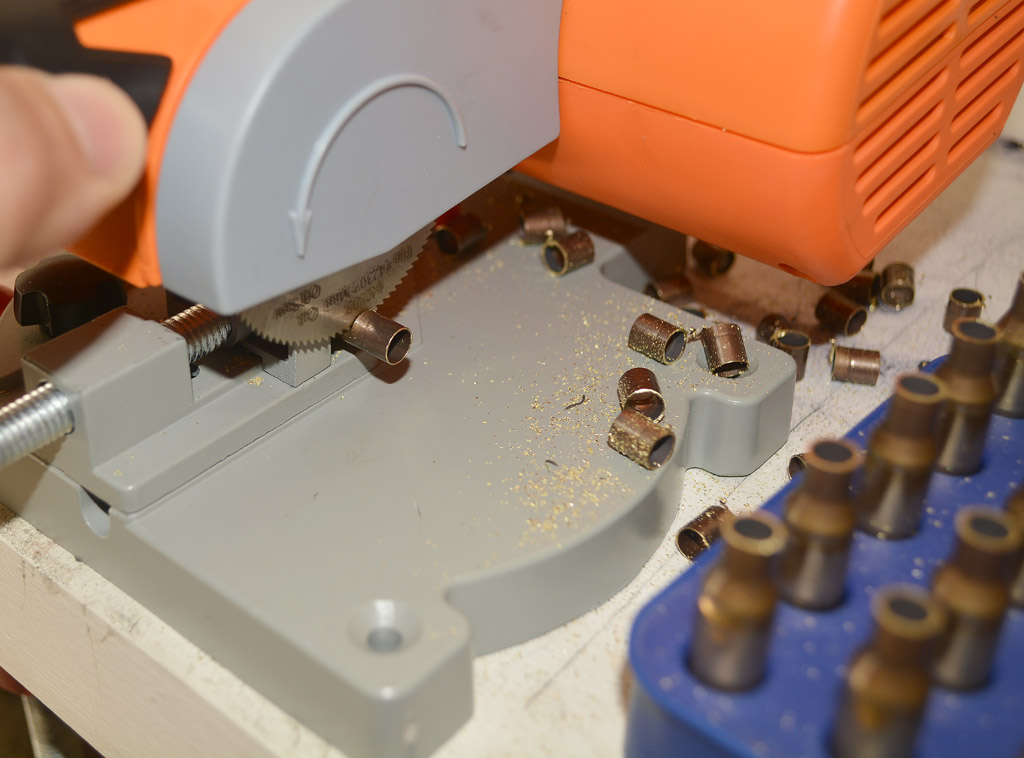

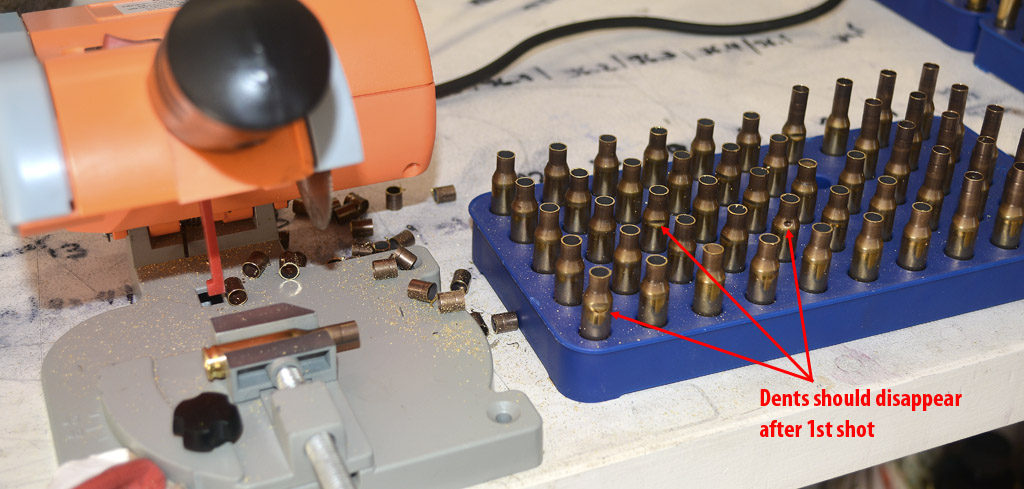

    Necks off. Cuts like butter. Saw was running while picture was taken
    Name:  1.jpg
Views: 2543
Size:  149.3 KB

    One more
    Name:  2.jpg
Views: 2404
Size:  163.8 KB

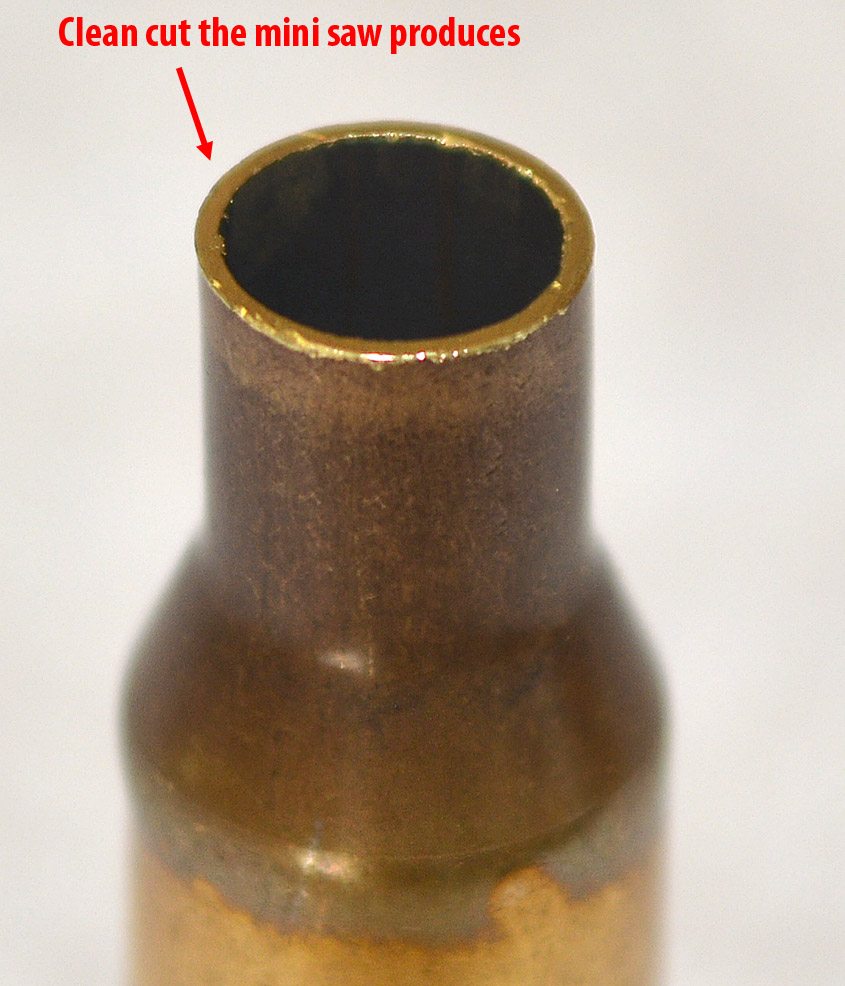

    Clean mini saw cut
    Name:  3.jpg
Views: 2400
Size:  189.6 KB

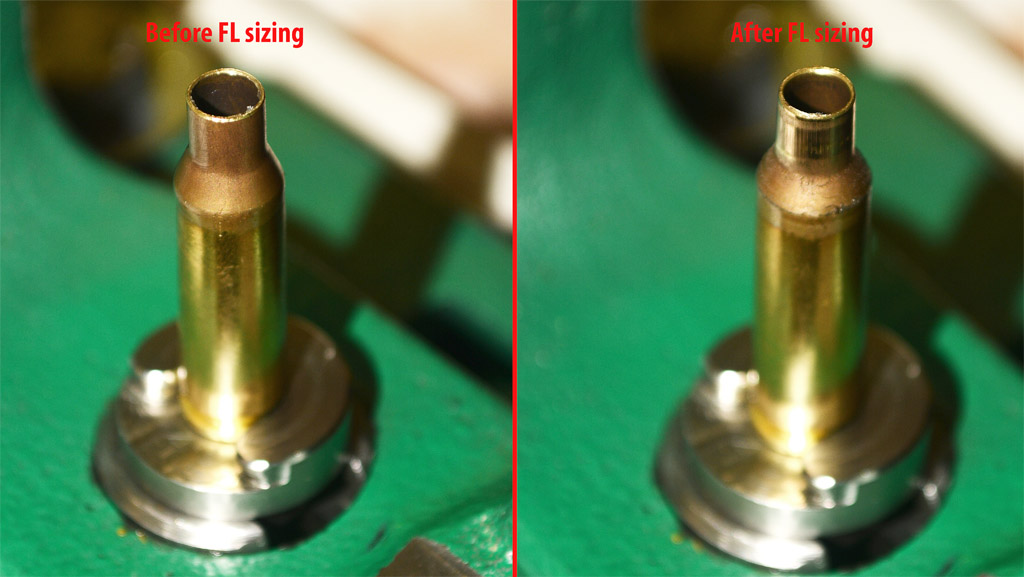

    Before/After FL sizing
    Name:  3a.jpg
Views: 2511
Size:  133.9 KB

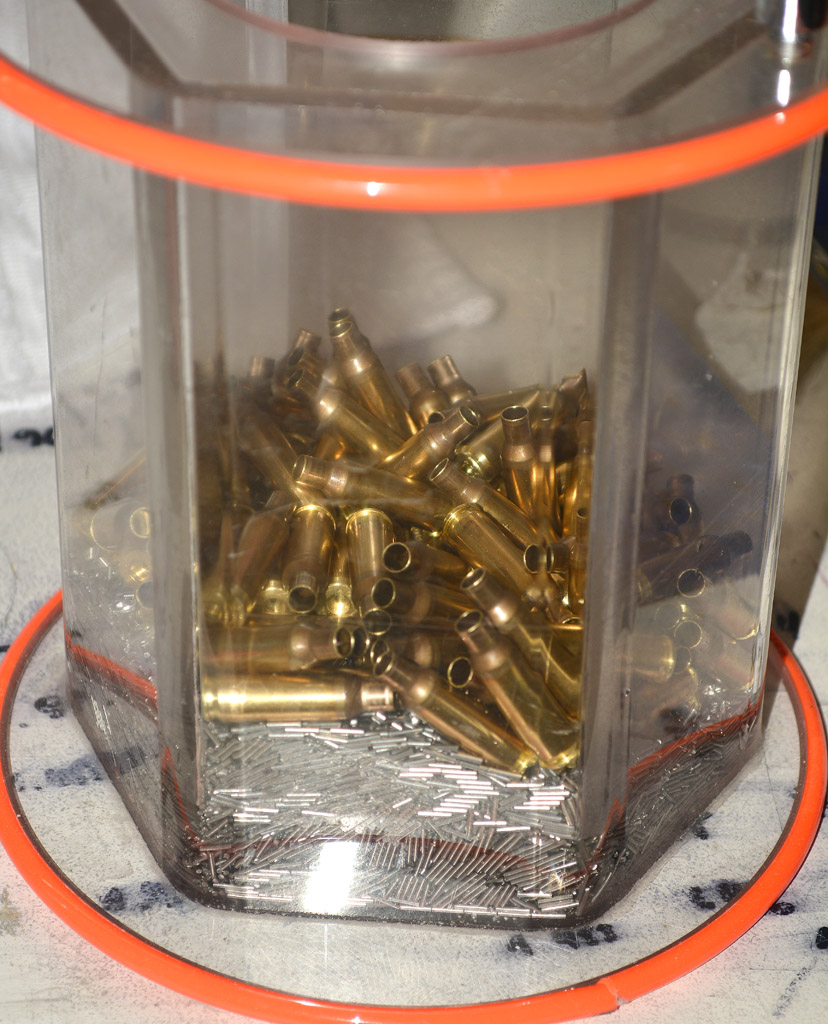

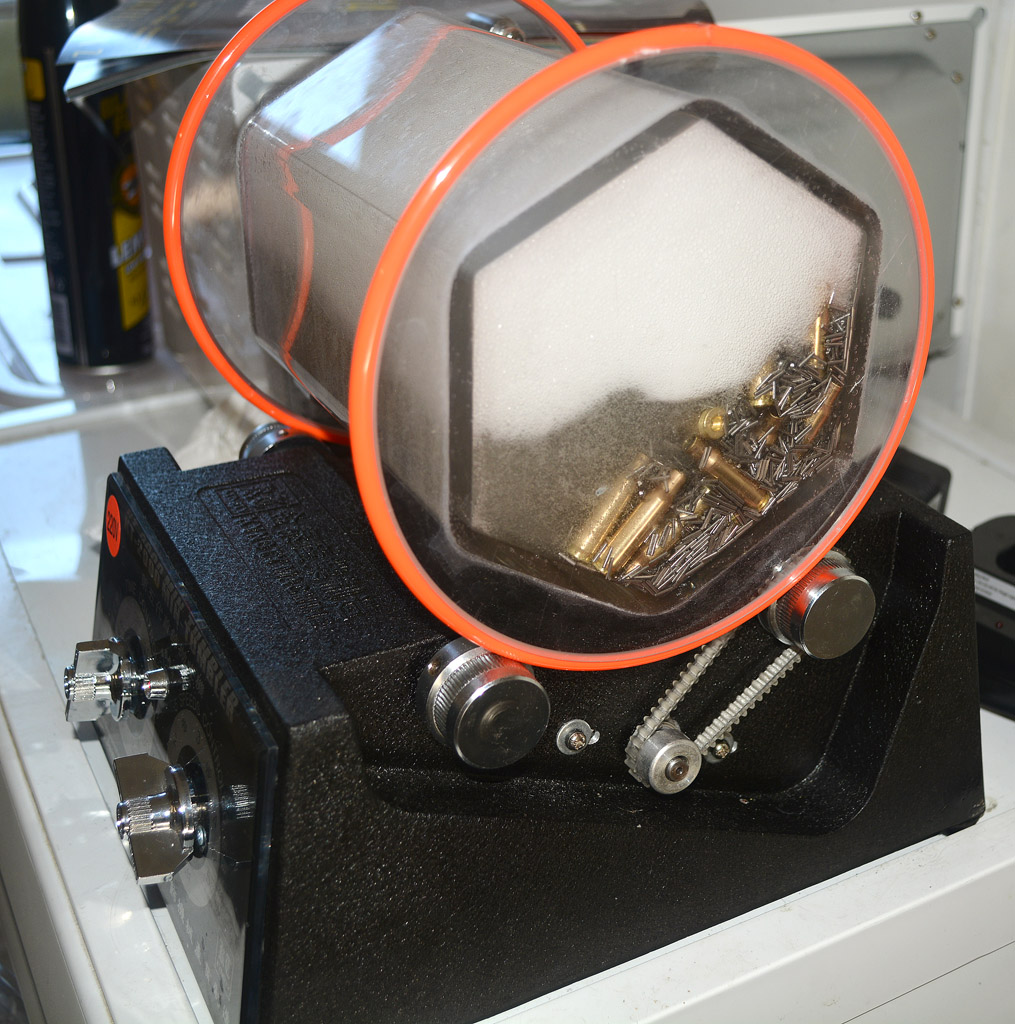

    Wet tumbling
    Name:  4.jpg
Views: 2592
Size:  240.1 KB

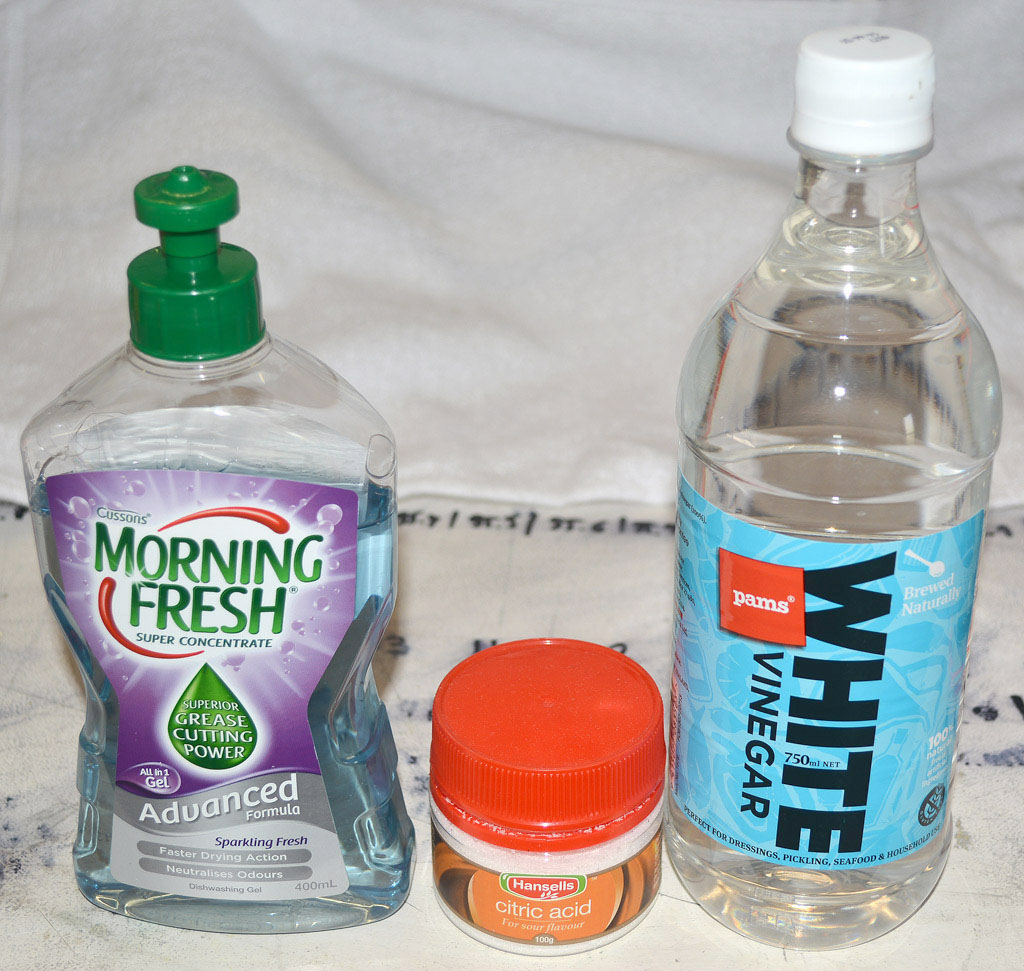

    Ingredients
    Name:  5.jpg
Views: 2496
Size:  238.2 KB

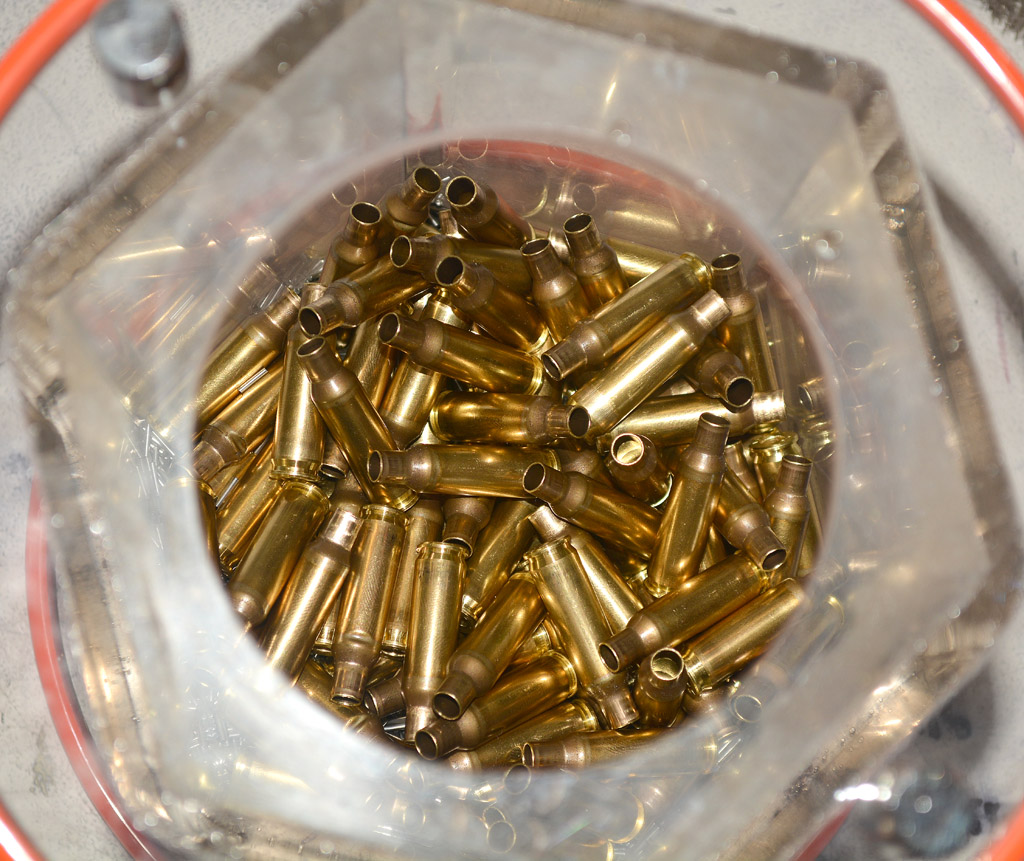

    More tumbling
    Name:  6.jpg
Views: 2470
Size:  267.2 KB

    Tumbling
    Name:  7.jpg
Views: 3173
Size:  309.4 KB
    Toby likes this.

  9. #9
    Member
    Join Date
    Jan 2012
    Location
    allover
    Posts
    288
    So that saw runs on 240V? could you please supply a link? was the shipping expensive? I tried using a dremel cutoff bit and that was hopeless also that saw looks great. My wild cat is simply a 7mm saum shortened 200thou at the shoulder
    Here is my form die


    if i were to do it again i might try it this way.

  10. #10
    Member
    Join Date
    Jan 2012
    Location
    allover
    Posts
    288
    found it, took a while...
    Mini cut off saw,Mini cut off saw/Mini Mitre Saw/Mini chop saw,220v 7800rpm cut ferrous metals non ferrous metals wood plastic-in Special Store from Jewelry on Aliexpress.com

    I did think of trying a very fine (say 32 tpi) mini hand held hacksaw with the redding form and trim die did you try this by any chance?

  11. #11
    Member BRADS's Avatar
    Join Date
    Oct 2012
    Location
    Central Hawkes Bay
    Posts
    8,223
    That's a lot of effort well done
    Not for me I'd loose the brass when hunting and have two start again


    Sent from my iPhone using Tapatalk
    Blaser likes this.

  12. #12
    ebf
    ebf is offline
    The gnome returns ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    5,002
    xring, if you could post some pics of your annealing setup/process that would be great thanks.
    Viva la Howa ! R.I.P. Toby
    Black rifles matter...

  13. #13
    Member
    Join Date
    Nov 2012
    Location
    AKL
    Posts
    269
    Thanks again, guys! I tried the hacksaw but it kinda galled, lots of elbow grease and ended up with a bad finish around the case mouth. Previously, I was thinking about those Renovator tool, but was afraid to spend some money on that and it didnt work. On Youtube you can see some people making 300AAC out of 223 and most of them use this mini rotary saw.
    About the annealing process, nothing special. Just a Bernzomatic propane torch, a cordless drill and any clock that makes some noise/tic tacs so I can control time. But in the near future I will build a proper annealer myself.

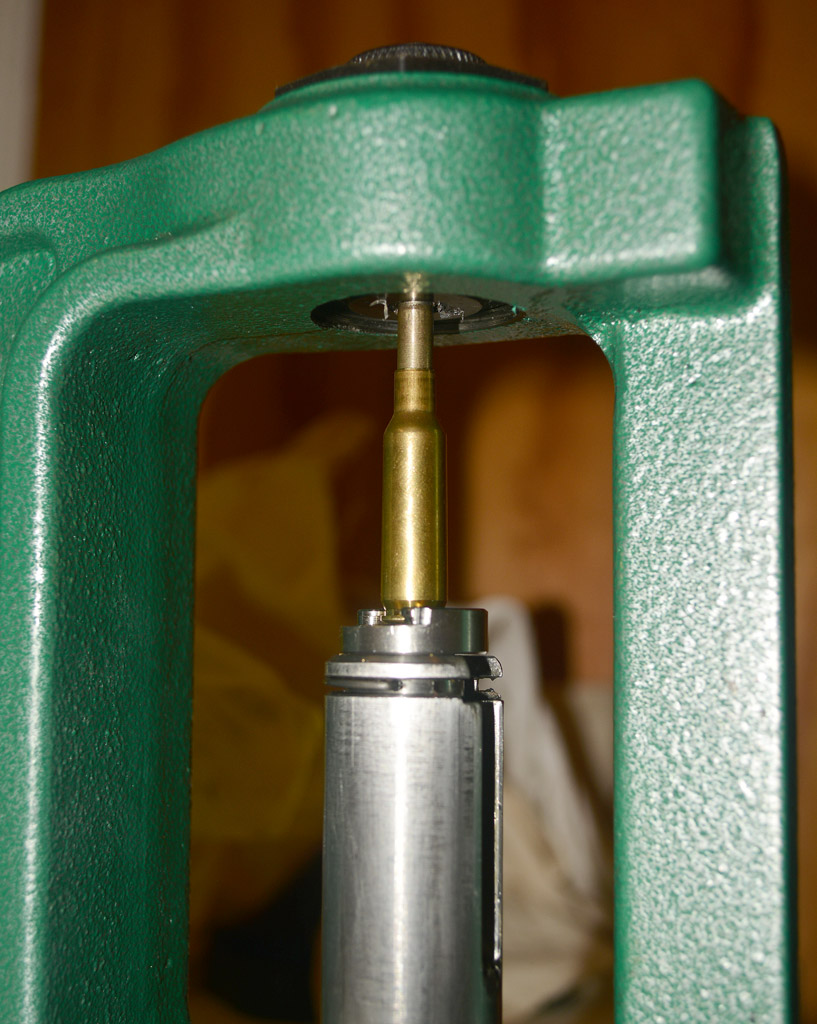

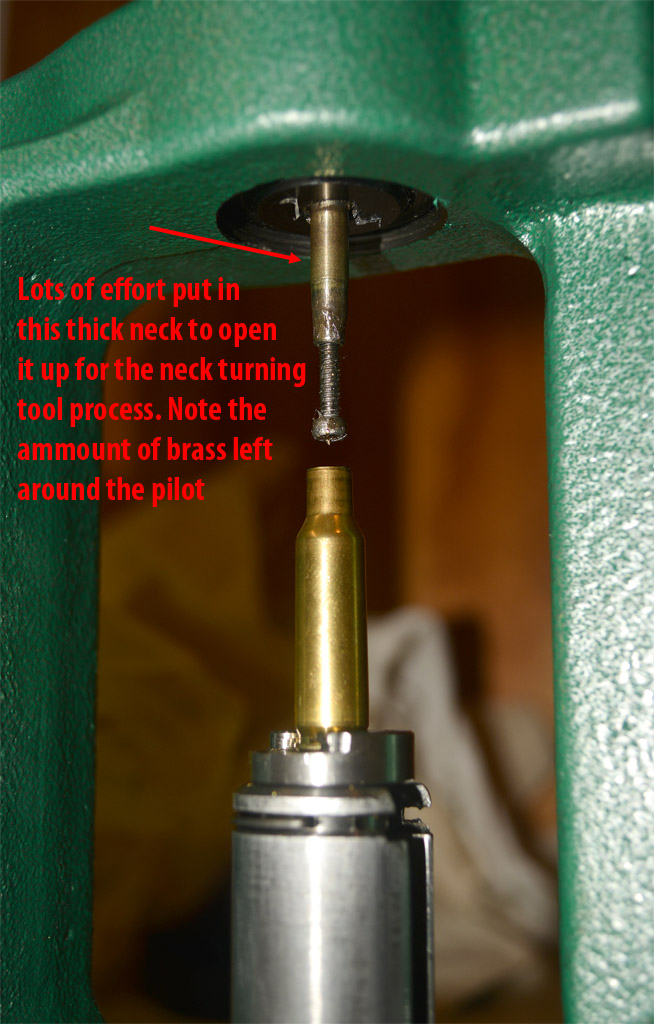

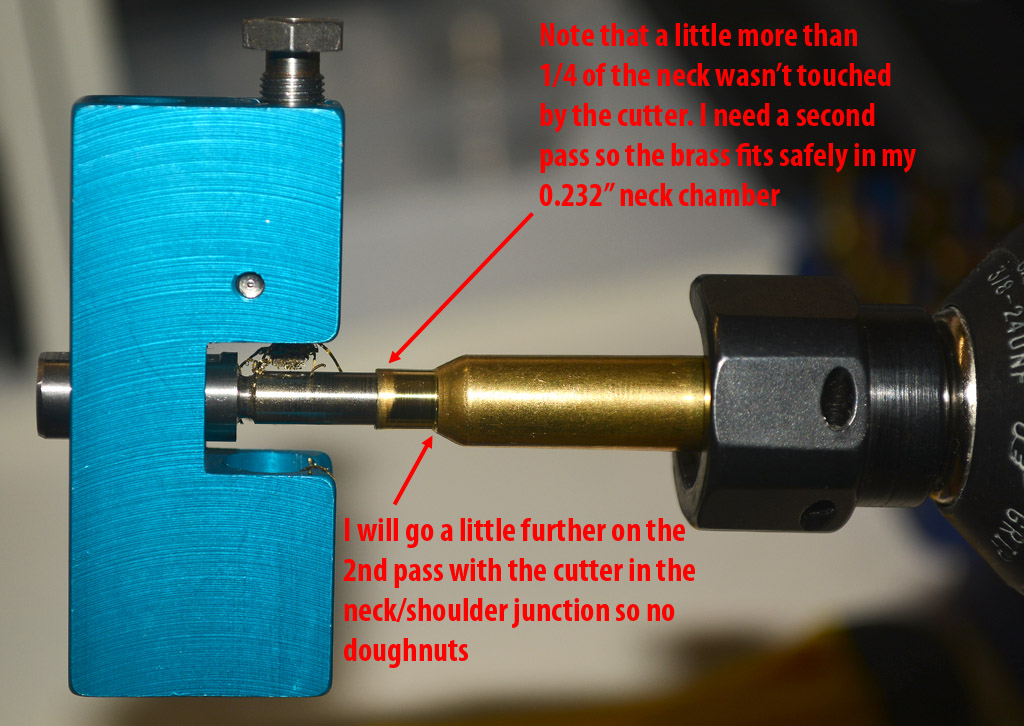

    Here are some self explanatory images continuing the process.
    Cheers

    Cheap KMart oven
    Name:  1a.jpg
Views: 2354
Size:  193.0 KB

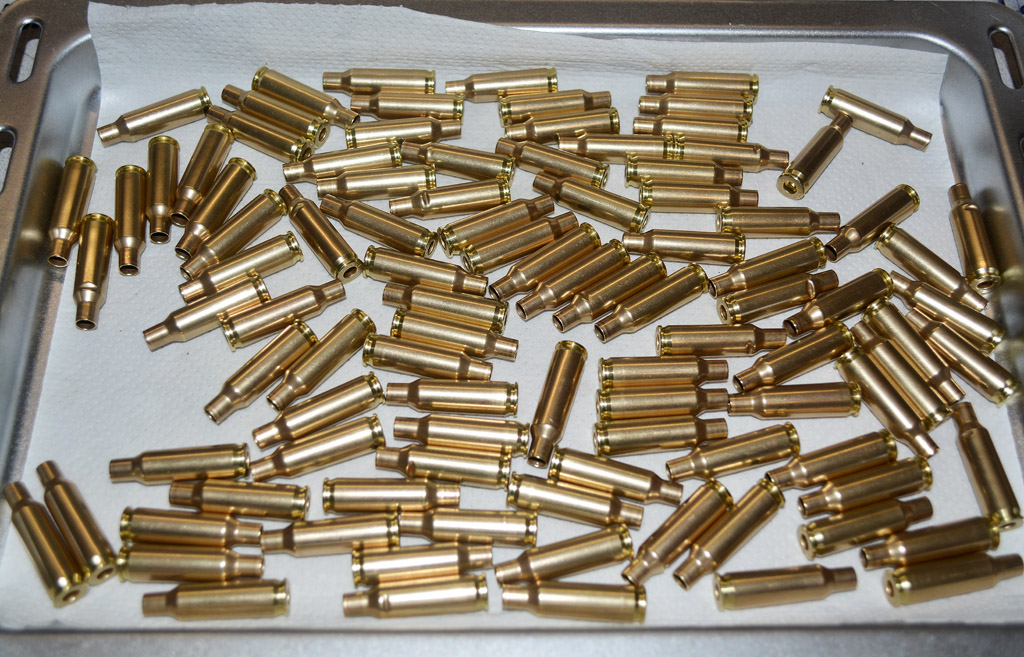

    Simple ingredients to mak'em shine
    Name:  1b.jpg
Views: 2338
Size:  283.1 KB

    Name:  1c.jpg
Views: 2285
Size:  180.9 KB

    Name:  1d.jpg
Views: 2311
Size:  221.5 KB

    Name:  1e.jpg
Views: 2516
Size:  225.1 KB

    Name:  1f.jpg
Views: 2383
Size:  154.3 KB
    Bryan and Toby like this.

  14. #14
    Member
    Join Date
    Jan 2012
    Location
    allover
    Posts
    288
    kg copper cleaner works great for cleaning brass off the expander mandrel. I have the k&m neck turner but found it fiddly i then got a pma tools turner its much nicer to use with a micrometer style depth adjustment and the cutters come with different angles to match shoulder angles for running into the shoulder. The pma cutters are broader so its much easier to get a clean smooth cut than with the k&M. The expander mandrels are nicer too with an eliptoid shape to them http://bulletin.accurateshooter.com/...-turning-tool/

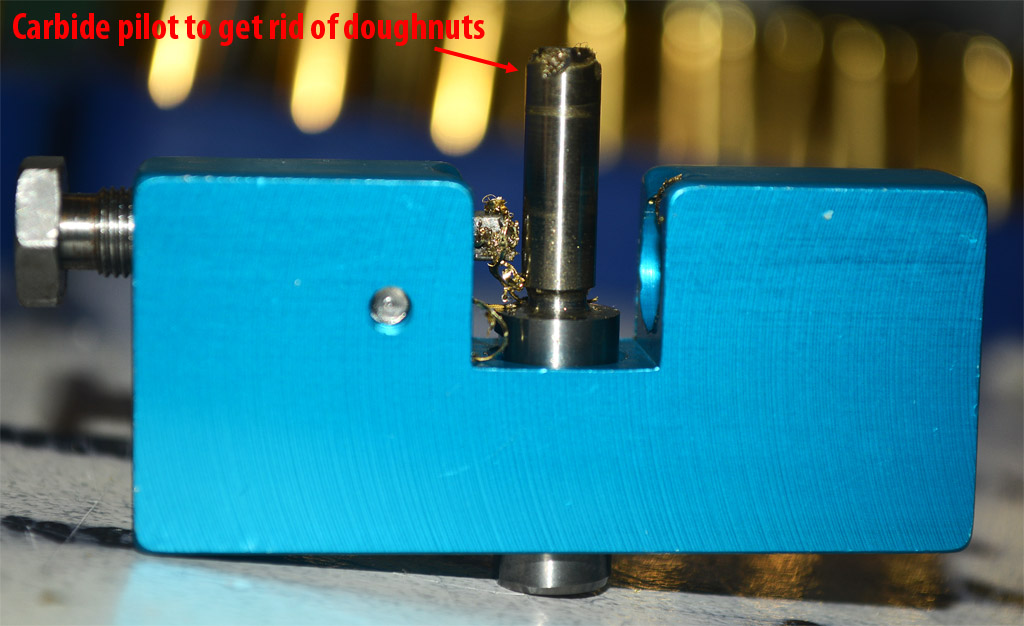

    you can buy a sleeve from pma that allows you to fit the carbide mandrel from the k&m to the pma turner so you can still cut the donuts. That carbide mandrel runs so much smoother on the brass than standard steel mandrels its the one really nice thing about the k&m set up
    Last edited by yerimaginaryM8; 06-06-2014 at 09:47 AM.

  15. #15
    Member
    Join Date
    Nov 2012
    Location
    AKL
    Posts
    269
    hey yerimaginary, thanks for the tips. i was thinking about getting a second one from 21st shooting, which looks nice too, but they may not have those "adaptors" to use my k&m mandrel. i got some more images to upload now but i am sleeping sitting up so will post tomorrow. what is your main goal? hunting, paper shooting, long range, short BR?
    cheers for the heads up again!
