Thread: Gess what I`m doing.

  1. #1
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    627

    Gess what I`m doing.

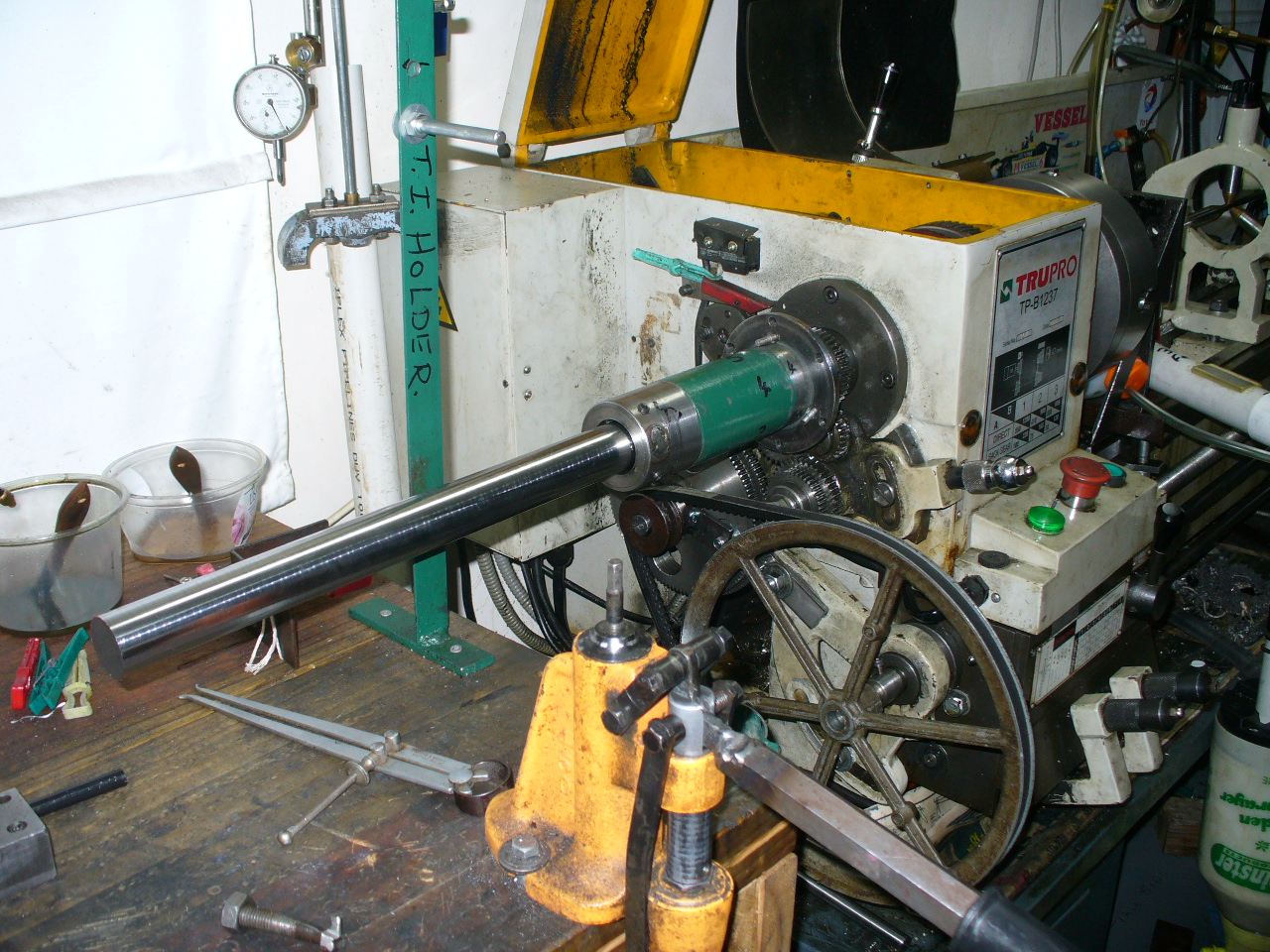

    Hi all, yep have set up one of the 4140 steel shafts in my lathe ready to drill a .444" hole in for 28". Now running two oil pumps for more volume and pressure and mixed in 5ltrs of Coolcut cutting oil to my hydraulic oil, should help keep the drill sharp and cool. And speaking of sharp I worked out a way to sharpen my gun drills on my lathe with a small diamond grind wheel, used to cost me $50 each to get them sharpened, can't beat do it your self. IF it comes out any good still thinking what rifling twist should I do, 1-18" or 1-20" with a 27" barrel. . Pic`s of the setup.
    Name:  P1030045.JPG
Views: 706
Size:  588.9 KB,
    Name:  P1030046.JPG
Views: 703

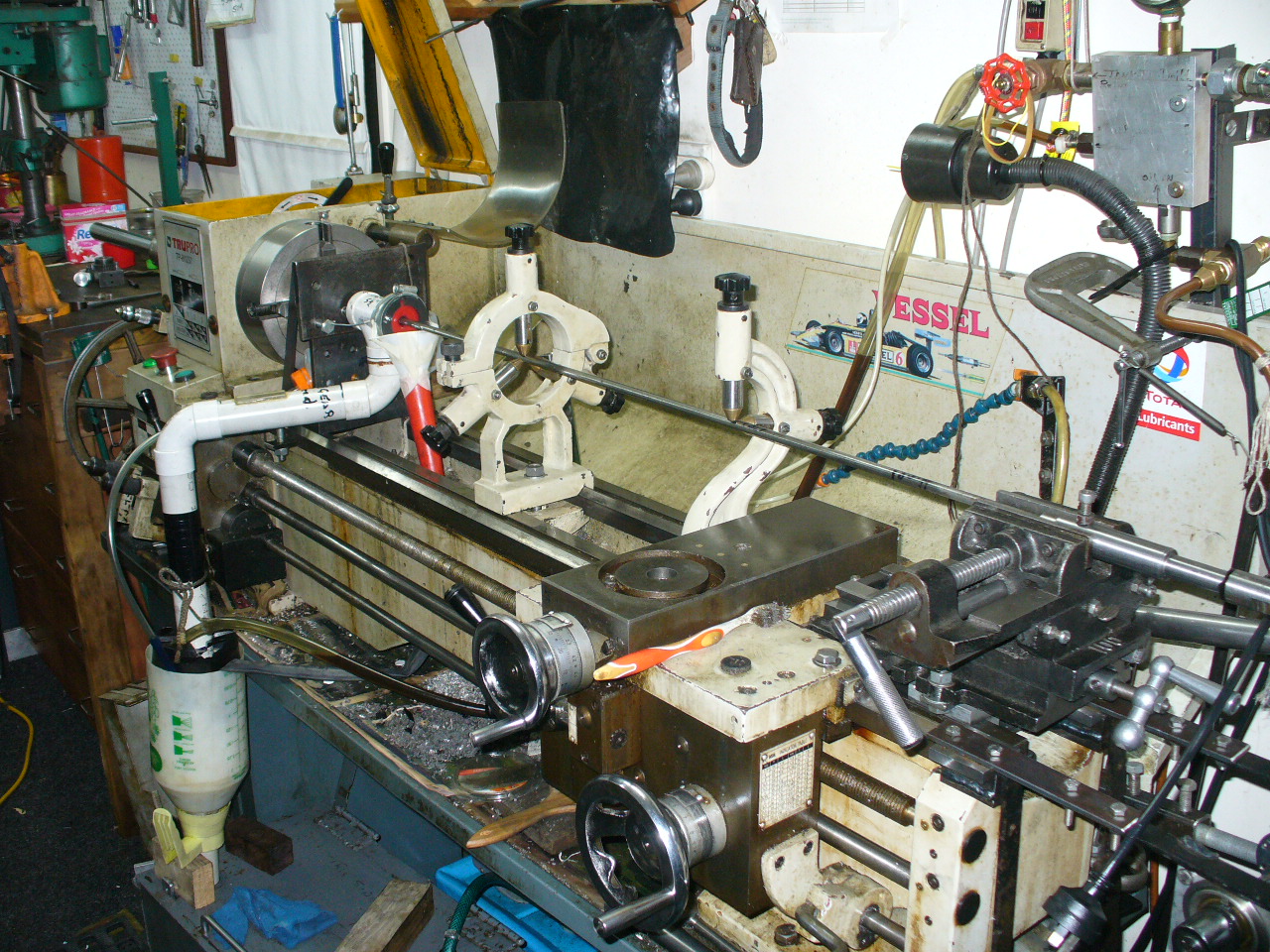

Size:  548.4 KB, All ready to go.
    Walker, Shootm, madjon_ and 6 others like this.

  2. #2
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    2,996
    one of each.....lol

  3. #3
    Member
    Join Date
    Feb 2013
    Location
    spreydon christcurch.
    Posts
    3,829
    brew ya old bugger nice to see ya back in print again -thought ya mighta buggered off into the wideblue yonder. still the craftsman i sees!

  4. #4
    Member
    Join Date
    May 2015
    Location
    Southland
    Posts
    801
    Gess what I`m doing.

    Making a fancy tool to fix the "U" key on your keyboard!?

    Seriously, waiting in anticipation!

  5. #5
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    627
    It`s my bloody brew that does that, thakes controle of ma fingres . The grenlins are creeping in, set my drilling rig going, oil pressure at 400psi and it`s pissing out off the barrel stock end, I hadn't pushed the stock hard onto the drill guide seal ring. Buugggger!!. So the car looks nice and shiny, the garage walls and ceiling are nice and clean," O darling, I see you have cleaned the car AND the garage, and you have had a bath to!!!, wonders will never sťance. Mums the word. So I`m starting all over again, some days it pays to stay in bed.
    veitnamcam, Beaker, kotuku and 3 others like this.

  6. #6
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    627
    After a few brews all is back on line and going good, resharpened the drill, all set up again and back into it. After a day on it I have about 14" to go in to give me a 28" deep hole. I can't lay in bed all day ,have to get the job done and yes the stock is hard up on the o ring seal, no, not a drip at 400 psi,
    Name:  P1030048.JPG
Views: 496

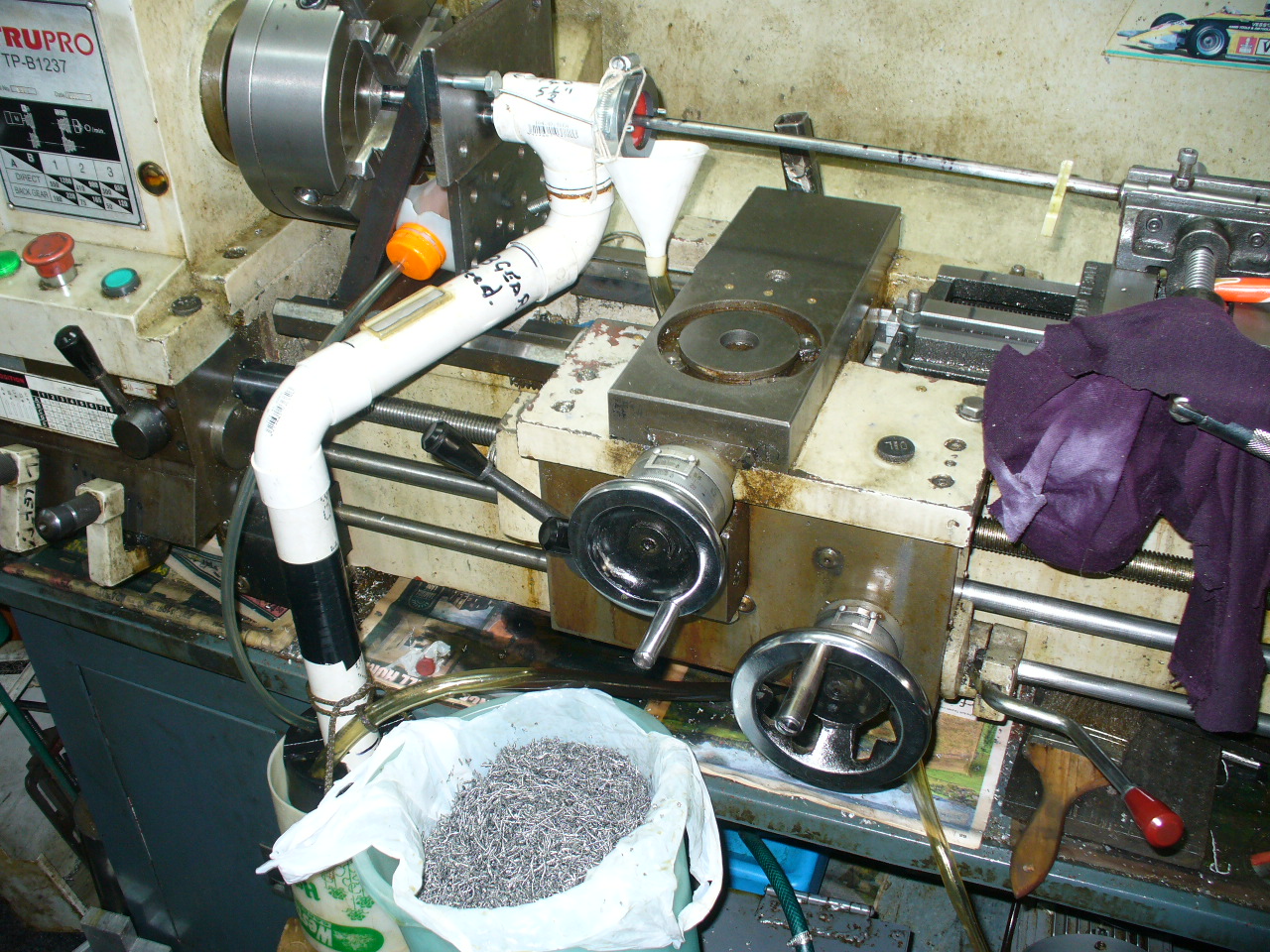

Size:  562.0 KB, Anyone want a nice bowl of chips.

  7. #7
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    627
    I know you are all having bets as to will he flood the garage with oil, will the gun drill break in the bore and stuff things up. O all ye of no faith, my moto is ("There`s no such thing as Can't do it")!!. So to all you non believers I`m putting my mouth where my money is, Here`s a bloody long hole in a shaft of hard steel, 29" and entry to exit hole is only off centre by .004" , am I good or what!! . Just need to ream it ,then cut the rifling, no problem, I think.
    Name:  P1030050.JPG
Views: 473

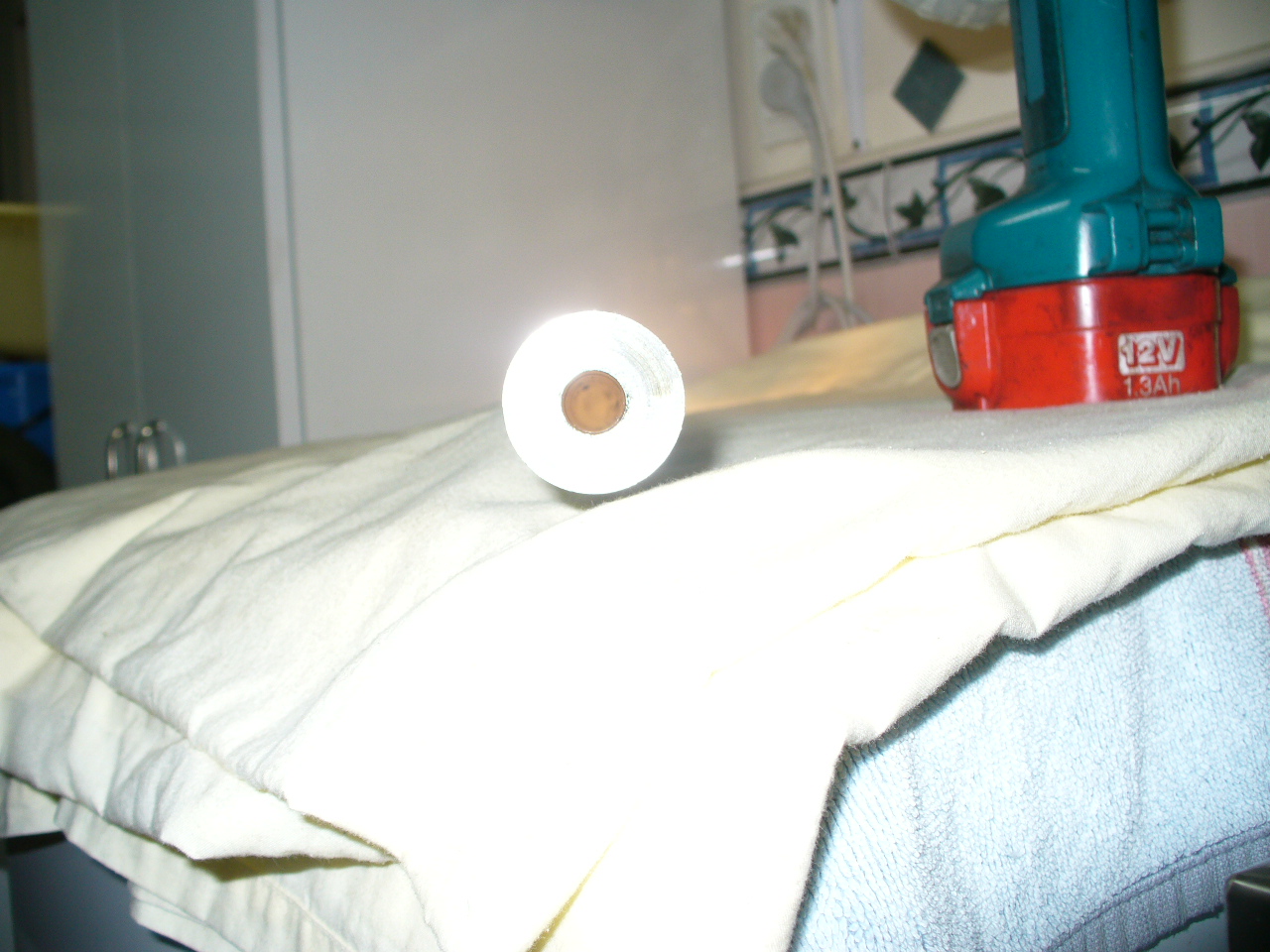

Size:  443.9 KB, Now is that not a lovey hole!!
    veitnamcam, mikee, Beaker and 3 others like this.

  8. #8
    Member Walker's Avatar
    Join Date
    Dec 2011
    Location
    Mangawhai
    Posts
    316
    Very well done! IF your intrested, special steels and metals can supply pilot drilled barrel bar or should I say used to, comes from sweden.

  9. #9
    MIA somewhere in Nam 300CALMAN's Avatar
    Join Date
    Dec 2014
    Location
    Reluctantly JAFA
    Posts
    3,471
    Quote Originally Posted by homebrew.357 View Post
    Hi all, yep have set up one of the 4140 steel shafts in my lathe ready to drill a .444" hole in for 28". Now running two oil pumps for more volume and pressure and mixed in 5ltrs of Coolcut cutting oil to my hydraulic oil, should help keep the drill sharp and cool. And speaking of sharp I worked out a way to sharpen my gun drills on my lathe with a small diamond grind wheel, used to cost me $50 each to get them sharpened, can't beat do it your self. IF it comes out any good still thinking what rifling twist should I do, 1-18" or 1-20" with a 27" barrel. . Pic`s of the setup.
    One that progresses from 1-20" to 1-12" that would be awesome.

  10. #10
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    627
    What, a gain twist, I thought that was only with a old Navy .44 pistols. I`d need a sine bar like a crank handle. Now the bore is not bad but just needed reaming to clean up the drill scratch marks and smooth it out and enlarge it for the rifling cutter head to fit. I make up my own homebrewed reamer, it`s a 8"inch long flat bit of steel with a length of hack saw blade solded on one side and ground straight on the sides. Bottom has three pins to hold a packing bit of hard wood, this rubs on the bottom of the hole while the H/ blade is pressed against the top of the hole. It`s the square edge that scrapes the bore as it is wound through and with lots of cutting oil the metal coming off is like grey mud. To make it cut a bit more a thin strip of paper is placed between the packer and pins.
    Name:  P1030054.JPG
Views: 410

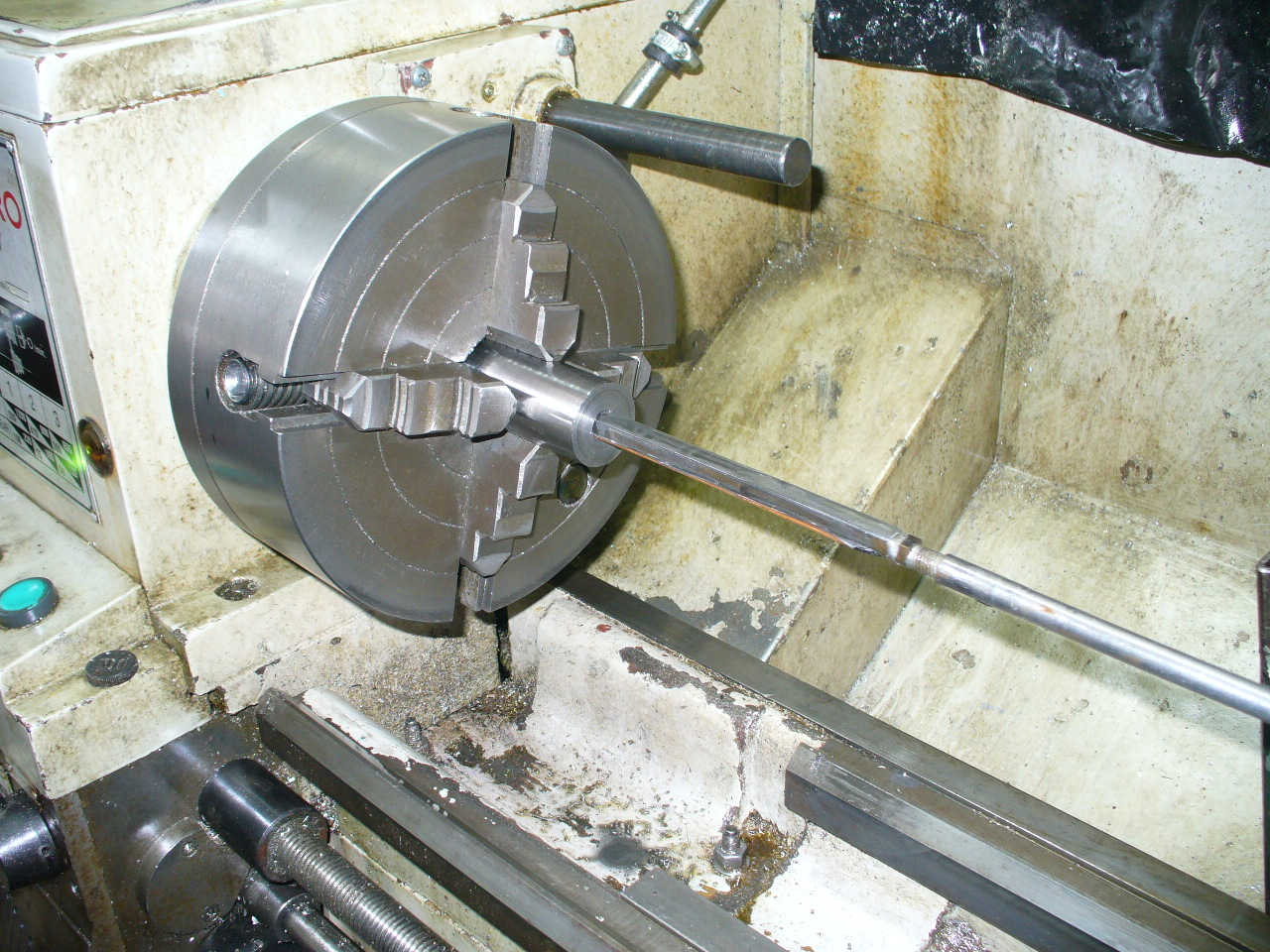

Size:  550.9 KB, Coming out with grey mud, sharp edges of blade scrapes the bore smooth.
    Name:  P1030055.JPG
Views: 402

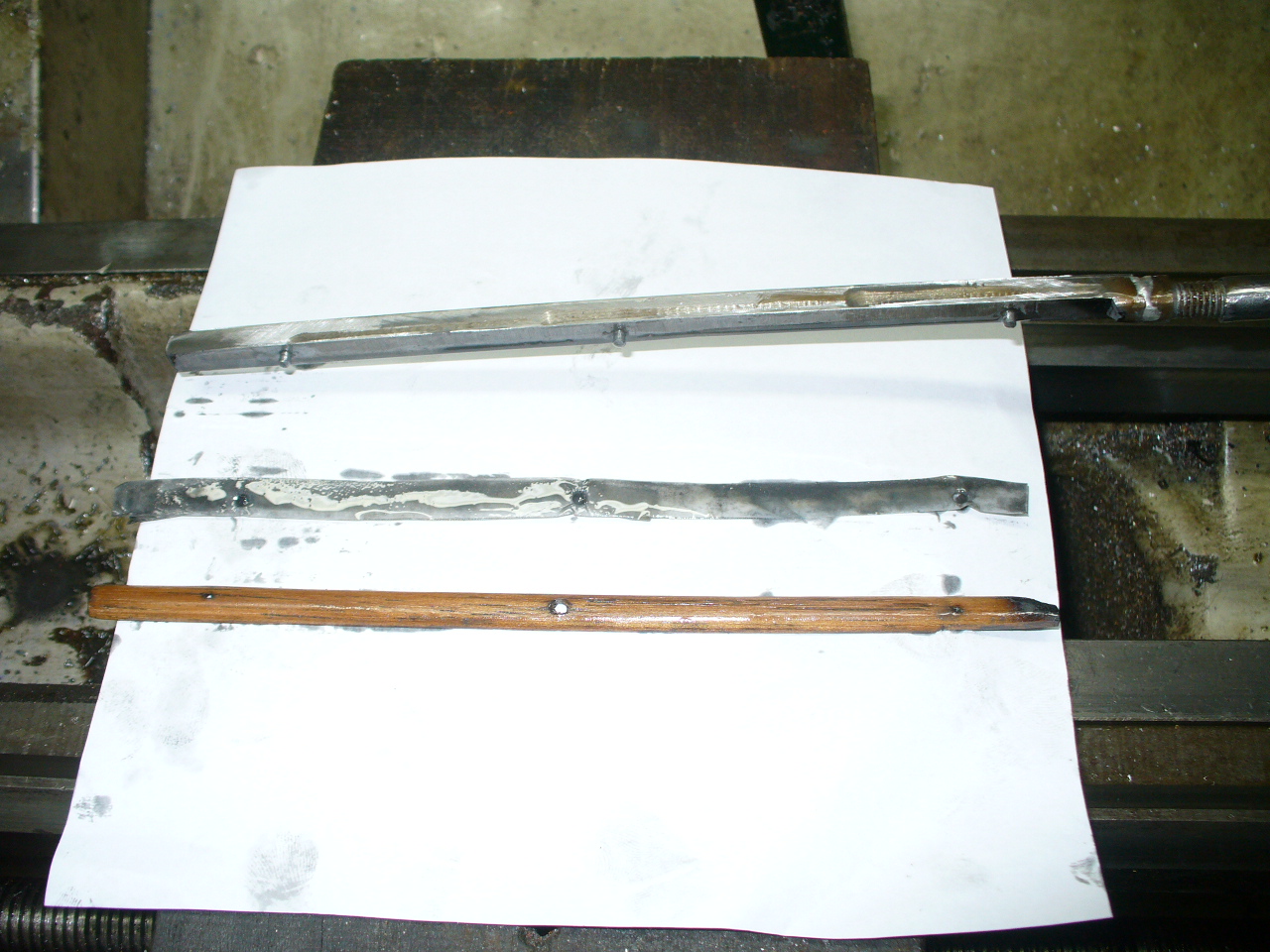

Size:  480.8 KB, Reamer, paper packer, wood base.
    veitnamcam, 40mm and svt40 like this.

  11. #11
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    2,996
    cleaver wee hua arent you just...... real #8 WIRE STUFF keep it coming bud.

  12. #12
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    627
    Well they say you can't beat results, I did the same thing when making my Sharps barrel and the drill bores a hole to .442"/ .444" , for the rifling head to slide nicely it needs to be .444" so not much is removed. So yes I`m the clever chap as my Sharps is telling me.
    Name:  P1030056.JPG
Views: 377
Size:  571.2 KB, Practise for a goat shoot.
    veitnamcam likes this.

  13. #13
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    627

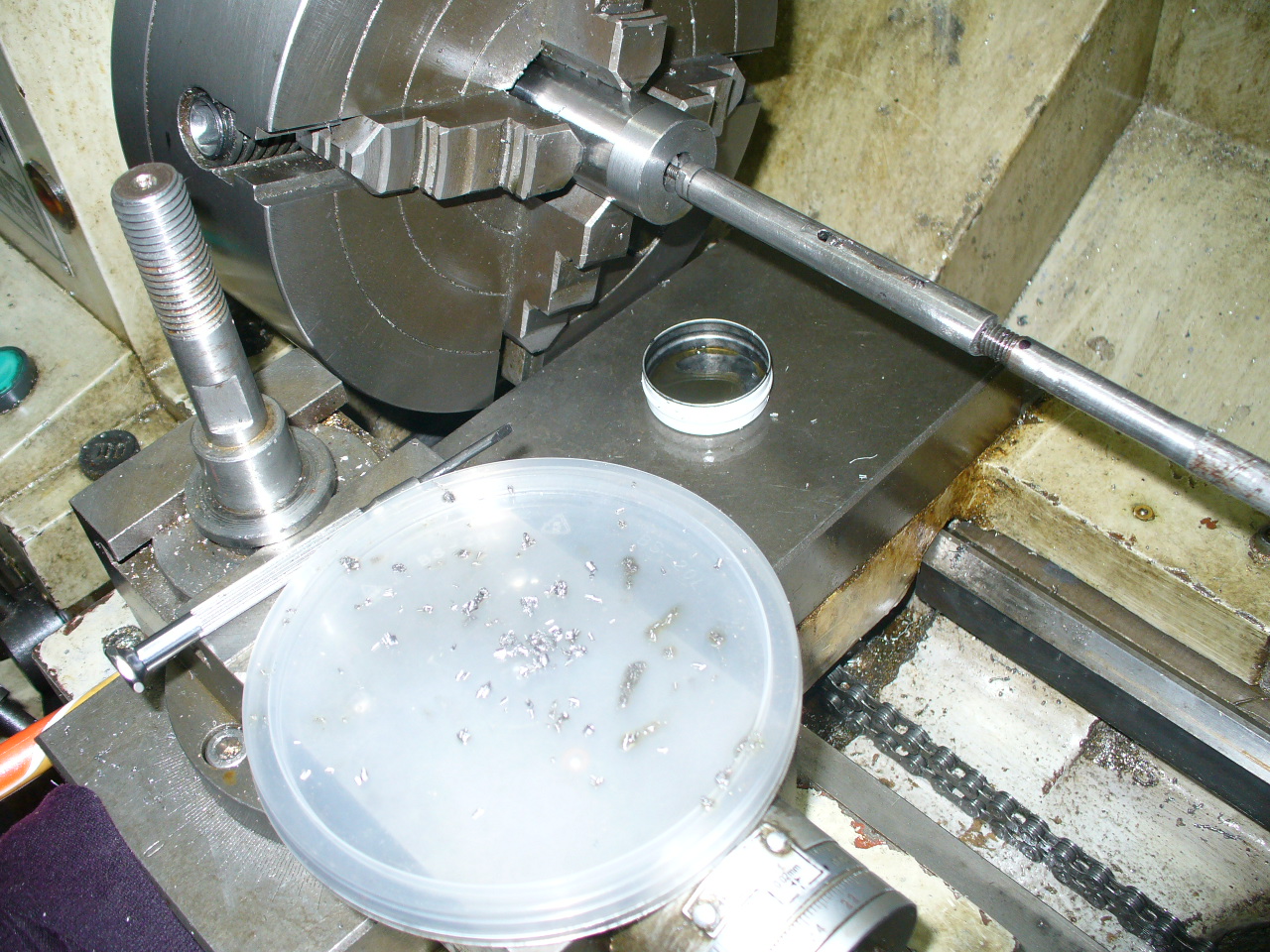

    For a real clever #8 wire bit here is the rifling cutter head starting to do it`s job, fine chips starting to come out from the muzzle end. The barrel is tapered , .445" where the drill starts at the breech end and .444" at the muzzle end . If you look hard you can just see the T/C cutter in the slot of the rifling head, it is lowered to go back through to the breech end and is up when pulled through again. The twist is 1-20", six groves out to .457"
    .Name:  P1030057.JPG
Views: 351
Size:  590.1 KB,

  14. #14
    MIA somewhere in Nam 300CALMAN's Avatar
    Join Date
    Dec 2014
    Location
    Reluctantly JAFA
    Posts
    3,471
    Quote Originally Posted by homebrew.357 View Post
    What, a gain twist, I thought that was only with a old Navy .44 pistols. I`d need a sine bar like a crank handle.
    It would be quite a feat.

    I think it's used on some artillery also. Apparently reduces breech pressure.

  15. #15
    Member
    Join Date
    Aug 2014
    Location
    Auckland
    Posts
    489
    I see a set up like that and all I can think is that I could make some awesome knives with that...
