Thread: Has anyone ever built a caravan?

  1. #31
    Member Tommy's Avatar
    Join Date
    Nov 2014
    Location
    W-BOP
    Posts
    6,227
    Quote Originally Posted by 223nut View Post
    Max width of 2.55m for loads on a trailer... Was looking it up earlier today
    https://vehicleinspection.nzta.govt....ior/dimensions
    Identify your target beyond all doubt

  2. #32
    Member
    Join Date
    Jan 2012
    Location
    allover
    Posts
    389
    I have a project pipe dream of something like this https://www.trademe.co.nz/motors/car...808fe77e08f710 with a rack on top for a small inflatable and maybe something like https://www.trademe.co.nz/motors/car...1a54dff357d467 this across the rear of drawbar to take a small dirt scooter ideally something like this http://www.fxbikes.com/ but more likely an xr125 duster. Teardrops with robust chassis and wheels are available ready to roll but pricey...
    Last edited by yerimaginaryM8; 03-02-2019 at 07:01 PM.

  3. #33
    Member
    Join Date
    Feb 2016
    Location
    Stewart island / canterbury
    Posts
    8,954

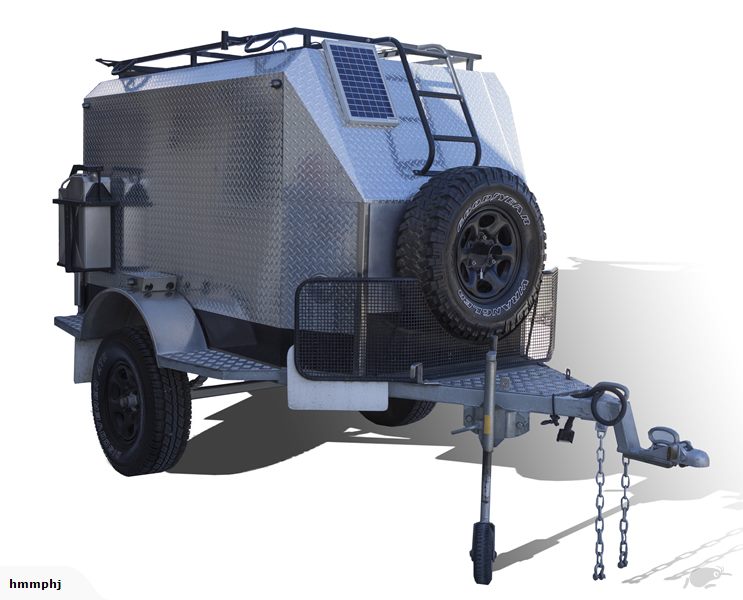

    @yerimaginaryM8 was going to do a similar project and then this camera on trade me....Name:  764521821.jpg
Views: 184

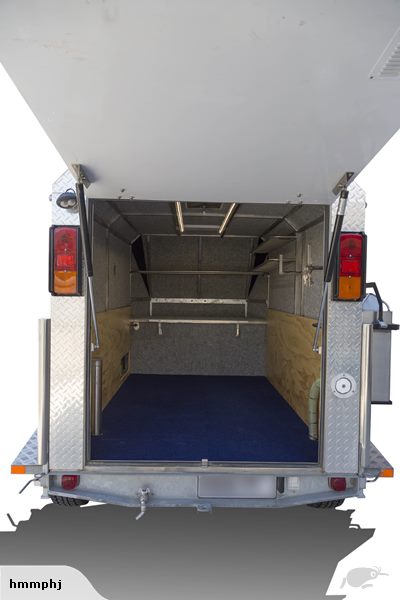

Size:  58.1 KBName:  764523070.jpg
Views: 174
Size:  28.1 KB

    Not quite what you are after @Savage1 I really like it for throwing stuff in when travelling and a quick night sleep somewhere. Sweats badly in the heat with condensation on anything inside which leads to things growing inside if you don't open it up every now and again
    Savage1 likes this.

  4. #34
    Member Savage1's Avatar
    Join Date
    Dec 2011
    Location
    Whangarei
    Posts
    3,216
    I've been tossing up whether to do an offroad style one like the ones used in Aussie. I doubt I'd ever go offroad with it though. I might combine the two styles a bit.

  5. #35
    Member
    Join Date
    Jan 2017
    Location
    Waiuku
    Posts
    552
    Considered a fifth wheeler or gooseneck (depends on what you call them)?

  6. #36
    Member Mathias's Avatar
    Join Date
    Oct 2015
    Location
    Canterbury, home of the big Rakaia Red Stag
    Posts
    3,723
    Sticking to your 2300mm width is a good idea, yes max is 2550mm but they hog the road and a narrower trailer is so much easier to tow and maneuver.
    Electric drum brakes are the most commonly used braking system on caravans these days, most cost effective if over 2500kg.

    Sent from my SM-A530F using Tapatalk

  7. #37
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    23,915
    You could build your trailer then build bolted walls and roof and have the whole lot hot dipped then assemble afterwards and build around it.....probably overkill but she would be sound for probably 40-50y....if you are going to hot dip the trailer anyway then I would go this route will cost you bugger all extra as they charge by weight and your walls and roof will/should weigh piss all.
    Design in some diagonal bracing in each panel to stiffen it all up and you should be golden.
    You will end up heaveyer than a alloy build but not much and way better longevity.
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

    308Win One chambering to rule them all.

  8. #38
    Member
    Join Date
    Dec 2017
    Location
    Waikato
    Posts
    720
    I do all of the electrical work for one of the biggest caravan manufacturers in NZ. Their method is a box section chassis, plywood floor on that. Then they have wooden framing for walls and roof. Exterior cladding is a sandwich panel, the outsides are aluminium (painted white), and the inside is PVC. The whole thing is about 5mm thick and comes on a huge roll. The inside cladding is thin MDF with a veneer on top.
    More meplat, more better.

  9. #39
    Banned
    Join Date
    Feb 2018
    Location
    Oamaru
    Posts
    4,362
    Quote Originally Posted by Savage1 View Post
    I've been tossing up whether to do an offroad style one like the ones used in Aussie. I doubt I'd ever go offroad with it though. I might combine the two styles a bit.
    I was in a bush camp thinking we were as remote as you could get. We were having daily issues with wash outs which could swallow a landcruiser and required rock crawling and terror to get through. We had been working with a chainsaw to try and make enough room.

    Sitting in camp one night and what turns up but a convoy of caravans, I kid you not. They are very cool those Aussie 4x4 campers.

  10. #40
    Member Happy's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,008
    Im 75 % through building this. Mine is lower and shorter as its purely special purpose off road storage and sleeping quarters with awnings
    plus out door ensuite tent etc. To sleep 2 people plus get across the river on our block up Coromandel

    We have an awesome Aussie tent that sleeps 2 as well hence the roof rack is vital. Made roof thick enough to stand on or take a chair up there


    Light wall 40 x 40 box section cos I got heaps of it free. Alloy trailer frame,same wheels as Hi Lux

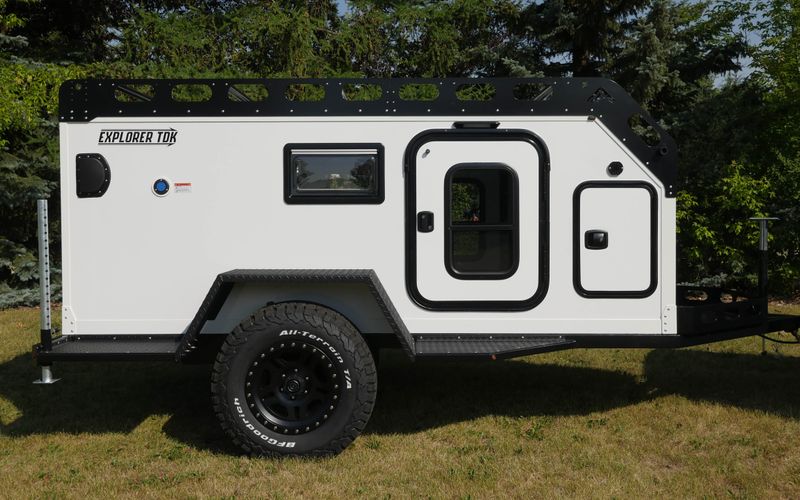

    Using this to clad it. It lasts forever . https://www.ullrich-aluminium.co.nz/..._Brochure2.pdf

    Keeps its shine as well. Name:  34.jpg
Views: 114
Size:  80.3 KB

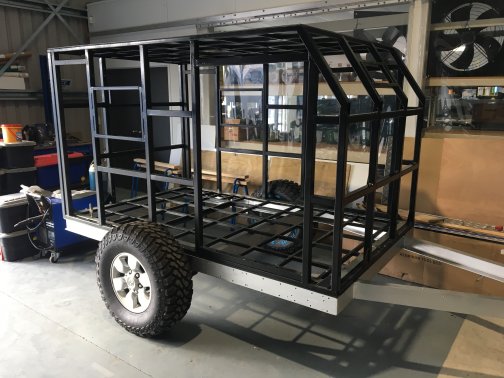

    Im here at present. Have all windows doors , running boards etc sorted. It ll go get cladding in 4 to 6 weeks.

    Name:  Frame 6s.jpg
Views: 99
Size:  49.1 KB

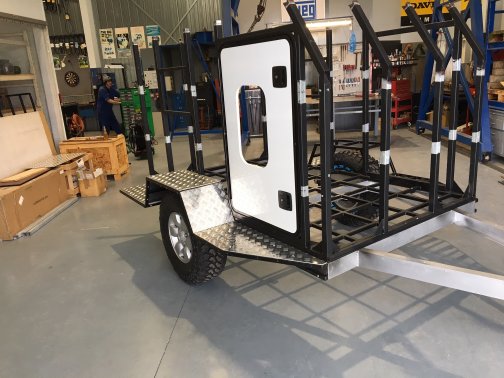

    Bit of work Two entry exit doors ,Two Side windows, Two end windows, Skylight that opens etc etc . 70 liter water tank

    2 inverters. All sorts of lighting ... Main thing you need to think 10 steps ahead...

    Name:  Side view from fronts.jpg
Views: 118
Size:  48.5 KB
    Moa Hunter, Mathias and berg243 like this.
    "This is my Flag... Ill only have the one ..

  11. #41
    Member JoshC's Avatar
    Join Date
    Apr 2012
    Location
    Southland/Otago
    Posts
    3,530
    That'll be awesome @Happy
    Happy likes this.
    I'm drawn to the mountains and the bush, it's where life is clear, where the world makes the most sense.

  12. #42
    Member
    Join Date
    Feb 2016
    Location
    Stewart island / canterbury
    Posts
    8,954
    When my folks house got extended in mid 90s they used a white plastic "plank" that clicked together on the exterior. would want something with a plainer profile then weatherboard look but that stuff was awesome, 20 years and no issues only maintaince was a water blast once a year.
    Would be light and fairly strong
    @Happy awesome build, the guy that built mine tried 3 different suspension set ups, mine has water tank at the very rear which does the balance of it no favours, though the battery is right up the front. Bracket on the front allows bike rack to be put on over drawback instead of spare tyre

  13. #43
    Member
    Join Date
    Jun 2015
    Location
    christchurch
    Posts
    14,261
    just a point that if you are using polystyrene (and some other foam insulation) DO NOT ever use standard tps wiring as after a few years the insulation degrades.

  14. #44
    Member Happy's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    4,008
    Sorry @Savage1 sidetracked your thread...
    Have started a new thread as seems there some real interest in off road trailers..


    "This is my Flag... Ill only have the one ..

  15. #45
    Member
    Join Date
    Jun 2015
    Location
    christchurch
    Posts
    14,261
    Quote Originally Posted by gonetropo View Post
    just a point that if you are using polystyrene (and some other foam insulation) DO NOT ever use standard tps wiring as after a few years the insulation degrades.
    should have meant. insulation degrades the wiring
