    How-To Bed a Rifle, in a new Fiberglass Stock

    G'Day Fella's,

    Over the years, I have seen and heard a few people tell about how they bed rifle barreled actions, into stocks.
    Some of these blokes do have a good understanding of what it is they are going to be doing or done but a lot of individuals, have now bloody idea!

    This is probably best left up to the photographic images, and a few words to describe, what it is your looking at, so here goes!

    In the begining, we had a Winchester Model 70 Classic Stainless steel barreled action and a Welcome to High Tech Specialties fiberglass stock, to suit.

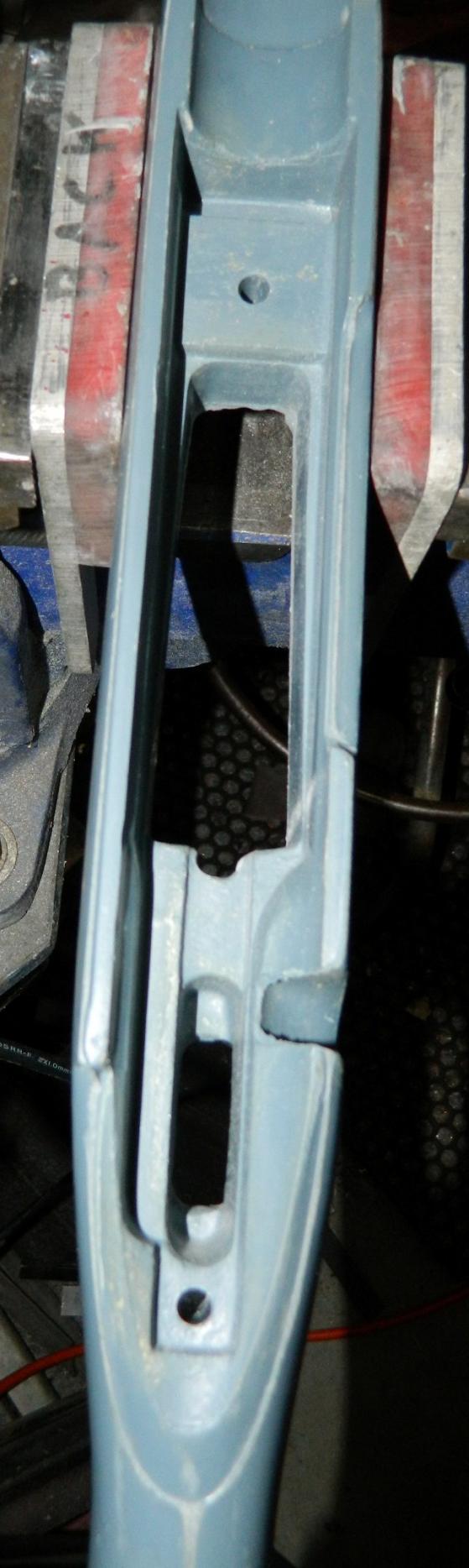

    Name:  How to Bed a Rifle 005.jpg
Views: 2549
Size:  101.1 KB
    Name:  How to Bed a Rifle 008.jpg
Views: 5493
Size:  94.1 KB

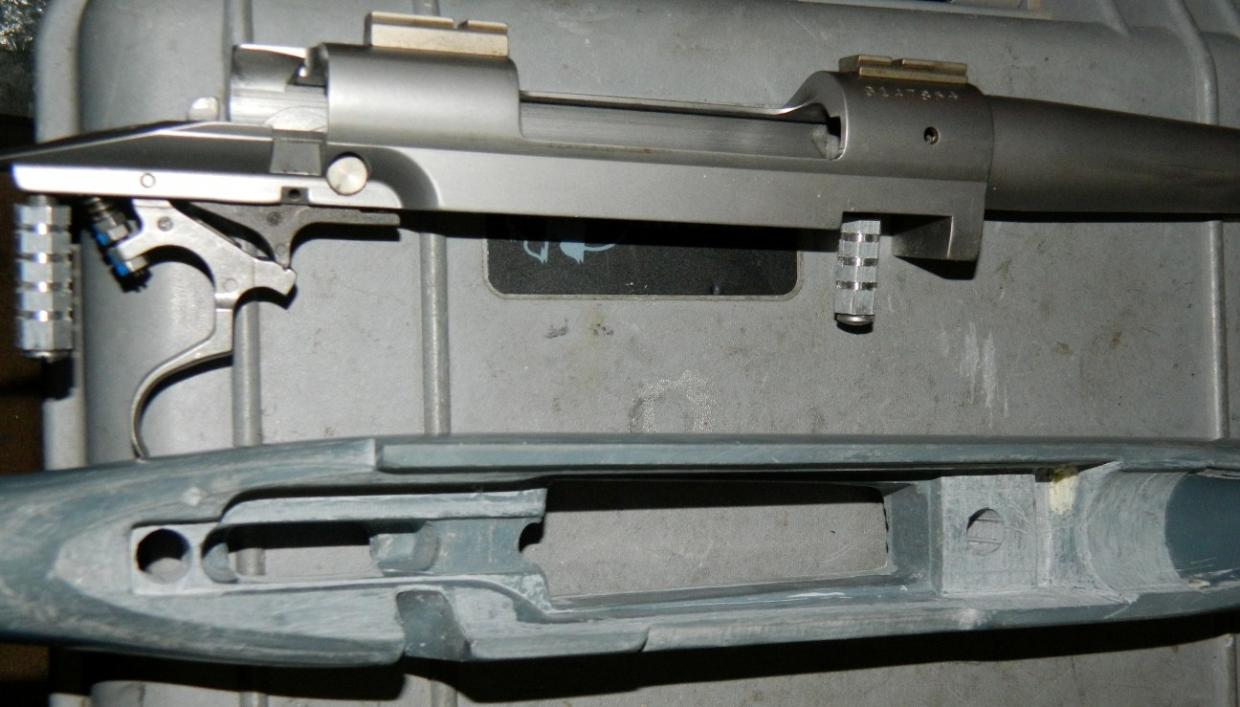

    Here is a Before and After image of the stock.

    Doh!
    Homer
    Attached Images Attached Images
    Last edited by Homer; 29-05-2012 at 12:58 AM.

  2. #2
    Squashed like a Flea
    Join Date
    Dec 2011
    Location
    Canberra, Land of the Long Weekend
    Posts
    183
    G'Day Fella's,

    Not to sure what happened at my end but I don't have any of those images visible, so here goes again!
    Name:  How to Bed a Rifle 005.jpg
Views: 2218
Size:  101.1 KBName:  How to Bed a Rifle 008.jpg
Views: 2784
Size:  94.1 KB

    Doh!
    Homer
    Last edited by Homer; 29-05-2012 at 11:18 PM.

  3. #3
    Member Normie's Avatar
    Join Date
    Dec 2011
    Location
    Tuakau
    Posts
    724
    They work for me.
    If you don't get Dirt, Blood or Grease under your nails it ain't a hobby

  4. #4
    Squashed like a Flea
    Join Date
    Dec 2011
    Location
    Canberra, Land of the Long Weekend
    Posts
    183
    G'Day Fella's,

    As can be seen (unfortunately, not by myself?), I have selectively removed just a thin amount of the epoxy resin this is like a Gel Coat on the stock.
    The reason I have done this is to make sure I have removed any trace of remaining Release Agent, from when the stock was manufactured!
    This has been done in any area, that I want the bedding compound to adhere to, this include along the top of the barrel channel, on both sides and at the forend tip.

    Doh!
    Homer

  5. #5
    Squashed like a Flea
    Join Date
    Dec 2011
    Location
    Canberra, Land of the Long Weekend
    Posts
    183
    G'Day again,

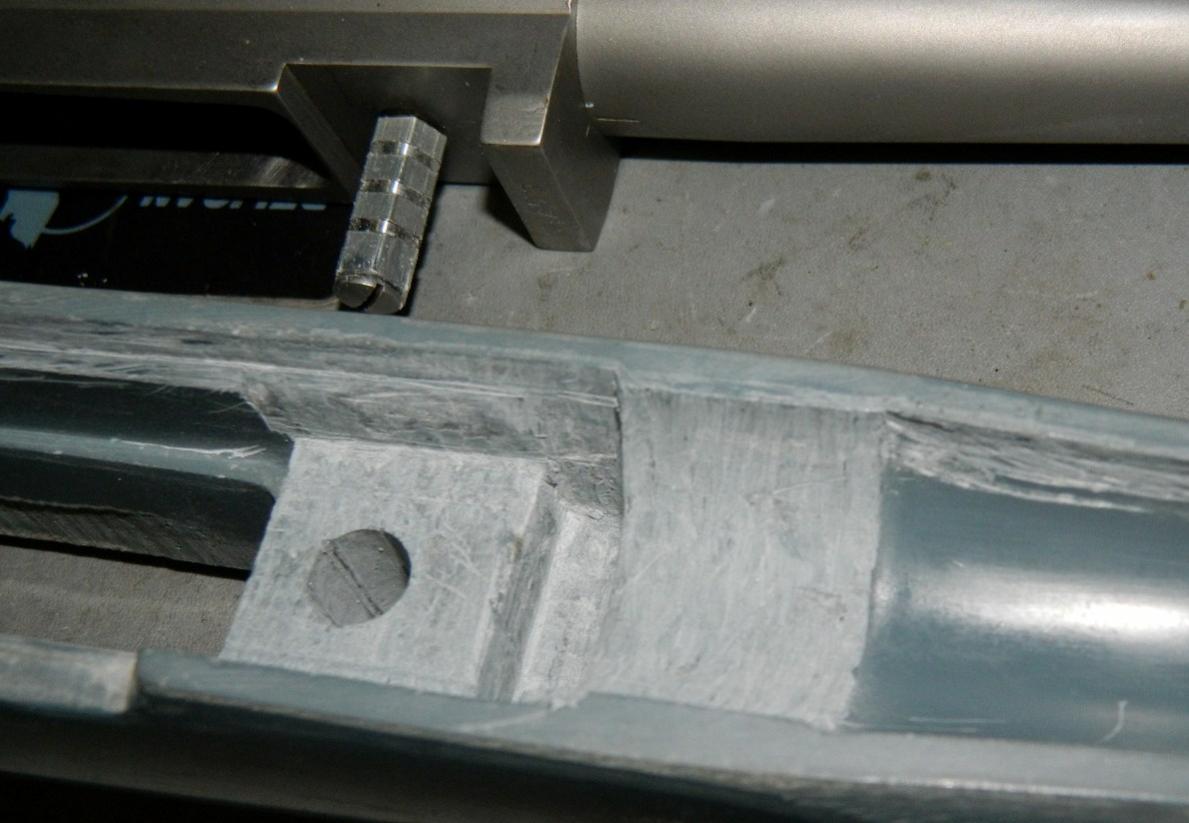

    Here is a close up of the recoil lug, receiver ring and barrel reinforce area, to show you where I have removed just a thin layer of Epoxy Resin/Gel Coat material and at the same time created a slight clearance, between the barreled action and inside surfaces, of the stock.
    Name:  How to Bed a Rifle 010.jpg
Views: 3263
Size:  89.3 KB

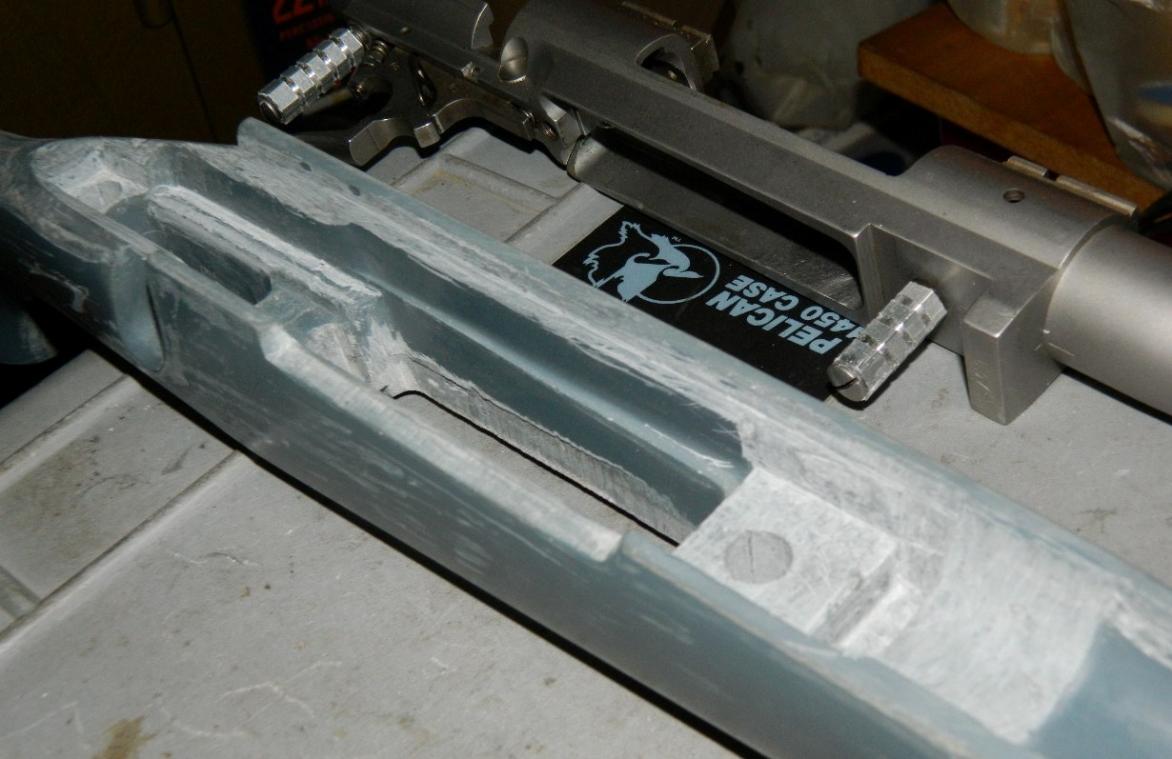

    Hear is another image but of the whole action area, ditto as above!
    Name:  How to Bed a Rifle 011.jpg
Views: 2703
Size:  90.2 KB
    You can also see the two Pillars that I have machined up, ready for use in this bedding job.

    Doh!
    Homer
    Last edited by Homer; 30-05-2012 at 10:30 PM.

  6. #6
    Squashed like a Flea
    Join Date
    Dec 2011
    Location
    Canberra, Land of the Long Weekend
    Posts
    183
    G'Day Fella's,

    OK, the next thing to do is to mask off all the areas of the metal work (barreled action, trigger guard and floor plate), that you want to have clearance in this bedding job.
    I like most of my conventional bedding jobs to have two Pads in direct contact with the stock.
    These two Pads are usually around the front and rear take down screws.
    So in my case, I use 0.006" thick plastic tape and apply it to the metal areas that I don't want to contact the stock/bedding.
    In some areas, I apply two or three thicknesses of this tape, to provide additional clearance between the metal and stock surfaces.

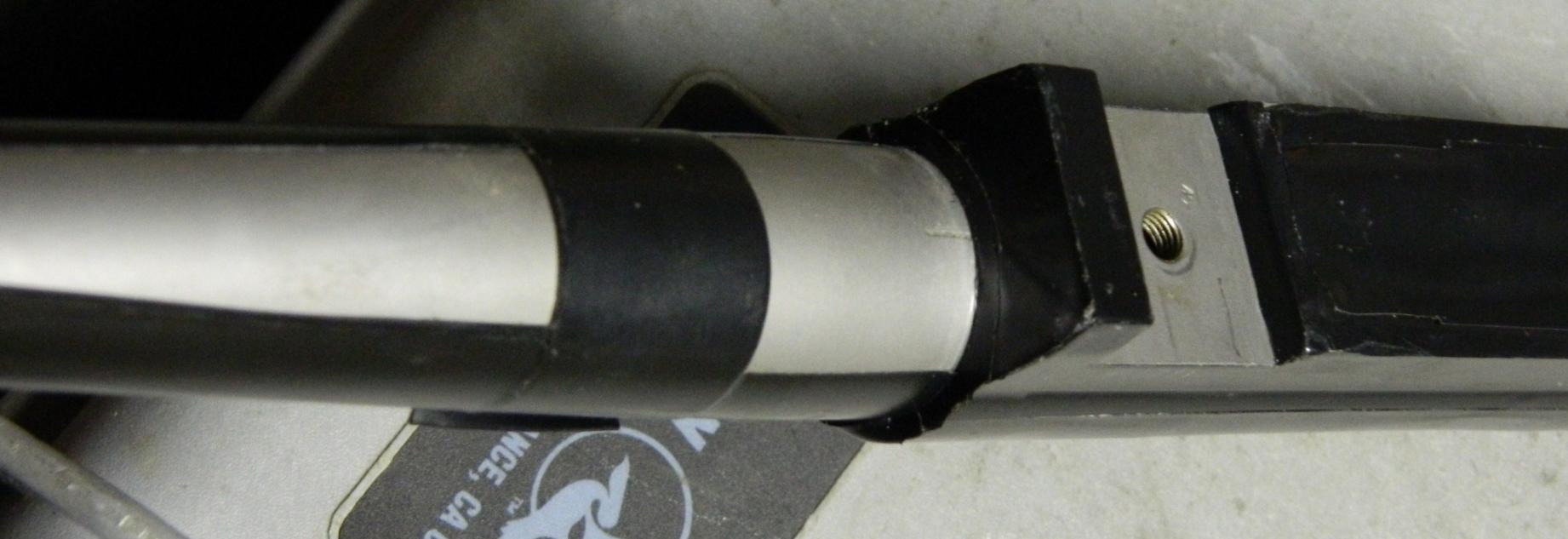

    Name:  How to Bed a Rifle 012.jpg
Views: 2503
Size:  88.7 KB

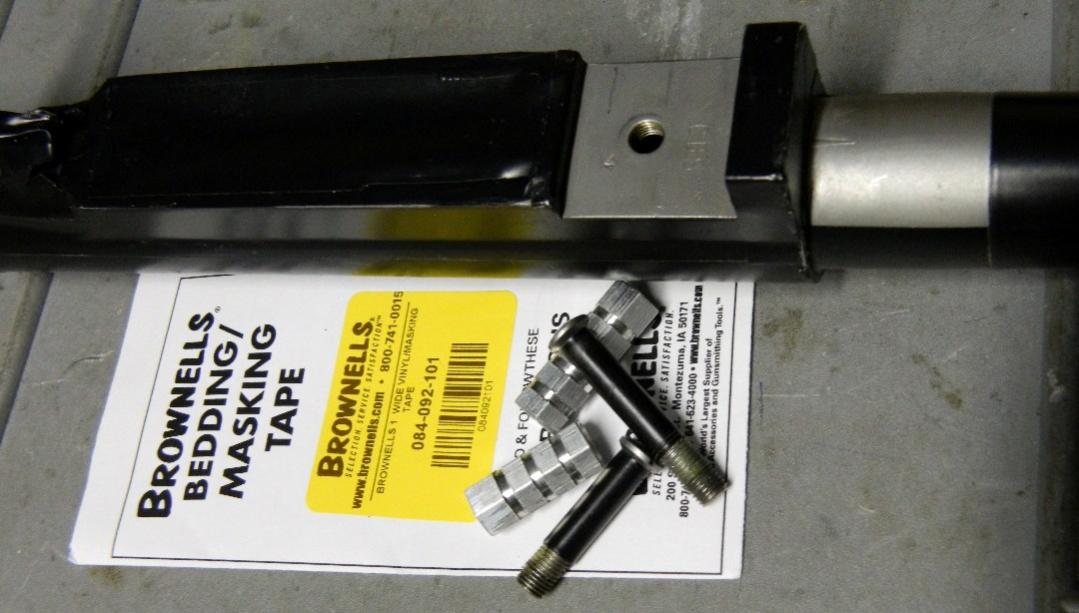

    Name:  How to Bed a Rifle 013.jpg
Views: 2471
Size:  76.4 KB
    Name:  How to Bed a Rifle 015.jpg
Views: 2402
Size:  97.6 KB

    In these images, you should be able to see the two unmasked Pads (which includes the rear face of the action recoil lug), that will be in direct contact with the stock and the other areas, that I want to have clearance between the metal and stock. This includes the two action screws that have three thicknesses of tape around them to provide clearance between the outside of the screws and the inside of the pillars!

    Next, we start preparing for and then sticking things together!

    Doh!
    Homer
    Last edited by Homer; 31-05-2012 at 09:20 PM.

  7. #7
    Member stug's Avatar
    Join Date
    May 2012
    Location
    Oxford, Canterbury
    Posts
    3,502
    Great pics, keep them coming.

  8. #8
    Squashed like a Flea
    Join Date
    Dec 2011
    Location
    Canberra, Land of the Long Weekend
    Posts
    183
    G'Day Fella's,

    Thanks for the kind words Stug!

    I forgot to mention something above.
    Please notice that the only vertical surface of the barreled action to come into contact with the bedding (when completed), is the rear face of the recoil lug!
    Every other vertical surface (including the Front, Rear and Sides of the action and the sides of the barrel), has a layer (or Two, or Three) of plastic tape on it, to provide a small amount of clearance!

    Doh!
    Homer

  9. #9
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    2,596
    hey homer is it a problem if the rear tang sits slightly higher than it once did? Id say around 1mm
    I have a mate who um......er....... has that problem with a stock I, I mean he bedded the night before last

  10. #10
    Member ARdave's Avatar
    Join Date
    May 2012
    Location
    Wellington and Perth
    Posts
    440
    good stuff homes
