Thread: Howa 1500 - mag tension mod - who has done this?

  1. #1
    Member
    Join Date
    Dec 2011
    Location
    Wellington
    Posts
    289

    Howa 1500 - mag tension mod - who has done this?

    I've read that you can epoxy a spacer between the mag release spring and housing to increase the tension needed to move the mag release.
    Anyone done this or seen photos?

    cheers
    @

  2. #2
    Member Max Headroom's Avatar
    Join Date
    Jul 2018
    Location
    Southland
    Posts
    2,613
    Quote Originally Posted by thejavelin View Post
    I've read that you can epoxy a spacer between the mag release spring and housing to increase the tension needed to move the mag release.
    Anyone done this or seen photos?

    cheers
    @
    I'd be interested to know as well.

  3. #3
    Member
    Join Date
    Sep 2012
    Location
    Invercargill, NZ
    Posts
    449
    Quote Originally Posted by Max Headroom View Post
    I'd be interested to know as well.
    Me too !

  4. #4
    Member
    Join Date
    Dec 2011
    Location
    Wellington
    Posts
    289
    And after dropping the mag when in the bush - I got a bit creative.

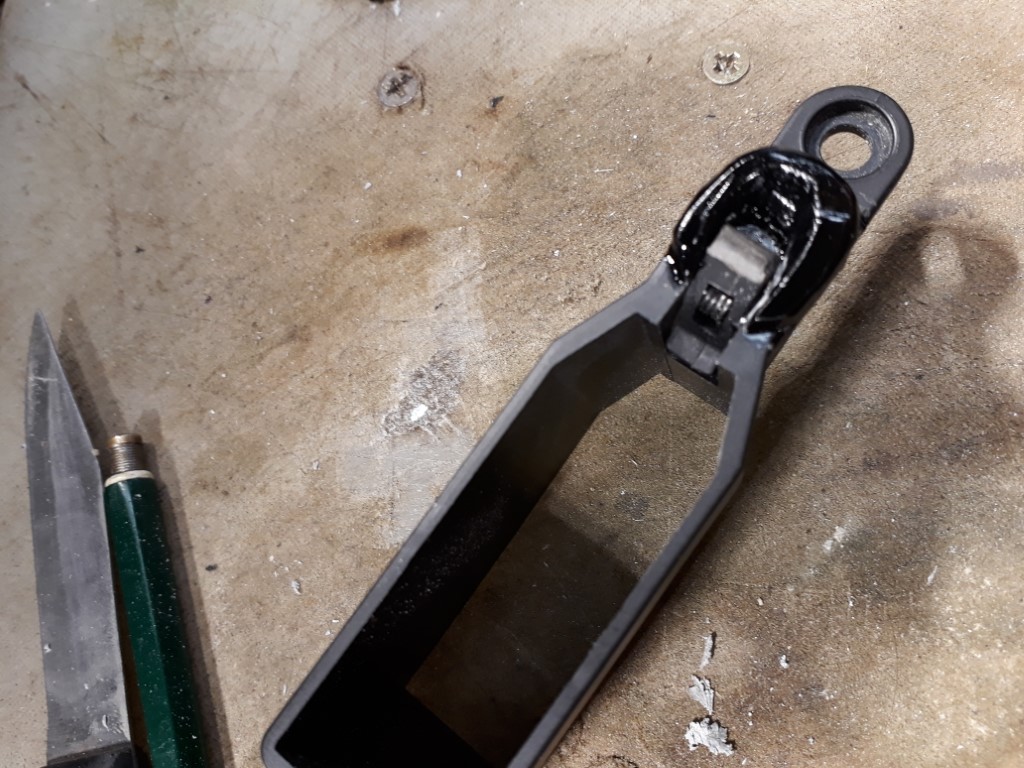

    Rough as guts, I'm sure others can do a much better job - but functional.

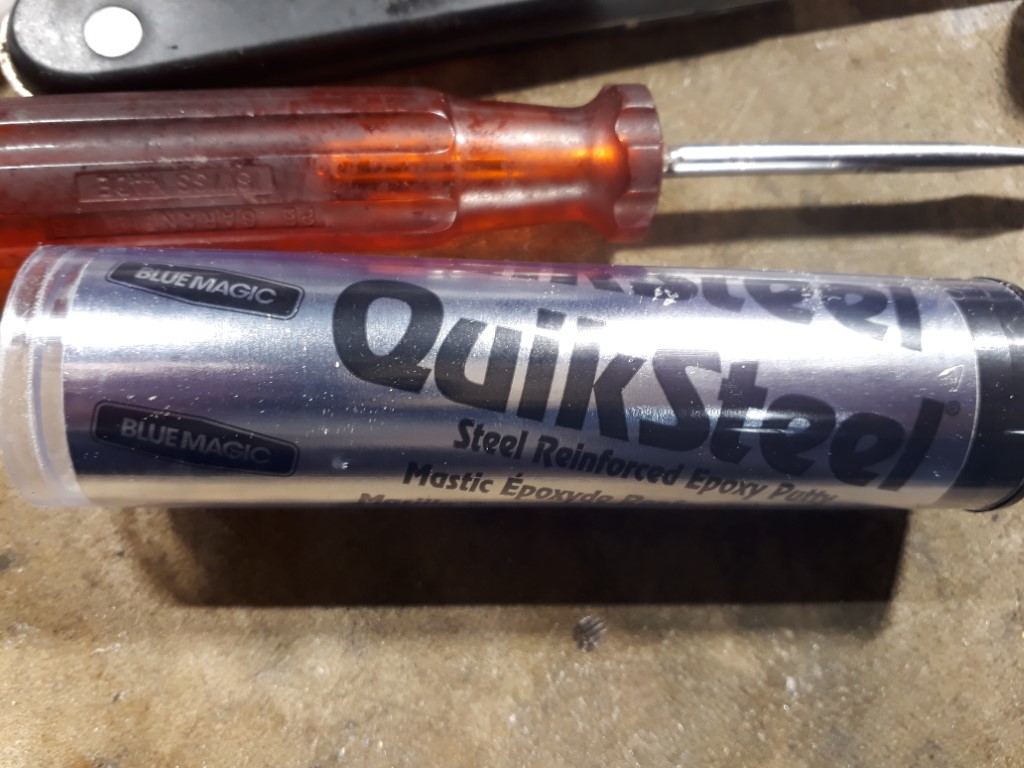

    Learnings, steel epoxy sets like steel, and is difficult to carve afterwards - I would have spent more time forming the guard when it was soft if I knew how hard it would be.
    And I need matt paint.

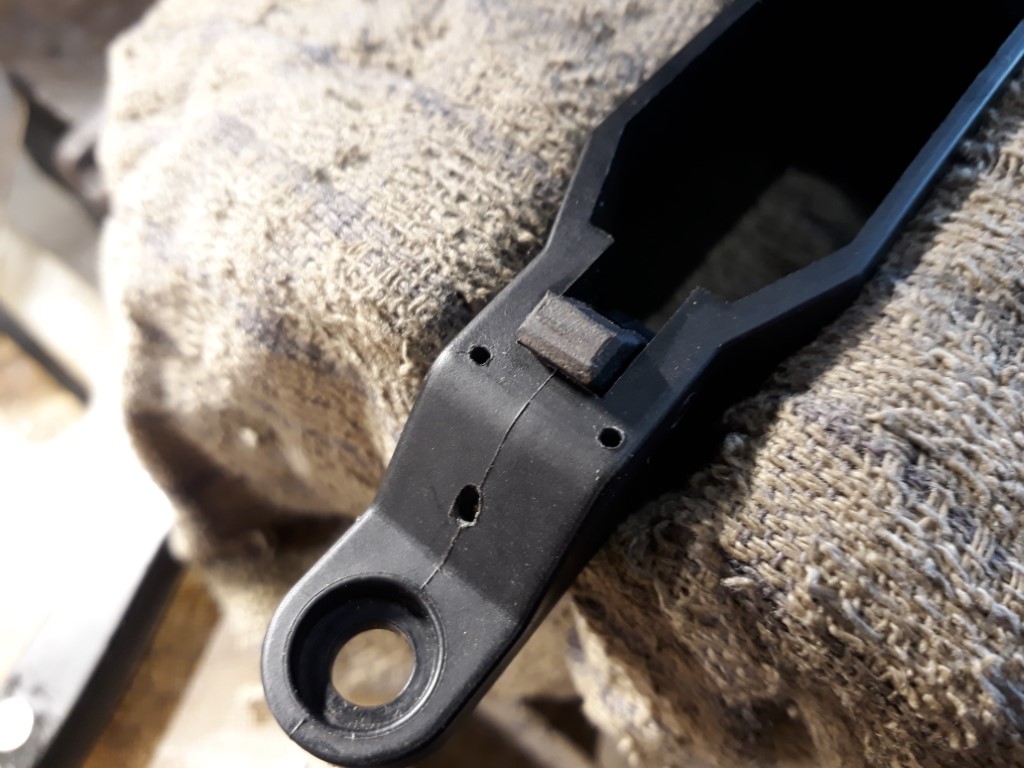

    Chopped the release shorter - that plastic is soft, so if you use a power tool it disappears rapidly.

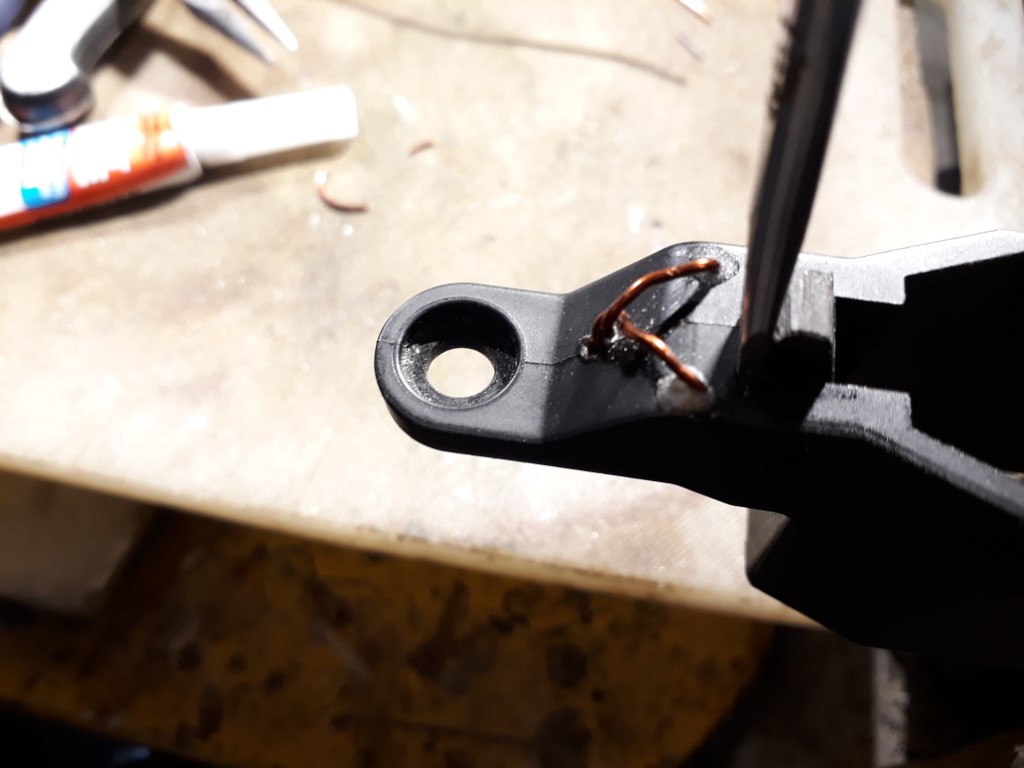

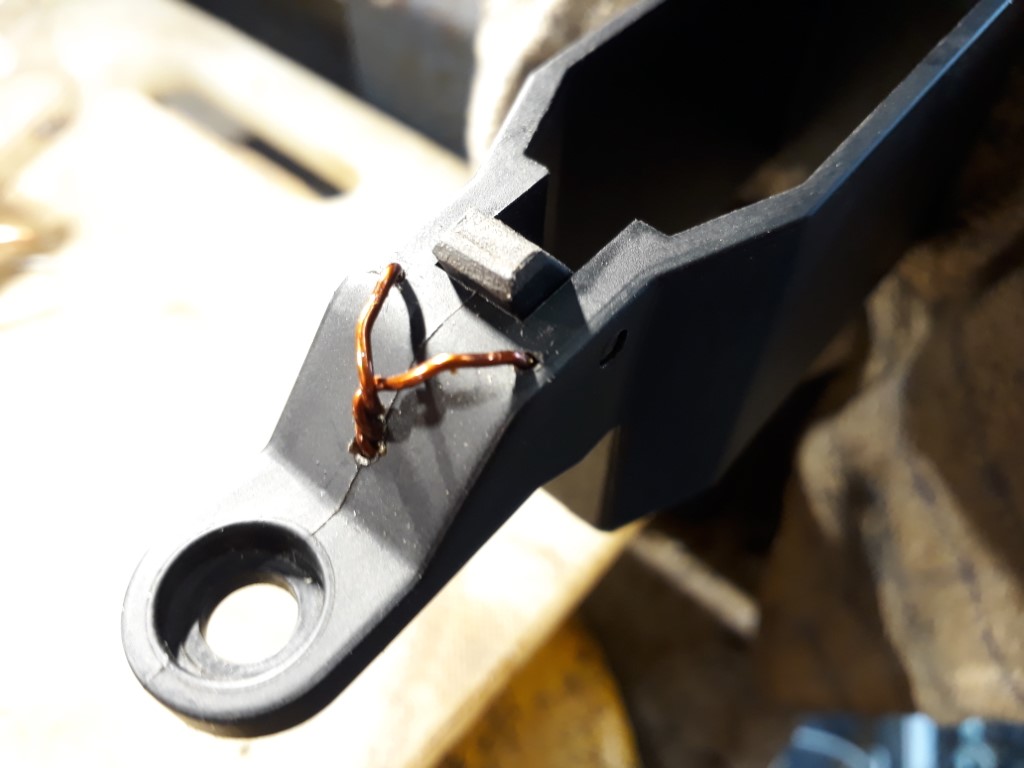

    Drilled tiny holes and glued in a little frame to form the guard over - the bottom hole goes all the way through, but the 'leg' sits flush, ie does not protrude through.

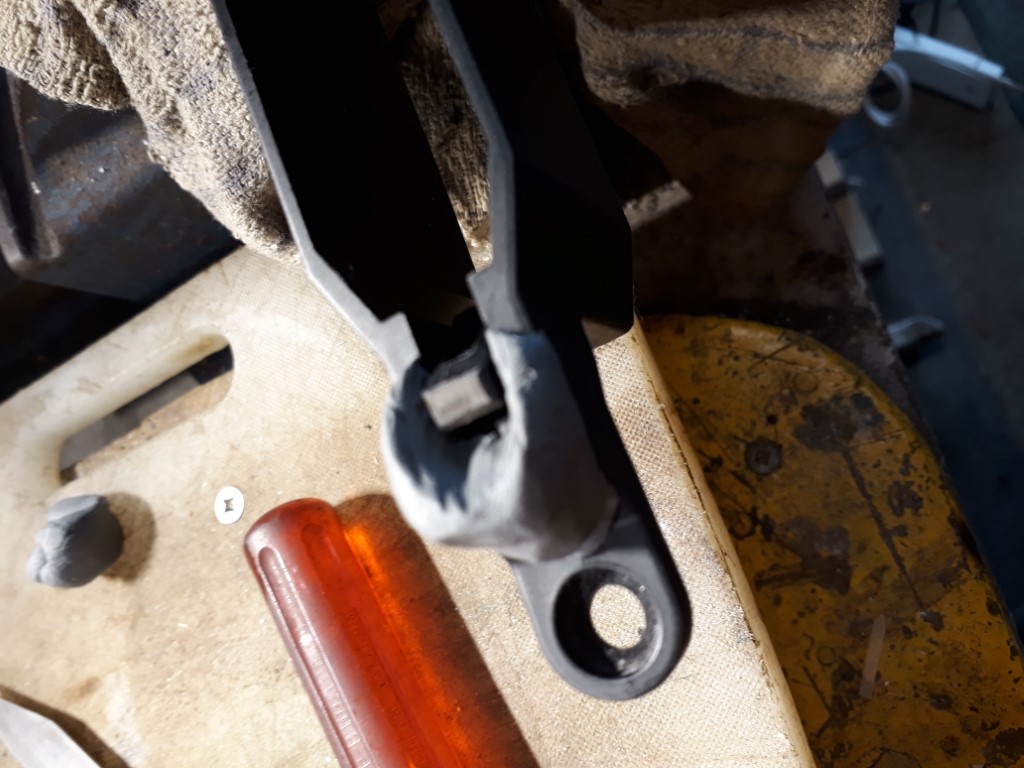

    Mix up the epoxy putty - had to work fast, and was frantically trying to not get it in the say of the release - if I did it again, I'd remove the lever and work on it that way.

    Name:  20190706_130235.jpg
Views: 291
Size:  183.4 KB
    Name:  20190706_134032.jpg
Views: 290
Size:  108.5 KB
    Name:  20190706_135341.jpg
Views: 290
Size:  116.8 KB
    Name:  20190706_140240.jpg
Views: 289
Size:  174.8 KB
    Name:  20190706_140440.jpg
Views: 292
Size:  176.5 KB
    Name:  20190706_152837.jpg
Views: 287
Size:  240.1 KB
    Wirehunt and Max Headroom like this.

  5. #5
    Member
    Join Date
    May 2016
    Location
    Hamurana, Rotorua
    Posts
    278
    Digressing a bit but associated with same mag. Anyone cut their mag shorter (to the rib half way up) as it looks like the baseplate should slide along the rib, thus creating approx 4 shot mag that would offer a more comfy point of balance carry position.

  6. #6
    Member
    Join Date
    Dec 2011
    Location
    Wellington
    Posts
    289
    Quote Originally Posted by Ingrid 51 View Post
    Digressing a bit but associated with same mag. Anyone cut their mag shorter (to the rib half way up) as it looks like the baseplate should slide along the rib, thus creating approx 4 shot mag that would offer a more comfy point of balance carry position.
    I saw a guy with a 6.5 (same mag) on trademe that was shortened and also read about it on the US forums - seems simple.
    Ends up being 3 shot apparently.

  7. #7
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    2,570
    just trimmed mine short aswell

    did it at the same time as shortening the mag

    im a big fan of the rifle now

  8. #8
    Member SixtyTen's Avatar
    Join Date
    Dec 2015
    Location
    Auckland
    Posts
    108

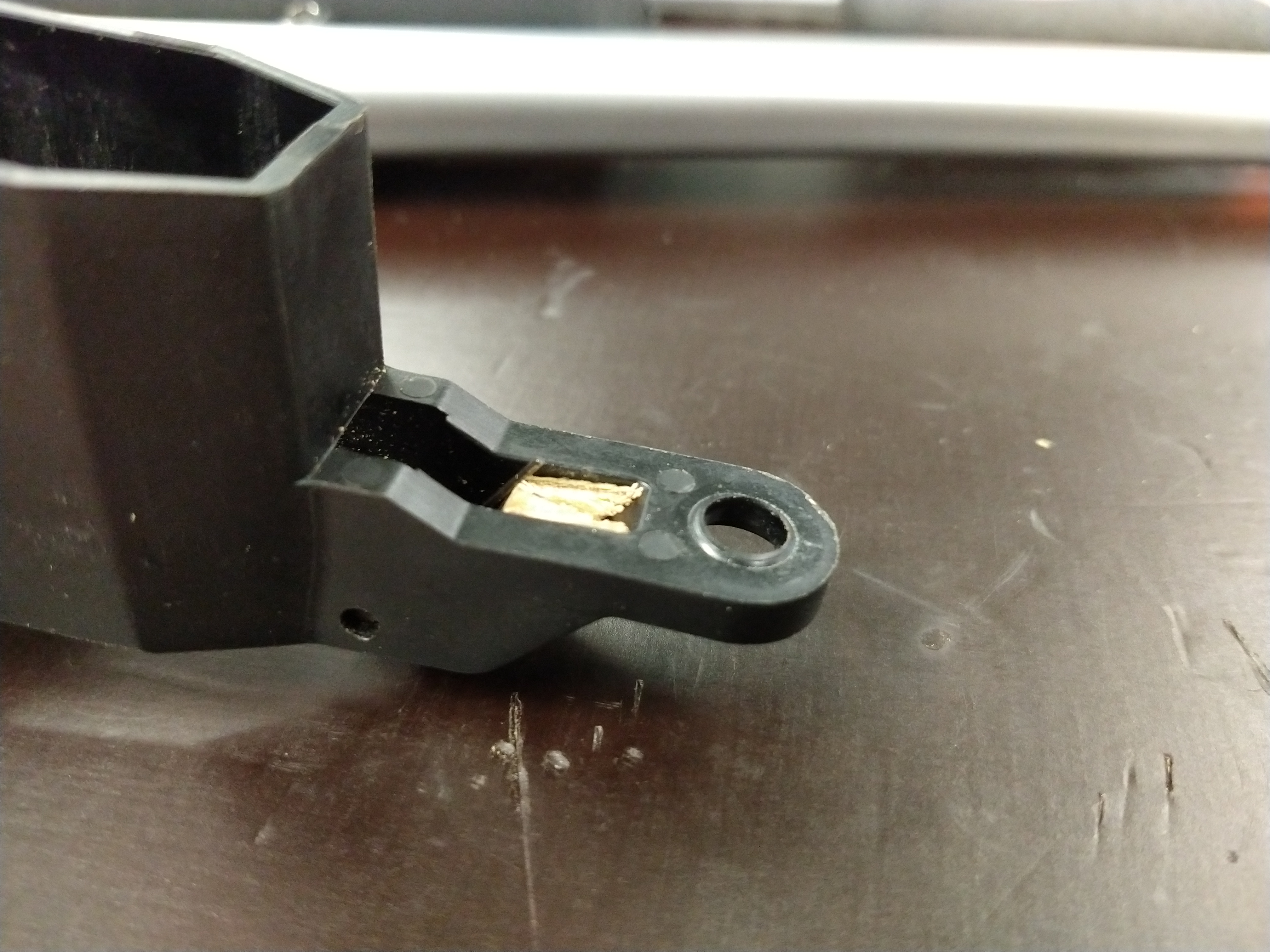

    I simply trimmed the lever down in length and jammed a small triangle of plywood (it's what was on hand) behind the spring arm so that the spring starts with far more tension. Works perfectly. The magazine now seats with a good snap and it cannot be bumped open.
    Name:  IMG_20190506_172324055.jpg
Views: 248
Size:  3.68 MB

  9. #9
    Member
    Join Date
    Dec 2011
    Location
    Wellington
    Posts
    289
    Quote Originally Posted by SixtyTen View Post
    I simply trimmed the lever down in length and jammed a small triangle of plywood (it's what was on hand) behind the spring arm so that the spring starts with far more tension. Works perfectly. The magazine now seats with a good snap and it cannot be bumped open.
    Attachment 115012
    DUH - cannot believe I did not think of that - thanks..... I'll do that... even simpler.
    If only you could have posted this a week ago

  10. #10
    Member SixtyTen's Avatar
    Join Date
    Dec 2015
    Location
    Auckland
    Posts
    108
    Quote Originally Posted by thejavelin View Post
    DUH - cannot believe I did not think of that - thanks..... I'll do that... even simpler.
    If only you could have posted this a week ago
    I actually thought about posting it a few months ago when I did the mod, that's why I took photos. Then I forgot...

  11. #11
    Member madmaori's Avatar
    Join Date
    Feb 2014
    Location
    Hawkes bay
    Posts
    521
    Im not as flash as some of you fellas , im just a simple rubber grub and filed the shit outta the release clip-haven't lost the mag again so far
    Bay Tyres-Driving the best deal since ages ago

  12. #12
    Member tommygun's Avatar
    Join Date
    Sep 2014
    Location
    Dunedin
    Posts
    566
    Quote Originally Posted by Ingrid 51 View Post
    Digressing a bit but associated with same mag. Anyone cut their mag shorter (to the rib half way up) as it looks like the baseplate should slide along the rib, thus creating approx 4 shot mag that would offer a more comfy point of balance carry position.
    Supposedly 3mm below that rib is the place to cut it, and you'll have to file the front corners that it'll now have to get the base plate back on, but I've seen it done tidily
    Ingrid 51 likes this.

  13. #13
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    2,570
    i trimmed it close then sat there sanding it on a block until the floor plate friction fit
    put aside the internal spring locater at the bottom of the mag and trimmed the bottom of the mag follower
    flush tight fit now and holds and feeds 7 rounds as well as it did before
