Thread: Lathe & mill projects

  1. #1
    ebf
    ebf is offline
    The gnome returns ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    5,002

    Lathe & mill projects

    Earlier this year @stumpy discovered that nappies and baby food apparently is a higher priority than a metalwork hobby...

    So after some negotiations with the Mrs (profuse begging and groveling did the trick), I managed to convince the better half that this was too good a deal to pass on. Lathe & mill at the same time, with oodles of tooling (xmas in my world).

    Stumpy was not lying when he said the mill was a large lass. Took myself, a mate and an engine hoist to move "big bertha" into her final resting place.

    The mill is a Rong Fu 30 copy, round column. Nothing fancy, but nice large bed and that sold it for me as I wanted a mill for stock inletting etc. The lathe is an early Myford ML7, I think 1948 if the serial number registry is correct.

    I cleaned the machines, re-built the lathe bench and set about discovering what all the bits and pieces were for...

    Will be using this thread to post pics of my attempts at metalwork.
    7mmsaum, kimjon, Dougie and 3 others like this.
    Viva la Howa ! R.I.P. Toby
    Black rifles matter...

  2. #2
    ebf
    ebf is offline
    The gnome returns ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    5,002
    First up, some simple turning and threading.

    Had to make a smaller mandrel for the slitting saw, so that I could maximize the depth I could saw to (see barrel clamp later)

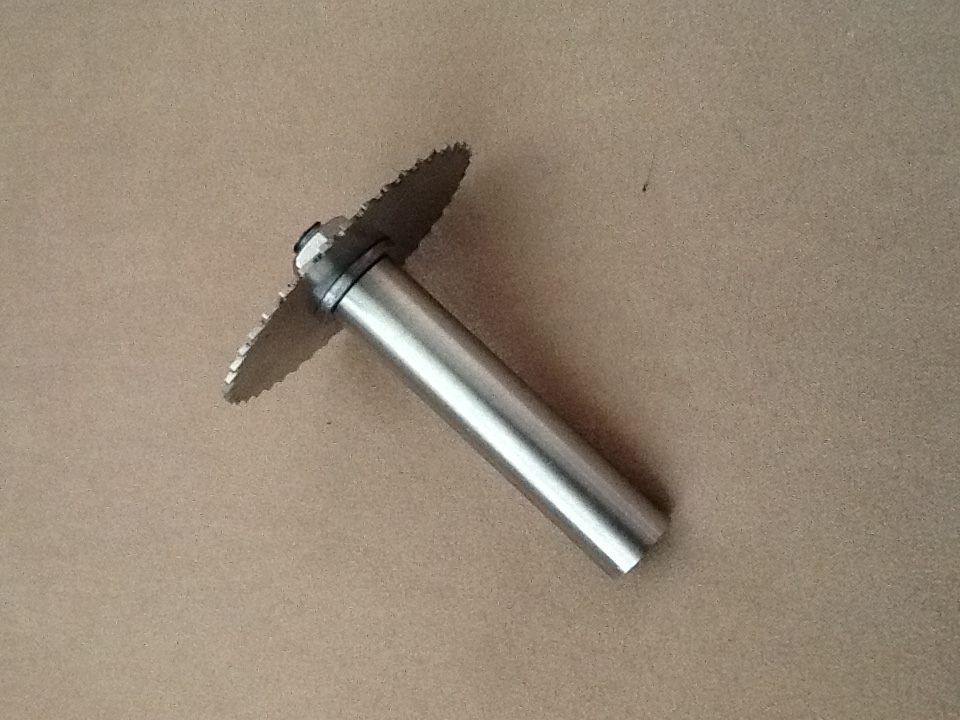

    Name:  Photo 17-09-15 3 08 56 pm.jpg
Views: 781
Size:  246.5 KB

    The bottom washer has a slight "lip" to locate the blade.
    7mmsaum, gadgetman and Scouser like this.
    Viva la Howa ! R.I.P. Toby
    Black rifles matter...

  3. #3
    ebf
    ebf is offline
    The gnome returns ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    5,002
    Next was a barrel clamp and action wrench.

    The barrel clamp was designed so that I could bolt it to the towbar of my van and use it on the range. Some interesting lessons learnt - off-centre work holding, boring and slit sawing. The black bolt is 3/4 inch diameter to give you an idea of the size.

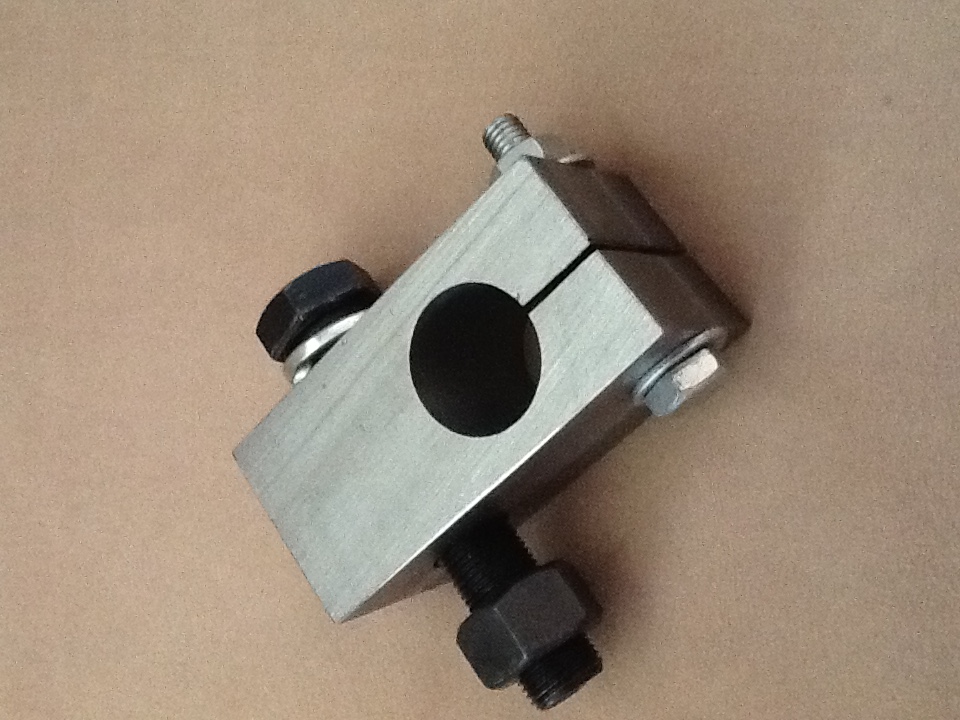

    Name:  Photo 17-09-15 3 09 14 pm.jpg
Views: 772
Size:  236.6 KB

    The action wrench is for my Omark target rifle, 3 lug. Got a mate to help with welding the nut onto the bar, and then used the faces of the nut to use as an idex for machining the 3 flats.

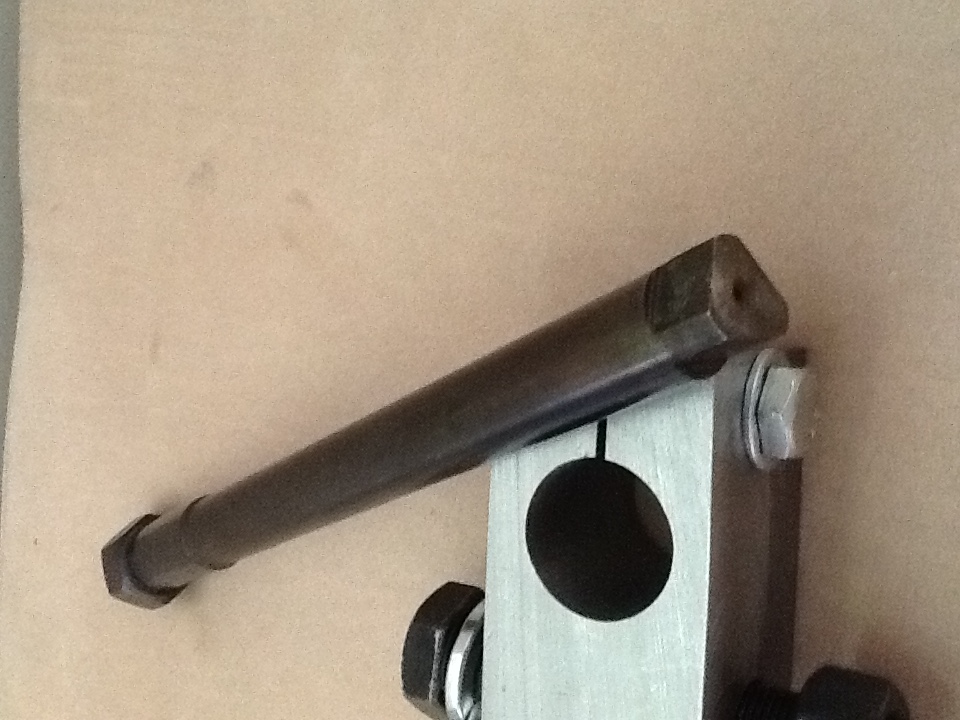

    Name:  Photo 17-09-15 3 09 54 pm.jpg
Views: 681
Size:  220.1 KB
    Last edited by ebf; 17-09-2015 at 05:13 PM.
    7mmsaum, gadgetman and Dan88 like this.
    Viva la Howa ! R.I.P. Toby
    Black rifles matter...

  4. #4
    ebf
    ebf is offline
    The gnome returns ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    5,002
    Next one was to make a second base plate for my SKP buttplate. I wanted the same setup on both my fullbore and rimfire FTR rifles, and figured making a 2nd baseplate would be way cheaper than buying a whole second SKP ($250).

    So I machined some square stock into a T, and turned down a piece of roundbar to the correct dimension. Then machined a slot into the roundbar. Bit of steel putty later and some grining, and I have a spare buttplate Total cost - $ 20 for the steel putty and some scrap alu.

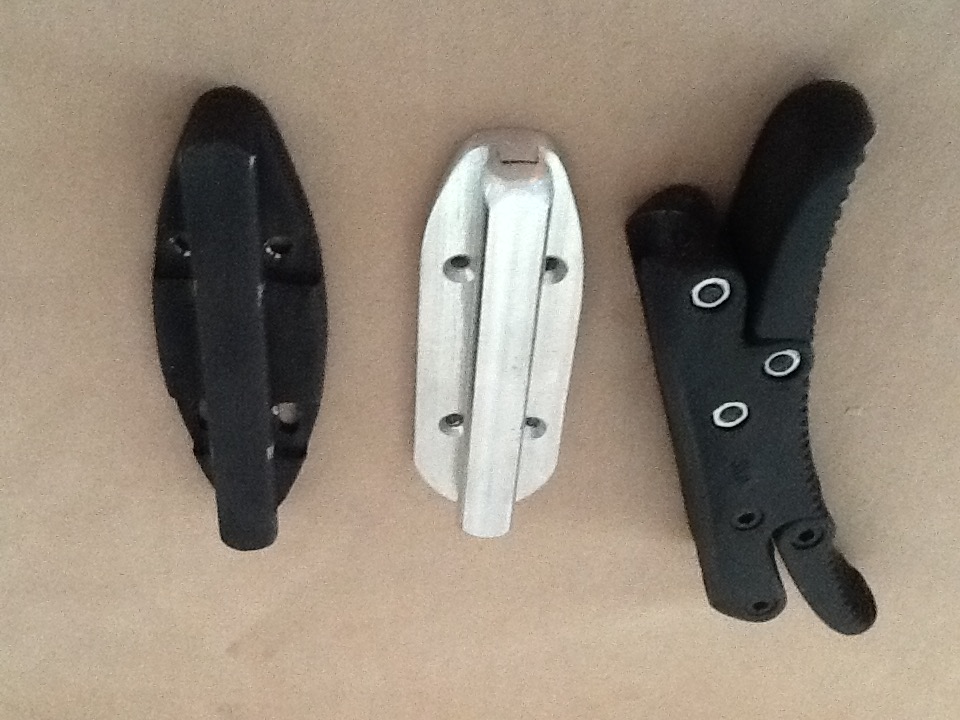

    Name:  Photo 17-09-15 3 11 21 pm.jpg
Views: 806
Size:  172.1 KB

    Shoulder plate on right, new base in the middle, and original base on the left. I will see how the steel putty holds up with rimfire recoil, but should be good...
    Last edited by ebf; 17-09-2015 at 05:12 PM.
    7mmsaum and Scouser like this.
    Viva la Howa ! R.I.P. Toby
    Black rifles matter...

  5. #5
    ebf
    ebf is offline
    The gnome returns ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    5,002
    bloody ipad photos seem to be upside down ?"$%^

    current project is a spotting scope stand for FTR. lots of little bits and pieces that go together, taking a lot longer than I thought...
    Viva la Howa ! R.I.P. Toby
    Black rifles matter...

  6. #6
    Member kimjon's Avatar
    Join Date
    Apr 2012
    Location
    Waikato
    Posts
    1,628
    Projects rock! I think you and I would have a lot to talk about if ever we were in the same room. Keep em coming...
    ebf likes this.

  7. #7
    Member stumpy's Avatar
    Join Date
    Feb 2014
    Location
    Delisle SK Canada
    Posts
    1,082
    regretted selling em ......but , they have found a very nice home , with a very capable machinist !!! ... look forward to seeing more stuff/projects
    ebf likes this.
    NO MATTER HOW MUCH IT HURTS, HOW DARK IT GETS OR HOW FAR YOU FALL , .....
    YOU ARE NEVER OUT OF THE FIGHT . (Marcus Luttrell)

  8. #8
    ebf
    ebf is offline
    The gnome returns ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    5,002
    Alternate trigger shoe for my smallbore FTR rifle - so that it matches the fullbore one.

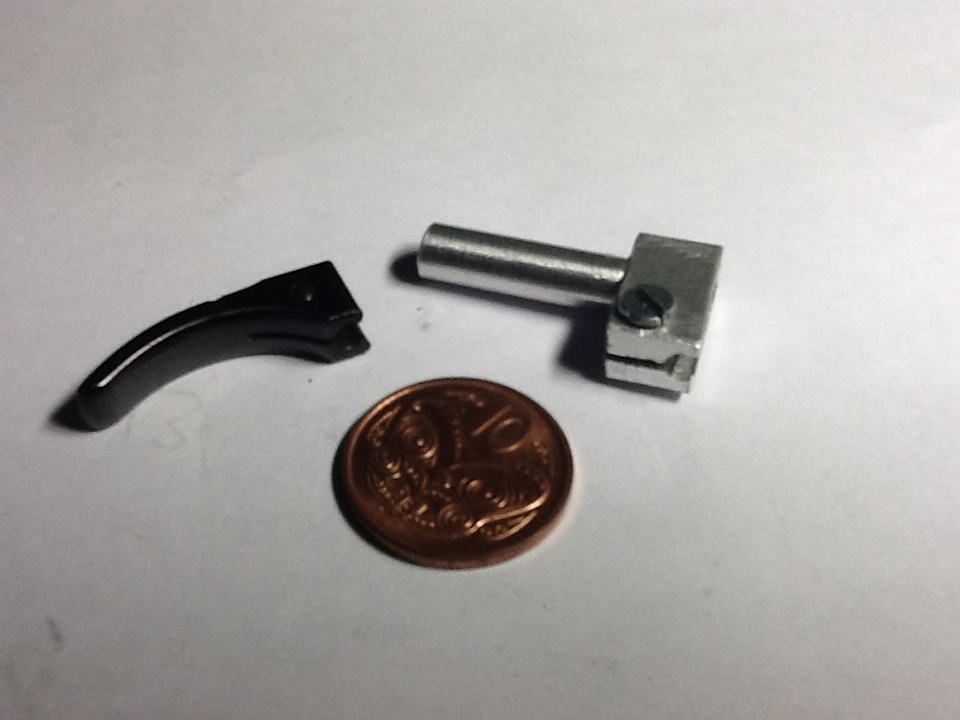

    Name:  image.jpeg
Views: 556
Size:  148.7 KB
    Viva la Howa ! R.I.P. Toby
    Black rifles matter...

  9. #9
    ebf
    ebf is offline
    The gnome returns ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    5,002
    Version 2 of a home-made spotting scope stand. Lots of interesting workholding and figuring out how to do equilateral triangle etc.

    The barrel of the clamp is home-made as well, only part not fabricated myself is the swivel head off a monopod.

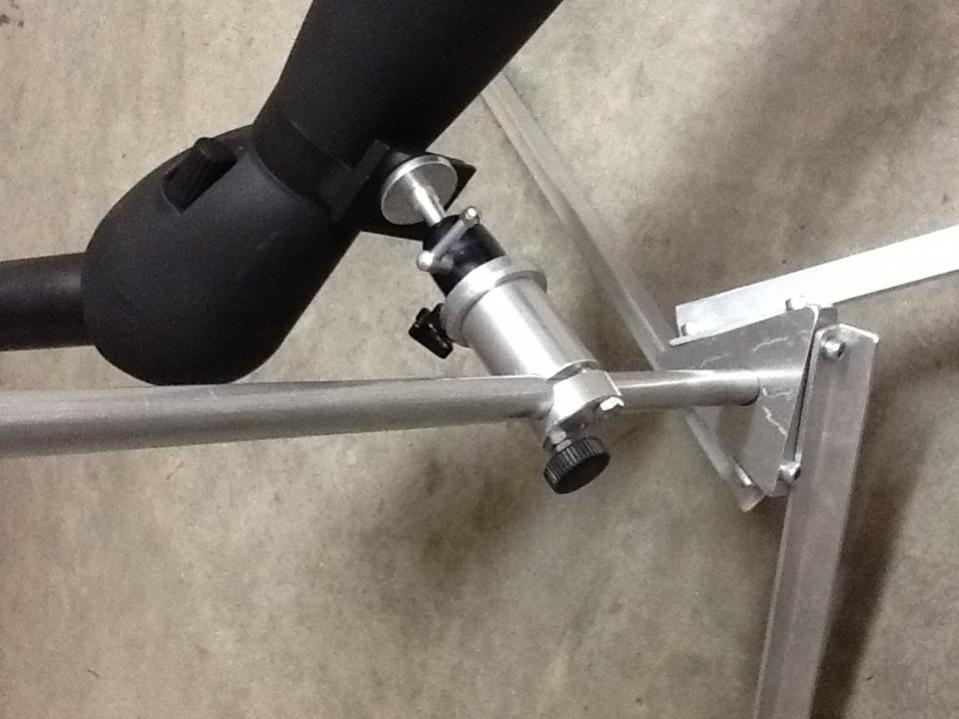

    Name:  image_2.jpg
Views: 535
Size:  73.3 KB

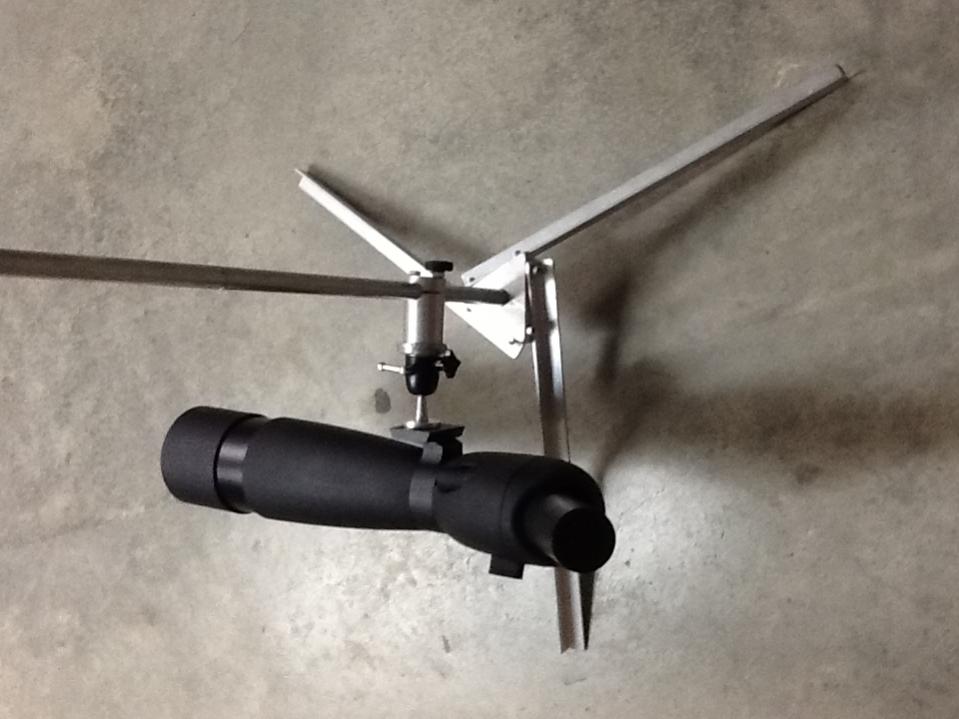

    Name:  image_3.jpg
Views: 525
Size:  65.4 KB

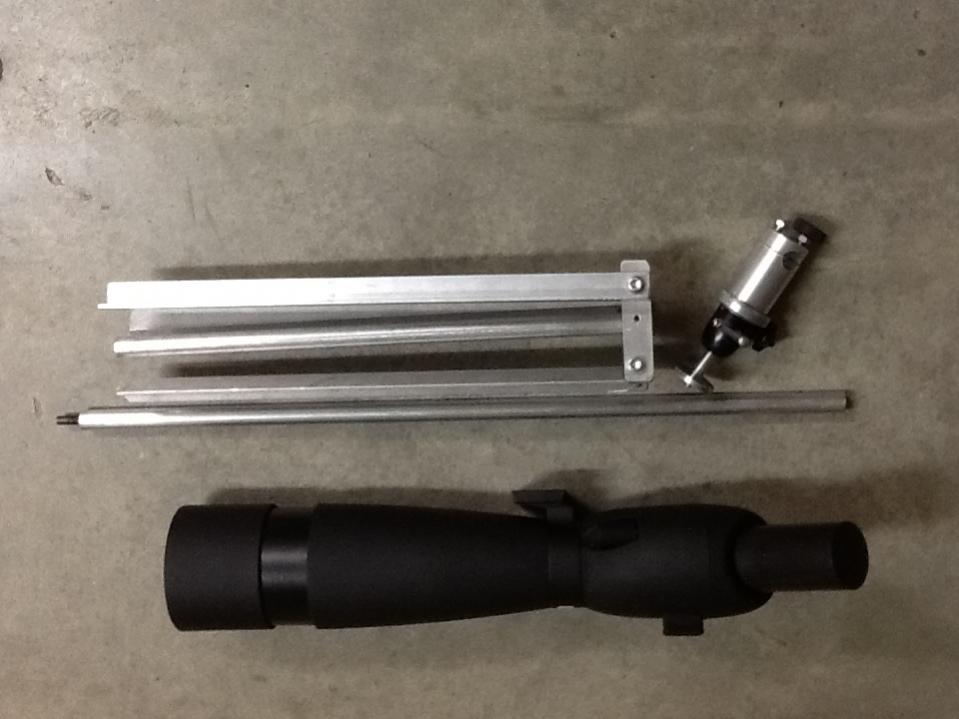

    Name:  image_4.jpg
Views: 521
Size:  63.0 KB
    Kscott, gadgetman, R93 and 2 others like this.
    Viva la Howa ! R.I.P. Toby
    Black rifles matter...

  10. #10
    Member
    Join Date
    Dec 2011
    Posts
    1,759
    Nice. Good having a wider base for the spotting scope than the poxy "tip over when looking at it sideways" types.
    ebf likes this.

  11. #11
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    666
    Yep EBF, That's a dame good idea, every time I fire the beast I have to go down the range to get my scope!!, Homebrew.357.

  12. #12
    Member
    Join Date
    Feb 2013
    Posts
    19
    I like the stand.
    Looks nice and compact once put down.
