Thread: My DIY magnetic gun rack

  1. #1
    Member brodster's Avatar
    Join Date
    Oct 2012
    Location
    Auckland
    Posts
    155

    My DIY magnetic gun rack

    First I had one rifle, the T3 308 which sat happily by itself in the corner of the safe. I thought it would eventually get lonely so gave it some company in the form of a 10/22 and a Baikal 223 (all bases well covered in small, medium, large!). But we all know three's a crowd, and it was an unruly jumble in there. No good at all... something had to be done.

    A browse through ebay and TM didn't turn up any suitable racks, and I wanted an excuse to build something anyway. Save money and time, exercise brain, put workshop tools to use and all that. I wanted to be able to easily attach, reposition and remove the rack so magnets were the obvious choice. Also, magnets are awesome.

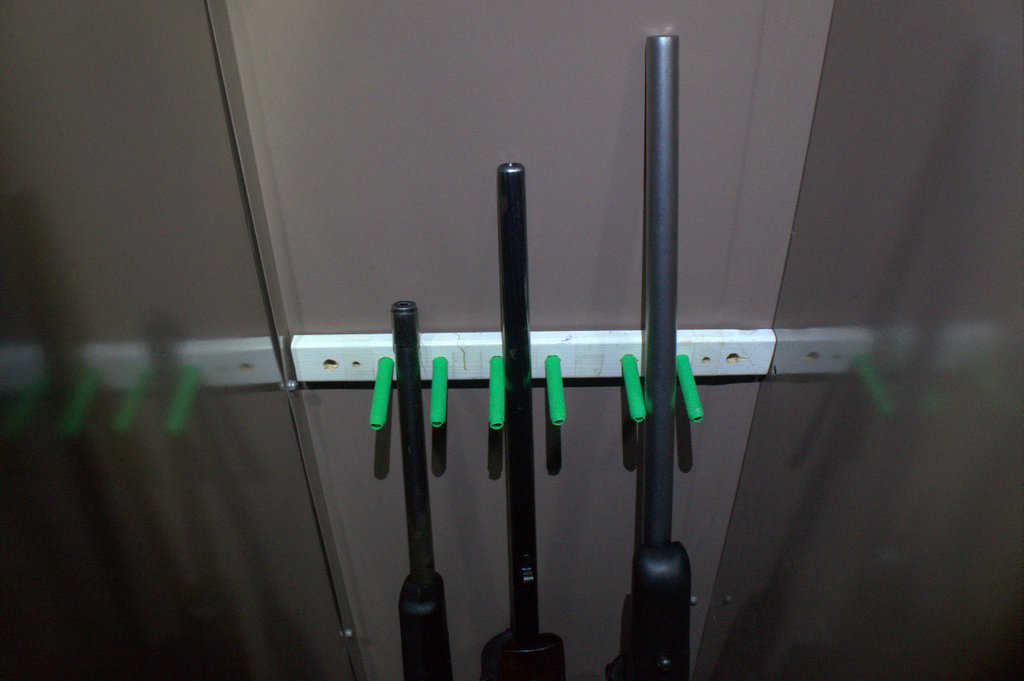

    So here's my first DIY gun project, the gun rack:

    Name:  DSC01958.jpg
Views: 10049
Size:  133.7 KB

    Parts:

    * An offcut of skirting
    * A handful of 3x4mm cylindrical neodymium magnets (cheap off ebay)
    * Some tape
    * Dowel pins. I cut up some steel rod I had taken out of a busted inkjet printer once, and covered each length with heatshrink to protect the barrels.

    Tools:

    * Drill-press
    * Hand saw
    * Drill bits

    I sawed the skirting to length and marked off the dowel positions I wanted (the more observant readers will see the rightmost position is future-proofed with extra spacing between rifles) and drilled the dowel holes for an interference fit.

    I drilled pockets for the magnets, inserted them and secured with tape wrapped around the skirting so it wouldn't peel off too soon. There's not much outward force so I think the tape will retain the magnets OK, but I'll keep an eye on it and switch to epoxy if they start to loosen.

    Tape makes it easy to remove the magnets, e.g. if I want to add larger ones.
    Wirehunt and MB like this.
    Thanks to the Playstation we have the outdoors to ourselves!

  2. #2
    Gone But Not Forgotten Toby's Avatar
    Join Date
    Sep 2012
    Location
    Wouldn't you like to know
    Posts
    11,099
    Bloody good work. Wheres the shotgun?

  3. #3
    OPCz Rushy's Avatar
    Join Date
    Jun 2012
    Location
    Nor West of Auckland on the true right of the Kaipara River
    Posts
    27,978
    Good work Brodster. Here's a thought. How close are the magnets to the metal work of your rifles? You will need to check whether they have become magnetized if you ever need to use a compass in close proximity while in the hills.
    It takes 43 muscle's to frown and 17 to smile, but only 3 for proper trigger pull.
    What more do we need? If we are above ground and breathing the rest is up to us!
    Rule 1: Treat every firearm as loaded
    Rule 2: Always point firearms in a safe direction
    Rule 3: Load a firearm only when ready to fire
    Rule 4: Identify your target beyond all doubt
    Rule 5: Check your firing zone
    Rule 6: Store firearms and ammunition safely
    Rule 7: Avoid alcohol and drugs when handling firearms

  4. #4
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    20,145
    Good point Rushy, Tho If I really "need" to use a compass I dump rifle and knife etc and stand away from them. Doesnt help on parts of the coast, needle just goes round and round!
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

  5. #5
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    20,145
    Nice choice of cals Brodster.

    Time in the shed is great unless you work in a shed
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

  6. #6
    Member brodster's Avatar
    Join Date
    Oct 2012
    Location
    Auckland
    Posts
    155
    Quote Originally Posted by Toby View Post
    Bloody good work. Wheres the shotgun?
    In the same place as the high-powered air-rifle and the Pack Rifle (look it up if you haven't already)... in the future!

    Good point about the magnets Rushy but ferrous objects mess with compasses anyway. Haven't you heard the one about the guy who mounted his compass to his rifle. Magically it always shot north! ;-)

    Out of curiosity I did a quick test and sat a compass on each rifle barrel. The 10/22 shoots south, and the other two north. Hehe.
    Thanks to the Playstation we have the outdoors to ourselves!

  7. #7
    Gone But Not Forgotten Toby's Avatar
    Join Date
    Sep 2012
    Location
    Wouldn't you like to know
    Posts
    11,099
    Shotguns are a must. I personally like them as the best thing in the world. Maybe its cause duck shooting is my favorite type of hunting

  8. #8
    OPCz Rushy's Avatar
    Join Date
    Jun 2012
    Location
    Nor West of Auckland on the true right of the Kaipara River
    Posts
    27,978
    Quote Originally Posted by Toby View Post
    Shotguns are a must. I personally like them as the best thing in the world. Maybe its cause duck shooting is my favorite type of hunting
    I have never been a duck hunter Toby. Don't know why, it is probably that I have never really had either the interest or perhaps more that I have never really had the opportunity. I do have a shot gun but it has never shot steel. How is the recovery going?
    It takes 43 muscle's to frown and 17 to smile, but only 3 for proper trigger pull.
    What more do we need? If we are above ground and breathing the rest is up to us!
    Rule 1: Treat every firearm as loaded
    Rule 2: Always point firearms in a safe direction
    Rule 3: Load a firearm only when ready to fire
    Rule 4: Identify your target beyond all doubt
    Rule 5: Check your firing zone
    Rule 6: Store firearms and ammunition safely
    Rule 7: Avoid alcohol and drugs when handling firearms

  9. #9
    Gone But Not Forgotten Toby's Avatar
    Join Date
    Sep 2012
    Location
    Wouldn't you like to know
    Posts
    11,099
    You should give it a try Rushy. Its good
