Thread: New barrel

  1. #1
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    627

    New barrel

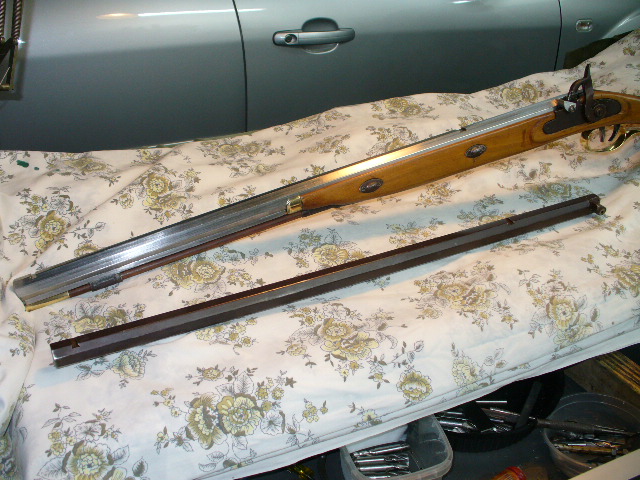

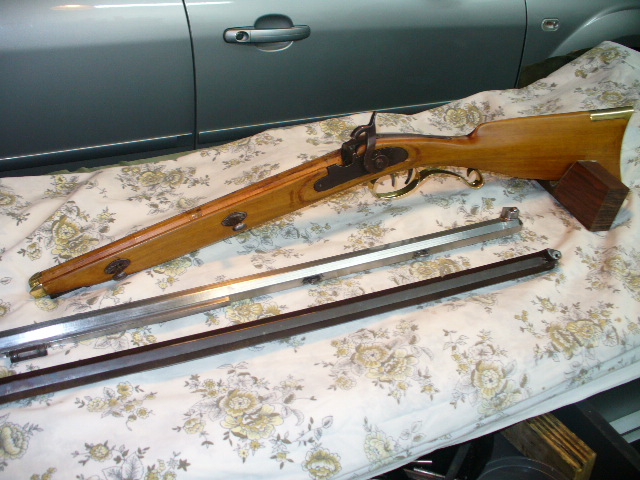

    Hi Guys, I am / have made a new barrel for my Hawken plains rifle, the first barrel was good with a patched round ball, 2" group at 50m, but the barrel had a tight spot six inches in from the muzzle and it was a pita to get a bullet in. So as I had a one meter length of round 1045 steel x 1" and all the add on bits to drill, ream, rifle , I thought give it a go and see if I could a better job, I used the new gun drill that I made the Sharps barrel with, so it is .457" bore and still a 1-33" left handed twist . The old barrel had the ramrod guide and tube soldered to it, so got them off and glued them on to the new barrel with J B Weld, fingers X, should stay put, not like it`s going to get hot with rapid fire. All I've got to do now is brown it and then a range shoot to see if it`s any good.
    Name:  P1020715.JPG
Views: 479
Size:  152.7 KB,
    Name:  P1020713.JPG
Views: 461
Size:  171.1 KB
    Name:  P1020714.JPG
Views: 463
Size:  154.3 KB
    Name:  P1020715.JPG
Views: 479
Size:  152.7 KB

  2. #2
    Caretaker jakewire's Avatar
    Join Date
    Dec 2011
    Location
    here
    Posts
    5,539
    looks great homebrew.fine job.
    Quis custodiet ipsos custodes?

  3. #3
    Member kimjon's Avatar
    Join Date
    Apr 2012
    Location
    Waikato
    Posts
    1,625
    Beautiful!

  4. #4
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    19,535
    Love your work but JB weld
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

  5. #5
    Member
    Join Date
    Feb 2013
    Location
    spreydon christcurch.
    Posts
    3,829
    magic,bloody magic

  6. #6
    Member Maca49's Avatar
    Join Date
    Nov 2012
    Location
    BOP
    Posts
    16,143
    +1
    Boom, cough,cough,cough

  7. #7
    MIA somewhere in Nam 300CALMAN's Avatar
    Join Date
    Dec 2014
    Location
    Reluctantly JAFA
    Posts
    3,471
    Wow!

  8. #8
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    627
    The J B weld, well I did not want to heat the barrel up to much and the J B has a strength of 3,930 psi when cured, so will see over time what happens. The gun will not get hot from firing, takes me a bit to get it loaded , definitely not rapid fire. And I`m not saying my barrels are good, they are only for lead bullets and the same for my Sharps, it will never see jacketed bullets, they would probably wear out going down the bore. Cheers, Hombrew.357.

  9. #9
    Member sometimes's Avatar
    Join Date
    Dec 2013
    Location
    BOP
    Posts
    495
    nice looks like my sort of art

  10. #10
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    627
    So I can make black powder muzzle loading barrels ,round or octagonal from 1" or a bit bigger diameter steel, bore .445", cut rifling makes it .457". Now as they are only for black powder 1215 or 12L14 steel is ok and easier to machine, so any one want to go to the dark side and have go at making a Davey Crocket rifle, I can make the blank barrel.

  11. #11
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    627
    So far all`s good, the barrel is now browned and on the rifle ready for a shoot out at the range to set the sights and see if it`s any good. I have had to make a new bullet mould for it as the bore is a bit bigger, but it`s ok for patched pound ball, just a thicker patch, I hope, fingers X.Name:  P1020716.JPG
Views: 175
Size:  167.0 KB, All good to go. P S there`s a spare 45cal barrel !!.
    veitnamcam and kimjon like this.
