Thread: Norinco JW 15 vs Leupold medium rimfire mounts

  1. #1
    Member
    Join Date
    Mar 2012
    Location
    Waikato
    Posts
    910

    Norinco JW 15 vs Leupold medium rimfire mounts

    DO NOT TRY THIS AT HOME

    I've got a Norinco .22RF JW15 and decided to upgrade the trusty aluminium rings to new Leupold 11mm medium ringmounts cat# 54231. They are beautiful, a work of art and quality manufacture. The objective always had quite a 5 or 10 mm of clearance, so I wasn't worried about height. They come with a non nonsense torx driver which does all the screws holding the mount to the action dovetail and the top half of the ring onto the base - very elegant and positive to use.

    I went to lie down on the range to sight it in and - no ! The bolt wouldn't go in. The ocular was now too low and the bolt handle couldn't get past. Then I remembered (too late) that this is a known issue with the Brno rifles (now CZ), which the Norinco is a copy of. One guy offered me his CZ to shoot with and another offered me his Anschutz. But I was stubborn. I whipped off the scope and crushed two empty .22 cases flat for shims and next detail I was back on the mound. It was useless. Shots started 3" low at 25 yd at 7 O'clock After much winding they centered up a bit then shot off high, only ever grouping about 3" overall. Learning point 1. You can't use .22 cases as emergency shims.

    Back home, I ground down pieces of a hacksaw blade to jack up the mounts half a mm. It looked like the bolt almost fitted.

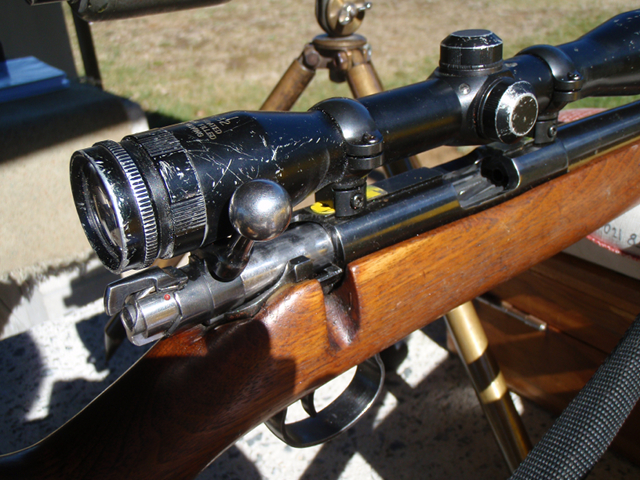

    Name:  Scp shms 70.jpg
Views: 4842
Size:  65.5 KB



    Then I filed the scope until the bolt could fit past.

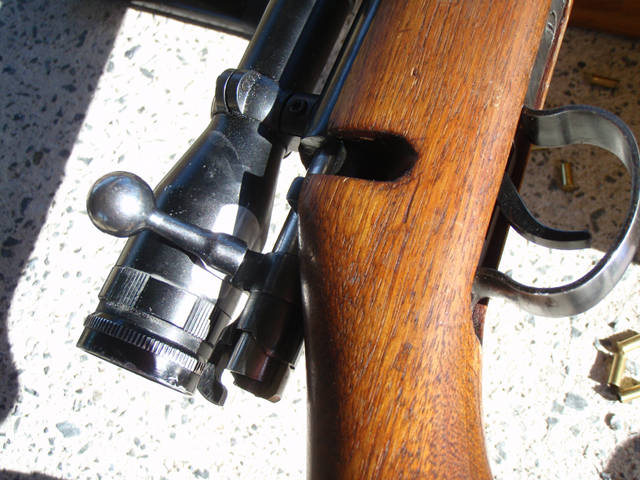

    Name:  Scp fild 70.jpg
Views: 2051
Size:  69.8 KB


    It's an old scope, a miroku 4x32 and I do have a spare one just the same. It took more filing than it looked to obtain the neccesary clearance. I wasn't sure how far I could go before I would hear "Hssssss..." Learning 2. It is possible to file a scope to let the bolt past. But whether it's wise ... Anyway a few days later, it was down to the other range to test it out.

    25 m Winchester subsonic with silencer:

    Name:  25mp sub 70.jpg
Views: 2222
Size:  79.3 KB

    I soon discovered that the aluminium under the black anodising was very soft. (Learning 3) The bolt could clear the filed area but because there is some play in it, often it would touch the scope, bind, gall and scratch it. I just hope this doesn't eventually wear right through. Certainly the scope is not the same and you really wouldn't want to do this on a scope you'd paid much money for.

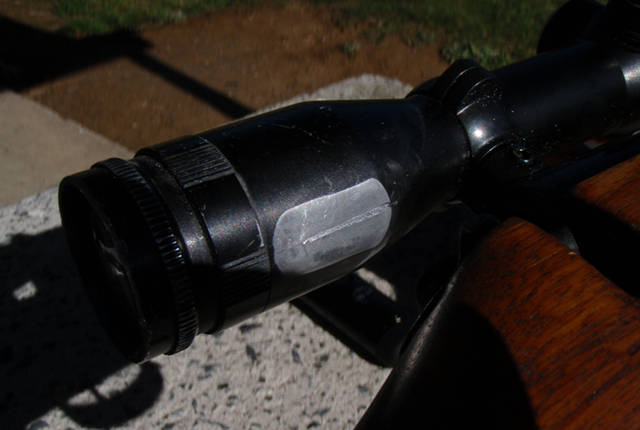

    Name:  scp scrtch70.jpg
Views: 1728
Size:  35.0 KB

    50m with powerpoint without silencer. I'm fortunate these two sorts of ammunition each shoot just where I want them without altering the sights.

    Name:  50mgp spwrpt 75.jpg
Views: 1730
Size:  35.3 KB

    This is as good as it ever groups but no better. My desperate gunsmithing had payed off.

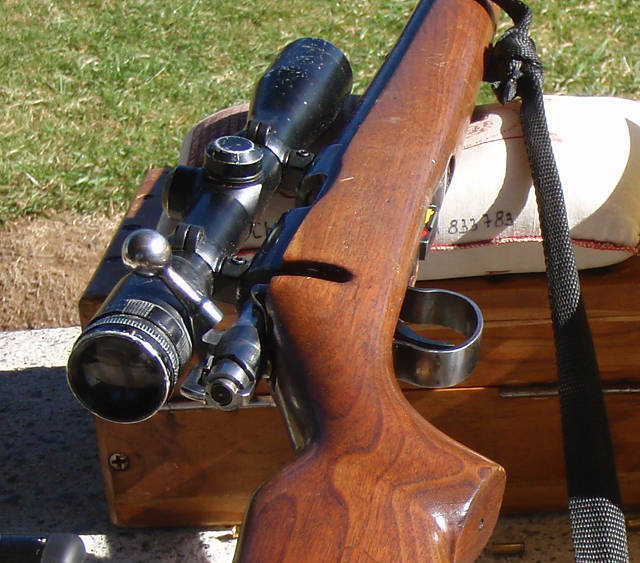

    Name:  Scp clrn 70.jpg
Views: 3131
Size:  81.0 KB

    Nek week, back at the indoor range: my first shots were 3" low then they crept up and in the end I adjusted up 4 MOA (1" at 25 yd) and had a reasonable shoot. Yeah. Obviously, the sights are unstable when transported in the car, despite the hard case. If it won't hold zero once then it's a total failure and good grouping within one session is no use for a hunting rifle. Learning 4.

    Anyone want to buy a beautiful set of Leupold 22 ringmounts ?
    Attached Images Attached Images
    veitnamcam likes this.

  2. #2
    Member
    Join Date
    Dec 2011
    Location
    South of Christchurch
    Posts
    1,420
    get someone with a milling machine to take some material off the bolt handle (see mudgripz pics). I did it for my sons JW as we couldn't put the scope higher for him, he wouldn't be able to really see through the scope and have his cheek on the stock.

    My JW scope is sitting on med rings so ok.

  3. #3
    Official Cheese Shaman Spanners's Avatar
    Join Date
    Dec 2011
    Location
    Wellington
    Posts
    6,065
    Gas and bend the handle?

  4. #4
    Member ANTSMAN's Avatar
    Join Date
    Dec 2011
    Location
    Wellington
    Posts
    1,317
    how much for the rings?

  5. #5
    Member Malhunting's Avatar
    Join Date
    Dec 2011
    Location
    Southland
    Posts
    975
    Ah i know how it feel man, went through the same thing not long ago with my CZ, i went for higher rings as it was brand new and i just couldn't bring myself to hurt it in any way.

  6. #6
    Member
    Join Date
    Mar 2012
    Location
    Waikato
    Posts
    910
    Even with a Norinco, I couldn't mod the bolt handle. Even that hasn't got a lot of metal to spare. It will be cheaper and tidier to get some higher rings. Meanwhile the old ally ones will go back on.

  7. #7
    Member jim160's Avatar
    Join Date
    Jun 2012
    Location
    Wellington
    Posts
    2,076
    Good effort, I probably would have got a hammer and bent the handle. Never thought of using 22 shells.

  8. #8
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    2,596
    ten points for trying. I like it when people are stubborn and make things work that are differcult or shouldnt work.
    If you are looking to take a massive loss on the rings I could be interested too
