Thread: Rangi 303 scope mount.

  1. #1
    Member Eion's Avatar
    Join Date
    Nov 2012
    Location
    Dunedin
    Posts
    181

    Rangi 303 scope mount.

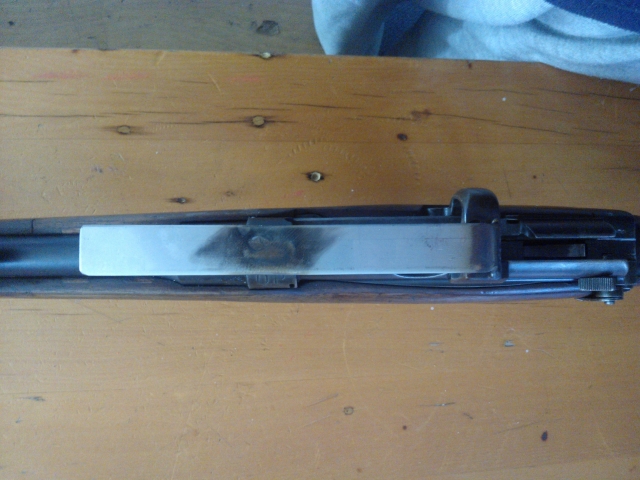

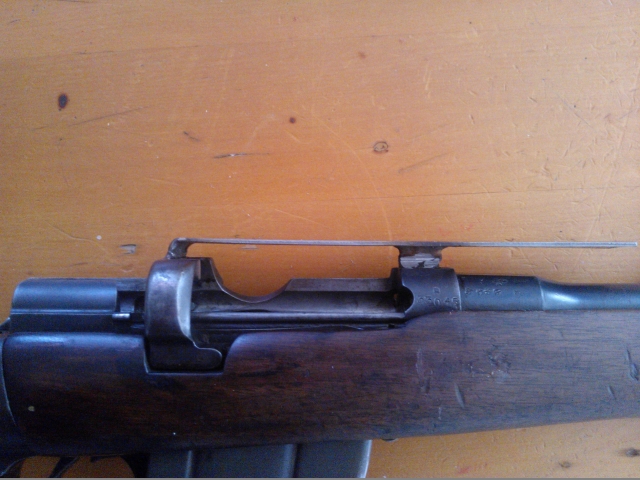

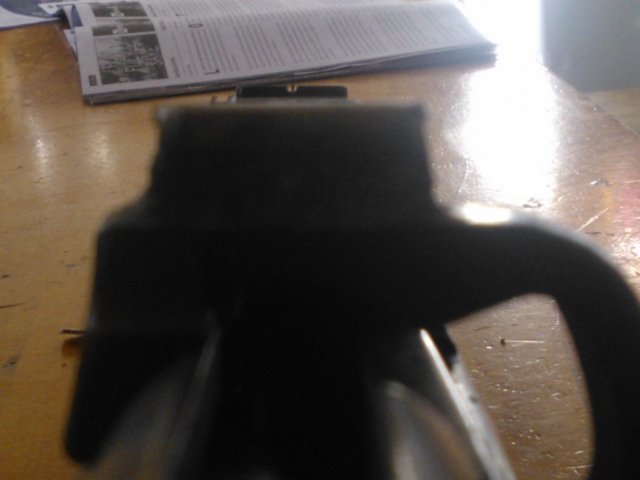

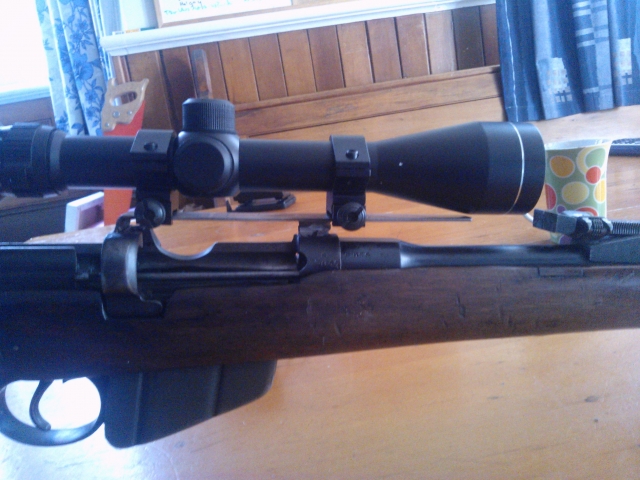

    I thought I would share my 303 mount job as Hori as they come but hey it's a solid platform. So anyway it's made from 3mm stainless and tigged. It was designed so that the iron sights still work if the scope is removed (picture attempt included). I'm planning on trimming the excess some time soon. I'll update you all on whether or not it holds a zero. (NB: the photo's make it look skewed but it's not.)
    Name:  wp000002255029.jpg
Views: 537
Size:  243.5 KB Name:  wp000004265298.jpg
Views: 481
Size:  230.6 KB Name:  wp00000859682.jpg
Views: 485
Size:  251.2 KB Name:  wp00000928026.jpg
Views: 477
Size:  154.6 KB

  2. #2
    OPCz Rushy's Avatar
    Join Date
    Jun 2012
    Location
    Nor West of Auckland on the true right of the Kaipara River
    Posts
    27,978
    To my uneducated eye she looks to have about 40moa down angle Eion. I guess you will find that out if you are right off the paper with your first shots
    BRADS likes this.
    It takes 43 muscle's to frown and 17 to smile, but only 3 for proper trigger pull.
    What more do we need? If we are above ground and breathing the rest is up to us!
    Rule 1: Treat every firearm as loaded
    Rule 2: Always point firearms in a safe direction
    Rule 3: Load a firearm only when ready to fire
    Rule 4: Identify your target beyond all doubt
    Rule 5: Check your firing zone
    Rule 6: Store firearms and ammunition safely
    Rule 7: Avoid alcohol and drugs when handling firearms

  3. #3
    Member Beavis's Avatar
    Join Date
    Dec 2011
    Location
    The Cape
    Posts
    3,866
    Your rings will probably move under recoil

  4. #4
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    20,145
    How is attached to the action? you didnt weld it on did you?

    If you weld a stiffener underneath from the action mount forward to under the rings and weld a recoil stop in front of one of the rings you might get away with it.... maybe
    "Hunting and fishing" fucking over licenced firearms owners since ages ago.

  5. #5
    Member Beavis's Avatar
    Join Date
    Dec 2011
    Location
    The Cape
    Posts
    3,866
    Quote Originally Posted by veitnamcam View Post
    How is attached to the action? you didnt weld it on did you?

    If you weld a stiffener underneath from the action mount forward to under the rings and weld a recoil stop in front of one of the rings you might get away with it.... maybe
    Yea I was thinking he may have damaged the receiver welding it

  6. #6
    Member
    Join Date
    Dec 2012
    Location
    Lower Hutt
    Posts
    149
    If that one doesn't work, here is another cheap option that I've always thought about trying.
    The Indestructible Scope Mount

  7. #7
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    2,596
    haha if it works then im inpressed, I looked at doing the same to an old POS 303 I had.

  8. #8
    Member Eion's Avatar
    Join Date
    Nov 2012
    Location
    Dunedin
    Posts
    181
    Yeah I just welded the front on, I couldn't see it doing any harm. There's no locking lugs there, it gets heated to hotter when re-barreling, and it's independent of the chamber. I'll chuck that stopper on though and move the rear ring so its hard pressed against the stop behind it also. I'd tapered the edges of it so that when its clamped on tight it bites into the steel but a bit more strength couldn't hurt. I'd looked at the side mounted ones but I have a rounded receiver and don't have the skill to work with that.

  9. #9
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    20,604
    Rangi will be impressed Eion!!

    Name:  Rangi.png
Views: 308
Size:  20.9 KB
