Thread: Reloading Bench

  1. #1
    Member
    Join Date
    Mar 2012
    Location
    Palmy North
    Posts
    253

    Reloading Bench

    I have been meaning to make a dedicated reloading bench for a while now and finally had some time to do it.
    Im certainly no carpenter but I managed to borrow some quality tools from a mate that made things alot easier main one being a drop saw.

    I used h1.2 4x2 framing timber and 18mm ply. In hindsight im sure there are cheaper options out there if you shopped around and 12mm ply would probably do the trick.

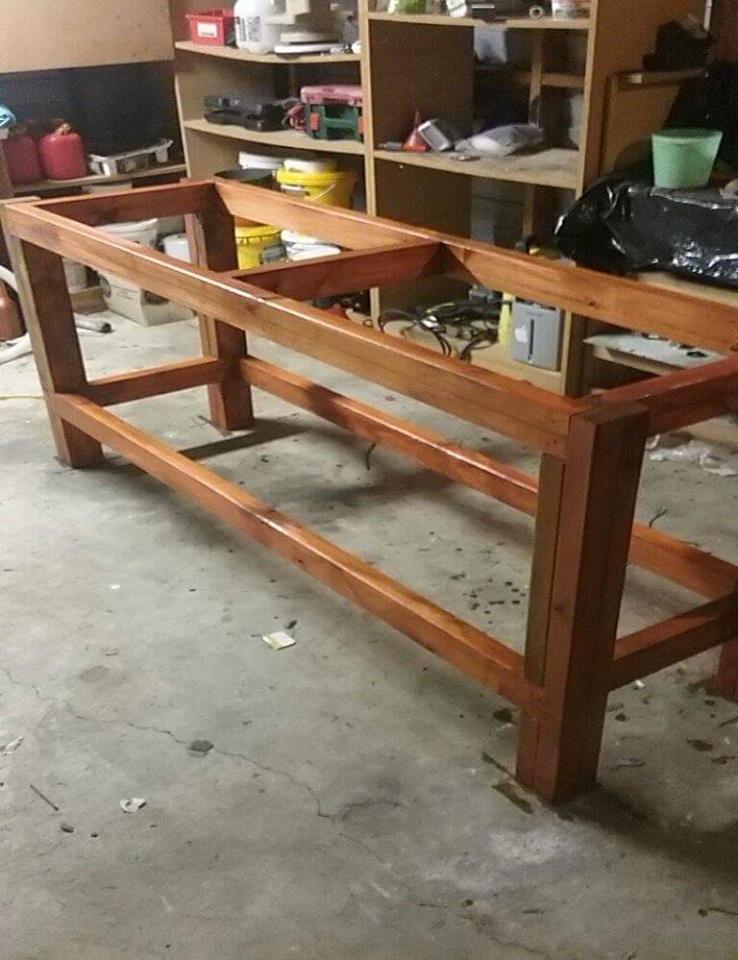

    Had a look at different designs and found this one to be the simplest of the lot. Managed to knock the frame up in a couple of hours, and gave it a quick stain (mainly because it was pink).

    Name:  11225082_10206815484639430_7887560216108178954_n.jpg
Views: 1625
Size:  87.5 KB

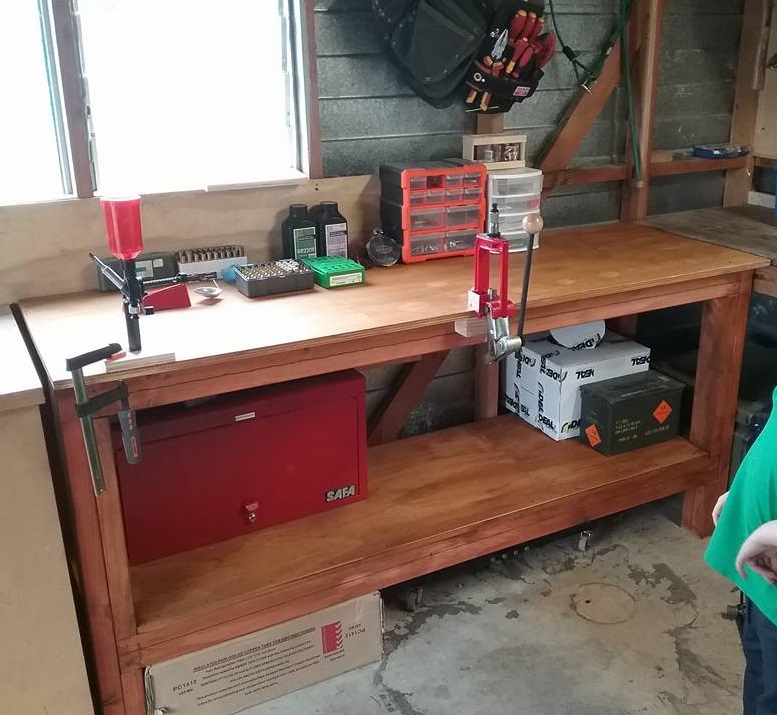

    Another few hours work the next day to put the top and bottom shelves on fill the holes on the top and give it a stain.

    Name:  12105968_10206819873229142_618970964560146807_n.jpg
Views: 1373
Size:  159.3 KB

    If i did it again i would use hidden brackets to mount the ply, it was a PITA filling all the holes and doesnt look as good as it could.
    I ran out of 3" square drive screws as well, using these and an impact driver was really fast so progress slowed a bit while assembling the frame.
    kimjon, Maca49 and WallyR like this.

  2. #2
    Member
    Join Date
    Jan 2013
    Location
    Chch
    Posts
    323
    Looks good

  3. #3
    Member Shooter's Avatar
    Join Date
    Feb 2012
    Location
    Ruāhine National Park
    Posts
    412
    Nice job mate! Surprised you haven't wired it up with funky lights or hotpoints yet lol.
    "Professionals are predictable but the world is full of dangerous amateurs"

  4. #4
    Member
    Join Date
    Mar 2012
    Location
    Palmy North
    Posts
    253
    Cheers bro. Haha, maybe once i get a tumbler or a powered case trimmer setup. Dreams are free right.
    Shooter likes this.

  5. #5
    Member Danny's Avatar
    Join Date
    Aug 2013
    Location
    Central NI
    Posts
    3,708
    Good stuff


    Sent from my iPhone using Tapatalk
    Dan M

  6. #6
    Member
    Join Date
    Feb 2013
    Location
    spreydon christcurch.
    Posts
    4,156
    nowt wrong with that effort squire be welcomed in many a shooters den id say!

  7. #7
    Member
    Join Date
    May 2015
    Location
    Carterton, New Zealand
    Posts
    1,183
    Quote Originally Posted by thedrunkfish View Post
    I have been meaning to make a dedicated reloading bench for a while now and finally had some time to do it.
    Im certainly no carpenter but I managed to borrow some quality tools from a mate that made things alot easier main one being a drop saw.

    I used h1.2 4x2 framing timber and 18mm ply. In hindsight im sure there are cheaper options out there if you shopped around and 12mm ply would probably do the trick.

    Had a look at different designs and found this one to be the simplest of the lot. Managed to knock the frame up in a couple of hours, and gave it a quick stain (mainly because it was pink).

    Attachment 41466

    Another few hours work the next day to put the top and bottom shelves on fill the holes on the top and give it a stain.

    Attachment 41467

    If i did it again i would use hidden brackets to mount the ply, it was a PITA filling all the holes and doesnt look as good as it could.
    I ran out of 3" square drive screws as well, using these and an impact driver was really fast so progress slowed a bit while assembling the frame.
    Here's my effort at a reloading bench. Separated a 'man cave' from the garage, lined & insulated it, then built the bench on two walls. Love bench space. Exercise took over 2 months, starting in July '14, from scratch. Missus helped with undercoat and painting (one of her favorite pastimes. Reloading room finished towards end of September. Pretty pleased with the effort, considering that my carpentery skills = 0. Still building benches for various activities - home brewing, general workshop bench and a potting bench for the missus finished today. Clean out all the timber scraps and unwanted gear we brought back from Oz 18 months ago, then mount up the reloading press and various other bits.Name:  image.jpeg
Views: 408
Size:  138.2 KB Name:  image.jpeg
Views: 781
Size:  150.0 KB
    Bryan, Beaker, Tommy and 1 others like this.

  8. #8
    Member
    Join Date
    Jun 2015
    Location
    christchurch
    Posts
    6,059
    nice job, hope it works for you
