Thread: Reloading bench

  1. #1
    Member
    Join Date
    Feb 2016
    Location
    Stewart island / canterbury
    Posts
    6,890

    Reloading bench

    So since I now have space in my toy room and no table arriving, thinking of making my own. Have a stack of 4x2 and scaffolding planks. Can people throw some pictures / diagrams up of theirs. Whatnots well what you would do differently next time etc. Am left handed so was going to have press off the left hand side of table followed by case trimmer then scales all screwed down but with scales on a riser to see the balance beam numbers easier.

  2. #2
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    19,972
    Made mine from 4x2 and some heart Rimu across the front to make a solid mounting platform for the press.
    Name:  IMG_2341.jpg
Views: 737
Size:  814.9 KB
    Name:  IMG_2344.jpg
Views: 709
Size:  760.0 KB
    Name:  IMG_2590.jpg
Views: 878
Size:  764.9 KB
    gadgetman, Beaker, WallyR and 1 others like this.

  3. #3
    Member
    Join Date
    Jan 2013
    Location
    Home - mainland nz, actual - could be anywhere...
    Posts
    3,736
    Name:  2013-08-01 19.14.33.jpg
Views: 588
Size:  814.4 KBName:  2013-08-01 19.14.49.jpg
Views: 611
Size:  812.2 KBName:  2013-08-31 12.19.11.jpg
Views: 529
Size:  815.8 KBName:  2013-12-11 11.57.20.jpg
Views: 517
Size:  653.8 KBName:  2014-03-20 19.39.10.jpg
Views: 601
Size:  585.3 KB

    4x4's, glued and screwed. 18mm MDF top, all painted (and yes the garage was a horrible colors BEFORE we brought the place...Now all white)

    8mm steel plate glued down on top and presses bolted right through - they don't move a mm.....

    Also, presses mounted higher, as I like to stand when using them, and the other side is right height to sit and do prep, etc....
    Gibo, seano and WallyR like this.
    Please excuse spelling, as finger speed is sometimes behind brain spped........ Or maybe the other wayy.....

  4. #4
    Member Mathias's Avatar
    Join Date
    Oct 2015
    Location
    Canterbury, home of the big Rakaia Red Stag
    Posts
    2,198
    Quote Originally Posted by Gibo View Post
    Made mine from 4x2 and some heart Rimu across the front to make a solid mounting platform for the press.
    Attachment 52440
    Attachment 52441
    Attachment 52442
    Like me Gibo, daughter spends time with dad in the shed. She's like my shadow and at nearly 10 now, nothings changed
    Beaker and Gibo like this.

  5. #5
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    19,972
    Quote Originally Posted by Mathias View Post
    Like me Gibo, daughter spends time with dad in the shed. She's like my shadow and at nearly 10 now, nothings changed
    Its cool aye. I have one at 3 and one just about to turn 1 3yo is always asking when she can come hunting Soon grasshopper, soon

  6. #6
    Member
    Join Date
    Feb 2016
    Location
    Stewart island / canterbury
    Posts
    6,890
    Cheers guys, probably just doing 4+2 and ply on top as it's what I have. Going incidence house so will probably end up moving it twice before I'm happy with location!

  7. #7
    MaW
    MaW is offline
    Member
    Join Date
    Jul 2016
    Location
    Auckland
    Posts
    107

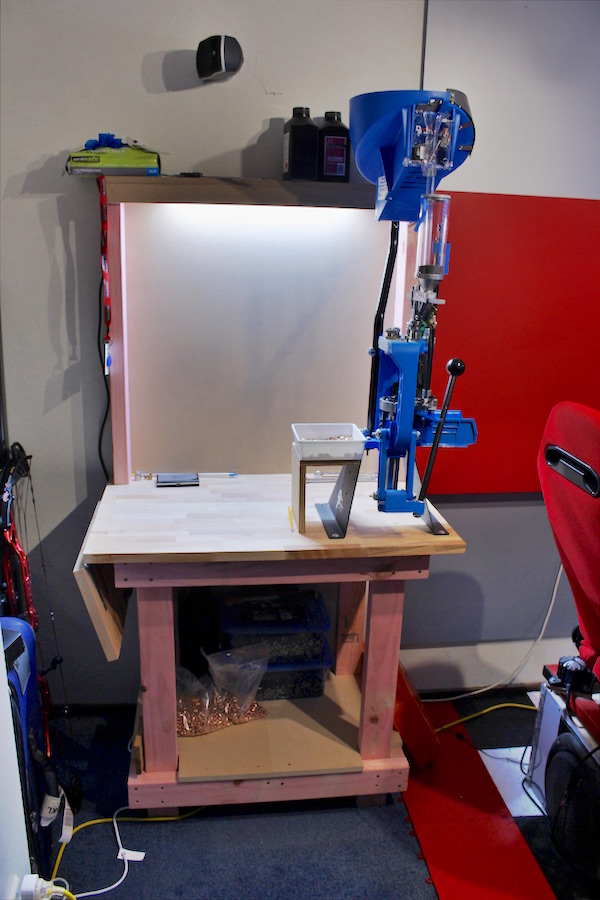

    I did a small 2x4 job. Plenty strong enough for something like the Dillon but I also screwed it in to the wall to help. Mine is quite small, too little space for too many things.

    I had to put a side leaf on it so that I can drop it when I need to open the safe. I was also going to put MDF or ply on top but then I saw bunnings selling wooden counter tops for $120 so I went that way as I could use the spare meter left over for part of a butcher block.



    Name:  reloading.jpg
Views: 597
Size:  152.1 KB
    AzumitH and Beaker like this.

  8. #8
    Member
    Join Date
    Feb 2016
    Location
    Stewart island / canterbury
    Posts
    6,890
    Only got the lee single stage press so not too big, it's the space for prep I'm guna need. Great to see 4*2 make ups, got some ideas in my head now. Will chuck up a pic when I make it later next week, visitors this week
    Gibo likes this.

  9. #9
    Member Mathias's Avatar
    Join Date
    Oct 2015
    Location
    Canterbury, home of the big Rakaia Red Stag
    Posts
    2,198
    Go as heavy as you can on the top, it just makes it feel a lot more steady to work from. My bench was an old one made of 4x2 and 3x1's on top, so I laid 18mm MDF over it and it's rock solid. Make it as long as you can and it'll double up as a rifle bench too for fiddling with the toys
    Beaker and Gibo like this.

  10. #10
    Member
    Join Date
    Feb 2016
    Location
    Stewart island / canterbury
    Posts
    6,890
    little limited on the length as its in an aframe room upstairs, if i go to long i wont have any headspace to far the other way and i block the doorway to the balcony... i'll manage somehow!

  11. #11
    Member
    Join Date
    Jul 2014
    Location
    Manukau
    Posts
    319
    Another idea worth considering is what I did for a work bench-pick up a kitchen bench/cabinetry that someone has ripped out of their kitchen to do a Reno. You can pick it up for a song (i managed to get mine for substantially less than the cost of materials to build a bench), they're usually just keen to get rid of it and there are usually enough around for sale that you can pick exactly what you want. I got one with a stainless steel top, cabinets etc underneath and a decent lip to mount my vice/press to.

  12. #12
    Member Dead is better's Avatar
    Join Date
    Jan 2012
    Location
    Auckland
    Posts
    824
    Best bit of advice I got was to mount a little shelf for my scales at eye height so I can reload sitting down.

  13. #13
    Member
    Join Date
    Feb 2016
    Location
    Stewart island / canterbury
    Posts
    6,890
    Quote Originally Posted by Dead is better View Post
    Best bit of advice I got was to mount a little shelf for my scales at eye height so I can reload sitting down.
    Had thought of that one, need room for powder dribbler as well as scales. Do all of the prep, scales, trim and pressing sitting down so going to have to have knee room underneath

  14. #14
    MaW
    MaW is offline
    Member
    Join Date
    Jul 2016
    Location
    Auckland
    Posts
    107
    Quote Originally Posted by 223nut View Post
    little limited on the length as its in an aframe room upstairs, if i go to long i wont have any headspace to far the other way and i block the doorway to the balcony... i'll manage somehow!
    You could always do something along the lines of what I did which was to add the fold away leaf on the side. So you can drop it for access to the balcony door. If the table is 800 high then you can get nearly that in additional length. Of course you cant mount anything permanent to the leaf there but I find it useful as I might do some other things on the bench and its nice to have a little more to put some tools on etc.

  15. #15
    Member
    Join Date
    Feb 2016
    Location
    Stewart island / canterbury
    Posts
    6,890
    A drop down leaf is a good idea that I plan on stealing from ya @MaW
