Thread: Remington 700 trigger adjustment

  1. #1
    Member
    Join Date
    Jun 2018
    Location
    Rangiora, North Canterbury
    Posts
    64

    Remington 700 trigger adjustment

    Hey guys. Hope someone can assist a newbie to messing around with guns.

    So Iím wanting to lighten the factory trigger on my model 700 SPS. Before you say ďbuy a Timney or XYZ trigger blah blah blahĒ, these are supposed to be about as good as factory triggers get, and well, I canít afford to.

    I followed the instructions on a couple of YouTube clips and adjusted the first two grub screws okay, but the third refused to budge. The Allen key ends on slipping and has now been rounded off now by the screw. Iíve spent ages making sure there is no loctite around it. I think the problem is that the screw has split, meaning it opens up whenever I apply torque to the key.

    My questions therefore are as follows:
    1. Has anyone else experience this problem, i.e. am I right with my diagnosis?
    2. If so, how would I go about getting the screw out? I assume Iíd need some sort of screw removal tool.
    3. Any suggestions where in Christchurch or online to get the necessary tools and replacement grub screw? OR
    4. Is there anyone in Chch / North Canty with the gear, time & inclination to give me a hand?
    5. Any other bright ideas? Smartass suggestions also welcome for humourís sake.

    Thanks. Would post a pic if I could figure out how from my phone.

  2. #2
    Member
    Join Date
    Jun 2018
    Location
    Rangiora, North Canterbury
    Posts
    64
    Name:  IMG_2306.jpg
Views: 203
Size:  353.2 KB

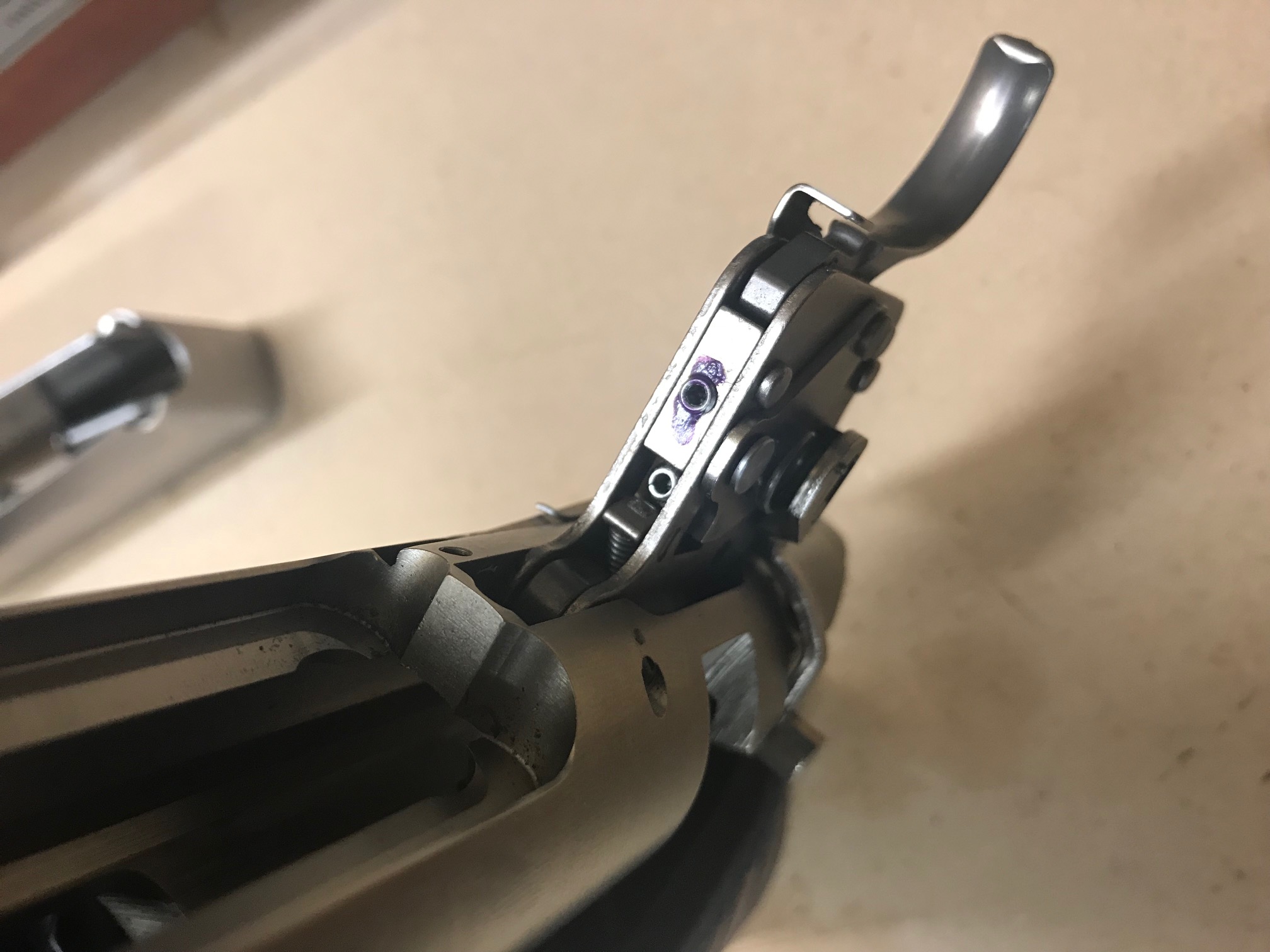

    Okay, here's a pic. The grub screw in question is the top front one (lower left of the two in the pic). Hopefully you can see the little crack that leads me to believe it has split.

  3. #3
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    2,470
    the rules are - you can give these things a shot, but when you break something you have to go see the gunsmith

    when you find yourself in a hole stop digging

  4. #4
    Throbbing Member Dorkus's Avatar
    Join Date
    Jul 2015
    Location
    Mangawhai
    Posts
    976
    Dig up, dig up!
    dannyb and mopheadrob like this.
    ďThe society that separates its scholars from its warriors will have its thinking done by cowards and its fighting by fools.Ē - Thucydides 463BC

  5. #5
    Member
    Join Date
    Nov 2018
    Posts
    76
    go see zach earl at north canty gunsmiths, he is in rangiora. or kieren scoone is out that way too
    csmiffy likes this.

  6. #6
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    778
    The factory M700 triggers have the adjustment screws locked with a very strong grade of Loctite. This bond can only be broken with heat. A fine point electric soldering iron on the screw will do the trick without heating the whole assembly and buggering the springs. If you try to move the screws without breaking the bond then you get the problems you have experienced.
    johnd likes this.

  7. #7
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    2,470
    If It makes you feel any better I tryed bedding my rem 700 with a bedrock kit

    i took it apart at the recomended time and it pulled apart like a grilled cheese sandwich @gundoc sorted it at that point onwards
    Hutch, dannyb and mopheadrob like this.

  8. #8
    Member
    Join Date
    Jun 2018
    Location
    Rangiora, North Canterbury
    Posts
    64
    Thanks @gundoc, that will explain it. Will give it a go with a soldering iron, and follow @gone-tropo 's advice if that doesn't work!!!

  9. #9
    Member
    Join Date
    Jun 2018
    Location
    Rangiora, North Canterbury
    Posts
    64
    Quote Originally Posted by Bill999 View Post
    the rules are - you can give these things a shot, but when you break something you have to go see the gunsmith

    when you find yourself in a hole stop digging
    Sage advice @Bill999. I believe that if I own something, I should know how to service / fix it. There are limits, though!

    I did try Gunworks, but they have a policy of not working on triggers that someone else has fiddled with.

  10. #10
    Member Maca49's Avatar
    Join Date
    Nov 2012
    Location
    BOP
    Posts
    16,129
    Put an after market trigger in it!! If not, and you screw the one you have, Ill sell you another of those "best quality" Remington triggers I have preserved in a box and ready to go for such an occasion!!
    Boom, cough,cough,cough

  11. #11
    Member mikee's Avatar
    Join Date
    Aug 2012
    Location
    Nelson, New Zealand
    Posts
    6,883
    Quote Originally Posted by Bill999 View Post
    the rules are - you can give these things a shot, but when you break something you have to go see the gunsmith

    when you find yourself in a hole stop digging
    True but the highlighted part of your quote does not necessarily mean you will have a good outcome even if you don't mess with it first.

  12. #12
    Member
    Join Date
    Jan 2018
    Location
    kaiapoi
    Posts
    2,187
    Quote Originally Posted by gundoc View Post
    A fine point electric soldering iron on the screw will do the trick without heating the whole assembly and buggering the springs. If you try to move the screws without breaking the bond then you get the problems you have experienced.
    That's a tricky little trick. I like it

  13. #13
    Member
    Join Date
    Nov 2018
    Posts
    76
    i have a temp controlled soldering iron and a hot air soldering re-work system if you want to take advantage of it

  14. #14
    Member
    Join Date
    Jun 2018
    Location
    Rangiora, North Canterbury
    Posts
    64
    Update - tried the soldering iron @gundoc but no joy, so I took @gone-tropo 's advice and went to see Zach Earl. Zach informed me that the glue needs a blowtorch, but I didn't need to touch that screw anyhow. I felt better about myself after it took him a fair bit of buggering around with the pull weight and sear engagement screws before he got it to an acceptable 3lb. Not super-light, but nice & crisp. Apparently the older M700 triggers before the x-mark were more adjustable... any of yours that type and going for next to nothing @Maca49? Happy with the feel of my rifle now and a having much better understanding of its inner workings. Just need to find myself a four-legged target to test it on! Thanks for the advice you guys, and a big thumbs-up for North Canterbury Gunsmithing Ltd.

  15. #15
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    778
    Quote Originally Posted by mopheadrob View Post
    Update - tried the soldering iron @gundoc but no joy, so I took @gone-tropo 's advice and went to see Zach Earl. Zach informed me that the glue needs a blowtorch, but I didn't need to touch that screw anyhow. I felt better about myself after it took him a fair bit of buggering around with the pull weight and sear engagement screws before he got it to an acceptable 3lb. Not super-light, but nice & crisp. Apparently the older M700 triggers before the x-mark were more adjustable... any of yours that type and going for next to nothing @Maca49? Happy with the feel of my rifle now and a having much better understanding of its inner workings. Just need to find myself a four-legged target to test it on! Thanks for the advice you guys, and a big thumbs-up for North Canterbury Gunsmithing Ltd.
    As Zach was my apprentice then I am not surprised! I always used a needle flame with oxy acetylene which keeps the heat localized. The soldering iron trick is for people with no gas, or using a propane torch which heats the surrounding area too much.
    csmiffy and mopheadrob like this.
