Rifling thinge upgrade.
Hi all, Had a rethink on my barrel rifling setup as I could only cut rifle a left hand twist, so using the sine bar method I can now get a twist from 1-18 to 1-70" and right hand!!. I had a meter of mild steel 1" round, an old brake cylinder was machined to slide on this and attached to a bit of square ali with a slider setup driving a loop of bike chain to drive the rifling cutter rod," must have bike chain". The round bar is mounted at the back of the lathe and can be raised up and down to give the different twist rate by cranking the sliding head holding the cutter rod. Hope you all under stand this and I don't know if it will work yet, waiting to get in some stock to have a go. There`s no such thing as "Can't do it". Pics of the setup. Homebrew.357. :cool:

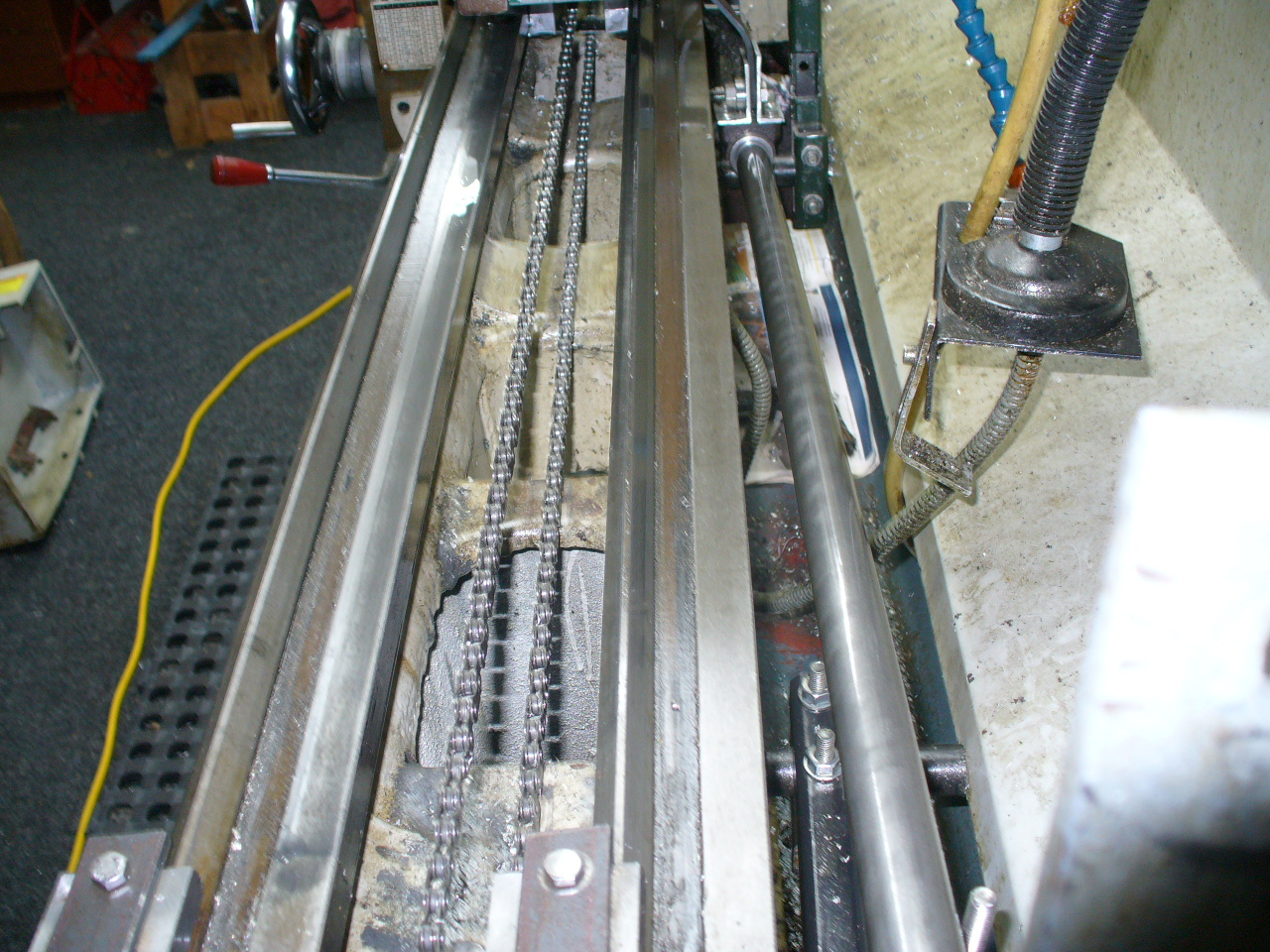

Attachment 73561, The round shaft at the back of the lathe.
Attachment 73562, Chian loop that drives cutter rod on ali slider.

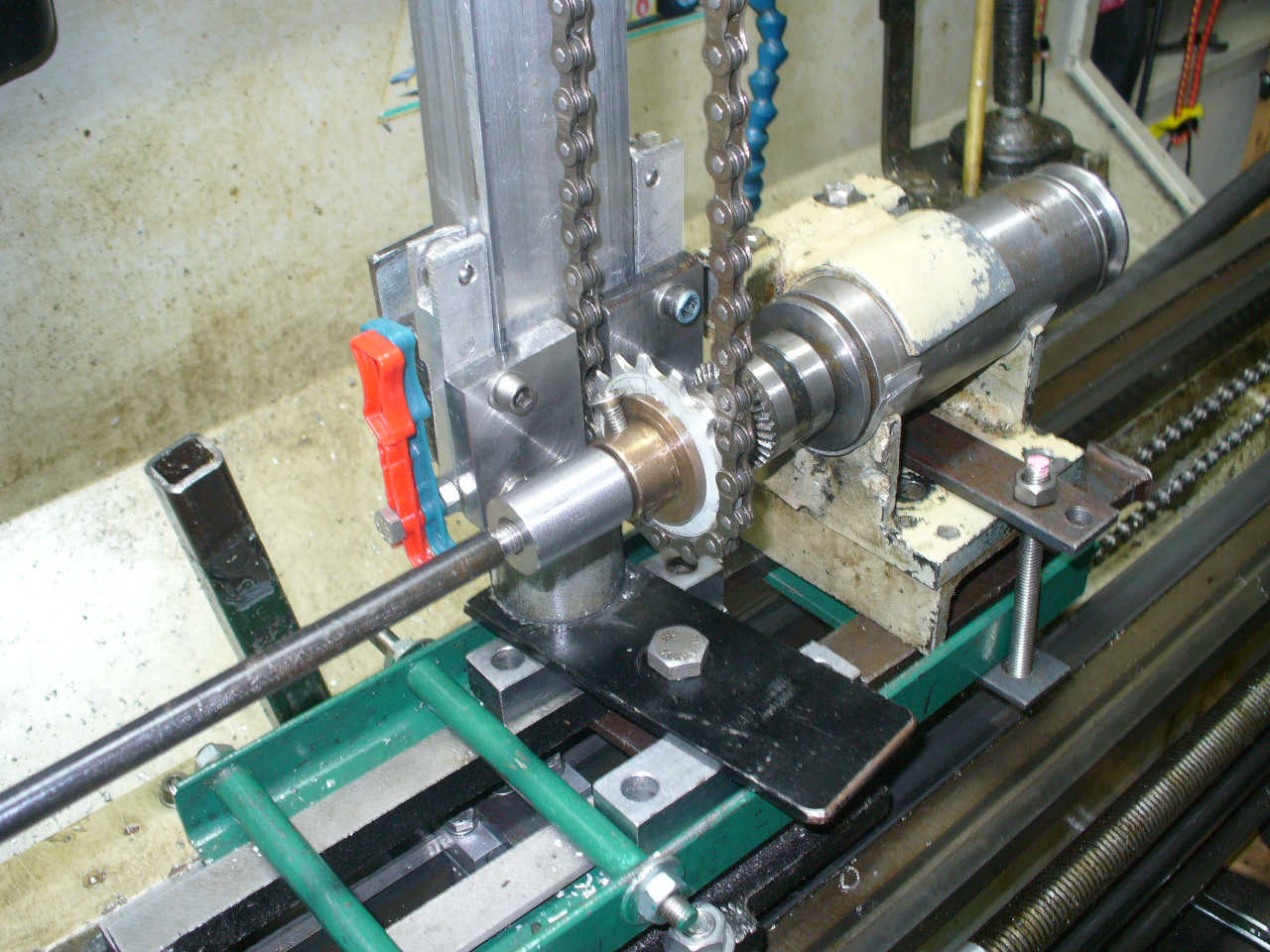

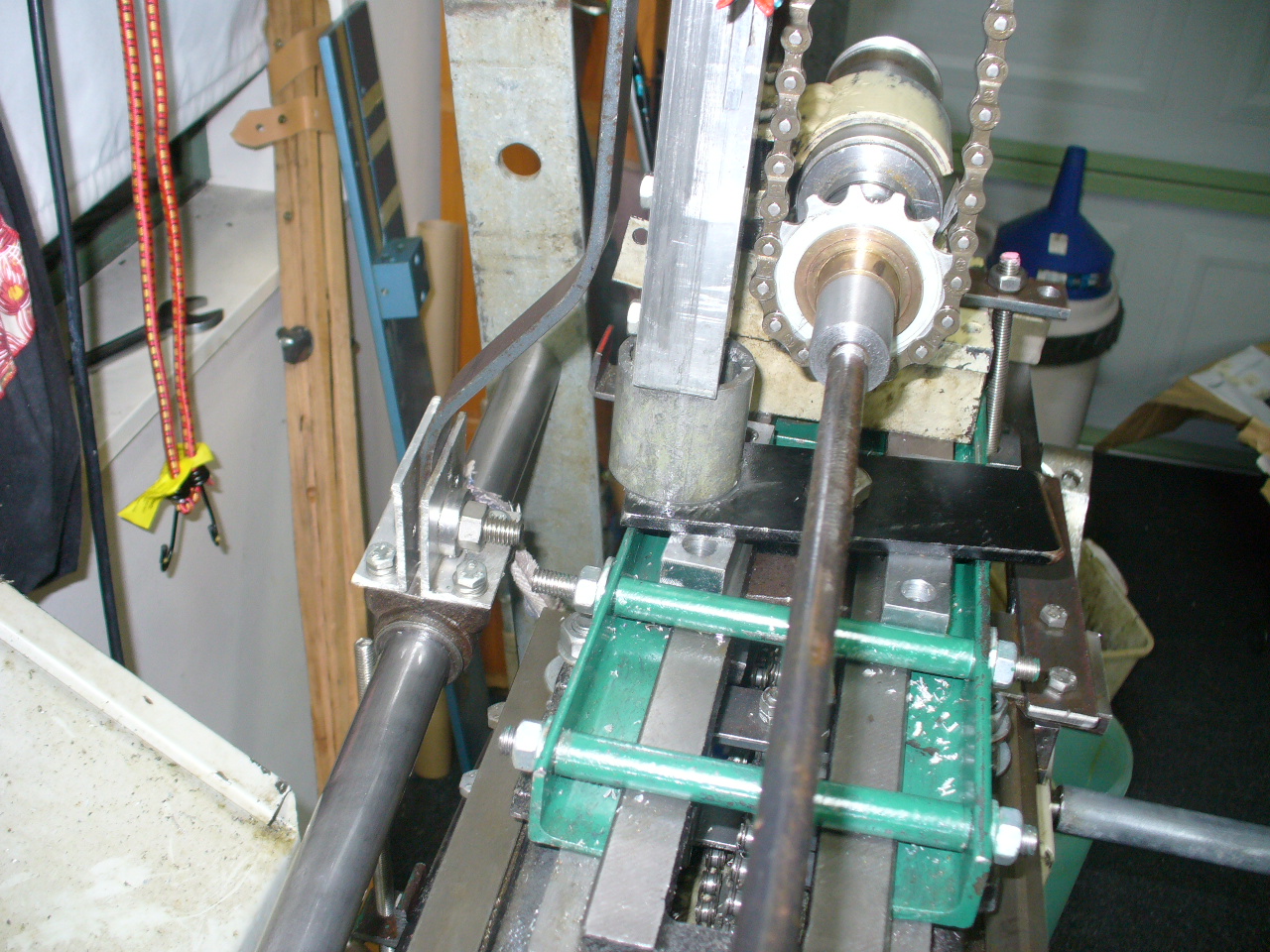

Attachment 73563, Brake cyl slides along shaft.

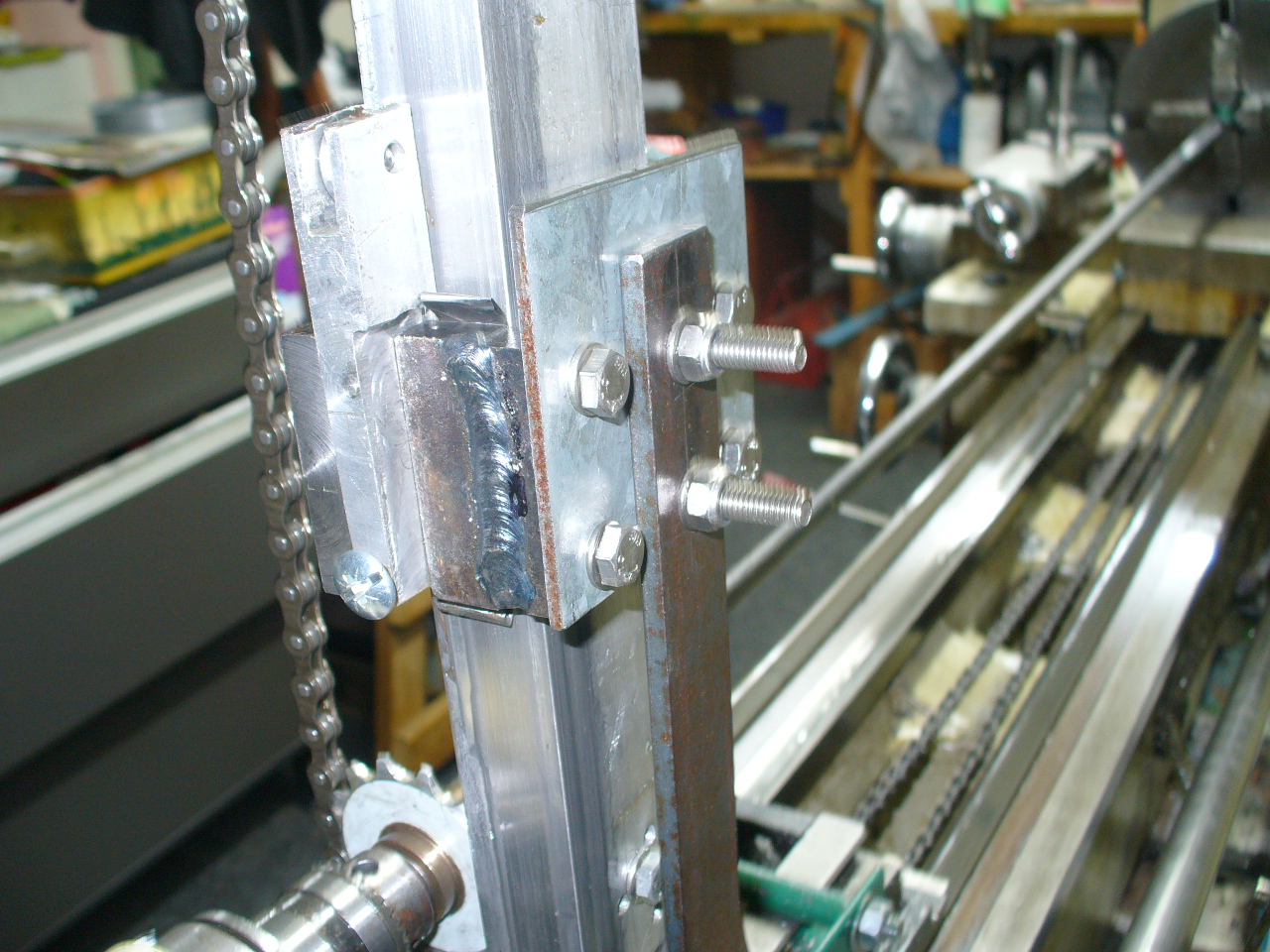

Attachment 73564, Back of the slider, goes up and down as it slides along the shaft.
-
Took me a while Doug,reading, looking at the pics then click,should work
-
2 Attachment(s)
Took me a bit to work it out and a few small bearings on the slider got things working, had to make the small sprocket to get the right ratio and now its working a treat. Will have go at doing a few .45 black powder barrels with a 1-48 twist and give them a good lapping to get things smooth.

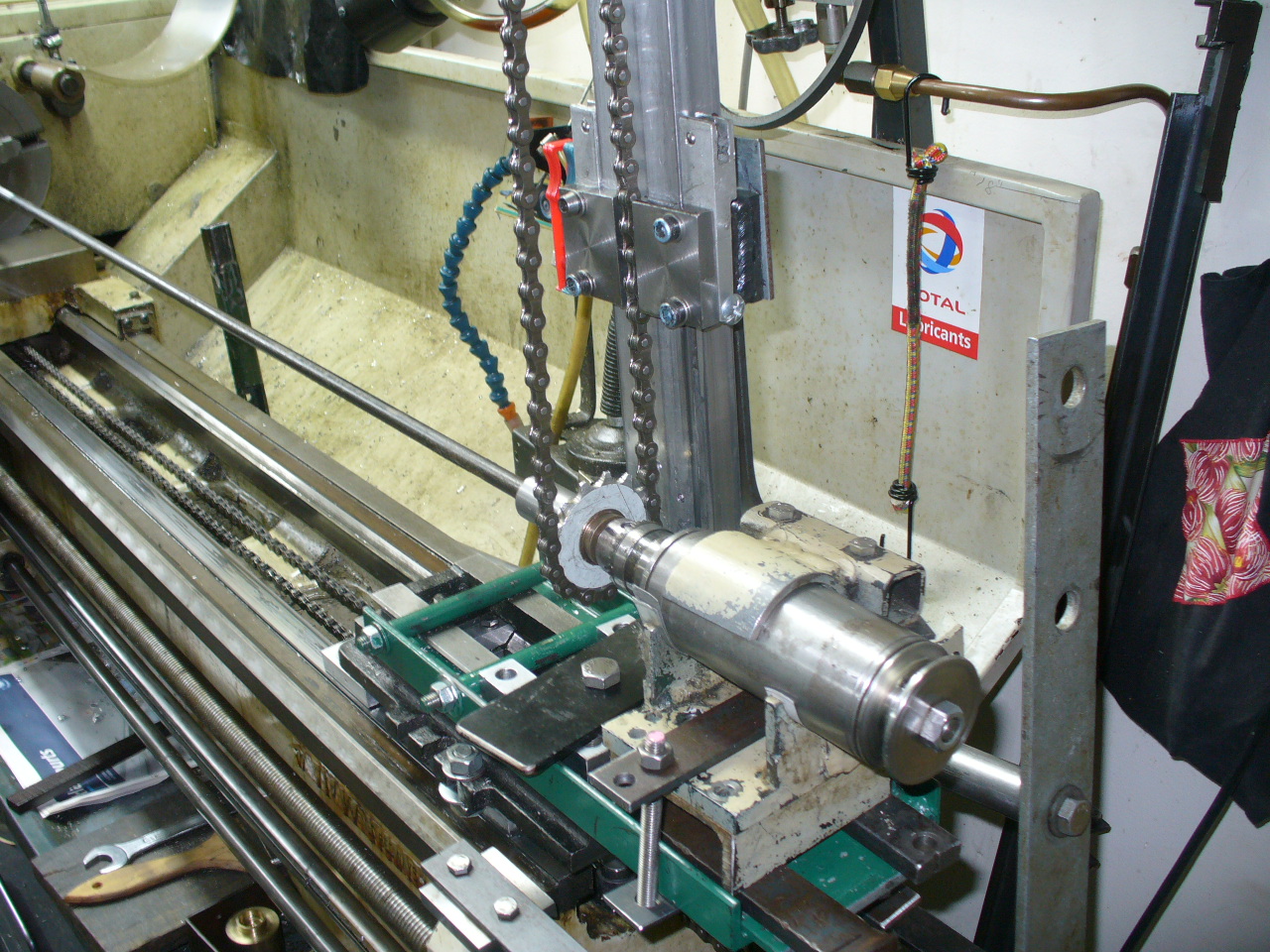

Attachment 73566, using my toolpost grinder head to hold the R/rod.

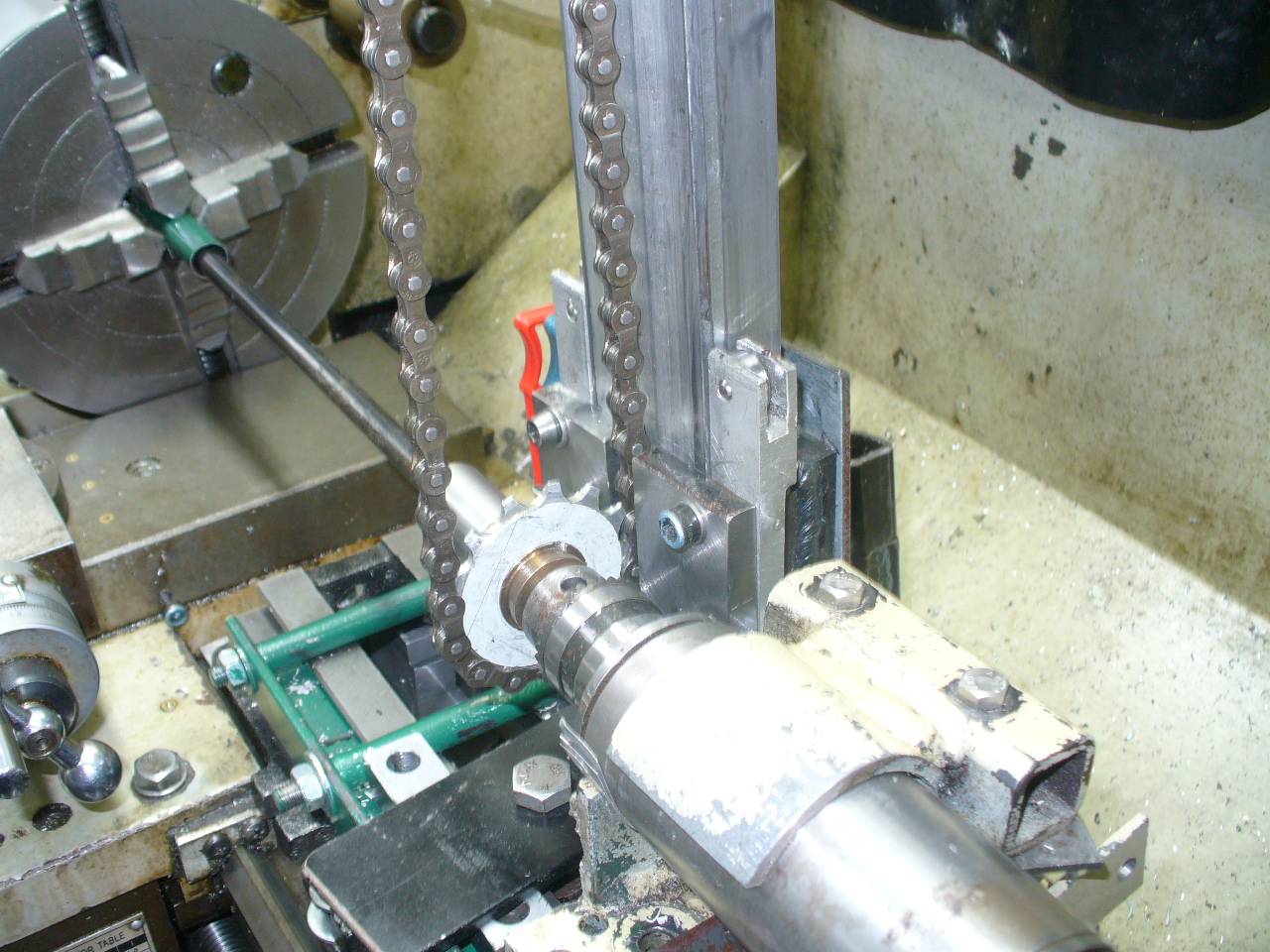

Attachment 73567, A closer look.
-
once again the prize for most interesting forum content goes to @homebrew.357
-
brew ya old bugga ya done it again!!ya bloody beauty!listen, gadget and me wanna know can ya machine up a crusaders jersey to fit GSP follower-mild stainless would do -hes got a bit of pork round his midriff and hes prone to bein a bit explosive when we niggle him so yeah i thought id have a yarn to you.
Bites-like a geriatric fox terrier when the religious mob knock on ya front door.,might pay to weld up a nosebag while youre at it!!!
oh yeah while youre on the lathe-can ya mill up a .50 cal barrel for his 20g remington shotty-reason being he hits more geese than me and this way at least I get the chance to loose off all 8rounds in my mighty escort semi before it impales itself on me bloody barrel!
I reckon with a single slug hed have only 99%chance of hitting the bloody thing!! before me
-
3 Attachment(s)
I know it`s all sorts of bits and pieces, but I just use comeinhandy bits like an old tap handle to adjust the shaft up and down to change the twist rate at the back of my lathe.
Hi Kotuku old mate, I through you were practicing with a shovel on a cows rear end, look don`t worry mate, I've just knocked you up the absolute can't miss all time goose buster and a sneaky hide out blunderbuss to finish them off. Just save up all your bottle tops for loading!!, keeps the cost down.

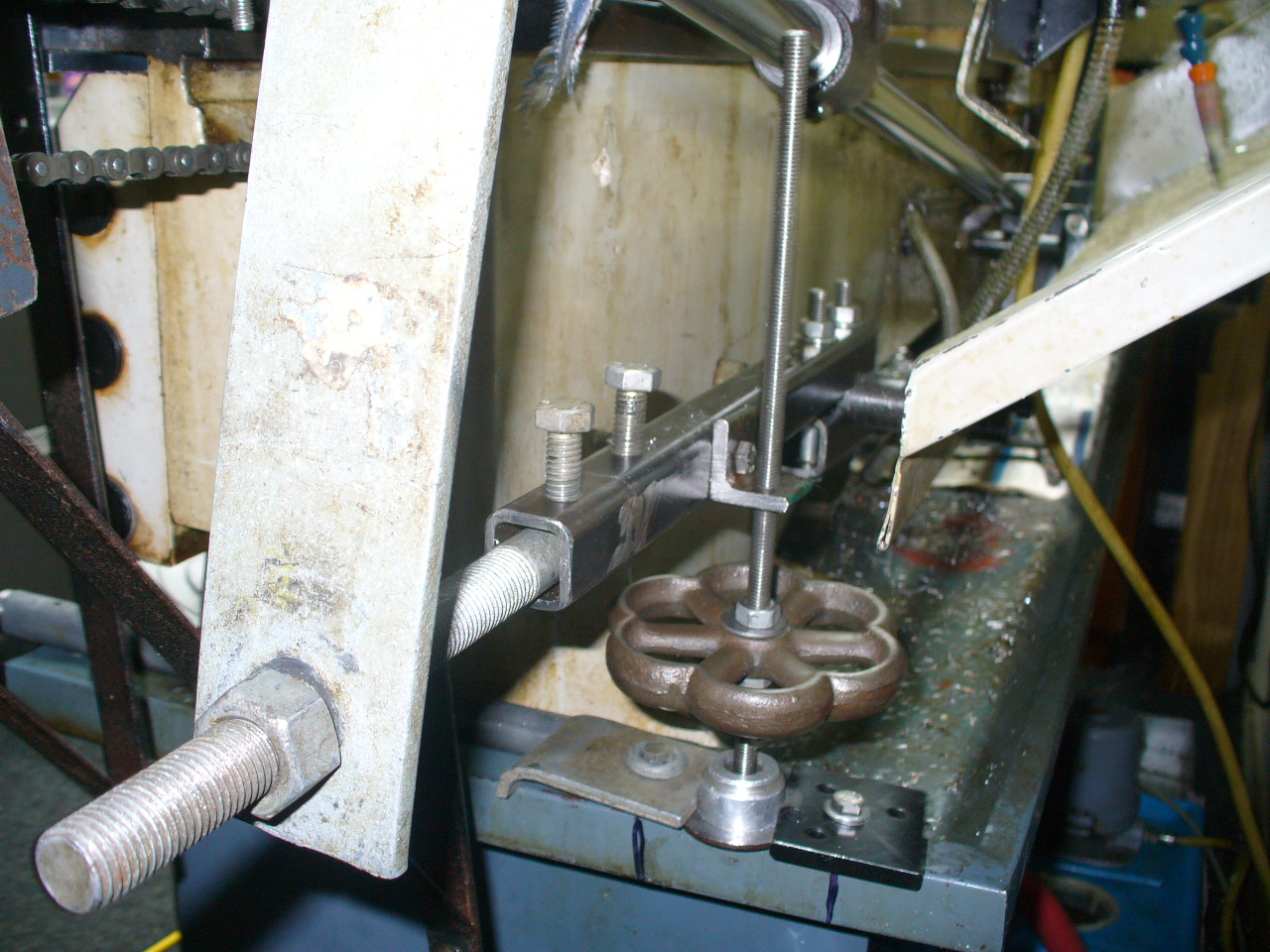

Attachment 73642, Adjustment thingei for twist changing.
Kotuku, shes good to go. Attachment 73644, Yar ca`t miss!!.
Attachment 73646, The bottle cap busting boot gun, don`t shoot your foot off.
-
Handy things those clothes pegs
-
2 Attachment(s)
Well bugger me days, obviously Chop3r you know your top off the line measuring stuff, those pegs are my twist ratio guides. One is touching the one on the rifling shaft , the crank handle is turned till it`s not touching, this gives me how much slack movement there is before the r/rod moves, it`s .010mm. To get a 1-48" twist I just go half a turn of the r/rod = 1-24", or .61.20mm and _ .010mm for the slake, so you end up with a twist of 1-48". A peg is set straight up on the r/rod and cranked along till it`s pointing straight down, at .61.20mm I`v got it, will very close to it. In a 27" barrel it would not be a full turn , this is very teko stuff. :cool:

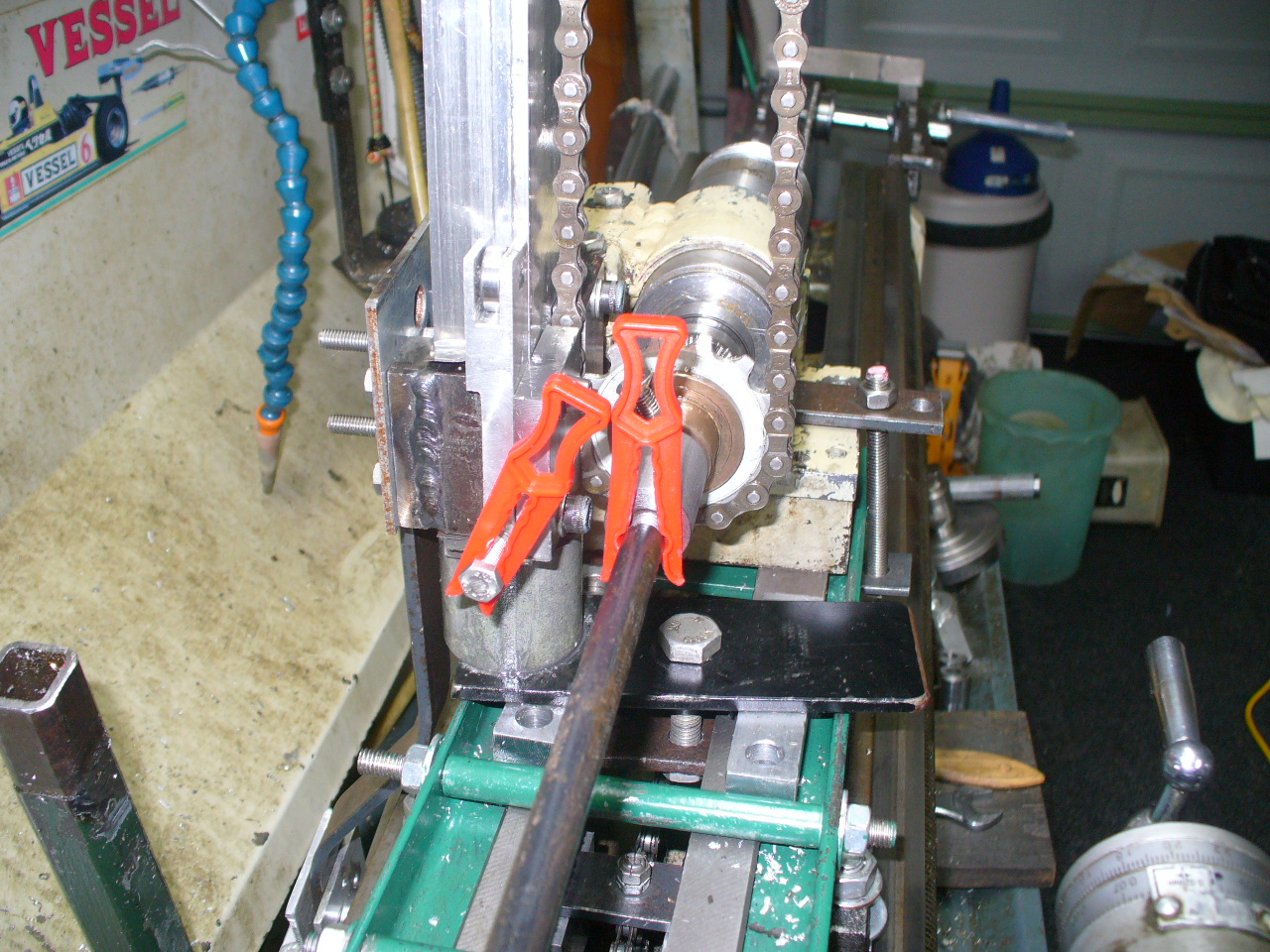

Attachment 73771, Pegs touching, a frogs hair gap!, stop, that's your slack.

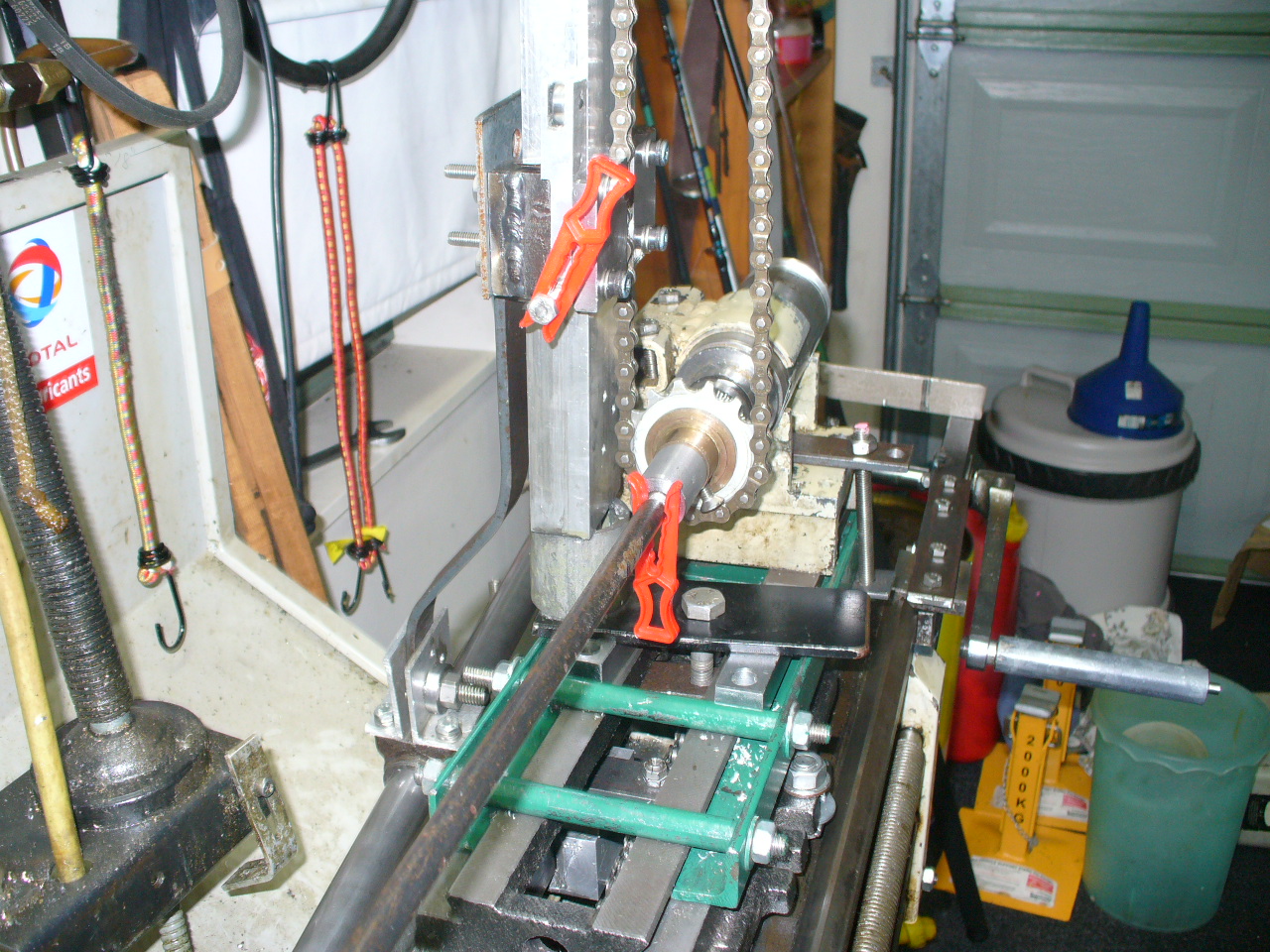

Attachment 73772, Half turn down is half the twist.
-
2 Attachment(s)
Now here`s something you don`t see very often, I had to have a go at rifling a home made barrel on my lathe with my new teko sine bar setup. Ok, yes I had to drill the hole, consider it done, bore came out at .448" and with a good lapping .450" , set the barrel up for the new and improved cut rifling job and it worked a treat, now have a .450" bore, six groves single point cut rifling x 1-48" right hand twist to .459". This is made from 1" dia asis 12-15 steel shaft and is for a muzzle loading black powder rifle only, but hey, it works, there`s no such thing as "Can't do it", :thumbsup: The pic`s.

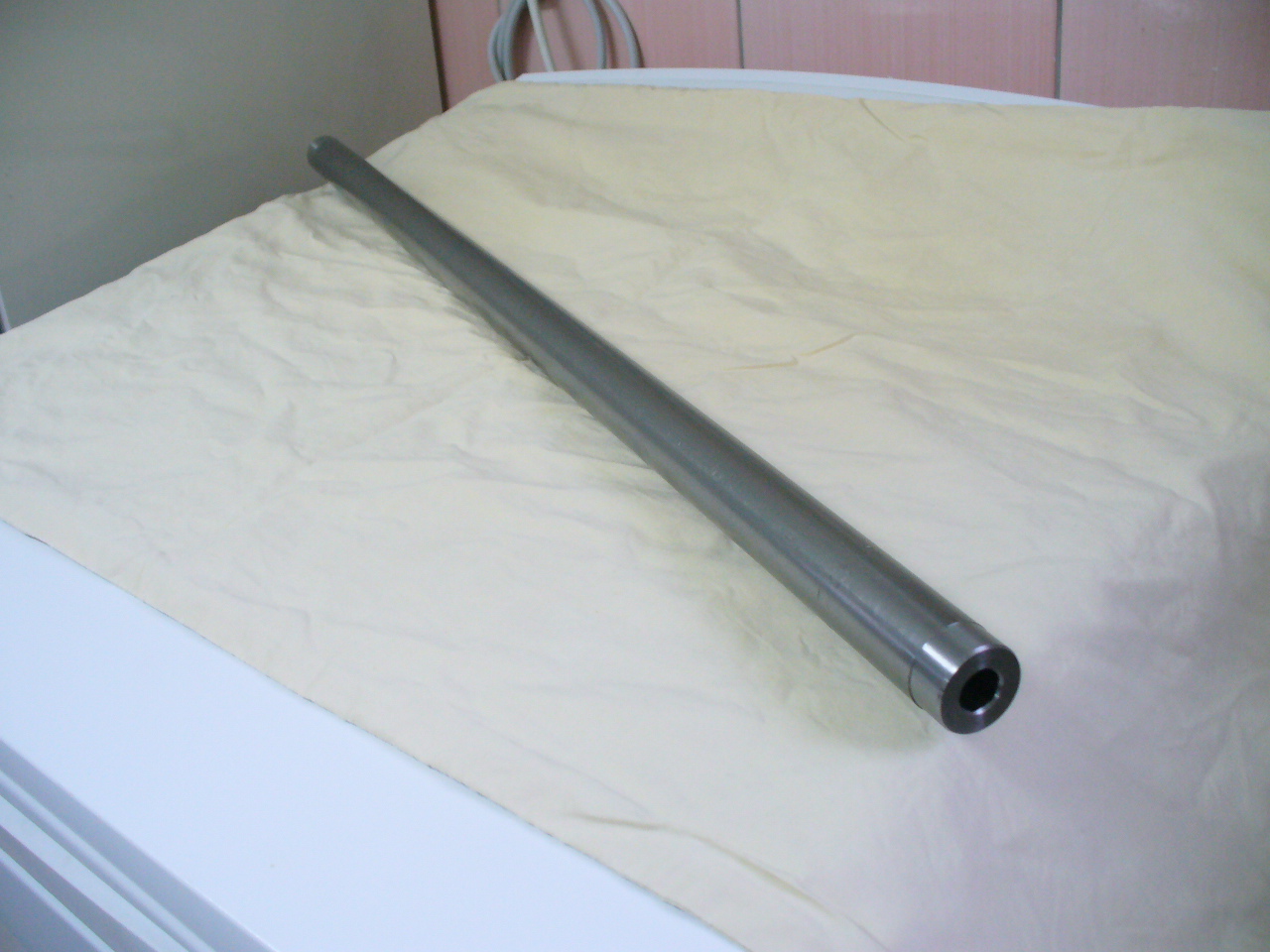

Attachment 77918, The rifled tube of steel.

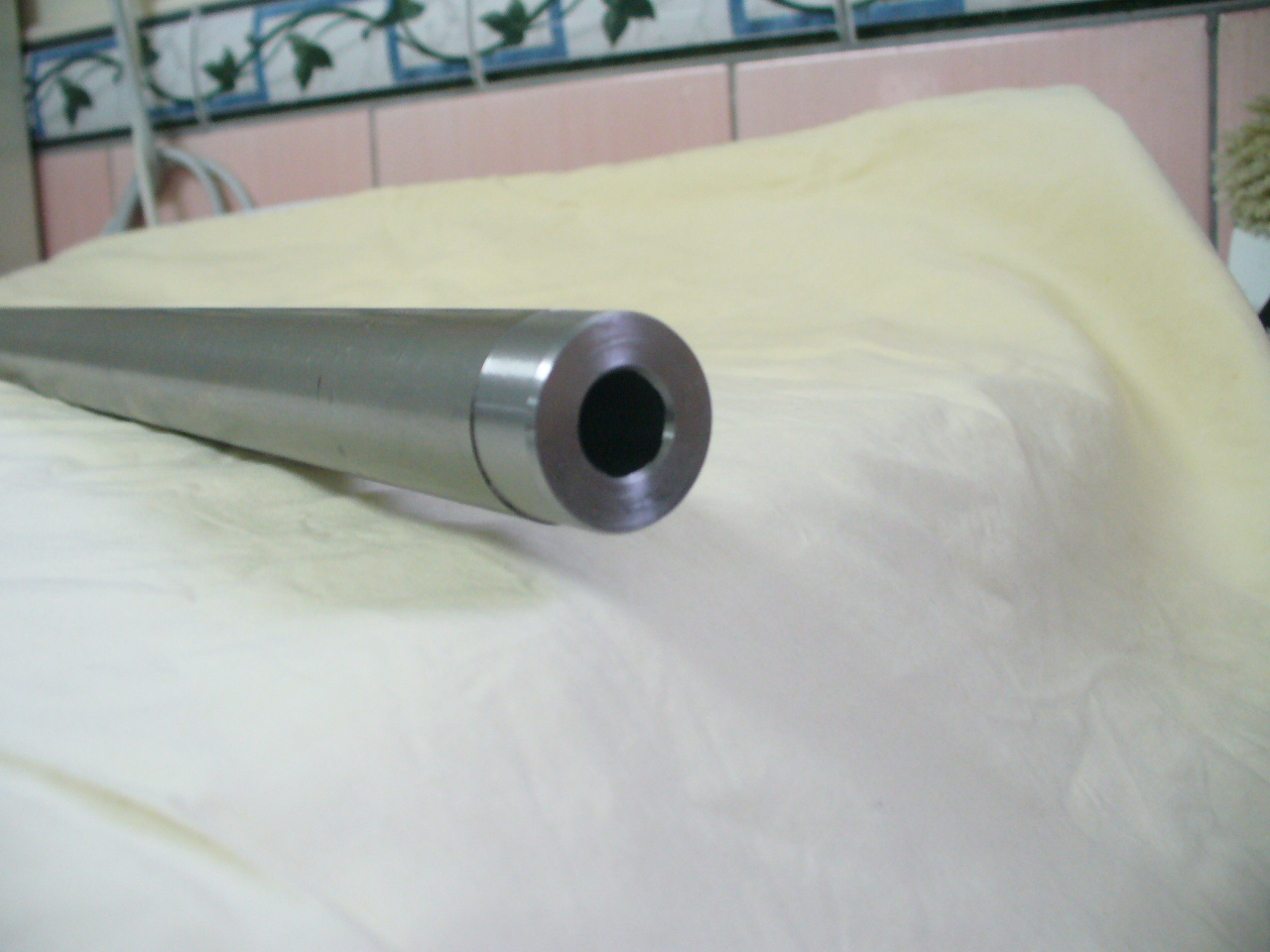

Attachment 77920, End trimmed, crowned, blank barrel.
-
