Thread: Saving old shot guns life

  1. #1
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    569

    Saving old shot guns life

    I saw it laying on the bench with it`s old double Damascus barrels worn from long ago hunts. I picked it up, the barrels rattled in the action like an old taranaki gate, spare parts I through, but I felt a slight pulse, yes there was a faint heart beat, I couldn't let it die it had a story to tell. The slop in the barrels to action was brass and solder on the barrel locating lugs, I set the barrels up on my lathe and carefully fly milled of all of it on both sides and trued them up. Yep my usual #8 stuff, pic`s.

    Name:  P1030095.JPG
Views: 244
Size:  570.3 KB, The old girl.
    Name:  P1030096.JPG
Views: 232
Size:  416.4 KB, Brass and solder on both sides.
    Name:  P1030098.JPG
Views: 247
Size:  574.0 KB, My T/C tipped fly / milling set up.

  2. #2
    MSL
    MSL is offline
    Member MSL's Avatar
    Join Date
    May 2014
    Location
    Waikato
    Posts
    2,864
    Good gun for cowboy action

  3. #3
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    2,214
    a project worthy of your considerable skills....I will look forward to updates.

  4. #4
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    569
    Yes, black powder only I would say, although the barrels are marked nitro proof, but no. On the top of the 25" barrels is marked, " H C Holmes ( Late Riley V ) Made for G Stancer. Hull. The barrels are from another gun I think, will need a bit of work to fit, so someone is going to add to my beer supply!!!.

  5. #5
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    2,552
    I need to up my game, I just use paper shims.
    Cordite likes this.

  6. #6
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    569
    Paper shims!!, Jeees Whane,, I can just see the opening day, ranger permit sir, ok but why are you carrying so many toilet rolls!. The milling went good on the first side but had to use boring bar setup for the other side as had to keep the datum true.
    Name:  P1030099.JPG
Views: 170

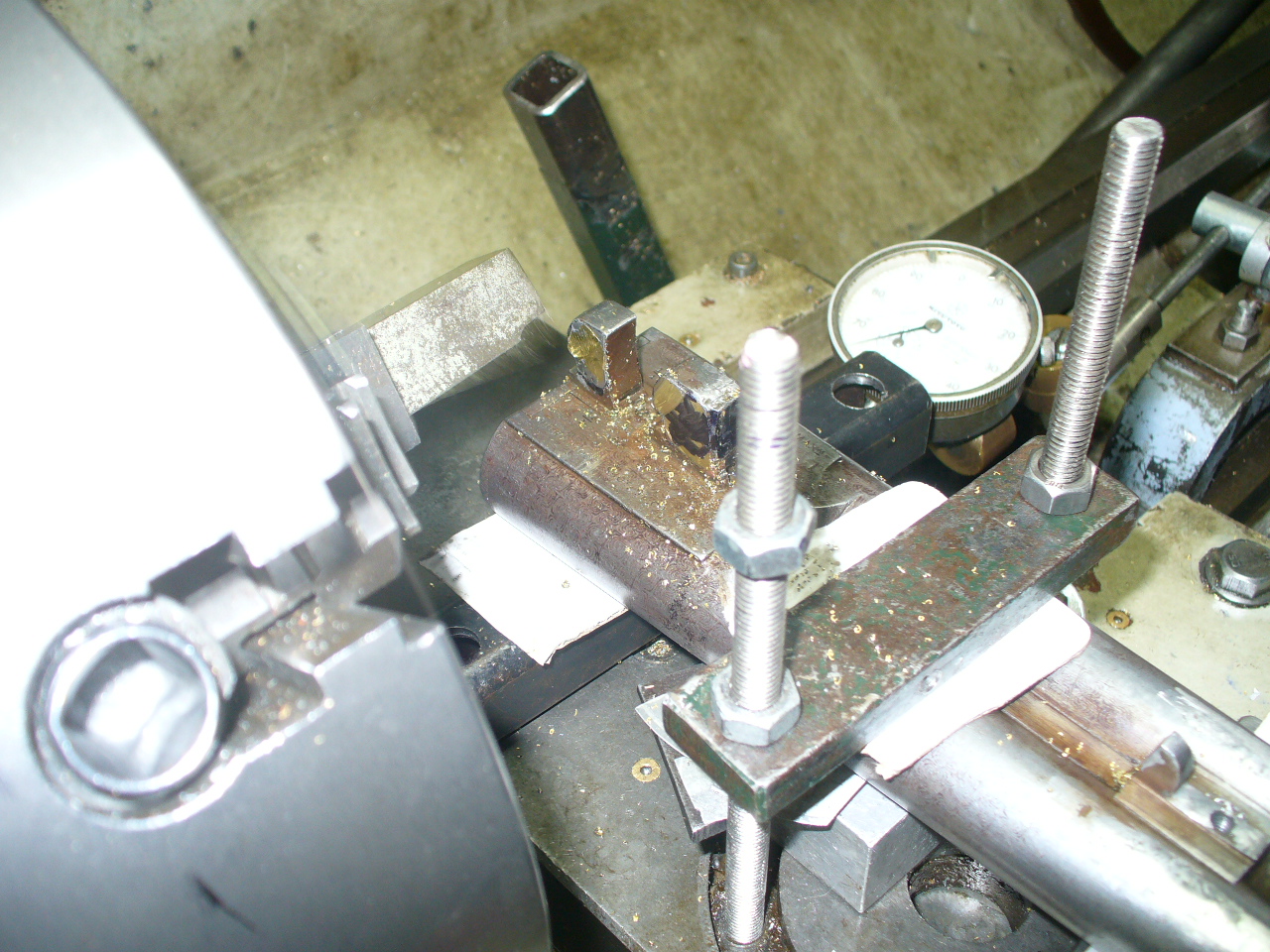

Size:  605.8 KB, Removing old brass.
    Name:  P1030101.JPG
Views: 171

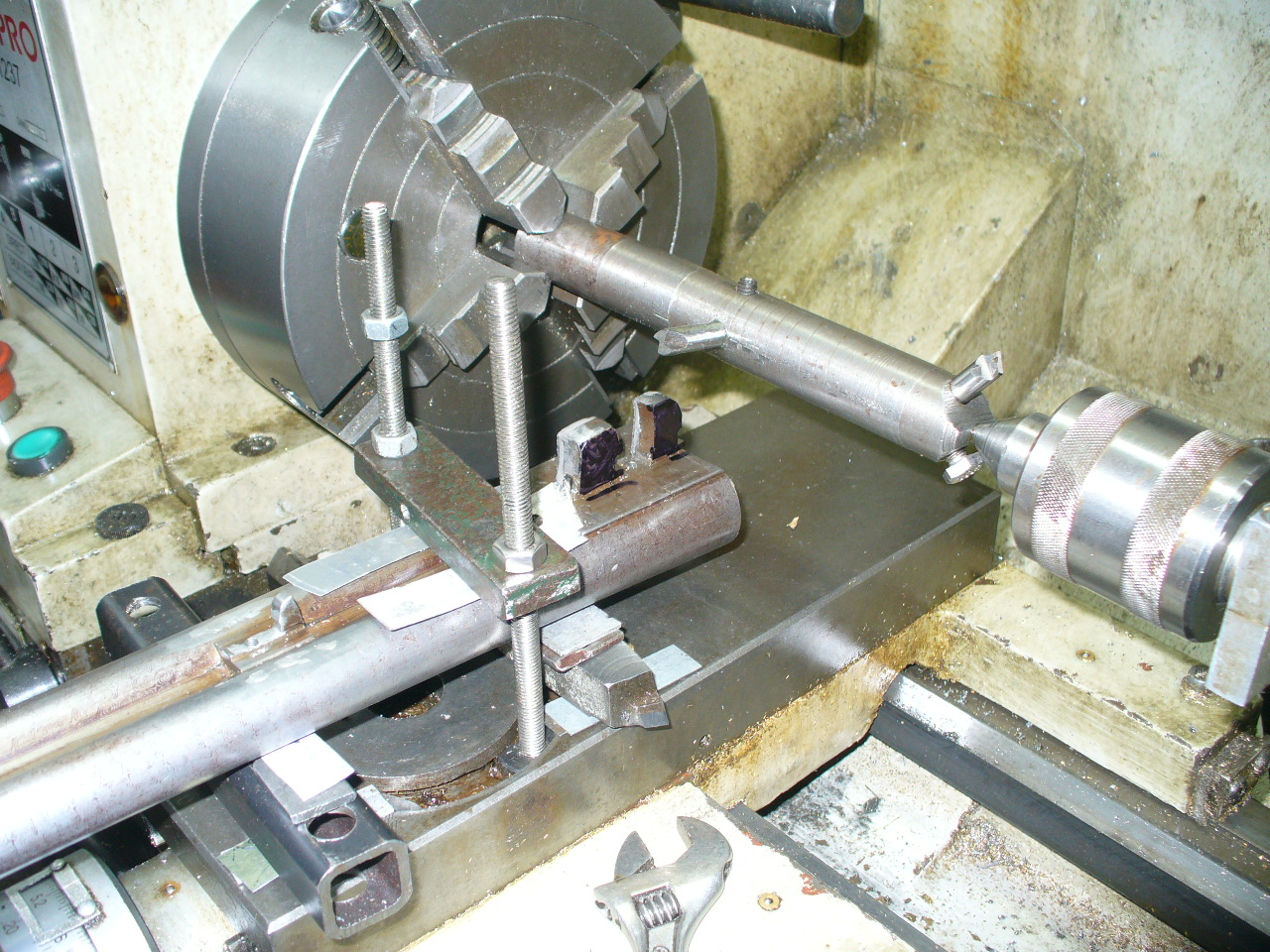

Size:  601.7 KB, Bar milling, or fly cutting set up.
    Name:  P1030102.JPG
Views: 172

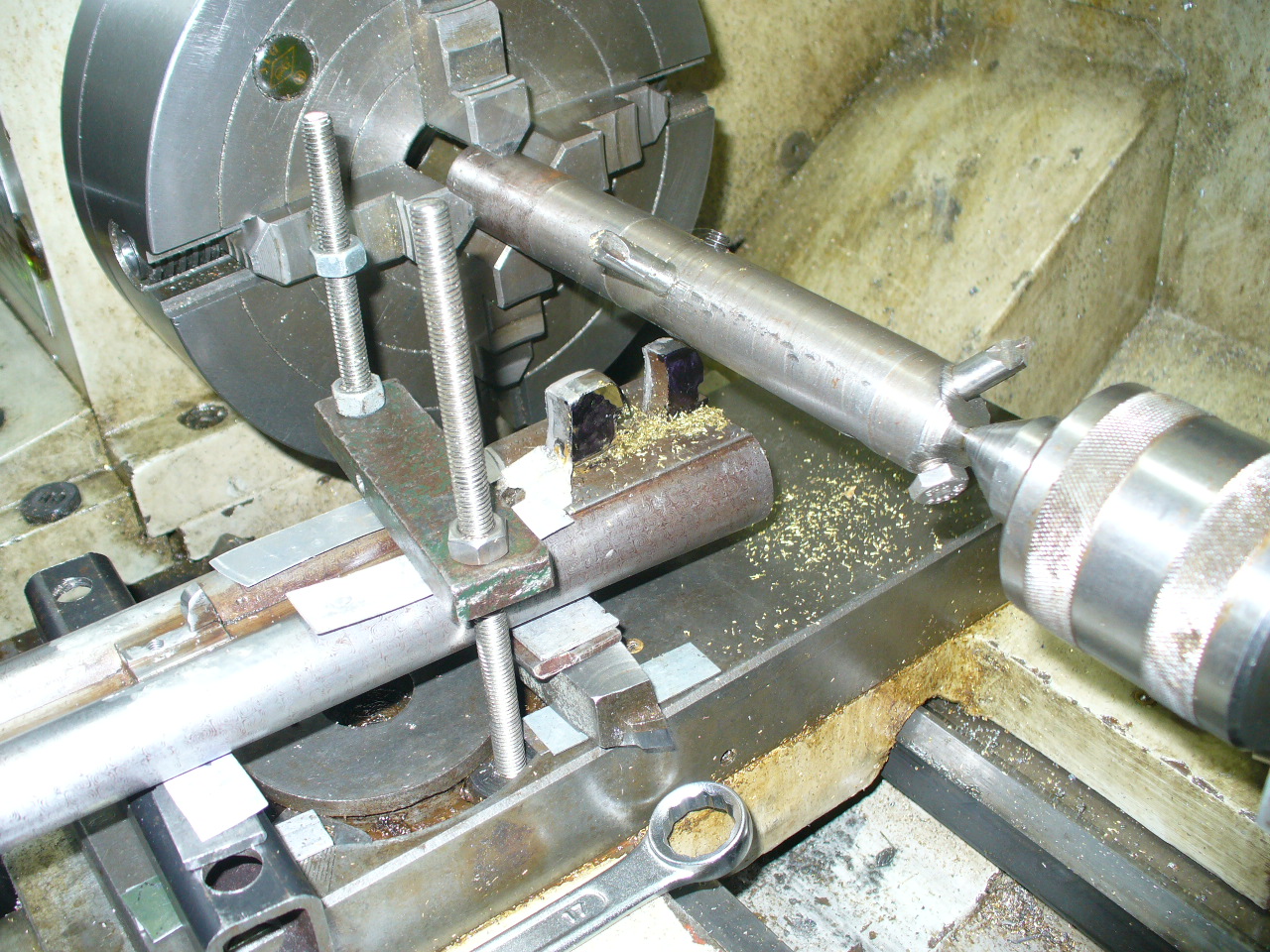

Size:  550.1 KB,Its doing the job.

  7. #7
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    2,552
    I was shown that by an old guy at the range over 20 years ago. If the action rattles when closed make greaseprooof cutouts to go around the lugs and add them till she locks up tight. More than 4 pieces and it was better as a wall hanger he reckoned.
    rewa likes this.

  8. #8
    Member
    Join Date
    Mar 2018
    Location
    Fielding-ish
    Posts
    110
    You have to wonder, how they manage to make many modern firearms so ugly and boring. That old hammer-gun is definitely a thing of beauty . Growing up with side-by-sides, it took me a while to accept and appreciate u/o's, keep up the good work !

  9. #9
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    569
    Yes will keep up the good work, but some might not think so the way I did it. So now with all the crap off the lugs I had to think of how to build them up again. Looking in my comeinhandy box I pull out an old Skill saw blade that had some chunks cut out of it, the steel is hard stuff so cut fore bits as my spacers. I ground and filed to shape of the lugs and drilled each one with a hole at the centre. I attached them to the lugs by ….ark welding, just a blob in the holes with s/steel rod, it runs in nicely, Horror!!, no, they were there to stay and to make things worse I did it on my lathe. I made absolutely sure my lathe was well protected, I didn't want to move the barrels as all lined up so I could mill the first side then use that to do the other side.
    Name:  P1030103.JPG
Views: 137

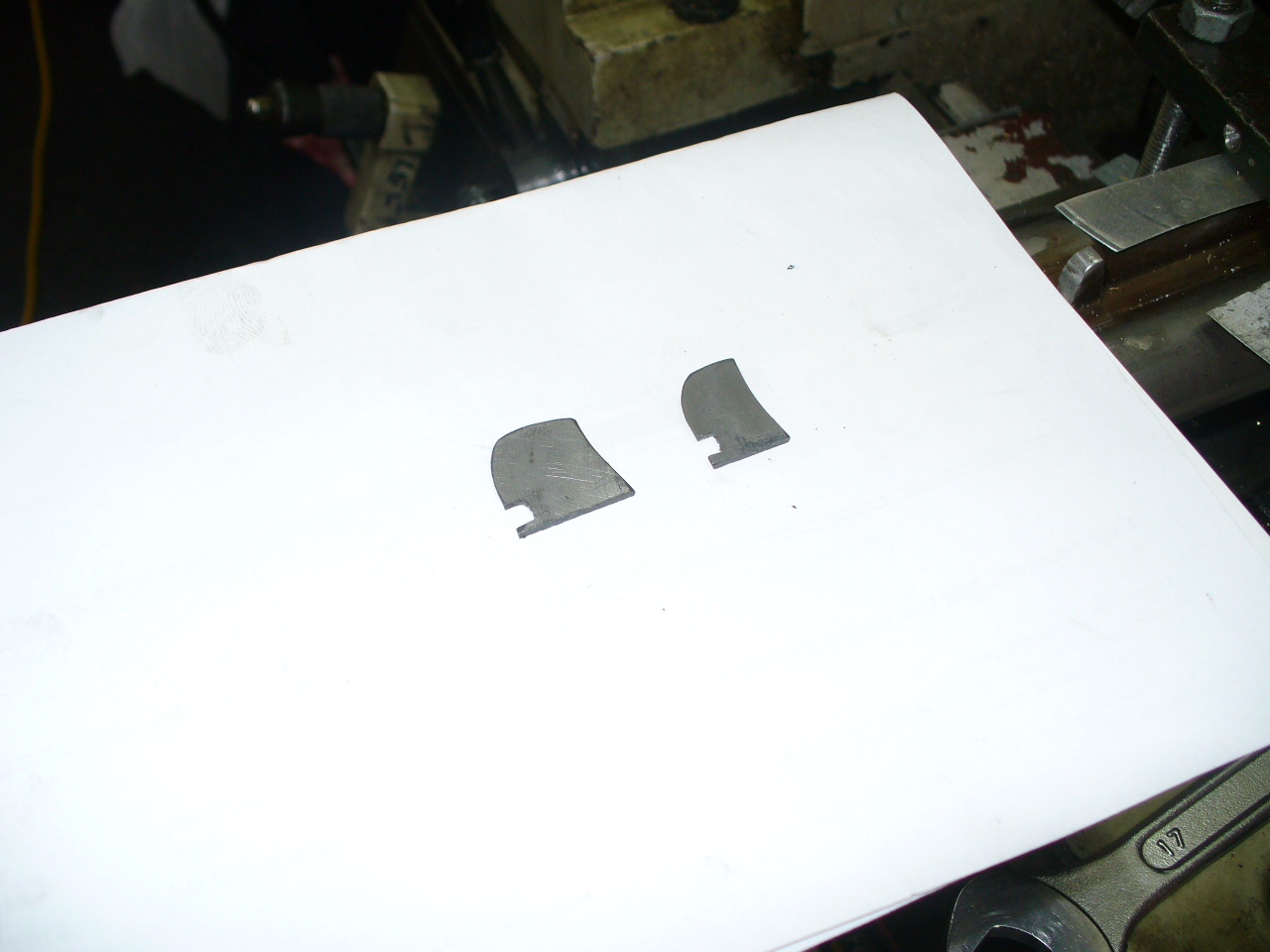

Size:  304.9 KB,Two of the fore side spacers.
    Name:  P1030111.JPG
Views: 141

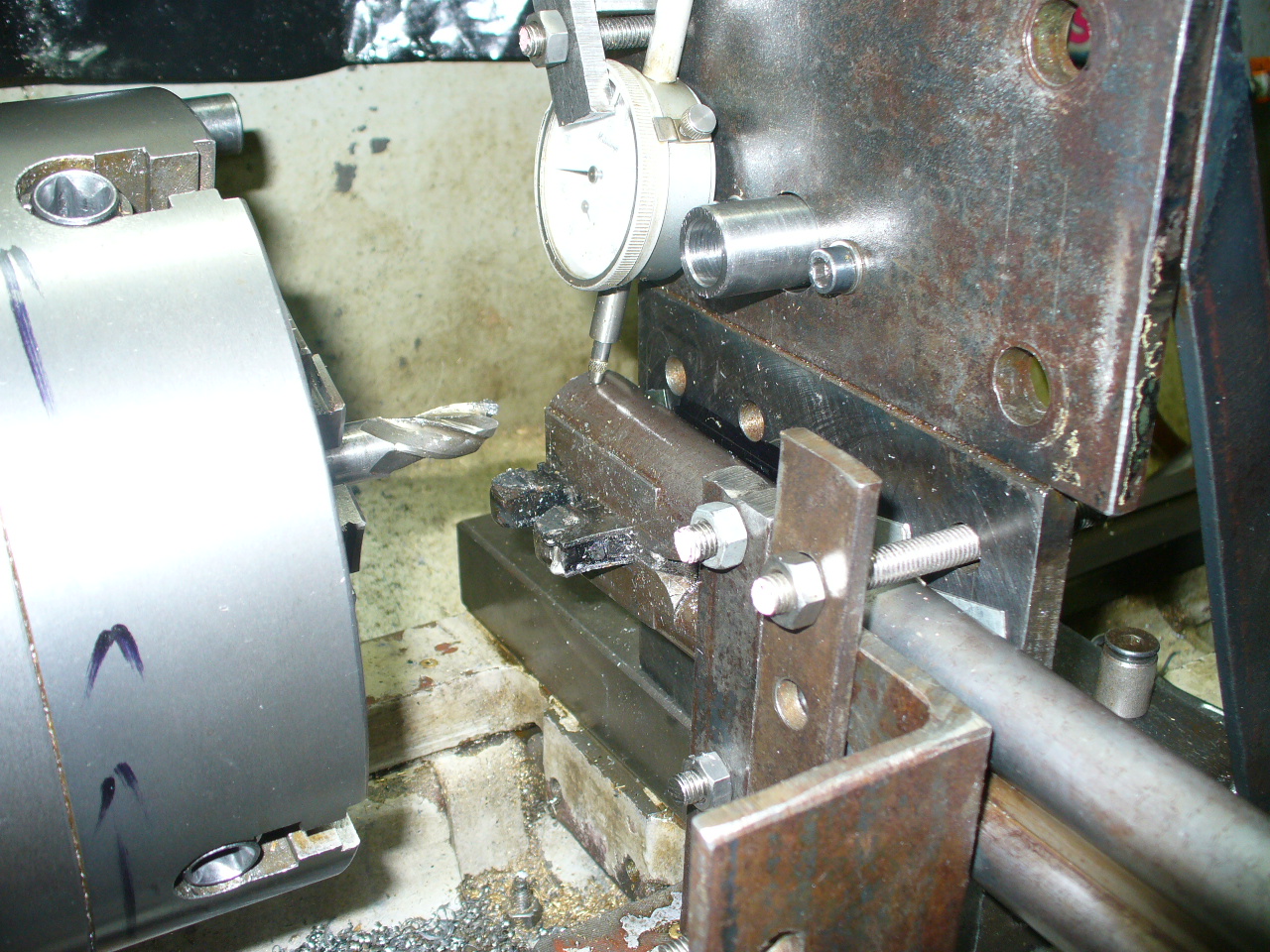

Size:  614.5 KB, Fly cutting spacer true.
    Name:  P1030115.JPG
Views: 132

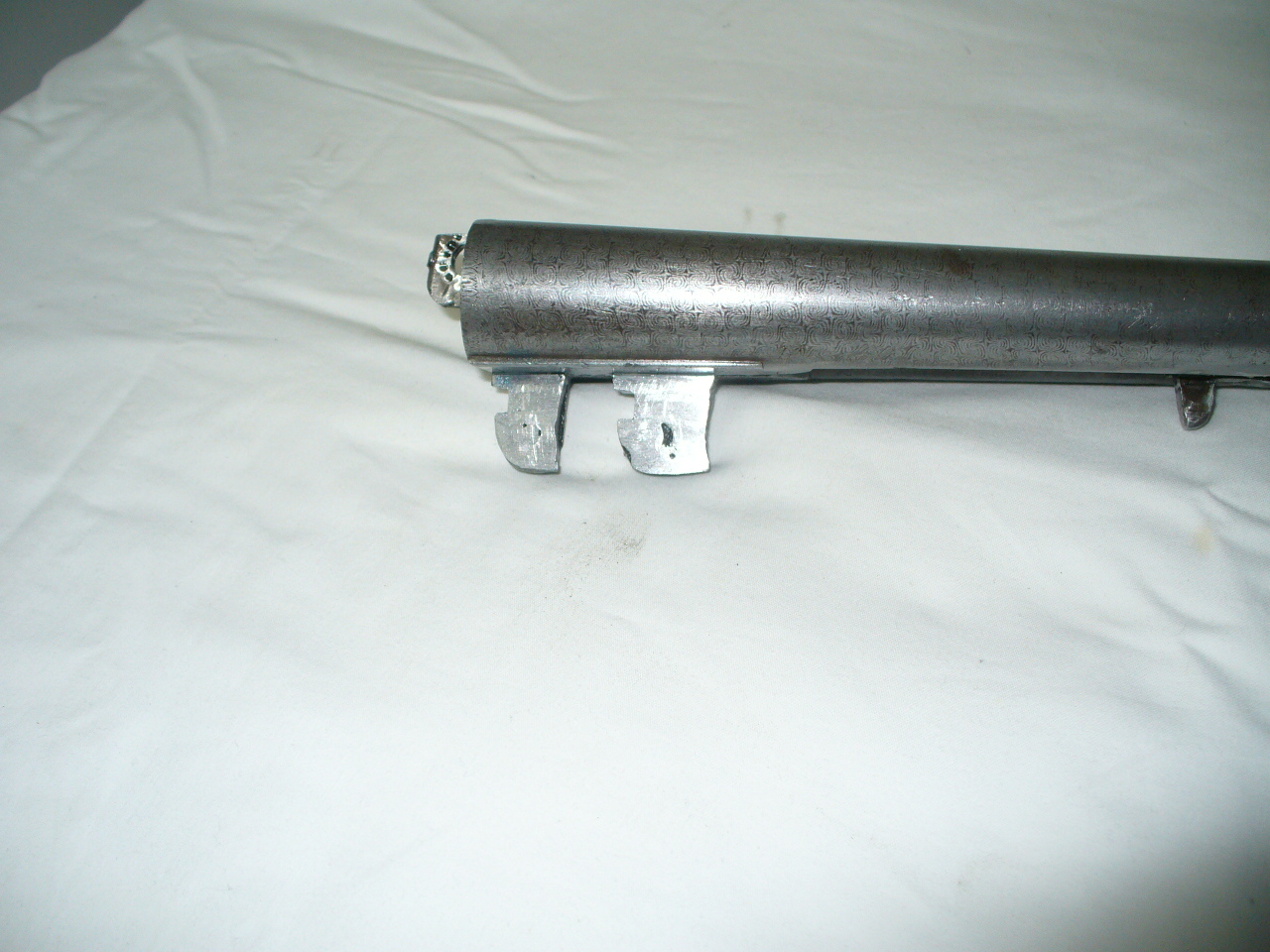

Size:  456.5 KB, Job done.
    Name:  P1030116.JPG
Views: 131

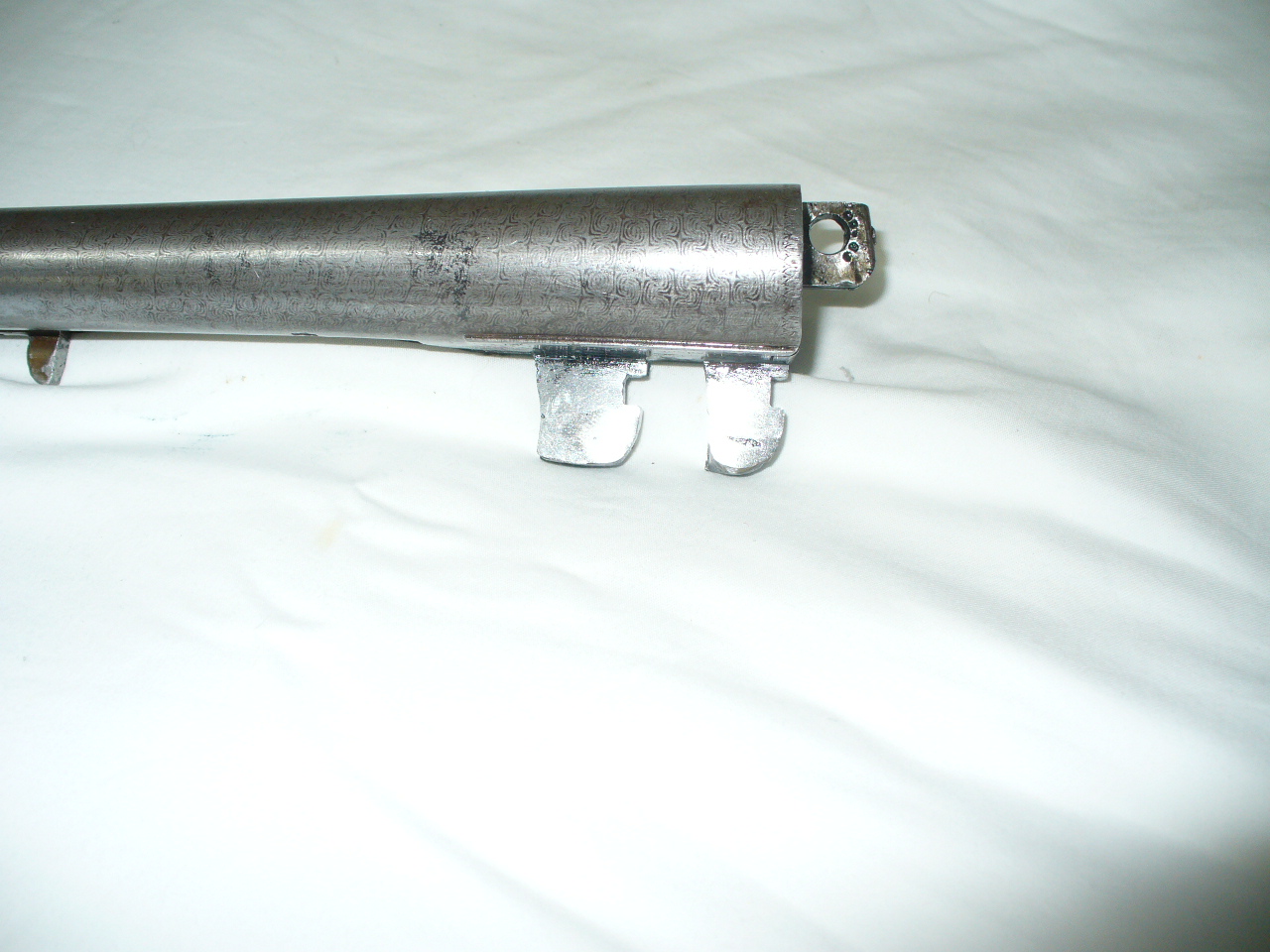

Size:  383.6 KB, other side.
    mikee, Beaker, northdude and 1 others like this.

  10. #10
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    2,214
    interesting indeed.....skillsaw blades is a real brain wave.

  11. #11
    Member Sideshow's Avatar
    Join Date
    Apr 2015
    Posts
    3,381
    @homebrew.357 do you have a barrel gauge to see what thickness you have left onhose barrels?
    You might be surprised. In the states everyone runs for the hills when you talk about Damascus barrels most saying unsafe there going to blow up etc.
    Here in the UK rock on old chap so long as you still have a good thickness in the side walls. I've seen many fine examples being shot, on shoots. God I hope they never bring in steel shot here as that would be the death to all old guns like this!

    On a separate note I hope no one goes out and try's the paper trick
    It's all fun and games till Darthvader comes along

  12. #12
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    569
    Well for me no, remember my T/C tipped rifling cutter, they are .059" thick so did the job nicely of getting the lugs up to the right size. Now with a lot of blue marking, filing and trying to fit I finally got the action to snap shut like a chub safe. I could feel the old girls heart beat coming back, she's going to get her old barrels dirty again..
    Name:  P1030118.JPG
Views: 117
Size:  314.5 KB, Her heart is beating again.

  13. #13
    Member
    Join Date
    Aug 2012
    Location
    helensville nz
    Posts
    2,072
    Well done Doug she looks brilliant

  14. #14
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    569
    No, don`t have a barrel gage or any gunsmithing stuff, remember I`m just a hobby machinist, just like to get in there and give a hand. And Rambo I`m hoping to see one of there`s coming down my driveway, ,
    Name:  47f60e61a6c373a66b27381d3a466641[1].jpg
Views: 85
Size:  56.0 KB
    dannyb and 2post like this.

  15. #15
    Member
    Join Date
    Aug 2012
    Location
    helensville nz
    Posts
    2,072
    Thought you were a Speaghits man Doug?
    Yep this is my girl one of them I have a couple of old hammer guns both fire able the barrels on this are are nitro proof and I have fired light nitro loads even when it was loose
    Mostly I use black powder loads though
    This gun is English proofed and only chamberd for the old 2-1/2 shells so I need to handload or I can buy a light 2.5 shells from falcon called cowboy
    This gun now fits right thanks to doug this gun was a put together meaning that the action and barrels are off 2 Different guns I think the guy who originally fitted up the action and the barrels did so with limited tools and knowledge
    It was in fireable condition even so as when closed the greener gross bolt lock held everything solid
    I brought this one because of the barrels it has a set of Damascus barrels which are in super good condition
    I knew that I could shoot it(have done alot to) but i Realised that this was going to need some work
    I also knew that I could probably get my neighbour (Welder) to build up the lugs and file to fit my self
    But doug @homebrew.357would do a far better job so I asked him for a favour by the looks of the photos
    Im glad I did I would have not done anywhere near as nice a job
    Sideshow, Micky Duck and rewa like this.
