Thread: Shakey case cleaner.

  1. #1
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    558

    Shakey case cleaner.

    I have had a 1/4 hp electric motor for quite a few years and it`s been glaring at me to do some thing with it, so as shooting black powder makes the 45-70 cases cruddy I thought a electric vibrating case cleaner would be the go. I nocked up a box for the motor to sit in and a top bit to hold it together. I lathed out a off centre bit to fit on the motor shaft and using some pressed in bearings I had the vibrating bit all sorted, or so I thought. The bits so far.
    Name:  P1020867.JPG
Views: 147

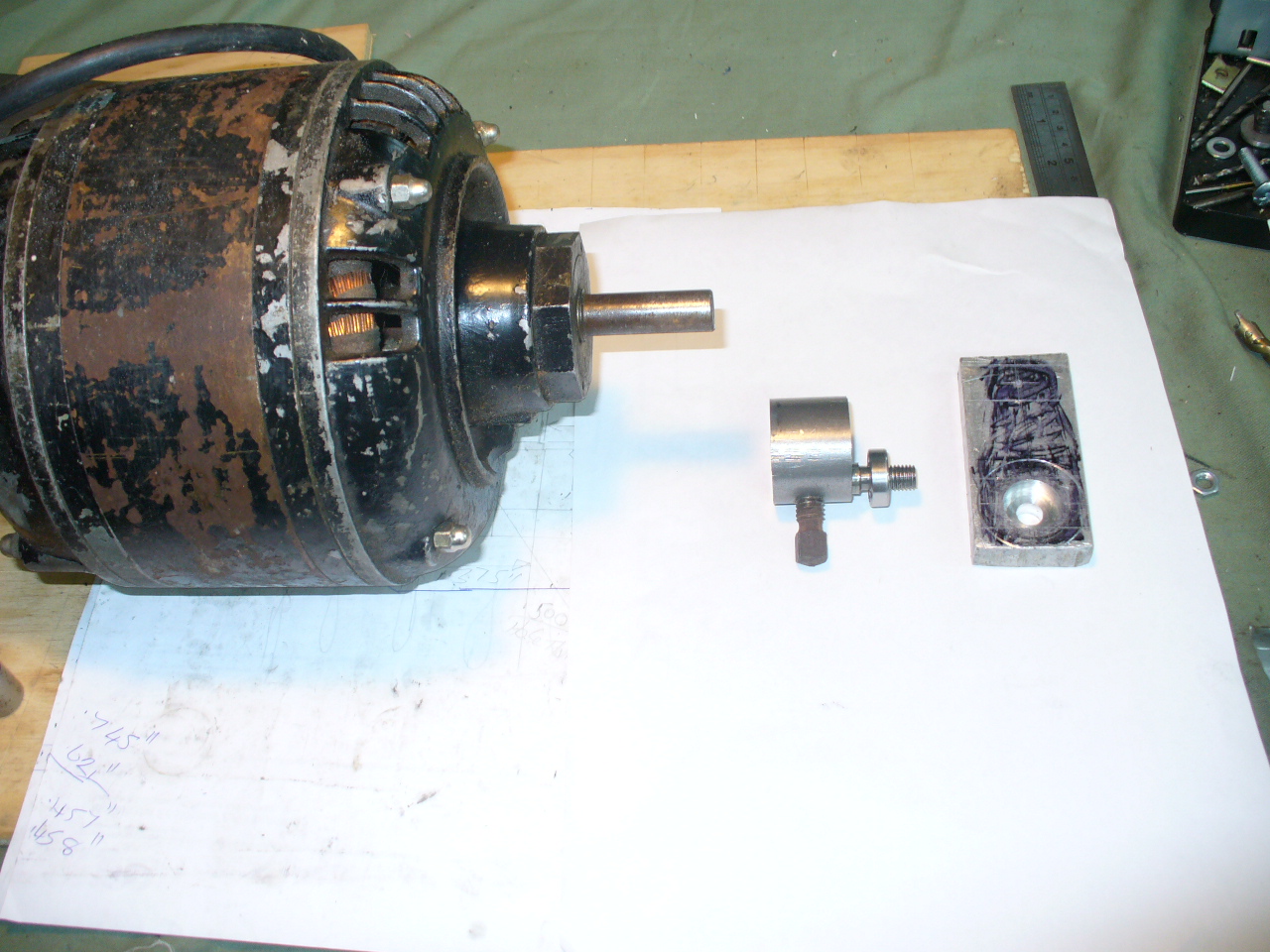

Size:  495.5 KB, Of centre bit with bearings in ali stock.
    Name:  P1020869.JPG
Views: 150
Size:  561.5 KB, On motor.
    Name:  P1020870.JPG
Views: 146

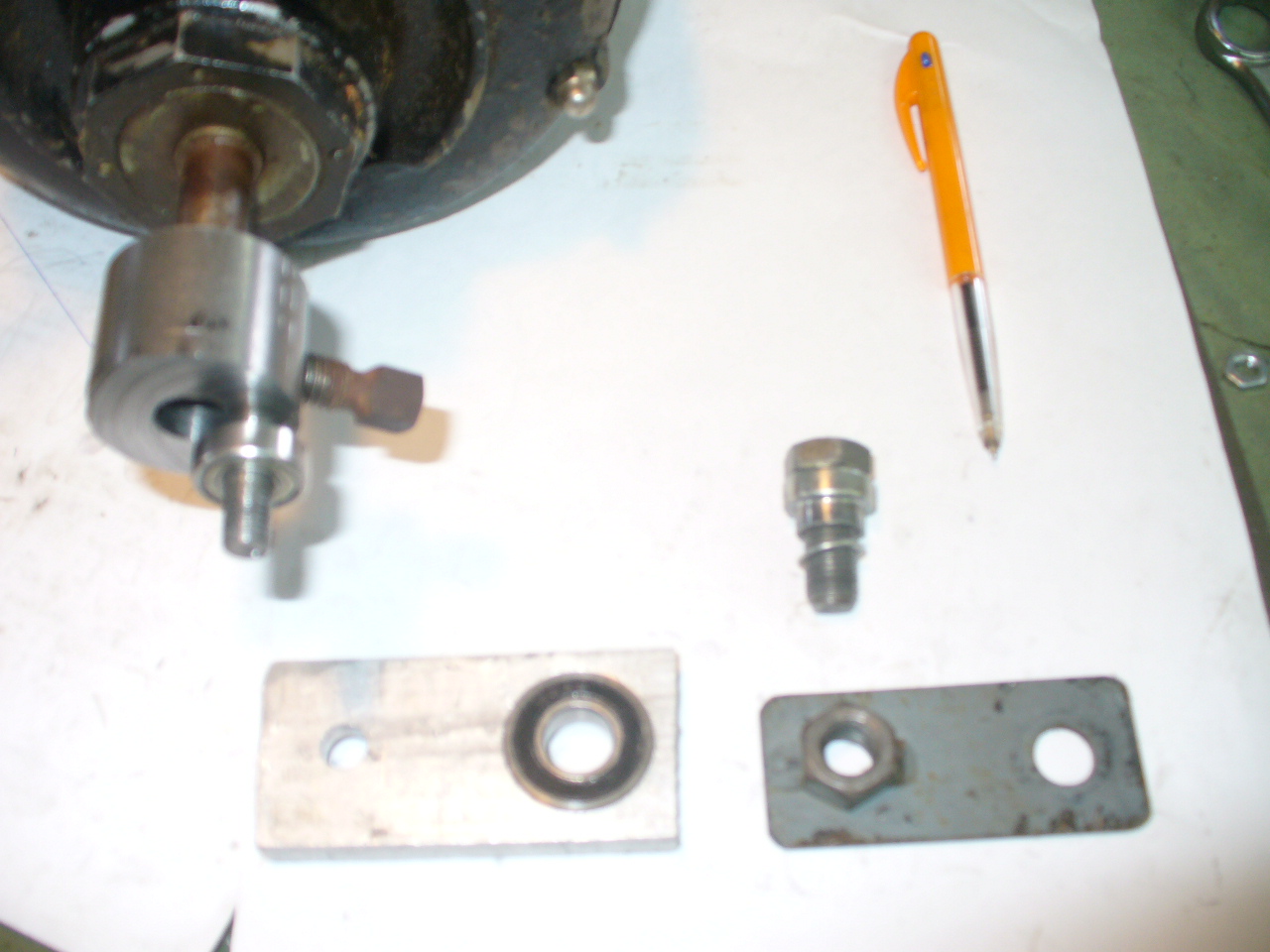

Size:  338.3 KB, bits ready to fit.
    Name:  P1020871.JPG
Views: 145

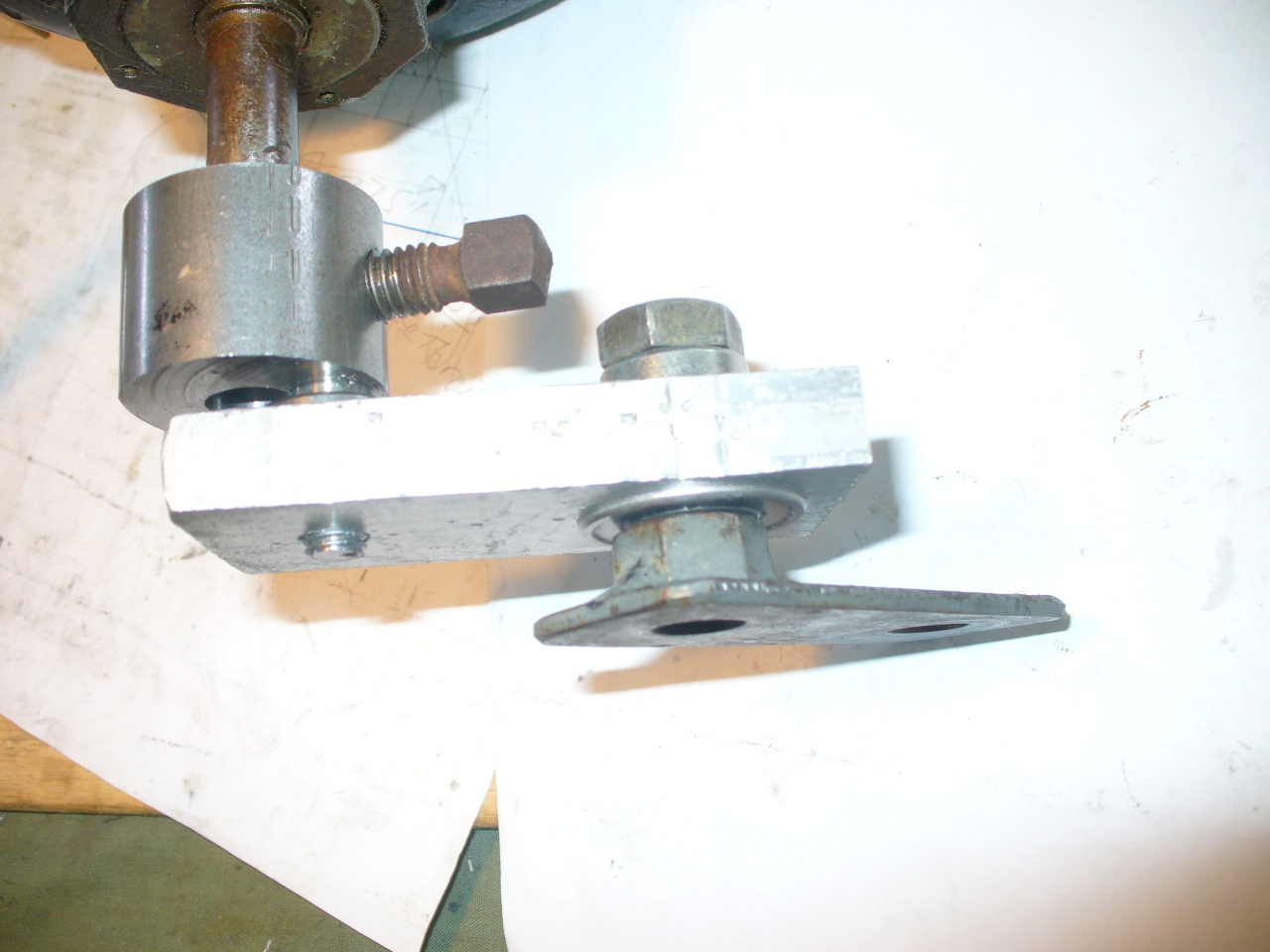

Size:  341.4 KB, On shaft.
    Name:  P1020876.JPG
Views: 148

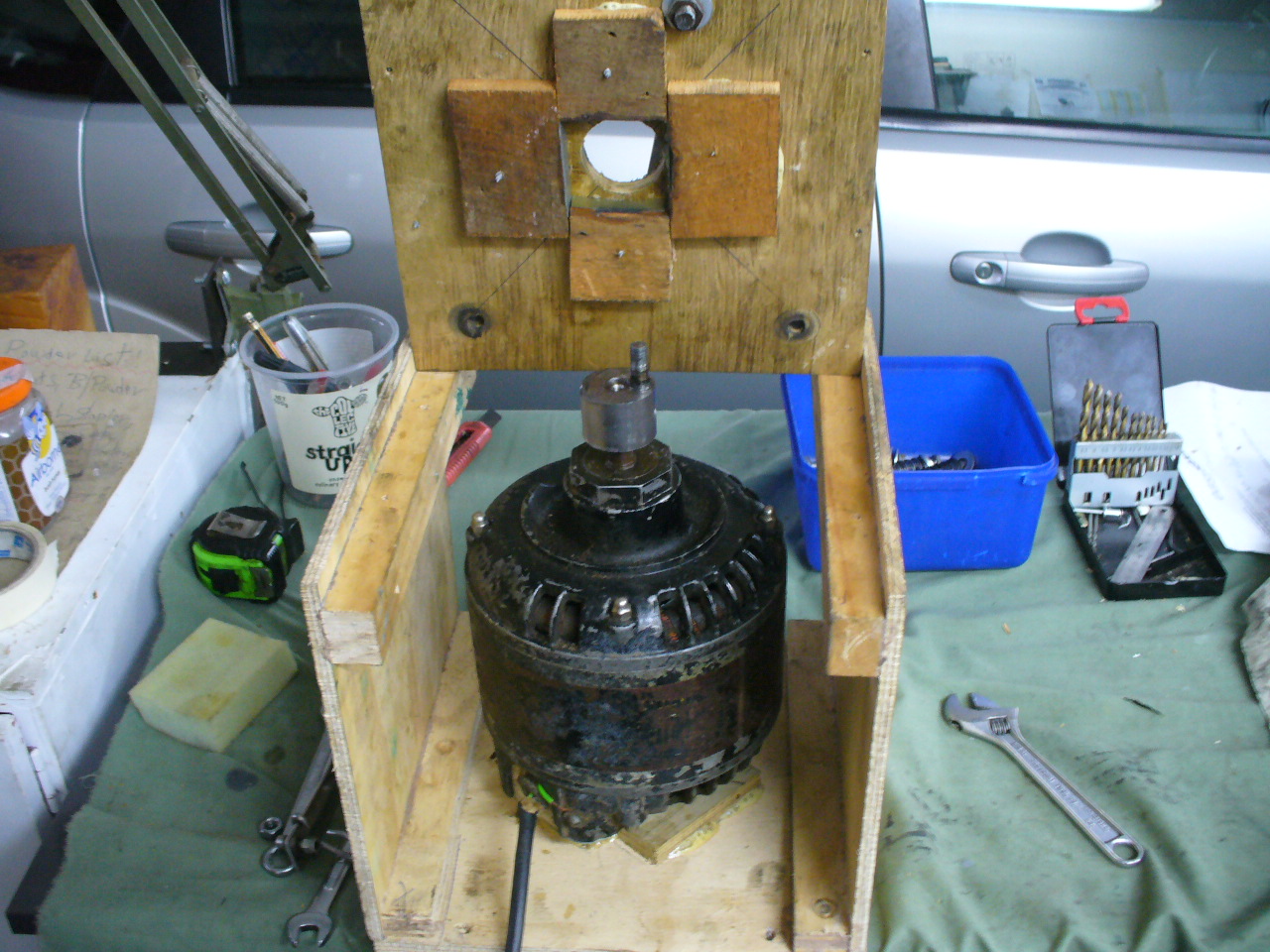

Size:  405.3 KB, Box to hold it all together.
    Shootm, Tommy and 40mm like this.

  2. #2
    Member 40mm's Avatar
    Join Date
    May 2017
    Location
    Jaffa
    Posts
    1,343
    'Tim the tool man Taylor' would be proud!
    Use enough gun

  3. #3
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    2,424
    Cool project, the only thing that would worry me is case mouth damage due to the oscillation being excessively violent.

  4. #4
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    558
    Yes, Marty my designing leaves a lot more learning, luckily I did a test run with the car out of the garage , the dam thing chased me around till it pulled the cord out. So a re think on the oscillation , down from 20mm to 10mm using an extension arm closer to it`s bearing. The top bit sat on four springs bolted to the lid so it could move and three wooden blocks to holed the plastic case container for cases and rumbling media . A lid clamp to holed it on and I had the mark 1 shaky case cleaner .

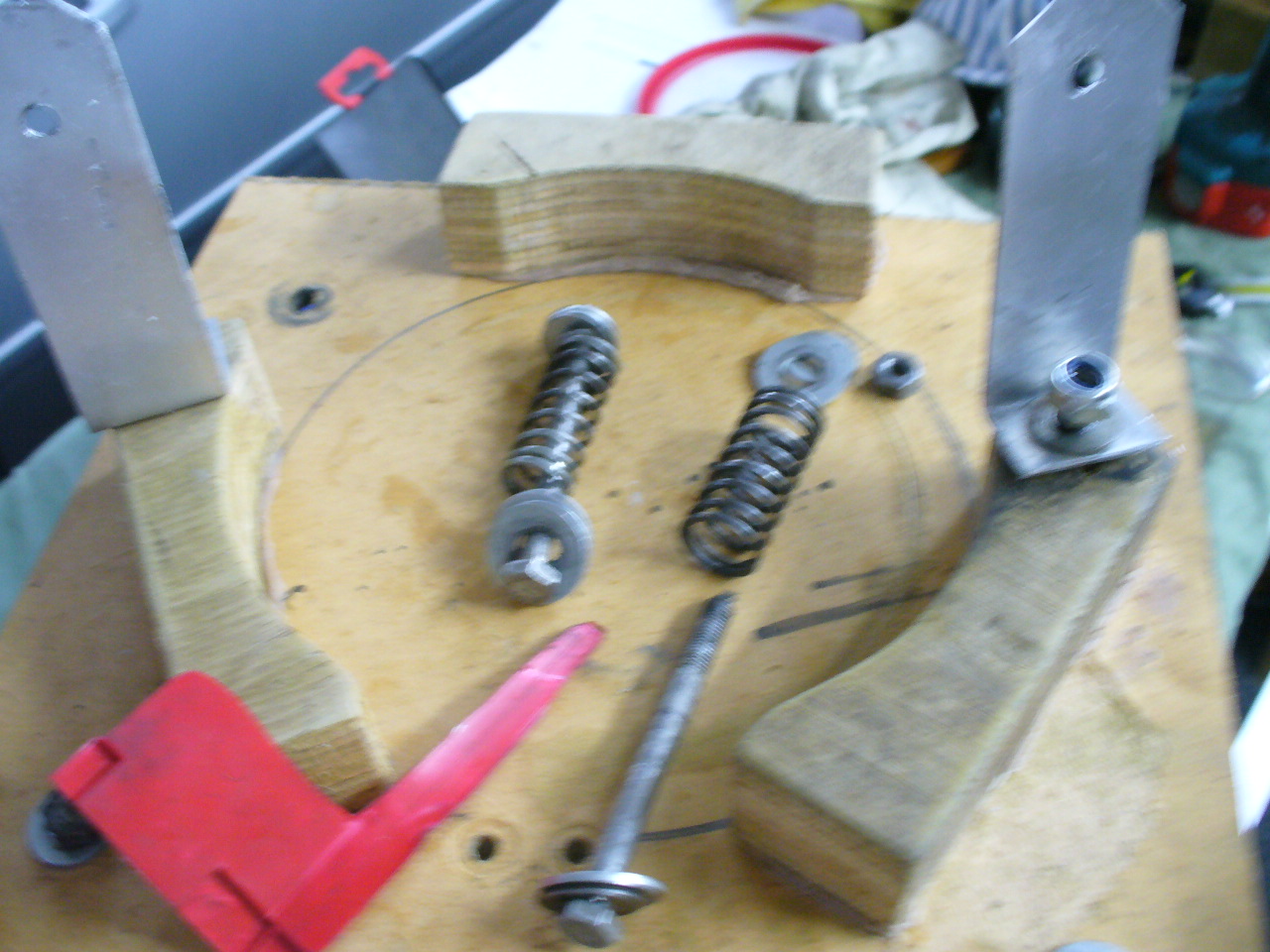

    Name:  P1020881.JPG
Views: 90
Size:  335.2 KB, Springs and blocks to holed container.
    Name:  P1020878.JPG
Views: 87

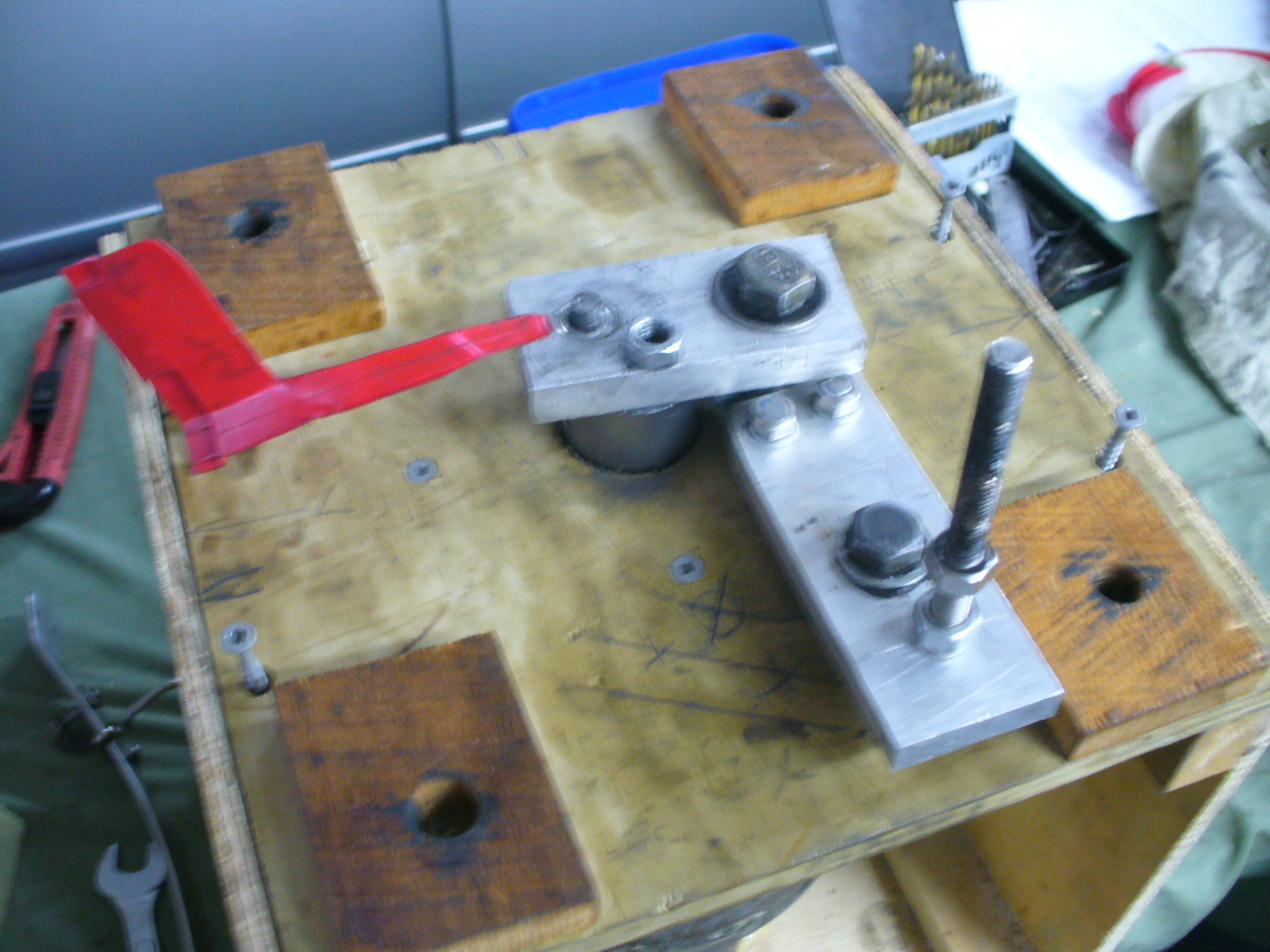

Size:  437.8 KB, the long pin at 10mm oscillation.

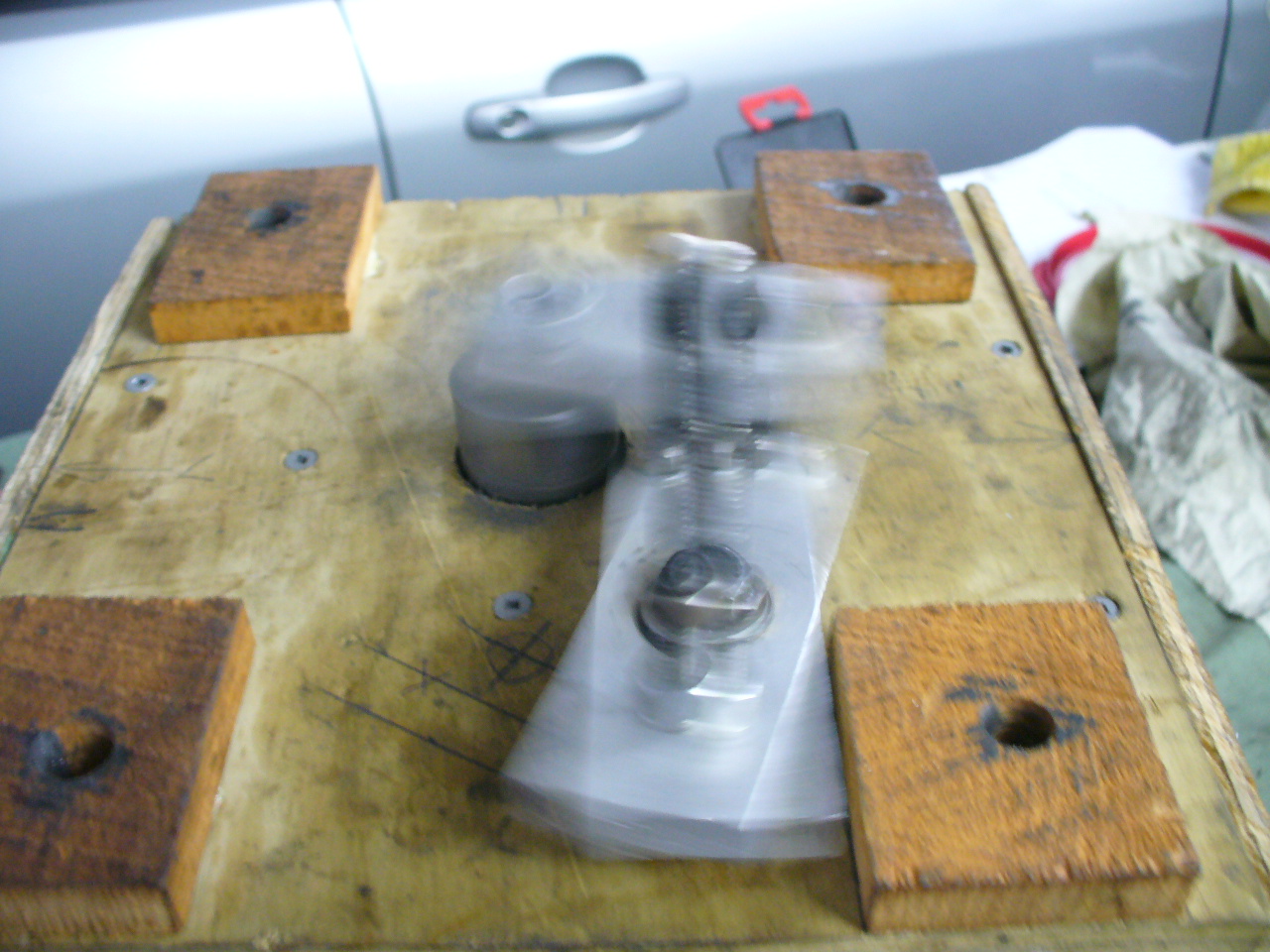

    Name:  P1020879.JPG
Views: 92
Size:  437.4 KB, now it just buzzes.
    Name:  P1020882.JPG
Views: 89

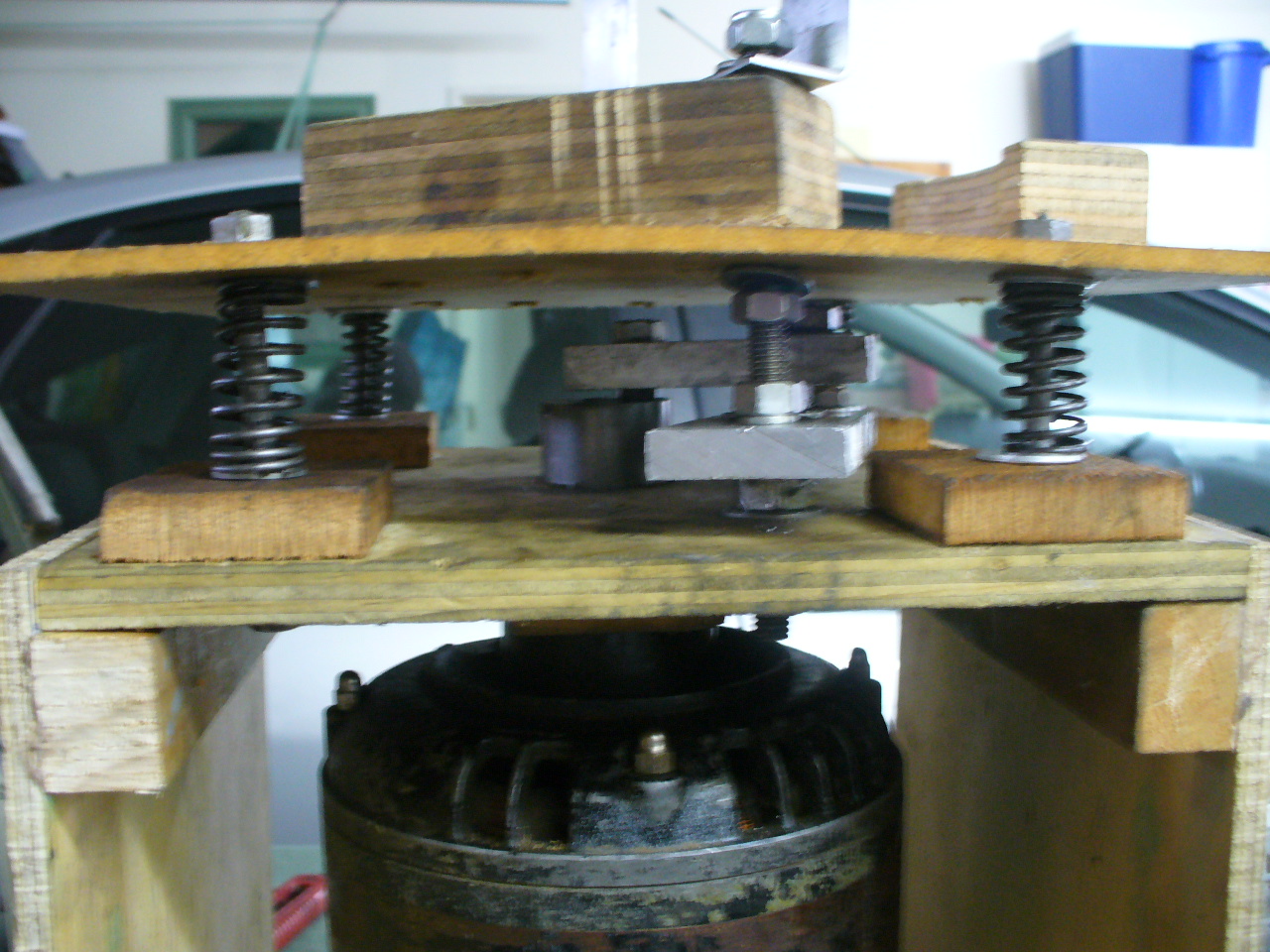

Size:  456.1 KB, Top plate on springs.
    Name:  P1020885.JPG
Views: 90

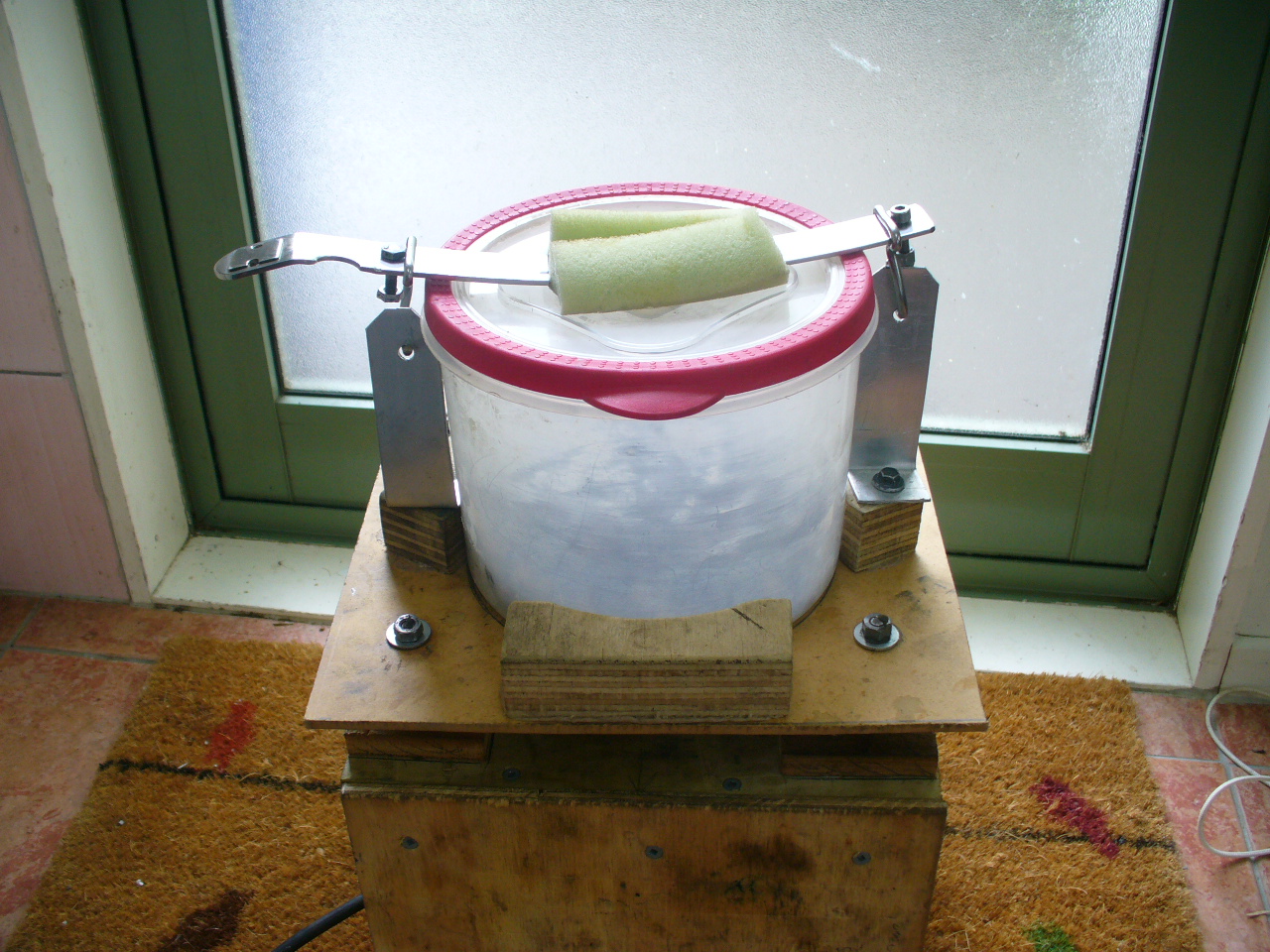

Size:  581.5 KB, And plastic container clamped on ready to go.
    Ryan_Songhurst likes this.

  5. #5
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    558
    My medium for cleaning the cases is palm tree seeds, I've got lots of them, the birds love them and poo out the seeds, a big problem for doc soon. They are nice and hard , round and just the bees knees for wobble clean.
    Name:  P1020808.JPG
Views: 67
Size:  158.9 KB, The birds love them.
    Name:  P1020883.JPG
Views: 66
Size:  495.9 KB, Just the ticket for cleaning.
    Marty Henry and septic like this.

  6. #6
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    2,424
    Look like they ould also be used in shotty reloads

  7. #7
    Member
    Join Date
    Feb 2013
    Location
    spreydon christcurch.
    Posts
    3,353
    Quote Originally Posted by Marty Henry View Post
    Look like they ould also be used in shotty reloads
    Ilike this mans way of thinking-the ultrimate ecologically friendly shotty ammo.even the new minof conservation darling wee twig&tweeter eugenie sage would approve.

  8. #8
    Member
    Join Date
    Feb 2013
    Location
    spreydon christcurch.
    Posts
    3,353
    imagine a load of them pepperin your ass cheeks out of the trusty 12g="stop you or ill give ya something organic to cry about."yad have more bloody dimples than a golf ball.
    Marty Henry likes this.

  9. #9
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    558
    Look lads, would be the bees knees for your goose loads, load up with the red ones, more flavour, hit them up the parsons nose and you have got inflight seasoned stuffing on the wing, could chuck in some pepper corns, rock salt as well, oven ready before they hit the ground.
    I`m just experimenting with that to add to them, bit of simple green?, it cleans the cases alright, not bright and inside as well, just have to shake them out before drying.
