Sharpener Mk2 with Venev stones
This is a follow-up design to the original wooden item shown here:
https://www.nzhuntingandshooting.co....-review-52321/
In use the jig is either held in a vice, or in a wooden tabletop cradle. There are some links to parts at the end of the post.
Attachment 129551
Attachment 129552
This update addresses some deficiencies in the earlier design. I’ll go through these now.
For starters, when sharpening 3-5" blades, the clamp on the original was too wide. 50mm is about right. It’s a clearance issue. Too wide and the stones can contact the clamp when they are rotated for sharpening out towards the belly of the blade, since that part of the blade will tend to be closer to the clamp. If the jig will be used for a mix of blade lengths, and on the longer ones the flexibility of the blade is a concern, then - if the design will accommodate these - being able to add a second narrow clamp (similar to the Scary Sharp) is the better option rather than a single wide clamp.
With a fixed blade - moving stone design like this one, the angle the blade makes with each stone needs to be absolutely repeatable. This is so that the progressively finer grits of stone will, in turn, immediately contact the full width of the bevel where material is to be removed. Courser grit stones may be able to re-establish a new and slightly different apex angle, but if the geometry is not kept identical then the finer stones will end up either contacting the bevel where it meets the primary grind, or adding a micro-bevel of their own.
This introduces some requirements for a sharpener of this type. Firstly the jig should be rigid and with minimum of play in the moving parts. The alloy bar construction and the addition of a rod end bearing for the slider address this. Also the larger the functional sides of the jig then the less variation any play will make in the resulting applied angle, though a reasonable compromise obviously needs to be struck. The base of the Mk2 here is 360mm.
Attachment 129553
It’s worth here mentioning another detail: the geometry must stay the same between stones - they should all be of the same thickness - which the Venev stones are - to avoid having to reset the jig for the differences.
Attachment 129554
Lastly, but perhaps of most importance, each time the blade is flipped the jig should position the apex with absolute consistency of position and angle.
In the original sharpener having to release and reset the blade in the clamp each time it was turned was problematic in this regard, particularly with any blades that had full width primary grinds where there was little or no parallel surfaces to clamp. An alternative is to not move the blade at all during sharpening and use pairs of stones such as in the Wicked Edge.
For this sharpener I opted for the reversible dovetailed clamp over the more popular arrangement where the clamp and knife are rotated 180° axially. This clamp system overall is very rigid, and quick and easy to use.
Attachment 129555

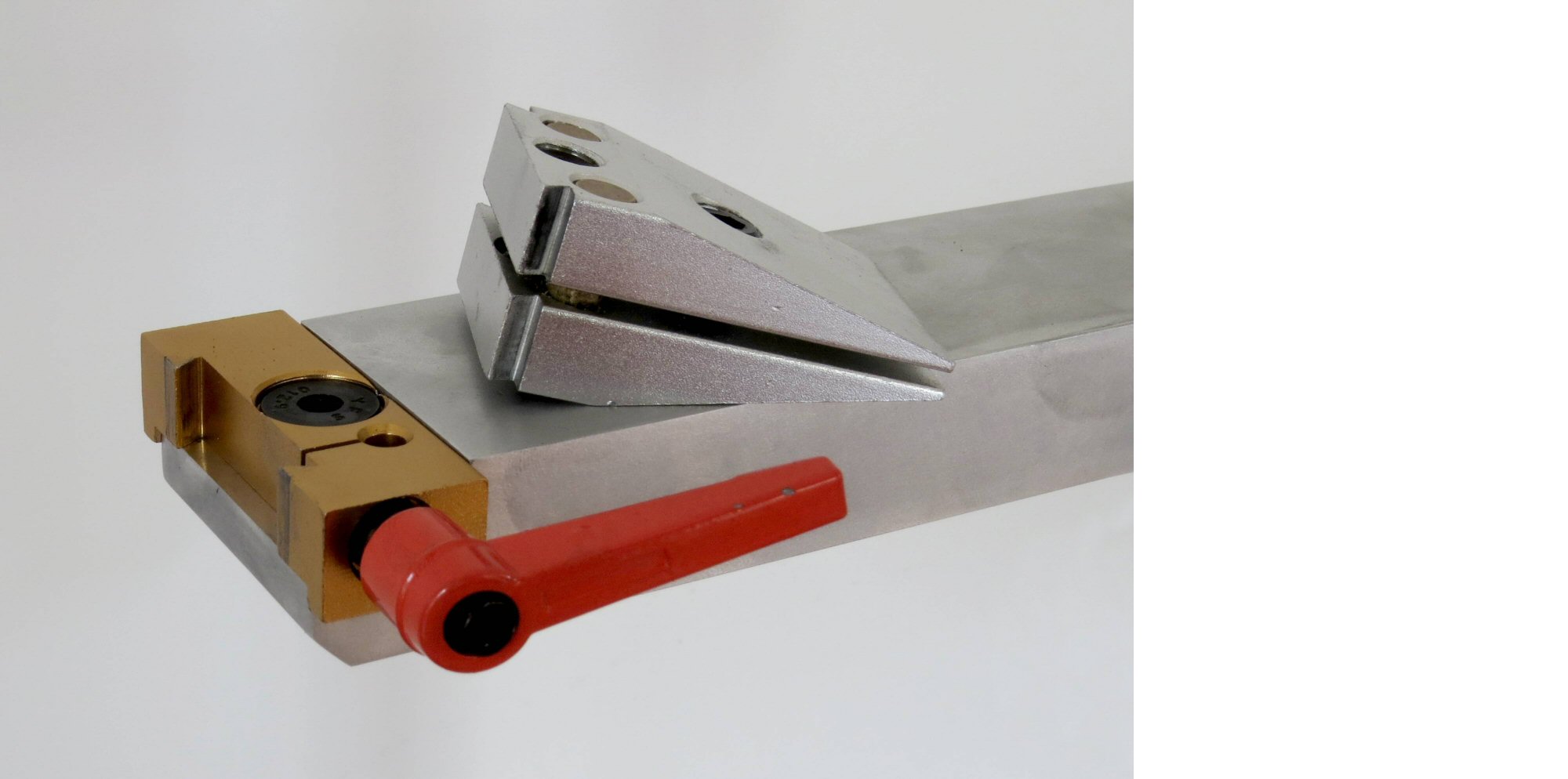

The two brass pins help keep the fingers aligned. The centrally positioned adjustment is threaded into both halves with opposing LH and RH threads. While the rear adjustment looks like it might be there for angling the fingers, forcing these out of parallel will likely end up damaging the threads of the main adjustment, so I have until now just used it as a secondary adjustment for increasing the clamping force. The clamp is machined for an M8 countersunk screw and is milled out for dropping over 50mm wide bar. I used a 2” wide bar and machined it down for a snug fit.
Attachment 129556
The clamps for the stones are made from shaft mounts that have been machined down. Thin rubber packers were added to the two surfaces contacting the stones. The remote clamp not pictured above is nipped up tight while the spring-loaded one behind the ball handle is allowed to slide. I did all my machining on the router table using a straight 10mm and 20mm diameter bits as I don’t have a mill.
Here are links (that are good at the time of posting) to sources for the bits and pieces used, or similar parts:
For the reversible blade clamp:
https://www.aliexpress.com/item/3282...d-37070fe5b598
Shaft mounts, 10mm:
https://www.aliexpress.com/item/3277...6d444c4dvAlclG
Knob, M10x1.5 thread:
https://www.aliexpress.com/item/3296...6d444c4dvAlclG
Spring, 10mm ID, 50mm long:
https://www.aliexpress.com/item/3300...6d444c4dvAlclG
Rod end bearing, 10mmID with M10 thread:
https://www.aliexpress.com/item/3295...27424c4dP04fCR
The only parts I’m still waiting on are some stops for resticting the slider travel:
https://www.aliexpress.com/item/4000...6d444c4dvAlclG
