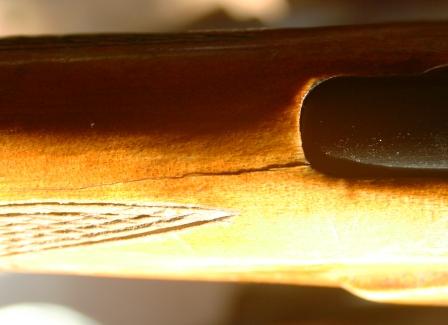

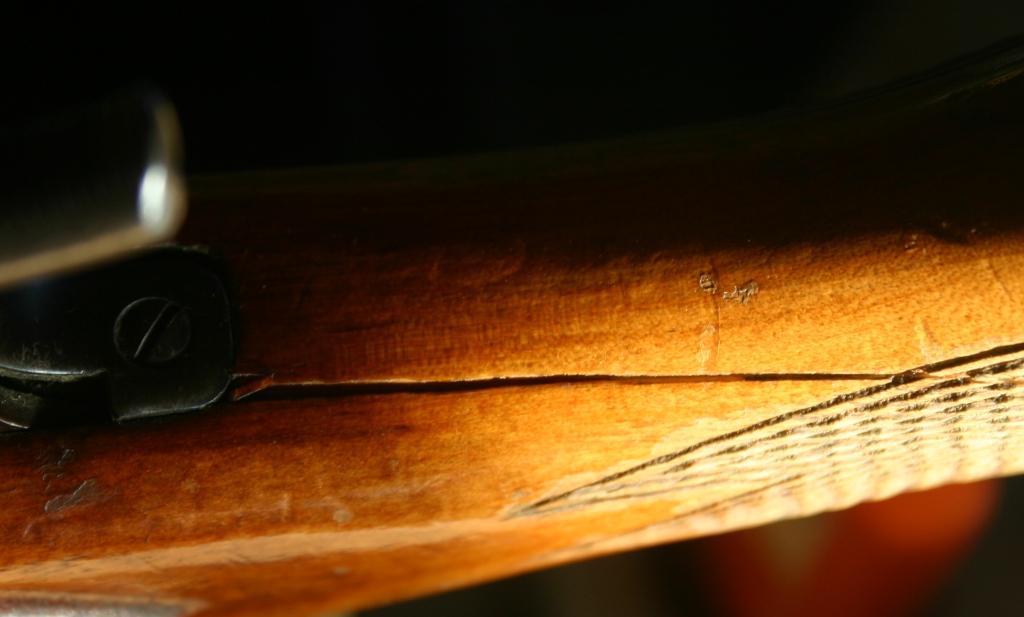

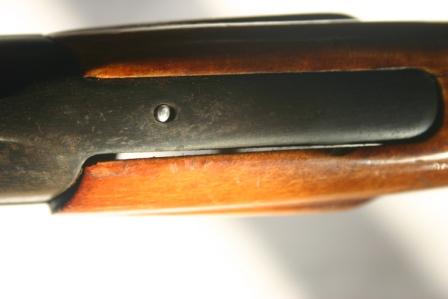

I have a small split in my Baikal Single Barrel Shotgun Stock that I want to repair.
Attachment 8113Attachment 8114Attachment 8115
Whats the best way to repair this type of split?
Should I just glue it and clamp it?
If so what's the best glue to use.
Should I do something else.
Cheers
Pete
You can get a gorilla glue that expands when drying.you have to clamp the joint then sand the ooze off it is a hard as shit and doesn't let go
I have some Araldite but was unsure what would be best.
I'll look into the Gorilla Glue.
It's not an expensive shotgun but it is the first one I bought when I was 16, I'm 50 now.
I had my licence about three hours when I purchased it New out of Craft & Hern when they had in a little shop in Havelock North.
Cheers
Pete
The gorilla brand is a polyurethane glue. It works best if the mating surfaces are slightly damp, this causes the glue to "foam" and expand.
Considering the shock and stresses that a shotgun stock goes through, I would go with something ore flexible than epoxy (araldite)
Do you want the repair to be invisible / match the current stock, or is cosmetics not an important factor ?
If you just want a fix, not necessarily something pretty, polyurethane is good. Watch the squeeze out, it is not an easy glue to work with on it has gone hard.
If you want something more cosmetic, make up a filler paste from yellow or white wood glue and sawdust. This is easy to sand, and you should be able to get a reasonable color match.
I'm assuming this is just a crack, and does not require structural strengthening with dowels etc.
EBF
Thanks for the reply.
Yes it's just a slight crack at this stage and I dont believe the structural integrity of the stock has been compromised.
Cosmetics is not important however I will do a good job and believe once repaired the crack will almost be invisible.
Just looking for advise on which type of adhesive would be best.
Do you think PVA would be ok?
Cheers
Pete
Ok, mask the edges, dampen, and then flood with gorilla
EBF
Done.
I'll get some Gorilla Glue tomorrow.
How damp should I get the crack?
Cheers
Pete
:thumbsup:Quote:
Originally Posted by P38
Fine mist from a spray bottle, you don't want droplets running down the wood
Spud :D
You don't need massive clamp pressure, and the surfaces on a stock are not always easy to get a clamp to grip.
If you run into problems clamping, use masking tape, or bind the stock with string, just enough to squeeze the split closed.
Good luck, take photos and show us the repair :)
Originally Posted by P38
How damp should I get the crack?
HahahahaQuote:
Originally Posted by Spudattack
Good spotting Spud
The things people write on this forum. :P
Cheers
Pete
Do you want it damp or moist? If your having trouble telling, throw some flour down

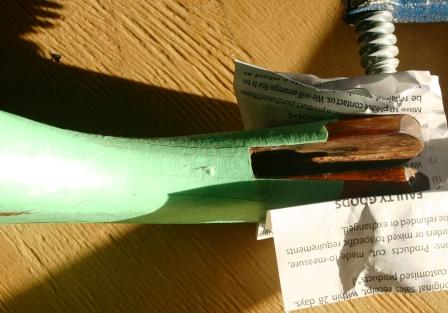

Gorilla Glued and Clamped.
I masked the stock up, gently prized the crack open slightly, pulled apart an old razor and used the blade to work the glue deep into the crack before lightly clamping.
Will post some more pics of the final job once the glue has cured for 24hrs.
Cheers
Pete
Attachment 8144
Forgot to add.
Another example of why you should not lend your Rifles or Shotguns .... no matter how much you trust the preson your lending to.
Cheers
Pete
Do you think PVA would be ok?
Cheers
Pete[/QUOTE]
At a minimum external grade PVA, but no, I wouldnt use it. I'd use gorilla or a structural grade epoxy that is designed to take shock etc. Or maybe the stock/action bedding stuff? I assume that would be very suitable but Ive never used it. You could maybe then add the bedding in any "spaces" to strengthen that point...
The Glue is fully cured and the masking tape has been removed to reveal what can only be described as Not an invisible join but a very acceptible repair. :thumbsup:
Will it be an effective repair?
Only time will tell.
Thanks for all the advise.
Cheers
Pete
Attachment 8201Attachment 8202Attachment 8203Attachment 8200
I like checking out the midways website for their videos don't know if they have one that covers this but that Larry Potterfield guy is pretty handy
Your not wrong Survy
I love Larry and his Gunsmithing Tips
And Thats The Way It Is. :thumbsup:
Cheers
Pete
Good shit aye? And it expands into the joint, love it, got it all over my garage floor to prove it!
HahahahaQuote:
Originally Posted by Maca49
I never spilled a drop Maca.
But then I was being very carefull.
Thanks for your advise.
Cheers
Pete
I did all the seat frames in my mga and my wolseley hornet special with this stuff plus all the joints in the flooring board part benches at work it magic shit but has a short shelf life, exposure to the air triggers it
Nice work Pete, looks tidy and authentic for age.
