Following with interest. Gotta do similar to a truck chassis for a slightly large house truck setup.
Following with interest. Gotta do similar to a truck chassis for a slightly large house truck setup.
@Happy, me and the wife really want to see some photos of the inside please, that trailer looks farkin perfect for a two person bunk.
Attachment 184452Attachment 184453Attachment 184456
Still working away at it, just put on 480w of solar and some Lithium batteries in it to run the fridge that my wife demanded.
Still a lot left to do but will be able to sleep in it for some xmas camping.
It's been quite a learning curve.
I can see my old house from there!Quote:
Originally Posted by Savage1
Sent from my iPhone using Tapatalk
Trees have almost blocked it out, another year or two.Quote:
Originally Posted by Spudattack
Looks good but why no windows?
Gee its flash Savage1, much bigger than I thought from the earlier photos of the chassis. Is the edge trim a freezer panel extrusion or is it a heavier gauge Ali angle iron rolled to fit ? great protection either way
I ended up drilling into the terminals and tapping them and putting in a 8mm grub screw, just waiting on a BMS for it now, $250 for a 100a/h LiPO4 battery is a bargin. they're far lighter and have a lot better performance than the gel batteries.Quote:
Originally Posted by Mauser308
They will be one of the last things I put in, as I'm making it up as I go along I'm not 100% on what size and placement I want. That's the beauty of these panels, just cut a hole out anywhere.Quote:
Originally Posted by Steve123
It has a 6.8m body, panels only came 6.5m long hence the join near the front.Quote:
Originally Posted by Moa Hunter
It's a 75mm Ali angle extrusion, 50mm on the interior joins too, all glued and riveted. Couldn't get anywhere to roll the curves so I fabricated them, it was a right PITA.
Bostick IMR glue is pretty much all that is holding it together, I think it's the same stuff that holds windscreens in cars.
Attachment 184717Attachment 184718

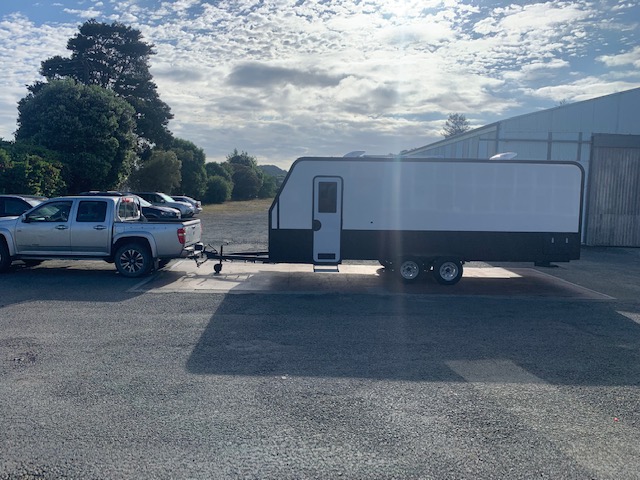

Not bad for its size and fully laden apart from empty water tanks. Kitchen, beds, solar, batteries, fridge, cabinetry/cupboards all installed, just needs windows, toilet and shower installing now
Gives it 1800kg to play with before it's over loaded.
Thats a steal!Quote:
Originally Posted by Savage1
Where abouts did you find them may I ask?
I think it was about 10mm, not far. About how far the blocks sat above the main casing.Quote:
Originally Posted by Mauser308
They were on TM, the guy had them listed for 200 each then relisted them at $50, he had 20 but I only managed to get 4. He was a commercial guy in Hawkes bay.Quote:
Originally Posted by XR500
I can find his email if you like.
Yeah it doesn’t look as bad in person, it’s a Jayco chassis.Quote:
Originally Posted by Mauser308
The ball weight is only about 80kg so I will load all our stuff at the front of it.
It tows really nice as is though, no sway at all but might be because of the drawbar angle.
