Finally got all the pieces I needed to make a target camera. Range is out to 5km so will be suitable for all range and gong work. Have tried to list all the instructions so people can have a go themselves.
All products are from Aliexpress apart from the batteries as they don't air freight them so got them off trademe $25 each. I will be using an existing GoPro Hero 3 camera but you could use any form of Handy Cam etc as long as you get the appropriate connectors.

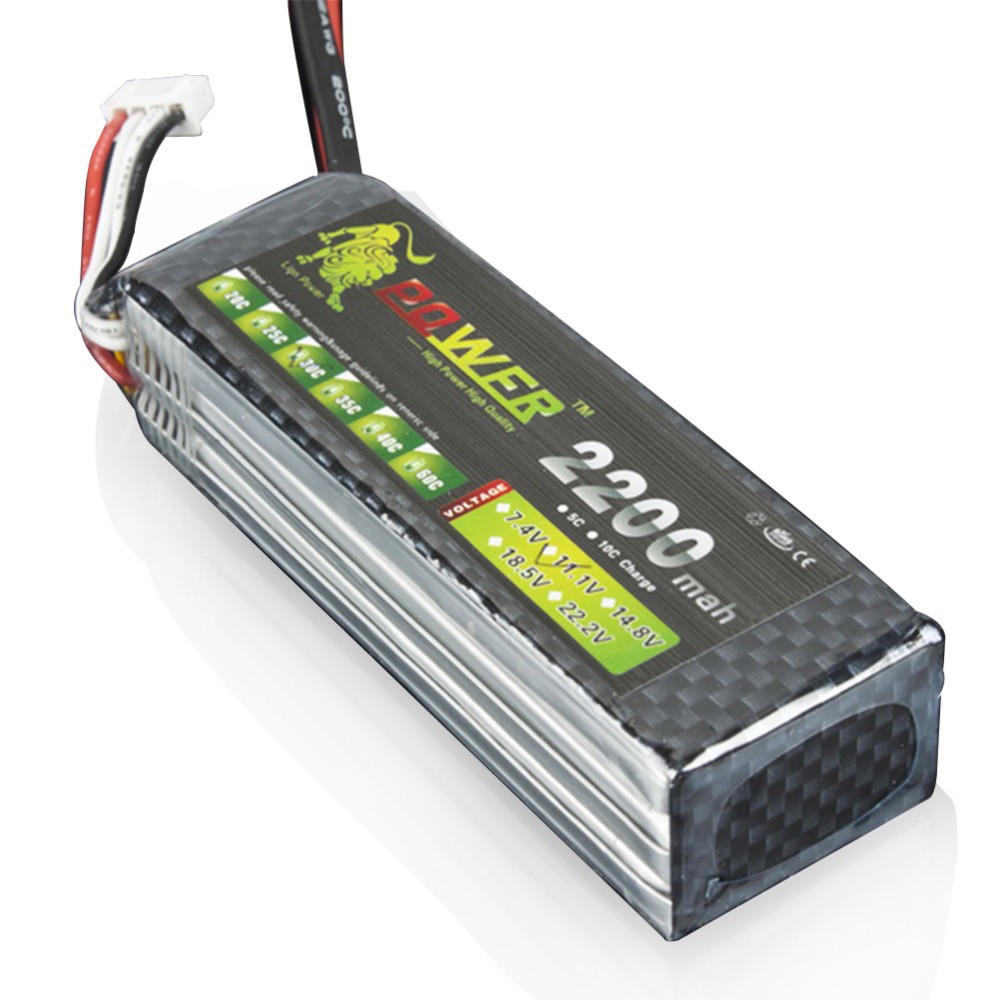

Power source x 3 (One for Camera and Transmitter, one for Receiver and one for Mini DVR)
Attachment 48261
http://www.aliexpress.com/item/LION-...999.333.VQyOz1

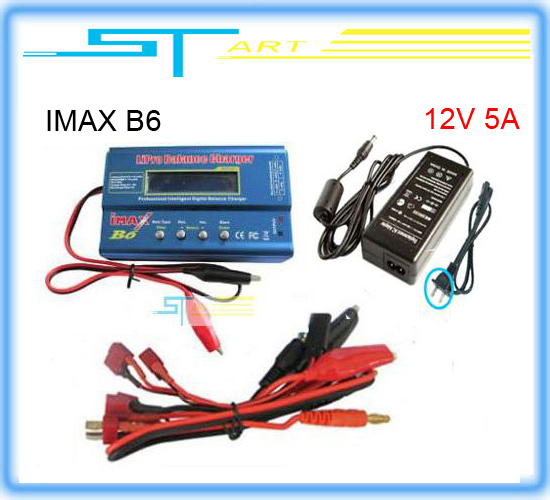

Charger for the Lipo batteries (Remember to leave comment requesting an AU plug type)
Attachment 48268
http://www.aliexpress.com/item/Sale-...999.339.VQyOz1 $27.00

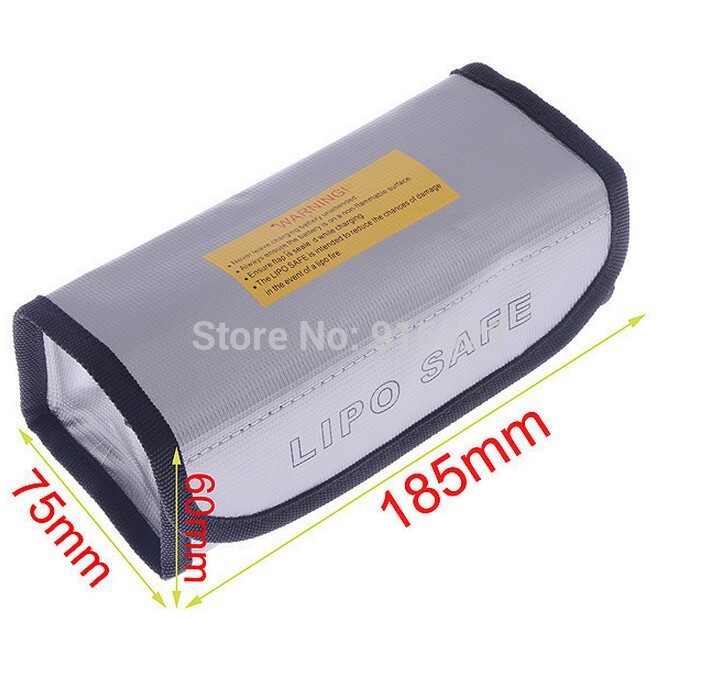

Get a Lipo charging bag as it’s a much safer to charge them in the bag. They have on very rare occasions exploded.
Attachment 48271
http://www.aliexpress.com/item/F1639...999.345.VQyOz1 $7.13

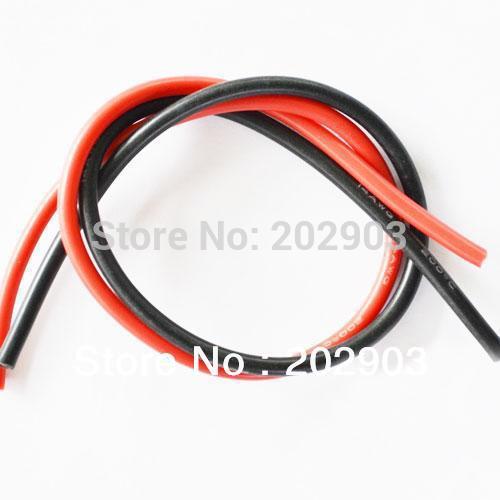

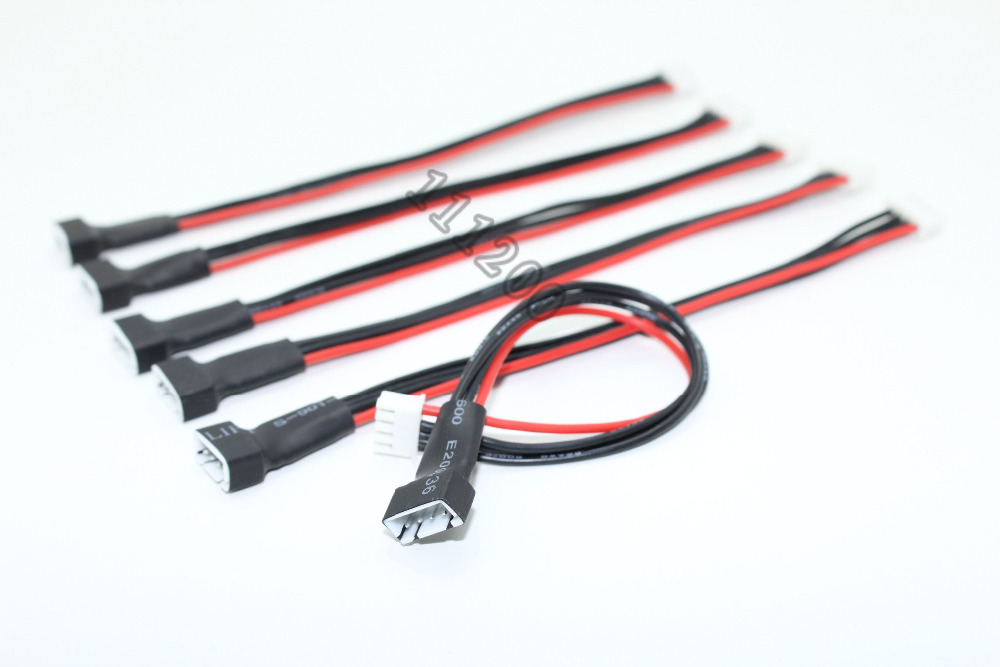

Associated cables, Wire and battery meters. Only required if you want them / don’t have items available
Attachment 48262Attachment 48263Attachment 48267Attachment 48274Attachment 48270
http://www.aliexpress.com/item/Whole...999.357.VQyOz1 $2.95
http://www.aliexpress.com/item/1mete...999.351.VQyOz1 $3.59
http://www.aliexpress.com/item/Free-...999.326.VQyOz1 $5.12
http://www.aliexpress.com/item/2015-...999.319.VQyOz1 $3.64 (2)
http://www.aliexpress.com/item/Free-...999.273.VQyOz1 $13.88 (2)

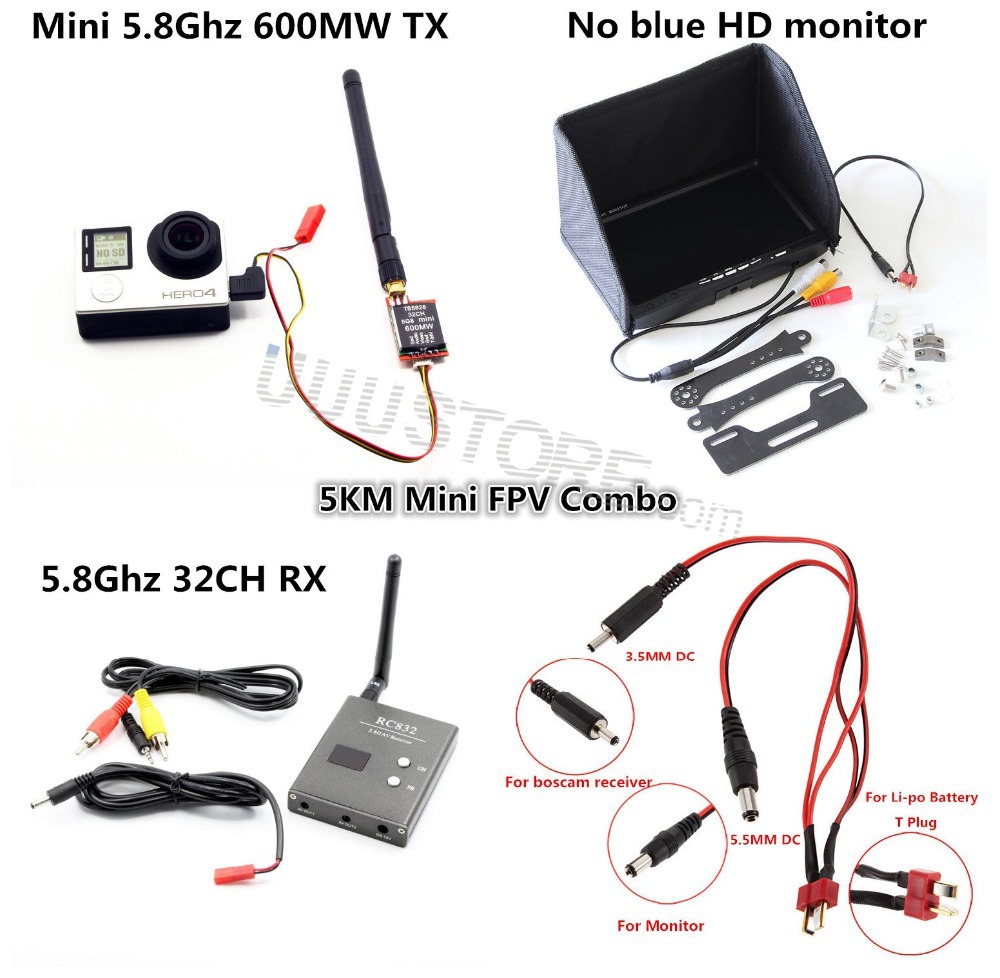

The Camera Receiver, Transmitter and Screen are all in one kit, makes things much easier.
Attachment 48266
FPV Combo System 5.8Ghz 600mw 5km Transmitter and Receiver for Gopro xiao yi xiao mi SJ4000 SJCAM QAV250 DJI Phantom Quadcopter-in Parts & Accessories from Toys & Hobbies on Aliexpress.com | Alibaba Group $62.50

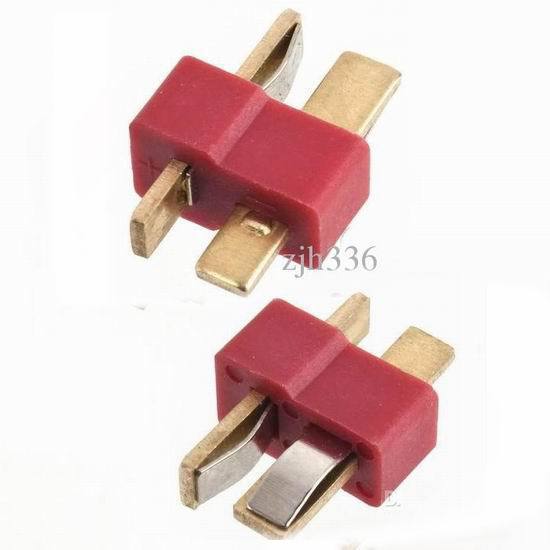

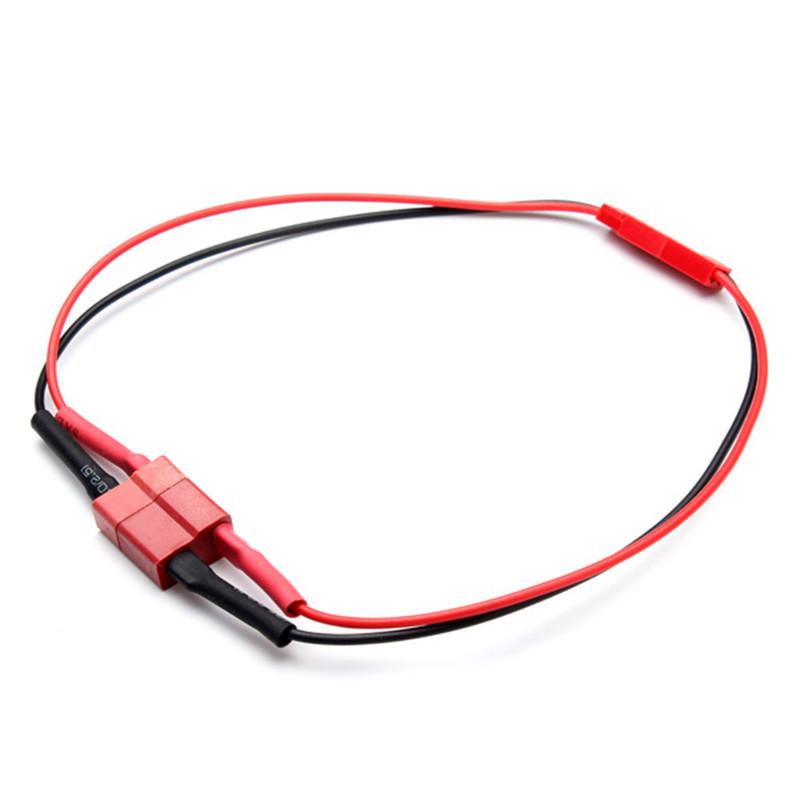

Get a couple of these by looking at the wiring and plugs you might need them
Attachment 48272
http://www.aliexpress.com/item/T-Plu...999.305.VQyOz1 $3.60 (3)

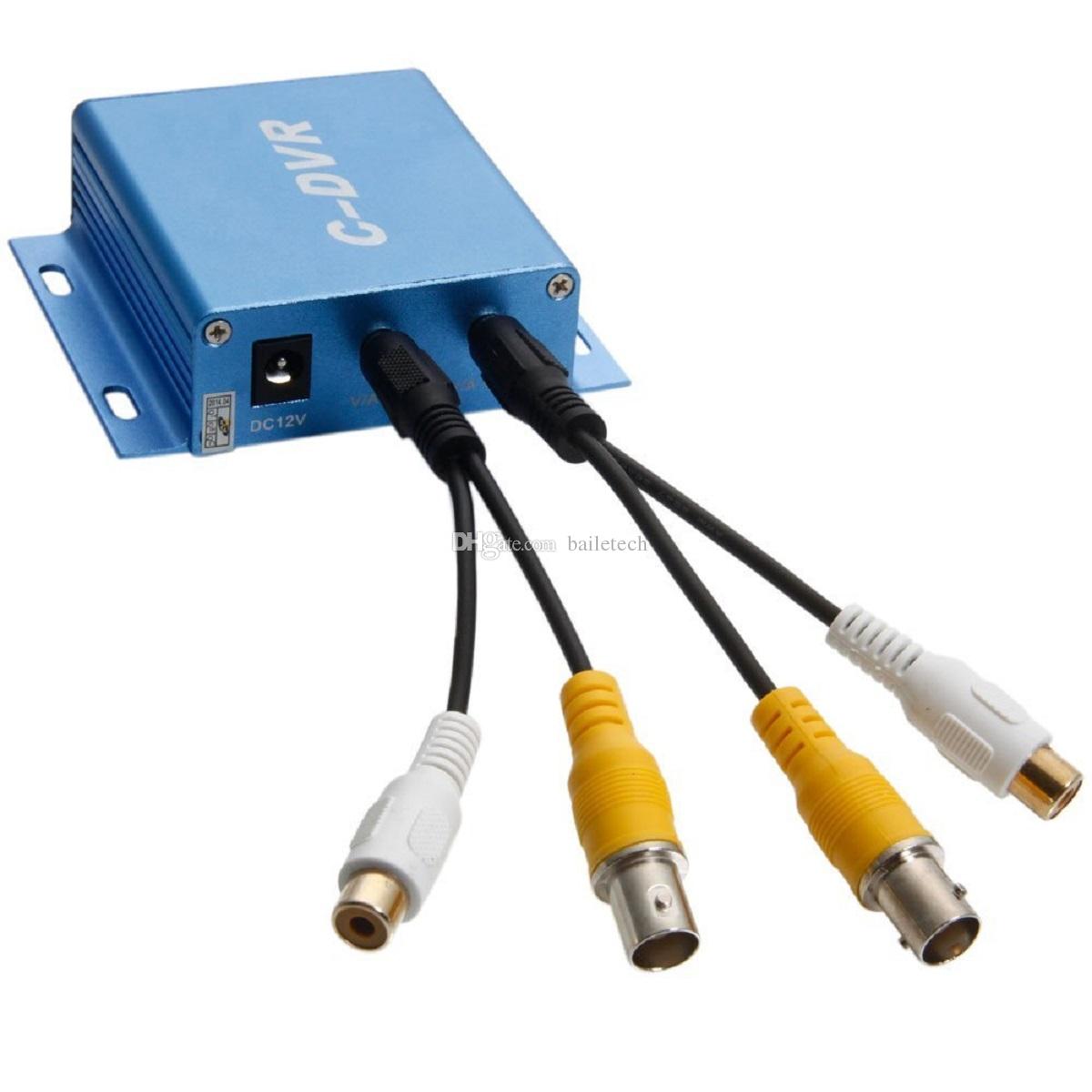

The Mini DVR is again optional but I thought it would be good to record the Range / Gong shooting. It sits in between the Receiver and the Screen. Don’t worry about what plug comes with it as later on you will cut it and replace with a T-Plug so a Lipo battery can power. You will need a TF memory card (mini – SD common for other electronics)
Attachment 48269
http://www.aliexpress.com/item/Mini-...999.267.VQyOz1 $21.92

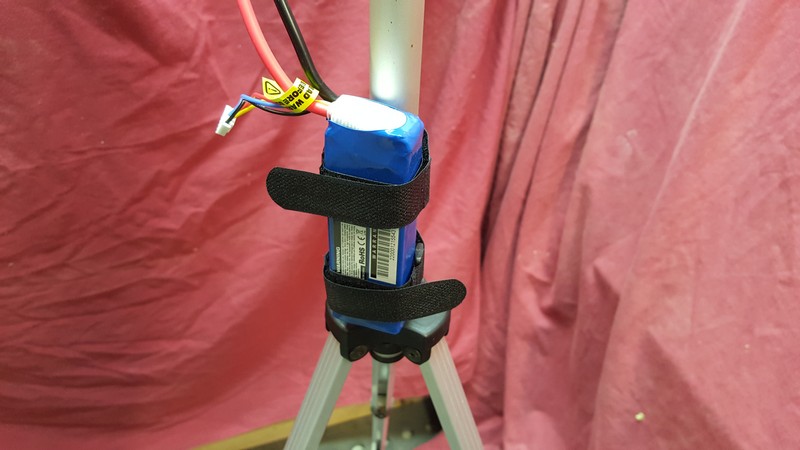

Last few items are for strapping in the lipos, a cheap tripod and a go-pro tripod mount all not essential but might as well for the project.
Attachment 48264Attachment 48265Attachment 48273
Weifeng WT3110A Tripod Aluminum With 3 Way Universal Digital Camera Tripod for Canon Nikon Sony Pentax DSLR WT 3110A-in Tripods from Consumer Electronics on Aliexpress.com | Alibaba Group $10.69
http://www.aliexpress.com/item/Free-...999.286.VQyOz1 $1.86
http://www.aliexpress.com/item/Gopro...999.293.VQyOz1
$4.27
All up was approx $220 US landed.

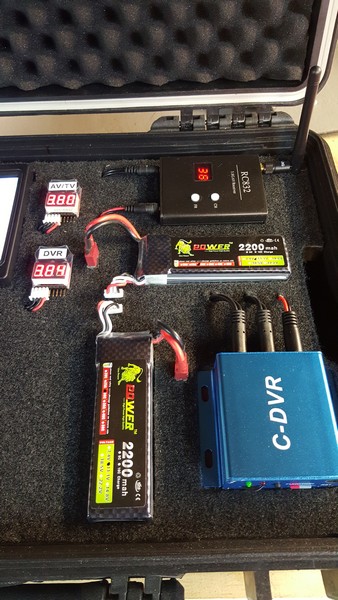

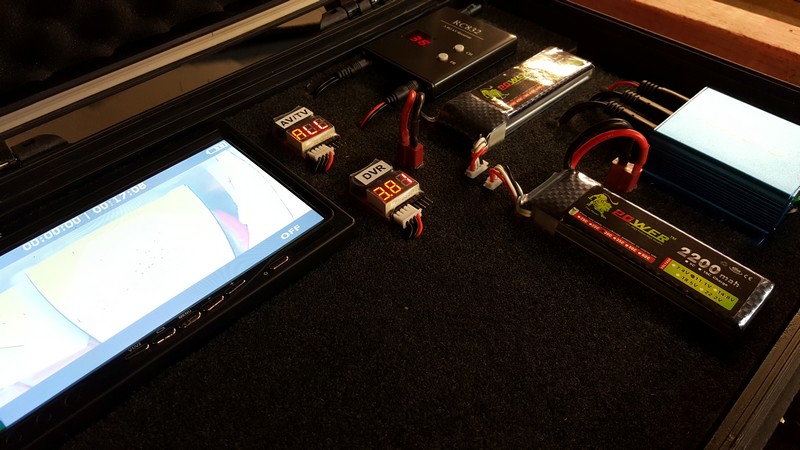

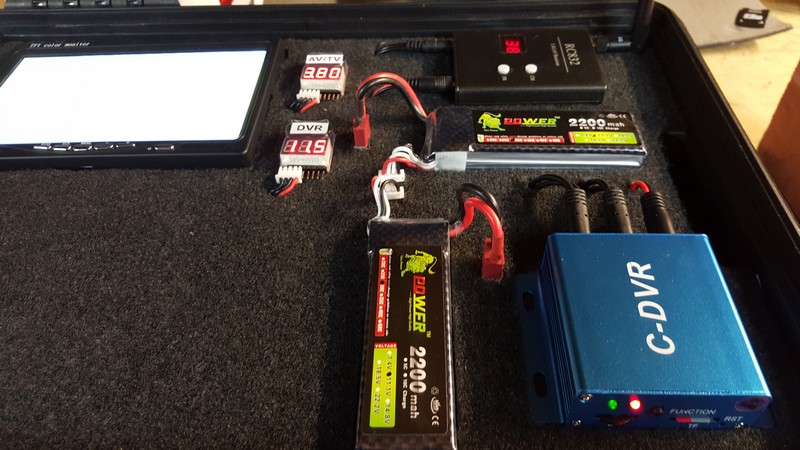

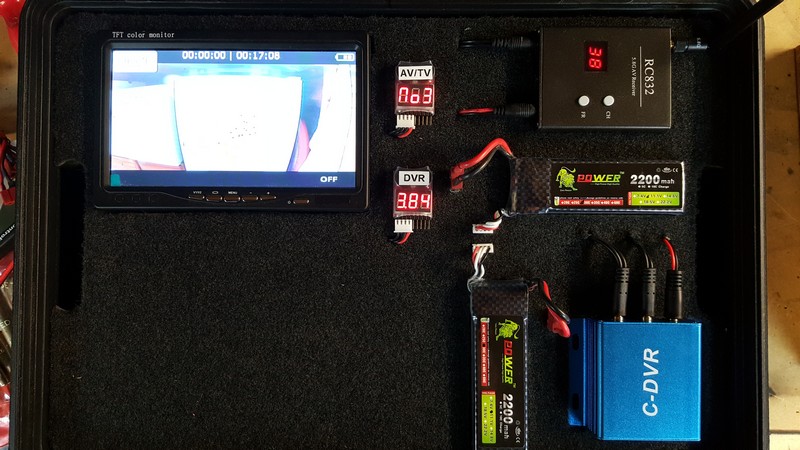

Really happy with how it turned out, kept it all tidy in a cheap imitation Pelican case.
Attachment 48275Attachment 48276Attachment 48277Attachment 48278Attachment 48279Attachment 48280Attachment 48281
Few little things to do such as an adjustable angle so the LCD screen can sit up on an angle or at 90 degrees for better viewing, foam in the bottom section to keep all the other bits together, more secure way of fitting the transmitter and Lipo on tripod oh and some time to actually shoot and use it :) Thanks for looking and I'm happy to try and answer any questions.
