Tianbotha's AR upper with rail added
@TianBotha recently posted that he need someone to fir a rail to an AR uper that the carry handle had been taken off. Most people reckoned that the best idea was to sell it and just by a new upper. That would have been the easy option for sure. I decided that Id help him out and see what I could come up with.

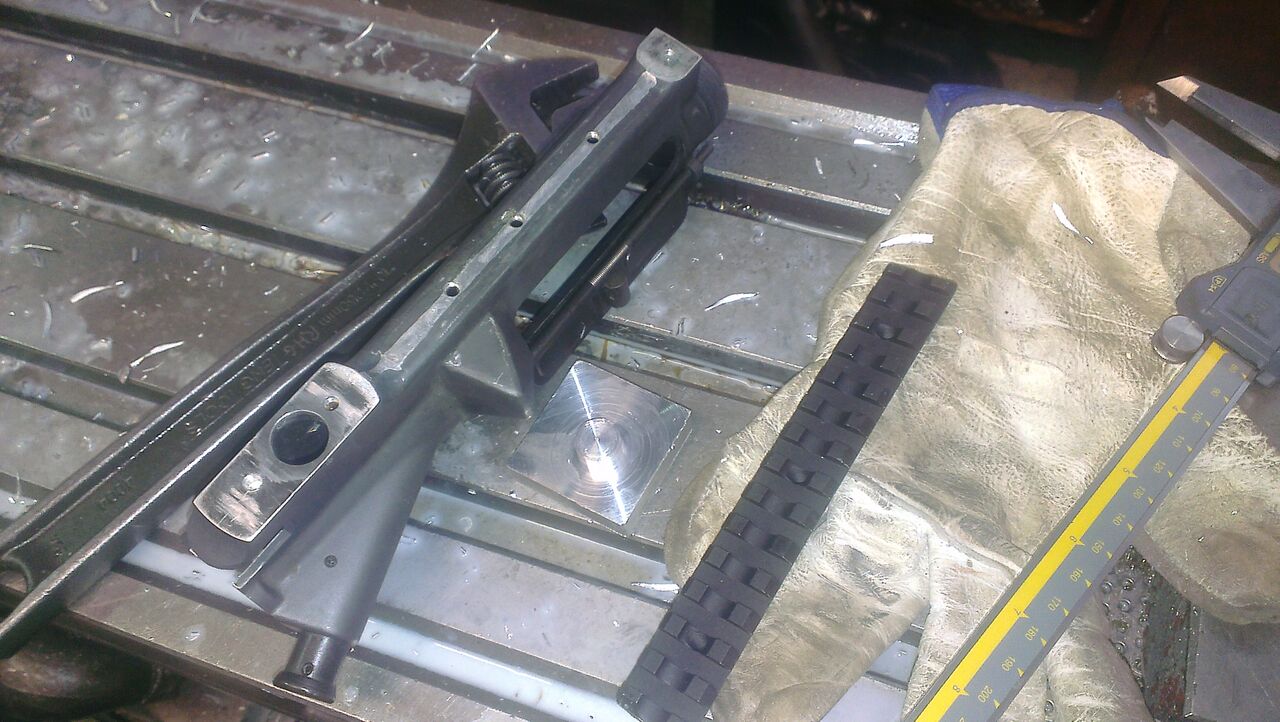

So this is what i started with
Attachment 50630
I decided that the easiest option was to raise the rail all to the same height as where the carry handle used to be.

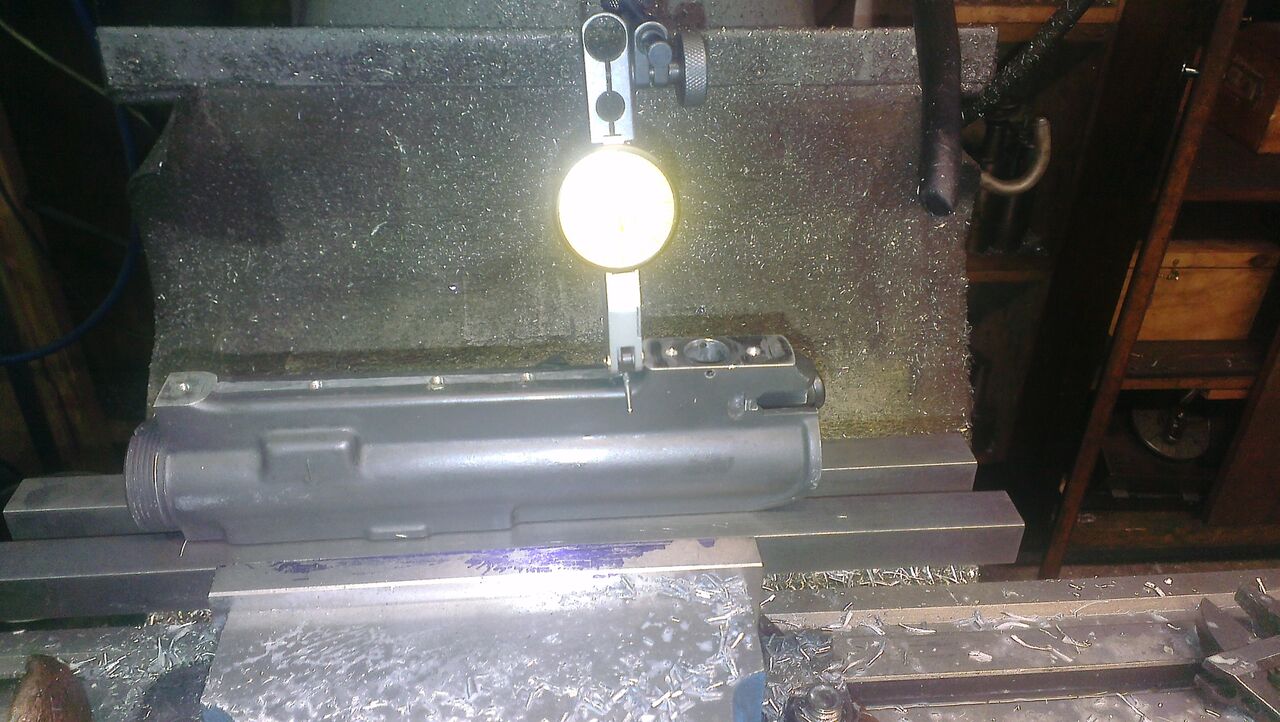

Dialed the action in in the mill.
Attachment 50631
Drilled and tapped new holes for the rail and the base as the old holes were not on center and did not match up to the base. Went to M4 screws since they are easy to find.
I dialed in the base and drilled and countersunk for the screws. I then made up the spacers and epoxied them to the upper. Cleaned up the overhang in the mill and then epoxied the base on top. The screws would have been strong enough as it is but the upper of the upper had a slight curve and I wanted to get the parts "bedded". Also adds a lot of strength> Like the old man always says "belt and braces".
The carry handle had a location pin on it that left the rear open above the charge handle. I figured that it would be a good idea to close that off so junk didnt get in there.
@TianBotha is planning to have it painted so the sand blast and ceracoat will clean up the finish. Should work out not to bad.

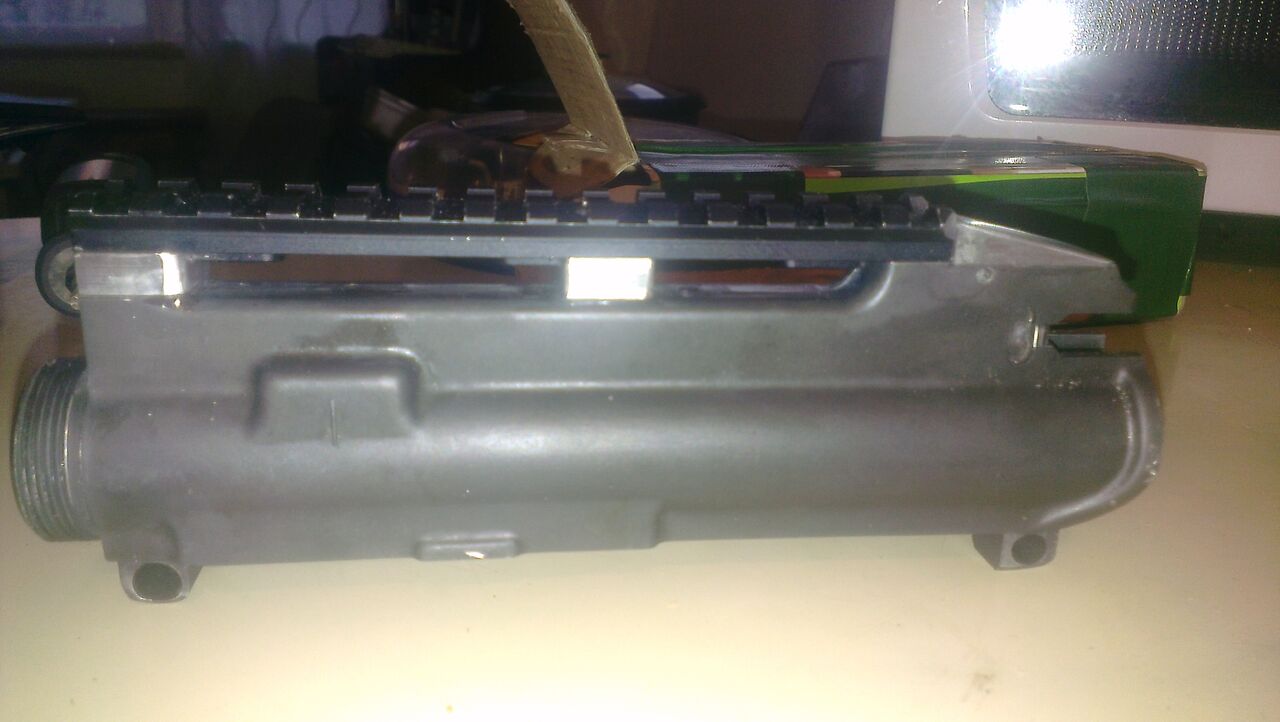

Attachment 50632Attachment 50633
not the best pics. also a bit dirty still from machining.
