Thread: Vintage / Antique scope update

  1. #1
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    946

    Vintage / Antique scope update

    Update on progress with buying vintage and antique scopes

    https://www.nzhuntingandshooting.co....e-scope-45862/

    I have been able to buy 2 old scopes that are destined for projects I'm currently working on and brought a new reproduction from USA for my muzzleloader.

    I brought a Unertl Vulture 10x scope for my 1885 project
    Its almost mint.
    Optically perfect with fine cross hairs
    Complete mounts and brand new bases that had never been on a rifle

    That scope is a huge step forward for the whole project and thanks to **** for selling it to me

    Name:  Unertl vulture 10x.jpg
Views: 160
Size:  2.49 MB

    I have just tested out a Stevens 368 6x scope and Winchester Model 67 I brought.
    Brought the whole package as then I know I have the correct mounts and base blocks
    Only been on the one rifle since the early 30s
    Heavily worn but in reasonable condition considering its been on a working 22 rifle and was used by a rabbiter in the 30s
    Was missing the return to battery screw but I have Rangi'ed up a small brass on to be able to test while still on the 67
    Its optically good and the cross hairs are reasonably straight
    Easy to adjust and zero and then lock off both adjustments with a single screw
    You just need to remember to return it to battery after every shot
    Good accuracy with the well worn 67. 25 to 30mm 5 shot groups at 50m
    Will leave it on the 67 and shot a few hares and rabbits until I have the rifle ready that it will live on long term

    Does anyone want a well worn but proven accurate Winchester Model 67 ?

    Name:  stevensscope 1.jpg
Views: 156
Size:  1.30 MB

    Name:  Stevens scope 2.jpg
Views: 156
Size:  1.43 MB

    Name:  stevens scope 3.jpg
Views: 157
Size:  1.54 MB

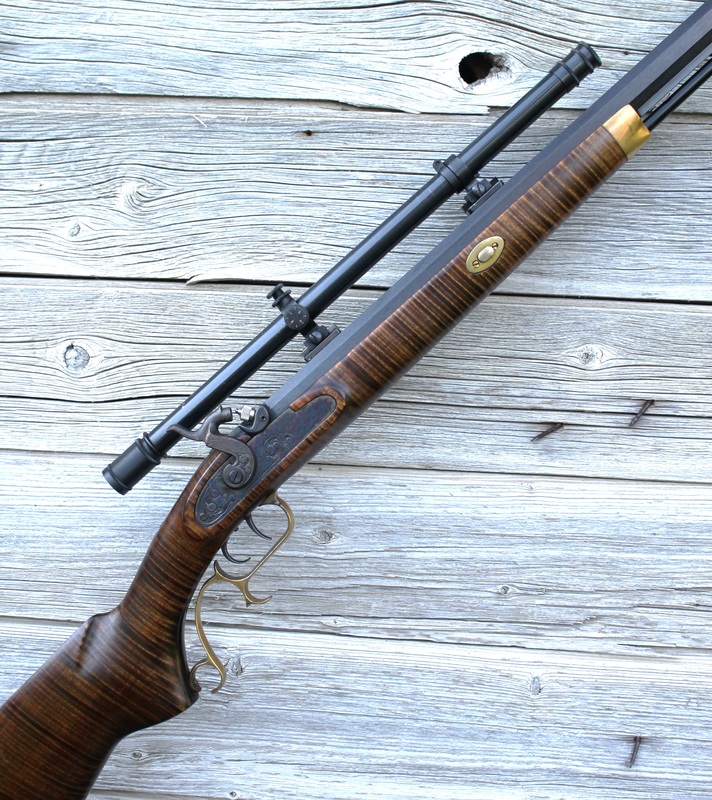

    And I have a reproduction WM Malcolm 3x scope coming from USA to go on my 50 cal muzzleloader
    Went for a new reproduction as the 50 cal ML would most likely destroy a genuine antique or vintage scope
    Will look something like this but my muzzleloader is not the flash

    Name:  malcolm muzzleloader .jpg
Views: 153
Size:  277.5 KB

    If anyone has or knows anyone who has anything like these and wants to re home them ?
    Send me a PM
    They will be put back into service .... not hoarded

    cheers
    Bernie likes this.

  2. #2
    Member Cordite's Avatar
    Join Date
    May 2017
    Location
    NZ Mainland
    Posts
    3,230

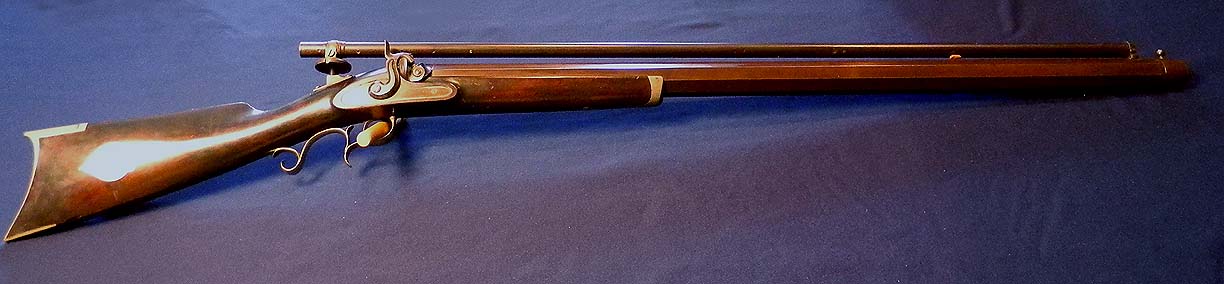

    Didn't they use scoped rifles in the American Civil War, I recall seeing something with a really long tube on it. Heard there was not even a reticle or post in it, just go for the middle of the (not very wide) field.

    Something like this: www.hansenguns.com/images/mwlongsniper1.JPG

    Name:  mwlongsniper1.JPG
Views: 143
Size:  56.5 KB

  3. #3
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    946
    They survive quite well because the scope stays still while the rifle recoils and slides back on the mounts

  4. #4
    Member Cordite's Avatar
    Join Date
    May 2017
    Location
    NZ Mainland
    Posts
    3,230
    Quote Originally Posted by akaroa1 View Post
    They survive quite well because the scope stays still while the rifle recoils and slides back on the mounts
    Sounds wild. So were the mounts leather lined or something like that to provide a firm but sliding fit?

  5. #5
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    946

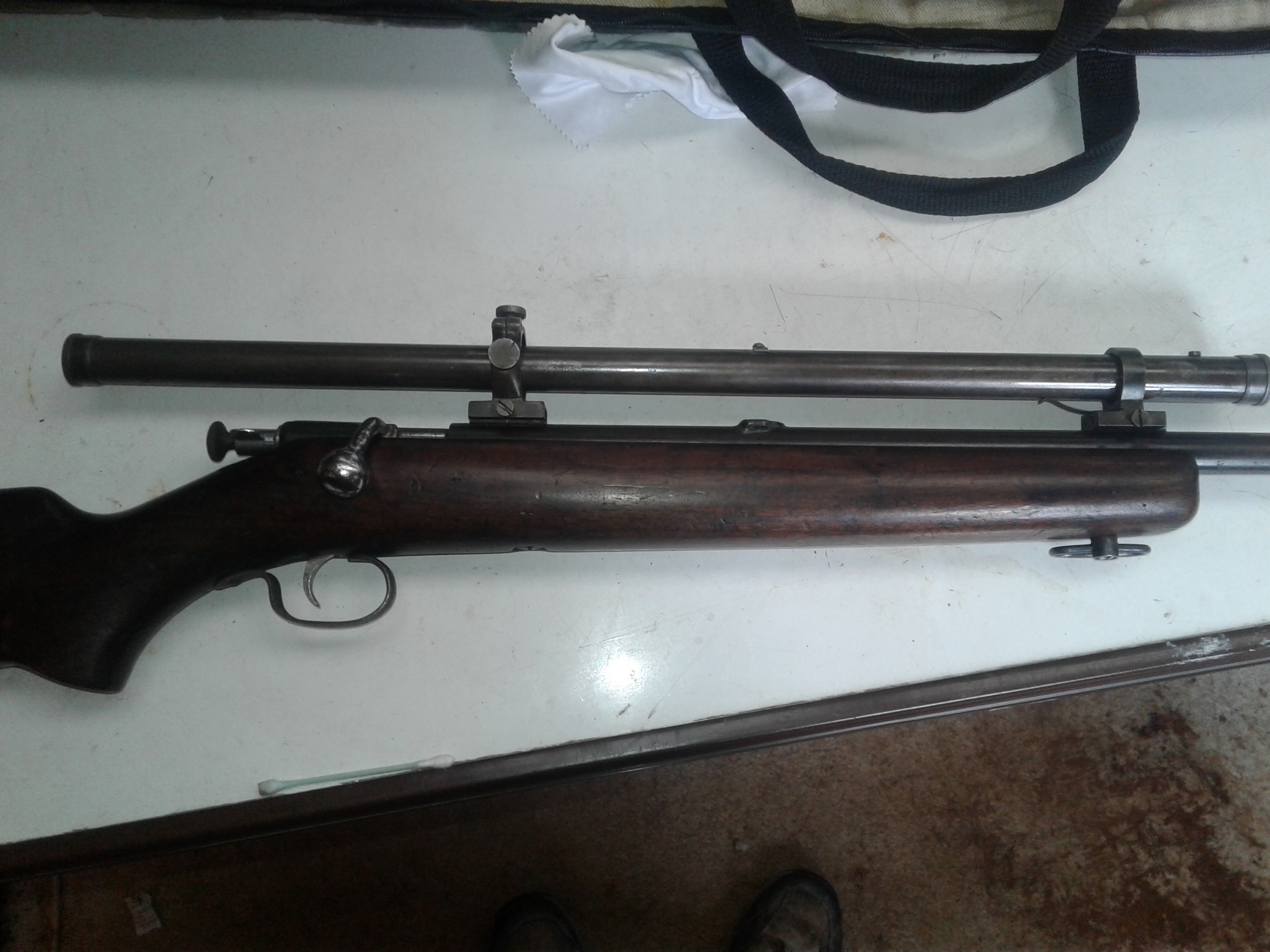

    The front mount on the Stevens 368 has an off round shape and a small strong spring that keeps it at the top and in the same place and a small return to battery screw in the scope body that sits in a small open V in the front top face of the front mount.
    There are lots of other front mount variations

    Name:  stevensscope 1.jpg
Views: 98
Size:  1.30 MB

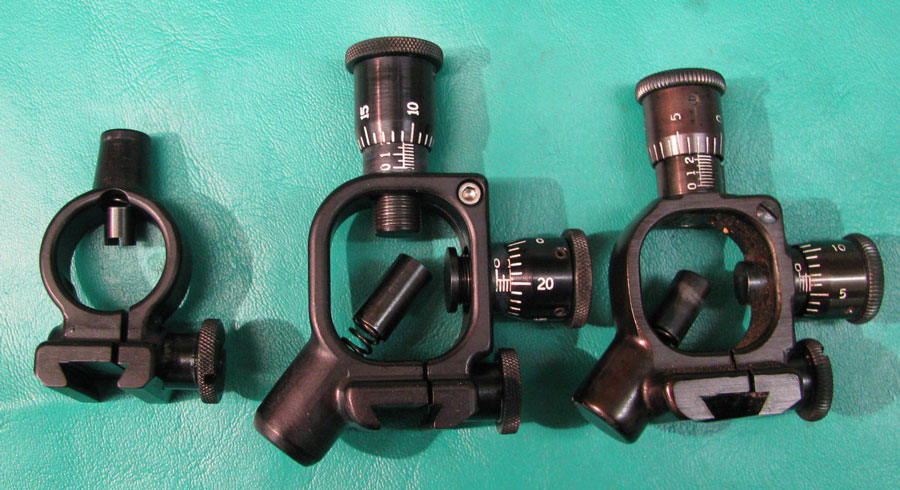

    The rear mounts have a strong screw plunger on the diagonal opposite to the elevation and windage adjustments
    These are pretty standard for all the rear mounts.

    Name:  unhertl-scope-mounts-022-web.jpg
Views: 98
Size:  125.9 KB

  6. #6
    Member Sako851's Avatar
    Join Date
    Jun 2018
    Location
    Manawatu
    Posts
    530
    Really enjoy seeing this kind of stuff, probably wouldn’t have seen it otherwise. Very cool
    Cordite likes this.

  7. #7
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    946
    And the Unertl Vulture is now fitted to the 1885 project rifle still "in the white"
    I had made up a mock up macrocarpa stock to be able to look at the location of the scope, the transition from parallel octagonal to tapered round and the fore end hanger location which is fitted into a dovetail rebate under the barrel.

    The Unertl front mount is different again with an auto return to battery system being a spine on the scope running in a groove in the top mount and a plunger spring in the bottom. And a large adjustable return to battery spring

    Name:  1885 : vulture .jpg
Views: 98
Size:  2.06 MB

    Lots still to do to finish the project but its all come together rapidly once I got that scope
    Cordite likes this.

  8. #8
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    946

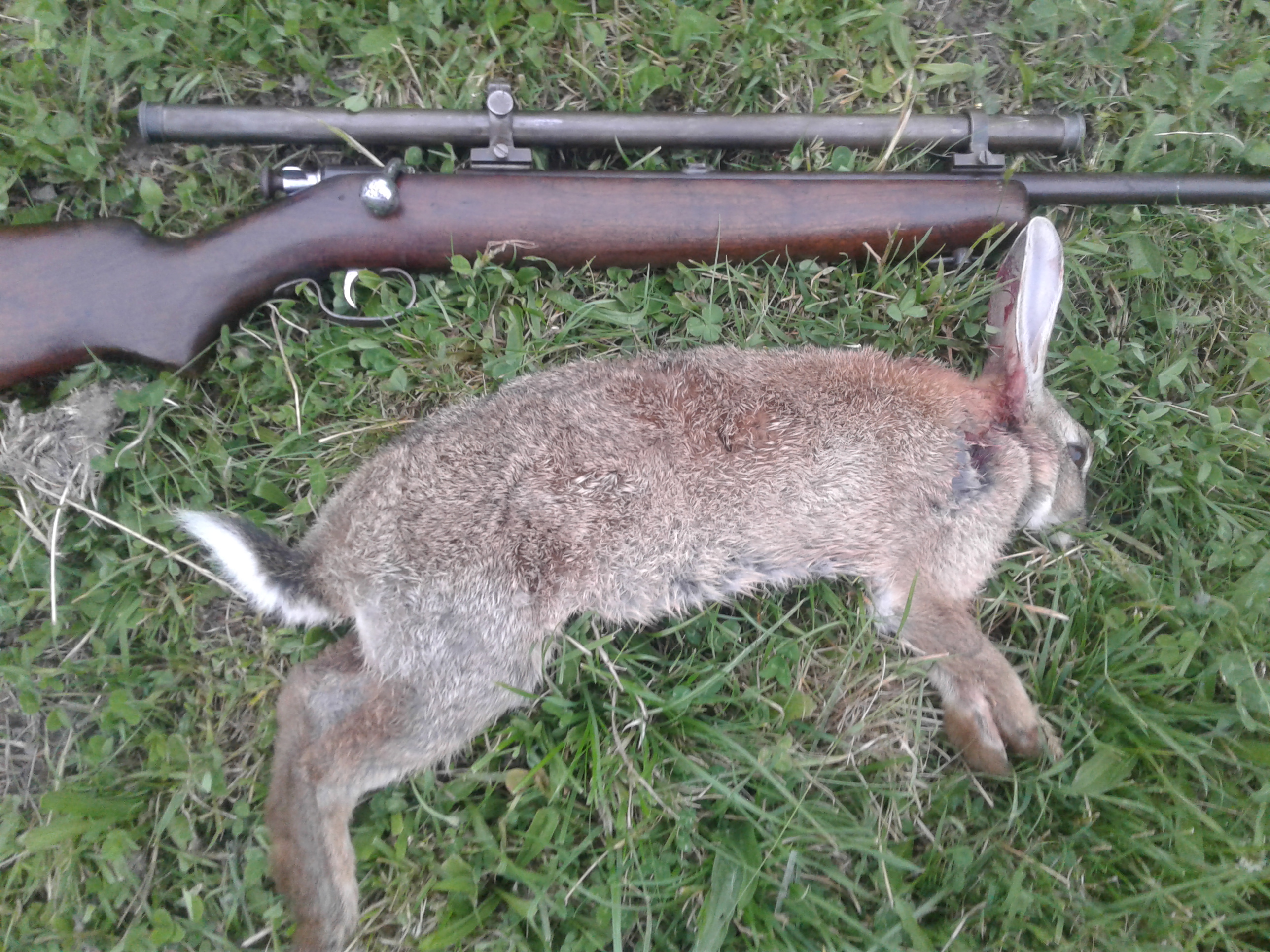

    Took out the new old Model 67 and Stevens scope this evening for the first time.
    Got a rabbit and a hare.
    But it was a really dull overcast evening and the scope isn't nearly as bright as a modern one.

    Name:  stevens rabbit .jpg
Views: 48
Size:  2.31 MB
    ROKTOY likes this.
