Thread: Kimber 84 chassis- expressions of interest.

  1. #1
    Member
    Join Date
    Jul 2012
    Location
    Timaru
    Posts
    794

    Kimber 84 chassis- expressions of interest.

    Hi all.
    I've been approached to make a light weight chassis for the Kimber 84.
    It's all designed up and ready to go. There are somethings I'm still debating, like having QD cups on the forend, either sides or front.
    Wondering if anyone else has interest in one before I start the builds. Way more effective to do multiples.

    It is based of the Elude, should be under 700grams, will have a recoils pad due to the larger 308 size cases that can be used vs the howa mini.

    Cost should be about $1200.

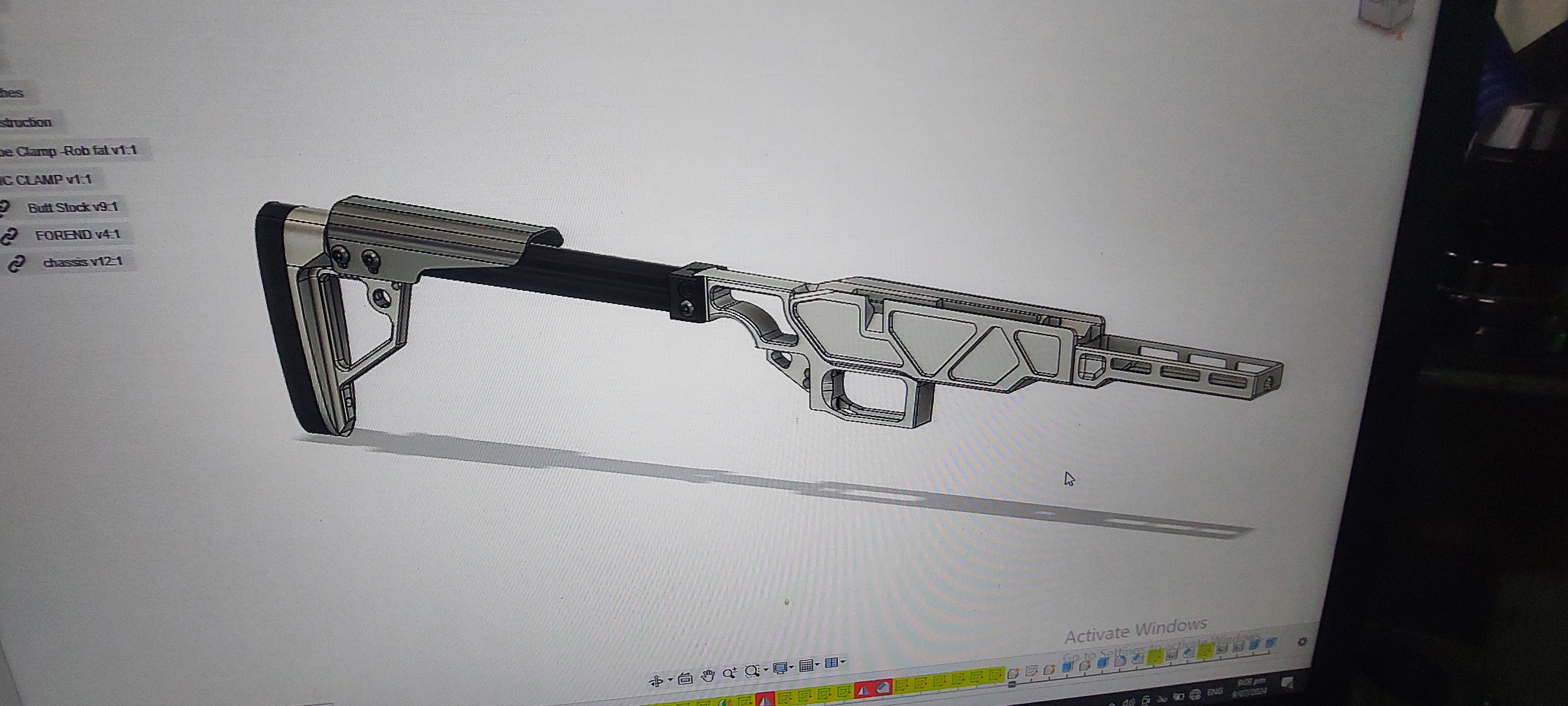

    Name:  20240709_210951.jpg
Views: 597
Size:  2.35 MB

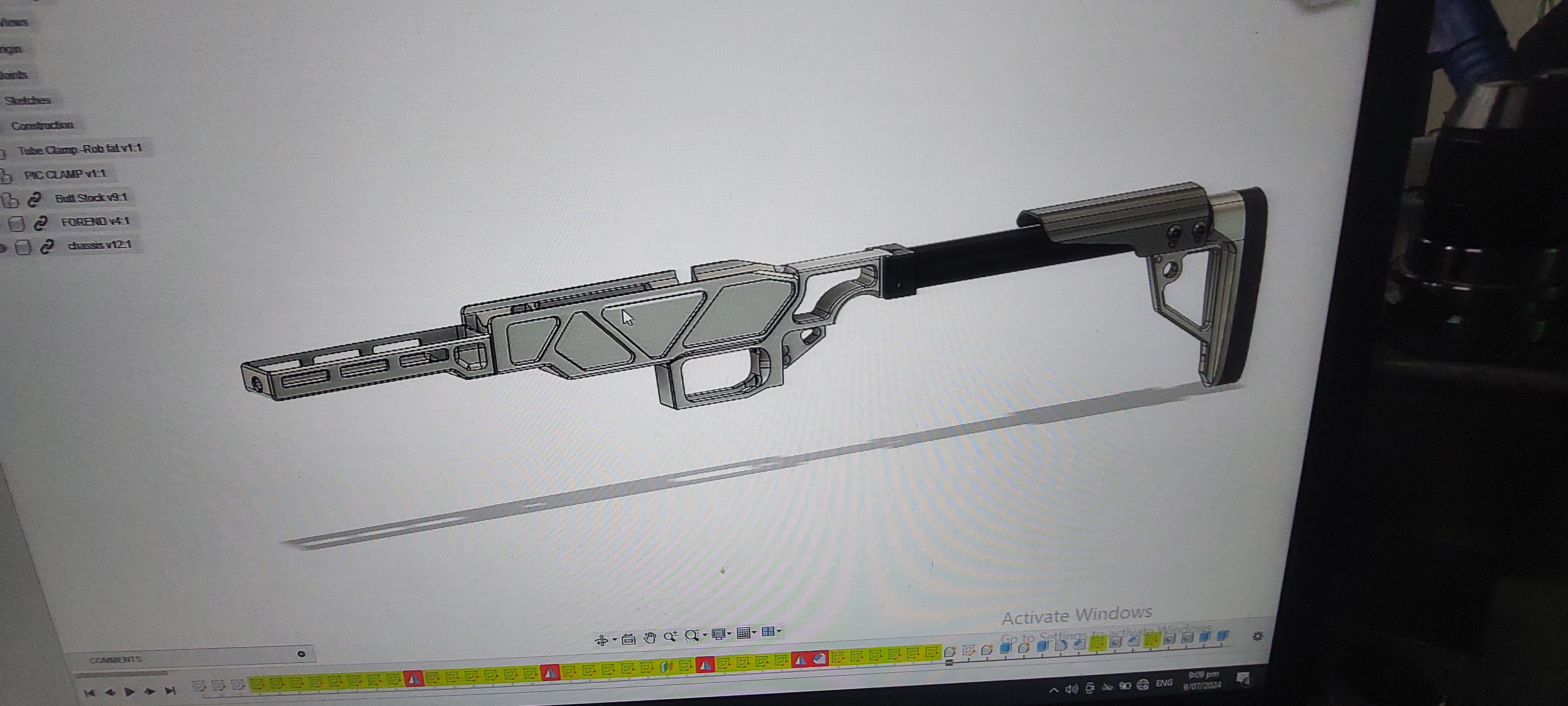

    Name:  20240709_210941.jpg
Views: 596
Size:  2.34 MB

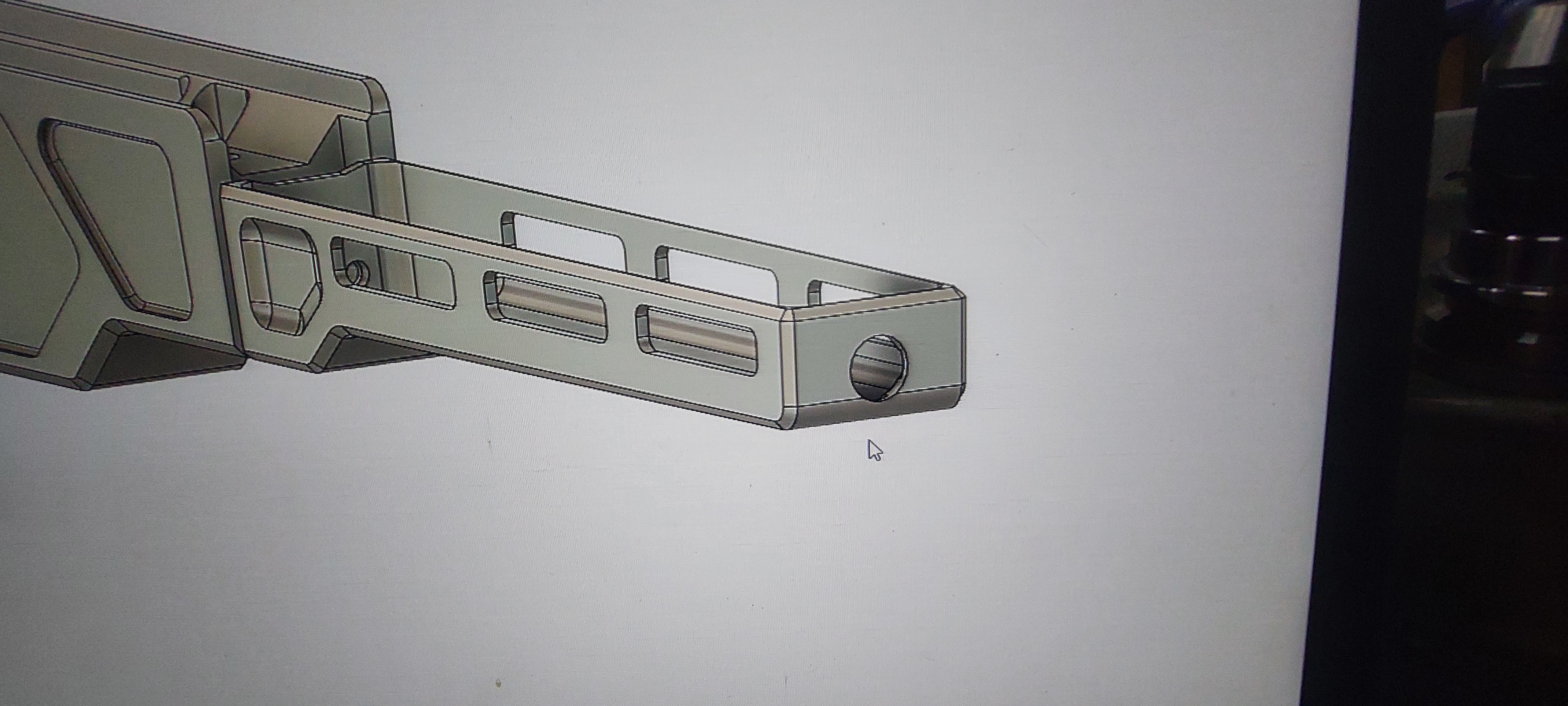

    Name:  20240709_211001.jpg
Views: 585
Size:  2.13 MB
    CNC Machining
    Hgprecision.net

  2. #2
    Member
    Join Date
    Jun 2015
    Location
    Hamilton
    Posts
    1,276
    Will they take the factory mag? Id be interested, no fancy bells and whistles just standard sling attachments

  3. #3
    Member
    Join Date
    Jul 2012
    Location
    Timaru
    Posts
    794
    Quote Originally Posted by matto1234 View Post
    Will they take the factory mag? Id be interested, no fancy bells and whistles just standard sling attachments
    Sorry forgot to mention that.
    Will take the standard internal box, so won't be a drop bottom metal or removal mag type.
    CNC Machining
    Hgprecision.net

  4. #4
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,194
    Just a note wouldn't be a bad idea to maybe make the internal box part of the chassis if possible. All the actions have the feed rails I think so should just need a follower and spring. Would make it an option for those with hunters and you could potentially add a little coal with a quick manipulation of the bolt stop.

    Personally qd at front seems the best as if you want a side mount it's very easy to add one via mlok.
    Nick-D and Gkp like this.

  5. #5
    Member
    Join Date
    Jun 2015
    Location
    Hamilton
    Posts
    1,276
    Ive got the single stack mag with the hunter, a double stack internal would be way better

  6. #6
    Member
    Join Date
    Jul 2012
    Location
    Timaru
    Posts
    794
    Quote Originally Posted by Stocky View Post
    Just a note wouldn't be a bad idea to maybe make the internal box part of the chassis if possible. All the actions have the feed rails I think so should just need a follower and spring. Would make it an option for those with hunters and you could potentially add a little coal with a quick manipulation of the bolt stop.

    Personally qd at front seems the best as if you want a side mount it's very easy to add one via mlok.
    The action I have here doesn't have feed rails in it. Need the internal folded metal box to feed. Possibly I could make them as an extra, but I doubt the work vs number would make it worth it.Name:  20240712_204616.jpg
Views: 550
Size:  2.89 MB
    Micky Duck and Stocky like this.
    CNC Machining
    Hgprecision.net

  7. #7
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,194
    Quote Originally Posted by robhughes-games View Post
    The action I have here doesn't have feed rails in it. Need the internal folded metal box to feed. Possibly I could make them as an extra, but I doubt the work vs number would make it worth it.Attachment 254661
    Been awhile since i had my ascent I'm pretty sure rounds are held down by the rails on the action as pictured just smaller than say a remington 700s. I'm certain the wsm mag box i have in the sheds just straight walled and could be replicated by a cavity in the chassis the same size. I think the pinching of those rails is maybe to stop the rounds coming loose for more tapered cases. but an insert could solve this if it was an issue.

    Or alternatively I wouldn't think it would be too difficult to to make a double stack single feed magazine built into the chassis that would open up alot more sales as i doubt as many montanas are looking to upgrade as hunters. The hunters already use this system not using the same rails as the montana even though they are present in the actions.

  8. #8
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,194
    But yes get you have to make it worth while. Just ideas

  9. #9
    Member
    Join Date
    Jun 2013
    Location
    Middle Earth
    Posts
    4,326
    Maybe the chassis could have a wider square cavity for the mag, and you get a 3D printed mag box that fits in the chassis and in the action, still using the original feed lips?
    Does the hunter have feed rail as well or not?

  10. #10
    Member
    Join Date
    Dec 2017
    Location
    North Canterbury
    Posts
    2,194
    Quote Originally Posted by Friwi View Post
    Maybe the chassis could have a wider square cavity for the mag, and you get a 3D printed mag box that fits in the chassis and in the action, still using the original feed lips?
    Does the hunter have feed rail as well or not?
    Yes Actions are identical.

  11. #11
    Member
    Join Date
    Jun 2015
    Location
    Hamilton
    Posts
    1,276

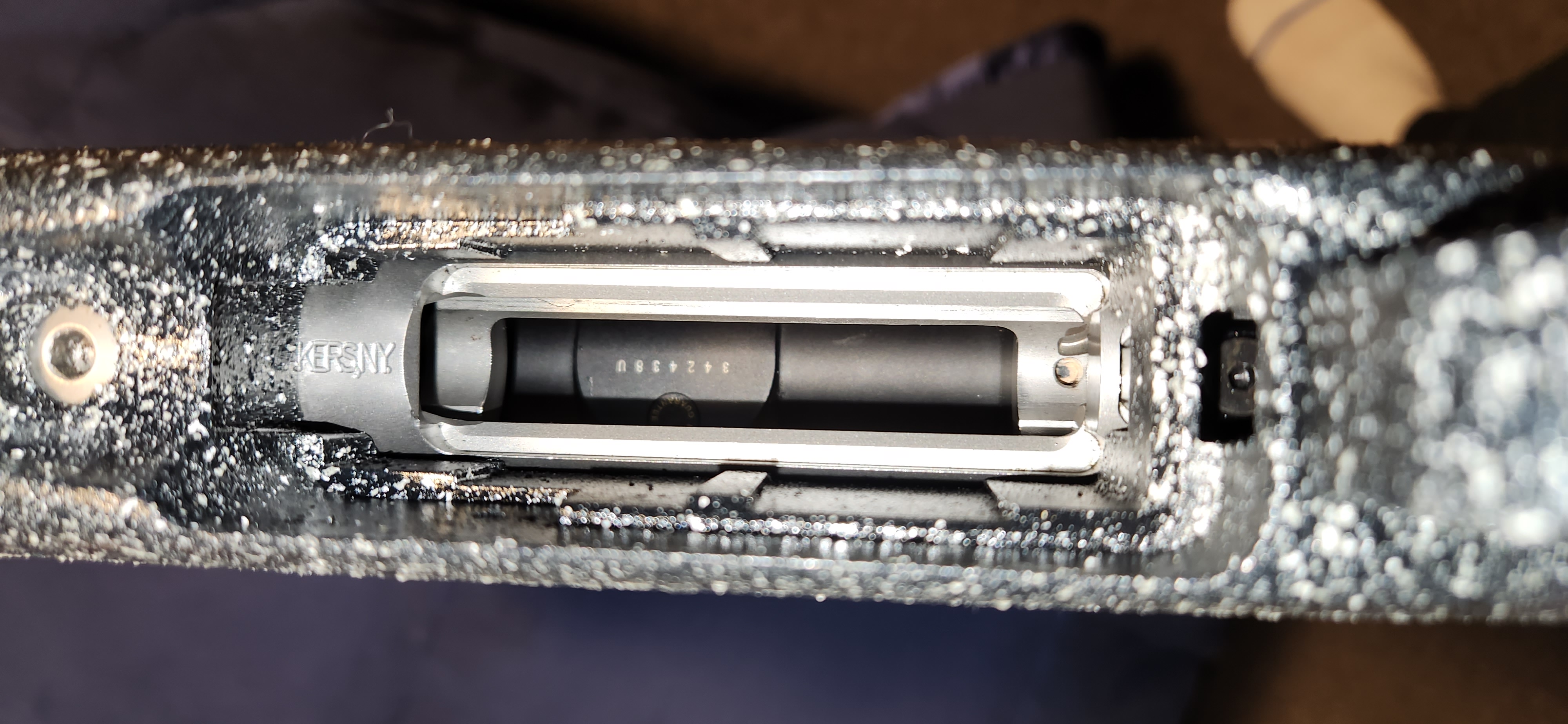

    Name:  20240713_175408.jpg
Views: 457
Size:  1.37 MB

  12. #12
    Member
    Join Date
    Jun 2013
    Location
    Middle Earth
    Posts
    4,326
    That way you could print either a 308 mag box or a 223 mag box ( they do exist as well as 204 ruger, don’t forget that, so provision for the heavy barrel version should be considered in the design).

  13. #13
    Member
    Join Date
    Mar 2014
    Location
    Tauranga
    Posts
    3,003
    Keen, but have a hunter action so would need to sort what the mag deal is.

  14. #14
    Member
    Join Date
    Jun 2015
    Location
    Hamilton
    Posts
    1,276
    How is this progressing?

  15. #15
    Member
    Join Date
    Jul 2012
    Location
    Timaru
    Posts
    794
    Quote Originally Posted by matto1234 View Post
    How is this progressing?
    I got material to make 8. One day once I stop contacting back to the old boss I'll start them. Issue is I'm away to canada for August.
    matto1234 likes this.
    CNC Machining
    Hgprecision.net
