Thread: .22 K Hornet barrel twist rate ?

  1. #1
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    705

    .22 K Hornet barrel twist rate ?

    I'm just about to send an action off to get a custom octagonal barrel made and fitted.
    Its going to be a .22 K Hornet and I'm intending using it as an old school walking varmint rifle.
    Will be 224 barrel and I guess I will be mainly running 45 and 50 grain projectiles at moderate speeds for K Hornet as the action is an original 1885 Winchester Low Wall single shot.

    I have the choice of 1:8, 1:10, 1:12 and 1:14" twist rates.
    My investigations have lead me to think 1:12" would be the sweet spot for this cartridge and what I want it to do.
    But this will be my very first experience with a Hornet for reloading etc
    What do those of you in the know think I should go for ?
    And what barrel twist ( if known ) do those of you who have a 22 Hornet or 22 K Hornet use ?

  2. #2
    Member
    Join Date
    Dec 2012
    Posts
    213
    Yes, I'd go for a 1:12 for those weights. Should also handle 40gr. Great wee caliber in K form.

  3. #3
    Member northdude's Avatar
    Join Date
    Apr 2013
    Location
    north auckland area
    Posts
    4,114
    Ive got 2 22 hornets as far as i can find out they are 1 in 12s i reload for them and use 35vmax if you havnt reloaded for this cal before your going to learn patience as well its one of those calibers you either love or hate i love them

  4. #4
    Member
    Join Date
    Jul 2012
    Location
    Invervegas
    Posts
    1,028
    My K Hornet is 1:16 and thats a pain. I'd go 1:12 too, its very rare for "over stabilized" bullets not to shoot just fine, and its not like a K Hornet will push anything fast enough to cause it to fly to bits.

  5. #5
    Member
    Join Date
    Mar 2012
    Location
    Christchurch
    Posts
    483
    Longer, more streamlined 50gr bullets will definitely need the 1:12 twist; what I would use if I had a choice (although I have managed to get accuracy with very blunt/short 50gr Highland bullets in a 1:16 Hornet). There are several reamer variations in shoulder angle and neck length which are promoted as the K-Hornet (Kilbourne Hornet). Be careful that the reamer that you use is compatible with easily available die sets or you may have to fork out significant money for a custom die set. PPU brass is the best commonly available brass if you don't have a supply of Norma or RWS. Saubier.com is the primary web-based source of information about everything Hornet.
    Last edited by rupert; 12-10-2018 at 07:10 PM.

  6. #6
    Member northdude's Avatar
    Join Date
    Apr 2013
    Location
    north auckland area
    Posts
    4,114
    could you get a standard hornet die reamed with the same reamer that youll use on the build

  7. #7
    Member Wingman's Avatar
    Join Date
    Aug 2018
    Location
    Hamilton
    Posts
    268
    I have built two .22 K hornets both on 1-14" twist barrels and both shot great. Only ever shot 40gr vmax and 40gr Blitzkings through them to keep the speeds up o the tiny cartridge. Id go 1-12" for anything heavier than 45gr but dont expect too much speed from that combo.
    I highly recommend annealing your brass before fireforming as that hornet brass is really bad for split necks and case head separation as the brass is thin and migrates fast.

  8. #8
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    705
    1:12 it is then

  9. #9
    Member northdude's Avatar
    Join Date
    Apr 2013
    Location
    north auckland area
    Posts
    4,114
    don't forget some pics as well

  10. #10
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    705
    This is the 1885 Low wall action with a wooden octagonal barrel fitted so that the main spring could be installed to be able to test the full function of the action. And especially the single set trigger.

    Name:  action and macro barrel.jpg
Views: 71
Size:  1.08 MB

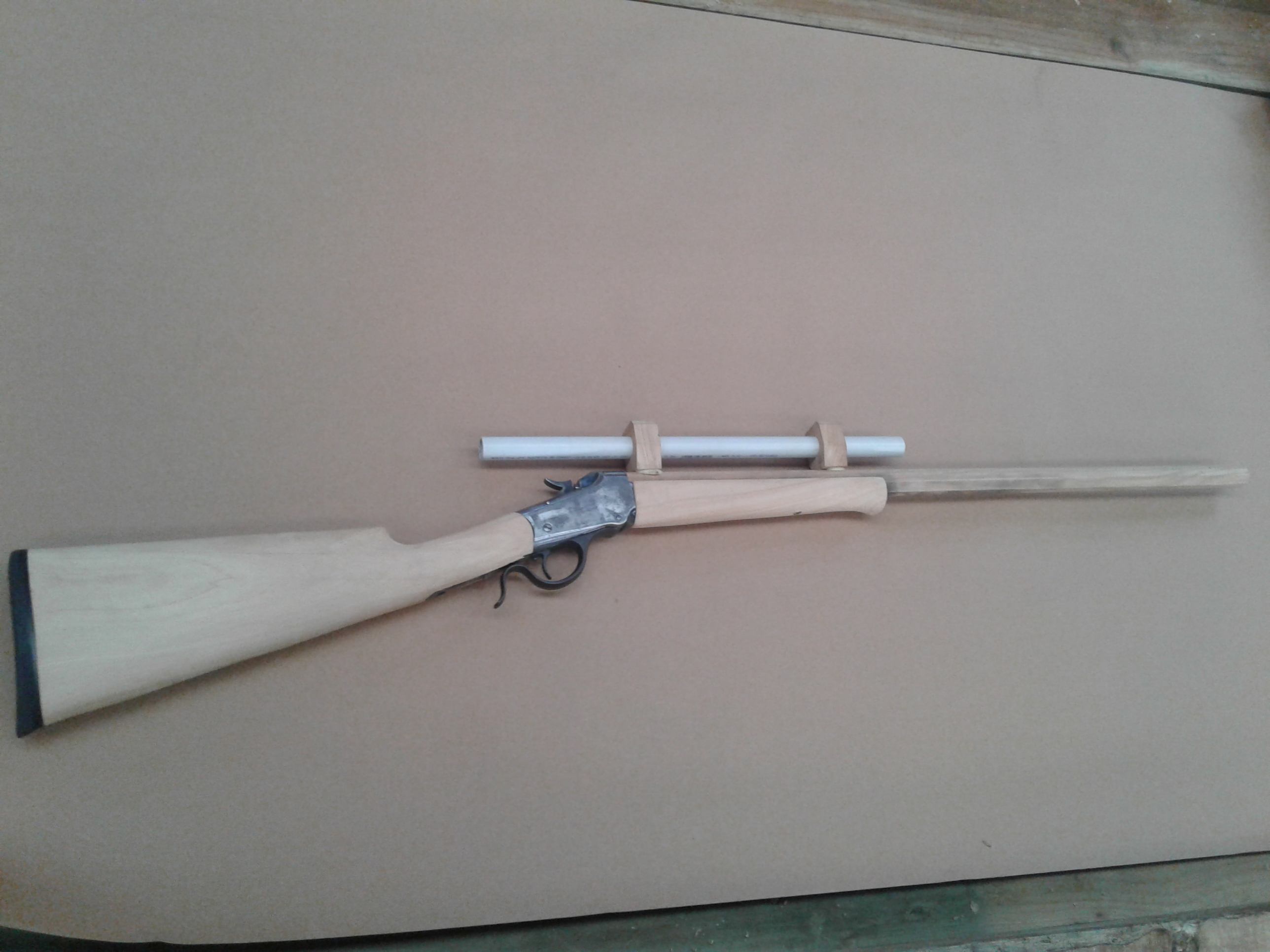

    And this is the full mock up of where its all going to.
    Octagonal 25" barrel.
    The PVC pipe is a mock up of a WM Malcolm 6x telescope sight which is 18" x 3/4" tube in exterior adjustable mounts.
    The macro stock mock up was so I could work out how far to lift the cheek piece up to be able to see through the scope without the head floating around. And also I haven't made a complete walnut gun stock in ages and though it might be good practice to rough one up out of some off cuts before cutting into the walnut.

    Name:  1885 mock up.jpg
Views: 70
Size:  1.03 MB

    I'm practicing slow rust bluing on a couple of less valuable projects at the moment and should be up to speed when the 1885 gets back from the Gunsmith's.
    Wouldn't want to make a mess of this one !

  11. #11
    R93
    R93 is offline
    Member R93's Avatar
    Join Date
    Feb 2012
    Location
    Westland NZ, PNG
    Posts
    13,484
    Great wee cartridge. Always wanted one and lucked out when NZ noddy sold his to me. Shot a couple deer with it using 55 hornady sp's.
    40 vmax turns rabbits and such inside out.
    Get a bit of speed out of them for their size.
    Try and source RWS brass and anneal it like mentioned above.
    I have had no trouble reloading mine apart from tight necks. Annealing and graphite has sorted that.

    Sent from my SM-G965F using Tapatalk
    Do what ya want! Ya will anyway.

  12. #12
    Member
    Join Date
    Mar 2012
    Location
    Christchurch
    Posts
    483
    akaroa1: where do you get the materials for slow rust bluing from (always wanted to have a go)?

  13. #13
    Member northdude's Avatar
    Join Date
    Apr 2013
    Location
    north auckland area
    Posts
    4,114
    Looks cool will be keeping an eye out for it

  14. #14
    Member
    Join Date
    Dec 2014
    Location
    canterbury
    Posts
    705
    Quote Originally Posted by rupert View Post
    akaroa1: where do you get the materials for slow rust bluing from (always wanted to have a go)?
    I'm using Laurel Mountain slow rust blue.
    I have borrowed a carding wheel and brush but don't use the wheel.
    0000 steel wool is all you will need for carding.
    I'm steaming to turn the red oxide to black oxide.

    The real art is in getting the metal very well prepared and working through the abrasive grades all the way from 80 grit to 400 grit and not trying to make big jumps between abrasive grades.
    I alternate between cross sanding and draw sanding and a usual regime is 80, 100, 150,180,240,280,320 and 400 grit .... so its not quick, but it is beautiful when you get it right.

    I now need to get a set of grinding stones for some of the projects coming up so that I can stone some items through the grades and keep the flats flat etc

    I did plenty of practice on barrel stubs before I started on the current projects.
    It's a steep learning curve.
    veitnamcam and Matt2308 like this.

  15. #15
    Member
    Join Date
    Sep 2014
    Location
    West NSW Australia
    Posts
    118
    I'm gunna have to keep a good eye on this thread, always greatly desired an original Low wall, or even betterer a High Wall, 22K Hornet is a fun little cartridge to play with, but I would much prefer a 221 Fireball or 222, but thats just me. I sure hope it ends up a good un.
