Do you reload 12 bore using the MEC 600 Junior press?
If so, a few further questions should you be so kind to consider. Do you, or have you, used it to reload 2 1/2 inch as well as 2 3/4 and 3 inch hulls?

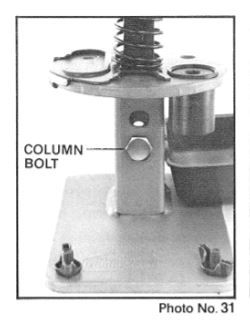

If so, then you will know that the 600 has this ability to load more than one 12 bore hull length and it is achieved without the need to insert a 1/4 inch riser plate, as required with some other MEC press's because the 600's base plate support collar for the metal column as well as the metal column, each have two holes, one positioned above the other and the insertion of a column bolt into various permutations of the column and base plate hole 's achieve this.
Attachment 174600
I have a couple of second hand 600's but the resource material available to me make no mention of the alignment of the column and base plate collar holes apart from "raising it a quarter of an inch for 3 inch hulls". As both my second hand units arrived with no indication as to what their settings of the holes were, I have no point to start from to adjust their height.
I "suspect" that they were both at 2 3/4 inch settings 's but have enough problems with column height without charging blindly on and crushing "lotsa" hulls.
SO, the knowledge I seek, Please with a side salad of thank you's, is what are the column and base plate collar holes alignment settings you use for your different hull lengths.
