Thread: Help leica 2000 b setup

  1. #1
    Hunter gatherer dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    2,641

    Help leica 2000 b setup

    Hey team, maybe just my sleep deprived brain but I need a local guru if possible, picked up a Leica 2000 b off a mate only he can't find the instructions.
    I did a quick Google search and found the downloads but fook me I'm struggling to comprehend it all.
    Also I couldn't find the ballistic compensation chart in the onlibe download.
    Is there anyone based in either Chch or North Canterbury that could help me ?
    Frodo likes this.

  2. #2
    Member
    Join Date
    Mar 2017
    Location
    Southland
    Posts
    980
    Imagine if all the hunter gatherers 10,000 years ago were like "my spear didn't come with any instructions".

    The human race would have been f*cked.

    Yep. Hunting has come a long way alright.

  3. #3
    Hunter gatherer dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    2,641
    Pretty sure this is just a fraction more complicated than a spear.....Thanks for your help
    Last edited by dannyb; 28-09-2019 at 10:15 PM.
    Frodo likes this.

  4. #4
    Caretaker
    Join Date
    Dec 2011
    Location
    Hawkes Bay
    Posts
    6,509
    If you get stuck for info let me know

    A call on the phone is the easiest way to help you as the setup is quite technically oriented
    dannyb likes this.
    A big fast bullet beats a little fast bullet every time

  5. #5
    Member
    Join Date
    Nov 2012
    Location
    Wellington
    Posts
    444
    @dannyb I can send you some screen shots of the manual, I'll send you ballistic charts through PM if it helps. Or you can give me your email which would be easier. Leica really made it a pain in the arse to setup, tried to get too fancy.
    7mmsaum and dannyb like this.

  6. #6
    Member
    Join Date
    Nov 2012
    Location
    Wellington
    Posts
    444
    @7mmsaum I only ever use the EHr function, temp and pressure and ignore all the other stuff. Are you the same?
    dannyb likes this.

  7. #7
    Member
    Join Date
    Jun 2013
    Location
    Middle Earth
    Posts
    2,647
    I have instruction at home. Pm me if you want.
    dannyb likes this.

  8. #8
    Caretaker
    Join Date
    Dec 2011
    Location
    Hawkes Bay
    Posts
    6,509
    Quote Originally Posted by McNotty View Post
    @7mmsaum I only ever use the EHr function, temp and pressure and ignore all the other stuff. Are you the same?
    Not quite,

    I use my binos for a .22rf, a.223, a 7mm08, a 308, two rem mags, a 338 and then any other rifle that I’m working on

    I get all the data and input it into knights Armament “ BulletFlight” and then dial up the required MOA

    Can then use any rifle and any distance without worry

    If I only had one rifle (had a wee panic typing that) then yes Leicas own internal ballistic software would suit to 1000yrds, but 1500yrds would be better as 1000 is very common in Sika country, - and unfortunately so is the wind
    SlimySquirrel likes this.
    A big fast bullet beats a little fast bullet every time

  9. #9
    Member
    Join Date
    Mar 2017
    Location
    Southland
    Posts
    980
    Is this where you got your downloads from? https://en.leica-camera.com/Sport-Op...ster/Downloads

    Maybe get some sleep and go through it all methodically in the morning. After a coffee. Or four.

    The ballistic charts start way down the bottom, on page 178.
    dannyb likes this.

  10. #10
    Hunter gatherer dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    2,641
    thanks I have printed the manual in larger font and yup found the ballistic charts too, I'll look at it post several coffees and will contact those that have offered help if still required.
    thanks everyone
    7mmsaum likes this.

  11. #11
    Hunter gatherer dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    2,641
    Hmmm mm according to this the pre set ballistic curves are nowhere near what my 270wsm is capable of. Guess I'll have to stick to EHR and a dope chart (not the end of the world),or am I missing something ?

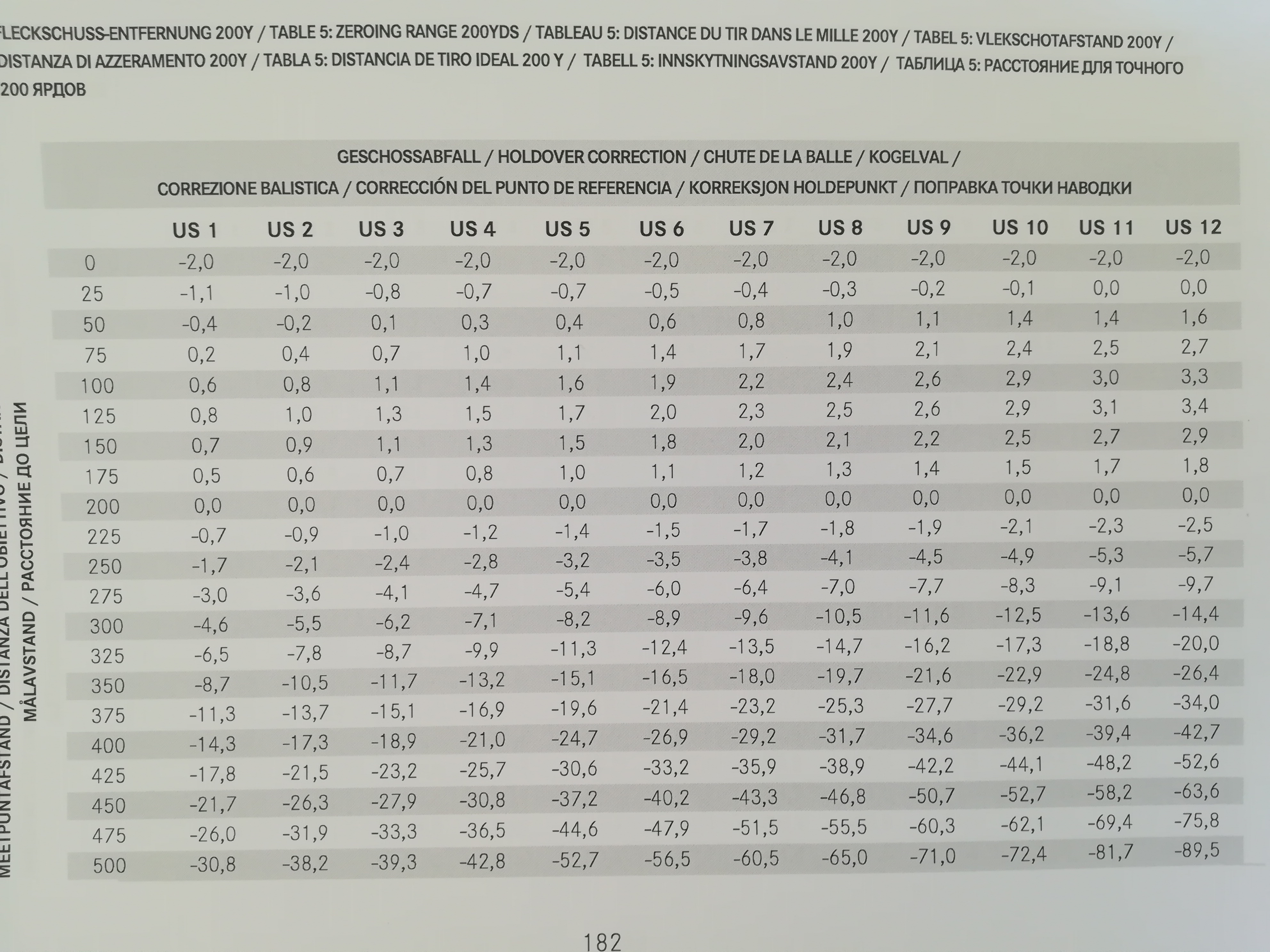

    Name:  IMG_20190929_150834.jpg
Views: 97
Size:  2.21 MB
    Leica ballistic curve chart (200 yard zero)

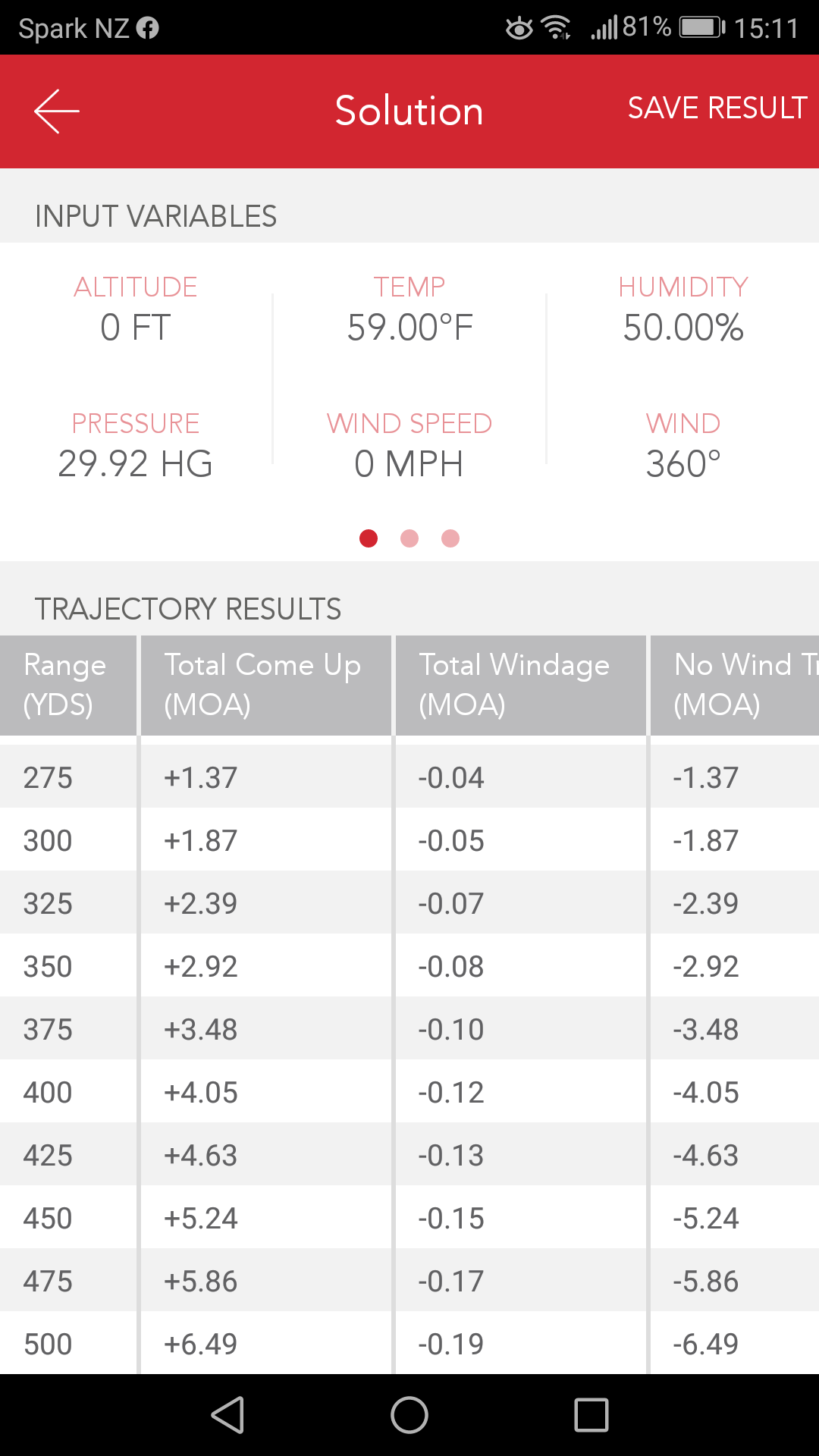

    Name:  Screenshot_20190929-151111.png
Views: 87
Size:  119.4 KB
    My dope chart from my app confirmed drop.

  12. #12
    Rabbit Herder StrikerNZ's Avatar
    Join Date
    Mar 2012
    Location
    South Canterbury
    Posts
    1,367
    That Leica chart isn't in MOA. Looks like inches?

  13. #13
    Member
    Join Date
    Feb 2016
    Location
    Stewart island / canterbury
    Posts
    7,718
    Quote Originally Posted by StrikerNZ View Post
    That Leica chart isn't in MOA. Looks like inches?
    This.... had similar issues recently qith my 2700b, think i got there in the end. Just need to find somewhere to test it past the 200m zero

  14. #14
    Hunter gatherer dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    2,641
    Quote Originally Posted by StrikerNZ View Post
    That Leica chart isn't in MOA. Looks like inches?
    Yeah but even if I convert the inches to moa it's not close enough that I would use it

  15. #15
    Member
    Join Date
    Jun 2013
    Location
    Middle Earth
    Posts
    2,647
    your trajectory would be between US1 and US 2 I think

    Best thing is put a target at 500 yards and see which one of the two work best for your rifle and ammo. Retest at a further distance if necessary but you should be within 6 inches or better of what you are aiming for on the vertical plan.
