Thread: Talley 30mm Objective/Barrel clearance ?

  1. #1
    Member Ground Control's Avatar
    Join Date
    Oct 2012
    Location
    Aussie / Marlborough Sounds
    Posts
    706

    Talley 30mm Objective/Barrel clearance ?

    I have searched , but havent come up with anything concrete.
    I want to mount a zeiss Duralyt 30mm tube , 3-12x50 scope on a Tikka T3x with Talley rings .
    I want to mount it as low as possible ( Im talking 1 or 2 mm clearance between barrel and objective )
    I would love to think the extra lows would be OK with a few cigarette papers of clearance , but may have to go up one step to the lows .
    Has anyone mounted a 50mm objective with the extra lows ?
    In my searches it seems some here are using the extra lows with 44mm objectives but cant find if the 50mm will fit .
    Just because a scope is classified as a 50mm , the true outside diameter of he scope can vary greatly between manufacturers.
    Would someone be able to measure their 40mm or 44mm scopes true outside diameter of the objective lense and the clearance / distance between barrel and scope .
    If I have those measurements I can workout if I can use the extra lows .
    Any help would be greatly appreciated
    FALL IN LOVE WITH THE NUMBERS , NOT THE IDEA

  2. #2
    Member
    Join Date
    Jul 2017
    Location
    Hawkes bay
    Posts
    369
    Name:  20190312_202106.jpg
Views: 71
Size:  3.45 MB

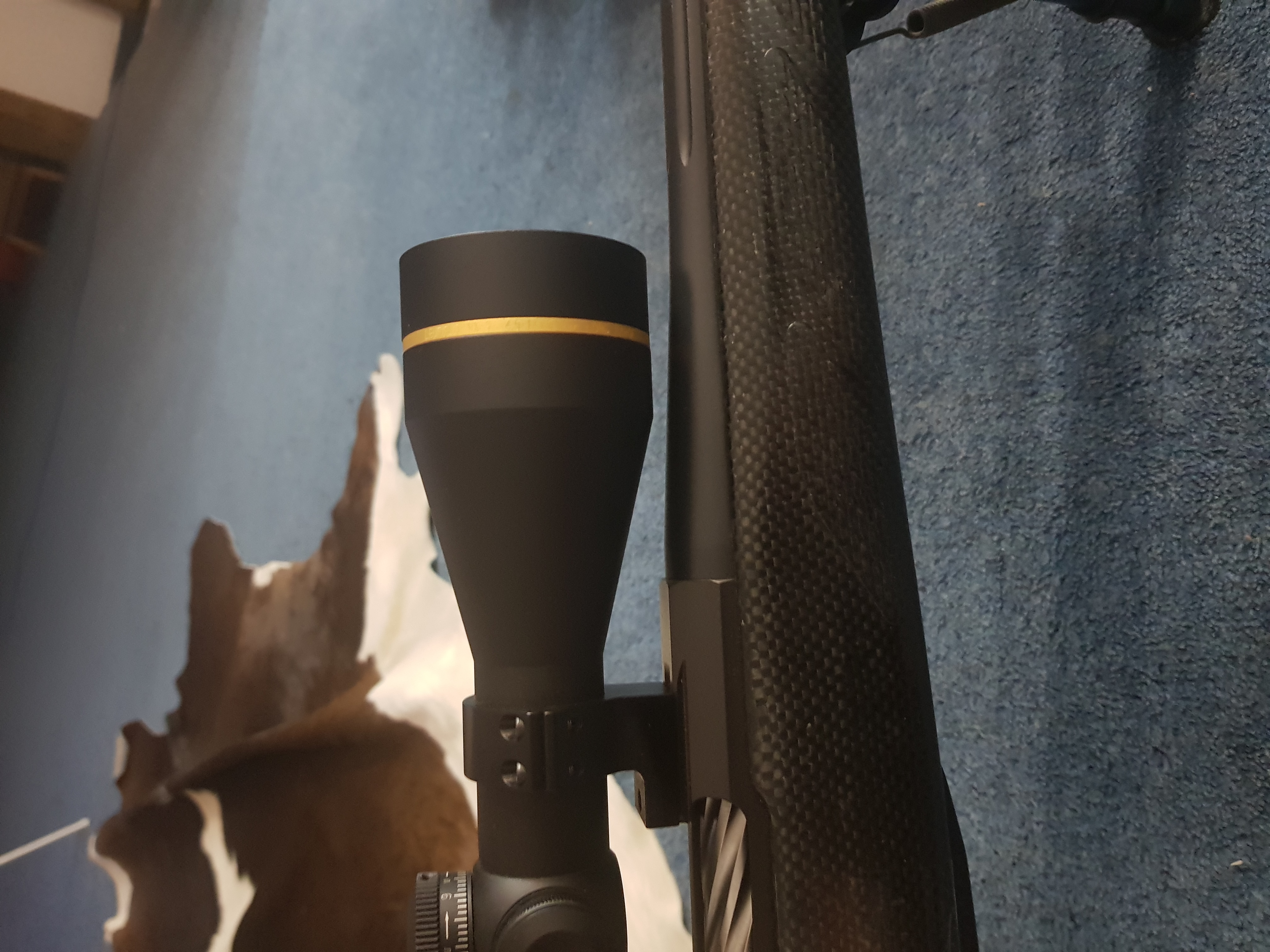

    Hay mate, dont know if it's exactly what you're after but heres mine, it's a 4.5-14×50 vx3 in talley lows. The outside diameter of the objective is 58mm. At its tightest point I cant fit a 4mm shim in so its slightly less than that with my setup.
    superdiver likes this.

  3. #3
    Member Ground Control's Avatar
    Join Date
    Oct 2012
    Location
    Aussie / Marlborough Sounds
    Posts
    706
    Thanks for that .
    I’ll do some measuring .

    PS- nice looking rifle .
    FALL IN LOVE WITH THE NUMBERS , NOT THE IDEA

  4. #4
    Member SlimySquirrel's Avatar
    Join Date
    Aug 2012
    Location
    Sydney
    Posts
    1,200

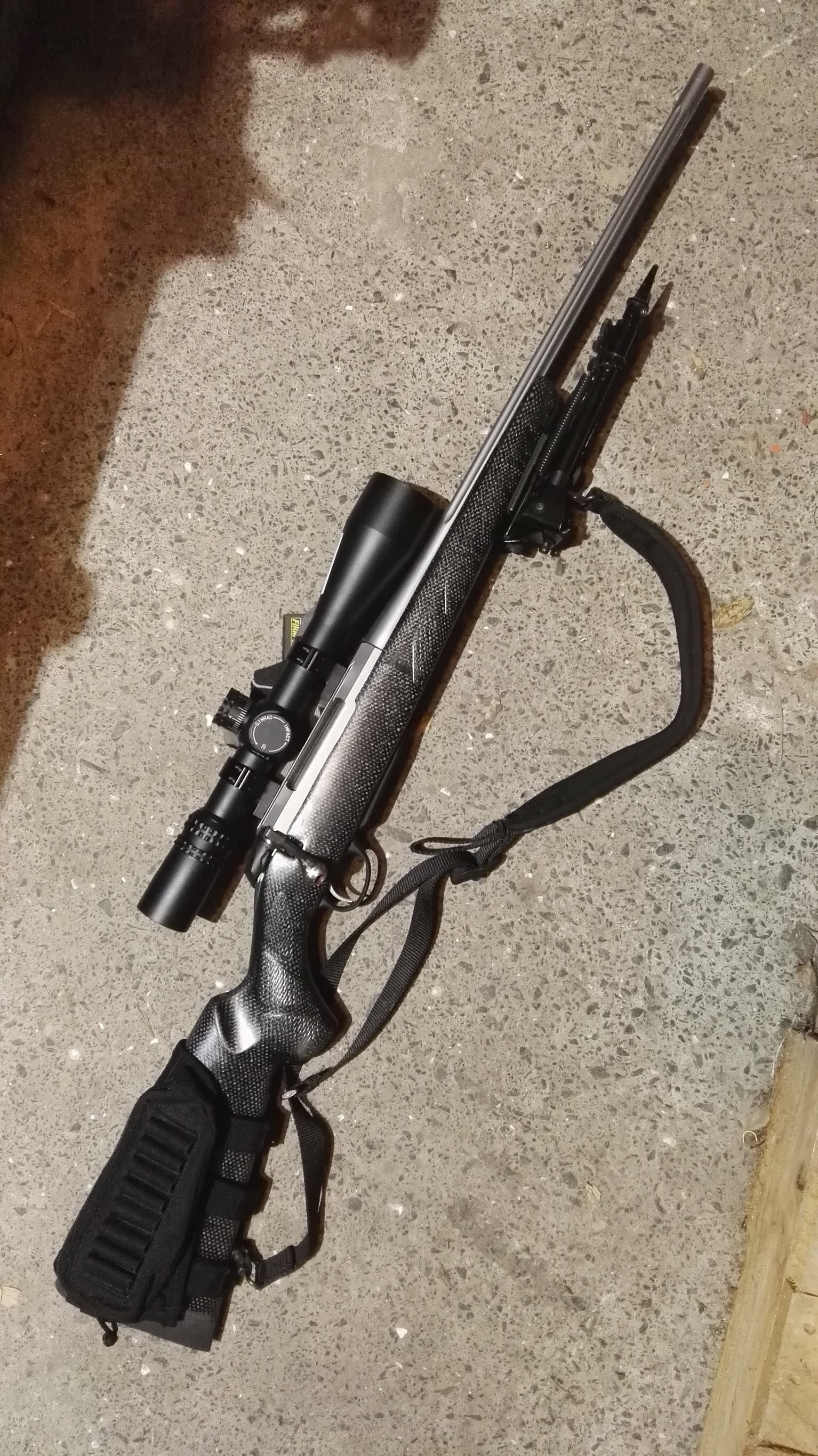

    Also wearing lows with a Nightforce NXS 50mm objective.
    Name:  2AB8851A-3908-4CDB-990E-E38809510198.jpeg
Views: 49
Size:  1.40 MB

  5. #5
    MB
    MB is online now
    Member MB's Avatar
    Join Date
    Jan 2016
    Location
    Whangarei
    Posts
    877
    A forum database of rifle/scope/rings combinations would be useful!

    Here's my contribution:

    - Tikka T3x/Leupould 40mm objective/Talley Extra Low Rings




    The clearance at the narrowest point isn't much, maybe 4mm, but hard to measure without callipers. I don't think you'd get away with a 50mm objective.

  6. #6
    Hunter gatherer dannyb's Avatar
    Join Date
    May 2018
    Location
    Oxford, North Canterbury
    Posts
    1,640
    Another issue that may crop up with extra lows, I had with my a7 when ejecting shells they would hit the bottom of the scope and not eject unless I had the rifle tipped to the right when cycling the bolt

  7. #7
    MB
    MB is online now
    Member MB's Avatar
    Join Date
    Jan 2016
    Location
    Whangarei
    Posts
    877
    Quote Originally Posted by MB View Post
    The clearance at the narrowest point isn't much, maybe 4mm, but hard to measure without callipers. I don't think you'd get away with a 50mm objective.
    Having looked at it again, it's more like 2mm!

  8. #8
    Member Hayden C's Avatar
    Join Date
    Aug 2013
    Location
    CHCH
    Posts
    375
    Name:  20181208_135356.jpg
Views: 32
Size:  3.41 MB

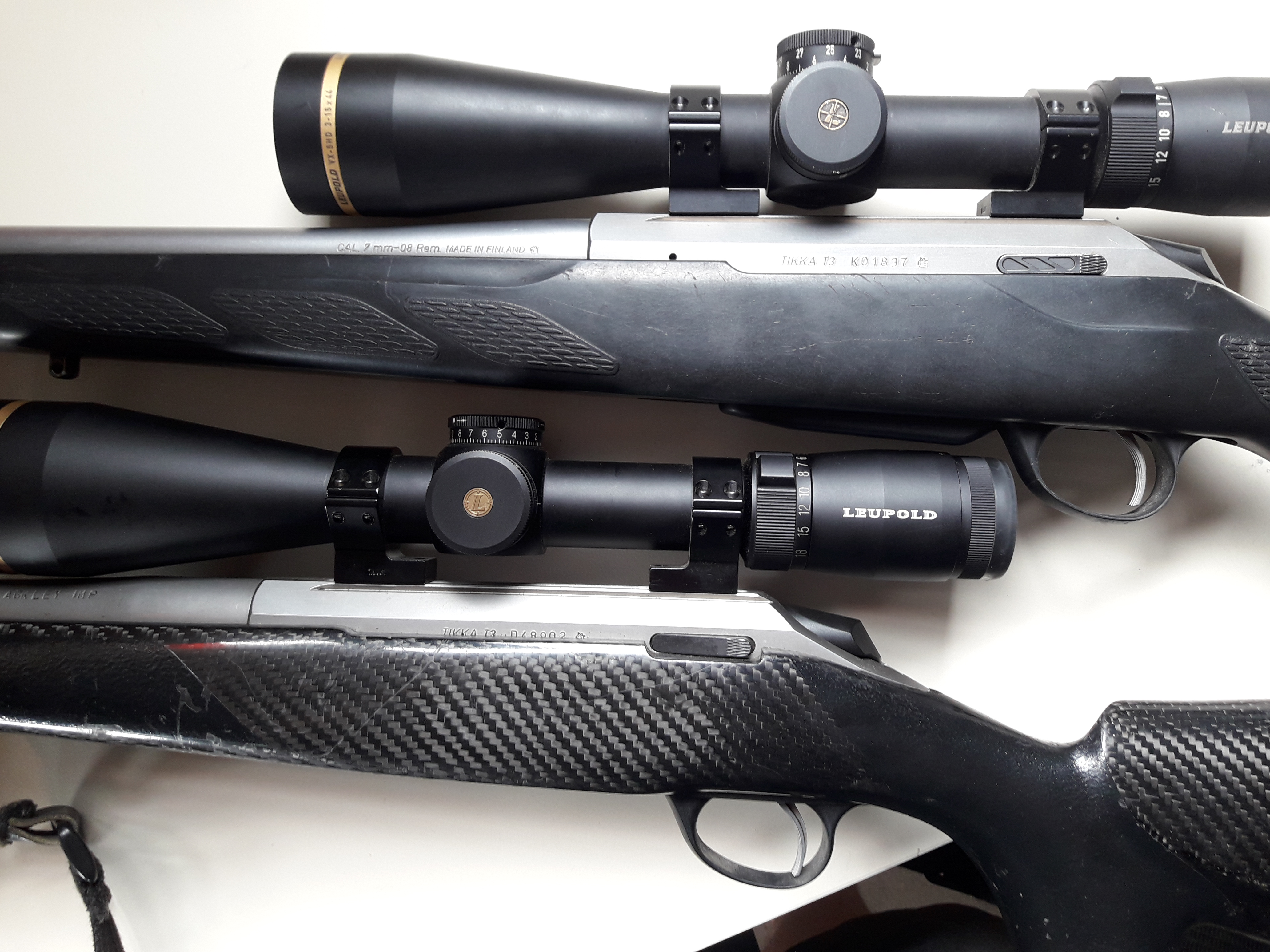

    Top is standard Tikka profile barrel with Talley extra low rings and Leupold 44mm objective.

    Bottom is a Vulcan # 3 profile barrel in Talley low rings with 50mm objective there is less than 1mm clearance here but where not comparing apples with apples given the different barrel profile.

    I’d say you’re looking at Talley Lows but If you measure of your scope objective lens and compare it to this:
    https://www.leupold.com/scopes/compa...5x44mm-cds-zl2

    Then I could tell you how much clearance I have and work out if extra lows will do the job.
