Looking at purchasing some steel rims to put mid tyres on a hilux (KUN 2006-2011) can anyone recommend the correct offset to use? Seems like main options are 0 or -22
Will be running 245-75-16 MTs
Printable View
Looking at purchasing some steel rims to put mid tyres on a hilux (KUN 2006-2011) can anyone recommend the correct offset to use? Seems like main options are 0 or -22
Will be running 245-75-16 MTs
I'd just stick with 0, unless you want a wider stance for some reason
So more negative means more offset? Ie: -22 will stick out 22mm more than 0?
Thanks, don't want a bogan truck, just a all rounder that drives well on the road and can access hunting spots etc without too much trouble so think I will stick with the 0 offset
I've got some carpet you can put on the bonnet and a 3 week old pig to throw on the back.....and lights, lotsa lights. Never have to much light
Have you got a dog box even though I don't have dogs, just so the pig can be up on display for all to see? Also I'm open to using some bald 33"s that have less traction than a set of factory sized AT's if there's any going?Quote:
Originally Posted by oraki
-22 means the wheel hub is 22mm inside the centre line so yes it will push the rim outwards
No box, but will have some bald 31's x15 MT soon. Repco got spray on mud in a can on specialQuote:
Originally Posted by Ryan_Songhurst
Are you putting on 16" ? -22 is the stanard offset for that size. If you use 0 on a wide rim like 8" then you may not clear the mudflap etc on the inner guard on full lock.
Sent from my GT-I9192 using Tapatalk
Also having that 'wider stance' is good for a bit of extra bodywork protection in ruts etc as the tyres will take the hit and not the guards.
Yes 16" rims as anything 15" won't clear the brakes.
Also good for scoring small town single mumsQuote:
Originally Posted by Nibblet
Check out Toyota Hilux 2006 - Wheel & Tire Sizes, PCD, Offset and Rims specs - Wheel-Size.com
Factory standard looks to be:
6JJx15 ET45 fitted with 205/70R15
or 7JJx15 ET10 fitted with 255/70R15
or 6JJx16 ET45 fitted with 205R16
Based on the above, and by measuring your current wheel to body work and suspension clearances you should be able to work out what a 0 or -22 offset will do.
If you go to 4WDbits Toyota Hilux VIGO 2005 to 2015 they have +30mm in 16" which I think you will find to be a better solution with less risk of tyre rub, unless you have a suspension lift.

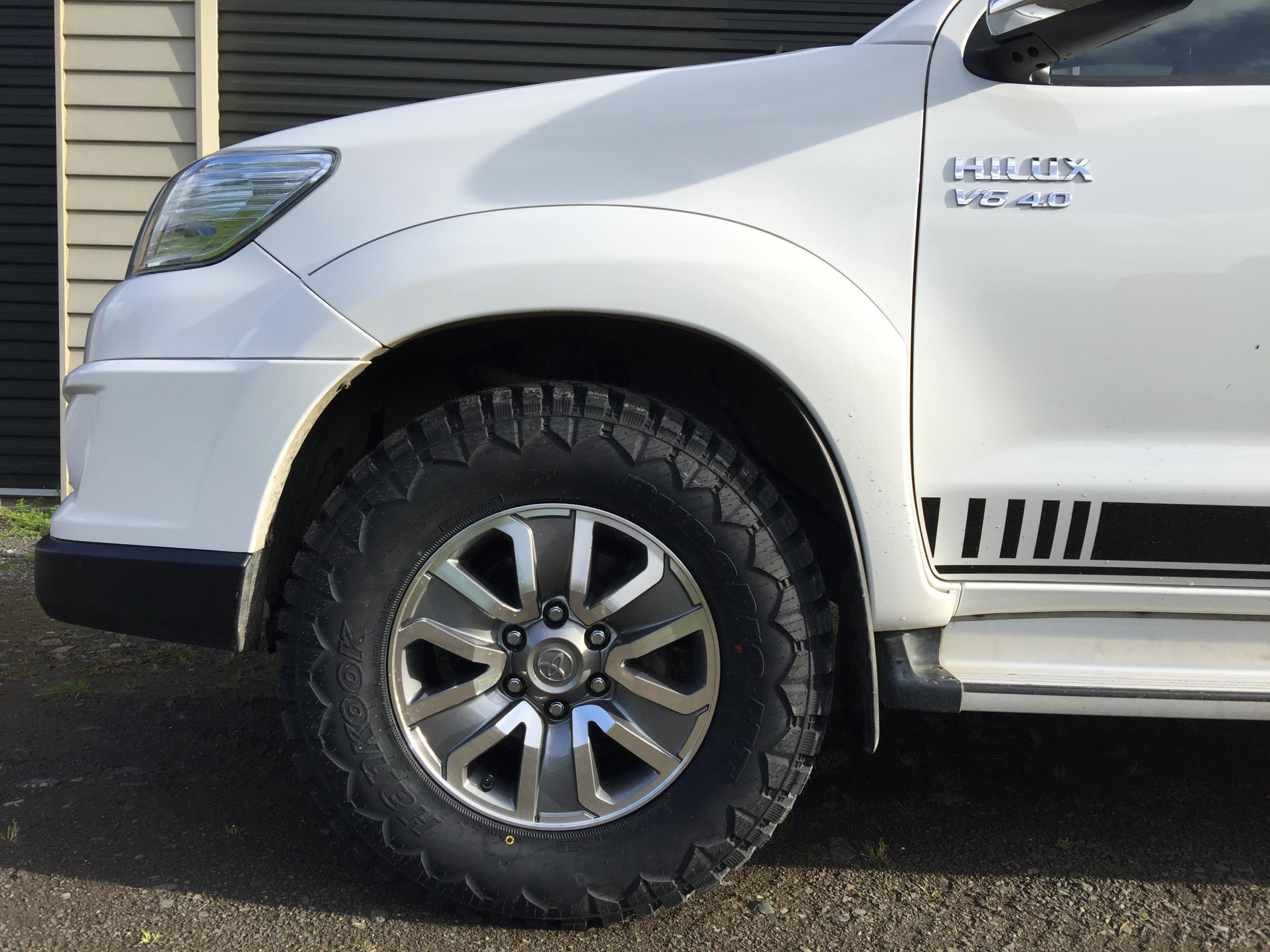

I have just fitted 265x70x17" to my 2015 Hilux on +45mm factory TRD rims and they just rub on the bottom of the front bumper when turning.
Attachment 59172
If you are going from alloy to steel you will find the metal is thinner in the steels and will probably clear the brakes if the tolerance is that close anyway. You're welcome to try on my feet if you are in town.Quote:
Originally Posted by Ryan_Songhurst
15s off my courier have no chance of clearing the calipers GM. Now I'm real confused because we have gone from -22 to +45....
Just get wheels the same spec as existing/factory.
What markings are on the rims you have?
I use this quite a bit.
Car Bibles : The Wheel and Tyre Bible
It's not what you're after but this could fit right in at the moment
Attachment 59198
And the Rylux for winter fun
Attachment 59199
First one looks ideal for bunny shooting
Had a look around the carpark today, and 4 Hiluxs,05-08, all on 15" factory alloys. 2 were on 31 10.5x15. Another SR5 on 16 mags, but I know it was originally on 15s as well. Hes given it a 2" suspension, and 2" body lift. hes running it on 265 75 16. What have your farm utes got on them?Quote:
Originally Posted by Ryan_Songhurst
Can get rim/tyre sets cheap sometimes on T/Me,when people put mags on their Fendalton tractors, only be factoryHT rubber though
Plus 1 .It tends to stop the mud going on your headlining with the window open .. :thumbsup:Quote:
Originally Posted by MSL
My factory flares were rooted so fitted these horrors but man the ute stays clean now as well ..
Attachment 59320
Got one of the older '03 Lux's with, I think, they're -44 alloys. Slightly modified but certainly no tire rub here, even with 'ice breaker' chains fitted! Probably not very helpful to you though, as I'm unsure what would fit your model!
http://i66.tinypic.com/34teuro.jpg
http://i65.tinypic.com/6h2v85.jpg
http://i66.tinypic.com/352neo9.jpg
