    5.6x57 single shot project

    I have been tinkering around with this one for a while so thought I had better do a build thread on it.

    I picked up a cheap 12ga Baikal after seeing the 30-30 that @akaroa1 had built.
    Name:  received_877941466631308.jpeg
Views: 819
Size:  203.6 KB

    The original plan was to build a 243AI as a mate had a reamer for it. Turns out that we couldn't find that reamer so had to scratch that plan so back to square one.
    While I was on a trip back home to see my folks I came across a 5.6x57RWS reamer/brass/dies at a price I couldn't say no to, so it was time to find a .224 barrel!

  2. #2
    Member
    Join Date
    Sep 2022
    Location
    Upper Hutt
    Posts
    529
    Whilst I was waiting for a .224 barrel to appear I started work on the extractor as I knew it would be a bit of work to make an extractor for a rimless cartridge.
    I began by drilling a 12mm hole in some plate to test out the fit on a cartridge, almost perfect!

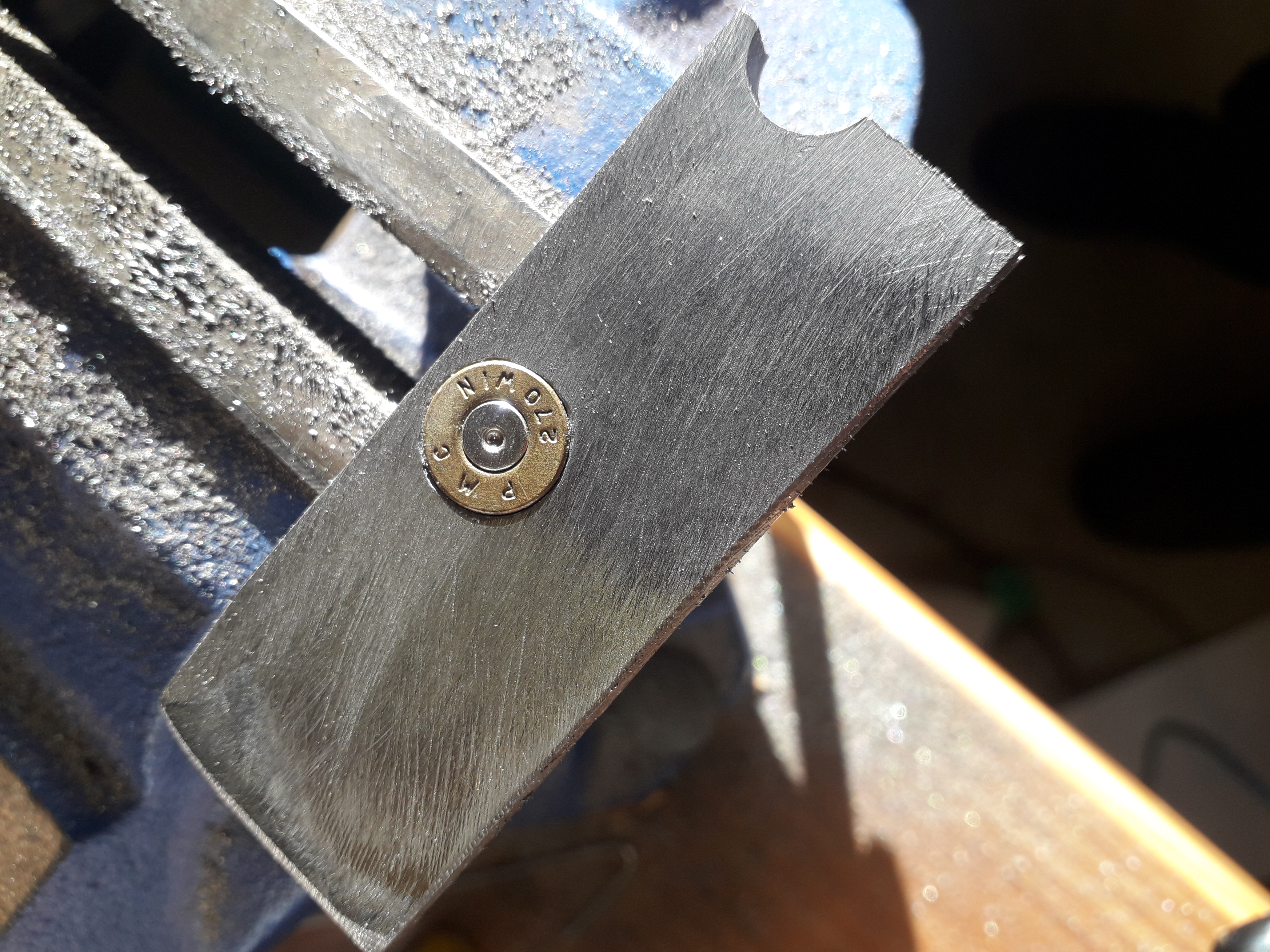

    Name:  20230701_092448.jpg
Views: 939
Size:  5.53 MB

    Then I cut the plate in half across the 12mm hole and drilled a hole for the spring and detent.

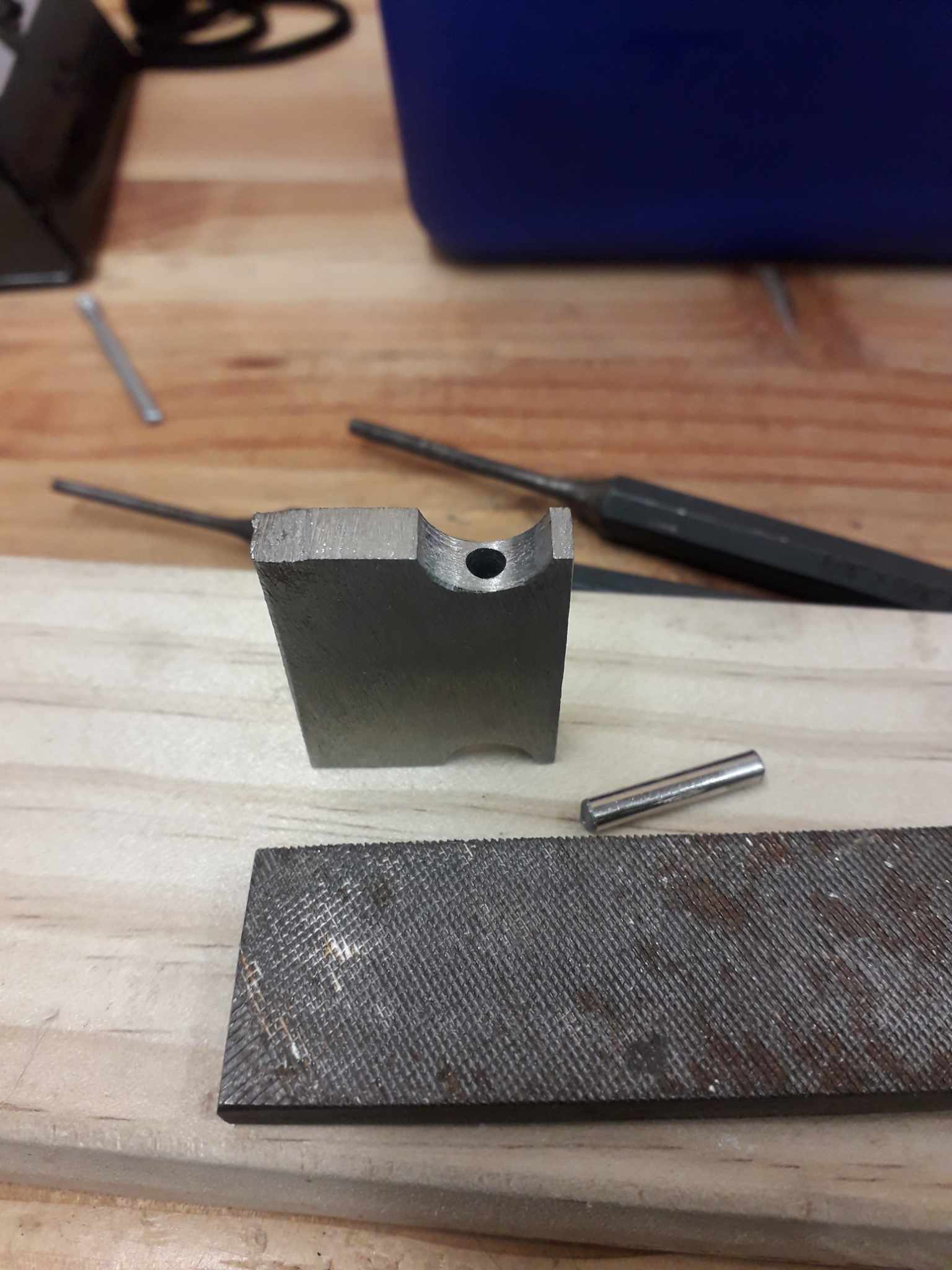

    Name:  received_435349165861834.jpeg
Views: 765
Size:  159.6 KB

    I made 2 of these as we decided to make a pair, one for me and one for @708AISam who is doing the machine work.

  3. #3
    Member
    Join Date
    Sep 2022
    Location
    Upper Hutt
    Posts
    529
    Once I got my hands on a .224 barrel(unfired CZ barrel, 24" 1:9 twist) it was time to stub the shotgun barrel and bore the first 110mm to 21mm so the forcing cone was gone and there was a step to locate the rifle barrel.
    Then the rifle barrel was machined to fit and inserted for a test fit.

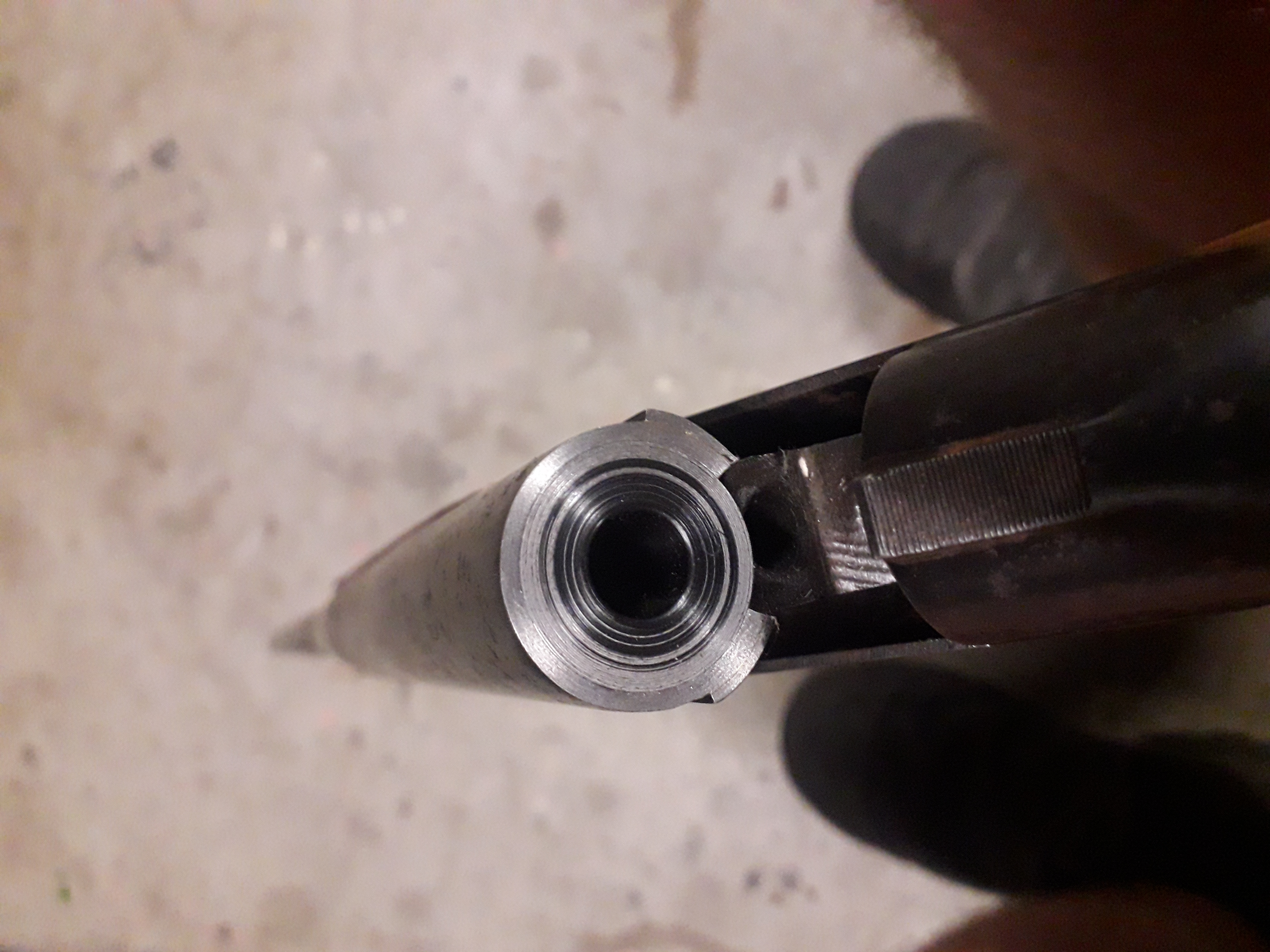

    Name:  20240124_214706.jpg
Views: 842
Size:  4.16 MB

    Once this was test fitted then the breech face was turned to suit and barrel was chambered. No issues with the 5.6x57 cleaningbupnthe 223 chamber!

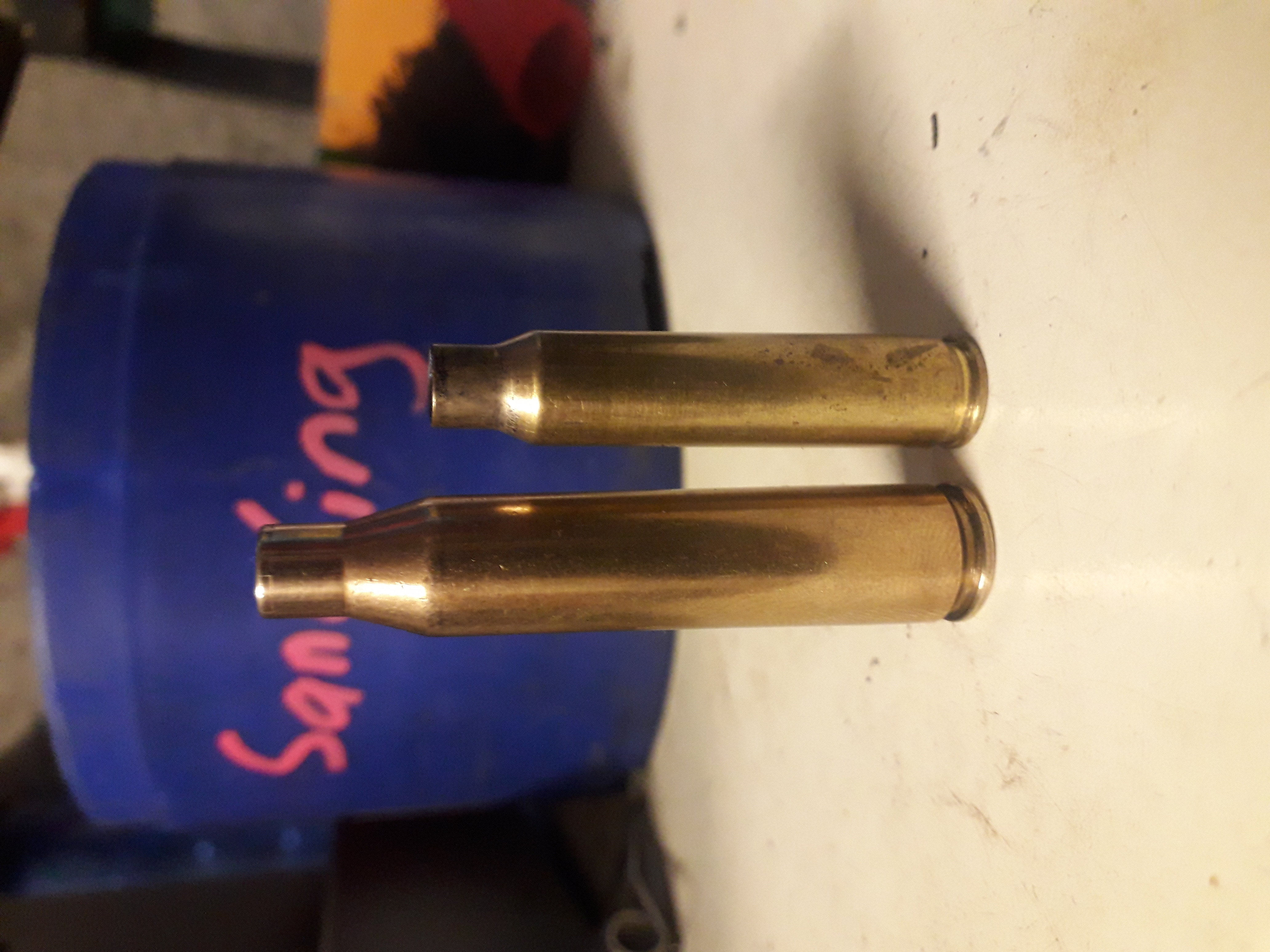

    Name:  20240124_224905.jpg
Views: 843
Size:  4.10 MB

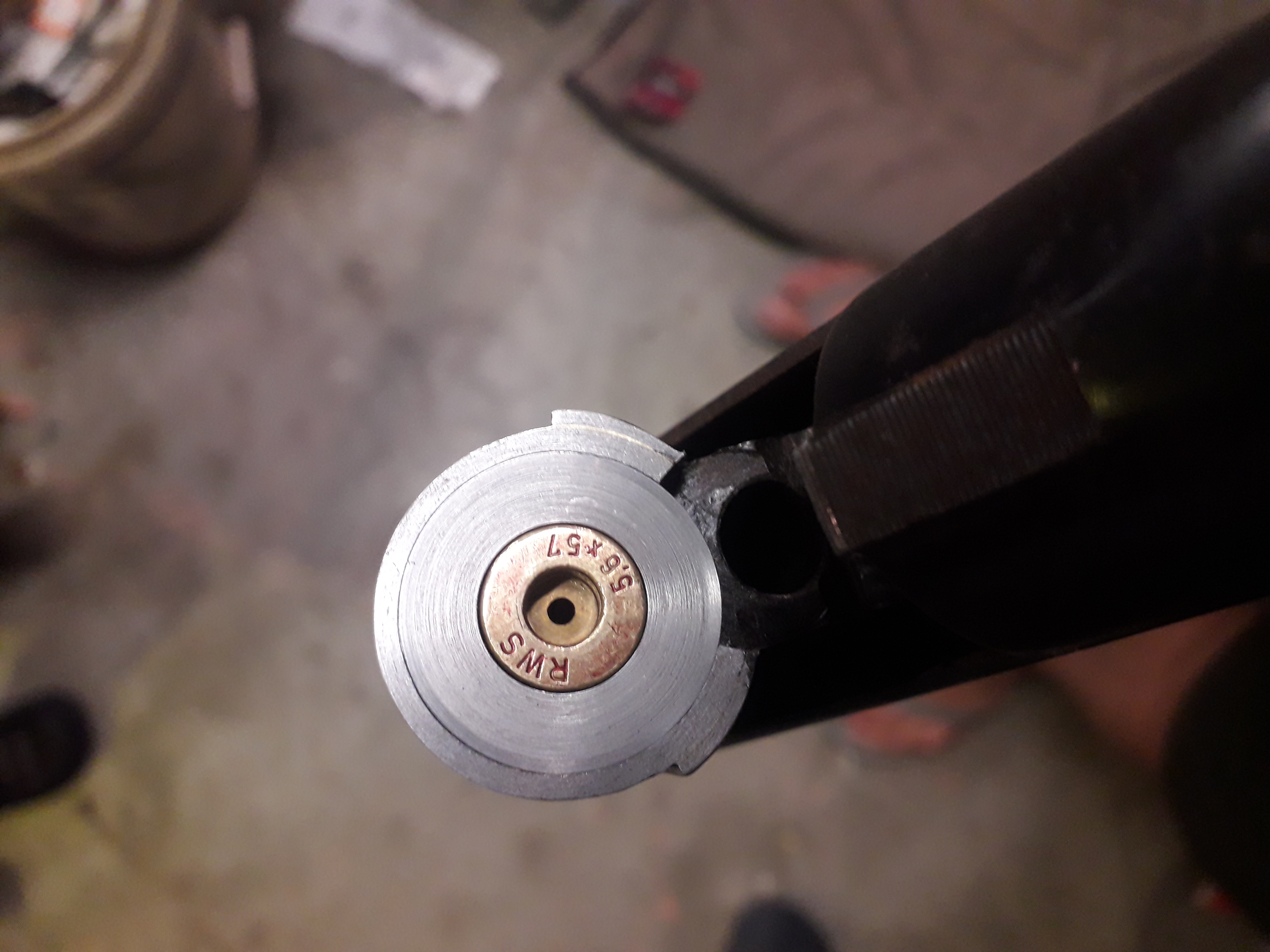

    Name:  20240127_105626.jpg
Views: 829
Size:  3.86 MB
    rupert, tetawa, Micky Duck and 4 others like this.

  4. #4
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,940
    I still hanker after a 22hp savage done somewhat like this...thats a big case,not one Im familiar with,IM guessing its 22/250 ish levels velocity??
    makka likes this.
    75/15/10 black powder matters

  5. #5
    Member
    Join Date
    Sep 2022
    Location
    Upper Hutt
    Posts
    529
    Quote Originally Posted by Micky Duck View Post
    I still hanker after a 22hp savage done somewhat like this...thats a big case,not one Im familiar with,IM guessing its 22/250 ish levels velocity??
    Should be 200ish fps faster than a 22-250 all going well, practically a 7x57 case with a .22 projectile
    Tommy, Micky Duck and 708AISam like this.

  6. #6
    Member
    Join Date
    Sep 2022
    Location
    Upper Hutt
    Posts
    529

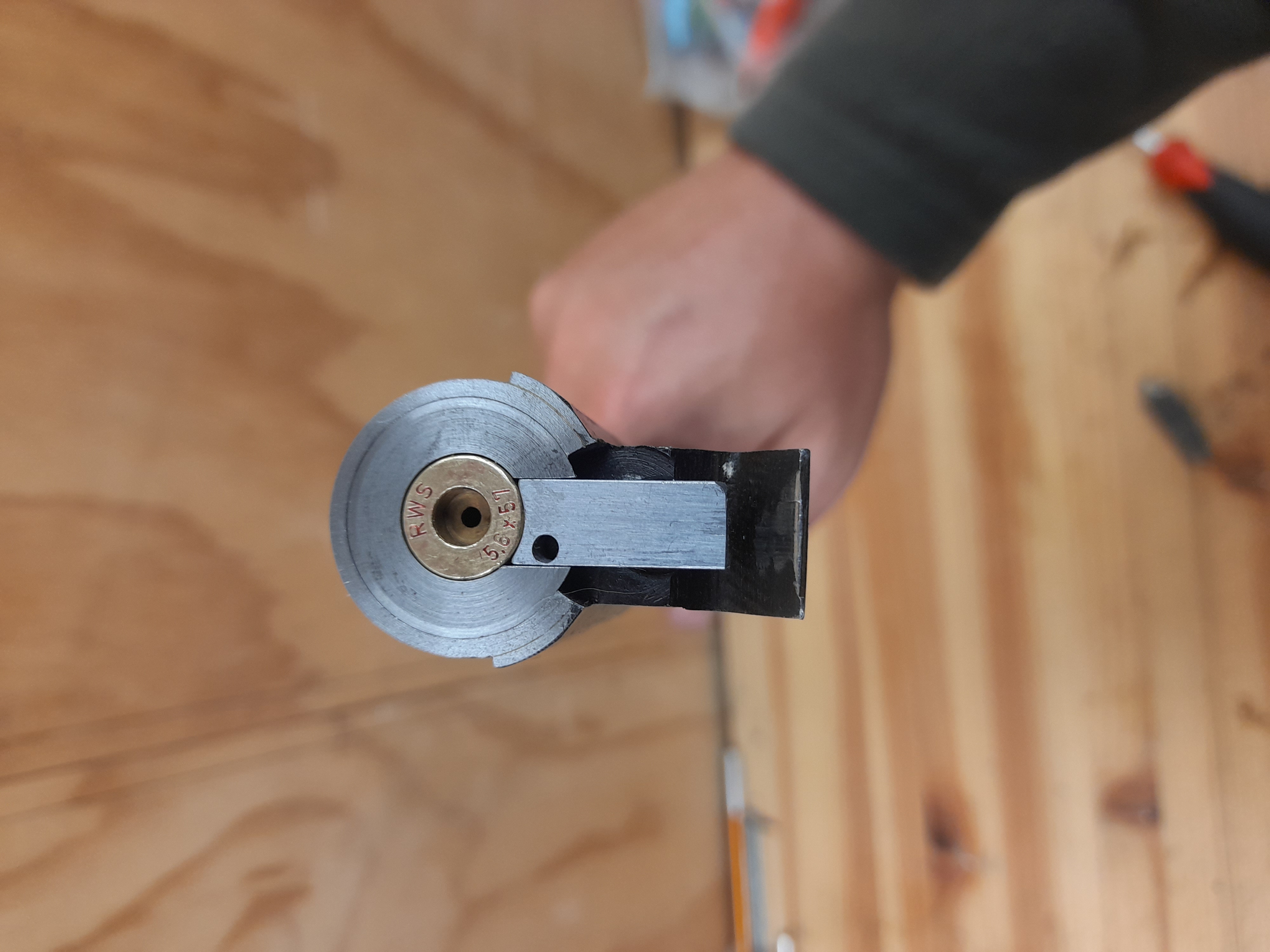

    Next step was to mill a slot for the extractor and test fit it.
    Name:  20240304_215612.jpg
Views: 775
Size:  2.44 MB

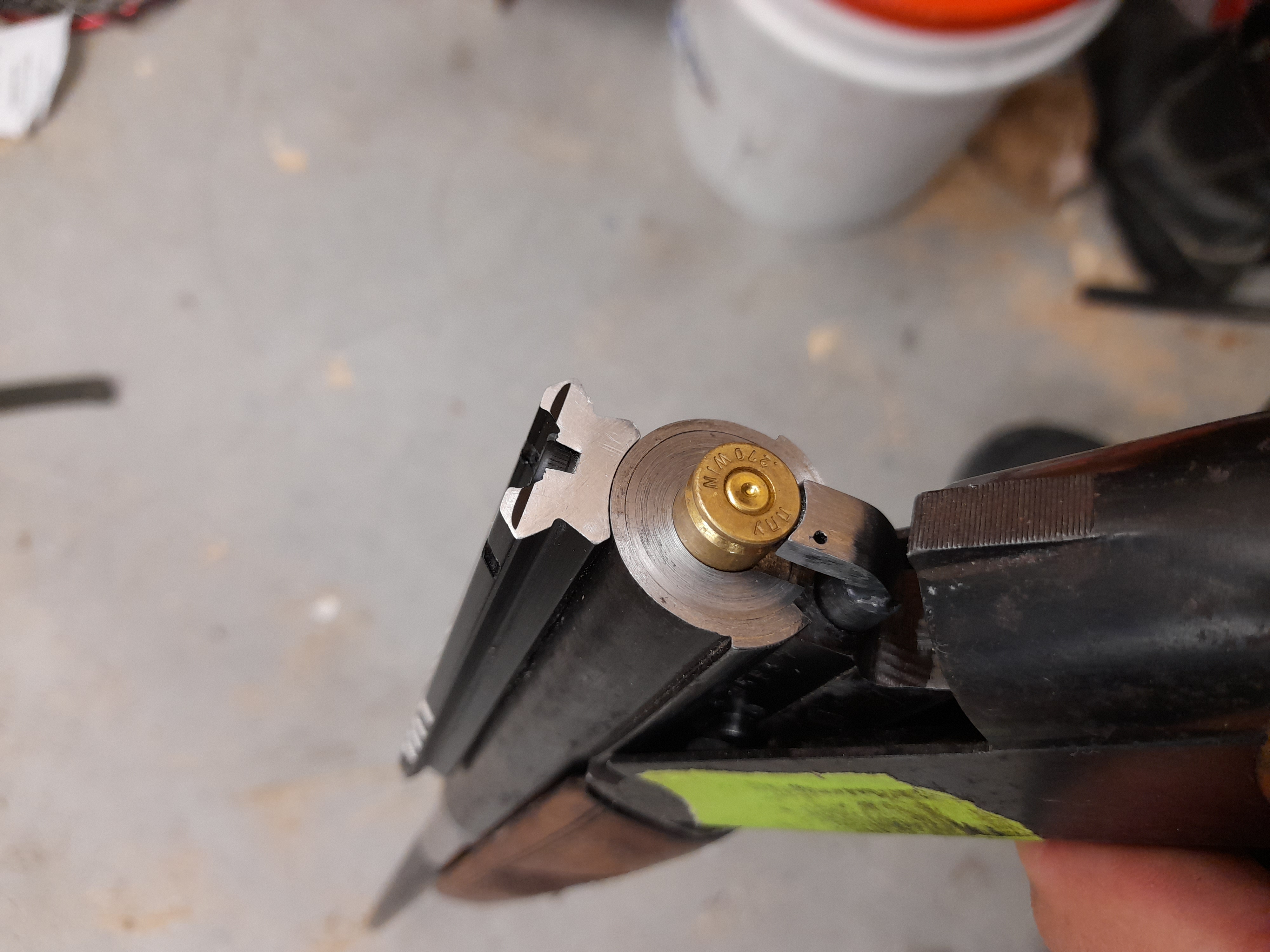

    That was all good so milled the old extractor off and tig'd this one in place.
    Also drilled and tapped the shotgun barrel to take a modified Weaver base.
    Name:  20240408_210917.jpg
Views: 770
Size:  2.74 MB

    The base was modified to sit the scope back further so the eye relief was right

  7. #7
    Member
    Join Date
    Sep 2022
    Location
    Upper Hutt
    Posts
    529

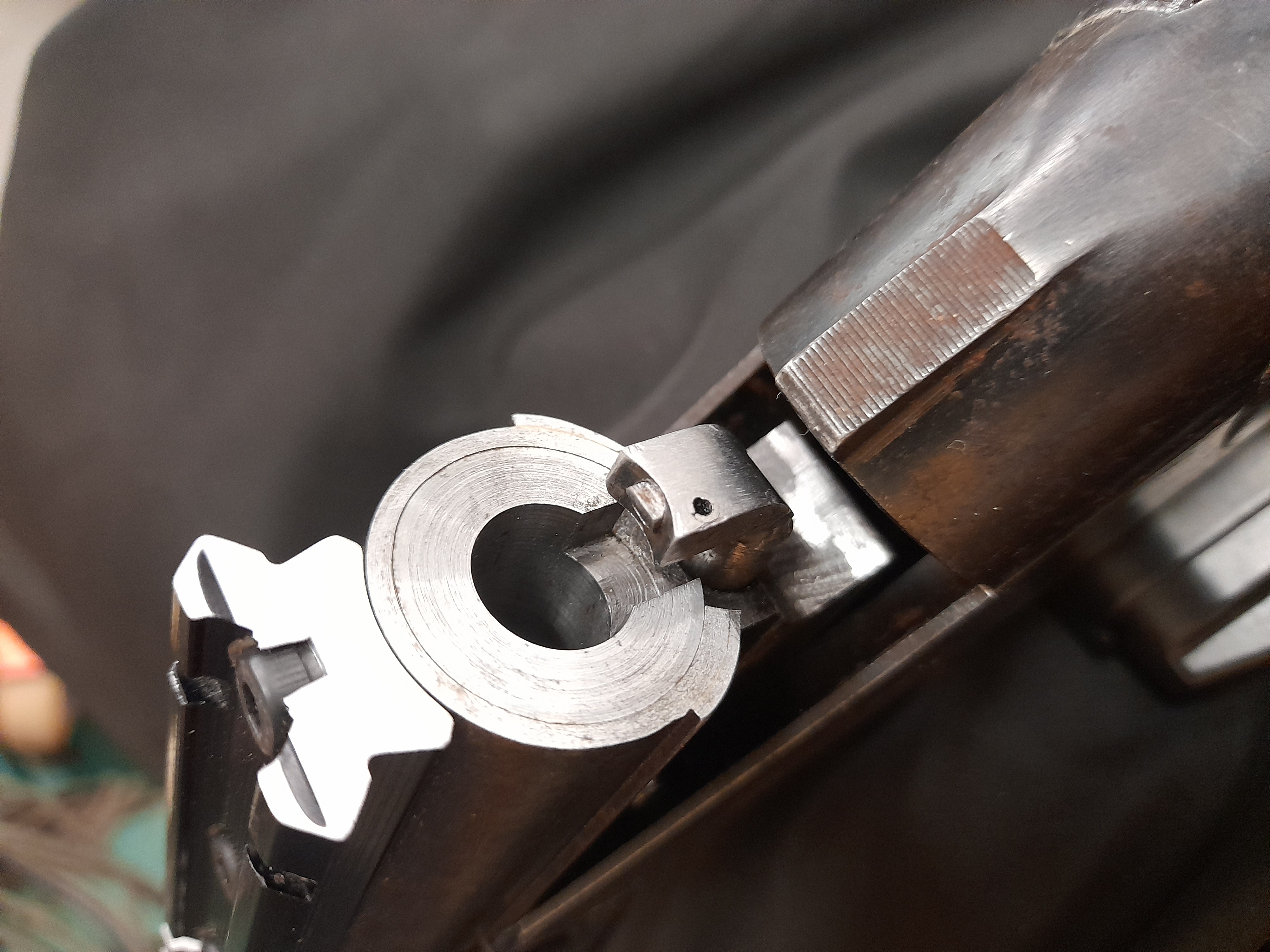

    Here is a close up of the extractor, showing the spring loaded detent that extracts the case. It is held in place against the spring by a roll pin.
    Name:  20240527_214856.jpg
Views: 734
Size:  2.88 MB

    Once this was all sorted the barrel could be finally fitted and secured in place with loctite bearing retainer and now it looks like a rifle!

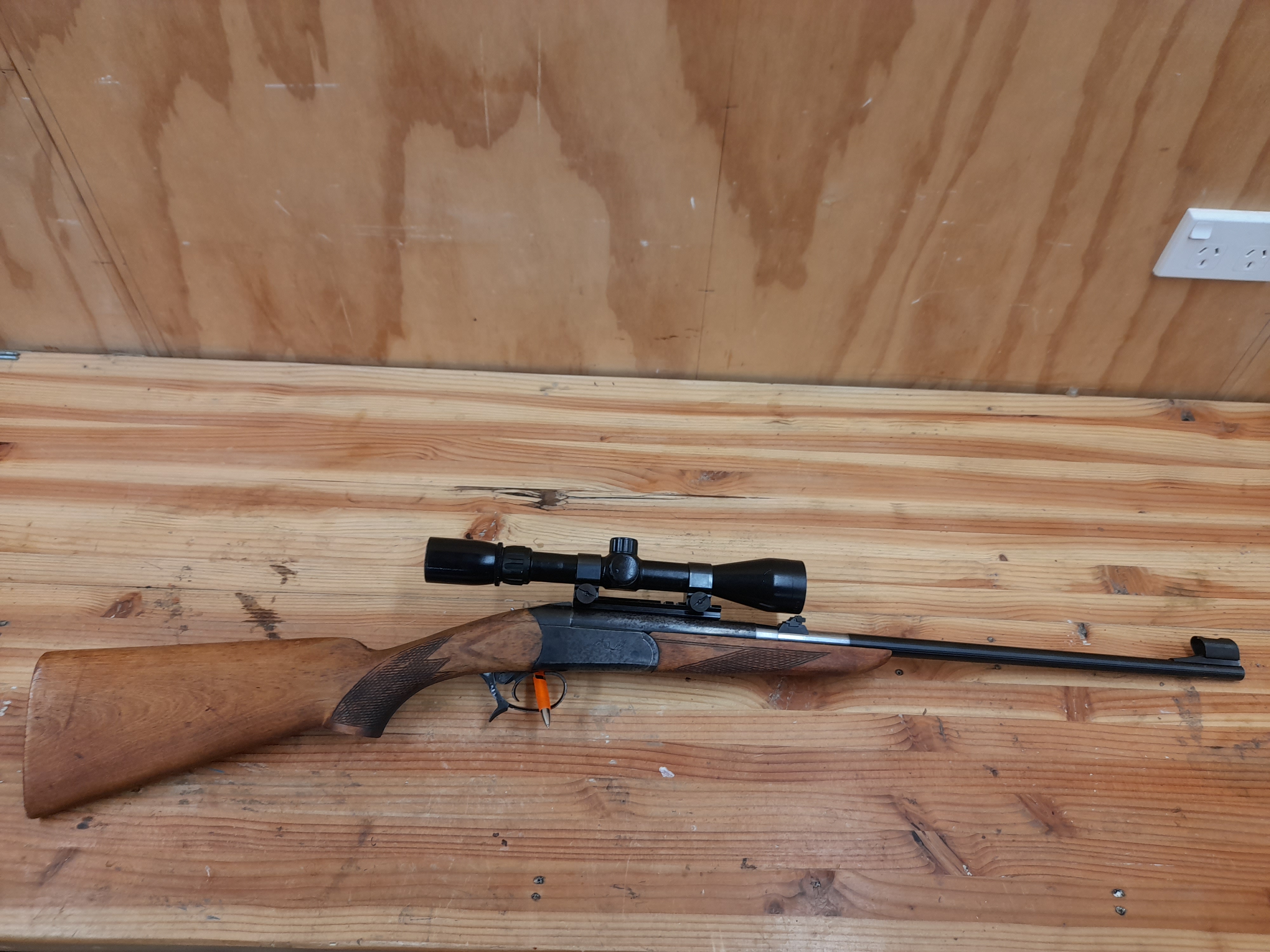

    Name:  20240306_211655.jpg
Views: 695
Size:  2.64 MB

    One thing became apparent and that was the comb was way too low for use with a scope so it was time to start making a more suitable stock for it.
    rupert, tetawa, stug and 7 others like this.

  8. #8
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    7,110
    Quote Originally Posted by makka View Post
    Should be 200ish fps faster than a 22-250 all going well, practically a 7x57 case with a .22 projectile
    Sort of a swift but capable of heavier projectiles with that 1:9 barrel. 5.6 is .228 isn't it so I suspect you'll neck the cases to suit the barrel.
    Micky Duck likes this.

  9. #9
    Member
    Join Date
    Sep 2022
    Location
    Upper Hutt
    Posts
    529
    Quote Originally Posted by Marty Henry View Post
    Sort of a swift but capable of heavier projectiles with that 1:9 barrel. 5.6 is .228 isn't it so I suspect you'll neck the cases to suit the barrel.
    5.6 is just the metric rounding for .224 in this instance.
    Case capacity sits it between the Swift and a 22 Creedmoor
    Marty Henry and 708AISam like this.

  10. #10
    Member
    Join Date
    Sep 2022
    Location
    Upper Hutt
    Posts
    529
    Next step was to make a trial buttstock out of pine to see what I needed shape and size wise.
    Name:  20240527_221132.jpg
Views: 626
Size:  2.83 MB
    Name:  20240527_221123.jpg
Views: 639
Size:  2.77 MB

    Now I had to decide what to build the stock from, I had acquired some nice walnut but couldn't bring myself to build my first stock from something so nice so after seeing a few of the paulownia/carbon builds by @chainsaw and @Scott Cowan I decided to go down that route for the initial stock build

  11. #11
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,940
    did you fit pine one up??? too good to chuck in woodbox for firewood.... I would use that LOL. infact if you send it to me I will do .
    75/15/10 black powder matters

  12. #12
    Member
    Join Date
    Sep 2022
    Location
    Upper Hutt
    Posts
    529
    Quote Originally Posted by Micky Duck View Post
    did you fit pine one up??? too good to chuck in woodbox for firewood.... I would use that LOL. infact if you send it to me I will do .
    It's pretty rough round the action, more just to get an idea of the shape.

    Next step was to cut and shape some paulownia for the buttstock, it certainly works easier than the pine!

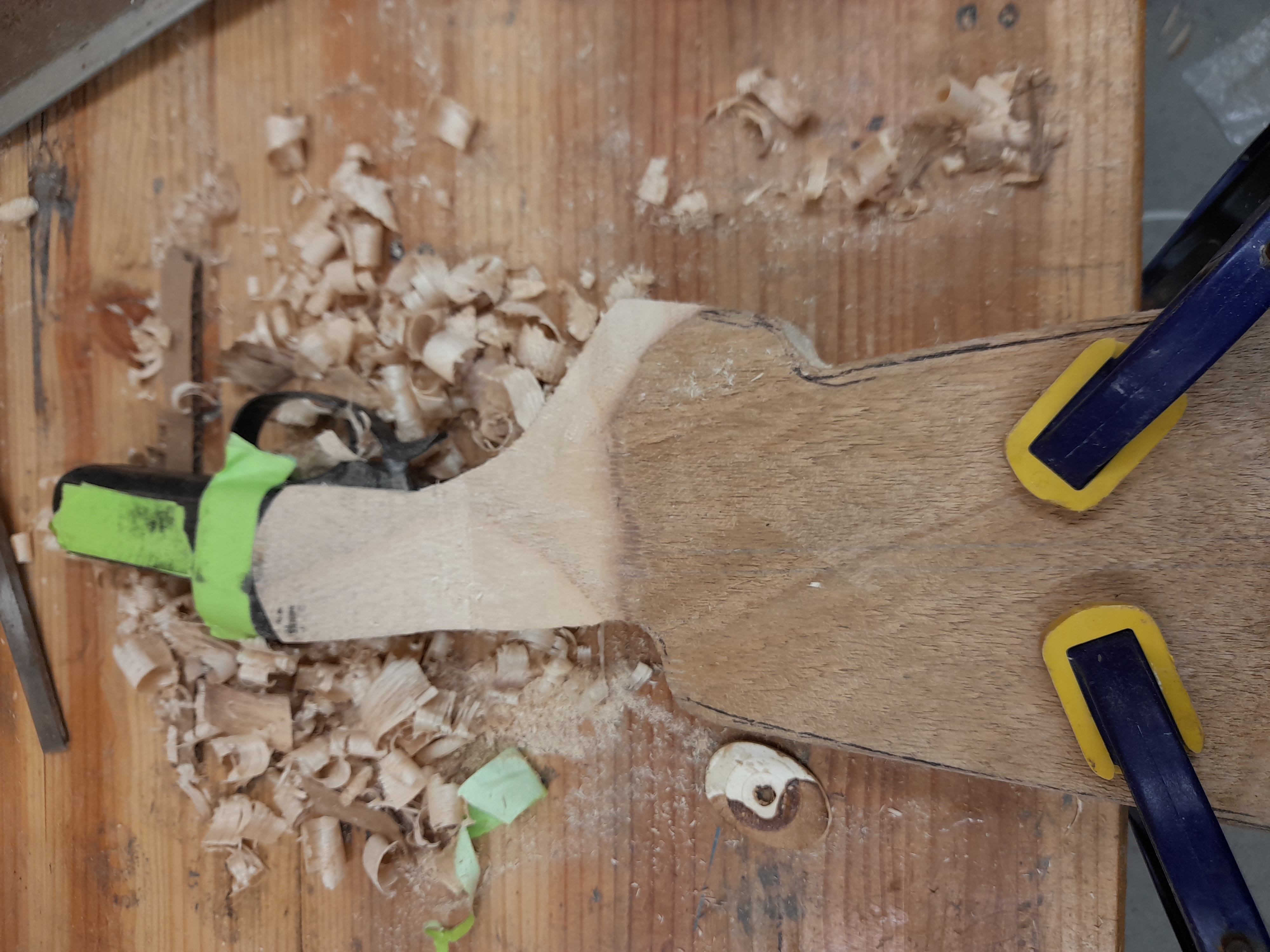

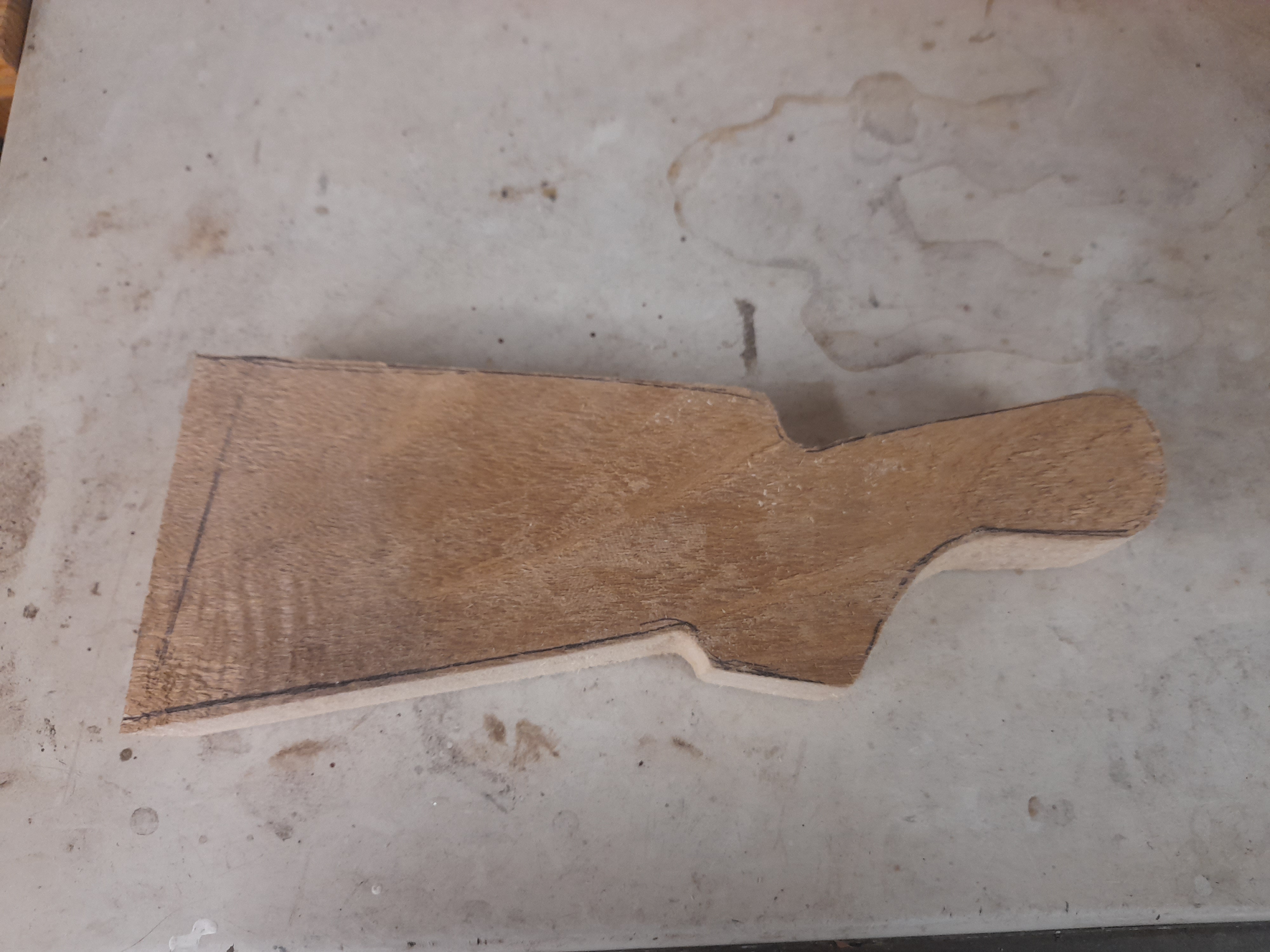

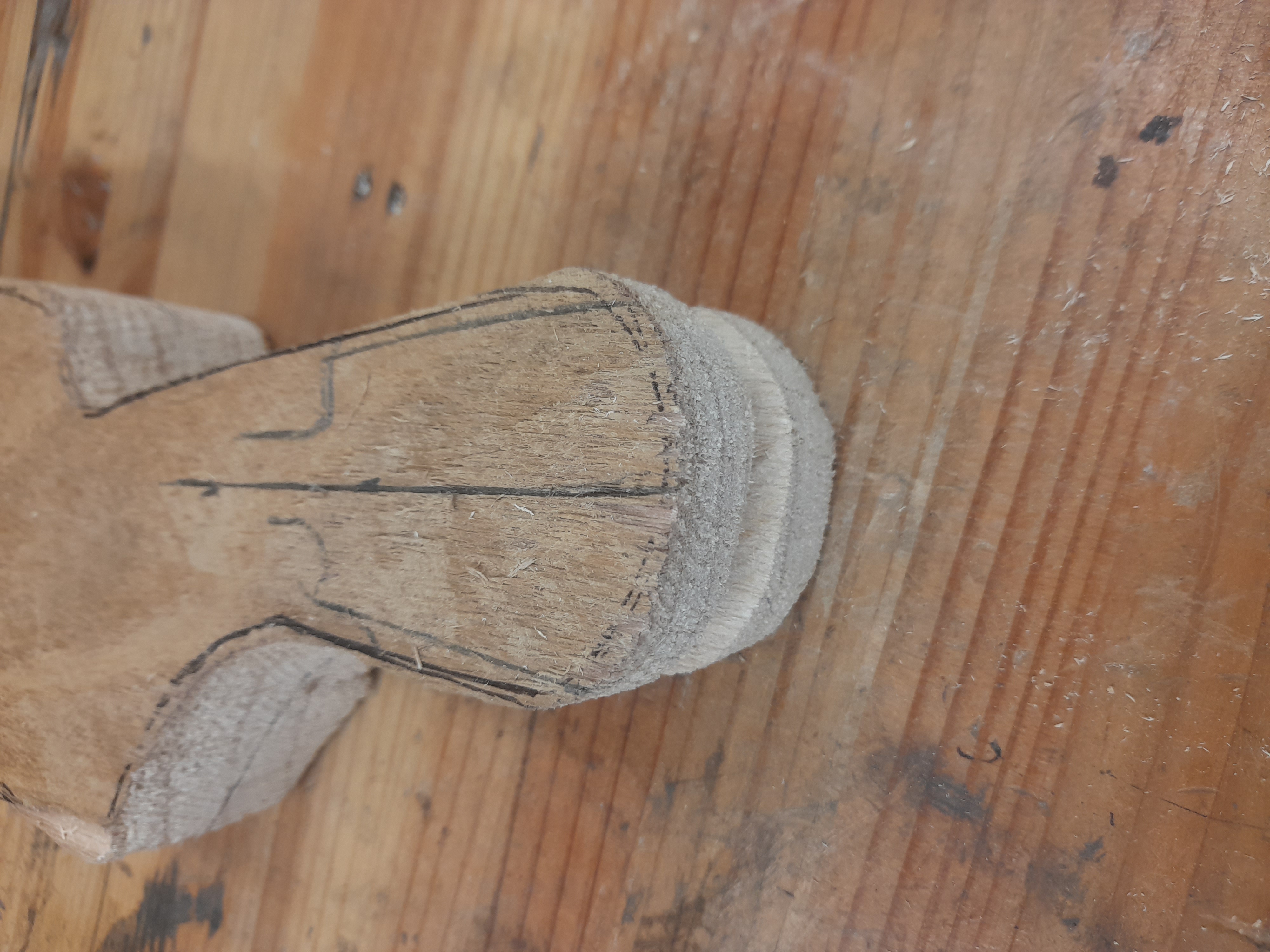

    Name:  20240320_211707.jpg
Views: 591
Size:  2.76 MB
    Name:  20240320_215914.jpg
Views: 595
Size:  2.59 MB
    Name:  20240405_212959.jpg
Views: 594
Size:  2.59 MB

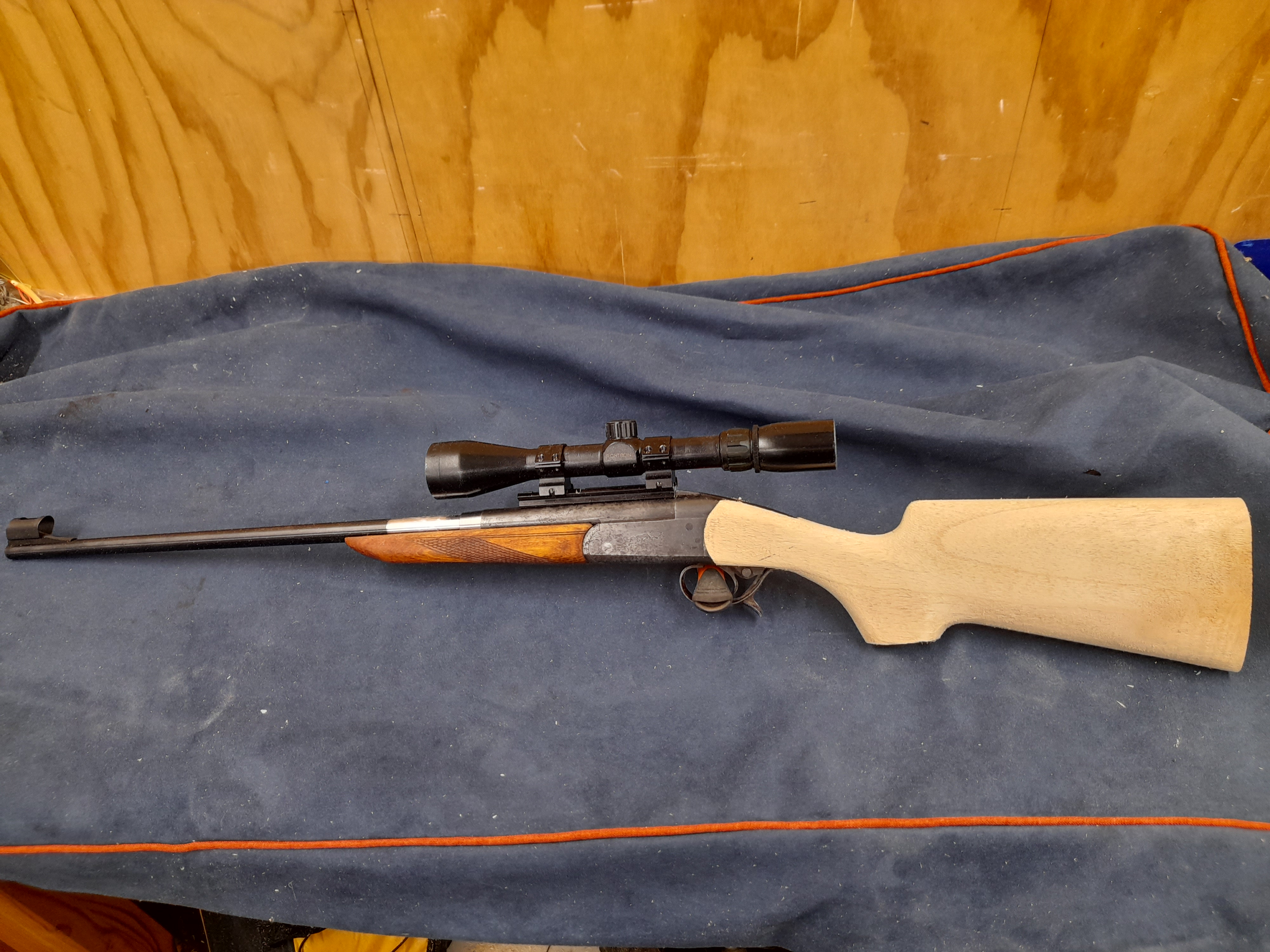

    Name:  20240410_212732.jpg
Views: 588
Size:  2.85 MB

  13. #13
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,940
    I contemplated doing the same but decided against it as figured would be crazy front heavy to carry... watching with interest.
    makka likes this.
    75/15/10 black powder matters

  14. #14
    Member
    Join Date
    Sep 2022
    Location
    Upper Hutt
    Posts
    529
    Now onto the foregrip, which was more challenging even though it was much smaller.

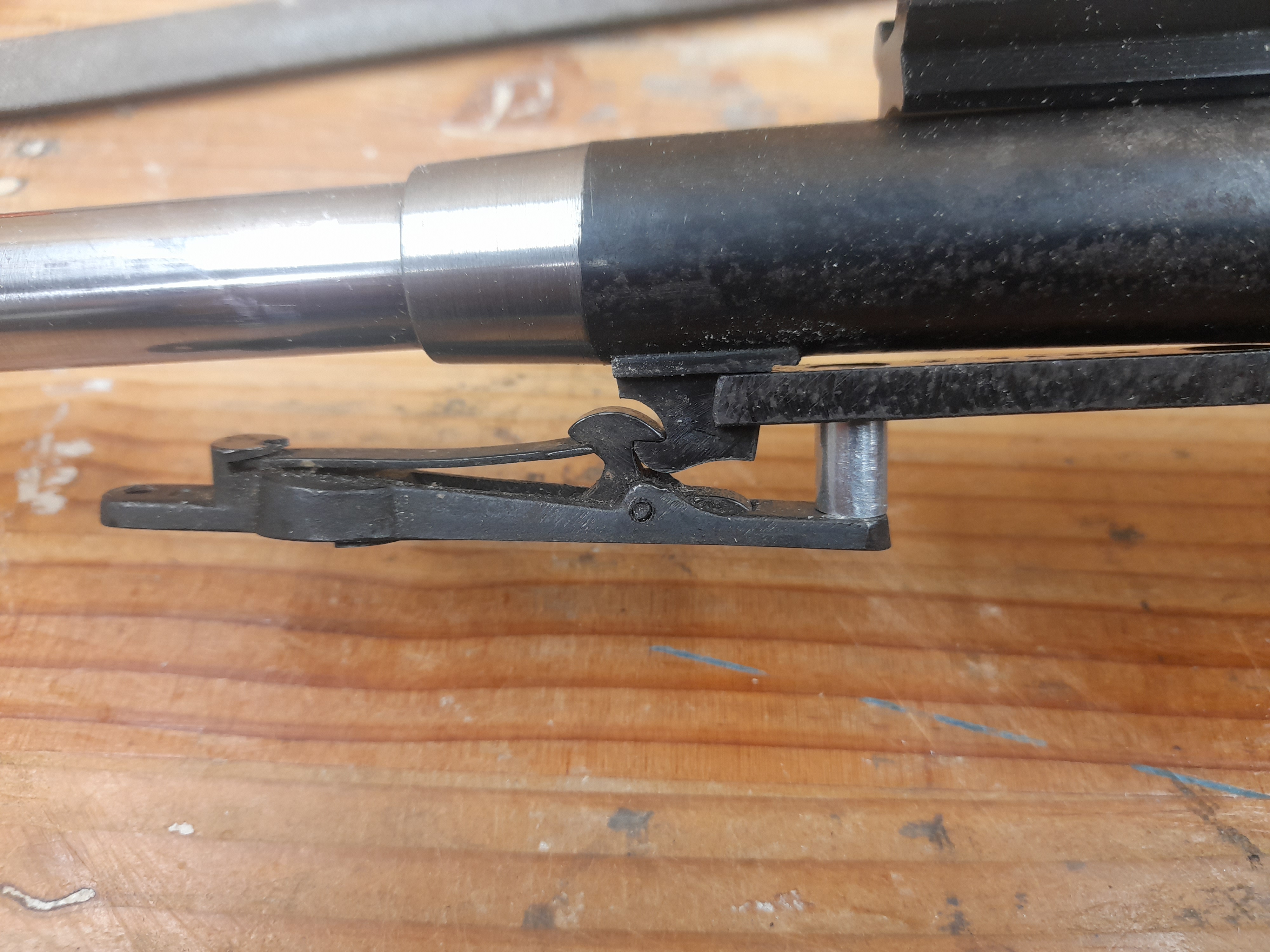

    First I made a "pillar" so I got the distance between the forend iron and release catch right
    Name:  20240415_204044.jpg
Views: 557
Size:  2.71 MB

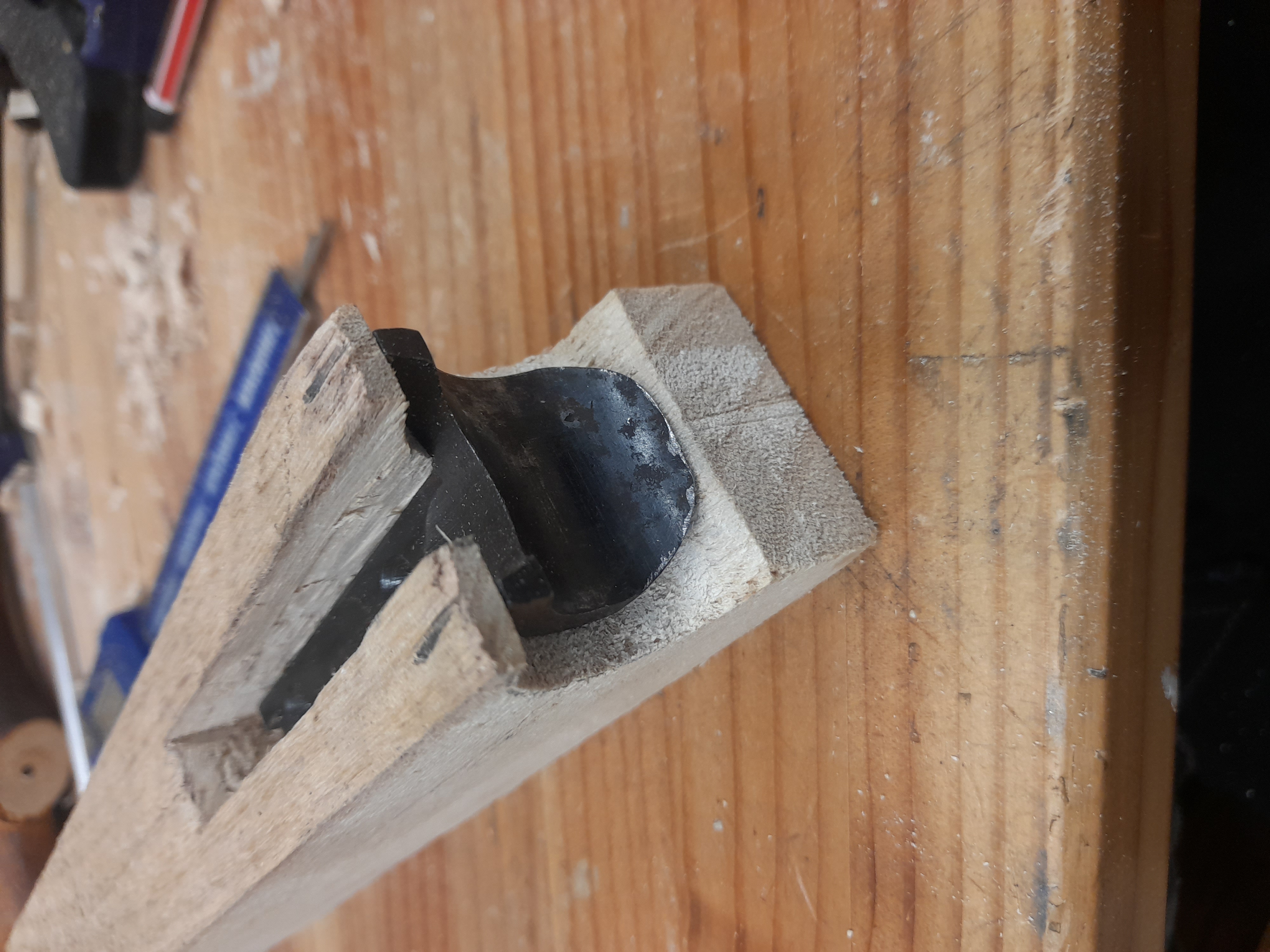

    Then I inletted the forend iron. Once this was done I could epoxy in the pillar so I had a depth to work to for the release catch.
    Name:  20240415_214400.jpg
Views: 561
Size:  2.66 MB
    Micky Duck and 20 Bore like this.

  15. #15
    Member
    Join Date
    Sep 2022
    Location
    Upper Hutt
    Posts
    529
    Final shaping of the forend and then it was time for carbon. I decided to go with a schnabel on the forend, I felt it was fitting with the style I was trying to achieve

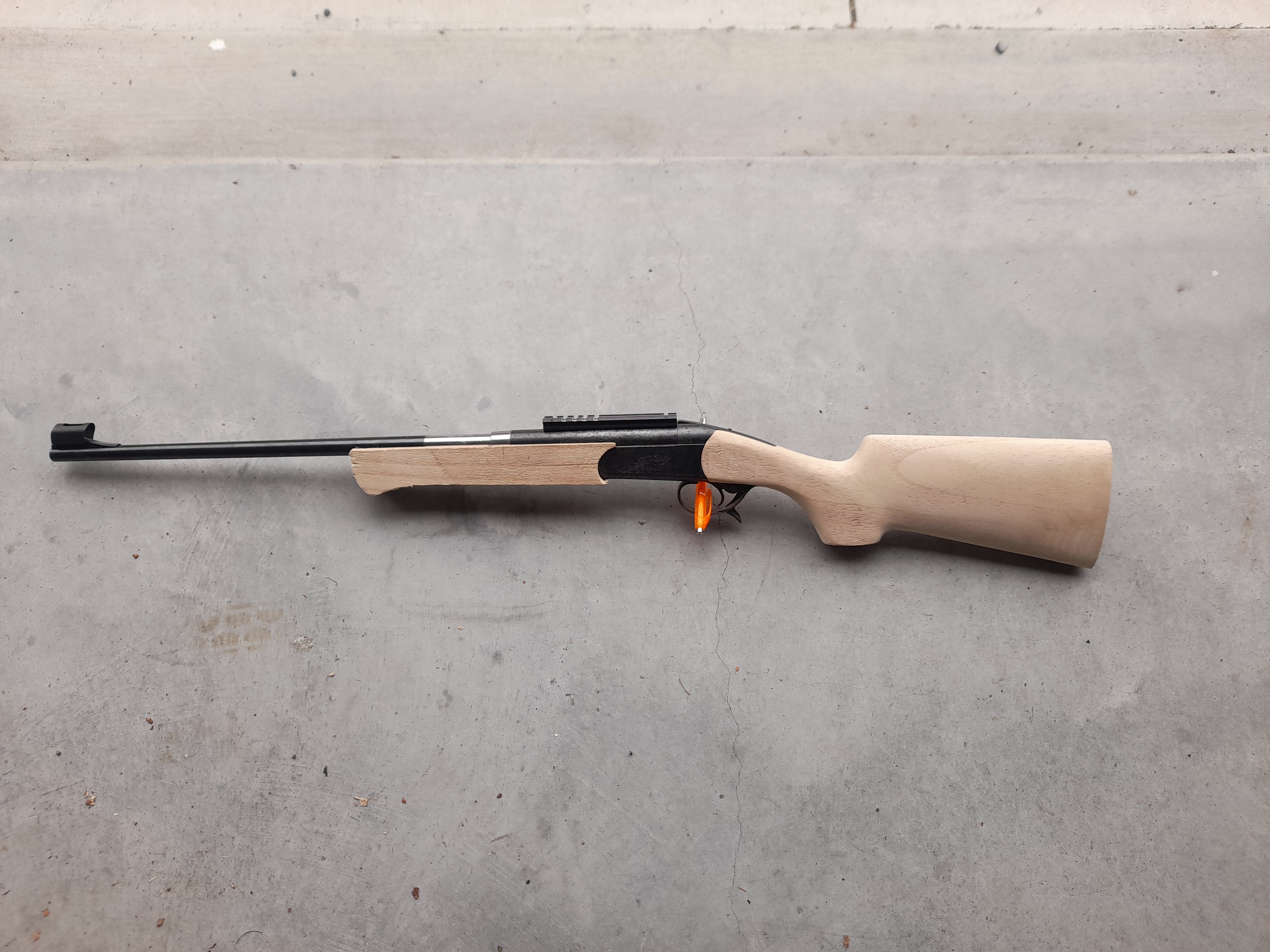

    Name:  20240425_102336.jpg
Views: 591
Size:  2.06 MB

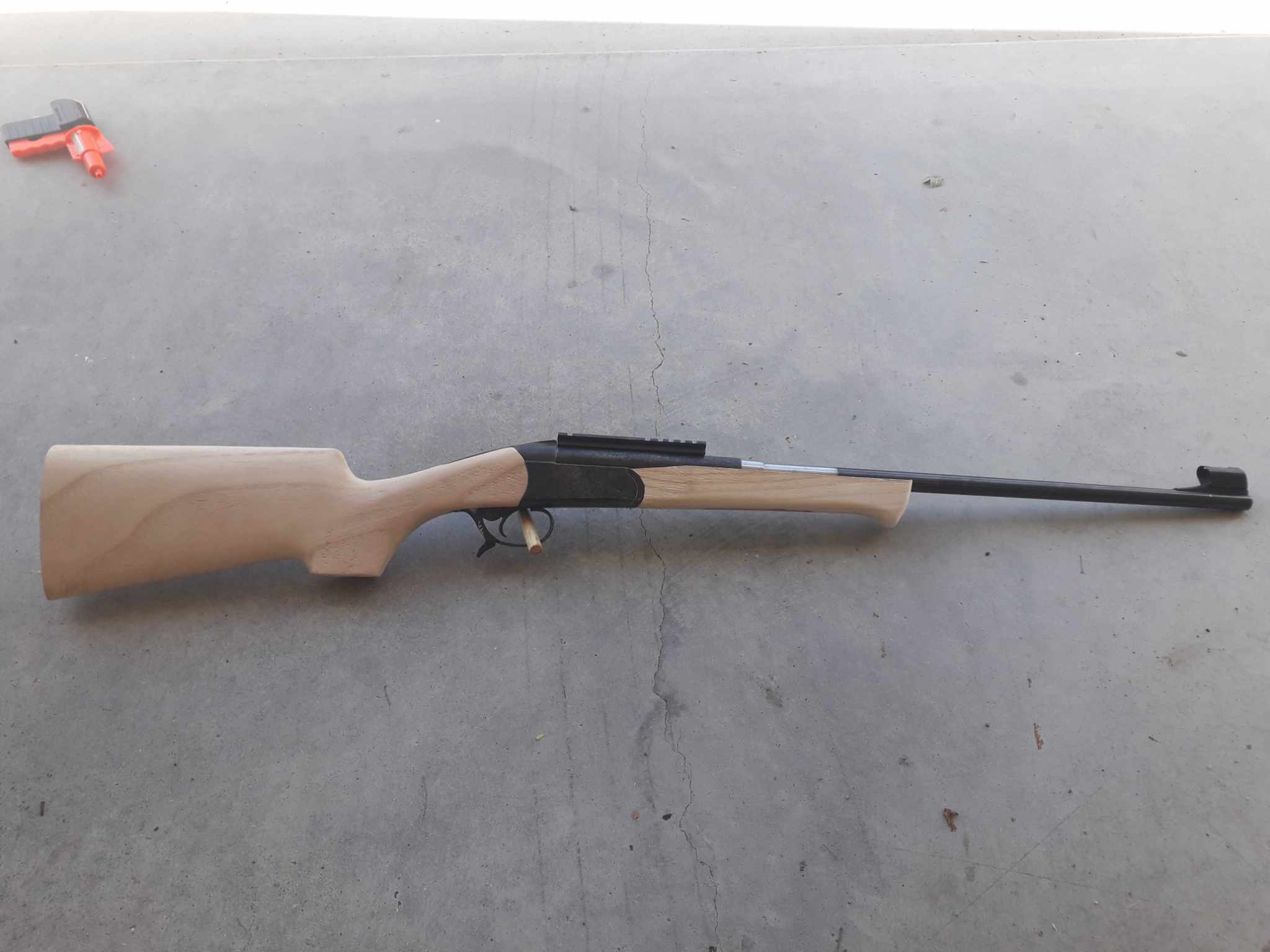

    Name:  received_7725999070792969.jpeg
Views: 516
Size:  119.3 KB
