Thread: Advice on barrel shortening and crown

  1. #1
    Member Hermitage's Avatar
    Join Date
    Nov 2020
    Location
    Whakatane
    Posts
    839

    Advice on barrel shortening and crown

    Sunday afternoon first time DIY recrown so need advice.

    Wondering if I can use a cut-off wheel on my 4" grinder rather than use a hacksaw to shorten a barrel?
    I can make the barrel cut straighter with a cut-off wheel (I usually end up with more of an angle using a hacksaw = more filing).

    But will the cut-off wheel get the barrel end too hot so affecting the metal and/or will it leave too much nasty crap in the bore?

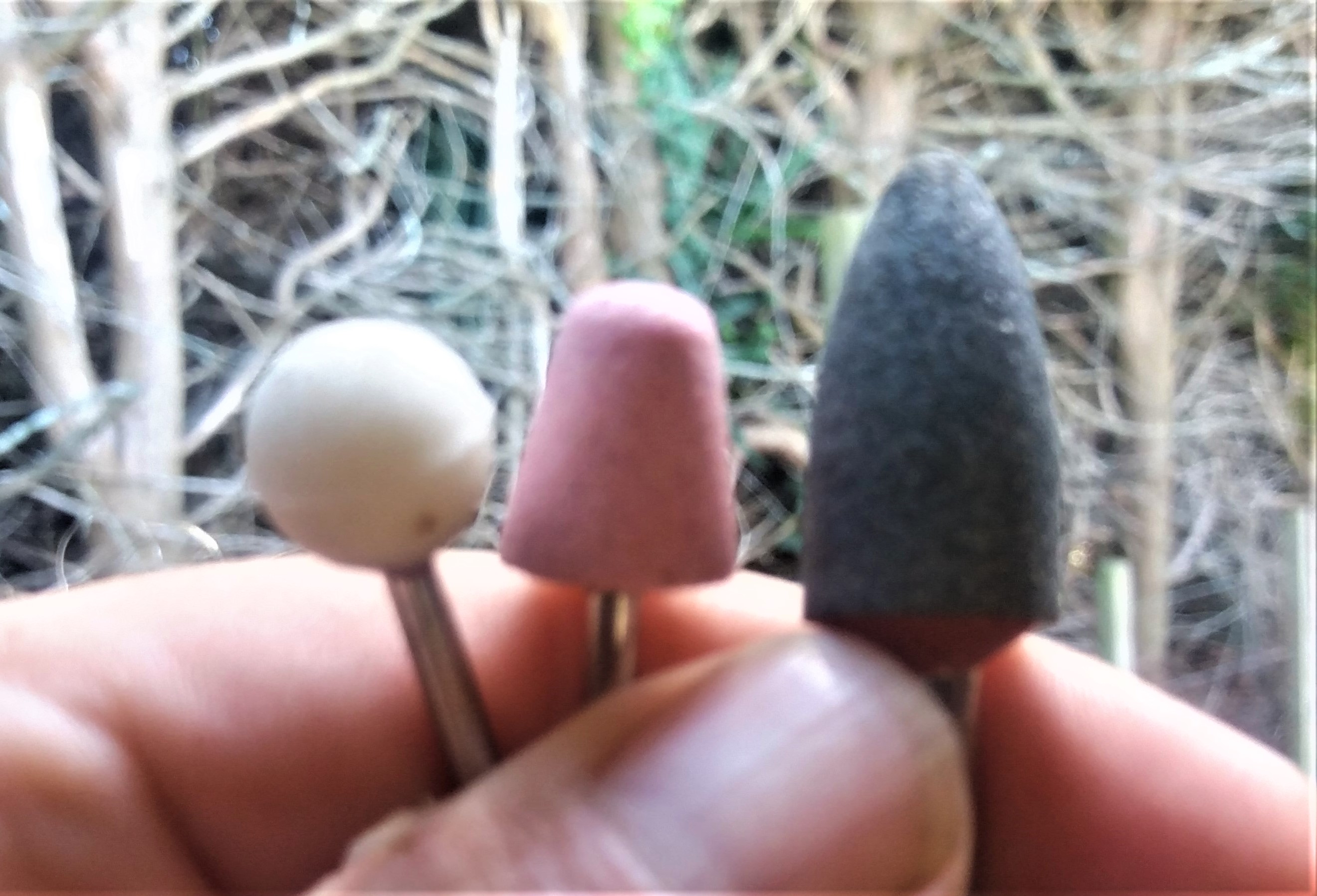

    Also which Dremel bit (if any), should I use out of these three for making the crown?

    Name:  IMG_20220220_122248.jpg
Views: 256
Size:  658.2 KB
    A good job and a good wife has been the ruin of many a good hunter.

  2. #2
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    2,225
    The cut-off saw is OK then the barrel needs to be carefully filed square from all sides. Do not use grinding stones for the crown! It should be cut with a proper tool or lapped with a ball on a rod to turn it (gently backward and forward like lapping a valve seat).
    Hermitage and Fssprecision like this.

  3. #3
    Member
    Join Date
    Dec 2011
    Location
    Wellington
    Posts
    459
    Lapping compound or something like Chemico - brass door hinge pin in a drill. I've used that at a pinch to tidy up a rough crown on a .22
    What I did note is that you cannot just put the pin head into the crown area and spin away, you needed to work the drill in a angled fashion to get it to polish properly. I'm guessing thats similar to the motion gundoc is describing.
    Rough as guts, but it actually ended up with a pretty decent finish, so much so that I've used it a couple of times.

    Also use foam ear plugs - push down the barrel to just before the area that you're doing the work. Just don't forget to remove
    Hermitage likes this.
