    DIY Induction Annealer

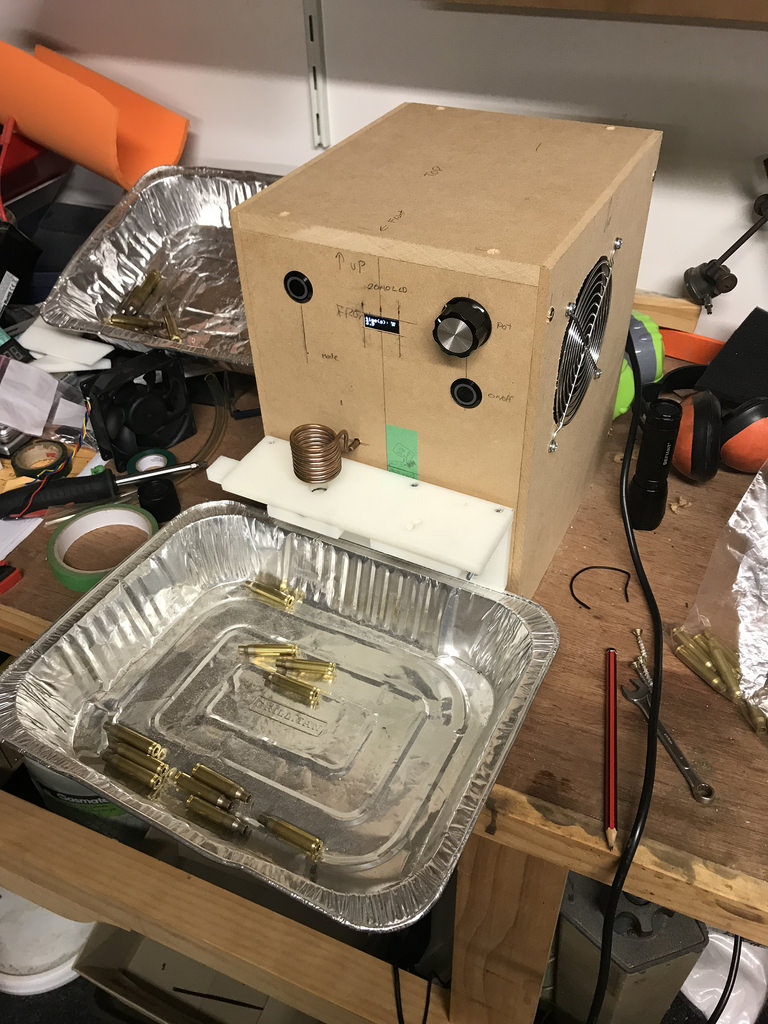

    it's rough looking but works good. video of it in action at the bottom.
    Name:  40778848484_38c965396a_b.jpg
Views: 379
Size:  182.0 KB
    Name:  40778663364_8b2290b9dd_b.jpg
Views: 367
Size:  213.6 KB

    Video In Action

    pretty much used this guys design for the induction part, but used a different controller and got all my parts off Aliexpress.
    Induction brass annealer | Shooters' Forum

  2. #2
    Member
    Join Date
    Dec 2012
    Location
    Wellington
    Posts
    1,775
    I tried to get a burner one going and while the electronics worked great the mechanical feeding was flaky. I have wondered about using a case collator dropping into something like this with a trapdoor to drop it into water.
    "I do not wish to be a pawn or canon fodder on the whims of MY Government"

  3. #3
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    19,047
    Quote Originally Posted by steven View Post
    I tried to get a burner one going and while the electronics worked great the mechanical feeding was flaky. I have wondered about using a case collator dropping into something like this with a trapdoor to drop it into water.
    You don't need water
    Werawhakaui?

    Rule 4. Identify your target beyond all doubt.

  4. #4
    Not just an internet expert... The Claw's Avatar
    Join Date
    Dec 2011
    Location
    Gore
    Posts
    1,209
    I (well my brother actually) built an annealer that uses 2 propane? torches. I must get a video of it running. I wanted to build an induction annealer but it all seemed to hard (and expensive) but this has renewed my enthusiasm to have a go

    Sent from my SM-N950F using Tapatalk
    steven likes this.
    If it's not a first round hit you need to practice more

  5. #5
    Member
    Join Date
    Nov 2016
    Location
    Orewa
    Posts
    53
    Quote Originally Posted by The Claw View Post
    I (well my brother actually) built an annealer that uses 2 propane? torches. I must get a video of it running. I wanted to build an induction annealer but it all seemed to hard (and expensive) but this has renewed my enthusiasm to have a go
    Yea mate. Itís not too hard, the controller is the tricky bit. I used an arduino, happy to Share the source code if you wanna go that way. AliExpress has sharp prices and free shipping on most of the bits you need too so $ not too bad.

  6. #6
    Member 40mm's Avatar
    Join Date
    May 2017
    Location
    Jaffa
    Posts
    1,074
    Quote Originally Posted by Gibo View Post
    You don't need water
    just bourbon
    WallyR likes this.
    Use enough gun

  7. #7
    Member
    Join Date
    Nov 2016
    Location
    Orewa
    Posts
    53

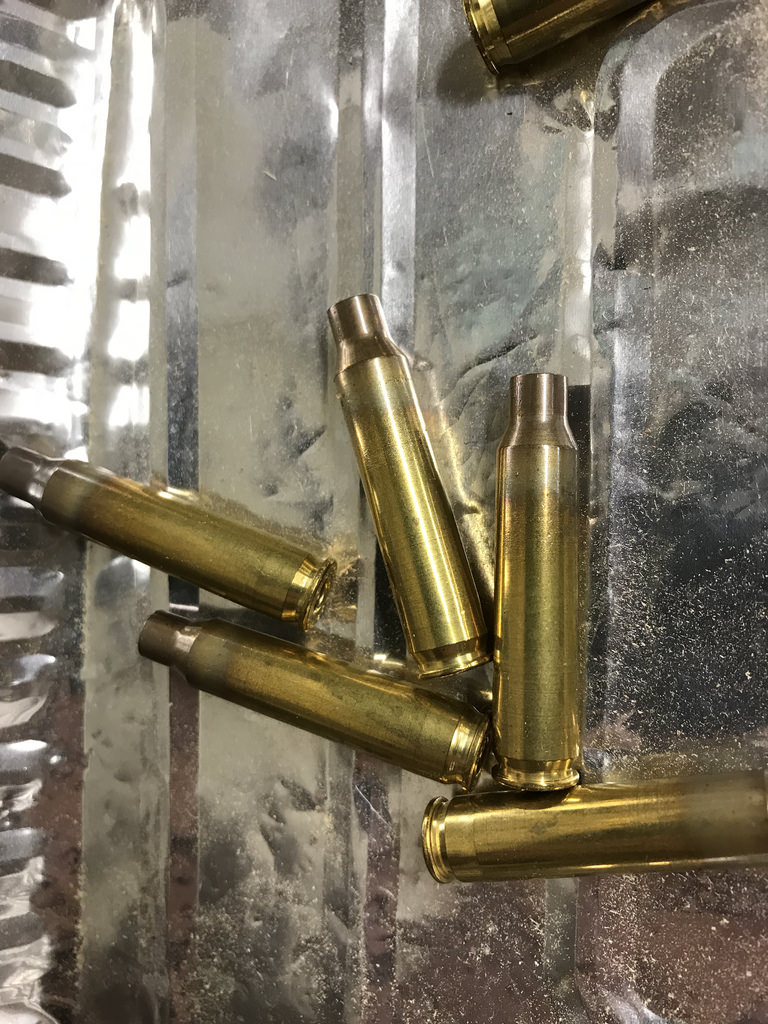

    If anyone's interested, got the timing dialed in for 223, 308, 270 & 300WM. Yellow is 650F and white is 450F.

    Beaker likes this.

  8. #8
    MIA somewhere in Nam 300CALMAN's Avatar
    Join Date
    Dec 2014
    Location
    Reluctantly JAFA
    Posts
    3,076
    Quote Originally Posted by MGNZ View Post
    Yea mate. It’s not too hard, the controller is the tricky bit. I used an arduino, happy to Share the source code if you wanna go that way. AliExpress has sharp prices and free shipping on most of the bits you need too so $ not too bad.
    Hi @MGNZ this is definitely interesting! Source code yes please and do you have some photos of the beast open? Parts list?

    Awesome and Thanks in advance

    300

  9. #9
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    19,047
    Quote Originally Posted by MGNZ View Post
    If anyone's interested, got the timing dialed in for 223, 308, 270 & 300WM. Yellow is 650F and white is 450F.

    Whats black?
    Werawhakaui?

    Rule 4. Identify your target beyond all doubt.

  10. #10
    MSL
    MSL is offline
    Member MSL's Avatar
    Join Date
    May 2014
    Location
    Waikato
    Posts
    2,714
    Quote Originally Posted by Gibo View Post
    Whats black?
    Burnt
    Beaker likes this.

  11. #11
    Not just an internet expert... The Claw's Avatar
    Join Date
    Dec 2011
    Location
    Gore
    Posts
    1,209
    Quote Originally Posted by MSL View Post
    Burnt
    Templaq paint burns when it reaches its rated temp

    Sent from my SM-N950F using Tapatalk
    If it's not a first round hit you need to practice more

  12. #12
    Member
    Join Date
    Nov 2016
    Location
    Orewa
    Posts
    53
    Quote Originally Posted by 300CALMAN View Post
    Hi @MGNZ this is definitely interesting! Source code yes please and do you have some photos of the beast open? Parts list?

    Awesome and Thanks in advance

    300
    Hi @300CALMAN,
    some pics below of the inside and arduino pinout and also some links to the bits from aliexpress and the software source.

    ZVS induction board
    Display
    12V 2A power supply
    Cooling pump
    water tube
    1/8" copper tube
    48V 600W power supply
    current sensor (optional)
    Radiator
    cooling tank
    controller

    arduino software source code







    Last edited by MGNZ; 24-04-2018 at 09:01 PM.
    Beaker and 300CALMAN like this.

  13. #13
    MIA somewhere in Nam 300CALMAN's Avatar
    Join Date
    Dec 2014
    Location
    Reluctantly JAFA
    Posts
    3,076
    Wow that's hiding a water cooler and all! Very impressive

  14. #14
    Member
    Join Date
    Nov 2016
    Location
    Orewa
    Posts
    53
    This project is pretty much finished now. video below of doing some 270 brass in free run mode.

    I did 75pc of 223 brass without pausing - the coil remains cool and the only parts that were slightly warm were the resonant capacitors on the induction board.

    ** if anyone is going to build one of these - The water cooled coil is an absolute must. makes such a big difference to heat as well as efficiency

    Cheers,
    Mark

    Free run video
    The Claw, 300CALMAN and 40mm like this.

  15. #15
    MIA somewhere in Nam 300CALMAN's Avatar
    Join Date
    Dec 2014
    Location
    Reluctantly JAFA
    Posts
    3,076
    That is awesome. @40mm a big one for 40 mm?
