Thread: I've been Tinkering

  1. #1
    Member
    Join Date
    Mar 2014
    Location
    In the Mainland
    Posts
    311

    I've been Tinkering

    I've been tinkering, well to be more precise I've been doing some 3D design in TinkerCad and getting it printed at my local library.

    I need a project to do, something relatively small but challenging for me as it's been about 20 years since I did any CAD work.

    So I decided to have a go at designing and printing a copy of my FTR rifle's trigger guard.
    An interesting shape with lots of curves, holes and a slot.

    4th and final prototype (see pictures). Bonus is that it is 10 grammes lighter than the original - which can help in a shooting class with a weight limit.

    I will get some printed in different colours and higher density printing. Should be about $4-$5 each to print.


    Name:  Finger Guard small.png
Views: 301
Size:  65.3 KB
    Moa Hunter, xtightg and nowool like this.

  2. #2
    Member
    Join Date
    May 2016
    Location
    carterton
    Posts
    594
    I can see people printing ak,s or ar,s with these machines. That will get plod going

  3. #3
    Member Sideshow's Avatar
    Join Date
    Apr 2015
    Location
    UK
    Posts
    5,276
    Yep when you get the visit Cyclops bet it’s the The library is Liberian that dobbed you in
    It's all fun and games till Darthvader comes along
    I respect your beliefs but don't impose them on me.

  4. #4
    Member
    Join Date
    Jun 2013
    Location
    Middle Earth
    Posts
    2,473
    It is cup of tea handle. You guys see evil everywhere:-)
    Cyclops likes this.

  5. #5
    Member
    Join Date
    Mar 2014
    Location
    In the Mainland
    Posts
    311
    Quote Originally Posted by Sideshow View Post
    Yep when you get the visit Cyclops bet itís the The library is Liberian that dobbed you in
    In public this is referred to as a "Finger Guard" for macninery. Technically correct description.
    I do the Jedi Mind Control so no-one knows anything else.

    Quote Originally Posted by Martin358 View Post
    I can see people printing ak,s or ar,s with these machines. That will get plod going
    Or at least print replicas for display and to confuse the authorities.
    "No sir that's not a rifle, really it's not."

  6. #6
    Member
    Join Date
    Mar 2019
    Location
    Otago
    Posts
    93
    Quote Originally Posted by Cyclops View Post
    In public this is referred to as a "Finger Guard" for macninery. Technically correct description.
    I do the Jedi Mind Control so no-one knows anything else.


    Or at least print replicas for display and to confuse the authorities.
    "No sir that's not a rifle, really it's not."
    that's why i order airsoft gun parts for my guns!

  7. #7
    Member
    Join Date
    May 2015
    Location
    Kapiti Coast
    Posts
    577
    Sounds like your library is not only well set up, but more resilient that others.

    My closest to work - Wellington Library is closed due to earthquake damage.
    My closest to home - Waikanae closed due to mould from water damage.

    I ship my 3d designs off to a workmate in Auckland, as using the public 3D printing in my region is too hard. I foresee the purchase of a 3D printer in my not too distant future.
    Cyclops likes this.

  8. #8
    Member
    Join Date
    Mar 2014
    Location
    In the Mainland
    Posts
    311

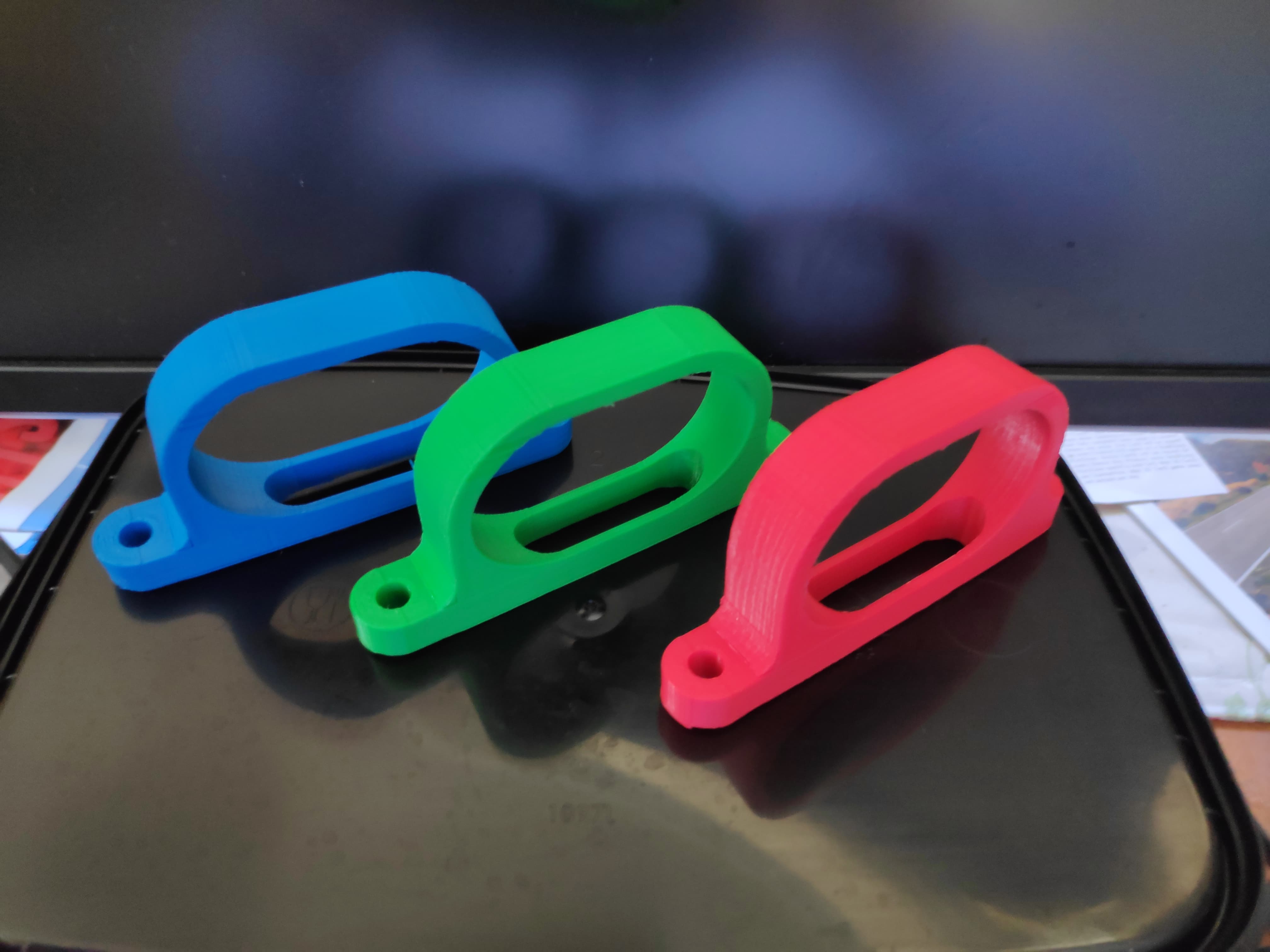

    After 5 evolutions/prototypes/redesigns the final edition was achieved.
    Added colour for some interest.

    Name:  Finger guards.jpg
Views: 65
Size:  306.2 KB
    quentin likes this.
