Earlier this year @stumpy discovered that nappies and baby food apparently is a higher priority than a metalwork hobby... :P
So after some negotiations with the Mrs (profuse begging and groveling did the trick), I managed to convince the better half that this was too good a deal to pass on. Lathe & mill at the same time, with oodles of tooling (xmas in my world).
Stumpy was not lying when he said the mill was a large lass. Took myself, a mate and an engine hoist to move "big bertha" into her final resting place.
The mill is a Rong Fu 30 copy, round column. Nothing fancy, but nice large bed and that sold it for me as I wanted a mill for stock inletting etc. The lathe is an early Myford ML7, I think 1948 if the serial number registry is correct.
I cleaned the machines, re-built the lathe bench and set about discovering what all the bits and pieces were for...
Will be using this thread to post pics of my attempts at metalwork.
-
1 Attachment(s)
First up, some simple turning and threading.

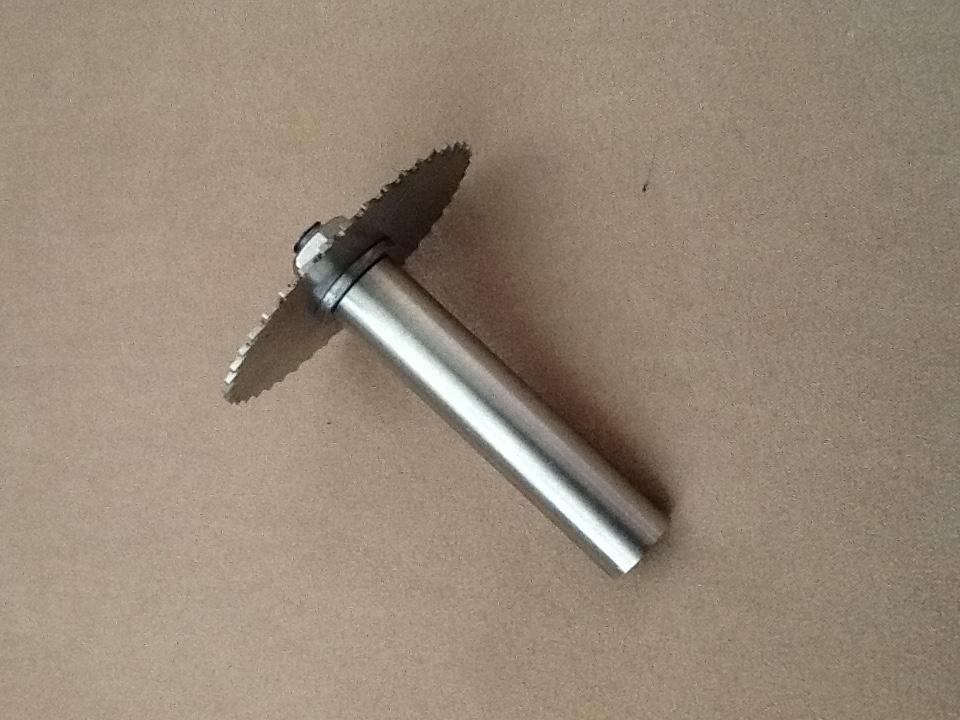

Had to make a smaller mandrel for the slitting saw, so that I could maximize the depth I could saw to (see barrel clamp later)
Attachment 40739
The bottom washer has a slight "lip" to locate the blade.
-
2 Attachment(s)
Next was a barrel clamp and action wrench.

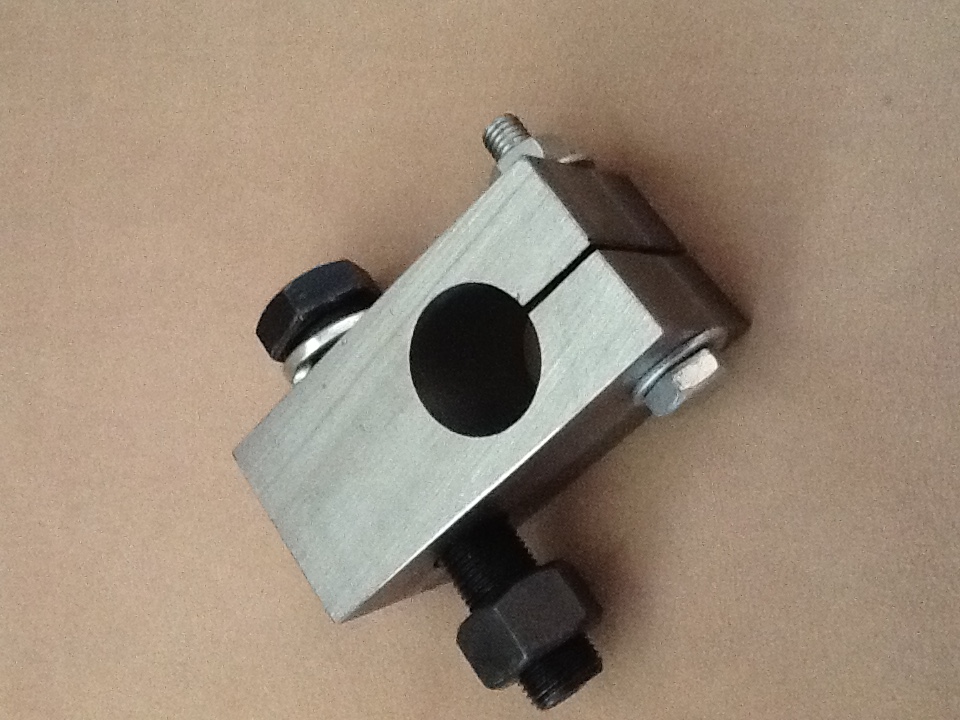

The barrel clamp was designed so that I could bolt it to the towbar of my van and use it on the range. Some interesting lessons learnt - off-centre work holding, boring and slit sawing. The black bolt is 3/4 inch diameter to give you an idea of the size.
Attachment 40740

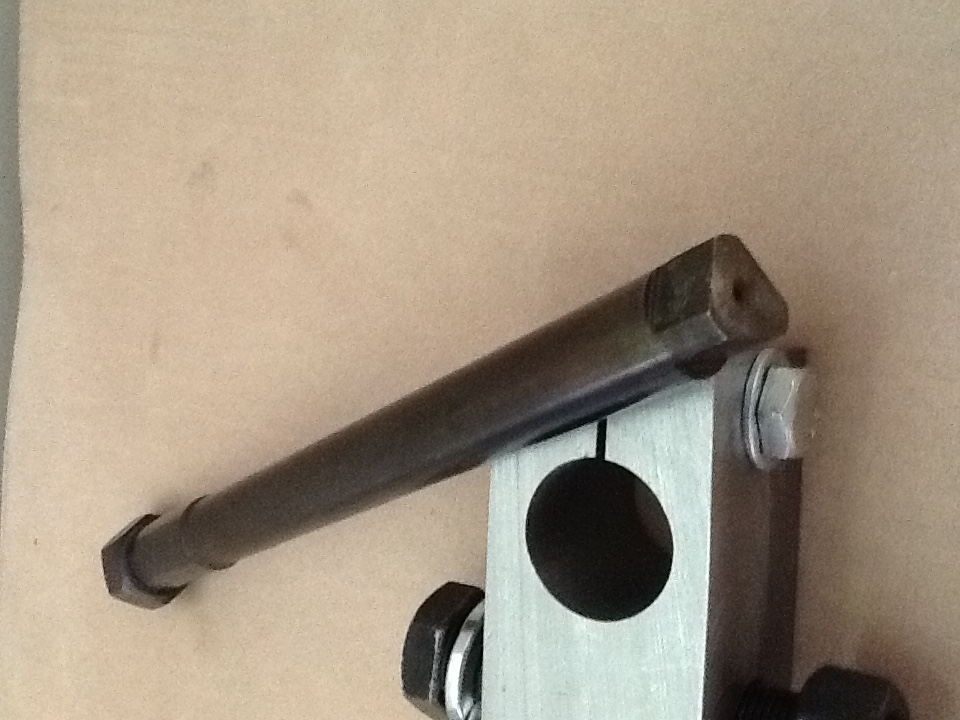

The action wrench is for my Omark target rifle, 3 lug. Got a mate to help with welding the nut onto the bar, and then used the faces of the nut to use as an idex for machining the 3 flats.
Attachment 40741
-
1 Attachment(s)
Next one was to make a second base plate for my SKP buttplate. I wanted the same setup on both my fullbore and rimfire FTR rifles, and figured making a 2nd baseplate would be way cheaper than buying a whole second SKP ($250).
So I machined some square stock into a T, and turned down a piece of roundbar to the correct dimension. Then machined a slot into the roundbar. Bit of steel putty later and some grining, and I have a spare buttplate :thumbsup: Total cost - $ 20 for the steel putty and some scrap alu.
Attachment 40742

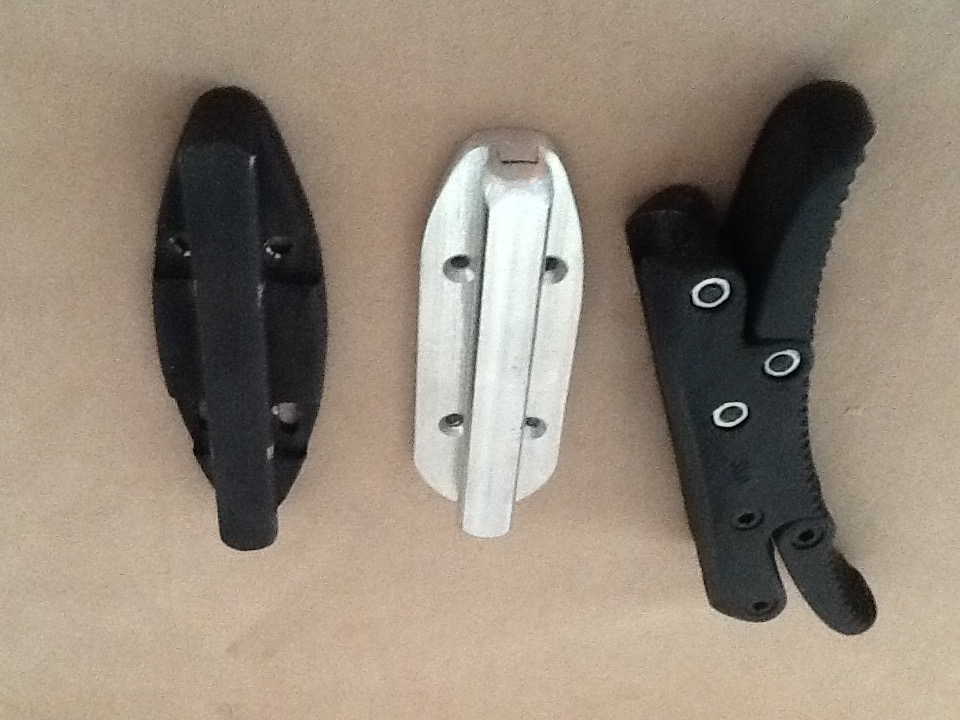

Shoulder plate on right, new base in the middle, and original base on the left. I will see how the steel putty holds up with rimfire recoil, but should be good...
-
bloody ipad photos seem to be upside down ?"£$%^
current project is a spotting scope stand for FTR. lots of little bits and pieces that go together, taking a lot longer than I thought...
-
Projects rock! I think you and I would have a lot to talk about if ever we were in the same room. Keep em coming...
-
regretted selling em ......but , they have found a very nice home , with a very capable machinist !!! ... look forward to seeing more stuff/projects
-
1 Attachment(s)
Alternate trigger shoe for my smallbore FTR rifle - so that it matches the fullbore one.
Attachment 48829
-
3 Attachment(s)

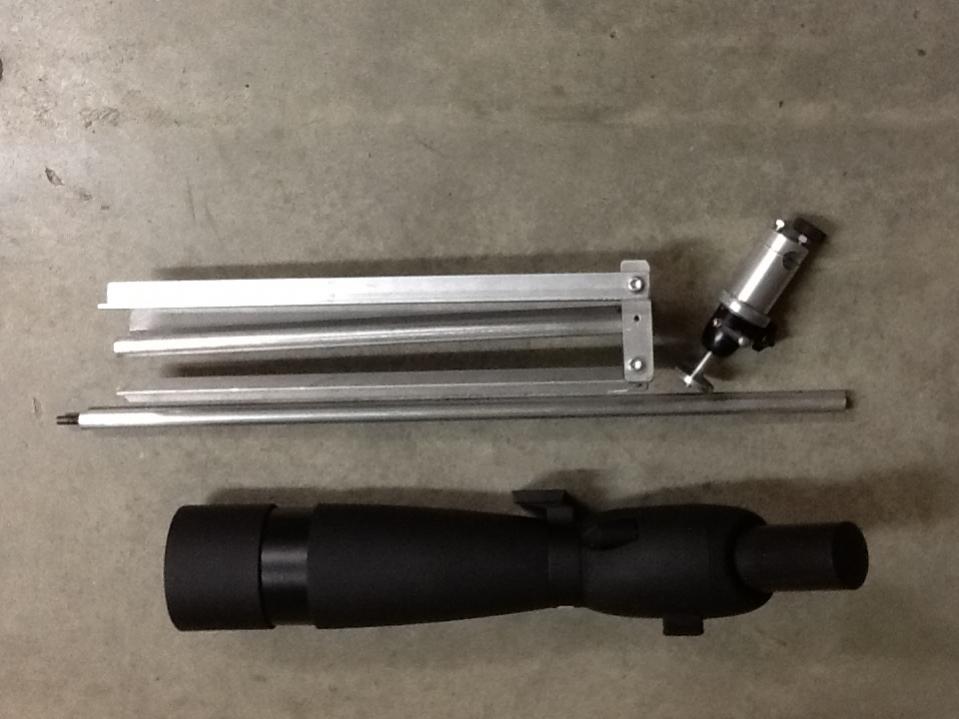

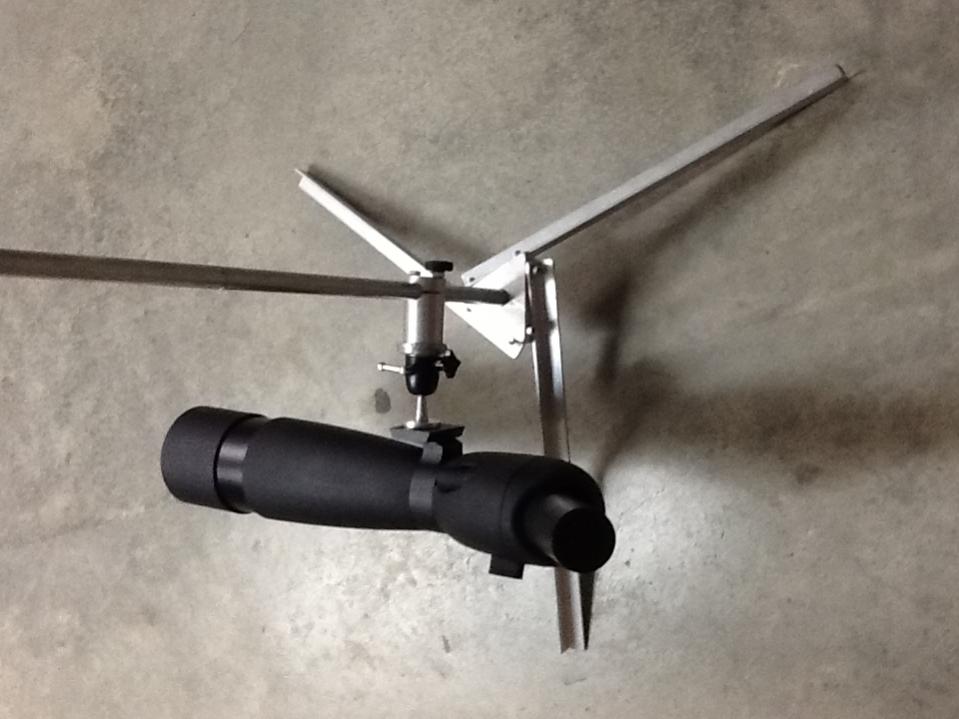

Version 2 of a home-made spotting scope stand. Lots of interesting workholding and figuring out how to do equilateral triangle etc.

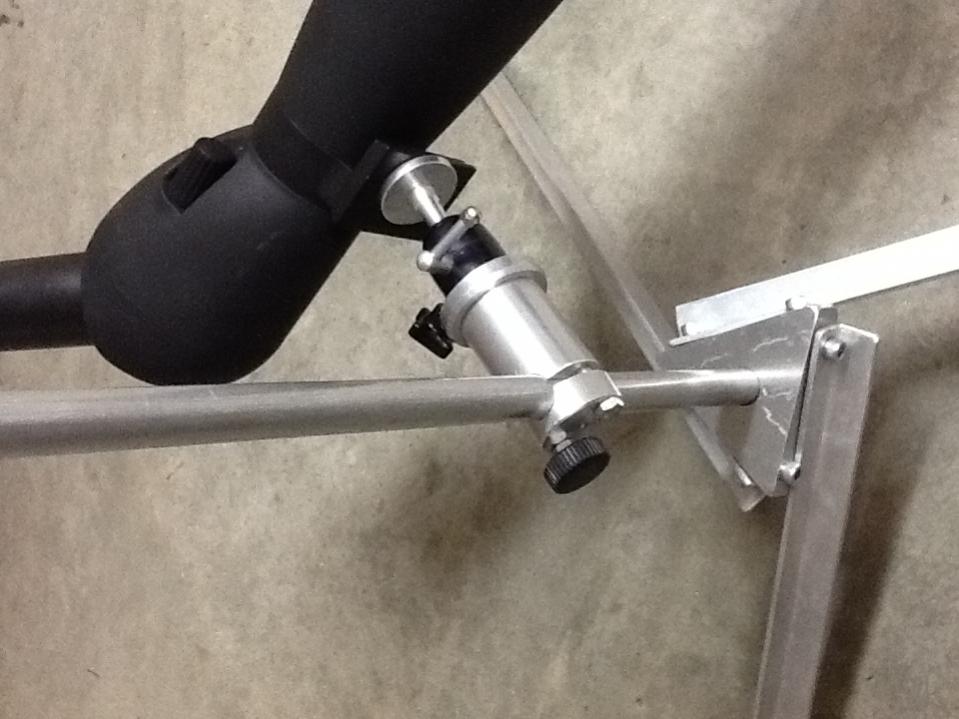

The barrel of the clamp is home-made as well, only part not fabricated myself is the swivel head off a monopod.
Attachment 48830
Attachment 48831
Attachment 48832
-
Nice. Good having a wider base for the spotting scope than the poxy "tip over when looking at it sideways" types.
-
Yep EBF, That's a dame good idea, every time I fire the beast I have to go down the range to get my scope!!, Homebrew.357.
-
I like the stand.
Looks nice and compact once put down.
