    Makeing a double paper patch mould

    Hi All, The Sharps cartridge originally came out with a paper patched bullet, Sooooo, using my poor long suffering lathe to have a go at making one. Using ali I cut out two blocks for a double mould, the blocks are clamped in the fore jaw chuck and machined square on the sides. Pics, Hombrew.357.
    Name:  P1020624.JPG
Views: 472

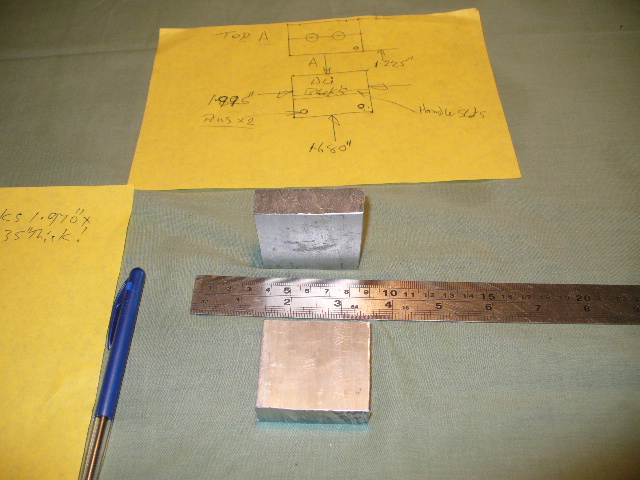

Size:  168.5 KB, Rough cut blocks.
    Name:  P1020625.JPG
Views: 395

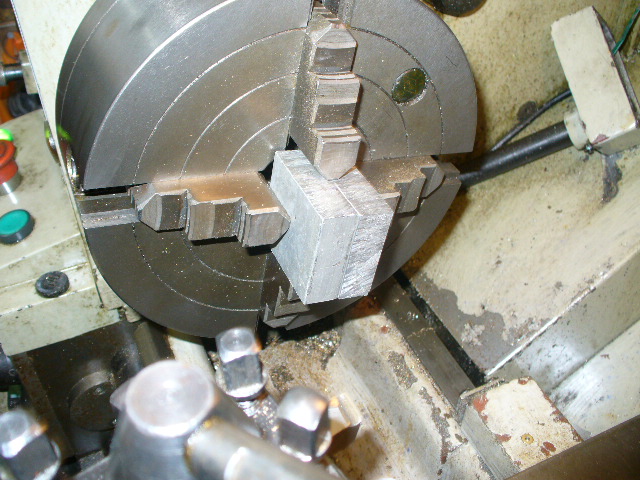

Size:  149.7 KB,Set up in chuck.
    Name:  P1020626.JPG
Views: 457

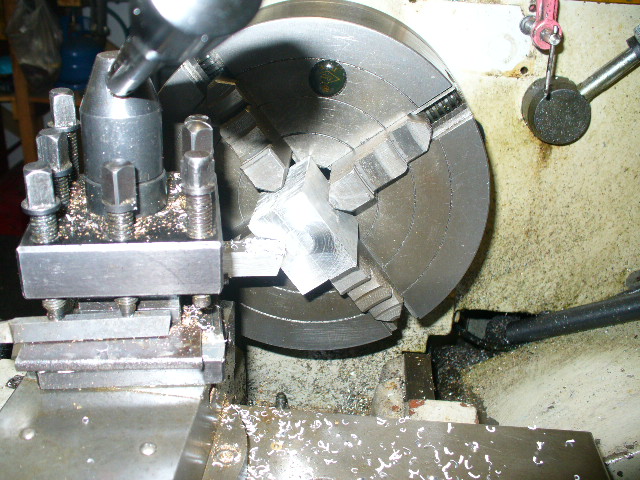

Size:  154.1 KB, Lathe at work.
    Name:  P1020627.JPG
Views: 443

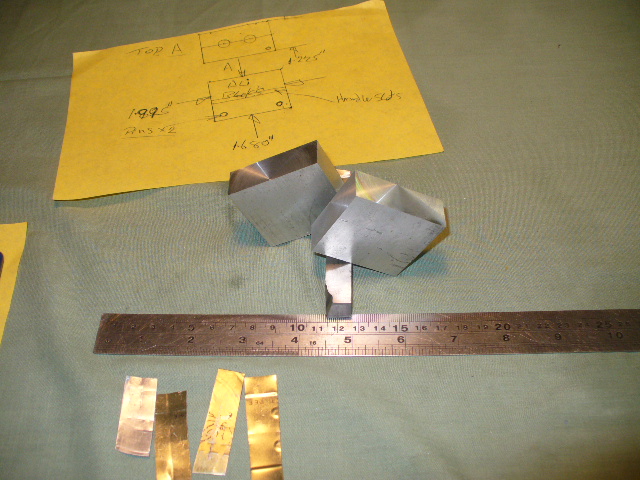

Size:  161.1 KB, All nice and square.

  2. #2
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    650
    Ok, now the next bit is to machine two of the ali blocks faces true, again set up in chuck and skim one face on each block. Now the two faces will be the inside of the mould but before drilling the blocks for casting holes they must be made to clamp in the same spot, and to do this I fitted three pins to line up the blocks. You can make up the pins but I had some from a junked drill that did the job . Three holes are drilled through one block and just a bit into the other block while they are clamped together , the holes are just a bit smaller than the pin diameter for a press fit in the block with the through holes. The block with the shallow holes is redrilled with a drill the same size as the pins so when clamped together they line up the blocks. Hope you get the idea, , ok the pics should fix it, Homebrew.357. Name:  P1020628.JPG
Views: 365

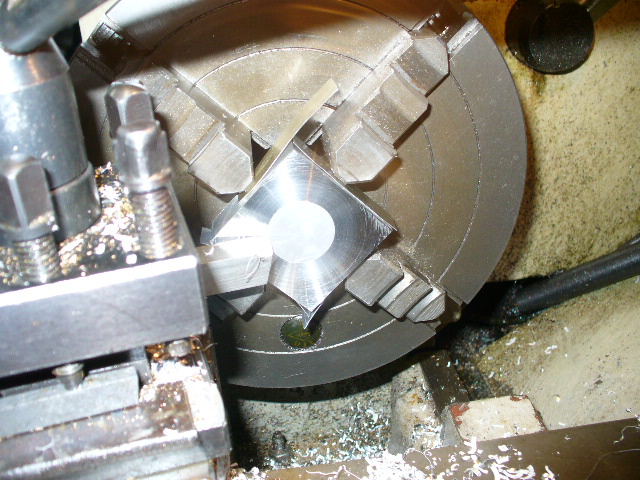

Size:  155.4 KB, Face cleaned up.

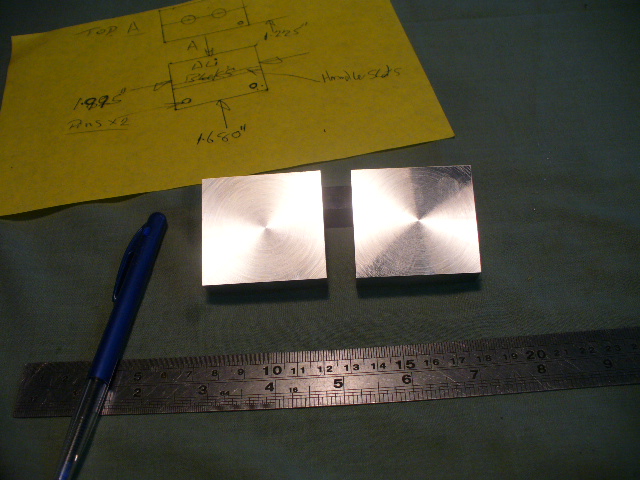

    Name:  P1020629.JPG
Views: 416
Size:  159.9 KB, Two blocks done.

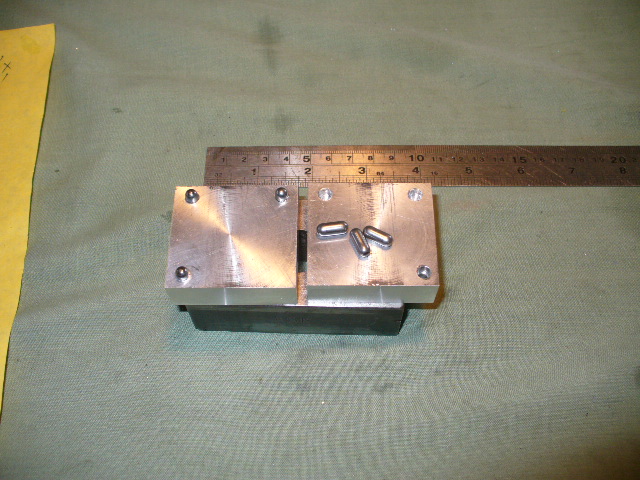

    Name:  P1020630.JPG
Views: 337
Size:  147.7 KB,Three pins fitted.
    Name:  P1020632.JPG
Views: 365

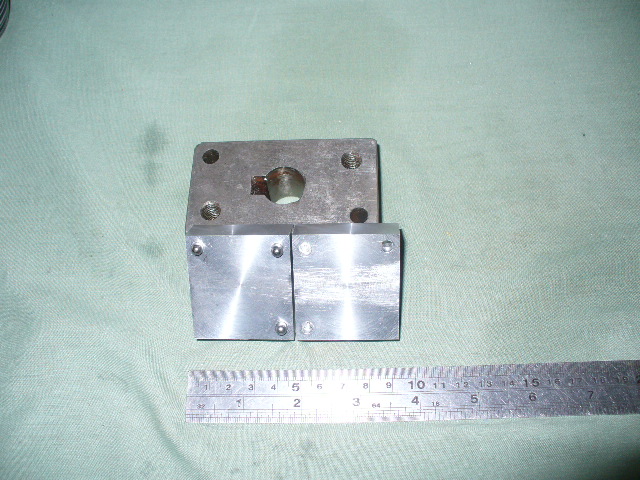

Size:  152.3 KB, Ready for the casting holes.
    gadgetman, Maca49, Beaker and 2 others like this.

  3. #3
    Member
    Join Date
    May 2015
    Location
    Southland
    Posts
    837
    Looks good! Why 3 pins instead of 2? So from now, you drill and then make up a boring bar?

  4. #4
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    650
    I just put in three pins, , more the merrier, but it works, and no boring bar, I made up a "D" bit from sliver steel the shape of the bullet. I`m using handles and spruce cutter for another mould, so to set up for the casting holes I line up with the spruce cutter to mark it out. The blocks are clamped in the chuck and the first hole is lined up, the drilled in with a small drill to the length of your bullet. A larger drill next, but only in to the ogive of the bullet, or just back from the nose, the hole should be just a bit smaller than the D bit so it has not much cutting when going in. Here's pic`s of the action, Homebrew.357.
    Name:  P1020633.JPG
Views: 335
Size:  148.1 KB , Spruce cutter for lining up.
    Name:  P1020634.JPG
Views: 332
Size:  153.2 KB, Centre then small drill.
    Name:  P1020635.JPG
Views: 324
Size:  152.0 KB, Enlarging hole for D bit.
    Name:  P1020636.JPG
Views: 304
Size:  154.2 KB, D bit ready to go.

  5. #5
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    650
    When the first hole is drilled and finished the blocks are reset up for the second one and all repeated again, It is best to go in a few times with the D bit to take out the spring in the tool ,specially at the nose of the mould, it`s cutting a large area. All is revealed when you remove then from the chuck and you can see what you have got, ,Homebrew.357.

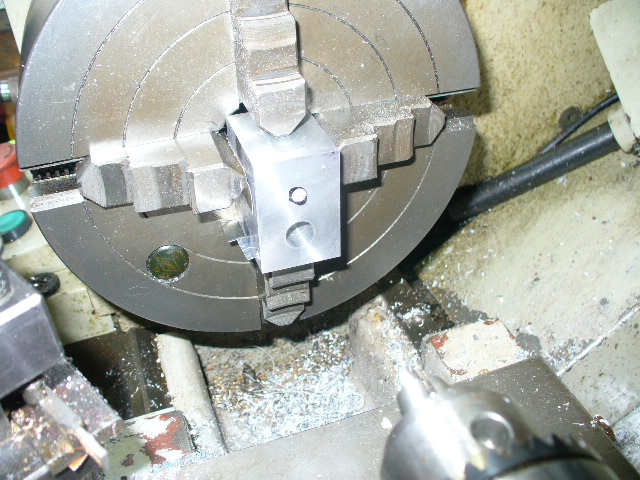

    Name:  P1020637.JPG
Views: 264
Size:  155.0 KB, Other hole lined up.
    Name:  P1020638.JPG
Views: 320

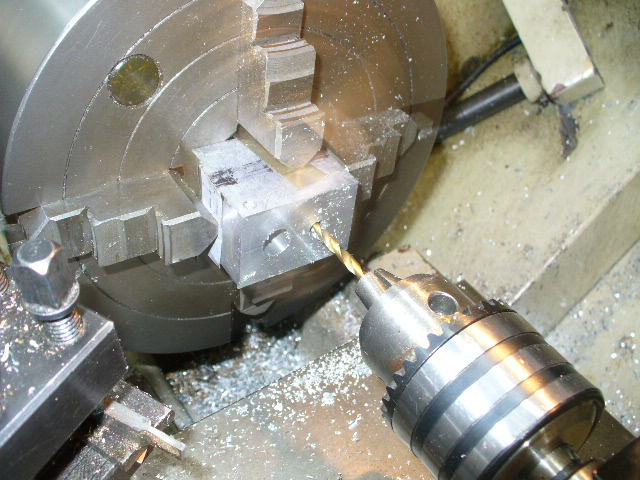

Size:  149.8 KB, Small drill in.
    Name:  P1020639.JPG
Views: 314

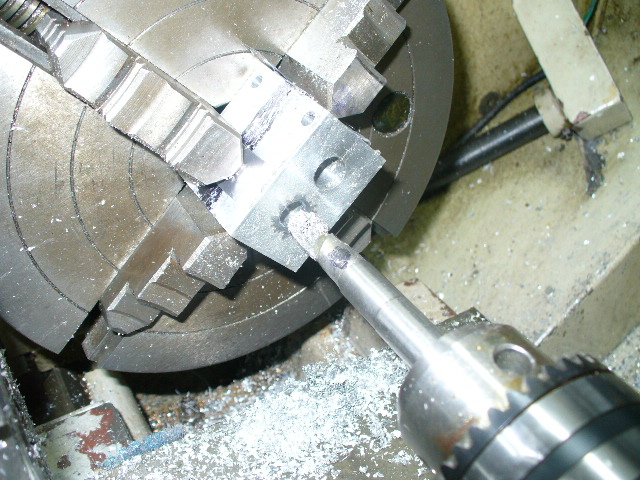

Size:  156.2 KB, D bit working.

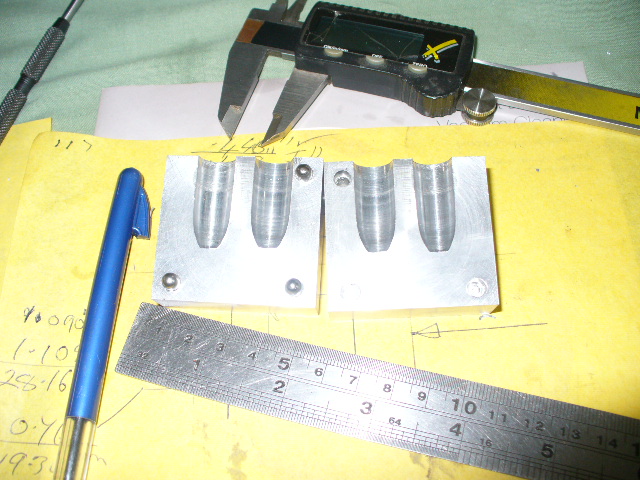

    Name:  P1020640.JPG
Views: 273
Size:  165.3 KB, Now you see what you have got, A paper patched mould.
    veitnamcam and Beaker like this.

  6. #6
    Member
    Join Date
    Nov 2012
    Location
    BOP
    Posts
    16,545
    Soot them up and into it!
    Boom, cough,cough,cough

  7. #7
    Member
    Join Date
    Nov 2012
    Location
    BOP
    Posts
    16,545
    How many grain
    Boom, cough,cough,cough

  8. #8
    Member
    Join Date
    Jun 2013
    Location
    Middle Earth
    Posts
    2,315
    You see Maca, all the little thinks you are going to be able to make with your lathe ;-)

  9. #9
    Member
    Join Date
    Nov 2012
    Location
    BOP
    Posts
    16,545
    Nope!
    Boom, cough,cough,cough

  10. #10
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    650
    I thought it was Gadgetman who had the new old lathe, give him something to do. Now Maca49, don`t rush me, all will be revealed. First off is the stuff ups, , yes I do make them, the d bit left a taper in the bullet mould, so a small boring cutter was used to straighten them out. One of them I used a rubber verier gage and went in a bit to far, but it`s ok, just a bit heaver . The next job was milling the slots for the handles , yep you guest it , on my lathe , then drilled two pin holes to holed the handles on, two screws to holed the pins in and fit the spruce cutter, it`s good to go. I will not know what I`v got till I do a bit of casting, can't stand the suspense ! , Homebrew.357.
    Name:  P1020641.JPG
Views: 248

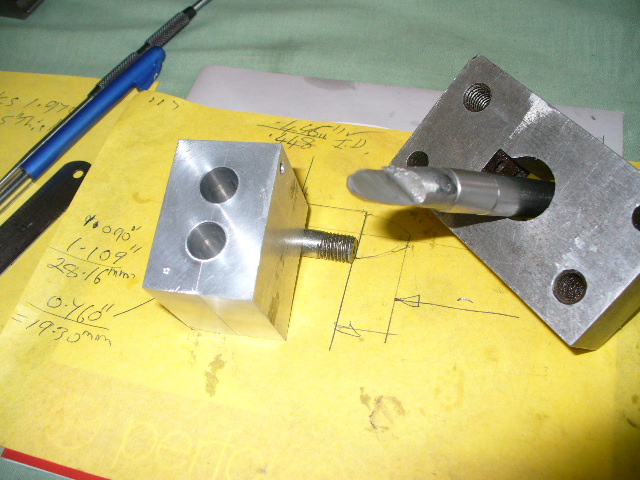

Size:  158.4 KB, The "D" bit.
    Name:  P1020644.JPG
Views: 276

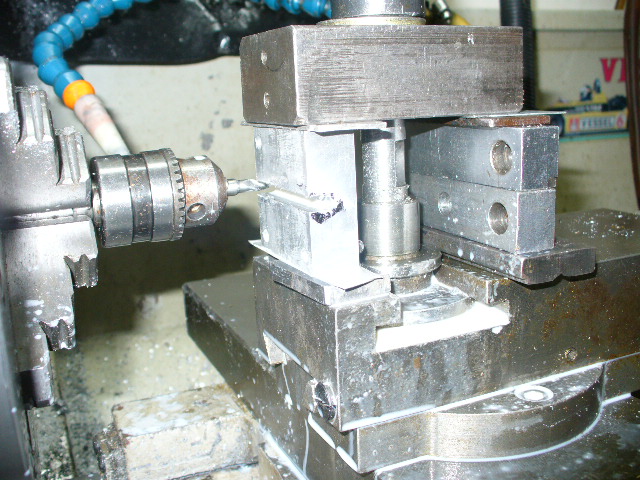

Size:  155.7 KB, Milling handle slots.
    Name:  P1020645.JPG
Views: 296

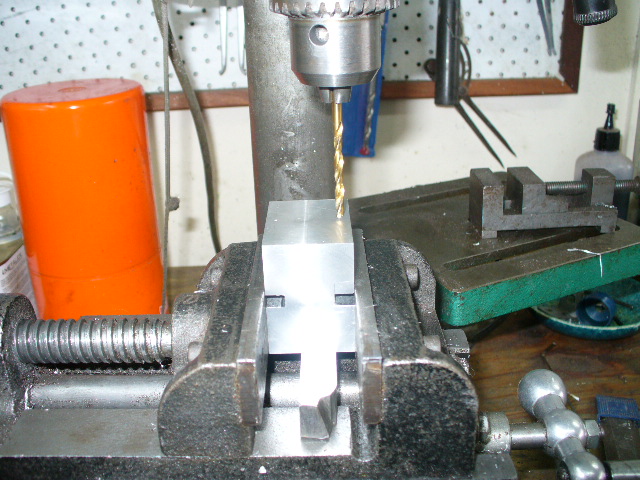

Size:  153.6 KB, drilling pin holes.
    Name:  P1020646.JPG
Views: 361

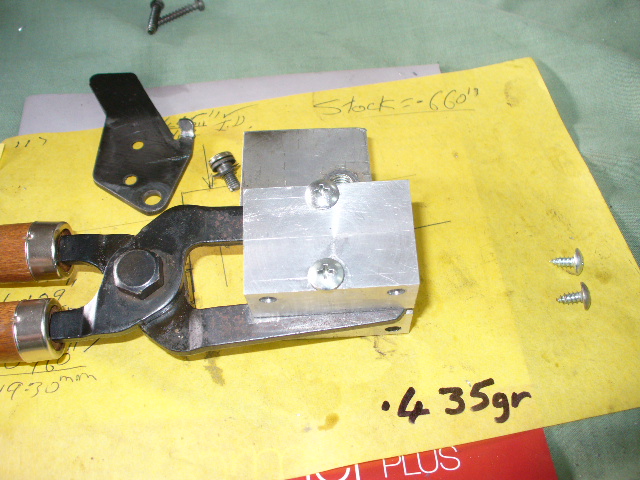

Size:  164.6 KB, Two screws to hold them in.
    veitnamcam and Beaker like this.

  11. #11
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    650
    So with a bit of a break in the weather I set up and had a casting session, some for my 3030, .308, (No I bought that mould), and the big stuff for the Sharps. The mould was good to cast with and even though I had two different bullet weights, 423grs, 405grs, I was quite pleased with the result. I then pp a few so I could load them up for a range shoot, with paper on the bullets were 461" Dia, resized to 459" in a sizing die I made and loaded up 10 rounds. At the range I had to reset the sights, as last time I found the fore sight was lose, shooting at 100m first shot low, then 4 left, set the sights and a six o'clock hold not to bad for a home made barrel and home made pp bullets, .Homebrew.357.
    Name:  P1020648.JPG
Views: 248

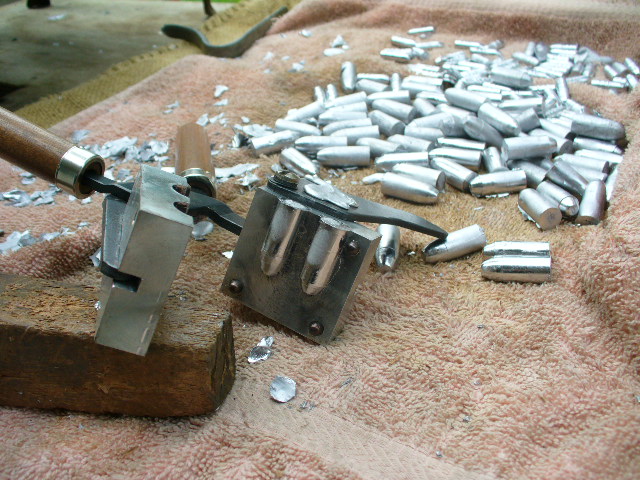

Size:  145.5 KB, The casting session.
    Name:  P1020650.JPG
Views: 253

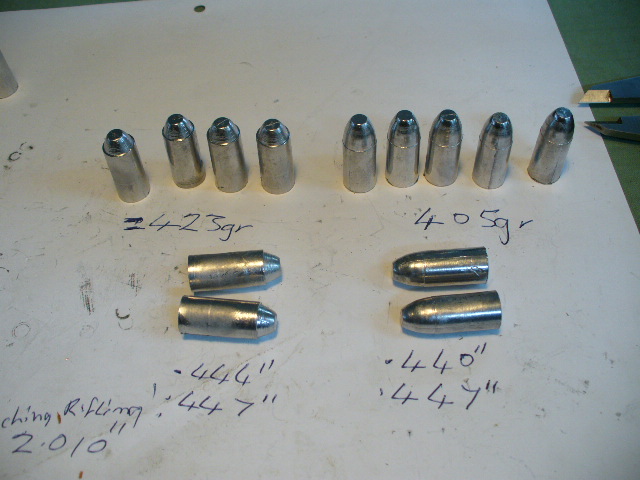

Size:  111.2 KB, Here's what I got.
    Name:  P1020651.JPG
Views: 294

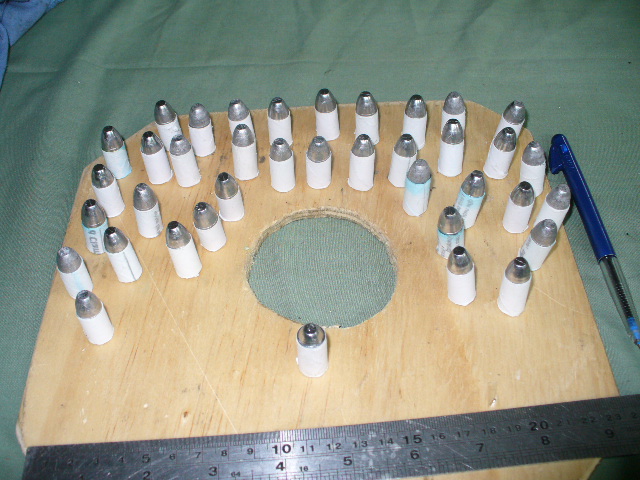

Size:  163.2 KB, I just used printing paper, A4.

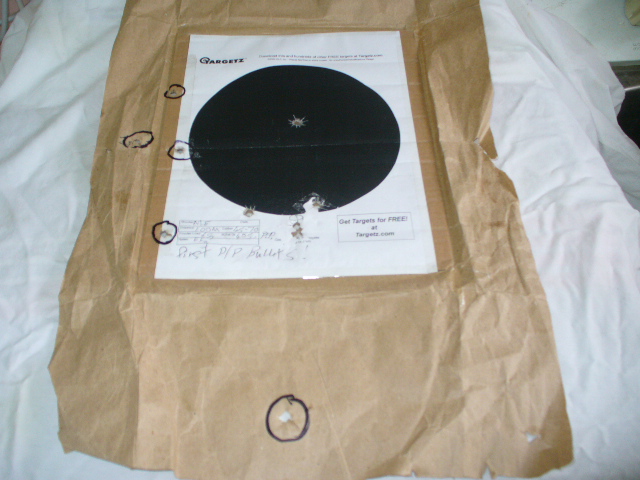

    Name:  P1020654.JPG
Views: 286
Size:  154.9 KB, At 100m, coming on, man it is a buzz to shoot.
    veitnamcam, Beaker and Mathias like this.

  12. #12
    Member homebrew.357's Avatar
    Join Date
    Jul 2013
    Location
    Auckland
    Posts
    650

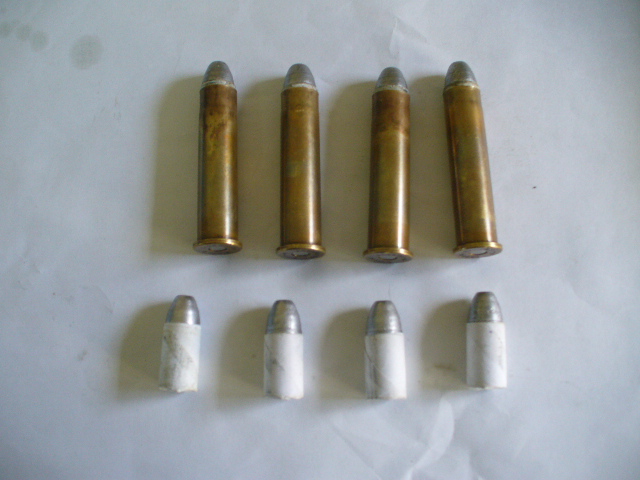

    Hi Guys, Now the 45-70 a mans cartridge, some thing to rattle your teeth, when it gets down range it speaks with authority . Here are some of the pp howitzer shells ready to go. Cheers, Homebrew.357.
