Thread: Man cave case prepper

  1. #1
    Member nzfubz's Avatar
    Join Date
    Sep 2012
    Location
    Christchurch
    Posts
    885

    Man cave case prepper

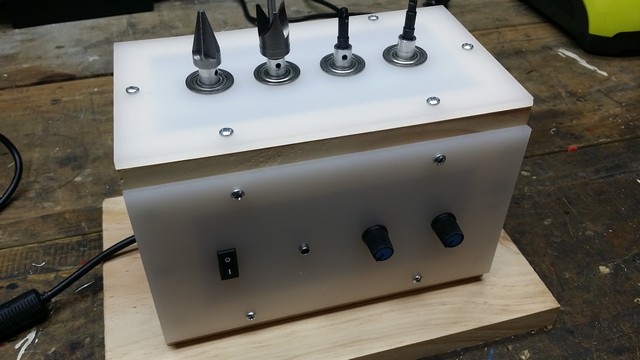

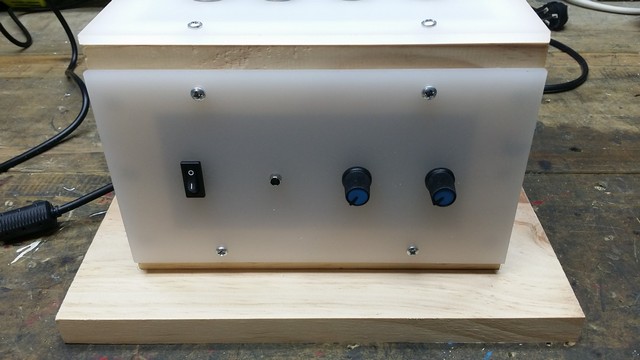

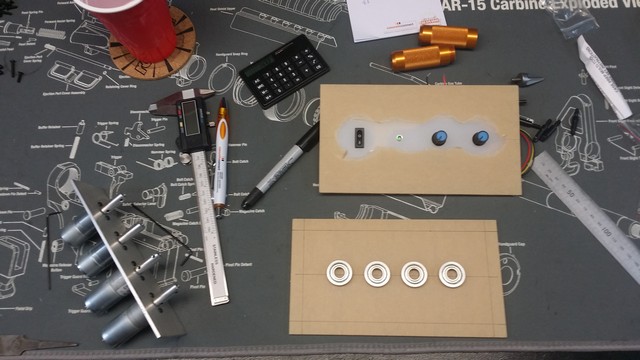

    Have always wanted one but couldn't justify $300 for a Lyman. So after all of $100 spent on Ebay and left over bits from other projects this is my budget idea for a case prep centre. Works like a charm and heaps cheaper than buying one + there is always the added bonus of man cave relaxation time
    Attached Images Attached Images
    DAF, P38, 7mmsaum and 13 others like this.

  2. #2
    Member Tommy's Avatar
    Join Date
    Nov 2014
    Location
    W-BOP
    Posts
    5,279
    Sweet!

  3. #3
    ebf
    ebf is offline
    The gnome returns ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    5,007
    Awesome ! Well done
    stumpy likes this.
    Viva la Howa ! R.I.P. Toby
    Black rifles matter...

  4. #4
    Member Happy's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    3,875
    Well done. Now all we need is diagrams and a materials list ha ha. Then circuit diagrams .
    Looks awesome !
    "This is my Flag... Ill only have the one ..

  5. #5
    Sending it Gibo's Avatar
    Join Date
    Feb 2013
    Location
    The Hill
    Posts
    20,532
    Nice!!! When are you going into production? Im in

  6. #6
    Member specweapon's Avatar
    Join Date
    Apr 2013
    Location
    Tasman
    Posts
    1,032
    Awesome, have you got a link to where you bought the motors? Is that an added collet on the motor shaft or is it how it came?

  7. #7
    Member Scouser's Avatar
    Join Date
    Dec 2012
    Location
    JAFA
    Posts
    4,476
    Sweet, i dont reload but i appreaciate initiative.....well done
    While I might not be as good as I once was, Im as good once as I ever was!

    Rule 4: Identify your target beyond all doubt

  8. #8
    Member
    Join Date
    Dec 2011
    Location
    South of Christchurch
    Posts
    1,418
    A small improvement would be to make the top slightly tilted, so that the swarf runs off.

  9. #9
    Member nzfubz's Avatar
    Join Date
    Sep 2012
    Location
    Christchurch
    Posts
    885
    Quote Originally Posted by scottrods View Post
    A small improvement would be to make the top slightly tilted, so that the swarf runs off.

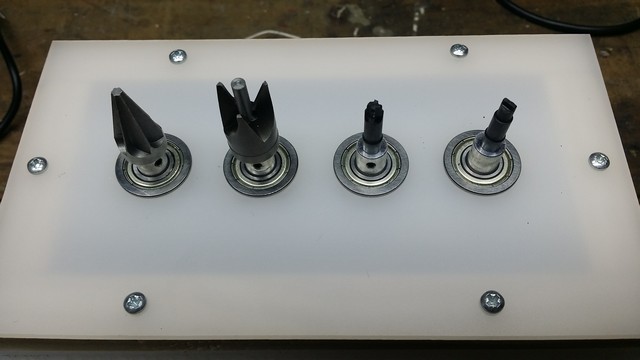

    Would have to tilt the whole motor set up to as the flange bearings are tight on the couplings. Chose perspex for the ease of brushing the swarf off.

    Links below to most of the parts

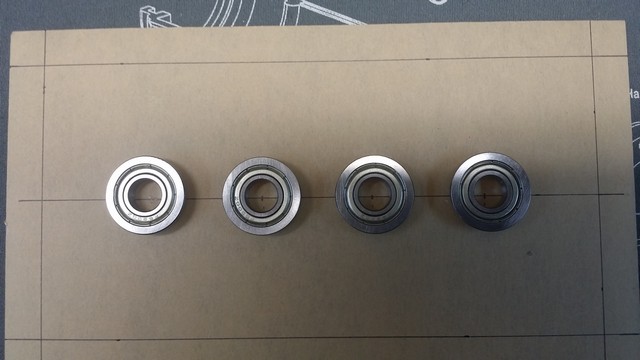

    F6900ZZ Metal Double Shielded Flanged Ball Bearings 10mm 22mm 6mm | eBay

    2 3 3 17 4 5mm Shaft Coupling Rigid Coupling Coupler Motor Connector SHIP Model | eBay

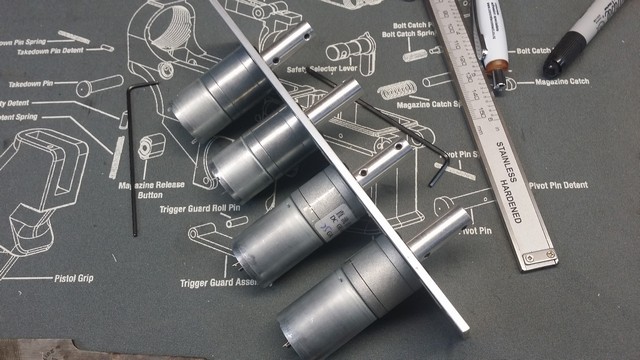

    25GA 12V DC 300RPM Powerful High Torque Gear Box Motor | eBay

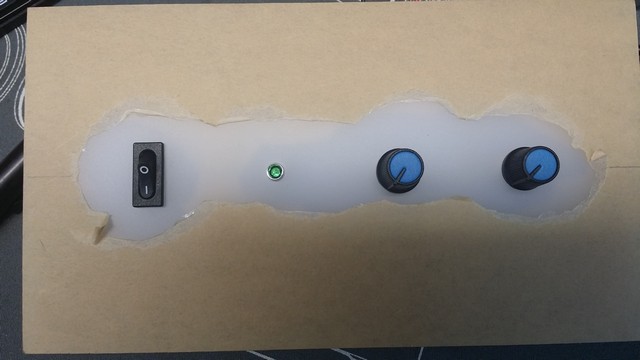

    12V 36V Pulse Width PWM DC Motor Speed Regulator Controller Switch 12V 24V 3A | eBay
    scottrods likes this.

  10. #10
    Member Happy's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    3,875
    As well as these bits do you need a dc 12 volt power supply if so what amperage ?
    Cheers
    "This is my Flag... Ill only have the one ..

  11. #11
    Member nzfubz's Avatar
    Join Date
    Sep 2012
    Location
    Christchurch
    Posts
    885

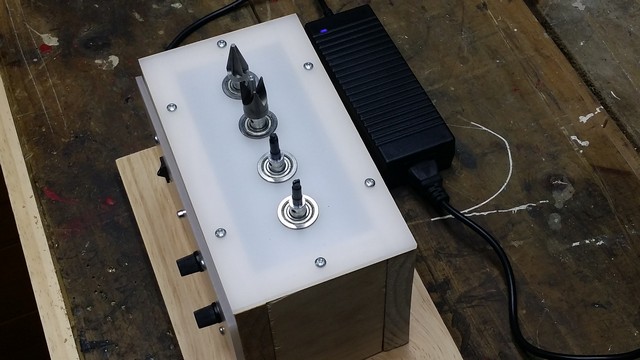

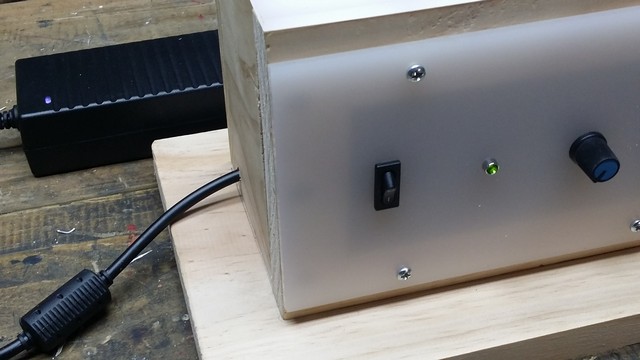

    I just used a 10amp one I had from something else possibly a old GPS charger. Pretty sure it's overkill for the motors used but works fine
    Diligentia, Vis, Celeritas

  12. #12
    Member 300CALMAN's Avatar
    Join Date
    Dec 2014
    Location
    NZISTAN
    Posts
    3,595
    Awesome that project definitely earns a big thumbs up in the man cave respect department. Probably outlast the brought one anyway.
