Thread: My attempt at DIY night vision

  1. #1
    Member
    Join Date
    Aug 2012
    Location
    Christchurch
    Posts
    3,295

    My attempt at DIY night vision

    Following on from @Beavis thread http://www.nzhuntingandshooting.co.n...34/index4.html

    Mine has been made with no soldering iron/tools of any description, just a leatherman, bluetack and tape....

    Things I needed:
    80mm downpipe (free)
    storm water end caps (free)
    Night vision tube ($110ish)
    Lens ($45ish)
    Tape ($5)
    Battery pack and switch ($15)
    Eye piece ($8)

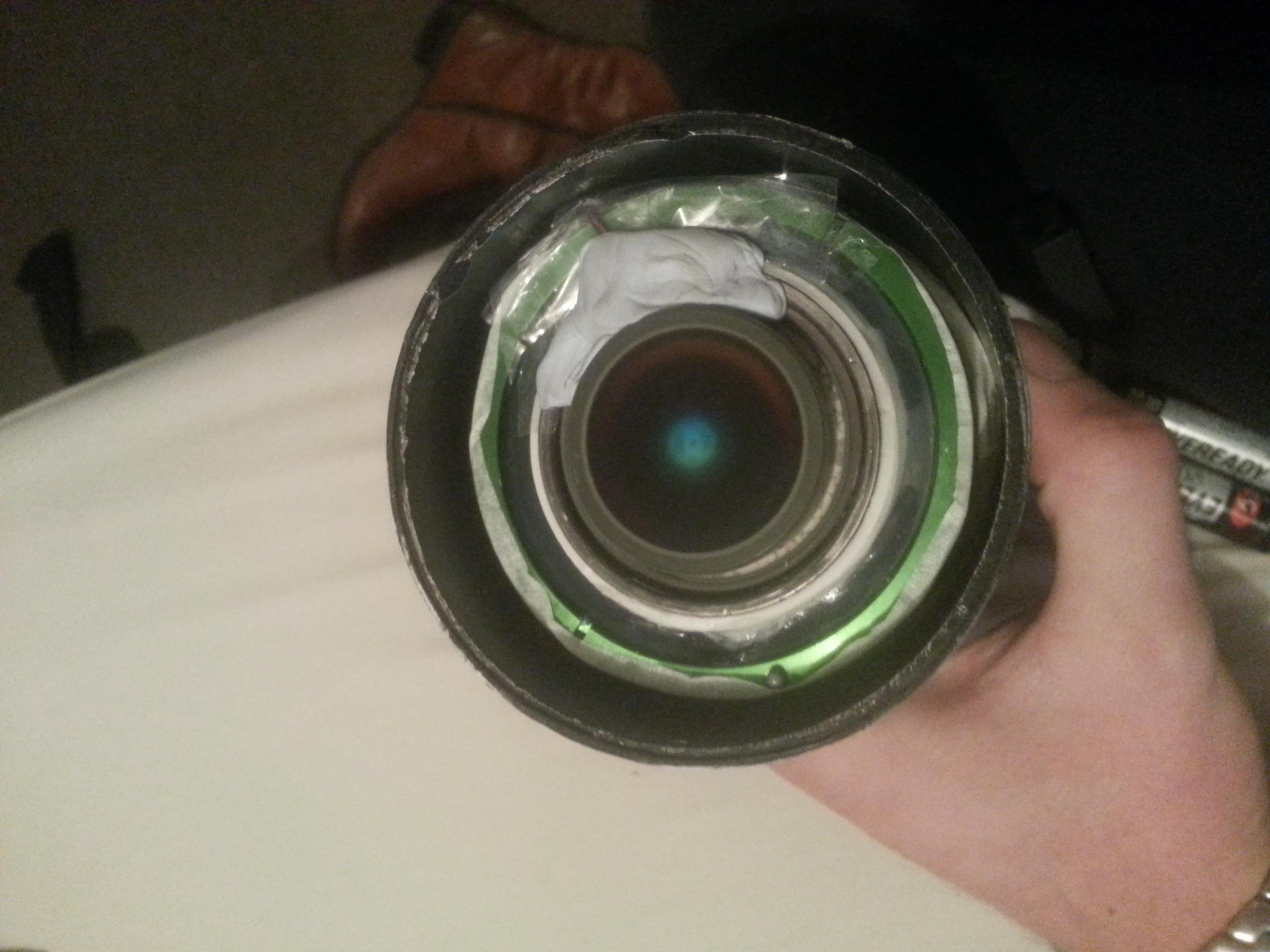

    I cut my downpipe to around about the correct size with my leatherman, wrapped the tub up in tape at both ends so i could barely move it in downpipe. Cut a hole in end cap for lens C mount to screw into (works well and means its just a case of screwing lens in and out to change).

    Got the lens in focus.

    Jammed my positive wire in the correct place and wedged it in with tinfoil as i dont have a soldier and my terminal hole wasnt threaded, bluetacked on negative.

    Once it was in focus i went and cut a hole in the other end cap for my eye piece, this is only 3x but it keeps the image nice and crisp.

    Spray painted the lot.

    Just need to attach battery pack and im done.

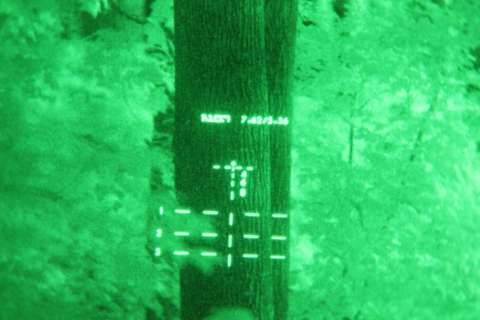

    I cant get good photos through mine with my camera but the image is surprisingly clear and lacking that fish eye effect for whatever reason (might be my 3x eye piece) i also have a reticle that i have a picture off below. Cool project and it is very impressive.

    Name:  8717.jpg
Views: 1313
Size:  16.6 KBName:  20140508_173455.jpg
Views: 1346
Size:  451.1 KBName:  20140508_173529.jpg
Views: 1891
Size:  478.3 KB

  2. #2
    Member
    Join Date
    Aug 2012
    Location
    Christchurch
    Posts
    3,295

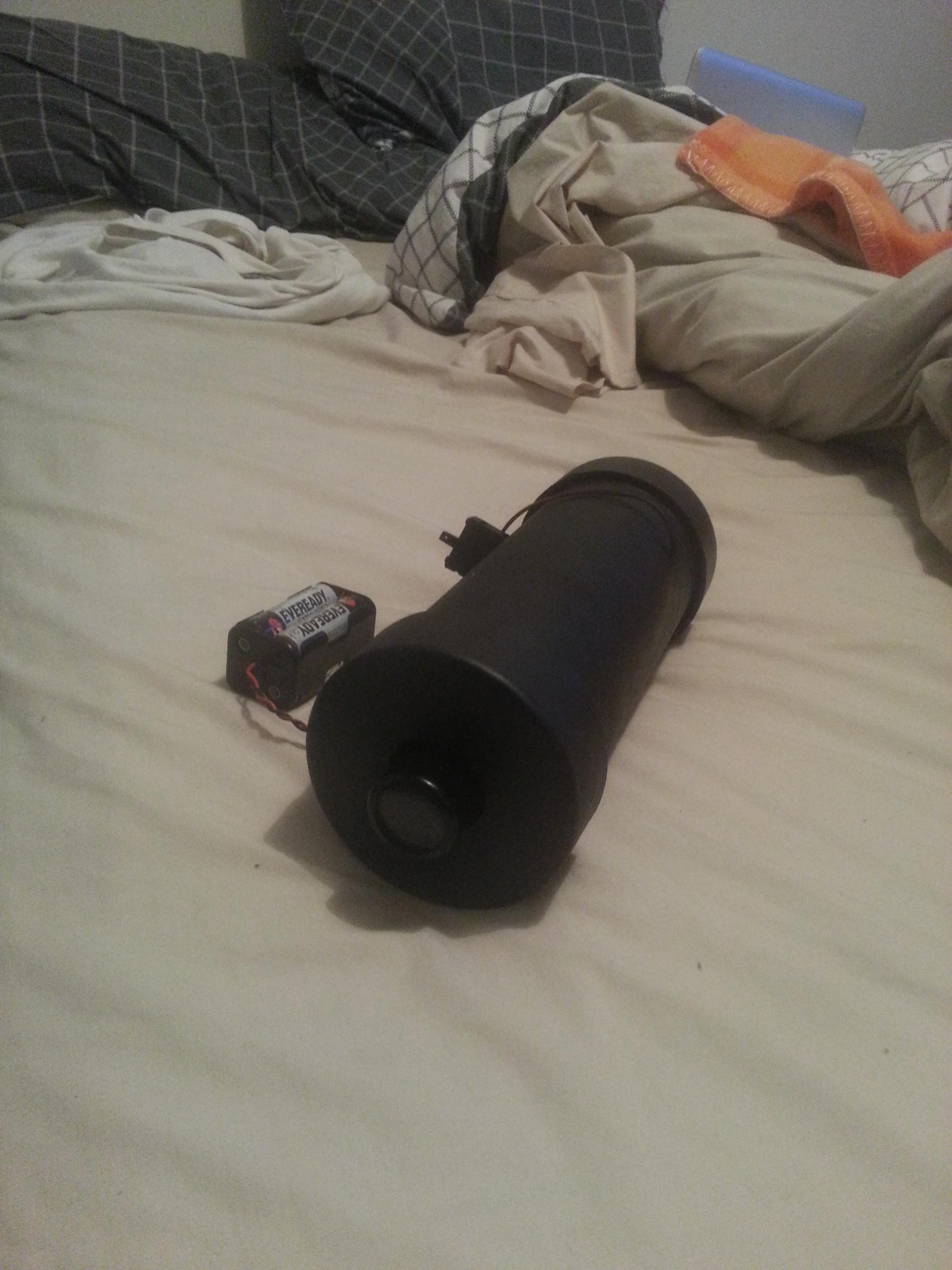

    Name:  20140508_173505.jpg
Views: 876
Size:  599.1 KB
    Nibblet, Gibo and seano like this.

  3. #3
    Member
    Join Date
    Aug 2012
    Location
    Christchurch
    Posts
    3,295

  4. #4
    Member
    Join Date
    May 2012
    Location
    Far North
    Posts
    2,568
    looks good mate, do you want to sell it?

  5. #5
    Member
    Join Date
    Aug 2012
    Location
    Christchurch
    Posts
    3,295
    Quote Originally Posted by Bill999 View Post
    looks good mate, do you want to sell it?
    Not really mate haha

  6. #6
    Tools not Toys
    Join Date
    Apr 2013
    Location
    wanaka
    Posts
    277
    Nice stuff, pretty amazing how well they work, you can go the inexpensive route or something a little more fancy, and have a great bit of kit either way. Seeing in the dark is addictive though beware
    Slow is Smooth, Smooth is Fast.

  7. #7
    Member
    Join Date
    Mar 2012
    Location
    Naracoorte South Australia/in exile
    Posts
    179
    That's awesome, how far can you see with it

  8. #8
    Member mikee's Avatar
    Join Date
    Aug 2012
    Location
    Nelson, New Zealand
    Posts
    7,179
    Quote Originally Posted by Tuidog View Post
    That's awesome, how far can you see with it
    I would be interested too in how far you can see. Any chance of a pic in a paddock (incl livestock) in the total dark?

  9. #9
    Member
    Join Date
    Aug 2012
    Location
    Christchurch
    Posts
    3,295
    Can see pretty far. I havent had it out in total darkness yet so cant comment. Look at beavis thread, he has some description and distances he has observed with his.

    I cant get photos from mine yet, might be my camera

  10. #10
    Member
    Join Date
    Aug 2012
    Location
    South of Wellington
    Posts
    286
    Was just playing around on Trademe and I see some bloke selling a Fero 51 set on NV binoculars. They are Gen1 3 stage cascade and were still being used by the German military in the first Gulf war. He wants $350 for them.. Thats a bloody good price. I remember seeing a set in Shooters Supplys in Christchurch years ago for $7000, that did make me smile at the time.
    If you are in the market for some decent Gen1 NV at a good price I`d grab them. No they are not mine nor do I know who is selling them and Im not interested in them as my kit is Gen3.
