    A wee project for myself

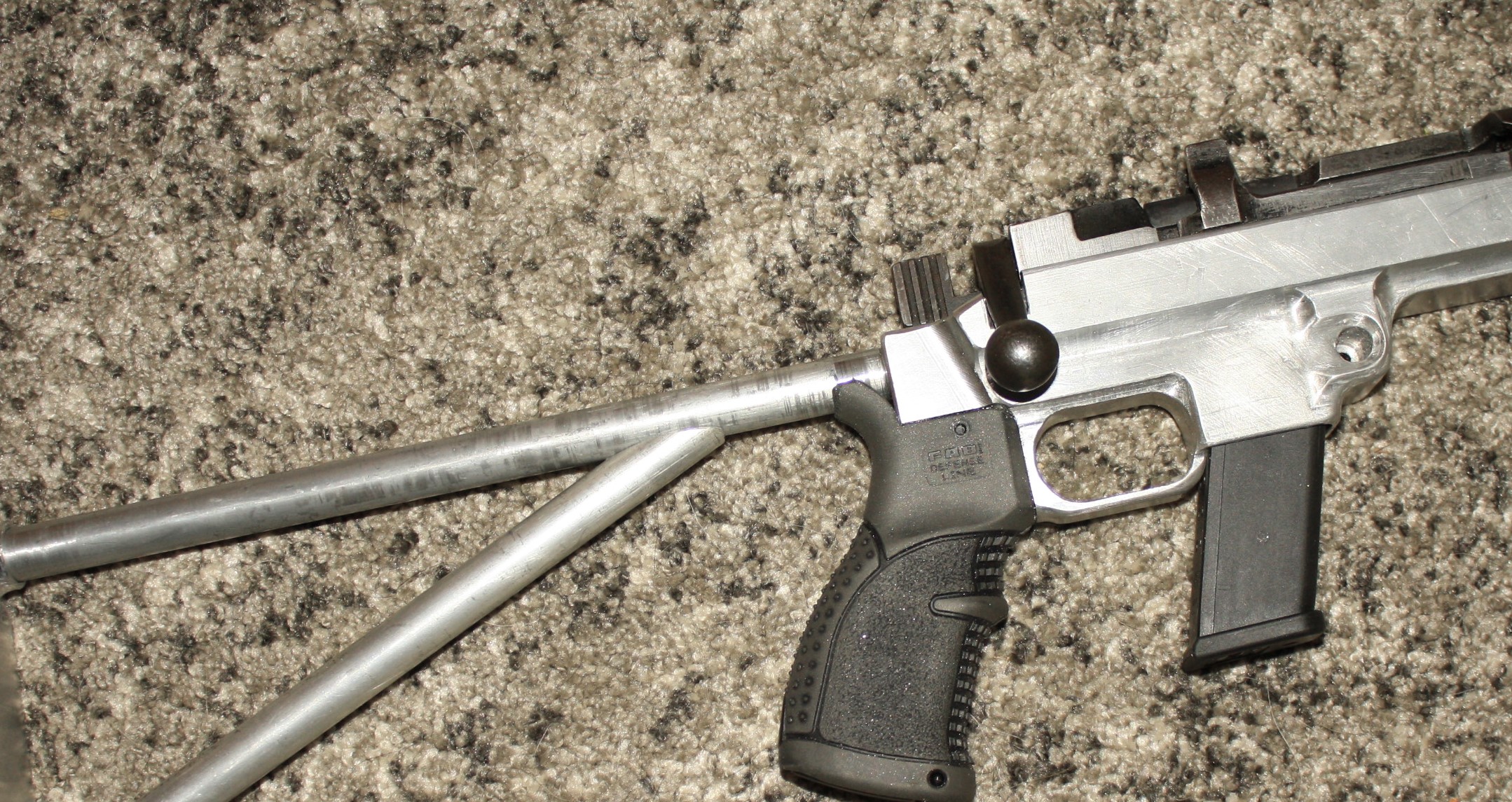

    Early days but this is just a teaser photo. I have machined the lower from tooling grade aluminium. I will post photos as work progresses.


    Name:  IMG_2955.JPG
Views: 1075
Size:  959.2 KB
    gadgetman, xring, Scouser and 9 others like this.

  2. #2
    Member tiroatedson's Avatar
    Join Date
    Jul 2012
    Location
    Te Awamutu Rural
    Posts
    1,391
    Bolt action 9mm or .45 ACP..? To be suppressed..? Looks the shizzle so far..


    Sent from my iPhone using Tapatalk

  3. #3
    Member Mathias's Avatar
    Join Date
    Oct 2015
    Location
    Canterbury, home of the big Rakaia Red Stag
    Posts
    2,371
    I'm guessing .45 ACP suppressed.......?

  4. #4
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    842
    Yep, 9mm, suppressed with the eccentric De Lisle system, overall length of 770mm, Picatinny rail, and optics yet to be decided.
    40mm likes this.

  5. #5
    Member Walker's Avatar
    Join Date
    Dec 2011
    Location
    Mangawhai
    Posts
    350
    Are you shortening the bolt and extending the barrel through?

  6. #6
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    842
    Quote Originally Posted by Walker View Post
    Are you shortening the bolt and extending the barrel through?
    Yes, receiver and bolt work done. I have the barrel in the lathe now. I have been making authentic De Lisle replicas for some years so I am well set up for the job.
    Tommy and csmiffy like this.

  7. #7
    Member
    Join Date
    Jan 2018
    Location
    kaiapoi
    Posts
    2,294
    Better than me. It looks sweet
    I have a long term (not authentic) delisle project on the go that I have made way harder than it should be.

  8. #8
    Member
    Join Date
    Jan 2016
    Location
    Omaru
    Posts
    363
    Maybe these are trade secrets but there is no harm in asking,
    how do you bore out the receiver for the barrel to pass through?
    and how do you shorten the bolt, cut a chunk out and weld or cut and tap? Presumably since you were after a No4 you re taped the bolt, if so how do you clock the thread?

  9. #9
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    842
    Quote Originally Posted by Chilli_Dog View Post
    Maybe these are trade secrets but there is no harm in asking,
    how do you bore out the receiver for the barrel to pass through?
    and how do you shorten the bolt, cut a chunk out and weld or cut and tap? Presumably since you were after a No4 you re taped the bolt, if so how do you clock the thread?
    I have made special tooling to bore out the receiver by hand. You can't do it in a lathe because of the skinny tool needed and the interrupted cut. I anneal the bolt body and hacksaw to the appropriate length, square it off and tap it out. The SMLE Mk III's I use for the De Lisles have an Enfield bastard thread so I had to make the taps for that. The No4 has UNF threads so 7/16" UNF is correct for the bolt head. Once the bolt is threaded then I file fit it until the bolt head registers correctly. Obviously the barrel cannot be finished until the bolt has been done correctly.
    Micky Duck and 40mm like this.

  10. #10
    Member
    Join Date
    Jan 2016
    Location
    Omaru
    Posts
    363
    Quote Originally Posted by gundoc View Post
    I have made special tooling to bore out the receiver by hand. You can't do it in a lathe because of the skinny tool needed and the interrupted cut. I anneal the bolt body and hacksaw to the appropriate length, square it off and tap it out. The SMLE Mk III's I use for the De Lisles have an Enfield bastard thread so I had to make the taps for that. The No4 has UNF threads so 7/16" UNF is correct for the bolt head. Once the bolt is threaded then I file fit it until the bolt head registers correctly. Obviously the barrel cannot be finished until the bolt has been done correctly.
    Thanks for that, looks like I was on the right track in planning the next project (I do still have to finish this one though). I was thinking of making something up a bit like a tap washer seat cutting tool to do the receiver. And I may be able to get away with finding a No4 bolt head instead of a whole bolt which may be a bit easier.

  11. #11
    Member keneff's Avatar
    Join Date
    Aug 2015
    Location
    Waiuku
    Posts
    662
    Quote Originally Posted by gundoc View Post
    Yes, receiver and bolt work done. I have the barrel in the lathe now. I have been making authentic De Lisle replicas for some years so I am well set up for the job.
    LOL "authentic" de Lisle replica.
    I used to have a handle on Life - but it broke.

  12. #12
    MSL
    MSL is offline
    Member MSL's Avatar
    Join Date
    May 2014
    Location
    Waikato
    Posts
    3,281
    Quote Originally Posted by keneff View Post
    LOL "authentic" de Lisle replica.
    What’s funny about that?

  13. #13
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    842
    Quote Originally Posted by keneff View Post
    LOL "authentic" de Lisle replica.

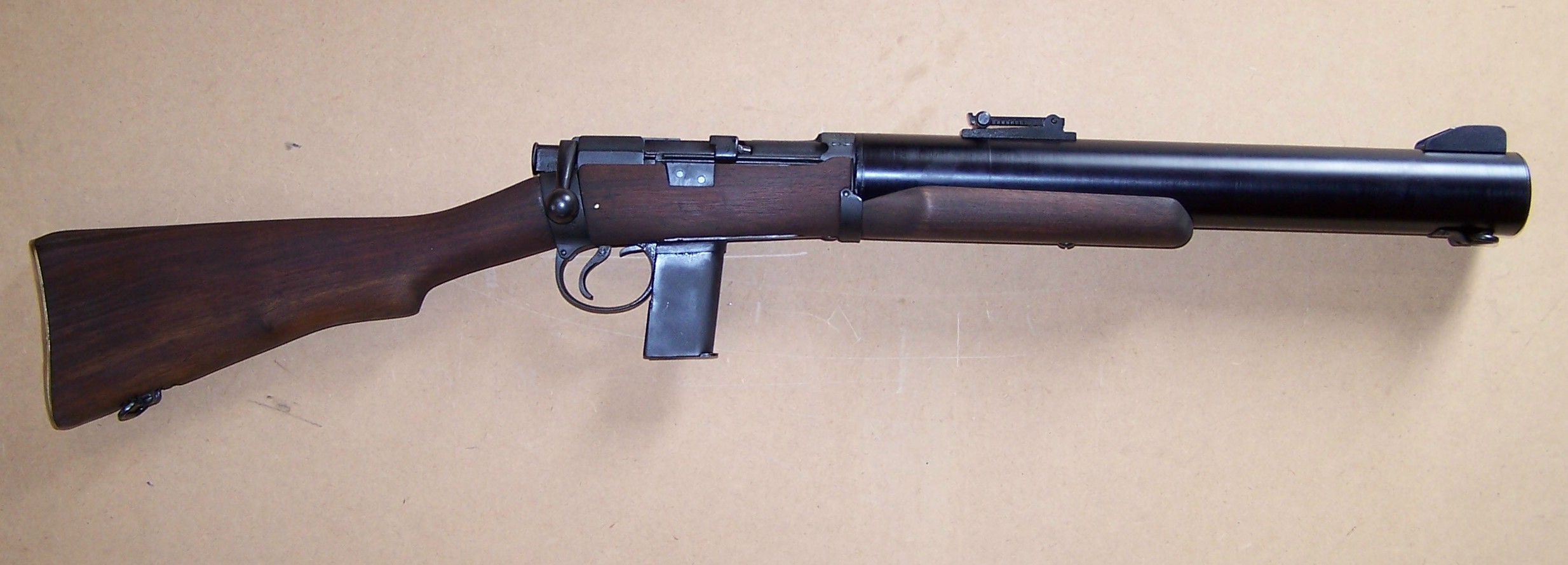

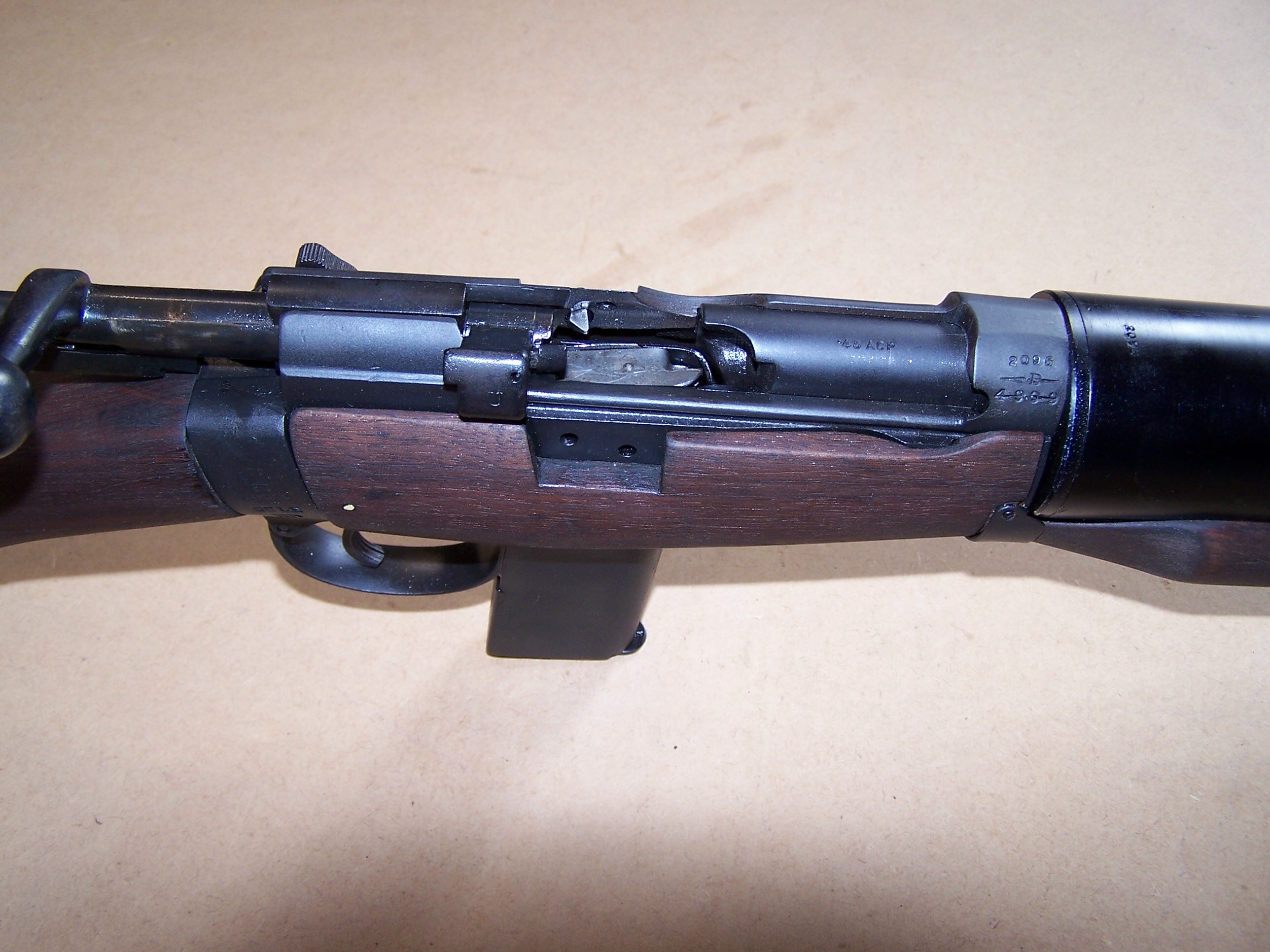

    Yes, based on 20 years research which included a trip to the Pattern Room collection to examine, photograph and measure originals. My drawings are accurate and I also have some original drawings. I have attached a couple of photos of one of my working replicas.Name:  WCG De Lisle right.jpg
Views: 882
Size:  358.2 KBName:  WCG De Lisle action top.jpg
Views: 893
Size:  793.0 KB

  14. #14
    Member northdude's Avatar
    Join Date
    Apr 2013
    Location
    north auckland area
    Posts
    5,800
    Very clever man hopefully you have someone worthy of passing your knowledge and skills on to

  15. #15
    Member
    Join Date
    Jun 2015
    Location
    christchurch
    Posts
    5,705
    duralinium or steel baffles this time ?
