Thread: What did I do wrong?

  1. #1
    Member Delphus's Avatar
    Join Date
    Feb 2019
    Location
    South Canterbury
    Posts
    1,607

    What did I do wrong?

    Hey team. First attempt at checkering. Going ok, it’s harder than I thought it would be! Had a few whoopsies where I have strayed off the guide line, mostly because I was going too fast I think. I’m not too fussed, this is a hunting stock so will get dings etc as I use it, and I am learning as I go
    My most annoying mistake is as per the pic. I have managed to curve the lines around the corner of the stock. I’m not sure how I managed it, as I thought I was using the guide ok, but clearly not well enough. How can I avoid this in the future? The other end of the line is still straight so not sure how this one got so bendy. This is the end I started the line from, not sure if that played into it?

    Name:  IMG_3489.jpeg
Views: 450
Size:  2.65 MB
    erniec and chainsaw like this.

  2. #2
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    24,940
    mate..as the bishop said to the actress..."nice curves"
    Trout likes this.
    75/15/10 black powder matters

  3. #3
    Member
    Join Date
    Dec 2011
    Location
    Southern Alps
    Posts
    4,653
    Better than i could do,deer wont notice.
    Micky Duck likes this.

  4. #4
    Member PaulNZ's Avatar
    Join Date
    Sep 2016
    Location
    Waikato
    Posts
    436
    Well, based on my vast experience of having checkered precisely one stock ... I think it's natural that as you take parallel checkered lines from a flat surface across a curve, the lines themselves become curved. If you want to force them to become visually straight, the spacing changes subtly. In part, I think it's to do with the checkering cutter being rocked over to keep both the cutter and follower engaged on the surface, but the whole length of the resulting line is then viewed from a single viewpoint which doesn't take this into account - hence the appearance of curvature. At least that kind of makes sense in my head...

    Anyway, your example seems to be particularly pronounced because of the compounding effect of spacing one line from the next without making any correction. What I found helped was that after I had roughed in each new line I would straighten it before starting the next one. A checkering jointer is supposed to be the correct tool for this, but I found that triangle and square section needle files - used carefully and at a low angle to the surface - worked well for correcting any minor wobbles and curves. They've got a much longer effective cutting length than standard checkering cutters. Do this before taking the line to full depth.

    This is my set of needle files and I highly recommend them - well formed fine teeth that come to beautifully sharp corners.

    http://https://www.trademe.co.nz/a/m...B&gclsrc=aw.ds

    Hopefully that helps, at least until the proper checkering experts come along.
    Hermitage likes this.

  5. #5
    Member PaulNZ's Avatar
    Join Date
    Sep 2016
    Location
    Waikato
    Posts
    436

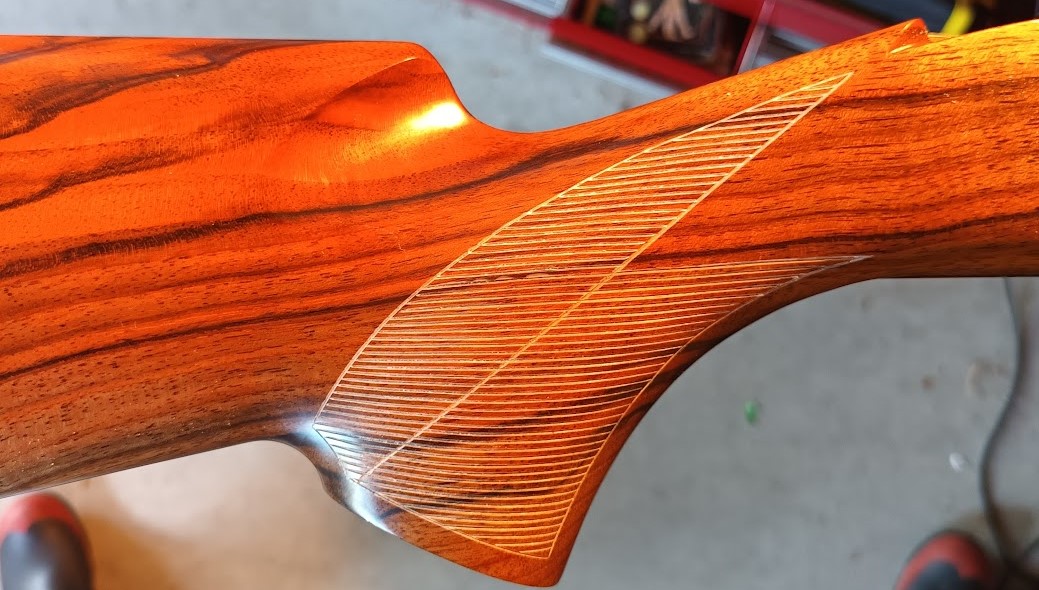

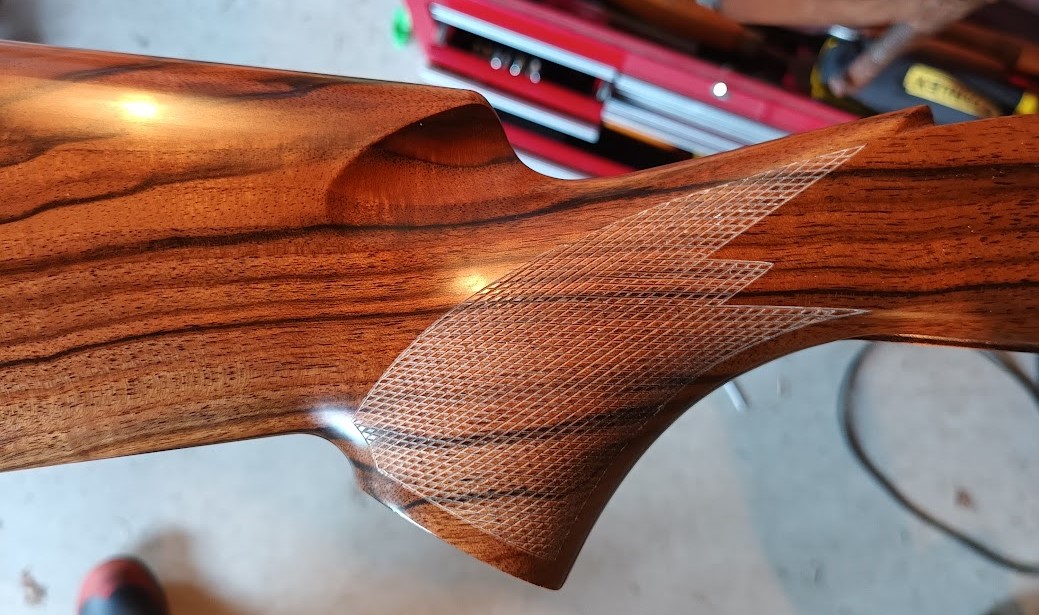

    Here's one panel in progress, where I straightened each line as I went. The stock surface is not as curved as your example though.

    Name:  Checkering 1.jpg
Views: 254
Size:  171.4 KB

    Name:  Checkering 2.jpg
Views: 246
Size:  183.9 KB

    I don't have a photo to hand of the panel cut to full depth and finished.

    Edit: Actually, now that I've posted the photos I see it looks like the bottom lines are curved. They're not actually curved with the stock in hand, but it shows how much the viewing angle can change the perception.

  6. #6
    Member Delphus's Avatar
    Join Date
    Feb 2019
    Location
    South Canterbury
    Posts
    1,607
    Quote Originally Posted by Trout View Post
    Better than i could do,deer wont notice.
    You are not wrong! Learning a new skill though I want to see how I went wrong so I don’t make the same mistake on the next one
    Micky Duck likes this.

  7. #7
    Member Delphus's Avatar
    Join Date
    Feb 2019
    Location
    South Canterbury
    Posts
    1,607
    Quote Originally Posted by PaulNZ View Post
    Well, based on my vast experience of having checkered precisely one stock ... I think it's natural that as you take parallel checkered lines from a flat surface across a curve, the lines themselves become curved. If you want to force them to become visually straight, the spacing changes subtly. In part, I think it's to do with the checkering cutter being rocked over to keep both the cutter and follower engaged on the surface, but the whole length of the resulting line is then viewed from a single viewpoint which doesn't take this into account - hence the appearance of curvature. At least that kind of makes sense in my head...

    Anyway, your example seems to be particularly pronounced because of the compounding effect of spacing one line from the next without making any correction. What I found helped was that after I had roughed in each new line I would straighten it before starting the next one. A checkering jointer is supposed to be the correct tool for this, but I found that triangle and square section needle files - used carefully and at a low angle to the surface - worked well for correcting any minor wobbles and curves. They've got a much longer effective cutting length than standard checkering cutters. Do this before taking the line to full depth.

    This is my set of needle files and I highly recommend them - well formed fine teeth that come to beautifully sharp corners.

    http://https://www.trademe.co.nz/a/m...B&gclsrc=aw.ds

    Hopefully that helps, at least until the proper checkering experts come along.
    Good advice thanks mate! I didn’t notice they were all curved haha
    Will see how it looks when I’m done.
    Also your link didn’t work

  8. #8
    Member PaulNZ's Avatar
    Join Date
    Sep 2016
    Location
    Waikato
    Posts
    436
    Quote Originally Posted by Delphus View Post
    .
    Also your link didn’t work
    Huh, you're right. Sorry about that. It was just a link to a Trademe auction, but it's Bahco set number 2-470-16-1-0. Google that and it'll come up if you're interested.
