Thread: Elevation target

  1. #1
    ebf
    ebf is offline
    The gnome returns ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    5,068

    Elevation target

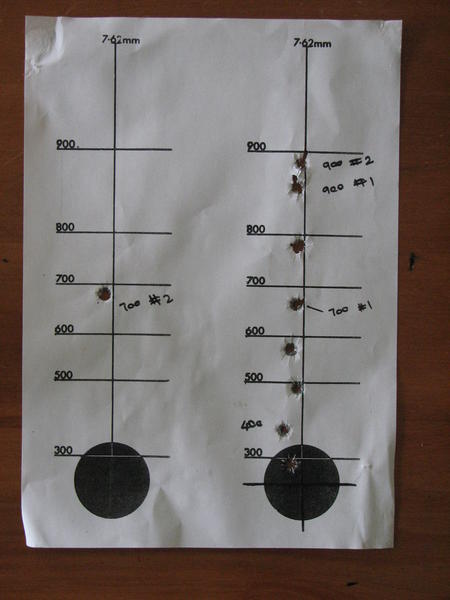

    Got this target from one of the coaches at the target club. Allows you to confirm long range elevation settings at a very short range.

    Name:  IMG_4806.jpg
Views: 420
Size:  32.8 KB

    Zero as normal, I do mine at 100yds.

    Place this target at 25yds, use a level to make sure the line is vertical.

    Aim at the center of the black dot (its designed for aperture sights). Dial for each range, and the bullet should impact at the relevant intersection.

    You should be able to calculate something similar for any caliber. Not 100% sure about the settings, but got pretty close using the following on JBM:

    Min Range, Max Range, Range Increment to 25
    Zero Range to each of the values (300, 500, 600, 700, 800, 900)
    Elevation Correction for Zero Range: Ticked
    Ranges in Meters: Unticked (I use yards)

    The Drop (inches) column should give you the distance above the center you want to hit at 25 yards for the distance you used as the Zero Range.
    Last edited by ebf; 13-04-2013 at 11:31 AM. Reason: spelling
    Dougie likes this.
    Viva la Howa ! R.I.P. Toby
    Black rifles matter...

  2. #2
    By Popular Demand gimp's Avatar
    Join Date
    Dec 2011
    Location
    The Big H
    Posts
    7,874
    I don't see the use??

    It's not actually directly related to how your bullet drops at long range, it's just how well your drop chart (from a ballistic calc these days) lines up with the same numbers pulled from the same ballistic calc and drawn in some little lines? It can't be a universal piece of paper because the numbers are different for every load etc.

    Might be useful as a half-assed scope tracking test? Or might have been useful a long time ago for people with bad scopes and no ballistic calculators to work out roughly how many clicks it took their dodgy scope to get there if they were using a similar load to what it was calculated for.

    Just don't see the point?

  3. #3
    ebf
    ebf is offline
    The gnome returns ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    5,068
    gimp, we (mostly) shoot a pretty standard 155 palma load, don't use calculators, and use known distances. These targets are used to confirm elevation dials for the aperture sight rifles.

    if you read my post, you'll notice I talk about calculating it for your specific load / caliber, so did not claim it was universal...

    the idea is that you shoot this, not everyone has a 200, 500 etc range, then confirm it with real POI at various distances, and tweak it. once it is tweaked, it is a quick, easy way to confirm your elevation settings using only 25 yds.
    Bagheera and steven like this.
    Viva la Howa ! R.I.P. Toby
    Black rifles matter...

  4. #4
    By Popular Demand gimp's Avatar
    Join Date
    Dec 2011
    Location
    The Big H
    Posts
    7,874
    As far as I can see, all it confirms is the ability of you/your equipment to make a pre-calculated or recorded adjustment, ie, a half-assed tracking test?

  5. #5
    Member Dead is better's Avatar
    Join Date
    Jan 2012
    Location
    Auckland
    Posts
    839
    I'm bored and this will give me something to do instead of watching TV. I'll post up one set for a 6.5x55 doing 2710ft/sec. It would still work for scopes as well wouldn't it?

    Then it should be quick to move the lines/text around to suit whatever anyone wants. Just need your bullet weight/type and velocity

    It would be a good ladder test for scope repeatability
    Last edited by Dead is better; 14-04-2013 at 09:25 PM.

  6. #6
    ebf
    ebf is offline
    The gnome returns ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    5,068
    Yup, make the aiming point a crosshair type rather than a circle, easier for the scope. You can seeI did that on the right hand circle
    Viva la Howa ! R.I.P. Toby
    Black rifles matter...

  7. #7
    Member Tahr's Avatar
    Join Date
    Dec 2011
    Location
    NI
    Posts
    6,009
    Its a shit group anyway. Serious vertical stringing...
    Neckshot likes this.

  8. #8
    ebf
    ebf is offline
    The gnome returns ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    5,068
    No Tahr, it's actually a very controlled group. The flyer @400 was caused by mid-air collision with a sandfly

    You see I have a progressive (but perfectly linear) flinch. It really helps when we shoot further and further distances as the day progresses. Of course if we start long and end short, I am completely fcuked

    Tussock, just put the two range cards behind each other next time, shoot once, you'll use half the ammo...
    steven likes this.
    Viva la Howa ! R.I.P. Toby
    Black rifles matter...

  9. #9
    Member
    Join Date
    Dec 2012
    Location
    Wellington
    Posts
    1,786
    Quote Originally Posted by gimp View Post
    As far as I can see, all it confirms is the ability of you/your equipment to make a pre-calculated or recorded adjustment, ie, a half-assed tracking test?
    When we shoot at Trentham we have 3 shots to get a gun on target or we get kicked off the range. Yet the anal owners wont allow any zeroing, or shooting out of the allowed time window hence the above gives us a fair idea at 100yds onthe range we can shoot at to at least know when we shoot at say 900yds we should be on the target.

  10. #10
    Member Dead is better's Avatar
    Join Date
    Jan 2012
    Location
    Auckland
    Posts
    839
    Quote Originally Posted by steven View Post
    When we shoot at Trentham we have 3 shots to get a gun on target or we get kicked off the range. Yet the anal owners wont allow any zeroing, or shooting out of the allowed time window hence the above gives us a fair idea at 100yds onthe range we can shoot at to at least know when we shoot at say 900yds we should be on the target.
    Pretty harsh but I suppose they have to curve the 'yippie' shoot. Considering that the first 3 shots are for fouling and for the barrel to get upto its working temp - I'd have allowed at least 10 per person

  11. #11
    By Popular Demand gimp's Avatar
    Join Date
    Dec 2011
    Location
    The Big H
    Posts
    7,874
    The iron sights used in that sort of shooting have a click adjustment, at least as far as I'm familiar with. It's not like bashing the sights on the barrel of the old Lee-Enfield with a hammer.


    Edit: Pretend I quoted tussock

  12. #12
    Member
    Join Date
    Mar 2012
    Location
    Waikato
    Posts
    906
    This is for us with a standard load, (eg palma or a military cartridge) to check that your sight adjustments and vernier plates are properly calibrated and that the sight is level. Of course you need to check at each real range but it will save embarrassing first shot stuff ups and misses where people are giving their time marking your targets in the butts.
