Thread: Omark improvements

  1. #1
    ebf
    ebf is offline
    The gnome returns ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    5,002

    Omark improvements

    Thought I'd start a thread for the Omark project currently underway...

    I've been shooting my first 18 months of FTR with a Trademe $400 special, it's getting to the point where I need to make some changes to keep improving.

    The initial Tasco Varmint 6-24x42 scope has been upgraded to a Clearidge Ultra XP5 4.5-22.5x50 I bought off Tahr

    Bipod has been upgraded from a Harris to a Davies Triggers F-Class one.

    Rifle wise I was lucky to get a season-old TF UM 308 barrel for free from a club mate. Also received an Anschutz 1407 lefty stock from another club mate.

    Yet another club mate is an ex army armourer, and has helped me out with a Nielsen adapter and machining services
    kiwi39 likes this.
    Viva la Howa ! R.I.P. Toby
    Black rifles matter...

  2. #2
    ebf
    ebf is offline
    The gnome returns ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    5,002
    1st trip : old barrel off, action trued, new barrel re-threaded and chambered

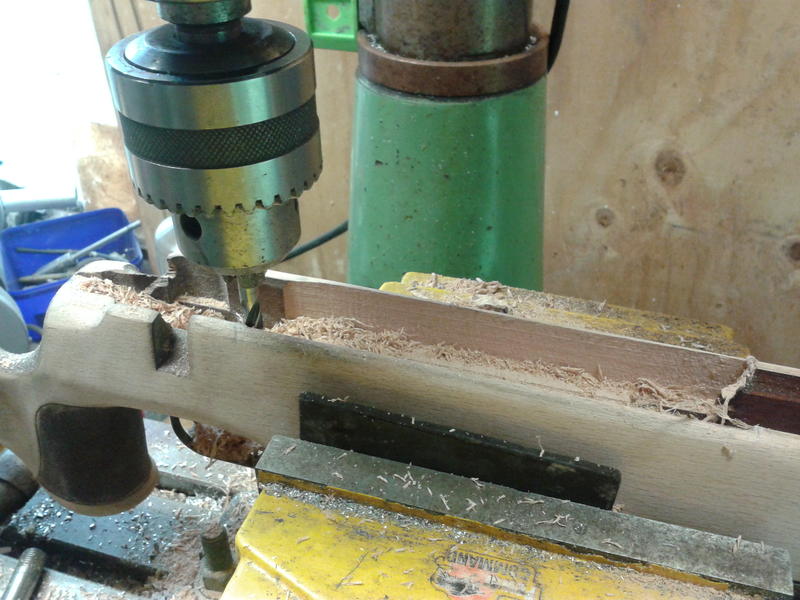

    2nd trip : nielsen adapter fitted, chamber headspacing sorted, alu bedding block rough machiningAlu block before it went into the stock
    3rd trip : more machining on the alu block, recess cut in the stock, bedding block epoxied into the stock

    The stock is from a lefty Anschutz 1407, still need to drill and epoxy a pin into the pistol grip to re-inforce it for full-bore
    Name:  20140617_102855.jpg
Views: 1384
Size:  89.3 KB

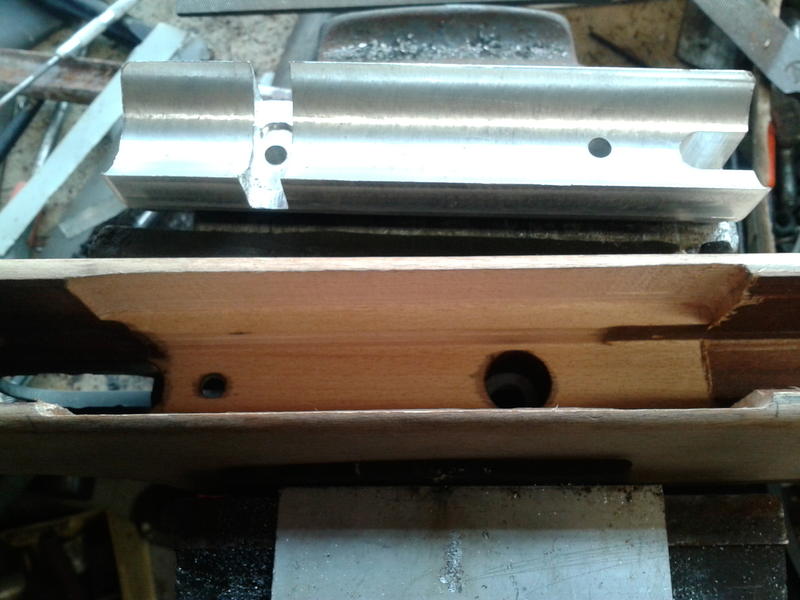

    Alu block before it went into the stock
    Name:  20140617_112753.jpg
Views: 1317
Size:  68.5 KB
    Bryan, kimjon and Toby like this.
    Viva la Howa ! R.I.P. Toby
    Black rifles matter...

  3. #3
    ebf
    ebf is offline
    The gnome returns ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    5,002

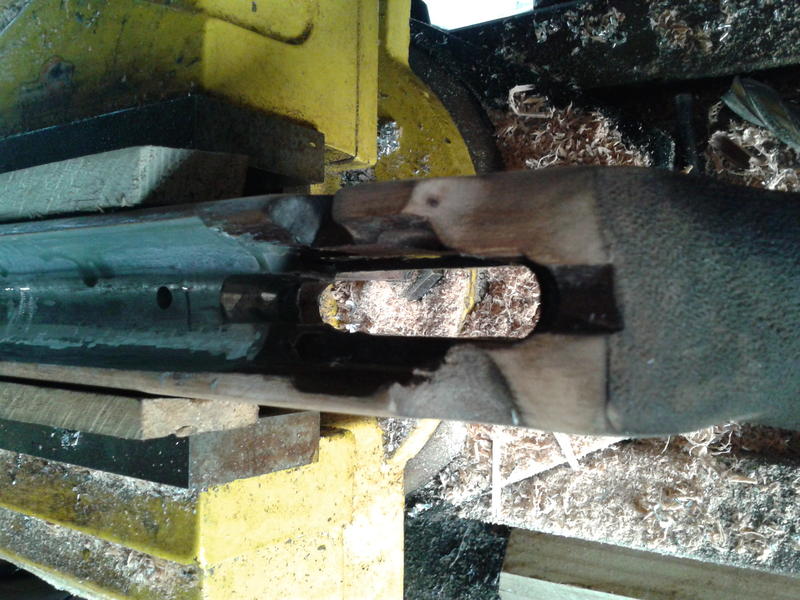

    4th trip: machining away the back of the action area on the stock (Omark action is a very different shape than the Anschutz)

    Name:  20140624_122030.jpg
Views: 1394
Size:  106.2 KB

    We discovered that the pistol grip already has a dowl in it, so that is one less job

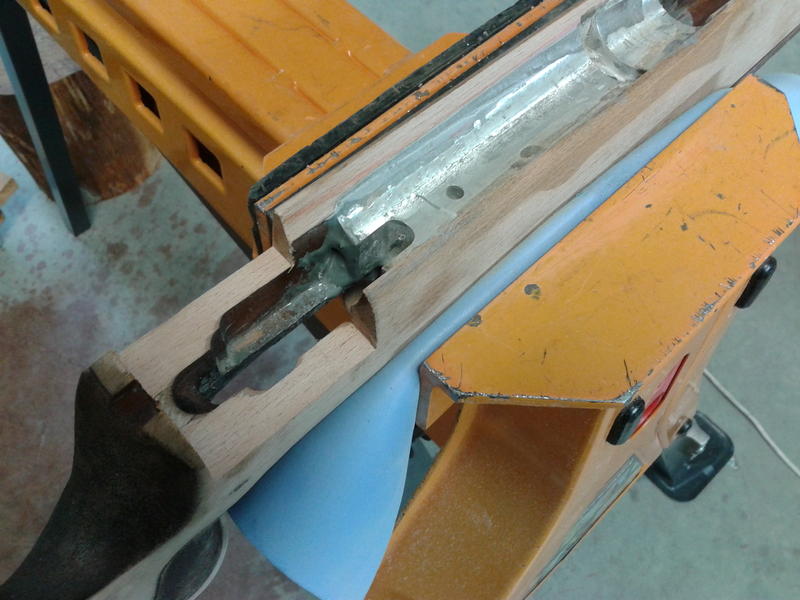

    Starting to clean up the alu block and fitting the action.

    Name:  20140626_090235.jpg
Views: 1323
Size:  79.4 KB
    Bryan, gadgetman, Toby and 1 others like this.
    Viva la Howa ! R.I.P. Toby
    Black rifles matter...

  4. #4
    ebf
    ebf is offline
    The gnome returns ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    5,002
    Had some spare time this morning to do several "woodworking" type jobs on the stock...

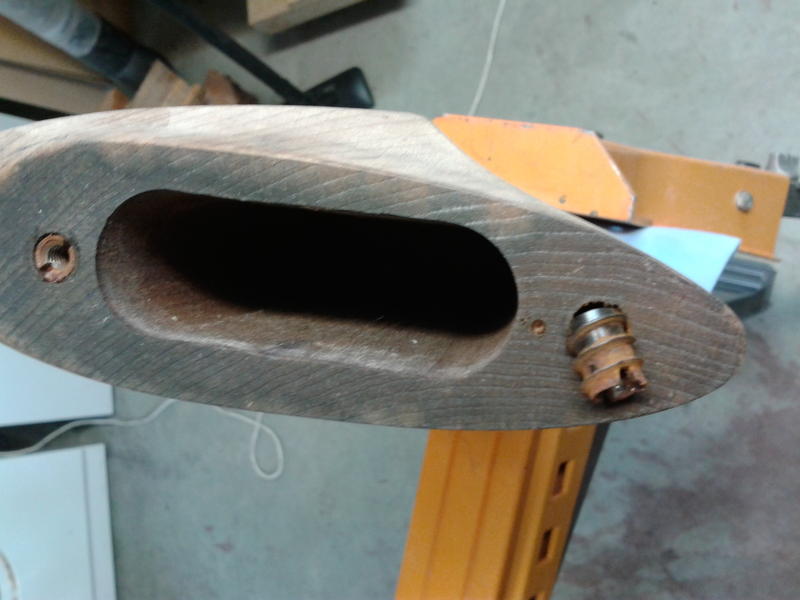

    The spacing for the holes on the new buttplate is different, so had to remove the bottom thread sleeve, and fill it with a plug. Also need to fill in an area of the stock void to give "meat" for the new hole.
    Name:  20140626_092511.jpg
Views: 1325
Size:  55.2 KB

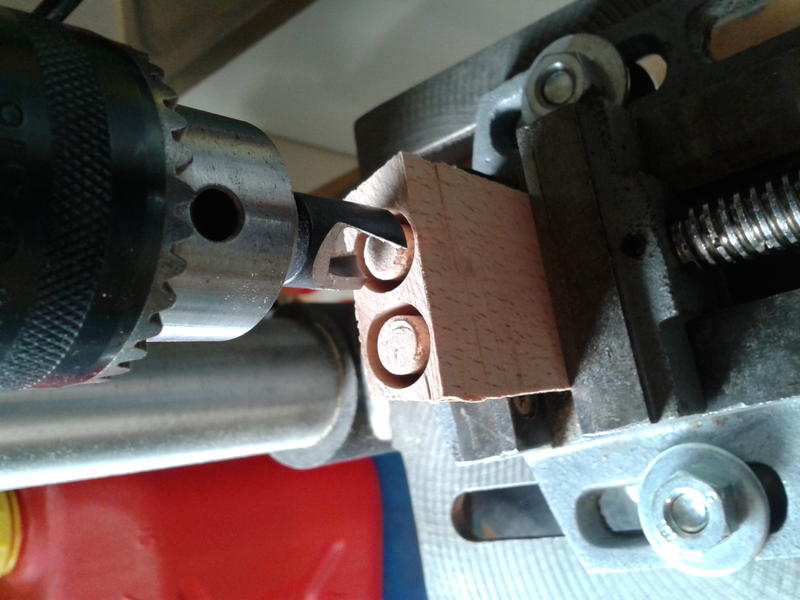

    Cutting plugs to fill the old hole.
    Name:  20140626_100457.jpg
Views: 1341
Size:  68.0 KB

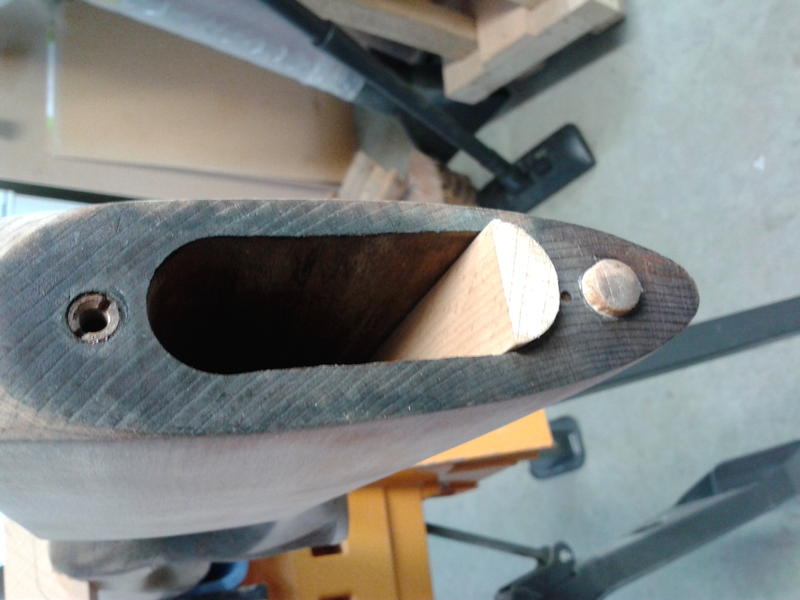

    Turned a dowel to match to size of the void and planed it flat.
    Name:  20140626_110331.jpg
Views: 1390
Size:  57.1 KB

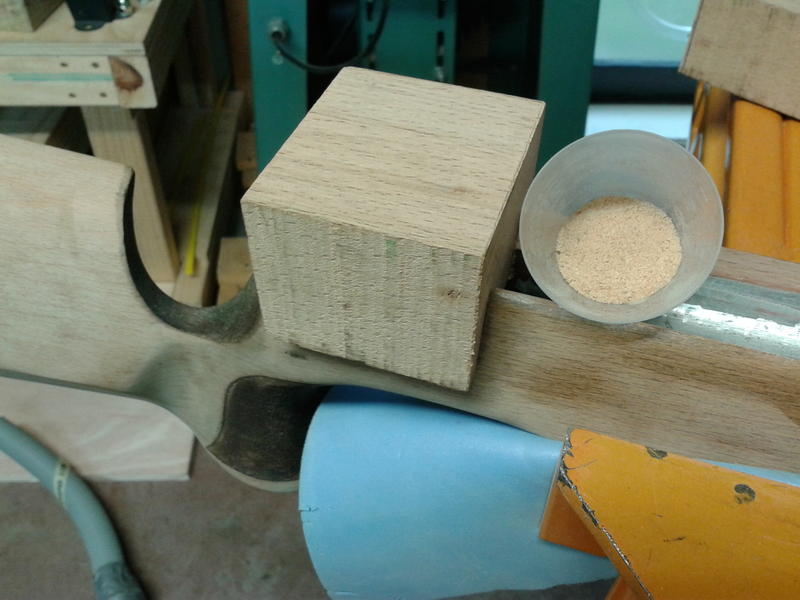

    Block for the slot we cut out of the stock. Will be machined / carved to match the Omark action.
    Name:  20140626_094523.jpg
Views: 1302
Size:  66.6 KB

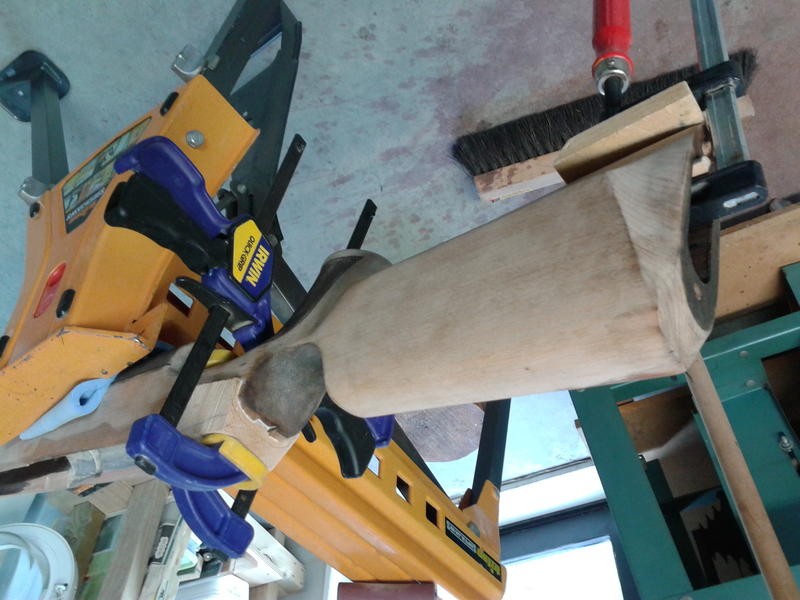

    All glued up
    Name:  20140626_111844.jpg
Views: 1320
Size:  84.7 KB

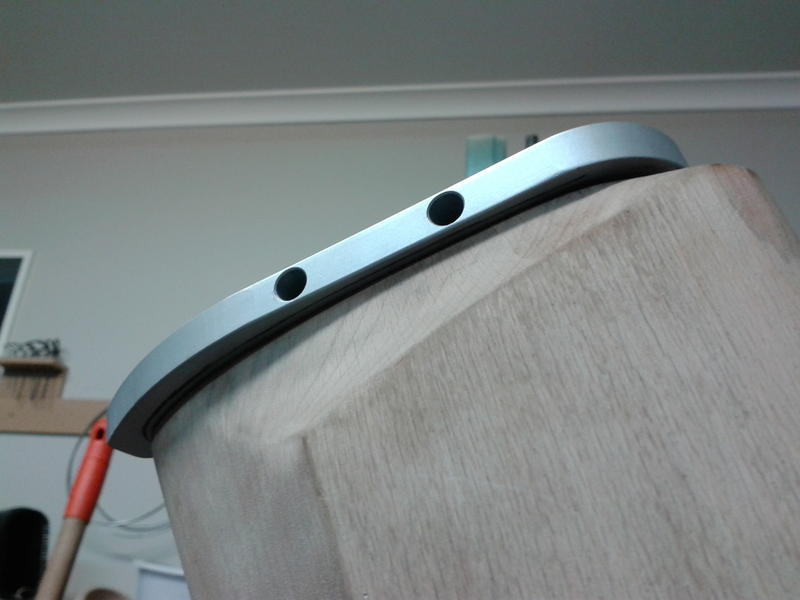

    Marking the butt-plate edges on the stock
    Name:  20140626_091906.jpg
Views: 1330
Size:  45.3 KB

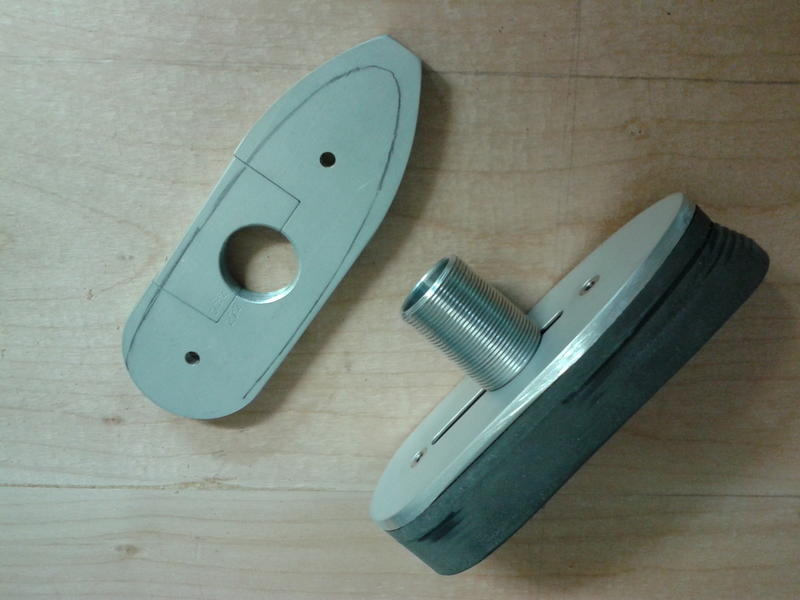

    Limbsaver installed on the butt-plate, rough grinding finished on the back plate, still have to to the stock side.
    Name:  20140626_111943.jpg
Views: 1300
Size:  54.6 KB
    Bryan, Barefoot, gadgetman and 4 others like this.
    Viva la Howa ! R.I.P. Toby
    Black rifles matter...

  5. #5
    Member stug's Avatar
    Join Date
    May 2012
    Location
    Oxford, Canterbury
    Posts
    3,471
    Nice work, it's very satisfying custom fitting something to fit yourself.

  6. #6
    Village Idjit Barefoot's Avatar
    Join Date
    Dec 2011
    Location
    Westie
    Posts
    3,314
    That's keeping you busy
    steven likes this.

  7. #7
    ebf
    ebf is offline
    The gnome returns ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    5,002
    Next trip the recoil lug is getting a slight champher on the front edge to make it easier to pull it out of the bedding.

    Couple of pillars for the stock to make it metal on metal tightening.

    Need to drill holes in the stock for the action bolts. One of the previous trips we drilled and tapped a rear action bolt hole into the action.

    Then bedding, keen to learn all about how that is done.

    Once I get the completed rifle back I am going to seal, prime and paint the stock.
    Viva la Howa ! R.I.P. Toby
    Black rifles matter...

  8. #8
    Member
    Join Date
    Dec 2013
    Posts
    603
    Tidy work @ebf - always good to see a nice job being done
    kiwi39 and Hunt4life like this.

  9. #9
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    1,770
    Quote Originally Posted by ebf View Post
    Next trip the recoil lug is getting a slight champher on the front edge to make it easier to pull it out of the bedding.

    Couple of pillars for the stock to make it metal on metal tightening.

    Need to drill holes in the stock for the action bolts. One of the previous trips we drilled and tapped a rear action bolt hole into the action.

    Then bedding, keen to learn all about how that is done.

    Once I get the completed rifle back I am going to seal, prime and paint the stock.
    Nice work EBF. Years ago I pimped my Omark but not to the workmanship standard yours is coming out at. Same as you I drilled and tapped a hole just fwd of the trigger and pulled down on that screw and the king screw. The action back from the rear new rear screw is totally floating. Also added a Jewel trigger. Decent stock/bedding/trigger made a major difference to its performance.
    Just a matter of waiting now for September....

  10. #10
    Member zimmer's Avatar
    Join Date
    Oct 2012
    Location
    Waikato
    Posts
    1,770
    Quote Originally Posted by ebf View Post
    Next trip the recoil lug is getting a slight champher on the front edge to make it easier to pull it out of the bedding.

    Couple of pillars for the stock to make it metal on metal tightening.

    Need to drill holes in the stock for the action bolts. One of the previous trips we drilled and tapped a rear action bolt hole into the action.

    Then bedding, keen to learn all about how that is done.

    Once I get the completed rifle back I am going to seal, prime and paint the stock.
    When I bedded mine I put 3 layers of insulation tape on the fwd edge of the recoil lug and one layer on the sides.
    ebf likes this.

  11. #11
    ebf
    ebf is offline
    The gnome returns ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    5,002
    Quote Originally Posted by zimmer View Post
    Just a matter of waiting now for September....
    Yup, counting the days !

    Last time SSR had the rifle he lightened the trigger to 850g, wasn't aware of the Jewel trigger option, only knew about Davies.
    Viva la Howa ! R.I.P. Toby
    Black rifles matter...

  12. #12
    Member kimjon's Avatar
    Join Date
    Apr 2012
    Location
    Waikato
    Posts
    1,628
    Looking good, love a project thread...will follow your progress, keep up the good work.

    Kj

  13. #13
    Member Hunt4life's Avatar
    Join Date
    Apr 2013
    Location
    Katikati
    Posts
    624
    Loving the progress thread. Looking good

  14. #14
    ebf
    ebf is offline
    The gnome returns ! ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    5,002
    Right, so slight break from gunsmithing for the last couple of weeks while I helped my gunsmith build a deck rail/balustrade.

    Back into it this week...

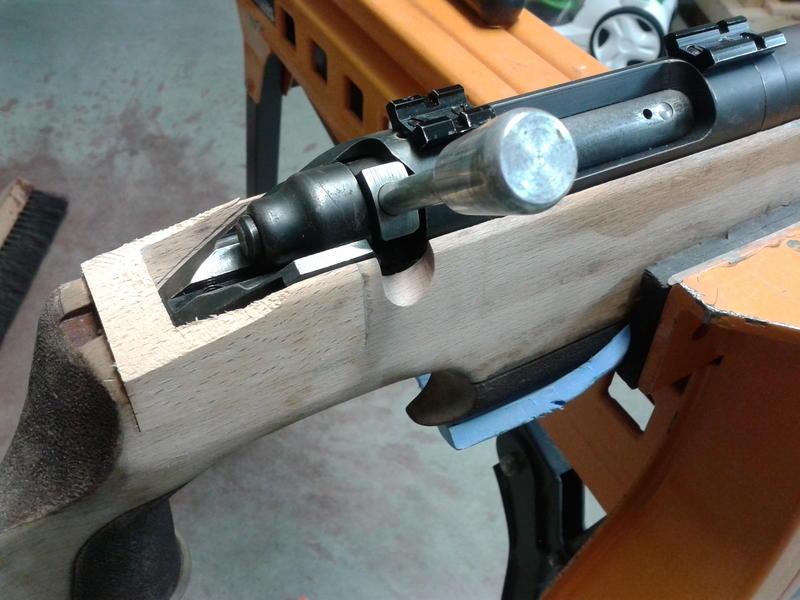

    First up some woodwork I did at home... We are changing the bolt handle to a straight rod, so the bolt recess in the stock is not as deep as the previous version.
    Name:  20140714_082807.jpg
Views: 1327
Size:  78.3 KB

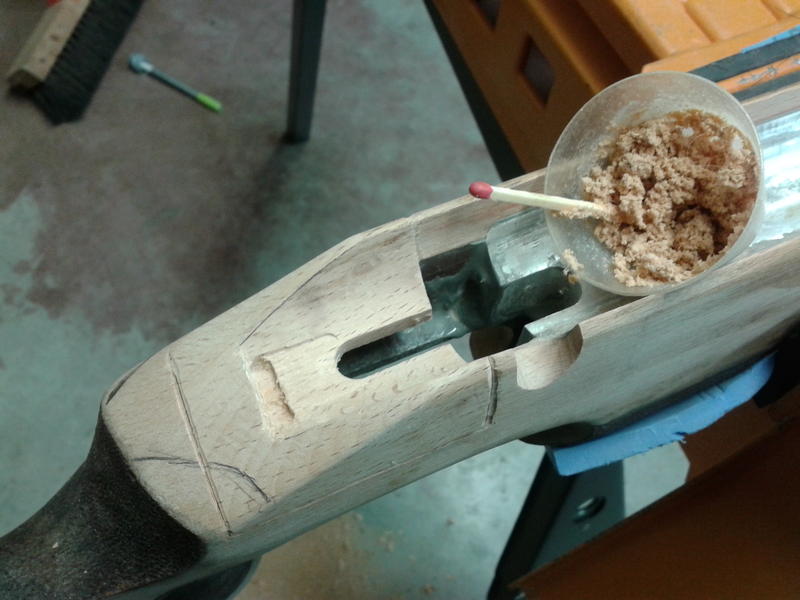

    Started tapering and carving the back to match the action. I carved a slight v into the join line, and mized up a bit of hide glue and sawdust to hide the join.
    Name:  20140714_090141.jpg
Views: 1170
Size:  68.0 KB

    Back over the hill today to continue with the complex stuff... The point of no return !!! Starting to lay down resin onto the alu block....
    Name:  20140718_120428.jpg
Views: 1075
Size:  80.1 KB

    After lunch we worked on an action wrench for my Remmy 788 switch barrel project. Will take some pics of that tomorrow.
    Last edited by ebf; 18-07-2014 at 08:34 PM.
    Toby, Gibo and Shamus like this.
    Viva la Howa ! R.I.P. Toby
    Black rifles matter...

  15. #15
    Member kimjon's Avatar
    Join Date
    Apr 2012
    Location
    Waikato
    Posts
    1,628
    Looking good
