Thread: 6.5mm 143gr ELD-X first load development

  1. #1
    Member
    Join Date
    Jul 2013
    Location
    Otago
    Posts
    298

    6.5mm 143gr ELD-X first load development

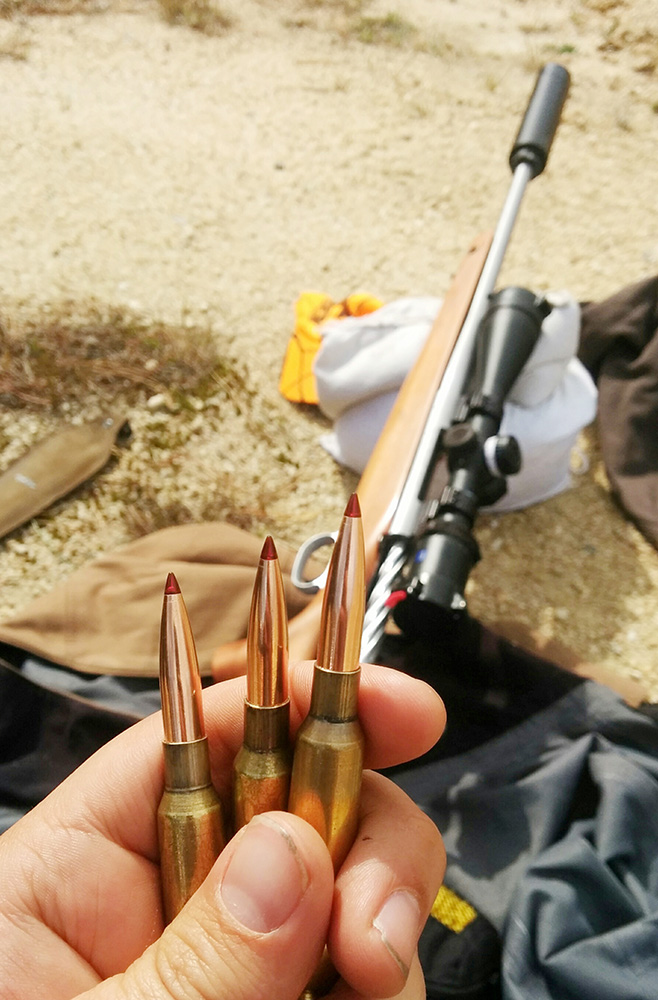

    Got my mitts on a couple of boxes.

    Attachment 46884
    Attachment 46885
    Attachment 46886

    Due to the long throating of a factory 6.5x55 I'm a country mile off the lands, but it still should be a sweet spot somewhere between 46 & 46.5 grains
    Using Lapua brass, ADI 2209 & federal match primers.

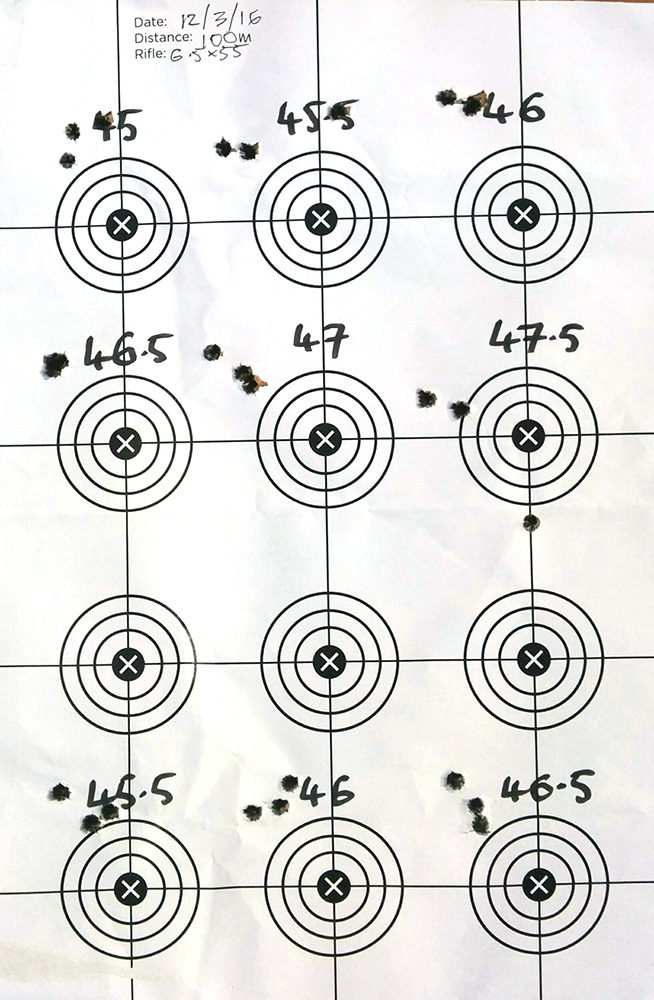

    I pulled the last 46.5 gr shot (the high one), and probably some others (looking at you, 47.5).

    Velocities:

    45.0gr
    2593
    2611
    2642
    45.5gr
    2633
    2688
    2647
    2640
    2596
    2628
    46.0gr
    2661
    2654
    2665
    2712
    2681
    46.5gr
    2665*
    2670
    2663
    2764
    2764*
    2751
    47.0gr
    2739
    2743
    2779
    47.5gr
    2857
    2883
    2927(!!)


    The *'s are suspicious readings are they are the same as the previous.
    Attached Images Attached Images

  2. #2
    Member HOWA308's Avatar
    Join Date
    Jul 2012
    Location
    Tauranga
    Posts
    118
    When did you start to see pressure?

    Tried any other powder?

  3. #3
    Caretaker - Gone But Not Forgotten jakewire's Avatar
    Join Date
    Dec 2011
    Location
    here
    Posts
    7,479
    I'd be looking seriously at the 46.5 -47 area.
    Quis custodiet ipsos custodes?

  4. #4
    Member
    Join Date
    Jul 2013
    Location
    Otago
    Posts
    298
    Got a couple of sticky bolt lifts from 47 on, but not so bad that I didn't shoot 47.5. I had one sticky bolt in 46.5 out of the 6 I shot.

    Haven't tried any other powder.
    @jakewire, why there? To me it looks like 46-46.5 is the sweet spot.

  5. #5
    Caretaker - Gone But Not Forgotten jakewire's Avatar
    Join Date
    Dec 2011
    Location
    here
    Posts
    7,479
    Just thought 46 flat is a little slow, no matter if it doesn't worry you
    46.5 has good results and 47 not bad with reasonable speed
    somewhere around there, maybe play with the seating depth a little.
    Tikka7mm08 likes this.
    Quis custodiet ipsos custodes?

  6. #6
    Member
    Join Date
    Dec 2013
    Location
    Tokoroa
    Posts
    1,221
    You should give 2213c a try I had better results with it than 2209 it gives a better load density with lower pressure, you should seat the bullets at the seating depth recommended buy Hornady when working up loads at the start and sort out the depth when you have a good load those long bullets need support in the case to keep them alined in the chamber the 6.5 can handle quite a long jump to the rifling

  7. #7
    Caretaker - Gone But Not Forgotten jakewire's Avatar
    Join Date
    Dec 2011
    Location
    here
    Posts
    7,479
    I could never get my 140 Amax to work with 2209 , maybe didn't try hard enough, tried VV 560 at standard Coal and it all came together quite nicely
    Quis custodiet ipsos custodes?

  8. #8
    Member Dead is better's Avatar
    Join Date
    Jan 2012
    Location
    Auckland
    Posts
    976
    I was out doing the same thing exactly but I was using H4831sc and a 29" pacnor barrel i'm exploring. My rifle likes 3.1" neat for AOL which for me is .023" off the lands. That also means I'm confined to 47.5gns of anything as my throat is shorter. 48 would be a compacted load and im not going there... 2995ft/sec is my max so far but i'm going to verify that with some long range plinking in 2 weeks. Shooting uphill 4.5 deg at 190m should have needed +.4 or .5 mils. I put that in but still hit 2 clicks high for some reason.

  9. #9
    Member
    Join Date
    Jul 2013
    Location
    Otago
    Posts
    298
    Maybe the powder choice is poor? Might have to get hold of some AR2213SC and see how it goes. I only have a 20" barrel though, so I don't think I'll be hitting 2900+...

  10. #10
    Ex stick thrower madjon_'s Avatar
    Join Date
    Dec 2011
    Location
    Richmond. Tasman.and Oz
    Posts
    3,408
    Nice stock.
    Real guns start with the number 3 or bigger and make two holes, one in and one out

  11. #11
    Member Uplandstalker's Avatar
    Join Date
    Nov 2012
    Location
    Souith Canterbury
    Posts
    1,693
    So the question on every bodies lips; did the tips not melting make a difference?

  12. #12
    Member
    Join Date
    Jul 2013
    Location
    Otago
    Posts
    298
    Quote Originally Posted by Uplandstalker View Post
    So the question on every bodies lips; did the tips not melting make a difference?
    Not at 100m.
    The new design might improve terminal performance on animals but I haven't had enough experience with the AMAX to know for sure, and since the AMAX looks to be discontinued in 6.5mm I might as well try these out sooner rather than later.
    Uplandstalker likes this.

  13. #13
    Gone................. mikee's Avatar
    Join Date
    Aug 2012
    Location
    Nelson, New Zealand
    Posts
    9,628
    Well aparently they kill "water jugs " at 50 yards no problem at good speed too
    Link Shamelessly stolen from another site
    matai likes this.
    Let dogs lead the way

  14. #14
    Member
    Join Date
    Dec 2011
    Location
    NI
    Posts
    11,732
    Quote Originally Posted by chalkeye View Post
    Maybe the powder choice is poor? Might have to get hold of some AR2213SC and see how it goes. I only have a 20" barrel though, so I don't think I'll be hitting 2900+...
    For 20" you are doing damned well for velocity. I wouldn't fiddle with powders. But I would play with the OAL of the 47grn load a bit too see if the groups close up. It and 46.5 looks the goods. And it would do me as it is.

  15. #15
    Member
    Join Date
    Jul 2013
    Location
    Otago
    Posts
    298
    Quote Originally Posted by Tahr View Post
    For 20" you are doing damned well for velocity. I wouldn't fiddle with powders. But I would play with the OAL of the 47grn load a bit too see if the groups close up. It and 46.5 looks the goods. And it would do me as it is.
    My current seating depth is probably 5+mm from the lands. Seated that long I don't have (imo) enough case grip on the projectile. Will fine seating depth adjustment really affect things that much?

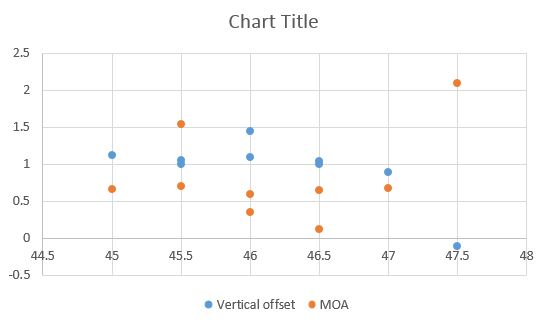

    The 46gr load appears to be at an anti-node when looking at the group vertical:

    Name:  chart.JPG
Views: 2643
Size:  22.3 KB

    So I guess I'll try something like the following for the next round:

    45.7
    46.0
    46.3
    46.6
    46.9
    47.2

    I'm nervous about going too far above 46.5gr as I was starting to get some sticky (but not stuck) bolt lifts.
