Thread: 9mm and rimfire bolt action

  1. #1
    Member xring's Avatar
    Join Date
    Nov 2012
    Location
    AKL
    Posts
    209

    9mm and rimfire bolt action

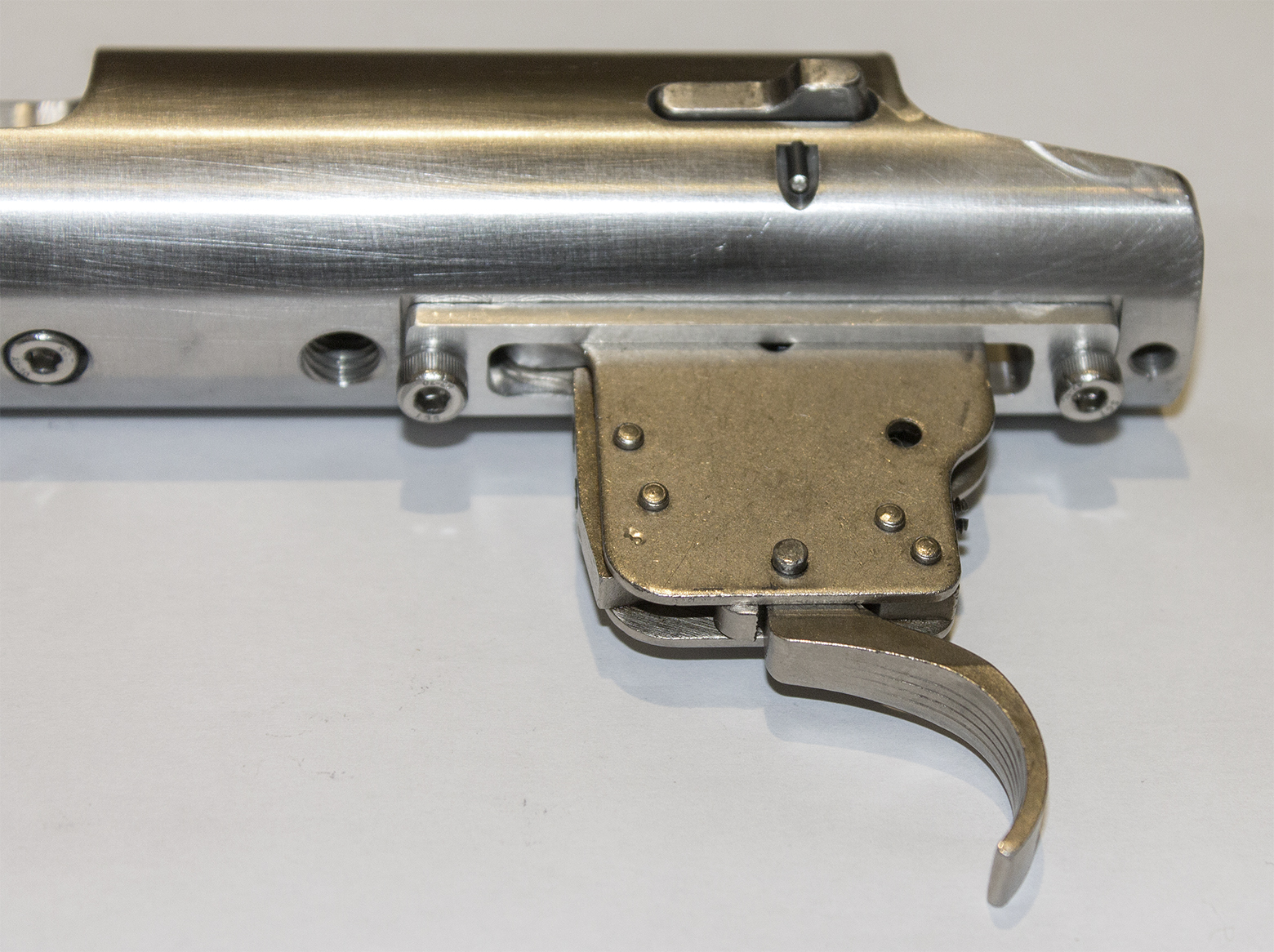

    Hey guys. I may probably have finished my this project. I just need to polish it and can call it done. I designed everything in Solidworks except for the back bolt and a good friend of mine that has a CNC shop (shooter too) made it for me. Soon will send it out to have 2 barrels made. It's a 22LR and 9mm single shot action receiver using one action only: just change out firing pins, ejectors and front bolts (course, and barrels) and I am good to go, hopefully.
    Made out of 17-4PH, 3D printed titanium bolt stop, 3 aluminium trigger hangers Rem 700 type with different cross pins spacing for more/less cock on close.
    Hope you guys like it
    More to come.

    Cheers
    MFG

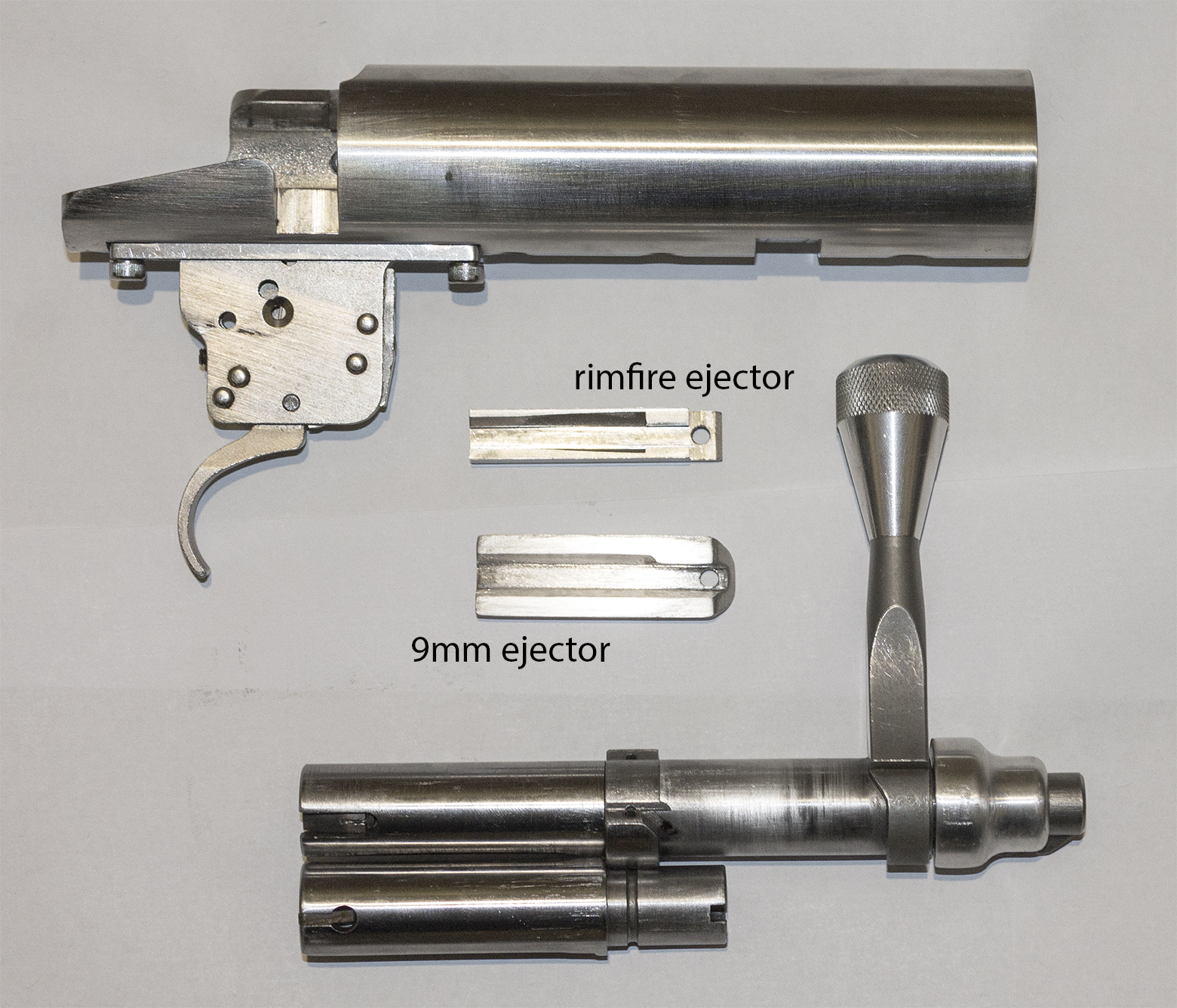

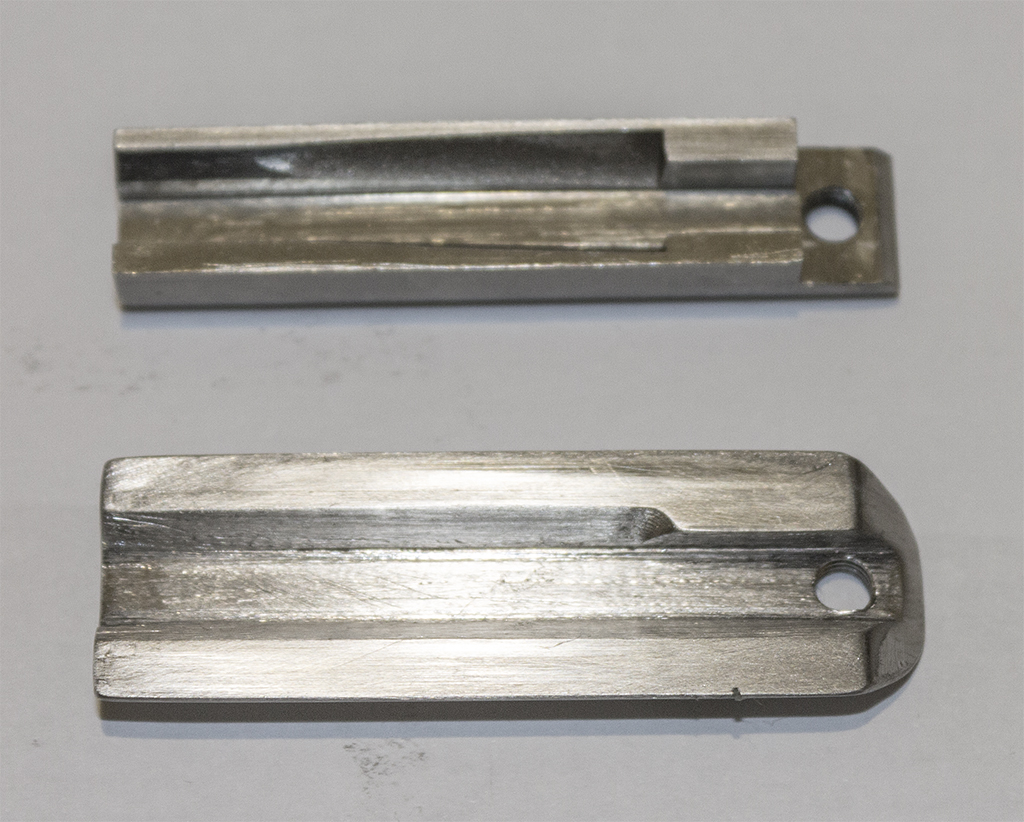

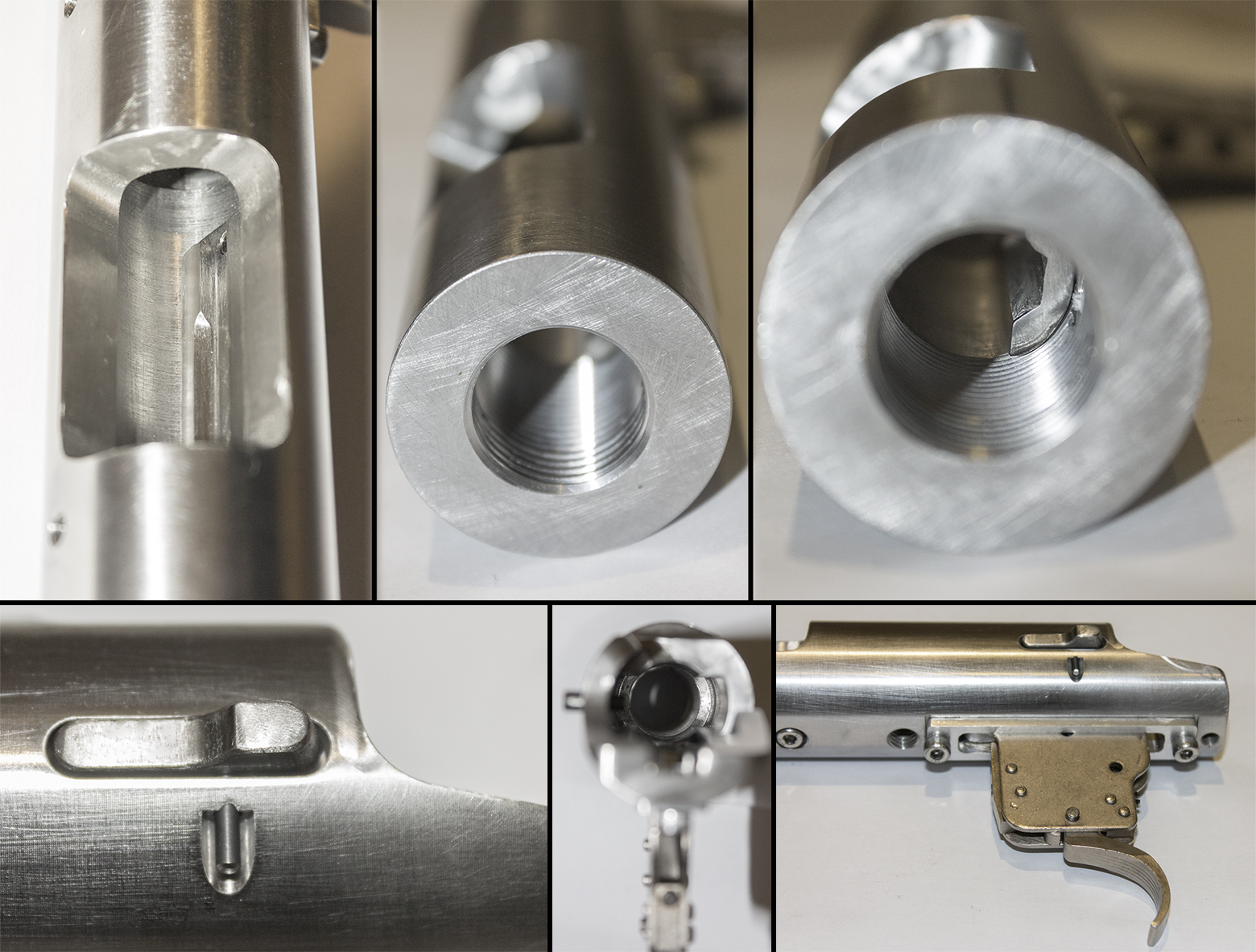

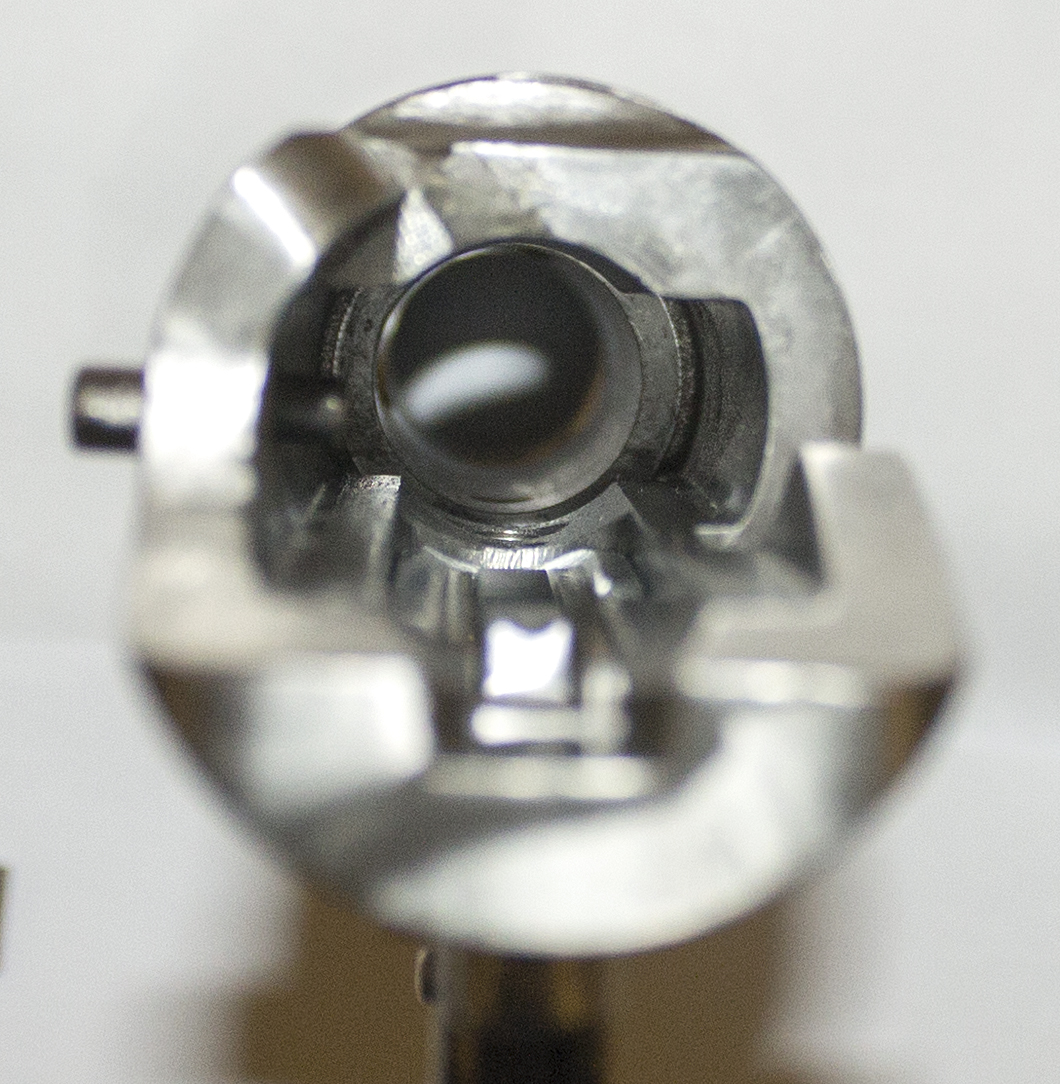

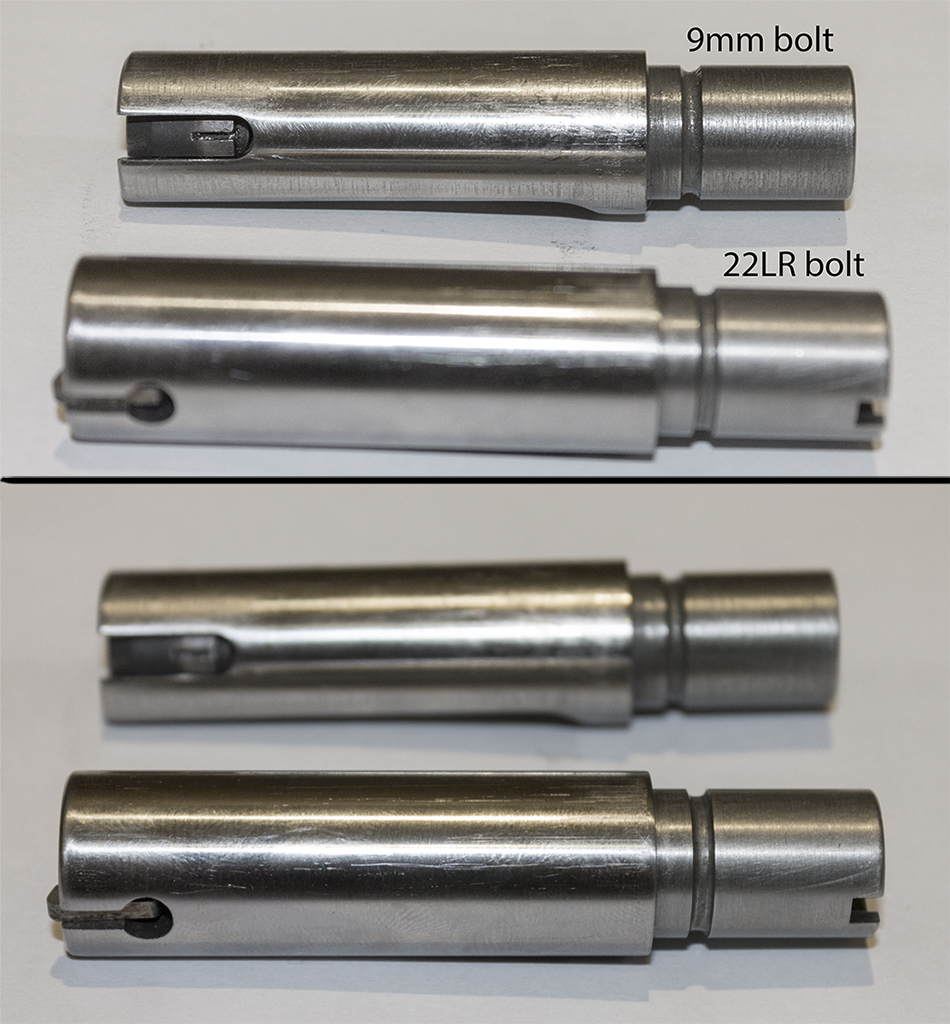

    Name:  22LR_godoy_01.jpg
Views: 501
Size:  978.2 KB

    Name:  22LR_godoy_02.jpg
Views: 521
Size:  1.52 MB

    Name:  22LR_godoy_03.jpg
Views: 510
Size:  1.36 MB

    Name:  22LR_godoy_04.jpg
Views: 500
Size:  1.12 MB

    Name:  22LR_godoy_05.jpg
Views: 491
Size:  792.5 KB

    Name:  22LR_godoy_06.jpg
Views: 481
Size:  559.6 KB

    Name:  22LR_godoy_07.jpg
Views: 485
Size:  598.1 KB

    Name:  22LR_godoy_08.jpg
Views: 496
Size:  1.05 MB
    veitnamcam, R93, ebf and 10 others like this.

  2. #2
    OPCz Rushy's Avatar
    Join Date
    Jun 2012
    Location
    Nor West of Auckland on the true right of the Kaipara River
    Posts
    25,979
    You buggers never cease to amaze me. I couldn't make a bed if my life depended on it yet here you are making bits for firearms.
    WallyR and Blisters like this.
    It takes 43 muscle's to frown and 17 to smile, but only 3 for proper trigger pull.
    What more do we need? If we are above ground and breathing the rest is up to us!
    Rule 1: Treat every firearm as loaded
    Rule 2: Always point firearms in a safe direction
    Rule 3: Load a firearm only when ready to fire
    Rule 4: Identify your target beyond all doubt
    Rule 5: Check your firing zone
    Rule 6: Store firearms and ammunition safely
    Rule 7: Avoid alcohol and drugs when handling firearms

  3. #3
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    2,567
    Clever bugger!

  4. #4
    Member
    Join Date
    Nov 2014
    Posts
    2,249
    Quote Originally Posted by Rushy View Post
    You buggers never cease to amaze me. I couldn't make a bed if my life depended on it yet here you are making bits for firearms.
    Technically that particular bit is considered A firearm, not a bit of one....

    Either way, it is awesome to see people developing these ideas. Would love to see the finished product.

  5. #5
    ebf
    ebf is offline
    little liberal gnome ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    4,403
    Awesome

    Would love to see more details about your software and machine setup.

    What is the reason for the bolts top to be printed and the rest CNC ?
    Last edited by ebf; 06-09-2018 at 10:41 AM.
    Viva la Howa ! R.I.P. Toby

  6. #6
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    566
    Nice work! I am looking forward to the rest of it.

  7. #7
    Member xring's Avatar
    Join Date
    Nov 2012
    Location
    AKL
    Posts
    209
    hey guys, thanks for the comments.

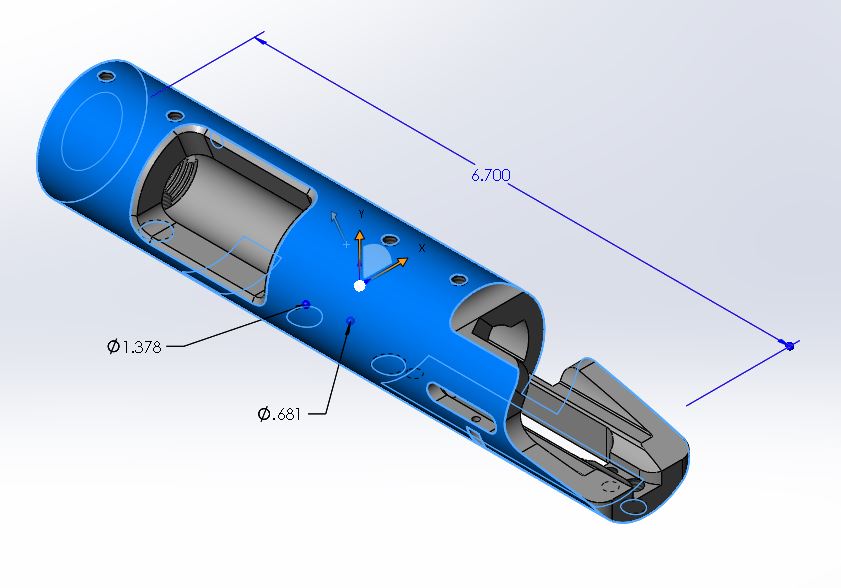

    ebf, the bolt STOP was 3D printed. Cheap, quick and lightweight and made to my specs. My friend has a CNC shop and I just designed it. Somewhat based on the Rem 40-X rimfire, but way shorter. And the raceways wont go all the way thru the receiver. It stops halfway in and done by sink EDM. Solidworks... nothing special.

    need critics from everyone here, either bad or good, so I can improve it.

    cheers

    Name:  dim.JPG
Views: 373
Size:  52.4 KB
    northdude and Cordite like this.

  8. #8
    Member xring's Avatar
    Join Date
    Nov 2012
    Location
    AKL
    Posts
    209

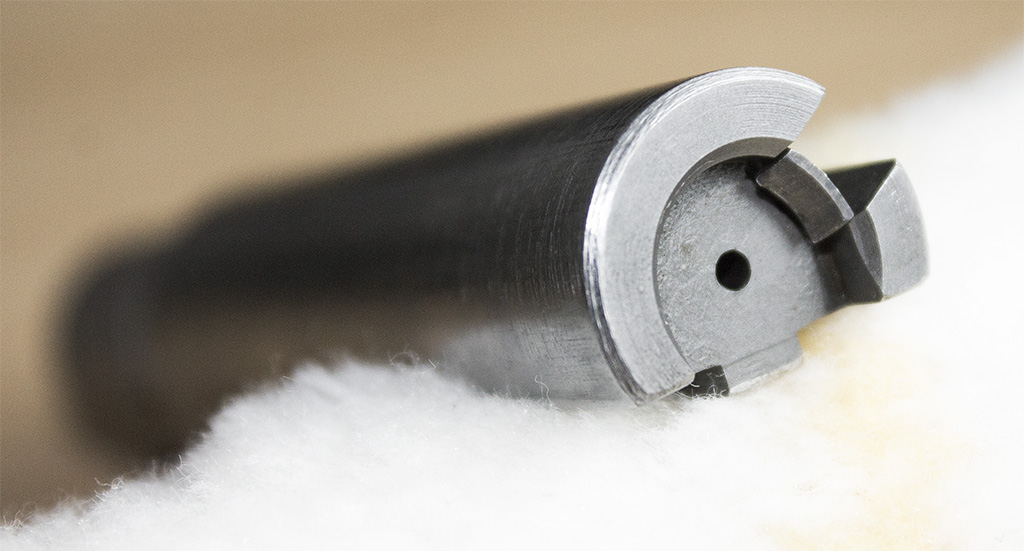

    front bolt of the 9mm

    Name:  rem_700_type_godoy_V09.jpg
Views: 365
Size:  159.1 KB
    Cordite likes this.

  9. #9
    ebf
    ebf is offline
    little liberal gnome ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    4,403
    very clever, i like the mid-locking design.

    what is the longest case you could theoretically use with that setup ?

    is the lug locking recess cut using EDM as well ?

    using the same firing pin for both bolts ? so, offset bore for the rimfire ?

    how does the bolt swap mechanism work ? I can see a groove on the rear of both bolt heads, but nit sure how it is retained in the bolt body. hope that makes sense.
    Viva la Howa ! R.I.P. Toby

  10. #10
    Member Wingman's Avatar
    Join Date
    Aug 2018
    Location
    Hamilton
    Posts
    201
    I can see a major flaw with it... its fixable but its not a small job...



    ......you didnt make a second 9mm one for me.....
    Gerbs, Tommy and timattalon like this.

  11. #11
    ebf
    ebf is offline
    little liberal gnome ebf's Avatar
    Join Date
    Jun 2012
    Location
    Hutt Valley
    Posts
    4,403
    @Wingman, get in line, he needs to work on the left-handed prototype first
    Viva la Howa ! R.I.P. Toby

  12. #12
    Member xring's Avatar
    Join Date
    Nov 2012
    Location
    AKL
    Posts
    209


    hey guys, thanks for that!!!
    I can make it work for any pistol case as well, but I would have to full length wire EDM and make the tenon larger in diametre.
    of course, adjust the extraction window and ejectors. locking lugs made by machining with a long carbide tool. different firing pins.
    for the front bolt swap, there are 2 little holes and cross pins pins on the back bolt lugs that hold them together, but allows me to rotate the bolt freely.
    the rimfire bolt is a PTG 40-X bolt.
    I have another project that I can post soon if there's enough interest.
    cheers

  13. #13
    Member
    Join Date
    Dec 2017
    Location
    Aberdeenshire, Scotland
    Posts
    37
    Thanks so much for posting the pics. I use solidworks too and really like it. You're lucky to have a friend with a machine shop!

  14. #14
    Member Cordite's Avatar
    Join Date
    May 2017
    Location
    NZ Mainland
    Posts
    1,423

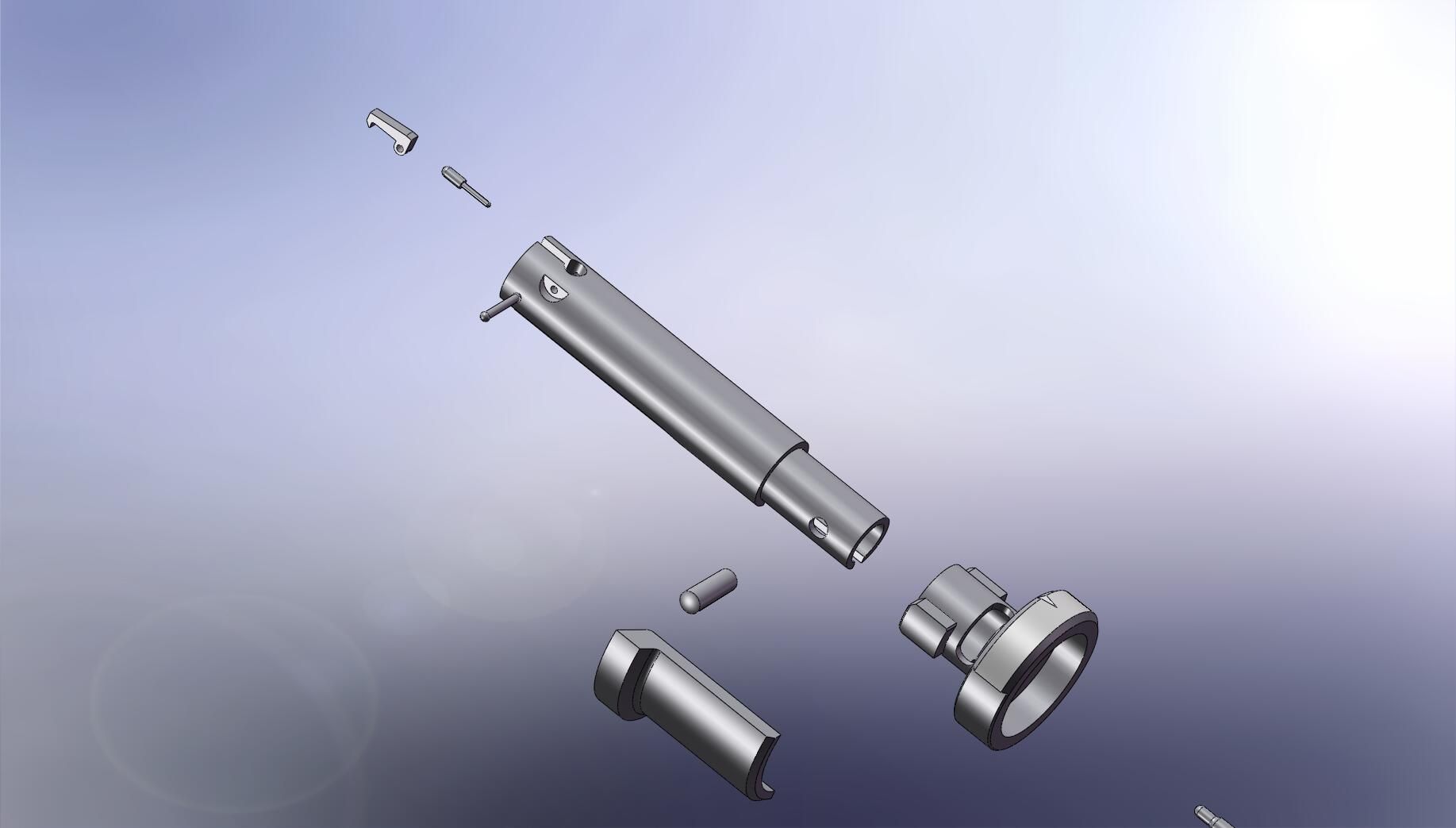

    Good idea to make rear locking to decrease bolt travel. How about dispensing with the bolt handle? (-:

    Name:  79e70864a12e3edbb209ce6e04b26d1e.jpg
Views: 340
Size:  58.4 KB
    Guns don't kill people - drivers do.

    The Hedgehog Preservation Society

  15. #15
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    566
    Quote Originally Posted by Cordite View Post
    Good idea to make rear locking to decrease bolt travel. How about dispensing with the bolt handle? (-:

    Attachment 94596

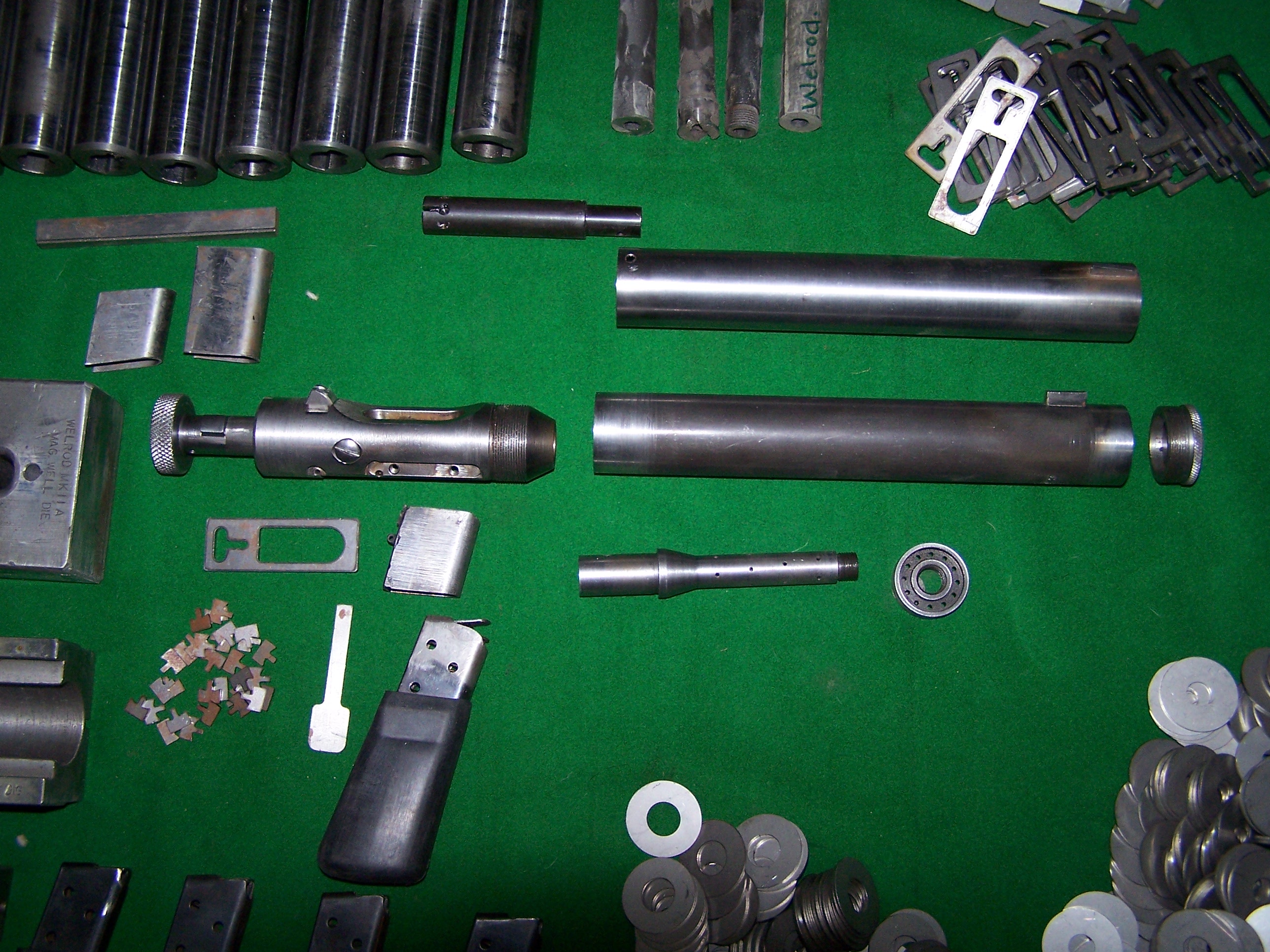

    Just like these ones I am making?
    Name:  100_0665.JPG
Views: 346
Size:  1.30 MB
    Bill999, Tommy, 40mm and 2 others like this.
