Thread: Making a magazine, just for the fun of it

  1. #1
    Member
    Join Date
    Jan 2016
    Location
    Omaru
    Posts
    365

    Making a magazine, just for the fun of it

    I had a go at making a double stack 410 magazine for an enfield project. Basically there is no way a 410 will feed from a 303 mag as it is so just to see how hard it is to make one I had a go...

    The metal is from the old nightstore heater and a bit thin at 0.8mm. I cut out a rectangle for each side and marked out some fold lines etc. To put the stiffening ribs in I cut a slot in a piece of 3mm flat and used a modified chisel in an air chisel (the first go just cut through).
    Then I just bent each shell and welded them together.
    Now due to a couple of mistakes and really just seeing if I could do it this one isnt usable (I put bends in the wrong place and made the front narrower than I was going to)

    Name:  20180225_202918[1].jpg
Views: 559
Size:  1.24 MBName:  20180225_202908[1].jpg
Views: 538
Size:  1.38 MBName:  20180225_151201[1].jpg
Views: 541
Size:  1.62 MB

  2. #2
    Member Marty Henry's Avatar
    Join Date
    Oct 2014
    Location
    Tararua
    Posts
    3,204
    Smart but I like your 410 cases best!

  3. #3
    Member Cordite's Avatar
    Join Date
    May 2017
    Location
    NZ Mainland
    Posts
    3,230
    @Chilli_Dog

    Brave project, doing something everyone says can't be done! (-:

    Maybe... keep your double stack magazine, but make it SINGLE FEED (like a sten gun magazine). Easier to get to work overall, and with single feed lips you can then have the top cartridge riding considerably higher, giving it a better chance to chamber. You could even design the magazine with the feed lips slanted upwards at a few degrees, for that extra chance of chambering, which will also help further to avoid rimlock, as per a standard .303 magazine. Anyway, with single feed magazine lips you would not encounter much rimlock.

    Single feed magazine lips do not accommodate stripper clip loading however. )-:

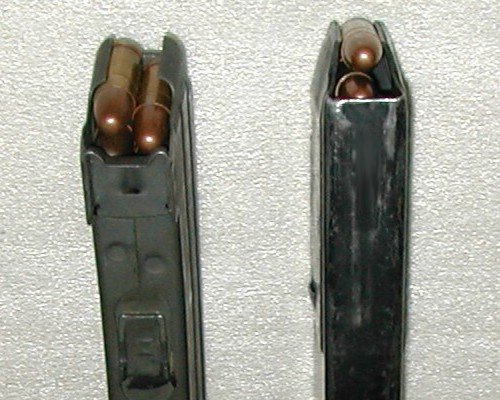

    To illustrate Sterling SMG mag with double feed lips on the left, Sten magazine with single feed lips on the right:

    Name:  sten7.jpg
Views: 551
Size:  56.4 KB

    Another note on how to make a good follower. As I recall, PA Luty advises to use a longtitudinally sectioned cartridge as the ideal shape to construct your magazine follower. If you go with the double stack + single feed idea, place the half cartridge centrally on the follower to enable it to support the final cartridge as it is held by the magazine lips. It will then also function as a bolt stop on an empty magazine, an improvement on the Lee Enfield!

    Good luck!
    Last edited by Cordite; 25-02-2018 at 10:26 PM.
    Barefoot, mikee and Tommy like this.

  4. #4
    Member Cordite's Avatar
    Join Date
    May 2017
    Location
    NZ Mainland
    Posts
    3,230
    Slept on it. Why not just alter the existing magazine to single feed? There is a lot of good engineering in it that you just won't waste, and it will mainly involve some brass soldering, but you may of course not get as many rounds into it.

    Blu tack on centre line of .303 magazine mag follower, stick a 410G shell on top centrally, try chambering it with the bolt. Once you get the correct height you know where to solder on the lips.

    Alternatively, looking at the Sterling SMG mag above, you can straigthen the current feed lips on the SMLE mag and add a pair of double feed lips that have the top round riding significantly higher than with a current SMLE mag. Would save you interfering with the magazine follower (though it would now still become a bolt stop when mag empty) .... and this might even give you an extra round magazine capacity, to offset any capacity lost by using the original mag!

    Keep us updated.
    Last edited by Cordite; 26-02-2018 at 10:15 AM.
    Tommy likes this.

  5. #5
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    849
    Keep at it! It is looking good. You have discovered one of the often overlooked facets of good firearm design. The humble and simple-looking successful sheet-steel magazine is actually a very tricky item to design and manufacture, not only in the design but also in the grade of steel that can be readily formed but still keep strength in the thin feed lips. I would concur that you will get much better results with a double-stack/single-feed system, as the blunt nose of the .410 cartridge will present real problems otherwise.

  6. #6
    Member
    Join Date
    Jan 2016
    Location
    Omaru
    Posts
    365
    I wrote a post this morning but it didnt work.
    Anyway the one I made was supposed to be a full double stack just to see if I could make one, there is no way it would fit in an Enfield, in some ways this was a success even though I marked it out and folded it wrong, and then forgot I was making it wider at the front (as opposed to the narrow front end of 303 mag).
    The idea is to make it kind of 1.5 stack at the top (which is essentially the 303 mag without the forward lips) which will be the same profile as the Enfield mag and taper out to a double stack before it comes out of the trigger plate (which will need modifying), I will make the feed lips longer (front to back) although this will require reliving the receiver a little bit, the only real reason for doing this is so a charger clip would work so it is really only for coolness if it works. If this doesnt work the feed lips can be extended to make it a single at the top.

    The original mag could possibly be modified to a single stack but would only hold 3-4 rnds and would need to be squared off on the bottom other wise the follower would jam up.

  7. #7
    Member
    Join Date
    Jan 2016
    Location
    Omaru
    Posts
    365
    More to what Gundoc was saying about the feed lip strength, I was surprised at how the Enfield lips are completely supported in the receiver. There was a lot of machining in thes things for a war time firearm

  8. #8
    Member
    Join Date
    Jan 2016
    Location
    Omaru
    Posts
    365

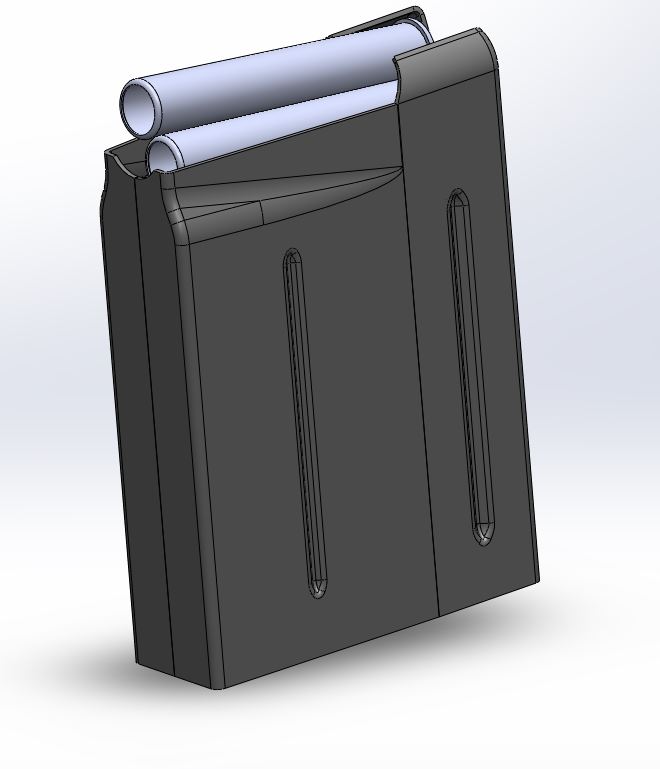

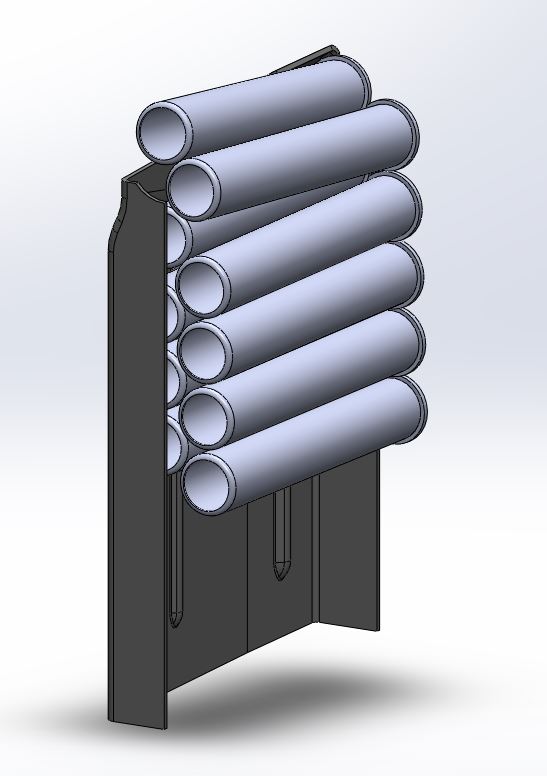

    This is hopefully what the next try will look like
    Name:  410 a.JPG
Views: 396
Size:  39.8 KBName:  410 b.JPG
Views: 387
Size:  42.6 KB

  9. #9
    Member Cordite's Avatar
    Join Date
    May 2017
    Location
    NZ Mainland
    Posts
    3,230
    Quote Originally Posted by Chilli_Dog View Post
    I wrote a post this morning but it didnt work.
    Anyway the one I made was supposed to be a full double stack just to see if I could make one, there is no way it would fit in an Enfield, in some ways this was a success even though I marked it out and folded it wrong, and then forgot I was making it wider at the front (as opposed to the narrow front end of 303 mag).
    The idea is to make it kind of 1.5 stack at the top (which is essentially the 303 mag without the forward lips) which will be the same profile as the Enfield mag and taper out to a double stack before it comes out of the trigger plate (which will need modifying), I will make the feed lips longer (front to back) although this will require reliving the receiver a little bit, the only real reason for doing this is so a charger clip would work so it is really only for coolness if it works. If this doesnt work the feed lips can be extended to make it a single at the top.

    The original mag could possibly be modified to a single stack but would only hold 3-4 rnds and would need to be squared off on the bottom other wise the follower would jam up.
    @Chilli_Dog

    I recall one Indian arsenal made a modification to the Sten Gun mag that virtually resolved jams in return for reduced capacity. They soldered a pair of brass welding rods along the magazine side walls, making it narrower, so the double stacking was steeper (??to the point of becoming single stack, not sure of that one).

    A SMLE mag could be modified in similar way, only to the point of making the stacking steeper (not quite single stack) and thus allowing use of the narrow-front mag.

    Anyway, any SMLE 410G shotgun with a five- to seven round stripper fed mag was still waaay cool last time I looked! (-:

  10. #10
    Member
    Join Date
    Nov 2014
    Location
    Central Otago
    Posts
    849
    I notice your CAD drawing does not make any allowance for correct rim stacking and the consequent forward curvature of magazine to allow for it. You will also need to incorporate a guide rib that follows the rear curvature of the mag to keep the rims 'on track' (as per Bren mags) to prevent rim locking. The follower also needs to be designed to keep even pressure on both the front and rear of the cartridges throughout its travel. If this does not happen then you will get 'nose dive' when the feeding pressure is exerted on the rim as the bolt closes.

  11. #11
    Member
    Join Date
    Sep 2012
    Location
    Your town
    Posts
    601
    People and companies have been trying to make a double stack shotshell mag that actualy works reliably for years now. If there was such a thing out there then you would see it being used by the gaming crowd. As has been pointed out already there are some quirks involved when making these things feed from a box. Get your hands on a saiga/vepr 12 mag and take a look at how the guides in the mag help to line up the shells.

    Mossberg have come out with a double stack box fed 590 this year so we will have to see how that one progresses.

    Good luck in your endevour, you may become a wealthy man if you succeed!

    MD Arms Patents Double-Stack Magazines for the Saiga 12 - Guns.com
    Last edited by Towely; 27-02-2018 at 11:07 AM.

  12. #12
    Member Cordite's Avatar
    Join Date
    May 2017
    Location
    NZ Mainland
    Posts
    3,230
    Quote Originally Posted by Towely View Post
    People and companies have been trying to make a double stack shotshell mag that actualy works reliably for years now. If there was such a thing out there then you would see it being used by the gaming crowd. As has been pointed out already there are some quirks involved when making these things feed from a box. Get your hands on a saiga/vepr 12 mag and take a look at how the guides in the mag help to line up the shells.
    Mossberg have come out with a double stack box fed 590 this year so we will have to see how that one progresses.
    Good luck in your endevour, you may become a wealthy man if you succeed!
    MD Arms Patents Double-Stack Magazines for the Saiga 12 - Guns.com
    @Towely

    The Saiga mag is to prevent rimlock occurring. The original specification for the .303 cartridge has a 45deg chamfer at the rear edge of the rims to avoid this problem. However, much .303 ammo does not have this rim chamfer, simply because the SMLE magazine is designed to avoid rimlock - by tilting the rear end of cartridges increasingly downwards as they go down in the magazine, almost as if sliding back off the magazine follower -- hence the rear-down shape of the SMLE magazine. Bloke On The Range has an interesting YouTube video on Rim Jam, why it is not a problem. Saying that, I have put a lot of cases through the lathe to do a quick chamfer.

    Last edited by Cordite; 27-02-2018 at 01:27 PM.

  13. #13
    Member
    Join Date
    Jan 2016
    Location
    Omaru
    Posts
    365
    Hmmm maybe I should have asked google before I started, I didnt realise it was considered so hard to do!
    Anyway after playing with the body I made and a Mauser follower and spring (cause its all I have) and reading Gundocs post the body I made cant work, infact the front of the mag actually needs to be wider than the back to get the rims in the right angle to each other because there is no case taper to help.
    The ribs down the Enfield mag are in very deliberate positions.... The front rib holds the cartridge back on by the shoulder.

    That Said I dont think it is impossible or even too hard to prevent rim lock, especially with the 410 as opposed to a 12g. The mag will have to have single feed lips as high as possible though, the 410 has no taper or point to help it align with the chamber so it will need to be as close as possible to the correct orientation.

    That Patent is kind of interesting and proably similar to what I will end up with, although I would rather have it looking more like the Sten setup. After a bit of looking on the net it also looks like a ZB39 8x56r mag would be pretty close to feeding a 410 as well

  14. #14
    Member Cordite's Avatar
    Join Date
    May 2017
    Location
    NZ Mainland
    Posts
    3,230
    @Chilli_Dog

    A brass welding rod down left and right, riding atop the rear inside ridges of SMLE mag, and your SMLE mag effectively has rectangular geometry - and with sideways allowance for the extra width of the shotshell rims. It would still allow a (steep) double stack, but <10 rounds and double feed to use stripper clips.

    Whatever feed lips you then create, single or double, can then also be narrower too with no filing of the SMLE itself required.

  15. #15
    Member
    Join Date
    Jan 2016
    Location
    Omaru
    Posts
    365
    Quote Originally Posted by Cordite View Post
    @Chilli_Dog

    A brass welding rod down left and right, riding atop the rear inside ridges of SMLE mag, and your SMLE mag effectively has rectangular geometry - and with sideways allowance for the extra width of the shotshell rims. It would still allow a (steep) double stack, but <10 rounds and double feed to use stripper clips.

    Whatever feed lips you then create, single or double, can then also be narrower too with no filing of the SMLE itself required.
    It might work but it would only be single stack and the lips would need extending (and I only have one magazine and that goes with a gun that still works) the front is too narrow for the 410 to be anything other than single stack. The rim of the 410 is the same as the 303 so the back end isnt really a problem.

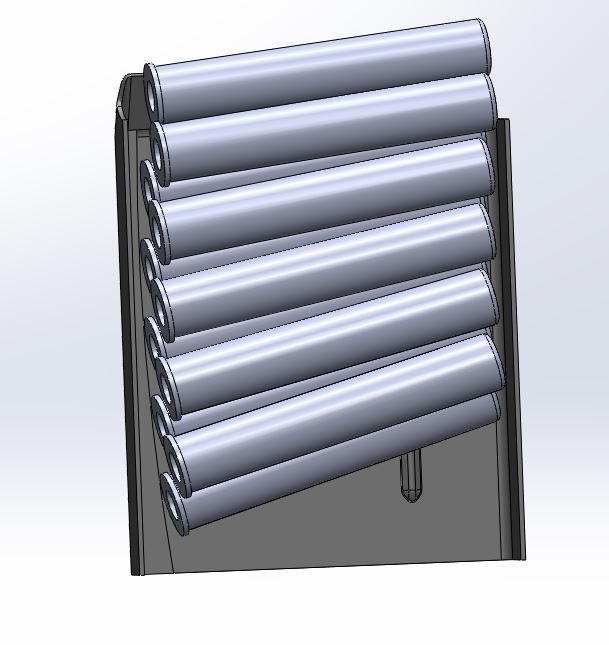

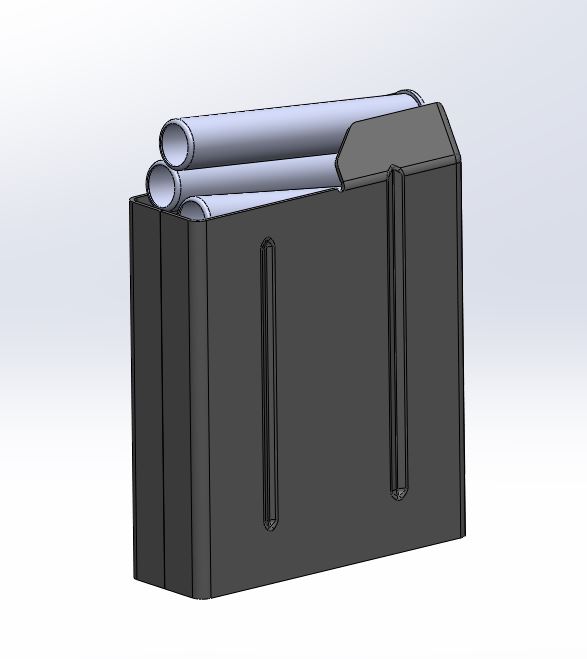

    Name:  410 V5a.JPG
Views: 301
Size:  50.4 KBName:  410 V5b.JPG
Views: 298
Size:  28.2 KB

    If I go completely box shaped they look like they will stack ok, instead of a hamerformed track to hold the rims back I figure it will be easier to weld in separate plates in the back-sides of the magazine to control the rim, there is still a bit of scope to get some more "bend" in the stack by making the front wider. This may require a bit of trimming in the receiver to fit and will be pretty critical to get the mag height into the receiver correct
