Thread: rifle bedding kit

  1. #16
    Almost literate. veitnamcam's Avatar
    Join Date
    Dec 2011
    Location
    Nelson
    Posts
    17,516
    Quote Originally Posted by Chilli_Dog View Post
    That is true, jb weld is a steel filled epoxy which is very similar to steel filled devcon......
    Well maybe.. .if you choose a steel filled grade.
    My tires are made of steel and rubber but are probably not the same as your tires made of steel and rubber or they would all be the same price and all do the same job....unless they were made of hot glue or duct tape or some other leading tire making compounds eh?

    Sent from my SM-A320Y using Tapatalk
    Rule 3: Load a firearm only when ready to fire

    Chicken Intolerant.

  2. #17
    Member Sideshow's Avatar
    Join Date
    Apr 2015
    Posts
    2,705

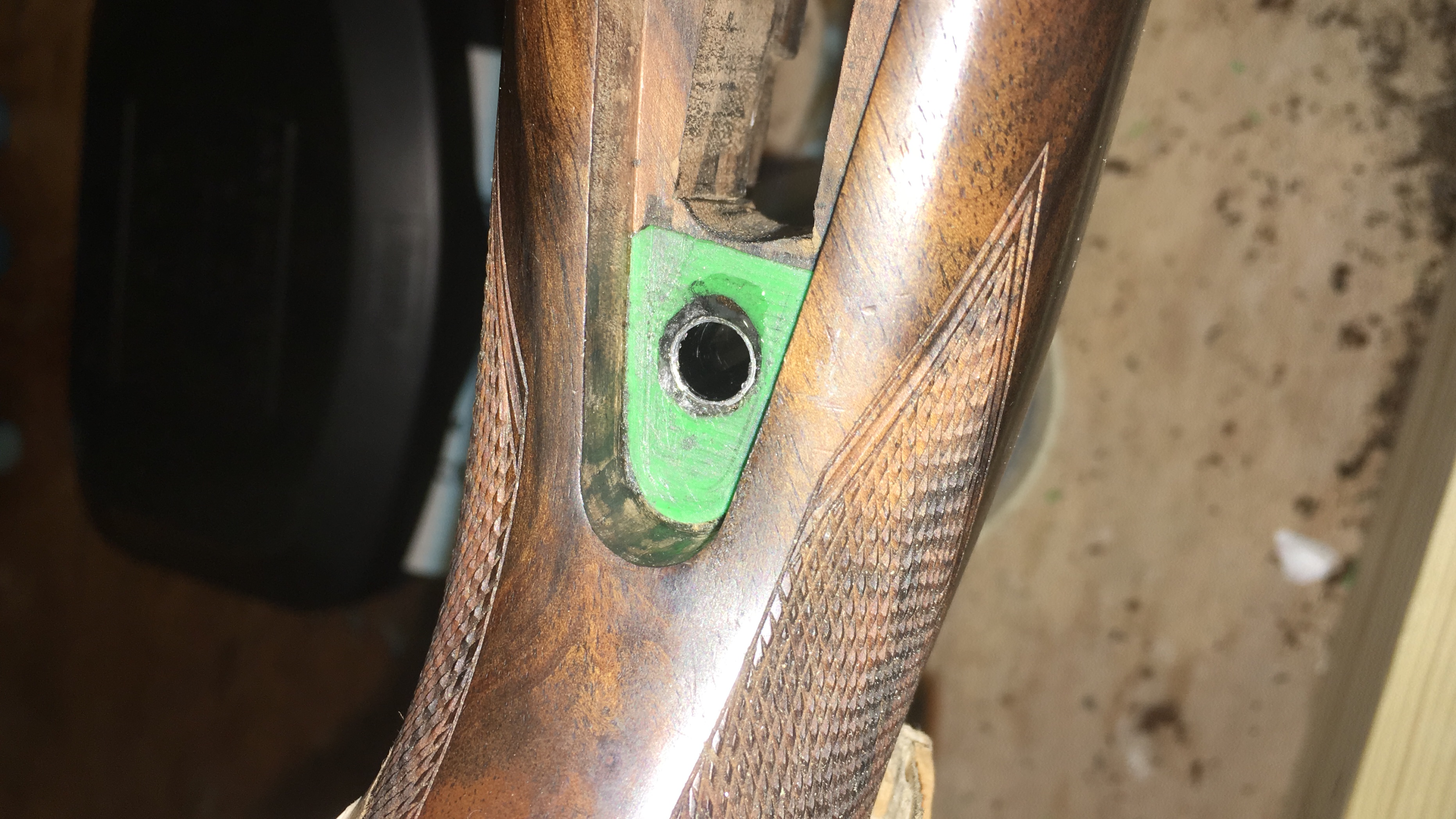

    Just started on Mine here’s the steel pillars in place.
    Name:  CD3FE4FB-72C4-4945-985C-72E97C1EC0B3.jpeg
Views: 92
Size:  1.57 MB
    It's all fun and games till Darthvader comes along

  3. #18
    Member Brian's Avatar
    Join Date
    Dec 2011
    Location
    Upper Hutt
    Posts
    529
    csmiffy I can post you some norski epoxy filler.
    csmiffy likes this.

  4. #19
    Member
    Join Date
    Jan 2018
    Location
    kaiapoi
    Posts
    283
    @Sideshow mine has little tube pillars in it already but thinking of making new bigger ones. Wood around the rear one has settles and the action can rock in the stock-sort off. Need to get it on a level playing base as it were, before I even start to bed it. @Brian that is a great offer-big question is how much? Is it available locally?

  5. #20
    Member Walker's Avatar
    Join Date
    Dec 2011
    Location
    Mangawhai
    Posts
    166
    A trick I've used that works pretty well is replace the rear tube with a bolt or threaded rod(10mm works well) the same lenght, that you've centre drilled out to a gnats cock bigger then the rear screws diameter. Tap stock for bolt, cover bolt in epoxy and screw into tapped rear hole till it is flush with the bottom of the trigger guard inlet. You can do the same for the front or use the rear as the locating screw and put some bedding compoud around the recoil lug.

  6. #21
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    1,419
    arrow shaft works well for pillars.
    Sideshow likes this.

  7. #22
    Member
    Join Date
    Jan 2018
    Location
    kaiapoi
    Posts
    283
    @Walker I was thinking along much the same lines actually. I was going to knock the rear tube out and make one the same length. that will give me a good height base to work the bedding compound to.

  8. #23
    Member Walker's Avatar
    Join Date
    Dec 2011
    Location
    Mangawhai
    Posts
    166
    This for a Parker hale isn't it? The old stocks shrink with age so if you use the bottom metal inlet as your "0" plane, it will hold the action up 0.5 to 1mm allowing plenty of room for bedding compound.

  9. #24
    Member Sideshow's Avatar
    Join Date
    Apr 2015
    Posts
    2,705
    Quote Originally Posted by Micky Duck View Post
    arrow shaft works well for pillars.
    I've used a crossbow bolt, there cheaper you might be hard pressed to now find aluminium arrow shafts.
    Bernie likes this.
    It's all fun and games till Darthvader comes along

  10. #25
    Member
    Join Date
    Feb 2014
    Posts
    627
    Marinetex is a top grade product, better than most commercial bedding compounds. Nice to use and super stable.

    Have a read from someone who really knows:
    What Are the Best Bedding Materials? Speedy Speaks « Daily Bulletin

  11. #26
    Member
    Join Date
    Jan 2018
    Location
    kaiapoi
    Posts
    283
    Quote Originally Posted by Walker View Post
    This for a Parker hale isn't it? The old stocks shrink with age so if you use the bottom metal inlet as your "0" plane, it will hold the action up 0.5 to 1mm allowing plenty of room for bedding compound.
    @Walker no cough cough... this is another project and far more likely to work as the barrel isn't complete poose and it has a bolt lol. Its a BSA Model E 303, a commercial rejig of a P14

  12. #27
    Member
    Join Date
    Jan 2018
    Location
    kaiapoi
    Posts
    283
    @6x47 tried looking up that stuff, gets good reviews but hard to get unless you have someone do it for you.
    all the devcon stuff that might do is somewhere between 150-200 bucks for a 500g tub. Otherwise I'd have to buy a couple of the syringe tube jobbies. That would be around 50 bucks.

  13. #28
    Member Micky Duck's Avatar
    Join Date
    Apr 2015
    Location
    Geraldine
    Posts
    1,419
    Quote Originally Posted by Sideshow View Post
    I've used a crossbow bolt, there cheaper you might be hard pressed to now find aluminium arrow shafts.
    I sent message to guy selling alloy arrows on trademe who offered to cut them to length needed,he more than happy to help and sent me envlope full of OFF CUTS...you know the extra couple of inches that would otherwise go in recycling bin......
    csmiffy likes this.

  14. #29
    Member Walker's Avatar
    Join Date
    Dec 2011
    Location
    Mangawhai
    Posts
    166
    @cmiffy Yep got one in the safe chambered in 30/350 magnum plus an action setup for holland and holland.
    csmiffy likes this.

  15. #30
    Member
    Join Date
    Jan 2018
    Location
    kaiapoi
    Posts
    283
    @mickey Duck good idea about the offcuts-inspired.

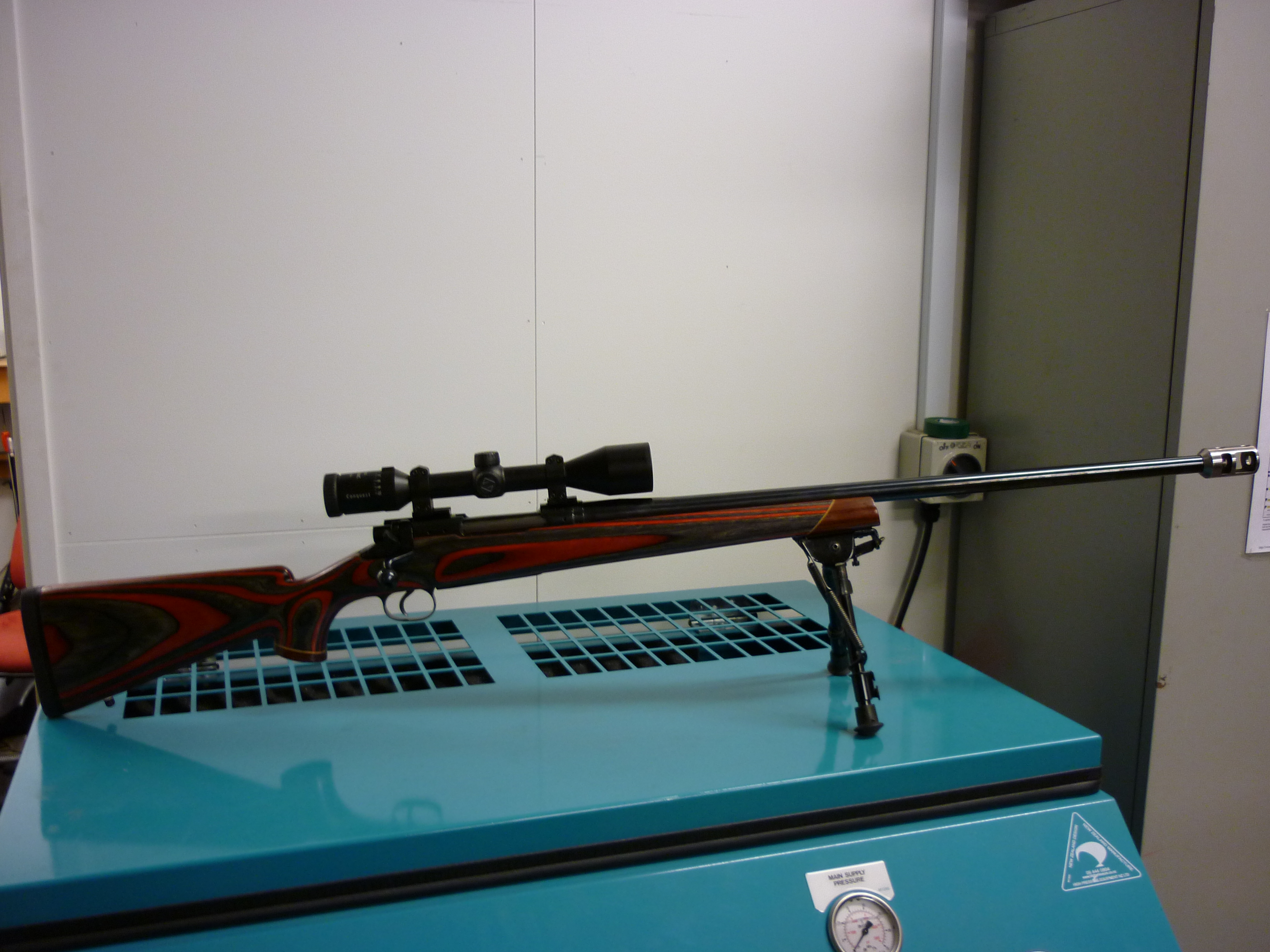

    @Walker I just had to look up the 30-350. Interesting and probably an easier way to get a P14 style action into a better 30 cal than rejigging it into a 3006. My friendly gunsmith from the gun club who is helping me with the scope mounts etc has one in a 375 h+h.
    Loads 300grainers as fast as he can make them go, muzzle brake of course. tack driver. he calls it the bunny buster. Mine is a looooong way from looking like that.
    But I digress-keep the bedding kit advice coming if there is any more info to be had
    Name:  375 h+h.JPG
Views: 30
Size:  3.52 MB

    His one obviously
